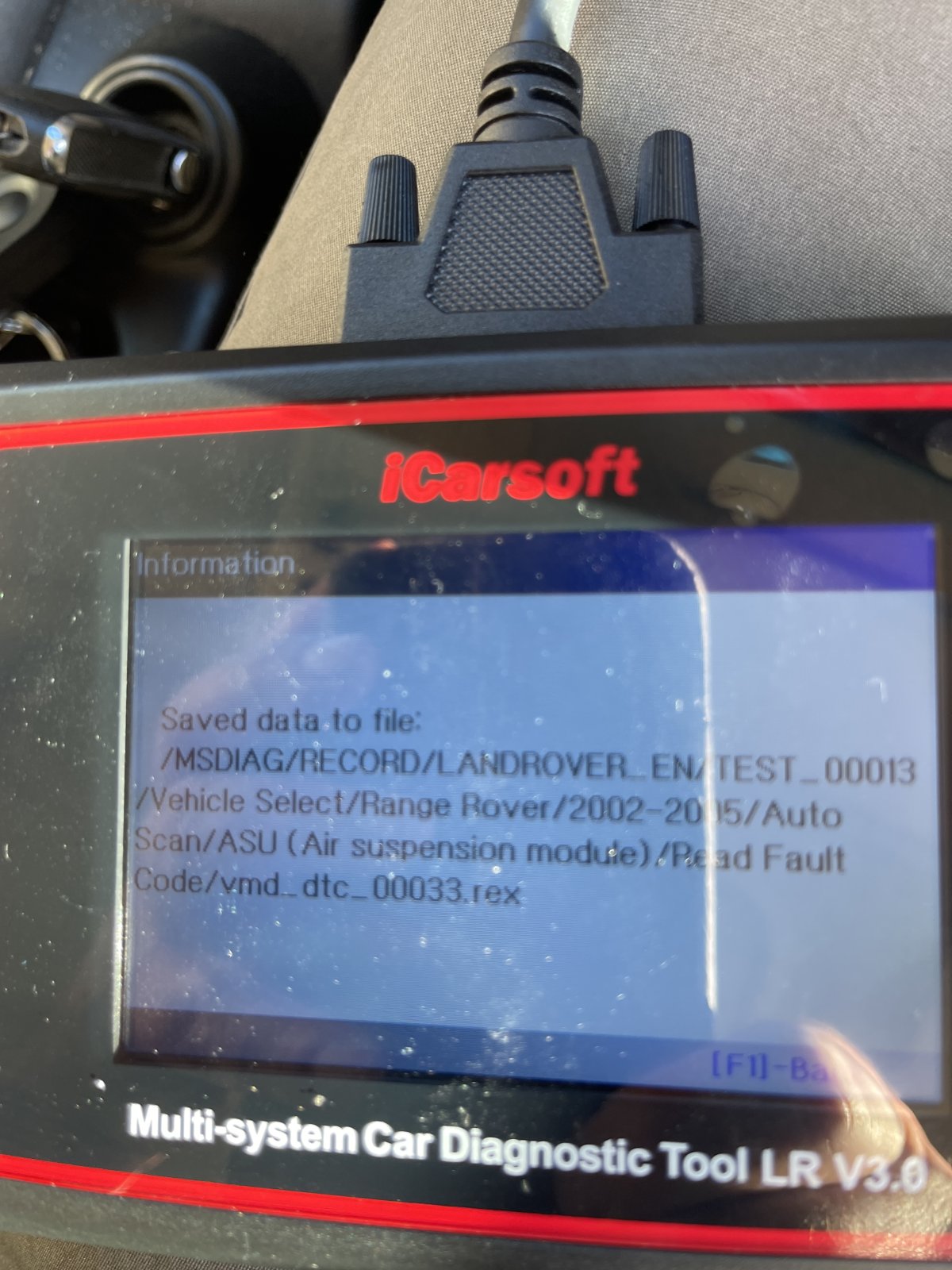

Hi all, I’ve been having a problem with the air suspension on my 3.0 2005 l322, it’s gradually getting worse, I’ve got the icarsoft scanner and it’s saying “too much energy for regulation needed left rear”… does anybody know what this means?? All help appreciated TIA
L322 suspension woes
- Thread starter Frenner
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Datatek
Well-Known Member
- Posts
- 45,011
- Location
- Near Poitiers SW France
Leaking air spring or a duff height sensor maybe
Attachments
brianp38dse
Well-Known Member
- Posts
- 20,093
- Location
- heathrow
If the offside one is same age get both done, the other will not be far behind.
Datatek
Well-Known Member
- Posts
- 45,011
- Location
- Near Poitiers SW France
As above, plus they should always be changed in pairs or there may be adverse effects on the handling.
Datatek
Well-Known Member
- Posts
- 45,011
- Location
- Near Poitiers SW France
There will be a very noticeable effect on handling if the second one fails at speed
In an ideal world I guess I should change all 4, as I’ve only owned the car for 10 months I’m not sure if they are all the same age, and with everything else considered I’m not throwing money at the car, just repairing things as they go wrong…. I drove the car from Chichester to Kent with the near side airbag completely deflated, the only effect was that the car pulled slightly to the left, on motorway and country roads no difference….
Update.......this is getting strangerer and strangerer..... car had to go back to garage to have new pipe fitted to new air bag...no big deal, after fitting the car went into extended mode, the garage couldn't reset or calibrate or even lower the suspension, they said that the front valve block had been removed, so they couldn't deflate off side front, and every time they started the car it raised to extended mode... I had to drive it home like this ( not recommended )

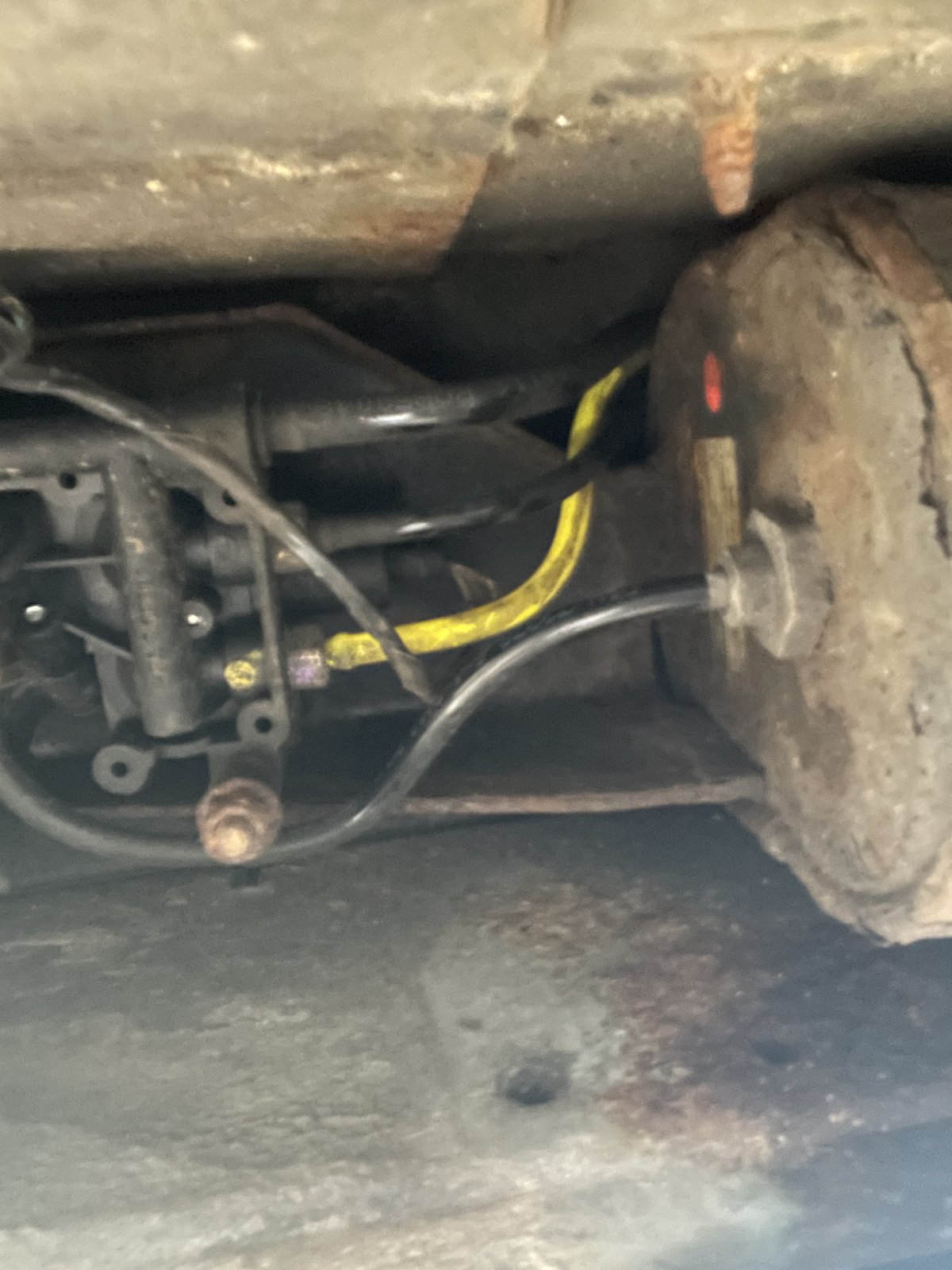

Since searching, there is indeed no valve block in the front wheel arch, however, there is one next to the air tank.... I'm confused no, anyway, by cracking off the air pipes I managed to lower the car, however, on starting the compressor kicks in and it goes straight back into extended mode help please ....I do love this car, but I haven't got money to throw at it, any help would be appreciated, cheers fellas
Since searching, there is indeed no valve block in the front wheel arch, however, there is one next to the air tank.... I'm confused no, anyway, by cracking off the air pipes I managed to lower the car, however, on starting the compressor kicks in and it goes straight back into extended mode help please ....I do love this car, but I haven't got money to throw at it, any help would be appreciated, cheers fellas

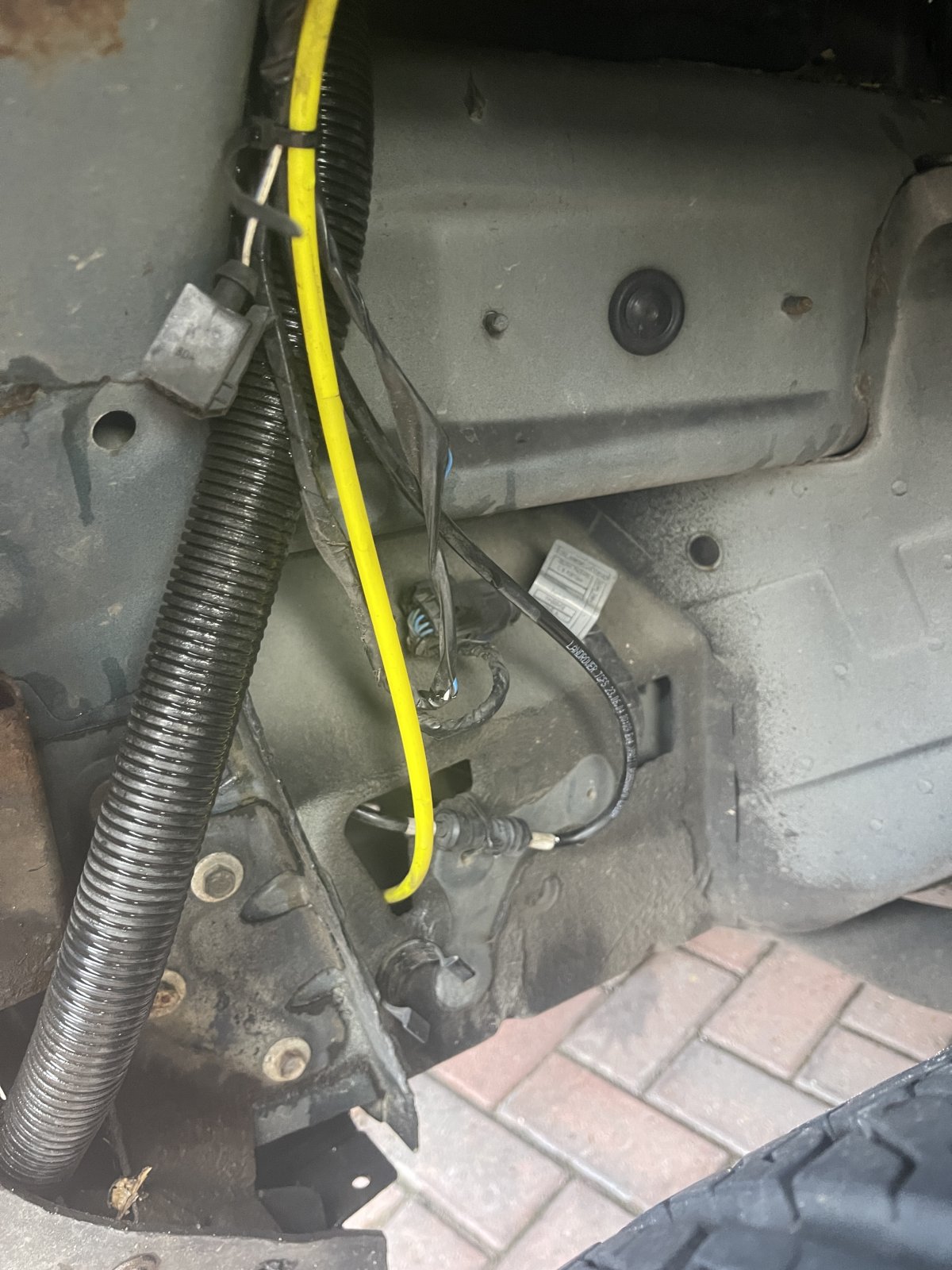

Will do, I’ll get some pics tomorrow, thanks for the reply, much appreciated
Well until you get a crosslink valve ,I would say you will struggle.
How it has managed this far I have no idea.
J
Same here, but to be honest, until the garage changed the near side airbag it was working ok… they can’t explain it either!!!
At the moment I’ve got the car at a nice level by releasing air from the valve at the rear and the one attached to the air reservoir, I’ve removed the fuse controlling the compressor, and it’s driving fine, if i connect the compressor, then the suspension will just go back into extended mode… but only if I set the suspension for access mode, if I try to put it into off road mode, the light just flashes forever, and no matter where the suspension is sitting, the car always thinks it is at normal height….
At the moment I’ve got the car at a nice level by releasing air from the valve at the rear and the one attached to the air reservoir, I’ve removed the fuse controlling the compressor, and it’s driving fine, if i connect the compressor, then the suspension will just go back into extended mode… but only if I set the suspension for access mode, if I try to put it into off road mode, the light just flashes forever, and no matter where the suspension is sitting, the car always thinks it is at normal height….
