rear axle flange removal.discovery 300tdi

vivnap · Dec 29, 2009

how does the drive flange on the rear axle come off

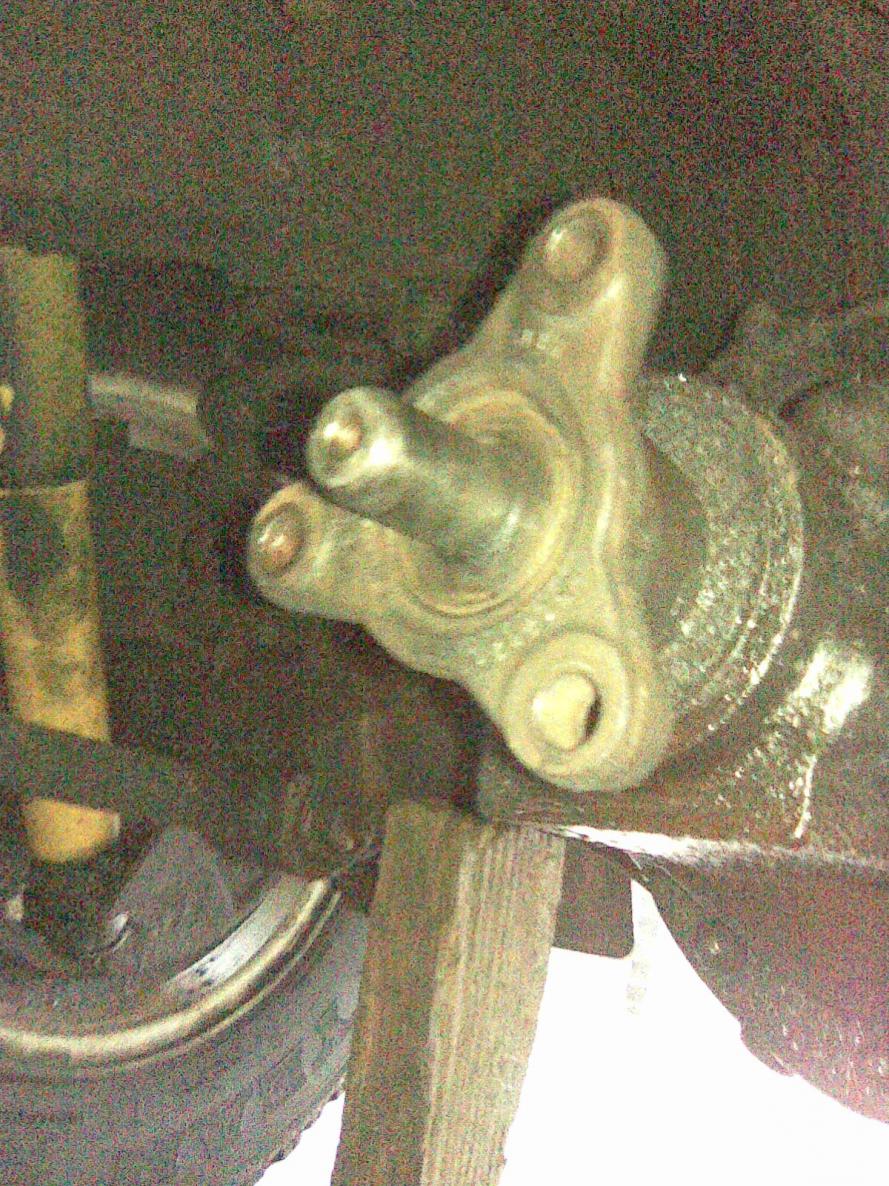

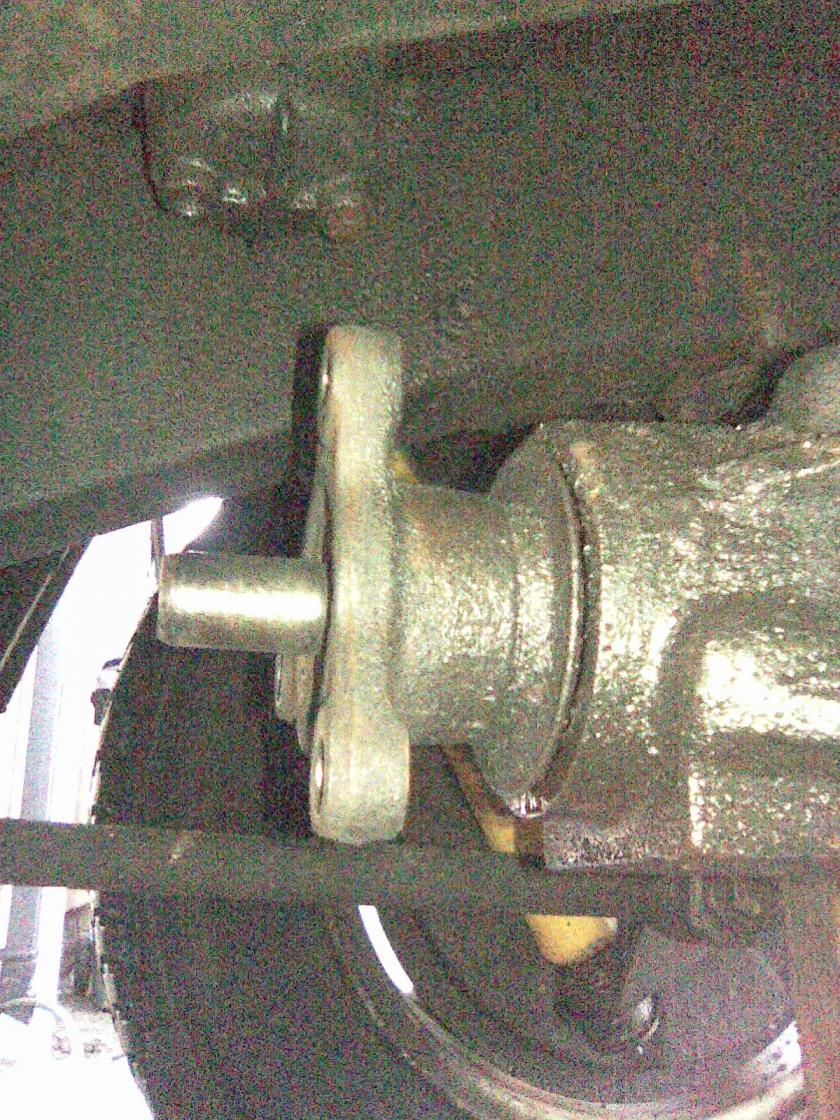

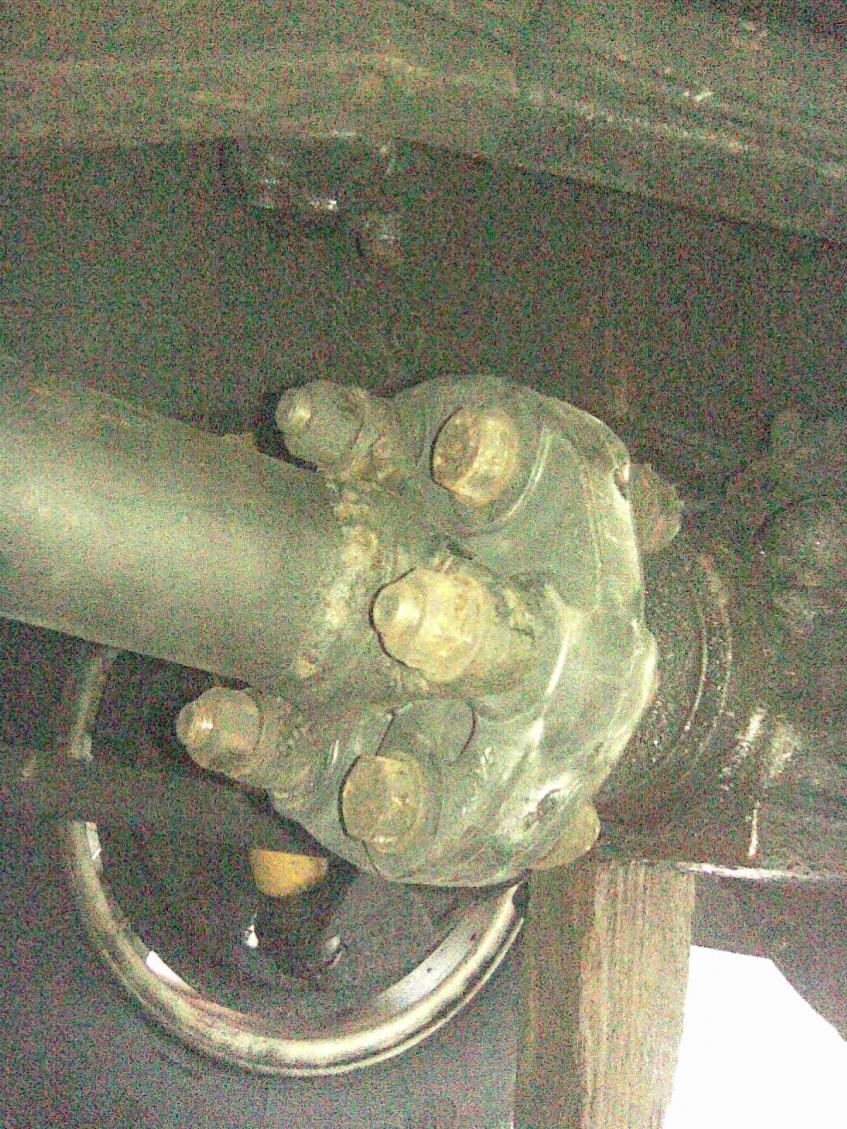

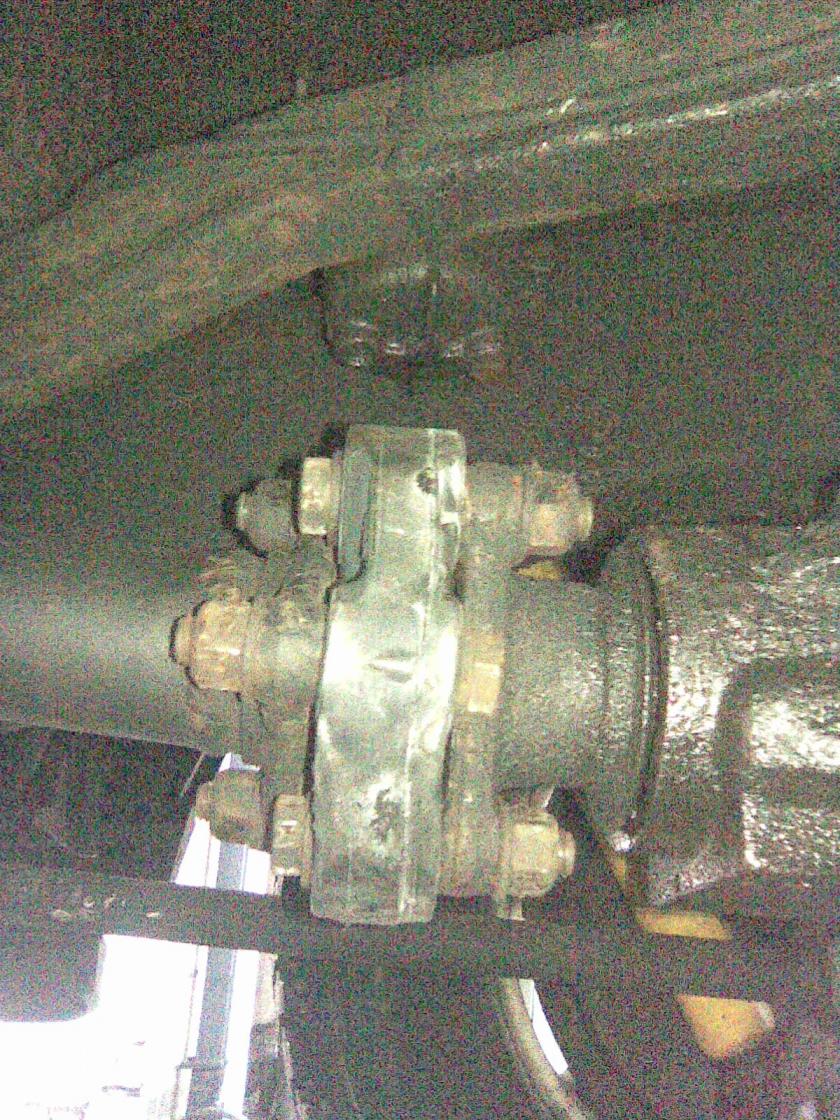

i expected a nut to be in the center of the flange but when i had removed the prop shaft and the rubber doughnut there was the flange with a shaft sticking out of it ?

if any one can shed any light on how to get the flange off i would appreciate it cos this is doin my head in and i cant find any information on this other than a nut on the center which as the pics show aint there and i have never seen this before :doh:

ssmn1234 · Dec 29, 2009

vivnap said:
how does the drive flange on the rear axle come off i expected a nut to be in the center of the flange but when i had removed the prop shaft and the rubber doughnut there was the flange with a shaft sticking out of it ?

if any one can shed any light on how to get the flange off i would appreciate it cos this is doin my head in and i cant find any information on this other than a nut on the center which as the pics show aint there and i have never seen this before :doh:

You need to get puller onto centralising peg, the thingy that is poking outa flange, in behind it is a nut.

Sean · Dec 29, 2009

Rear diff pinion seal on 300TDI Discoveries - LR4x4 - The Land Rover Forum

vivnap · Dec 29, 2009

much appreciated sean

tis easy when ya know how !

i spent near on an hour searching forums to find out how to do it but could only find information about the nut in the center of the flange.

cheers mate

jimbodisco · Dec 29, 2009

i wound in a long bolt in the hole in the centre and it pushed the the whole lot out.
was a bit of a headache till i worked it out.
you fitting a 200tdi rear shaft?? no more rubber dognut!
done that with mine!!
much better.. no more shredding rubber dognuts.
james.

discool · Dec 29, 2009

Or later 300 V8's they don't have "doughnuts" either

welditup · Dec 31, 2009

hi i had the same prob i tryed a 10 ton puller on it did not move had to take it to land rover to do the job £80 for hour &half good luck

martinhollings · Dec 31, 2009

some come out easy some dont if it dont then a bit of heat does the trick
