Re-Discovery

Discussion in 'Members Vehicles/Projects' started by 1988smithy, Feb 27, 2019.

< Previous Thread | Next Thread >
  1. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,394
    Likes Received:
    6,984
    Location:
    Swanley , Kent
    Hi guys

    May i ask a daft question please , do u have to fit new propshaft bolts when refitting a prop plse

    Thks as always

    Great work there @1988smithy , take my hat off to u as I know these components arnt exactly lightweight

    Top job and looking forward to more piccies :)

    marjon and 1988smithy like this.
  2. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    8,473
    Likes Received:
    6,123
    Location:
    Back in the UK, Sunny Hampshire.
    Great question and thus far I have not got the foggiest, I have seen the old ones put back in but I suppose it depends on the torque as it would stretch the bolts and several uses could see them un serviceable surely?

    marjon, 1988smithy and gstuart like this.
  3. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,937
    Likes Received:
    1,894
    Location:
    West midlands
    Prop bolts should always be replaced, best practice :) bet they don't most times though!

    It says in the books you need to mark the prop position in relation to each flange but only if you're refitting the old prop. I've always thought that was weird, if its a new prop do you just slap it straight on?

    gstuart likes this.
  4. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,394
    Likes Received:
    6,984
    Location:
    Swanley , Kent
    Many thks and always grateful for the replies

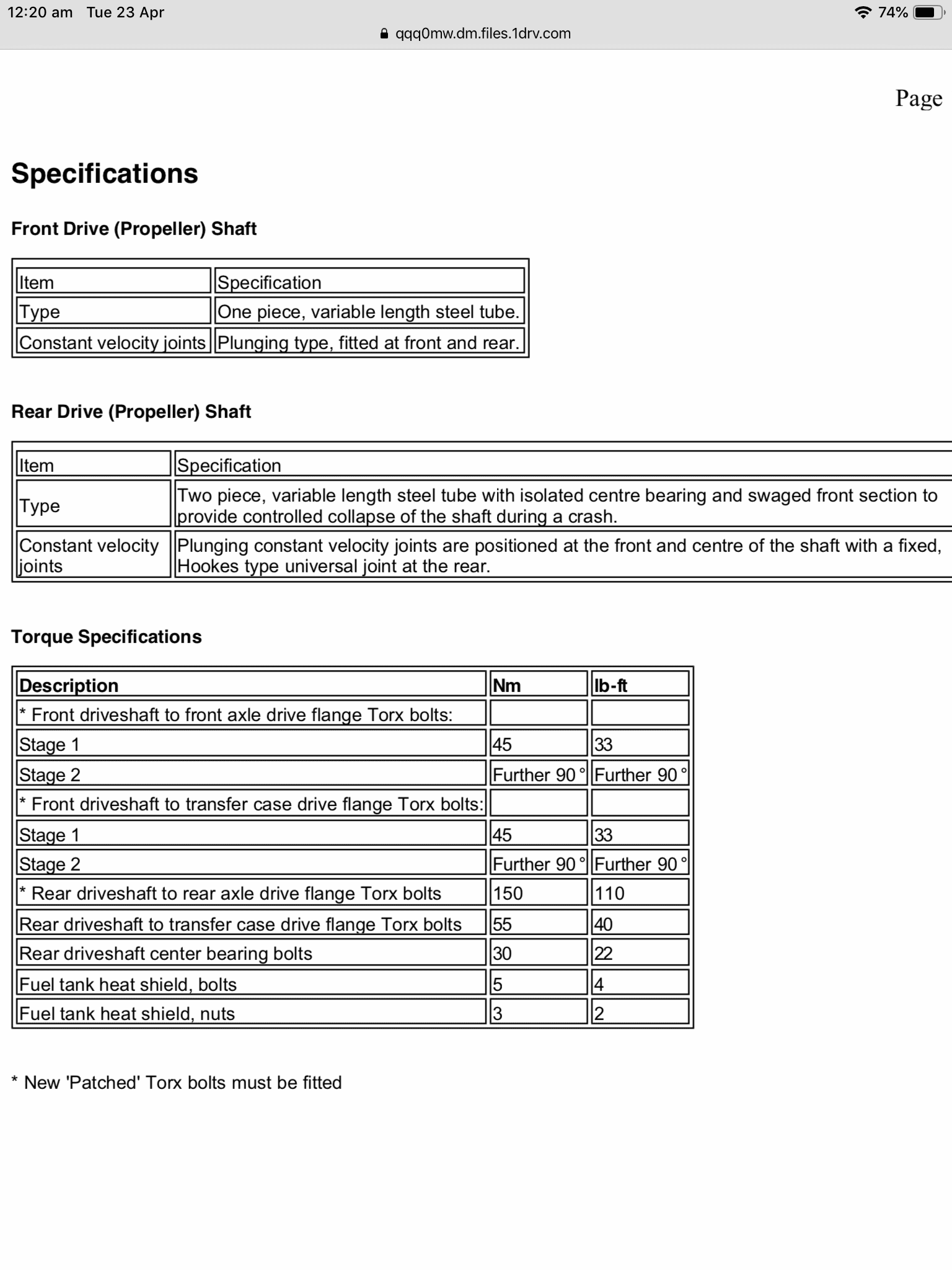

    Was bugging me so found the torque sheet for the D3


    1988smithy likes this.
  5. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,394
    Likes Received:
    6,984
    Location:
    Swanley , Kent

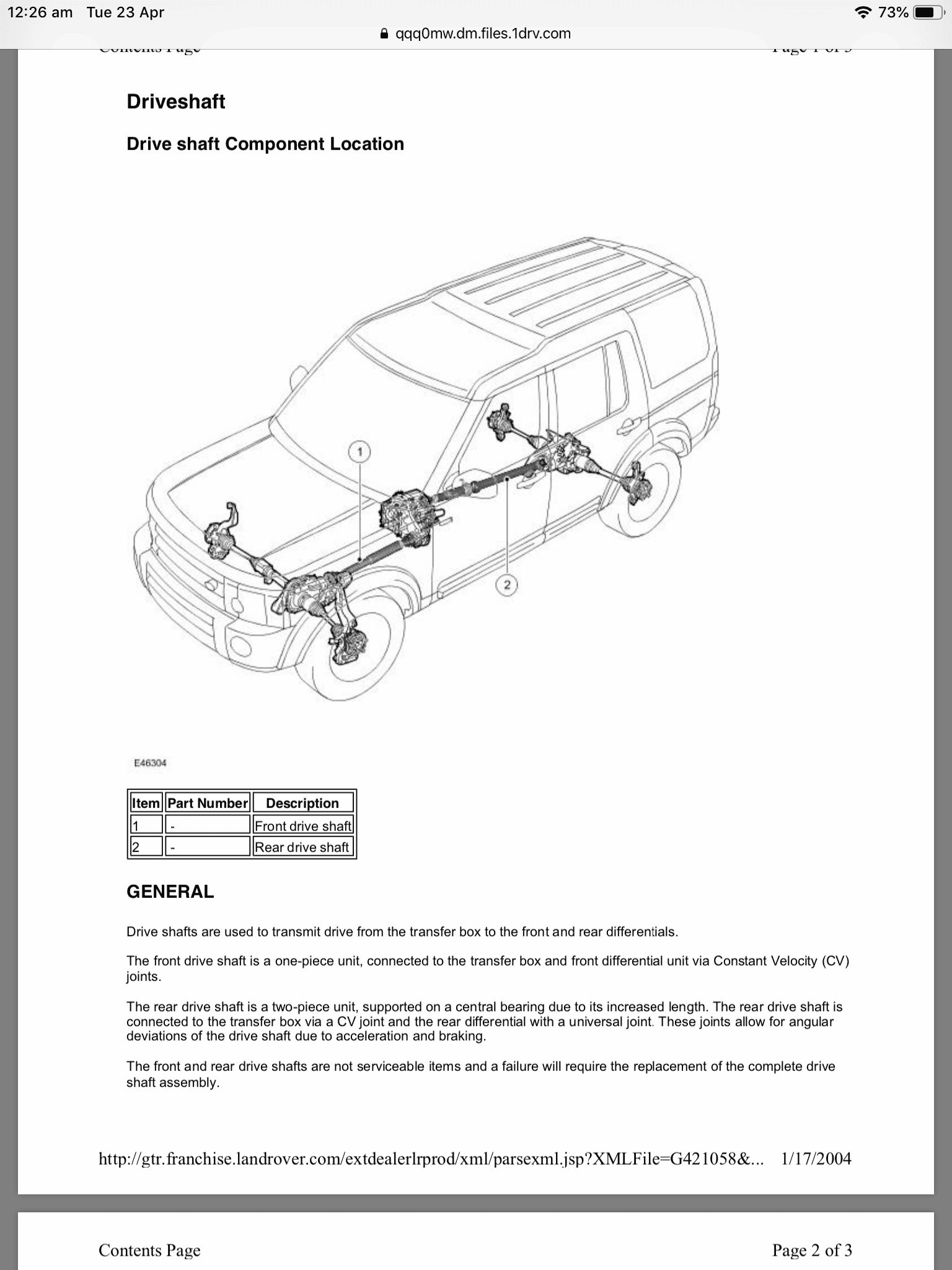

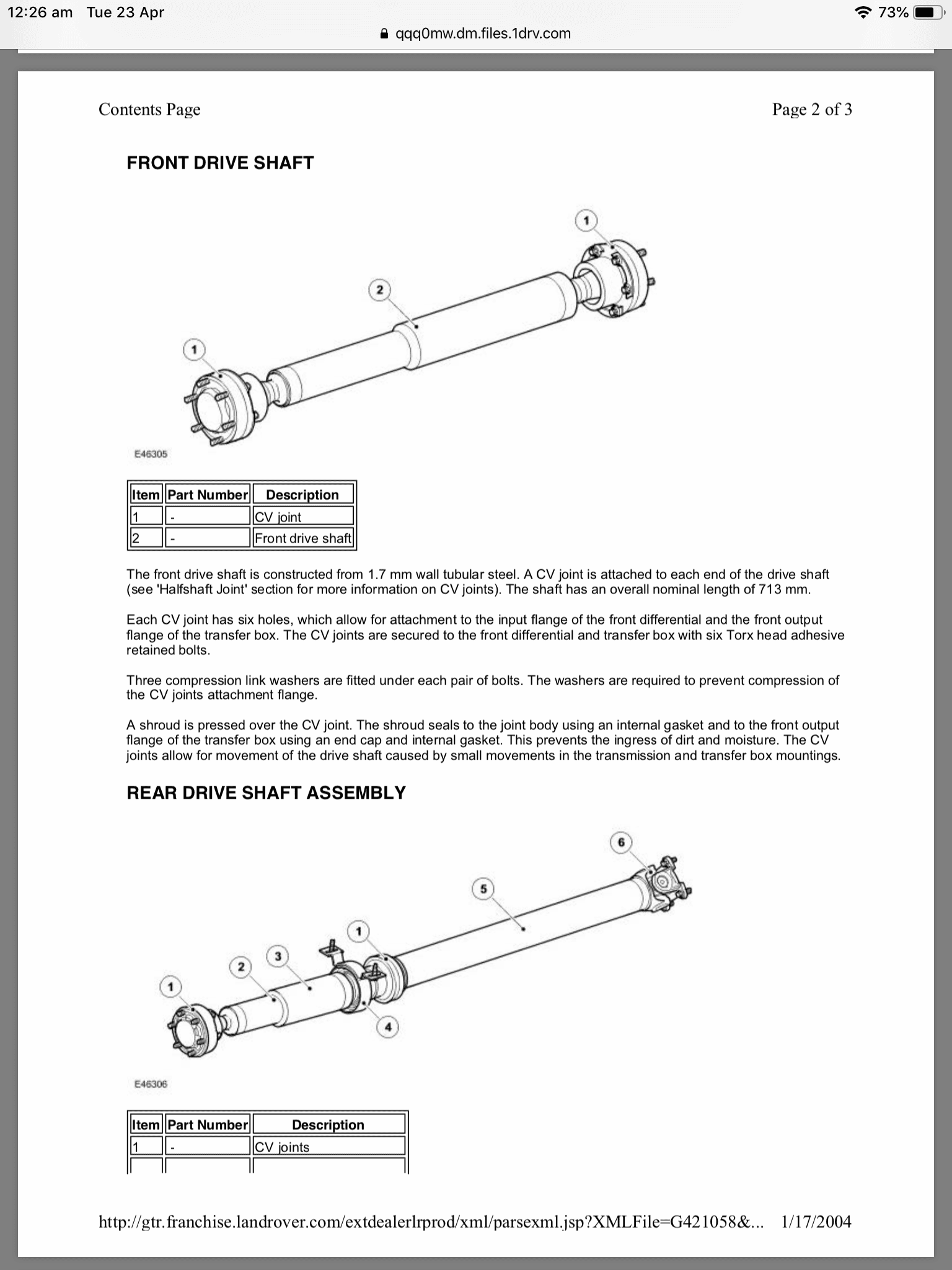

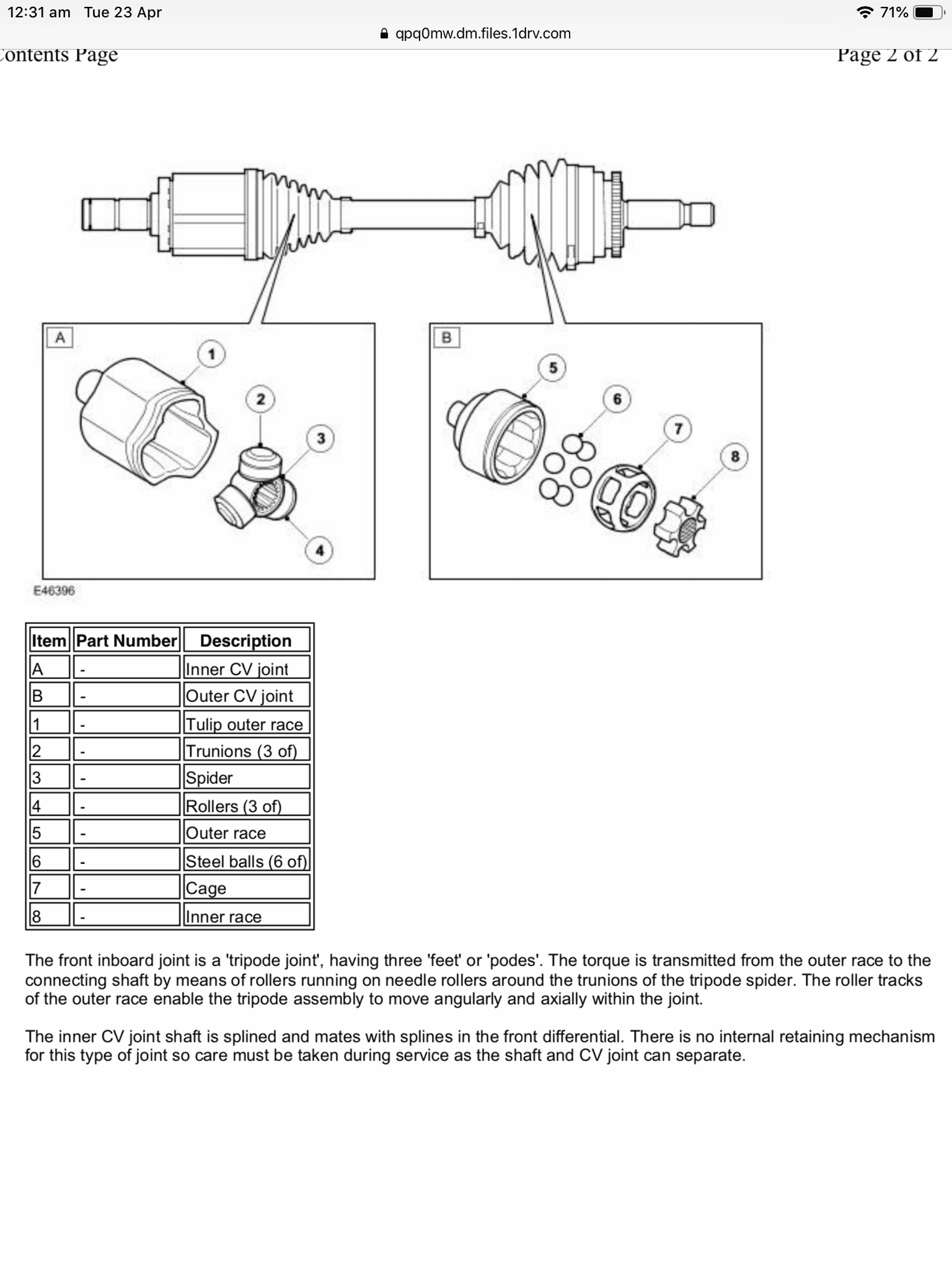

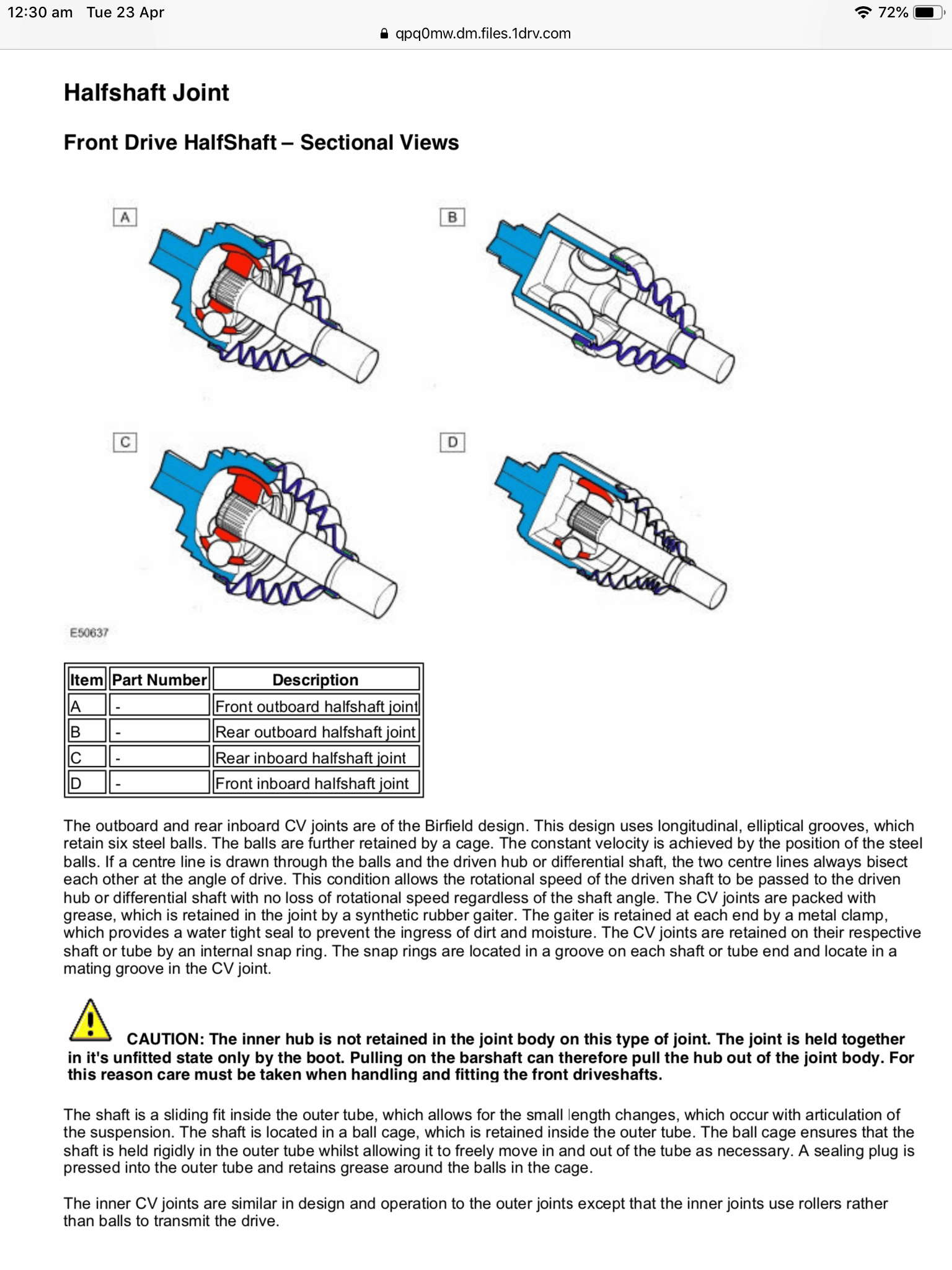

    Bit more info if it’s any use

    E053A99E-98A8-4215-9E35-0BB185C6BD40.png 8D68FA5F-1F3A-43F9-A695-C14A53A56E01.png 1048C4C6-2C97-4059-9CD3-3738085A6B6F.png

    1988smithy likes this.
  6. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,394
    Likes Received:
    6,984
    Location:
    Swanley , Kent
  7. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,937
    Likes Received:
    1,894
    Location:
    West midlands
    Cheers @gstuart I've downloaded those, they'll come in handy

    Upper arms are off, hour and half with a hangover :rolleyes:

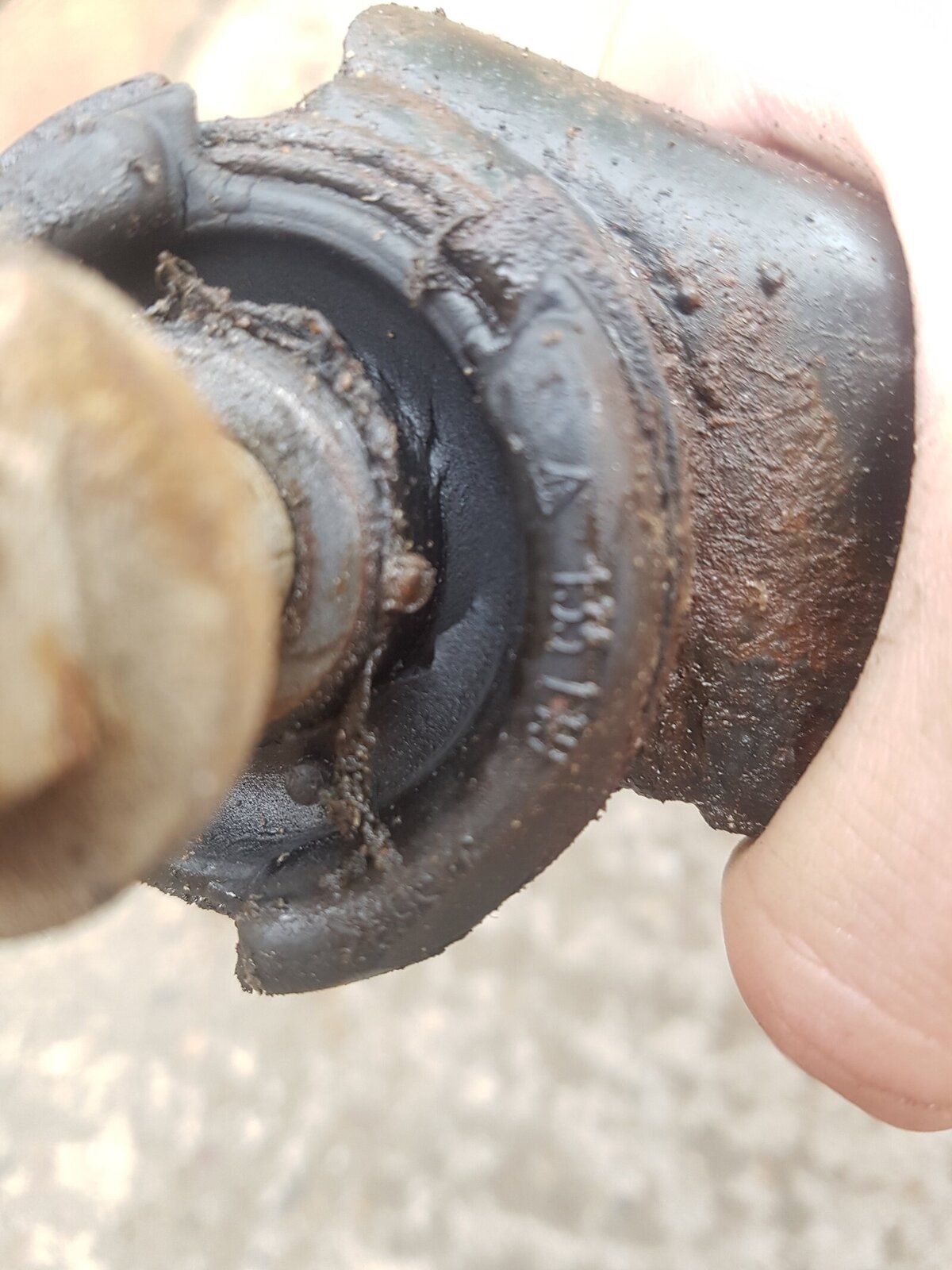

    They're manky

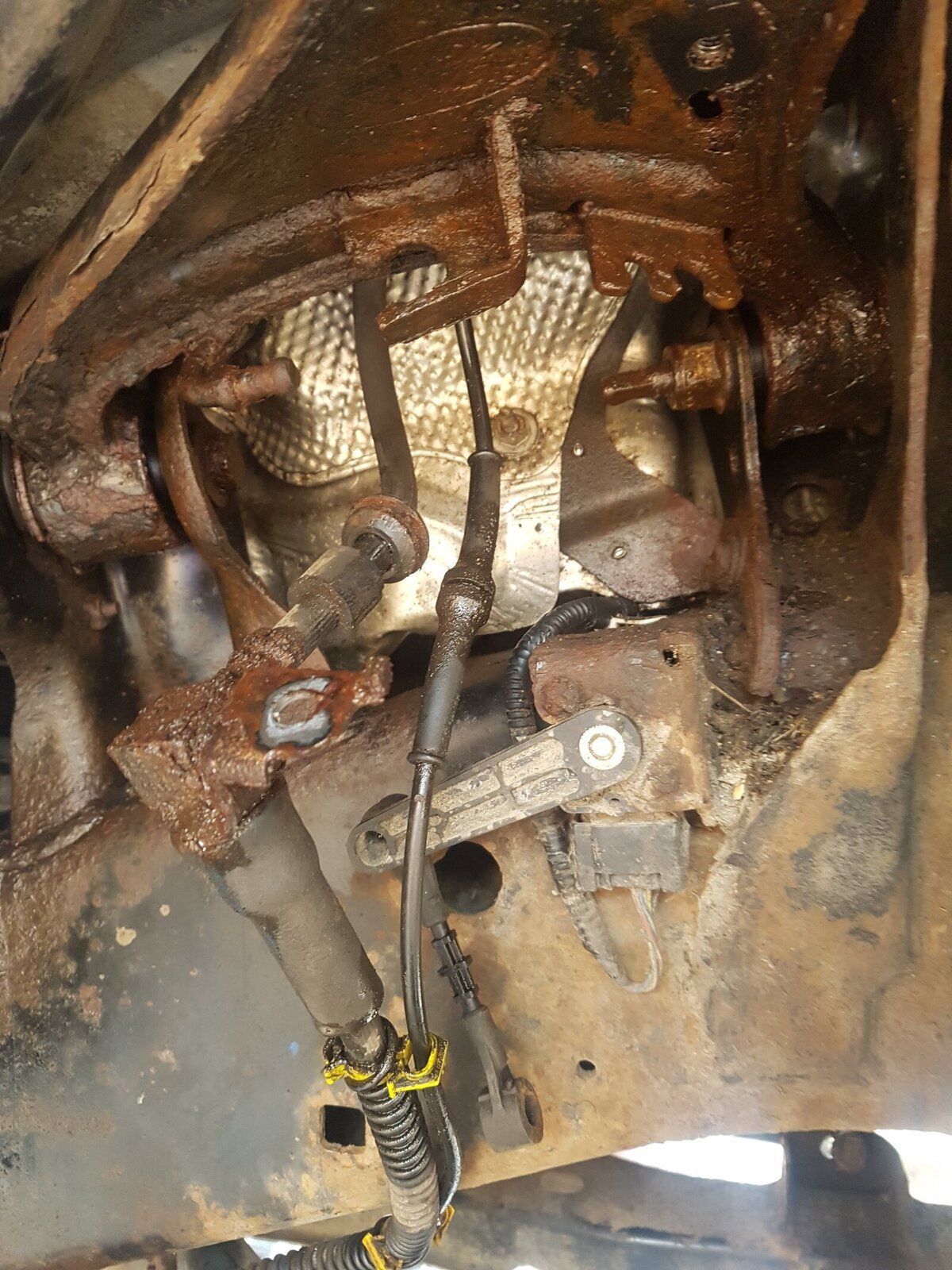

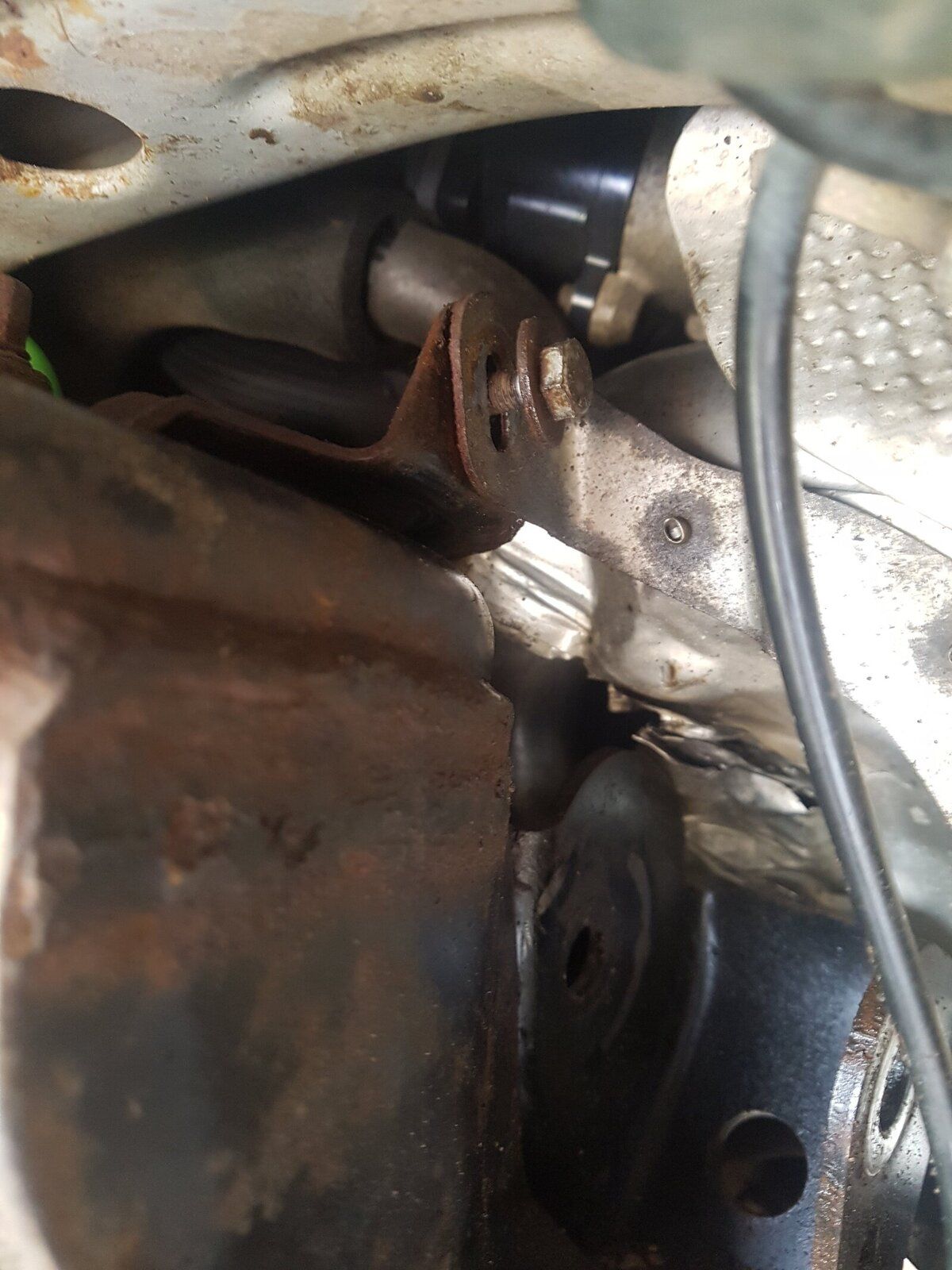

    Best to undo this heatshield bolt so you can push shield back and lift and twist arm to get it out.

    Once the height sensor and brake gubbins are off, you can lever the arm right up to get better access

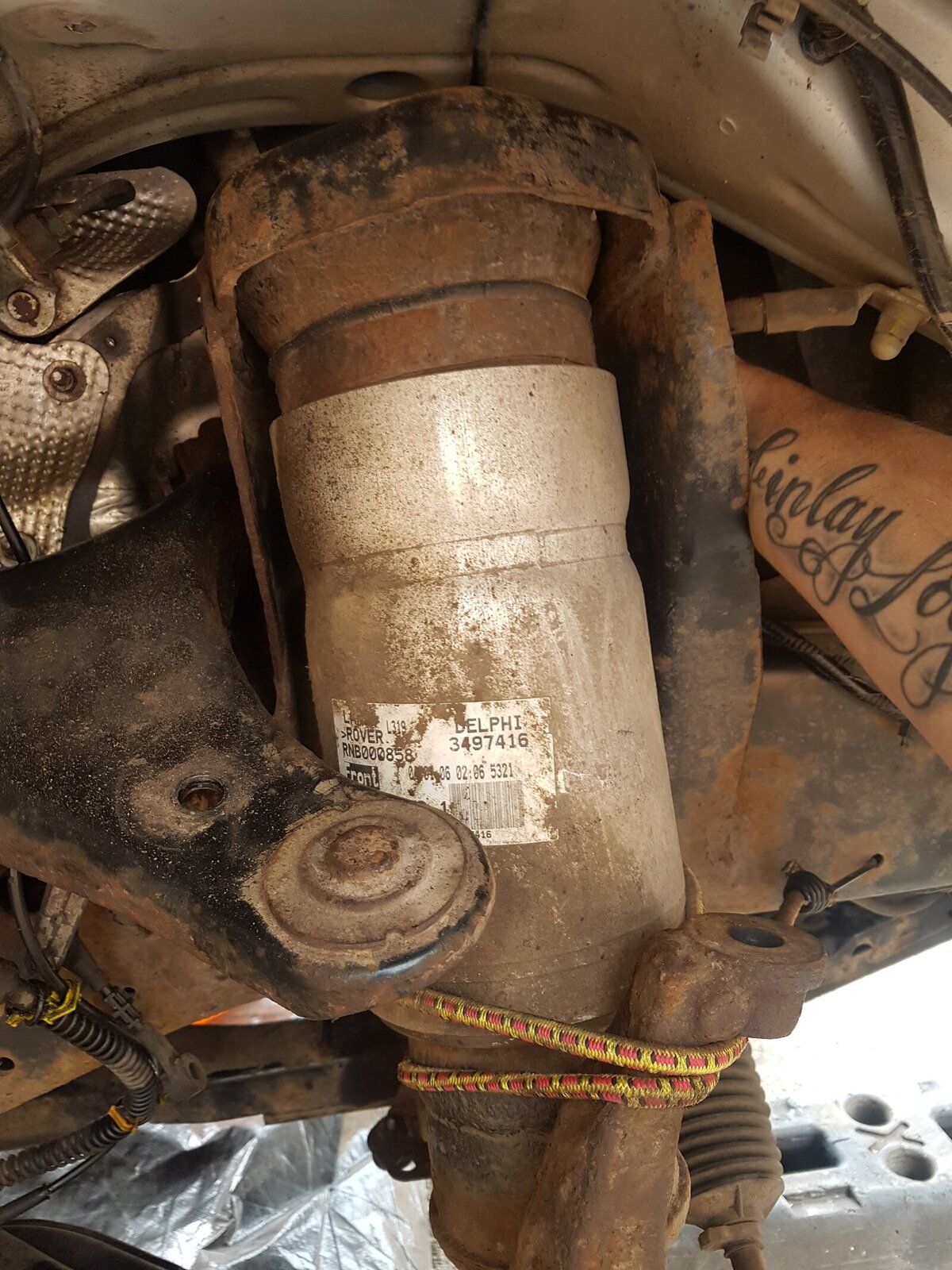

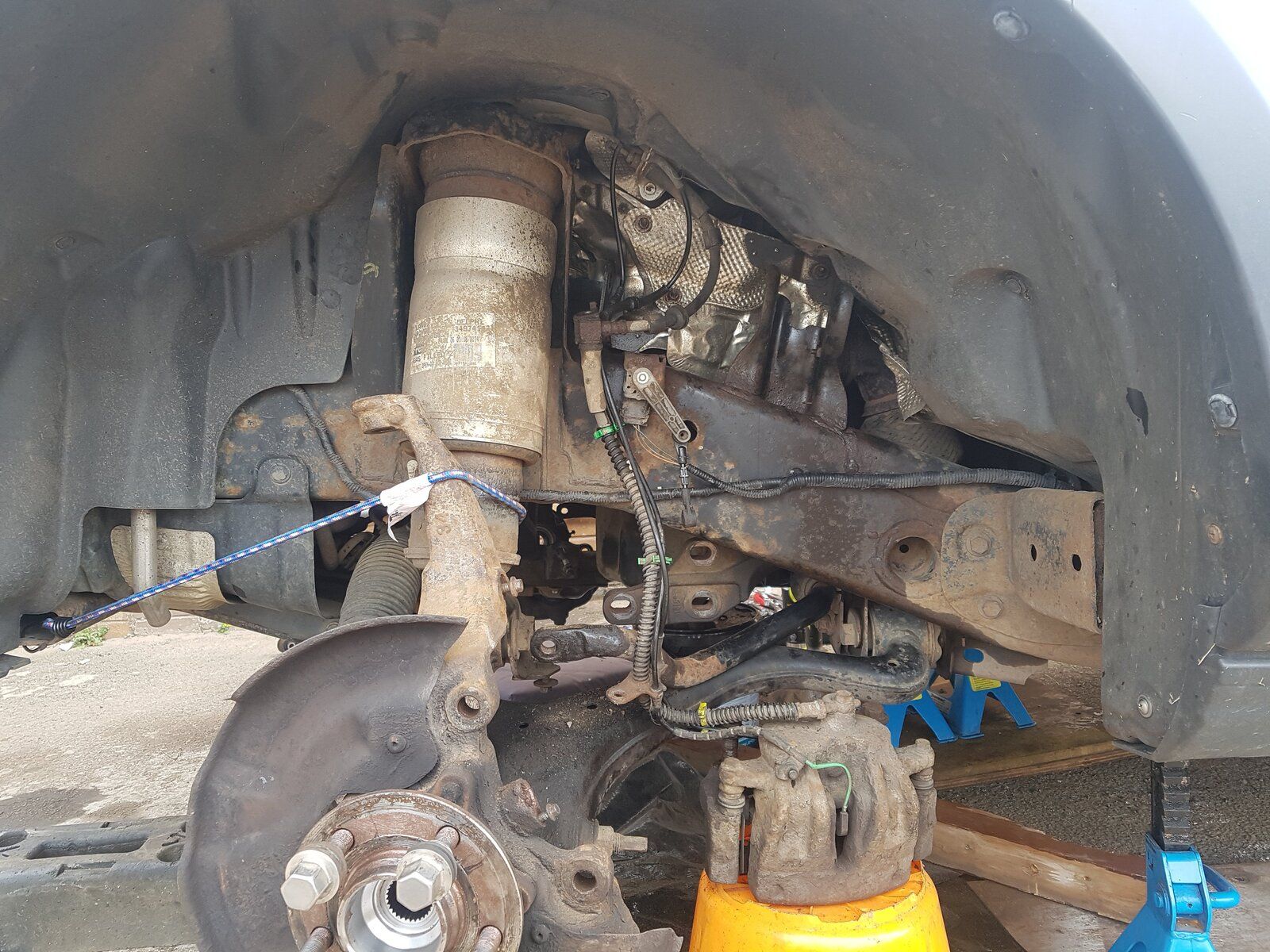

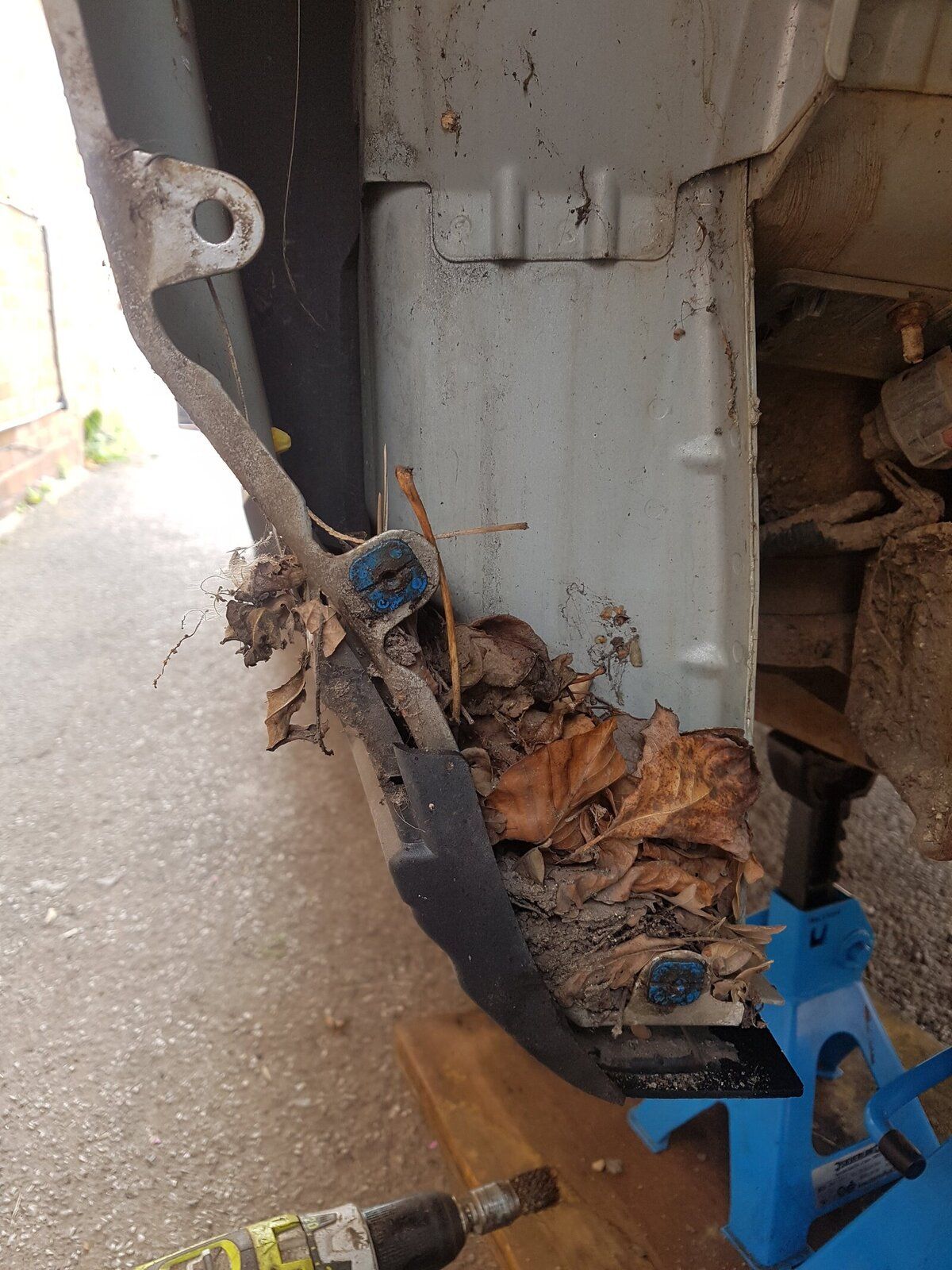

    Wheel arch liner had to come out on drivers side due to more shìte in the way, I managed to get my hand up and round the back of the air spring to get the front bolt out. Didn't need to take liner out passenger side. Collect a bit of crap behind there lol
    20190423_110410.jpg 20190423_110152.jpg

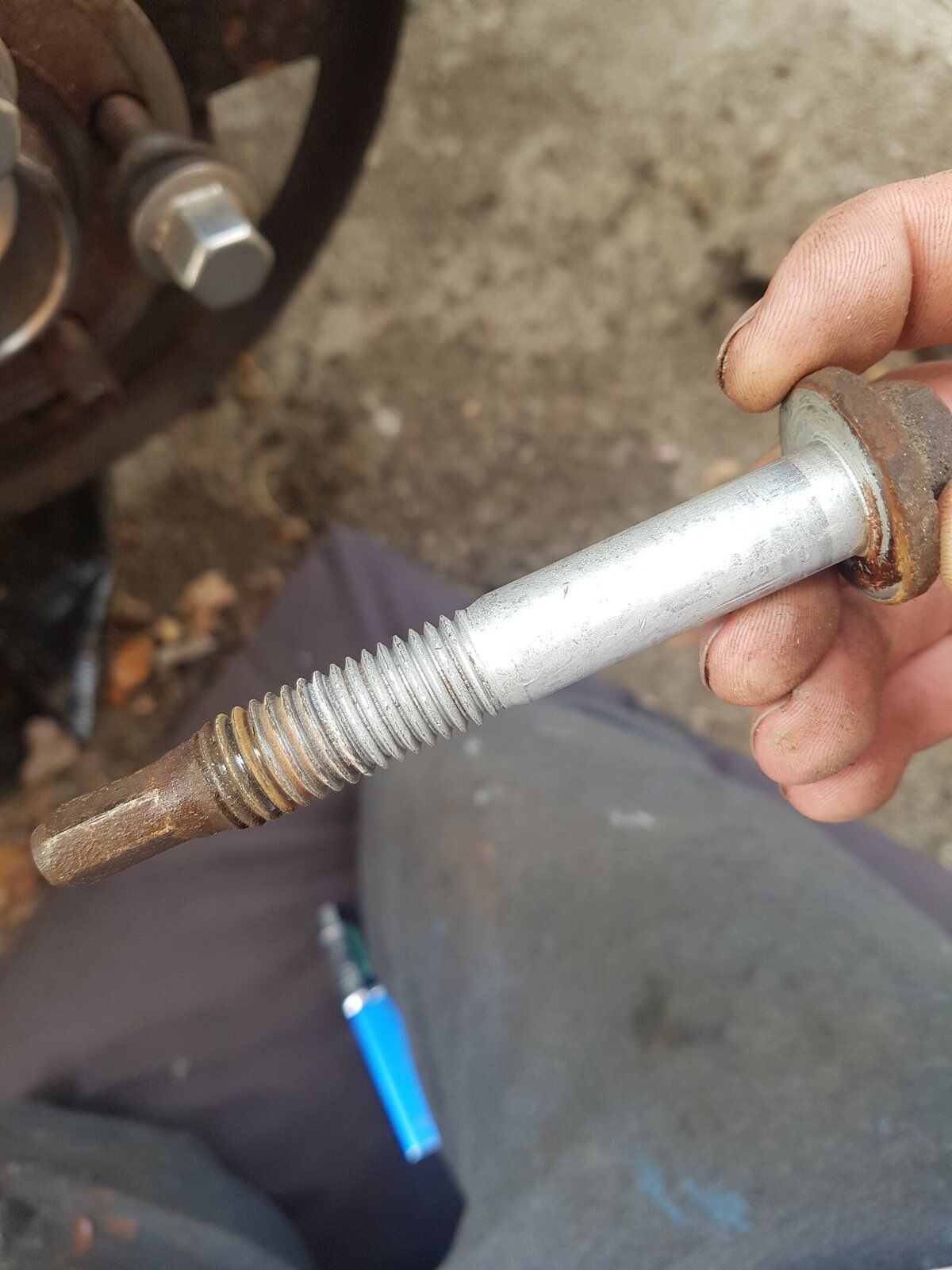

    Bolt shanks are in good nick! Most time was spent cleaning the threads and rust off various bolt heads

    Time to pull the trigger on the parts order and start making this lot look a bit better before everything goes back in :eek:

    Wiring on that height sensor don't look to clever

  8. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,937
    Likes Received:
    1,894
    Location:
    West midlands

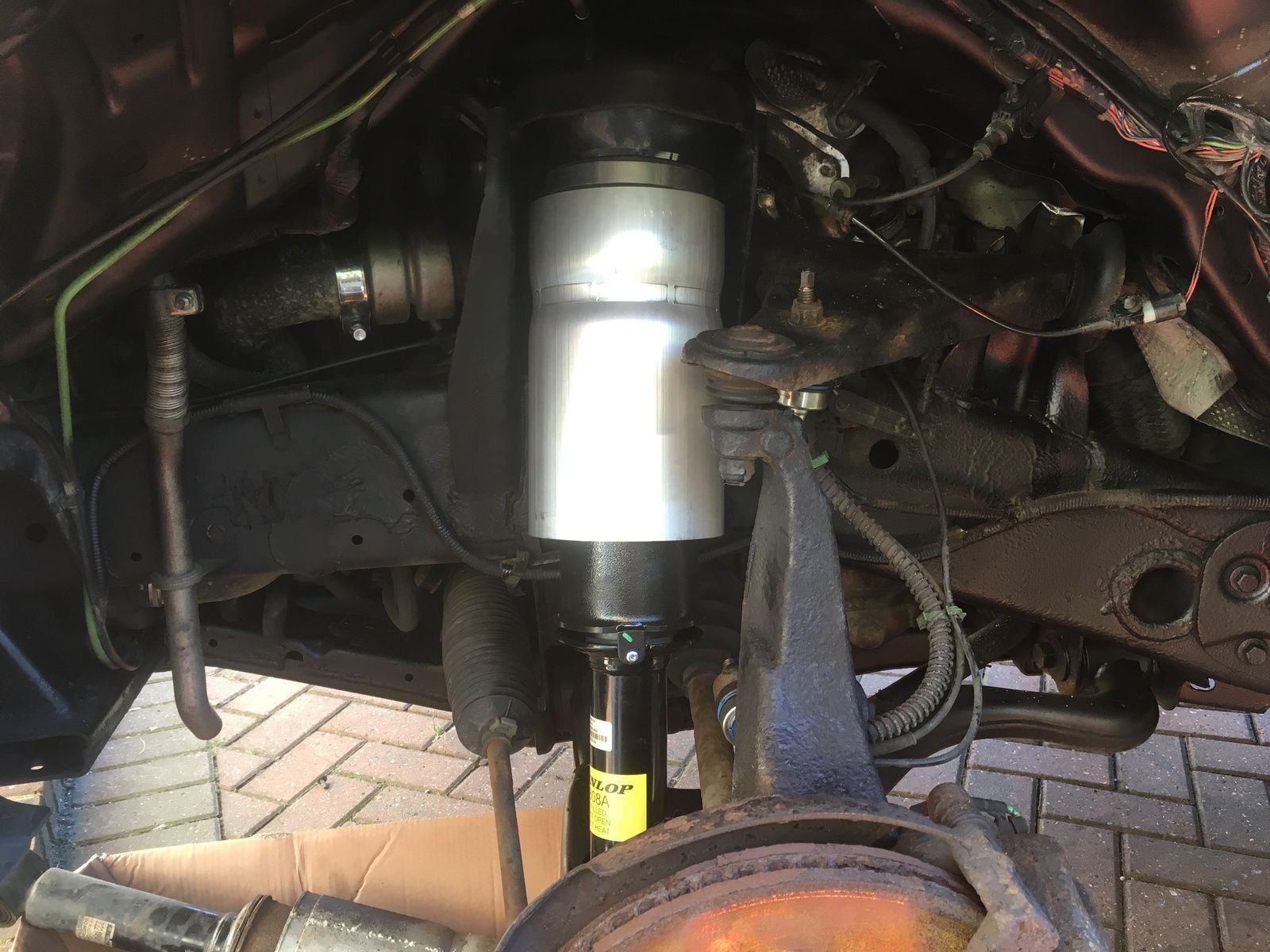

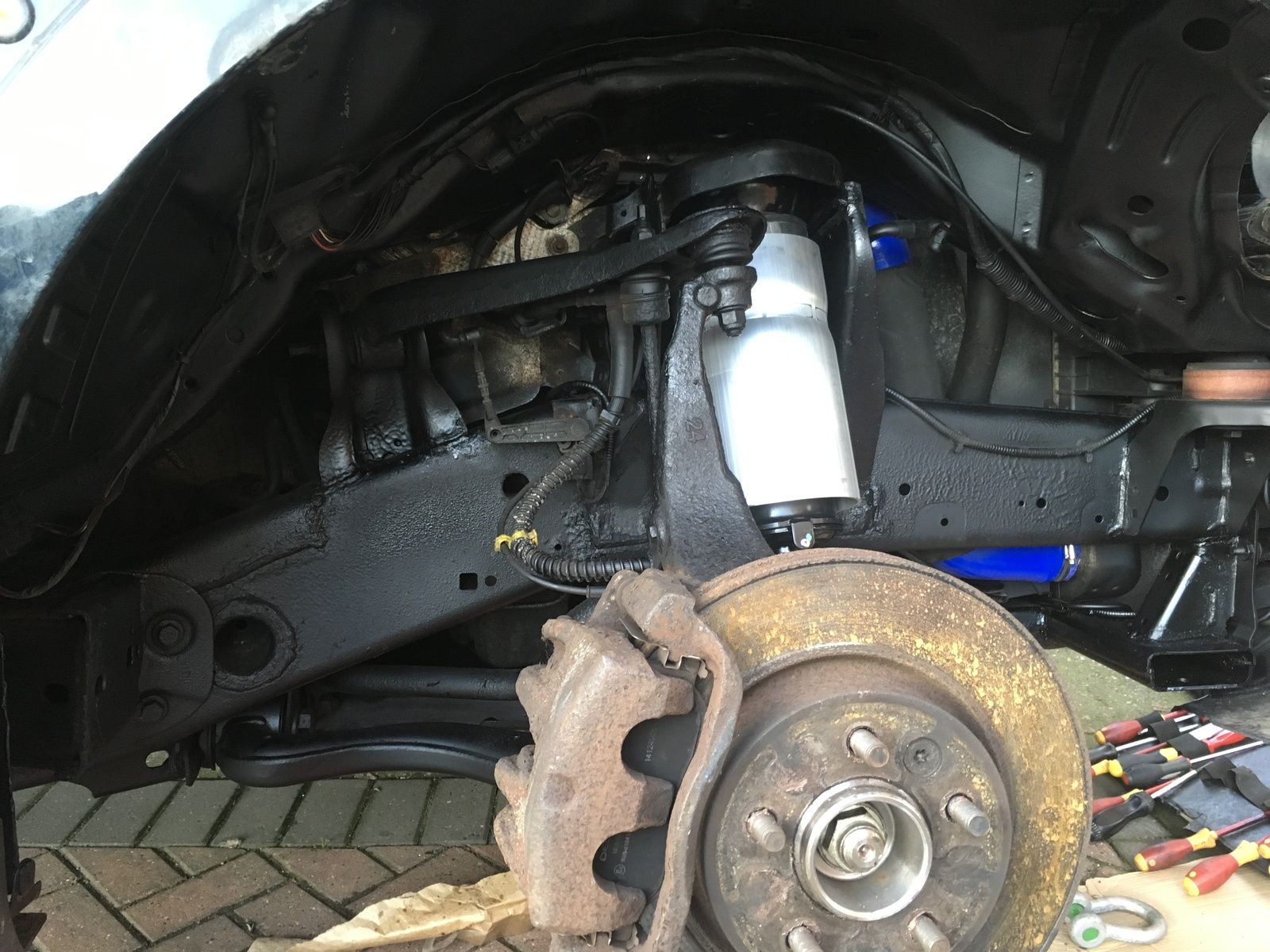

    Right I've cheated a bit, but I'm getting tired and want it back together soon.

    Took diff to Intergear in willenhall. They've had a look at it, ive explained I can't afford a full rebuild. They're happy to change the shìt bearing for me and reseal the case up for £75. Theres a bit of roughness in the pinion bearing but nothing untoward he said. So they can do that, ive got enough on my plate :D

    Hopefully by end of weekend parts from advanced factors will be here and I can start putting some shiny stuff back on. In the meantime I'll give the shabby bits a wire brush and quick spray with stonechip cuz that's all I've got in the garage :oops::D

  9. marjon

    marjon Well-Known Member

    Joined:
    Jul 15, 2018
    Posts:
    3,753
    Likes Received:
    2,836
    Location:
    Bulgaria
    Don’t blame you for farming out a bit, sounds like a reasonable price too.

    Prop bolts, hummmm
    Yes manual says new, I didn’t. (Found that bit too late). I rechecked 1 & 2 weeks later all still in place and tight.
    At the end of the day sometimes I feel they are covering their bottoms by saying that, so many “discard and new required” in the manuals.
    What did we do years ago? Bolt looks good, torque it, it’s good? :).

    J

    1988smithy likes this.
  10. LUKBENPHI

    LUKBENPHI Well-Known Member

    Joined:
    Nov 22, 2013
    Posts:
    1,987
    Likes Received:
    751
    Location:
    Peak District
    very interesting read following with interest nice to see a D3 being worked on for a change

    1988smithy likes this.
  11. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,937
    Likes Received:
    1,894
    Location:
    West midlands
    To be fair, I didn't put new ones in the defender when I did rear prop, but there's one snapped off in diff flange from previous skullduggery so I'm guessing they've been out before. For £1.50 each I'll change em lol

    marjon likes this.
  12. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,937
    Likes Received:
    1,894
    Location:
    West midlands
    Cheers, few of them on here now. Im not quite as scared of it now as I was before I started!

  13. marjon

    marjon Well-Known Member

    Joined:
    Jul 15, 2018
    Posts:
    3,753
    Likes Received:
    2,836
    Location:
    Bulgaria
    I can understand that thought process too:) and would go along with that.

    Mine hadn’t been touched.
    J

    1988smithy likes this.
  14. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,937
    Likes Received:
    1,894
    Location:
    West midlands
    Just reminded myself I've gotta get that snapped fooker out :rolleyes: I broke the stud that holds the brake flexi to the knuckle as well :oops:

    marjon likes this.
  15. LUKBENPHI

    LUKBENPHI Well-Known Member

    Joined:
    Nov 22, 2013
    Posts:
    1,987
    Likes Received:
    751
    Location:
    Peak District
    I keep looking at them as they exactly the sort of thing im after size wise

    Out of interest when not towing how much does it do to a tank and how much is it to fill up?

    Thanks

  16. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,937
    Likes Received:
    1,894
    Location:
    West midlands
    Ermmm, I ain't actually done a brimmed tank yet :oops: trip computer shows 28mpg best so far but I think it needs a service and a few good runs with decent fuel and I'll see that go up. Hoping for low 30s on longer runs.

    Round town I wouldn't expect much more than 25/26mpg tbh. It only drops to 25mpg towing on a run though which I think is ok.

    Think they're a 90litre tank so well over £100 to fill :D

    LUKBENPHI likes this.
  17. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,394
    Likes Received:
    6,984
    Location:
    Swanley , Kent
    Knappster likes this.
  18. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,937
    Likes Received:
    1,894
    Location:
    West midlands
    Cheers mate, are they plug an play then or would I need diagnostics to calibrate?

    As it goes, when it's all back together it is just a case of re connecting battery and putting f26 back and suspension will be fine??

  19. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    22,394
    Likes Received:
    6,984
    Location:
    Swanley , Kent
    No probs , u shouldn't need a diagnostic reader with just replacing the wire connectors , as long as the battery is disconnected when removing the connectors which I see you’ve already done

    U need a reader if u remove the height sensors or replace them

    However ur more than likely need a reader after all the alignment has been done unless they can check ur steering wheel sensor angle , indeed has to be at zero, when alignment is done this can throw it out, in which case ur DSC will start kicking in when going round corners ,the hunter alignment centre should be able to do all that for u

    Another reason to have a gap iid as that can do the steering angle reset , lol

    1988smithy likes this.
  20. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,937
    Likes Received:
    1,894
    Location:
    West midlands
    I've just removed the sensor arm off the upper control arm....:eek:o_O

    Really need to save for a gap tool mate, big outlay but be worth it
