Re-Discovery

Discussion in 'Members Vehicles/Projects' started by 1988smithy, Feb 27, 2019.

< Previous Thread | Next Thread >
  1. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,927
    Likes Received:
    1,885
    Location:
    West midlands

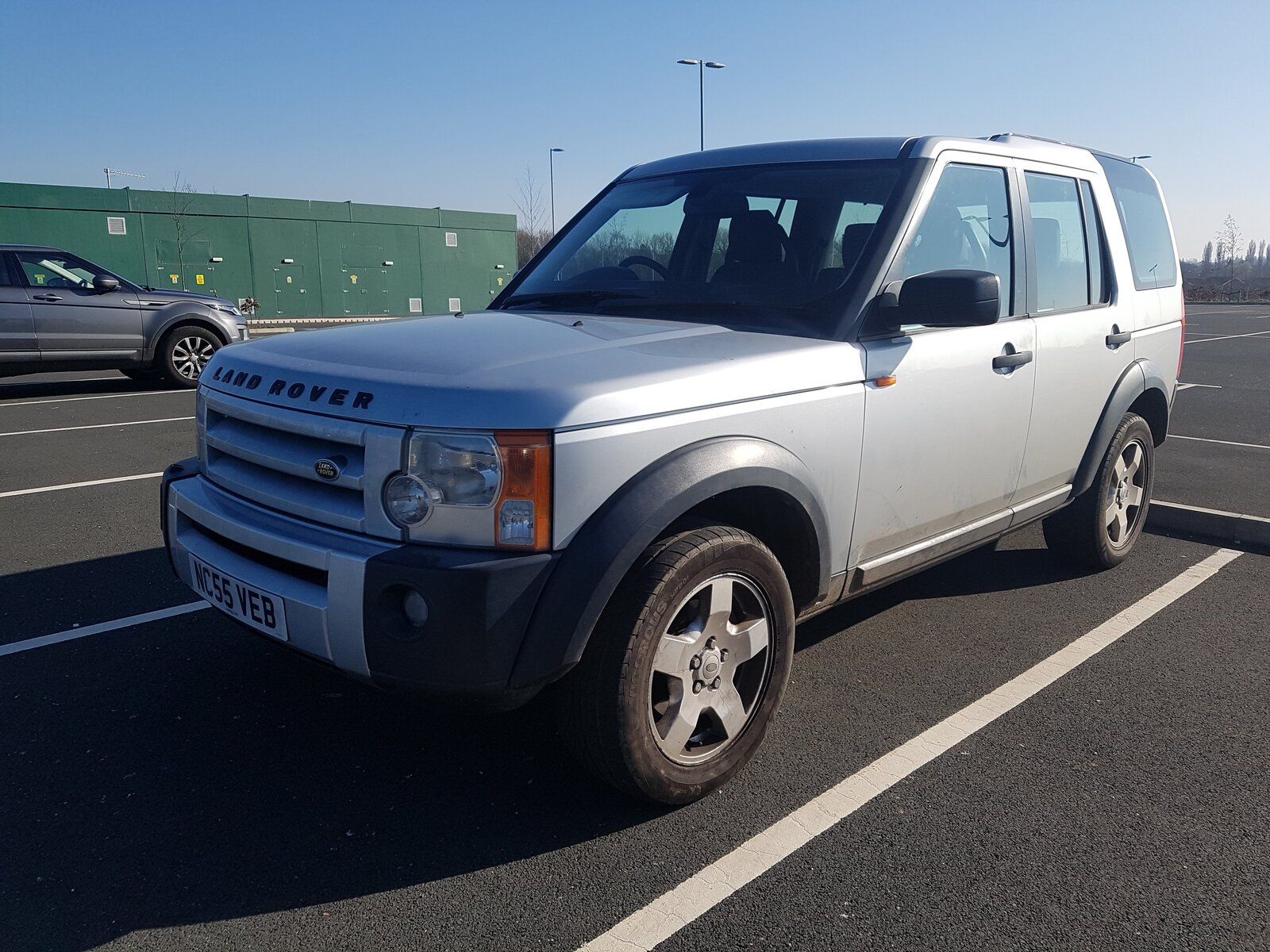

    After 6months owning a defender, I'm back in a discovery :)

    2006 TDV6 Manual S
    153000miles recent cambelts, rear diff, rear air bags...more I can't remember. Good history anyway. 4 matching tyres with decent tread.

    She needs a new hub n/s/f so I'll do both fronts, and the tailgate won't open. There's other minor bits but they're my priority.

    Really impressed with how these drive, they're a bit stupid quick for the size :eek::D about 3-4mpg better than a standardish td5 defender so far and really, really comfortable.

    Plan for next 2 week's is

    Sort tailgate and hubs
    Wash her. Thoroughly. She's filthy
    Polish the headlights
    Do the tip run
    Etc etc :p

    Link to @gstuart buyers guide, came in very handy https://www.landyzone.co.uk/land-rover/buyers-guide.312800/

    Embarrassingly looking forward to towing the van with her :oops:

    I'll post more pics when she's clean and will do a little walk through in discovery forum on how to strip tailgate and get to upper actuator and latch and what have ya. I've done it today but will wait til I've fitted new parts so it's complete with solution :)

    Thanks to a few lads on here for advice and listening to me change my mind every 5mins :D you know who you are :cool:

    Last edited: Feb 28, 2019
  2. Henry_b

    Henry_b Well-Known Member

    Joined:
    Jan 29, 2018
    Posts:
    5,284
    Likes Received:
    3,530
    Location:
    Appears out of nowhere.
    I Like a good Disco 3 the Farmer has one, and it lugs around a loaded cattle trailer and flat bed with equipment that weighs an excess of 5 tonne so yes they can tow. ;)

    The 2.7 is also a nice sounding motor, for a diesel ;)

    Any pics of the interior?

    1988smithy likes this.
  3. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,927
    Likes Received:
    1,885
    Location:
    West midlands
    Not taken any yet mate, but it is nice and clean inside and not excessively worn :)

    I did have the window down tonight on way home and it does actually sound quite nice when you boot it!

    Its the thinking man's defender and the rough arse bastard's range rover :p:D

  4. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    20,657
    Likes Received:
    5,959
    Location:
    Swanley , Kent
    @1988smithy , great intro to ur D3

    Found this for u if it’s any help ref ur tailgate https://www.disco3.co.uk/forum/tailgate-latch-replacement-99648.html

    Good to hear my buyers guide came in handy ,

    As for MPG around town I get around 20-22 on a run 29-31mpg , indeed don’t believe the dashboard monitor or as we call them lie o meters, lol , they are around 10% out

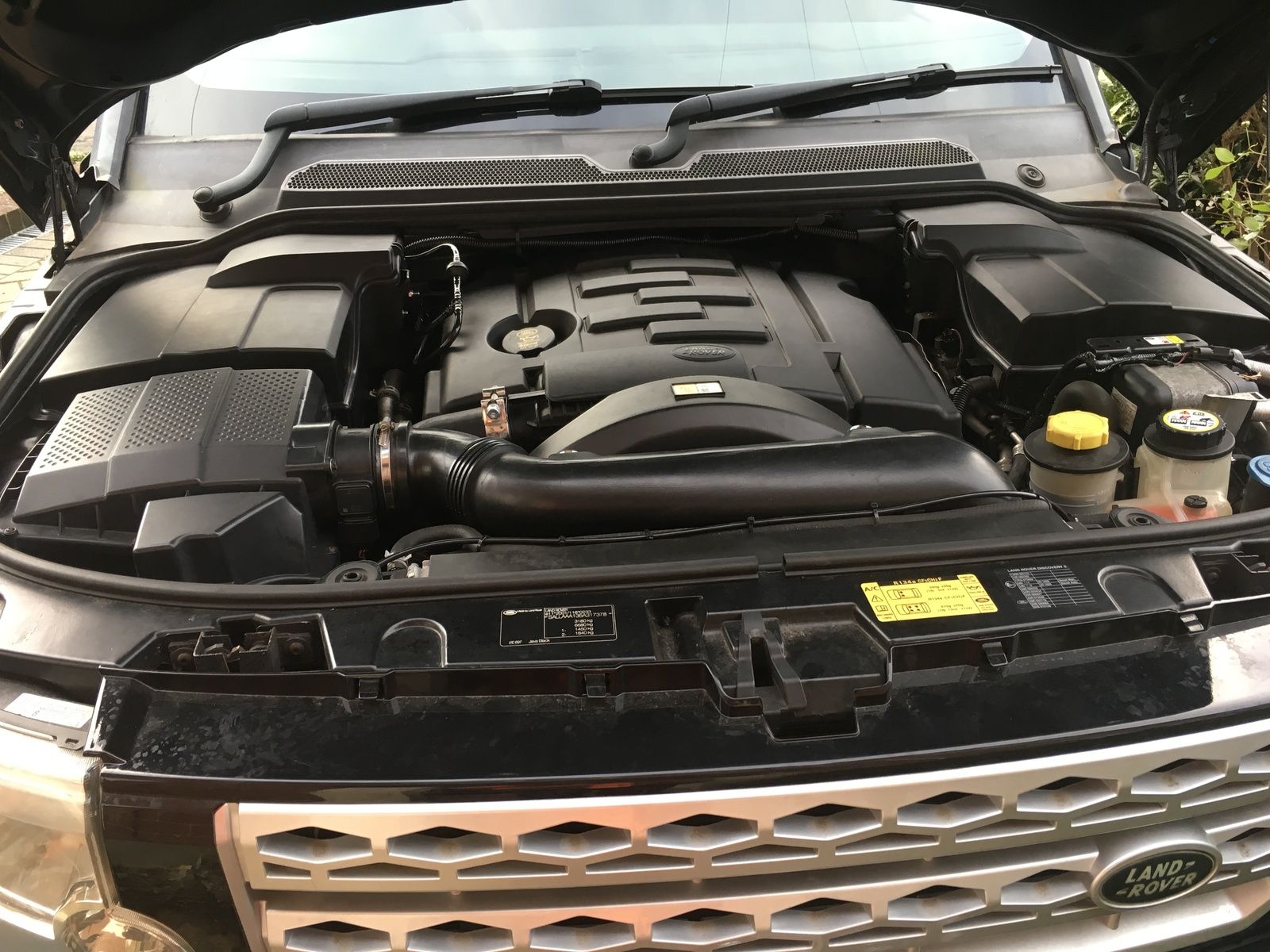

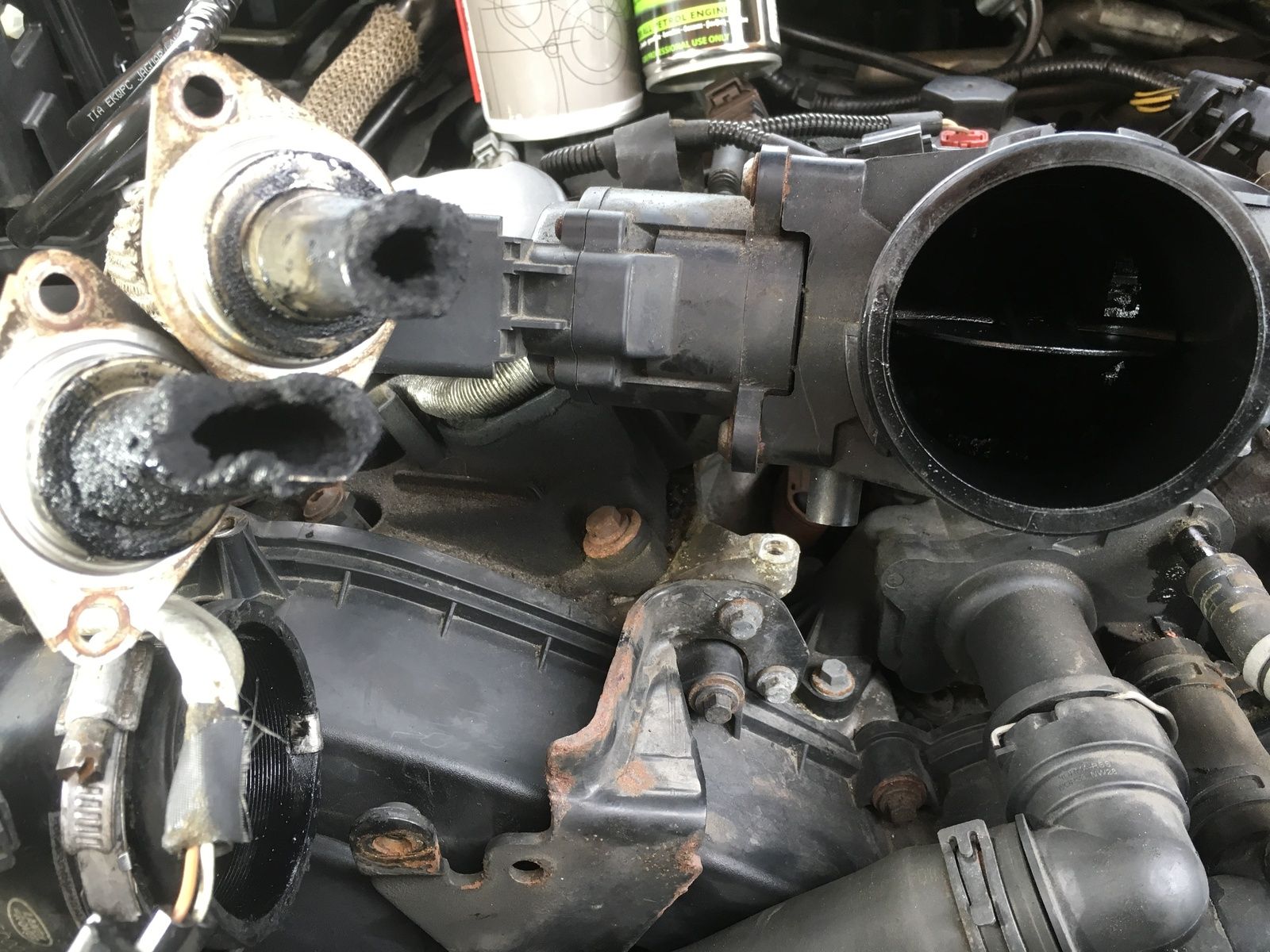

    Check ur MAP sensor is clean, sits in top of ur throttle body and blank ur egrs if they haven’t already been done, leave the pipes in place

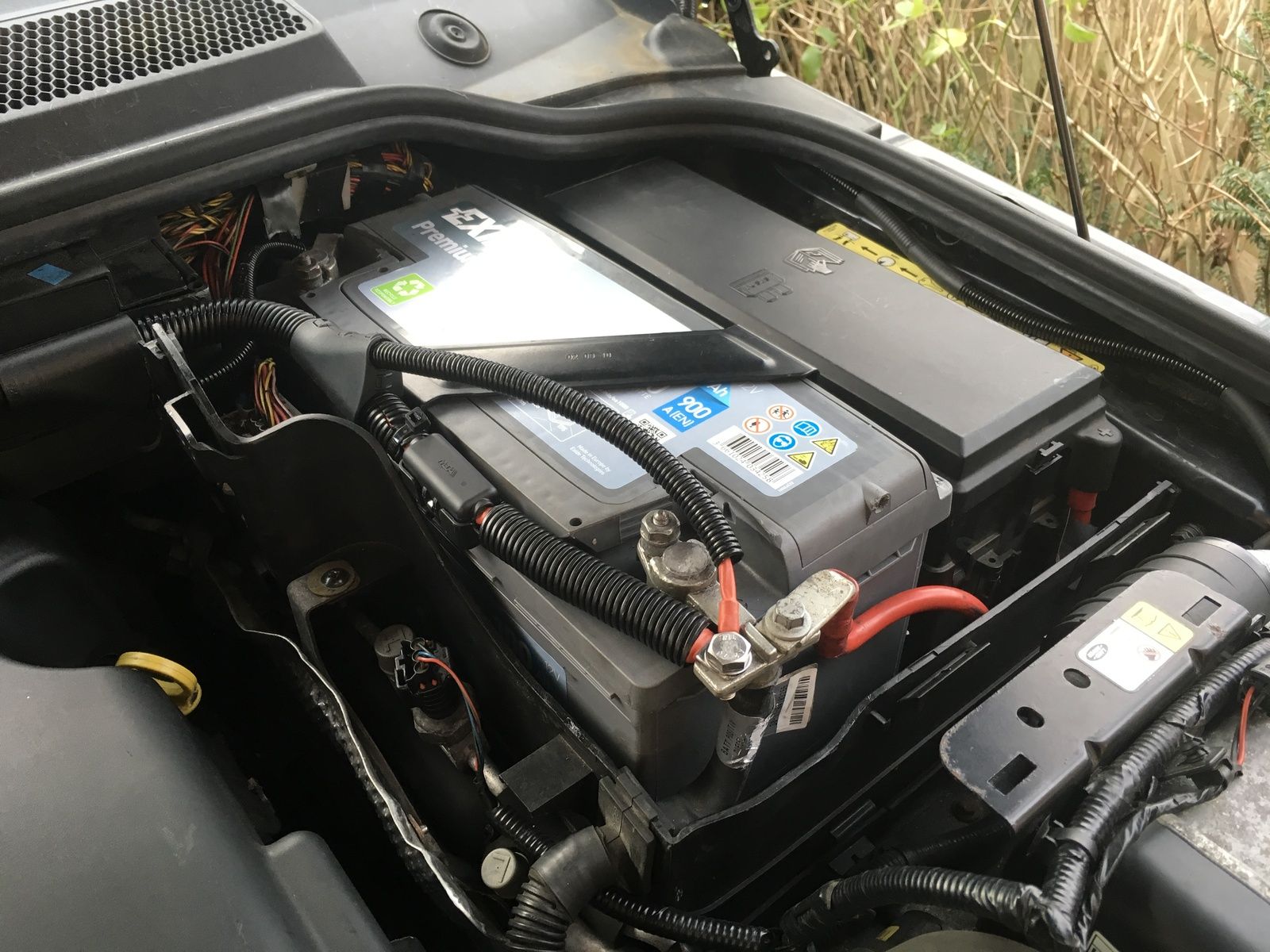

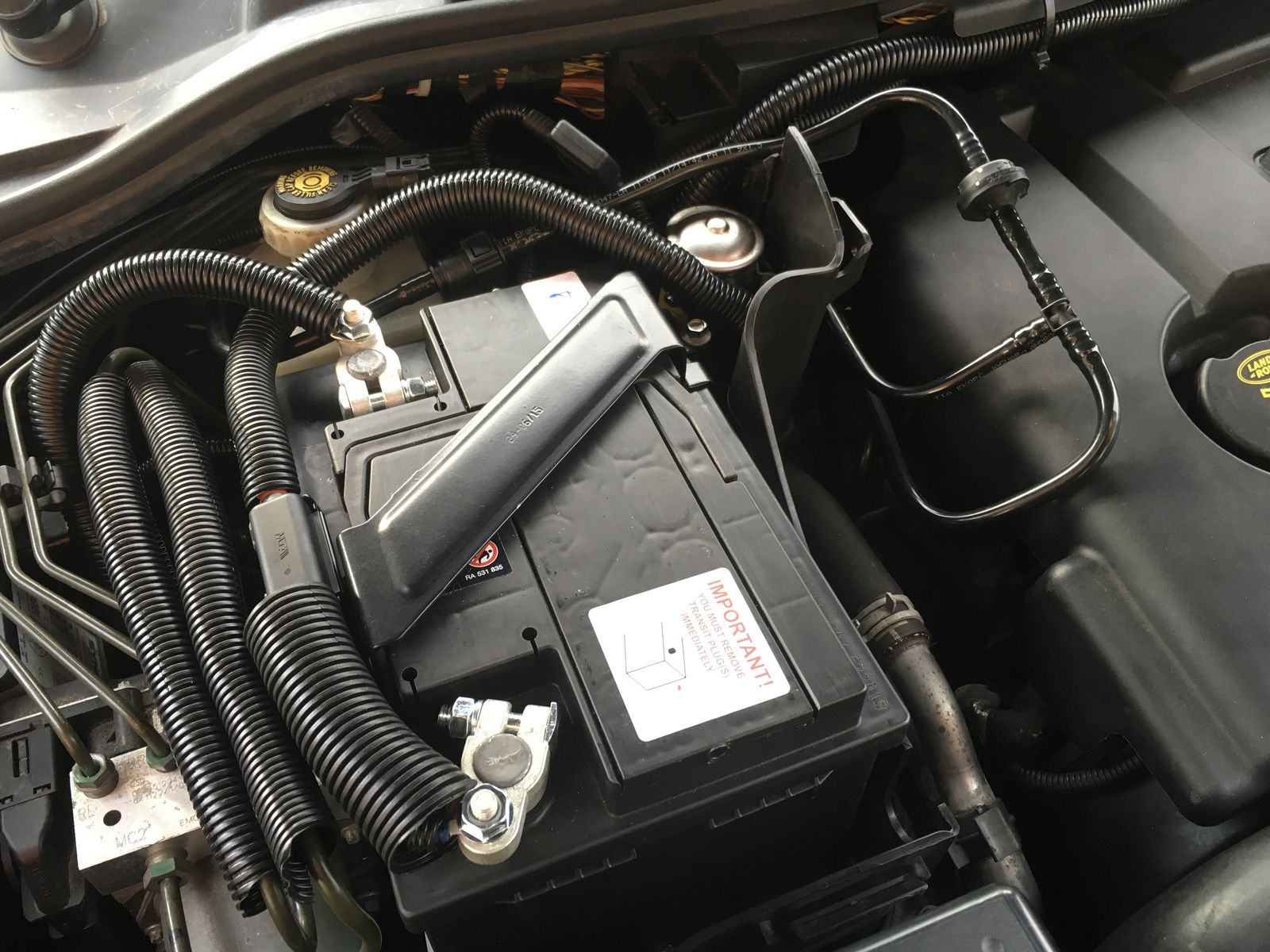

    Also done a split charge system

    If u need any info don’t hesitate to give us a shout, plenty here to always help

    F21EFA56-9472-4F49-941B-E1A1B1E2D8DF.jpeg AC431FA3-687D-470B-9A55-C58AAA0103C9.jpeg 0809E95C-081E-43E5-B261-E2441BB0D360.jpeg A8F3DACD-F2BD-4ACB-8077-658006B1B7A3.jpeg 68430DB3-CD1C-47F1-9A4E-C729A6C6CA83.jpeg 9C1419CD-0B6A-42D4-8197-32D717420AC0.jpeg

  5. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,927
    Likes Received:
    1,885
    Location:
    West midlands
    Cheers @gstuart , disco3 is proving to be really good source, I used similar thread to guide me today :)

    Mpg is showing 24-26 on trip computer around town, so suspect I'm doing similar to yourself in reality!

    Regarding EGR blank, I'll not be doing it for a couple of weeks, shall I still give the MAP a clean regardless? I can always clean it again when I come to to do the blank can't I lol

    Great pics, they get really shìtted up don't they :eek: you've been busy again or was the split charge done a while ago? What's the plans with that?

  6. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    20,657
    Likes Received:
    5,959
    Location:
    Swanley , Kent
    Hi

    Indeed also found the D3 forum invaluable to info

    For such a heavy vehicle and big engine I’m surprised in reality it’s does well for mpg

    Wouldn’t hurt to check the MAP sensor , egrs might have already been blanked but if they haven’t here’s a link , with the pipes also left in place mine went through the mot ok

    http://media.disco3.co.uk/gallery/albums/userpics/10771/BAS EGR Blanking Kit Fitting SMALL.pdf

    Also when u clean up the o rings in the Y throttle body use some silicone grease to reinstall it , ref the egr blank instructions, leave the pipes attached and just use a blank between the engine block and egr pipes

    I used some stainless steel 1.5mm blanking plates

    Imagine u know already with having a lot of previous experience , just use some carb, egr cleaner for the MAP sensor and don’t be tempted to poke anything down the hole

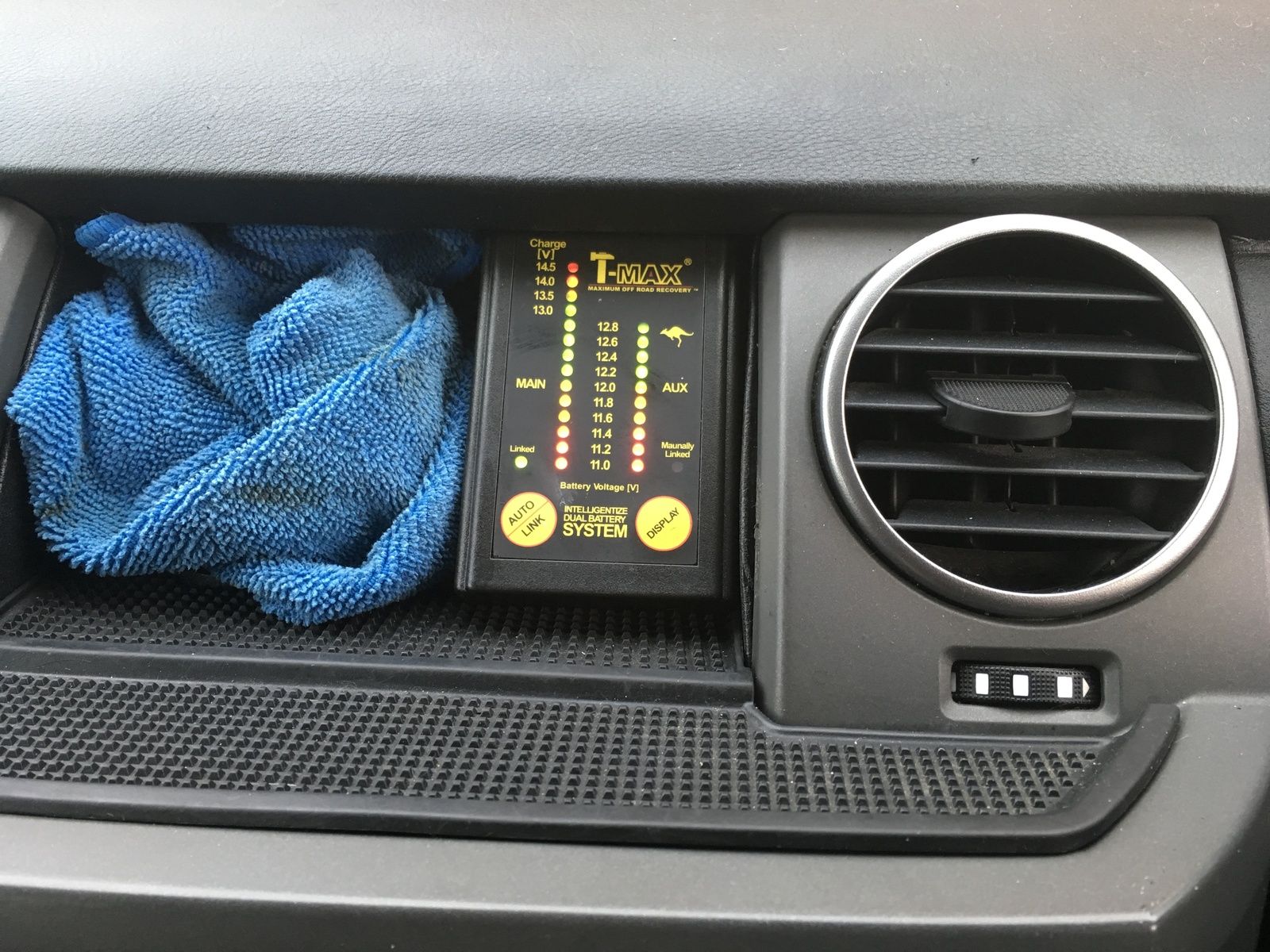

    Done the split charge last year , so that I’ve got the aux battery for when I park up camping etc, still got my ac to sort out, suspect its the condensor , hard wire the dashcam in and fit the Bluetooth tyre monitoring system that can be used via my iPad

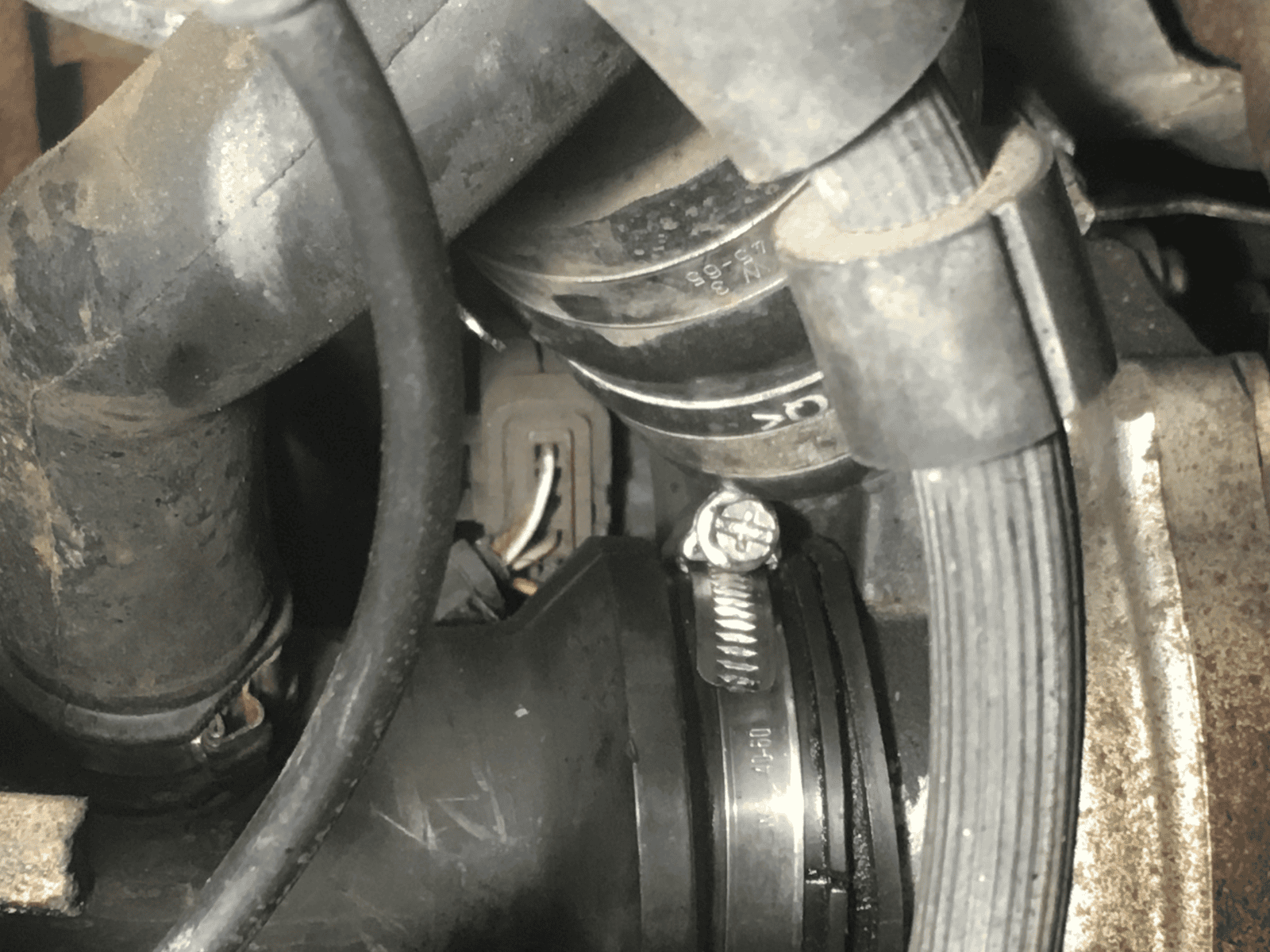

    I also fitted new silicone intercooler hoses along with lubricating the turbo actuator arm, that was a lot of fun trying to gain access to it, but was a blessing because I found a broken jubilee clip on the short turbo hose , also fitted the T bolt clamps

    When u turn the ign on and off the turbo actuator self motors to prevent it from sticking , mine didn’t have the software so reflashed the ecm to add it, all done via the gap iid tool, cost an extra £25 to add the software actuator patch , you will hear it when u turn the engine off

    Don’t forget plenty here to always help




    1988smithy likes this.
  7. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,927
    Likes Received:
    1,885
    Location:
    West midlands
    Lovely @gstuart Cheers mate.

    Wife has just told me the reverse lights aren't working, gear indicator on dash and parking sensors work so think xyz calibration is ok.

    2 timken hubs bought today, nearly £250 :eek:

    And a load of interior cleaning stuff and some more car shampoo :cool:

    Also ordered an OEM upper tailgate actuator, I'll detail that fix in disco forum.

    Also need to look at intercooler bottom hose and gearbox breather.

    Busy weekend :eek::D

    Hicap phill, dieseldog69 and gstuart like this.
  8. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    20,657
    Likes Received:
    5,959
    Location:
    Swanley , Kent
    No worries and very welcome , pleasure being able to share what knowledge I’ve picked up

    Never know it might just be the reversing bulbs, heard they can go in pairs

    Changing the intercooler hoses isn’t that bad, apart from that turbo one, what’s wrong with ur gearbox breather , or did u mean the front diff breather modification , where u cut off the old breather and fit a new modified one

    Breather pipes on the D3 are all installed from the factory

    Indeed looks like a busy weekend

    Ps, here is the reset for the XY switch, never know ur luck and might work ?????

    If the bulbs have blown buy good quality ones

    1) Find a long straight and quiet section of road.
    2) Select LOW Ratio.
    3) Reverse for about 200 yards or until you get the beep and the R on the dash gear number indicator. And then a tiny bit more for good luck. Stop, then...
    4) Go forwards in 1st until number appears. Clutch pedal must be fully raised each time.
    5) Then up through the Gears waiting for each of the numbers to appear. Do not skip any gears!
    6) Stop at 6th, back into neutral, switch off engine.
    7) Restart and select High Ratio and you're on your way..

    Last edited: Feb 28, 2019
    1988smithy likes this.
  9. Knappster

    Knappster Well-Known Member

    Joined:
    Nov 3, 2018
    Posts:
    488
    Likes Received:
    201
    Location:
    Stroud
    Nice disco! Good write-up too. Keep the updates coming!:cool:

    1988smithy likes this.
  10. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,927
    Likes Received:
    1,885
    Location:
    West midlands
    There's a fair leak from offside of the bell housing, defo trans fluid. Ive had a feel around toward top of gearbox and think its coming from a 90 degree angled pipe.

    I'll try and get a decent pic tomorrow, it has had recent clutch so hope it's just this pipe been disturbed. Seems to be when engine is running, doesn't make much when off and parked.

    Apparently there's a metal pipe coming off the top of the gearbox, linked to another metal pipe with a small rubber hose. There's anecdotes of this failing

    gstuart likes this.
  11. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    20,657
    Likes Received:
    5,959
    Location:
    Swanley , Kent
    Thks , will also see if I can find any further info for u

    Mines an auto so don’t know what kind of set up that has

    1988smithy likes this.
  12. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    20,657
    Likes Received:
    5,959
    Location:
    Swanley , Kent
  13. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    20,657
    Likes Received:
    5,959
    Location:
    Swanley , Kent
    Also found this ref the size of that breather pipe

    The breather consist of short piece of rubber hose that attaches to the pipe that goes up the back of the engine. The hose perishes hence the leak. Get 2 metres of 8 mm I/D fuel hose and replace the old arrangement. Lead the hose down the L/H side in the engine bay next to the brake reservoir. Then onto the pipe on top of the gearbox. Fixed.

  14. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,927
    Likes Received:
    1,885
    Location:
    West midlands
    Jesus Gary, nice 1!

    So 2m of the fuel hose to replace whole assembly? Could I just replace rubber section do you think?

    Motorbike spares shop by me will have 8mm fuel pipe

    gstuart likes this.
  15. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    20,657
    Likes Received:
    5,959
    Location:
    Swanley , Kent
    Glad it helped , yeh i know have too much time on my hands, lol

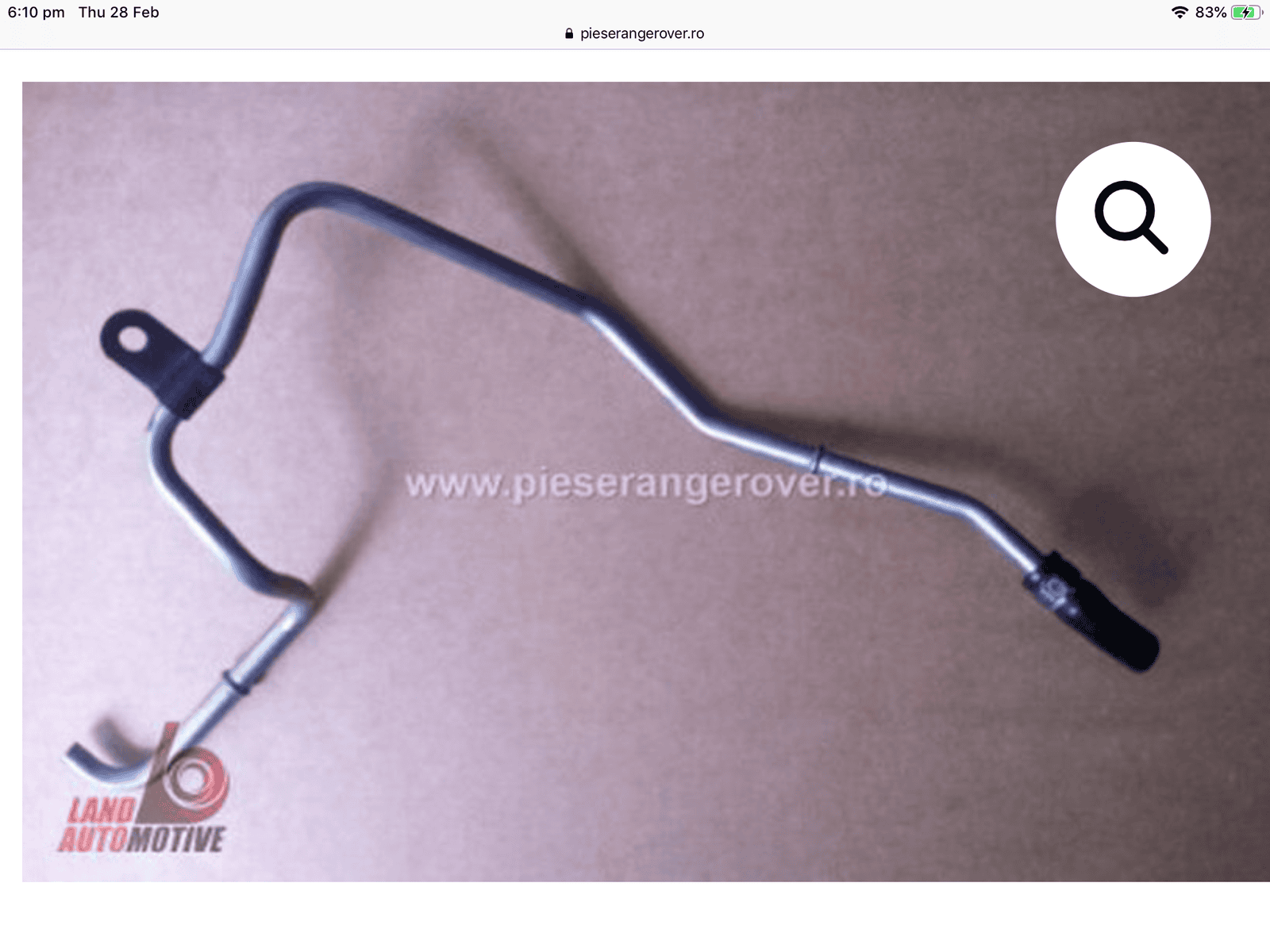

    Here’s a pic of the actual breather pipe and looking at it, indeed seems the only bit is that short rubber part, imagine replacing that along with a couple of new jubilee clips should resolve the issue


  16. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,927
    Likes Received:
    1,885
    Location:
    West midlands
    That's a massive help, I'm at work on late shift so you've took a lot of leg work out for me, cheers! Be a nice little fix if it is the breather

    gstuart likes this.
  17. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,927
    Likes Received:
    1,885
    Location:
    West midlands
    Missed this earlier mate, no haven't got one yet. Is it rave I need?

  18. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    20,657
    Likes Received:
    5,959
    Location:
    Swanley , Kent
    Always a pleasure to help, as I’m laid up at the moment after back surgery it gives me something to do, :D

  19. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    20,657
    Likes Received:
    5,959
    Location:
    Swanley , Kent
    Hi

    I’ll pm it over to u, it’s part of the jag workshop manual

  20. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    20,657
    Likes Received:
    5,959
    Location:
    Swanley , Kent

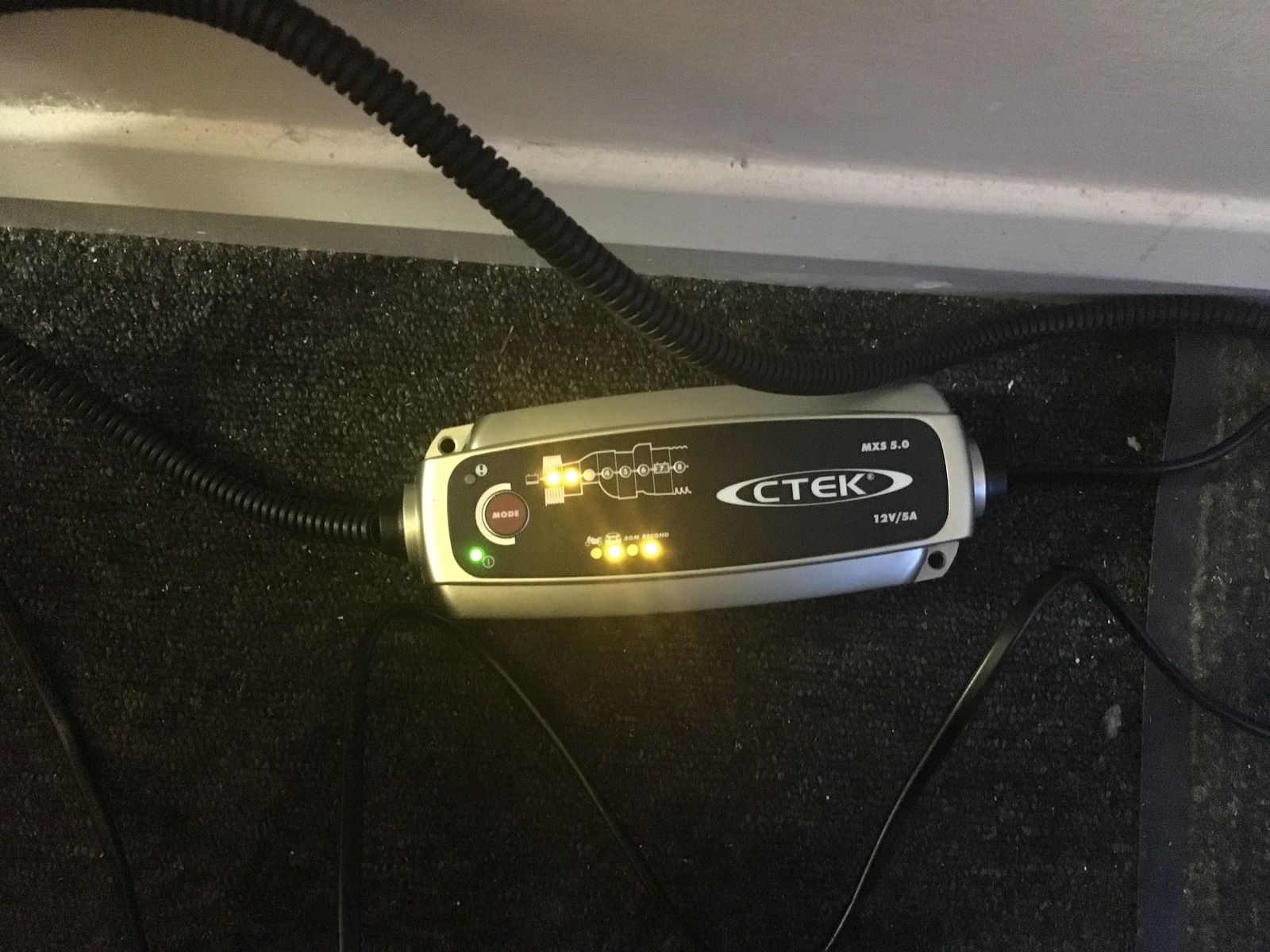

    Plus ref the dual batteries I charge them via my 12s socket using a CTEK charger

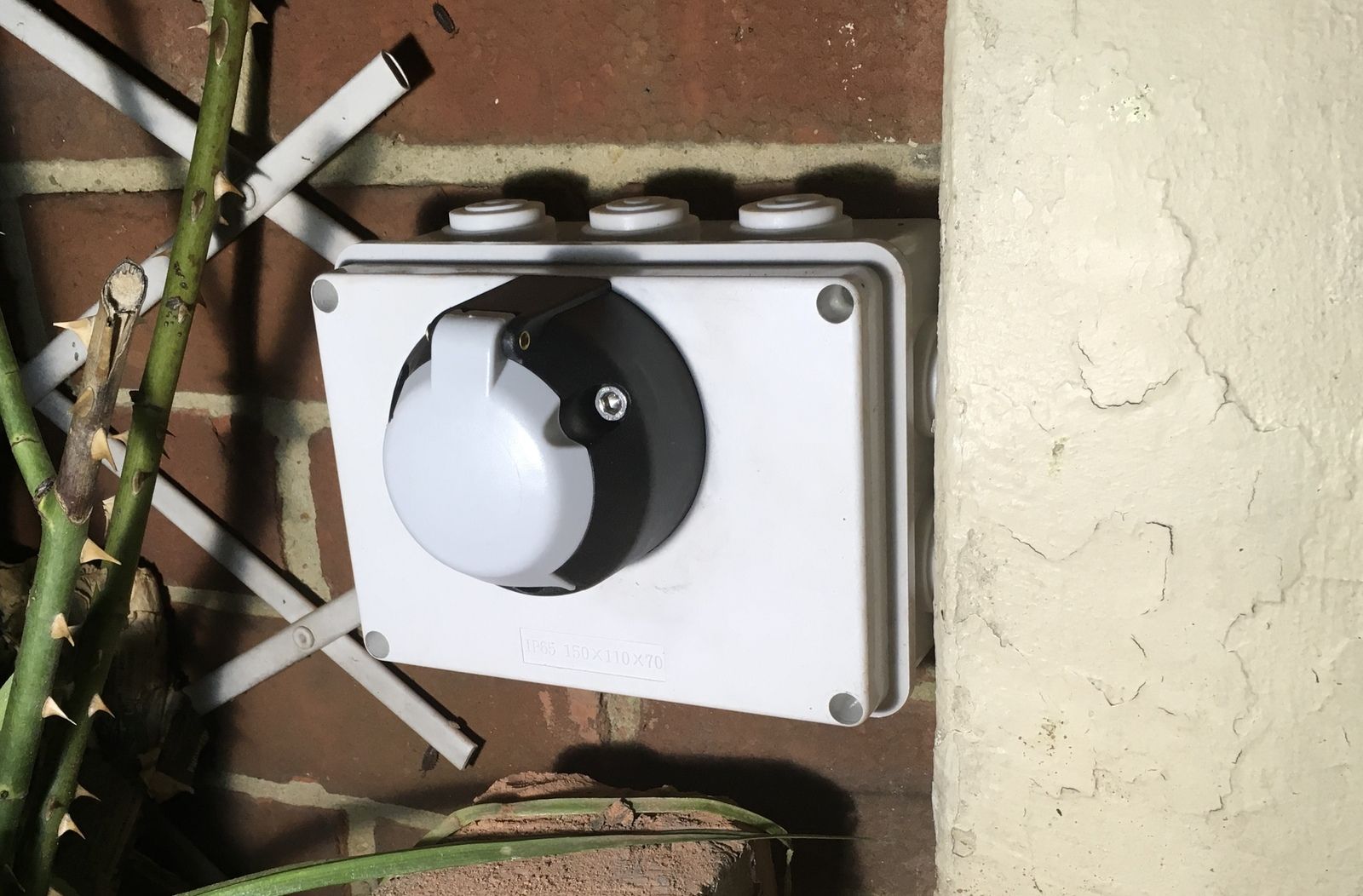

    Installed a charger point on the front of my house so when I pull on the drive I can easily plug it in

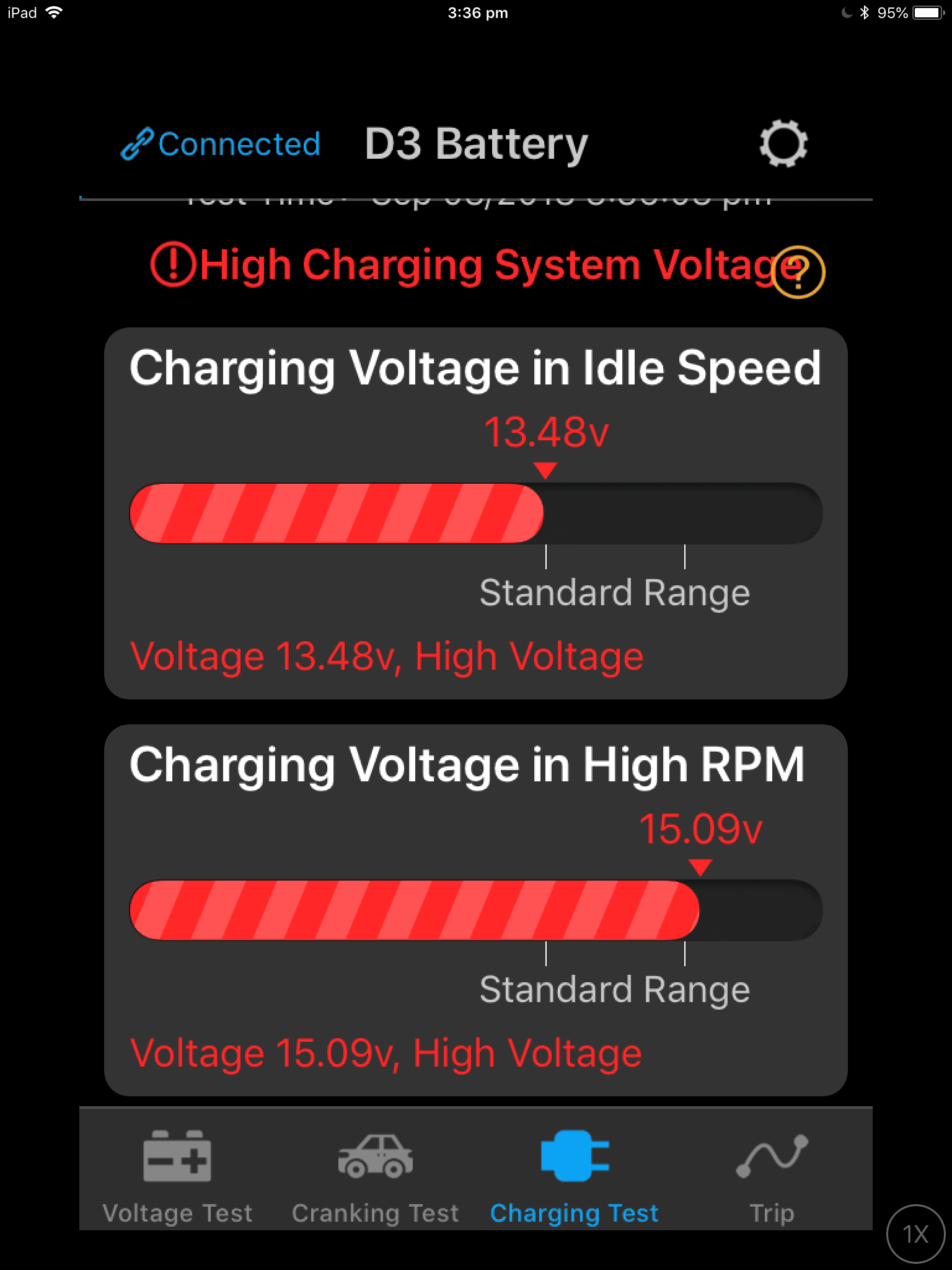

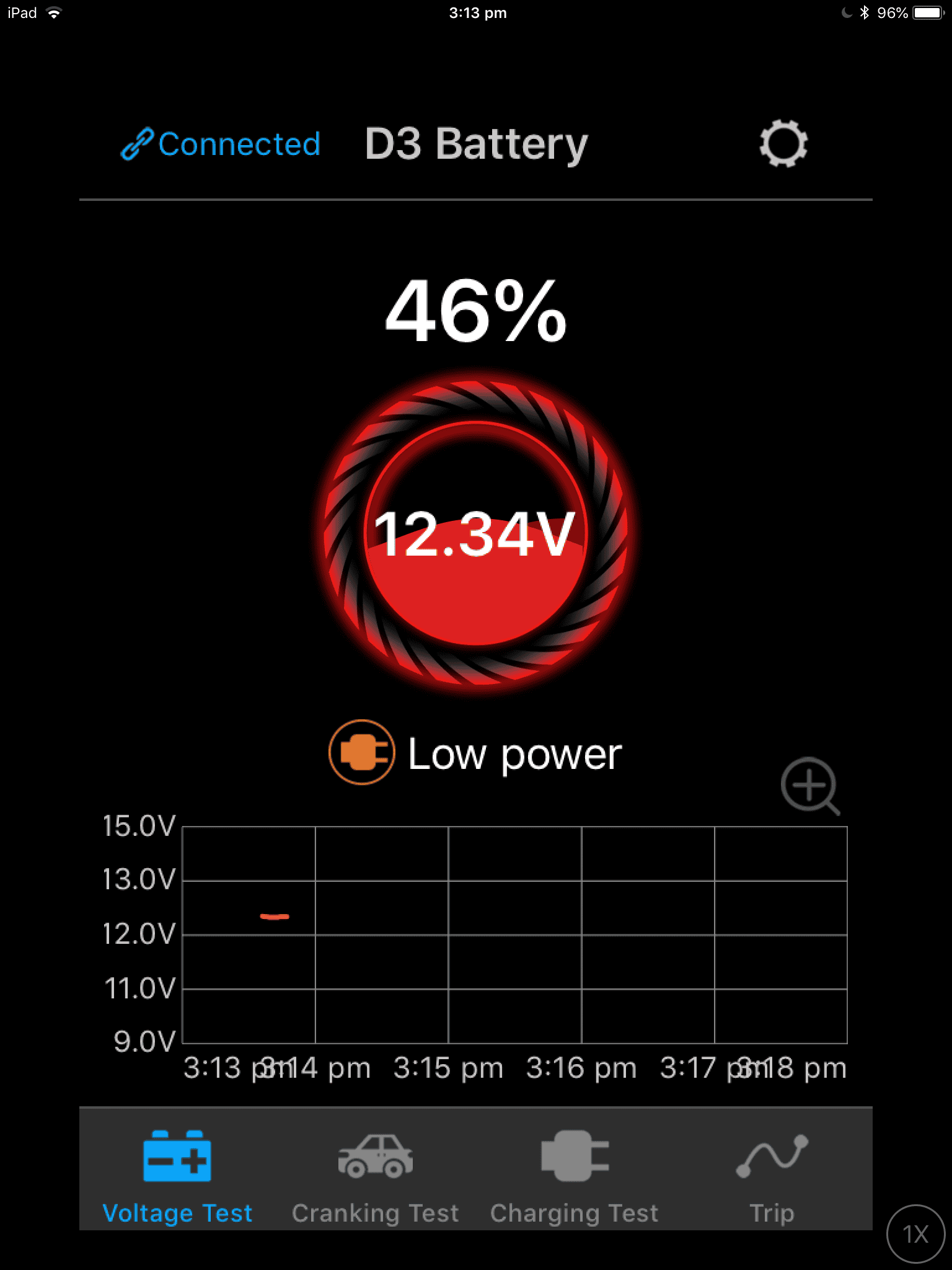

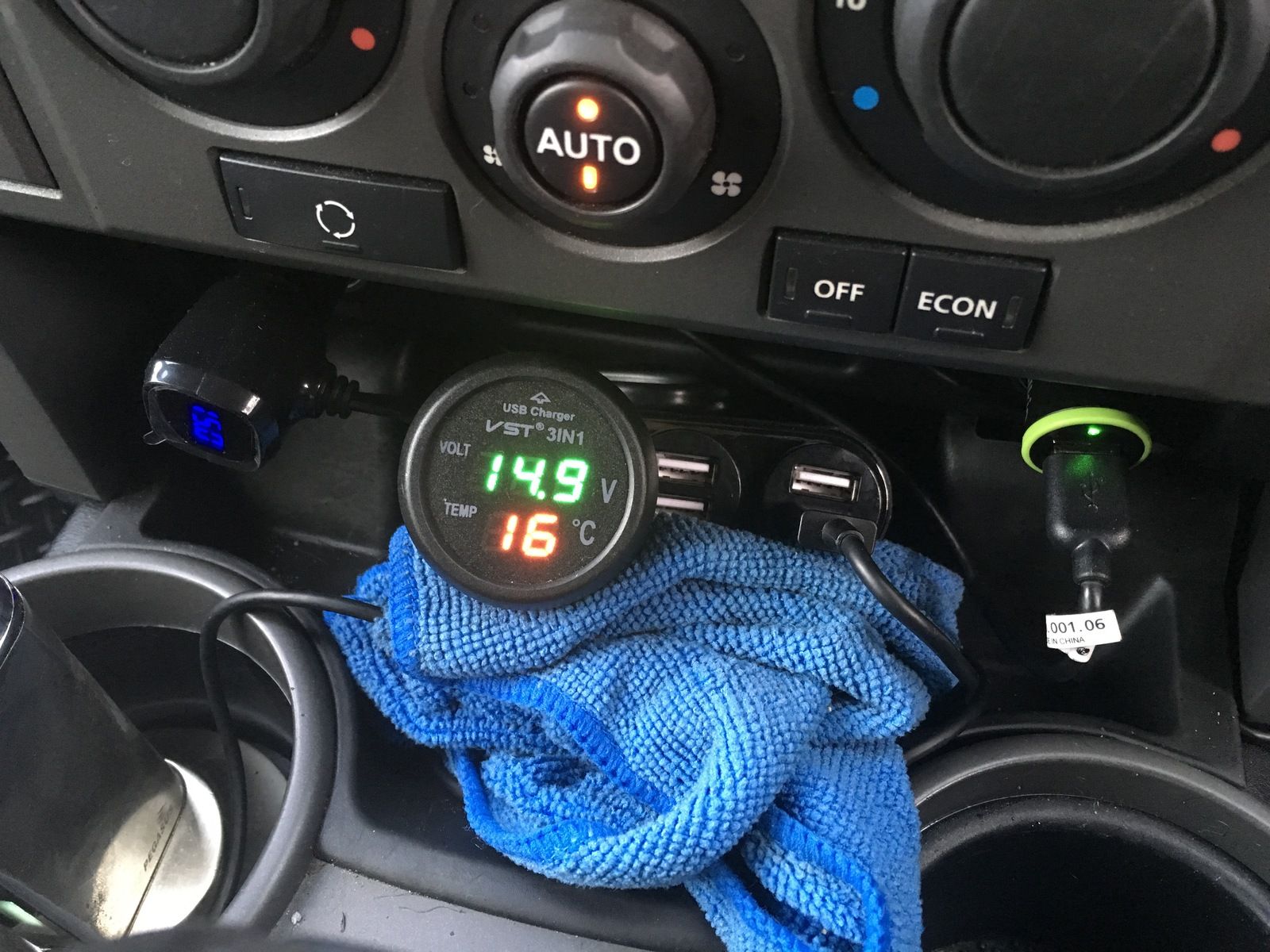

    The CTEK charger is in my hallway , I have a battery monitor in the disco so can see via my iPad what the battery voltage is and when it needs charging

    Alternator is 150 amp and will push out up to 15.8 Vdc

    4A61E0CA-5C03-4E10-B043-7BD61DBC91AA.jpeg 3F1D8A60-21A7-4868-9BB7-B6A77E2FC15C.jpeg B88FC1A4-B22C-4000-B9C5-470E053ABF78.png A4A80C02-88CA-478A-9F3A-C023BF750BAA.png 11BFD11A-85EC-40BD-9E2A-0A9024A8950D.png

    1988smithy and Hicap phill like this.
