Re-Discovery

Discussion in 'Members Vehicles/Projects' started by 1988smithy, Feb 27, 2019.

< Previous Thread | Next Thread >
  1. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    20,505
    Likes Received:
    5,866
    Location:
    Swanley , Kent
    Oh shucks, no pressure then, lol, great compliment buddy Thk u , don’t forget there are other extremely knowledgeable members here like lynall and nodge

    Company has the hunter alignment so indeed that’s what u need

  2. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,859
    Likes Received:
    1,817
    Location:
    West midlands
    Too right mate, always look for your lots posts here and disco3 forum. The 3 amigos (No affiliation to d2 abs faults):p

    gstuart likes this.
  3. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    20,505
    Likes Received:
    5,866
    Location:
    Swanley , Kent
    Must admit I would be tempted to go genuine , especially on the suspension, I done the same as I didn’t want to do it again in a hurry , at least u then know it’s quality parts

    There are some differences on the drop links according to which year , so have a quick look on ur d3 to see which ones they are and match on the web site

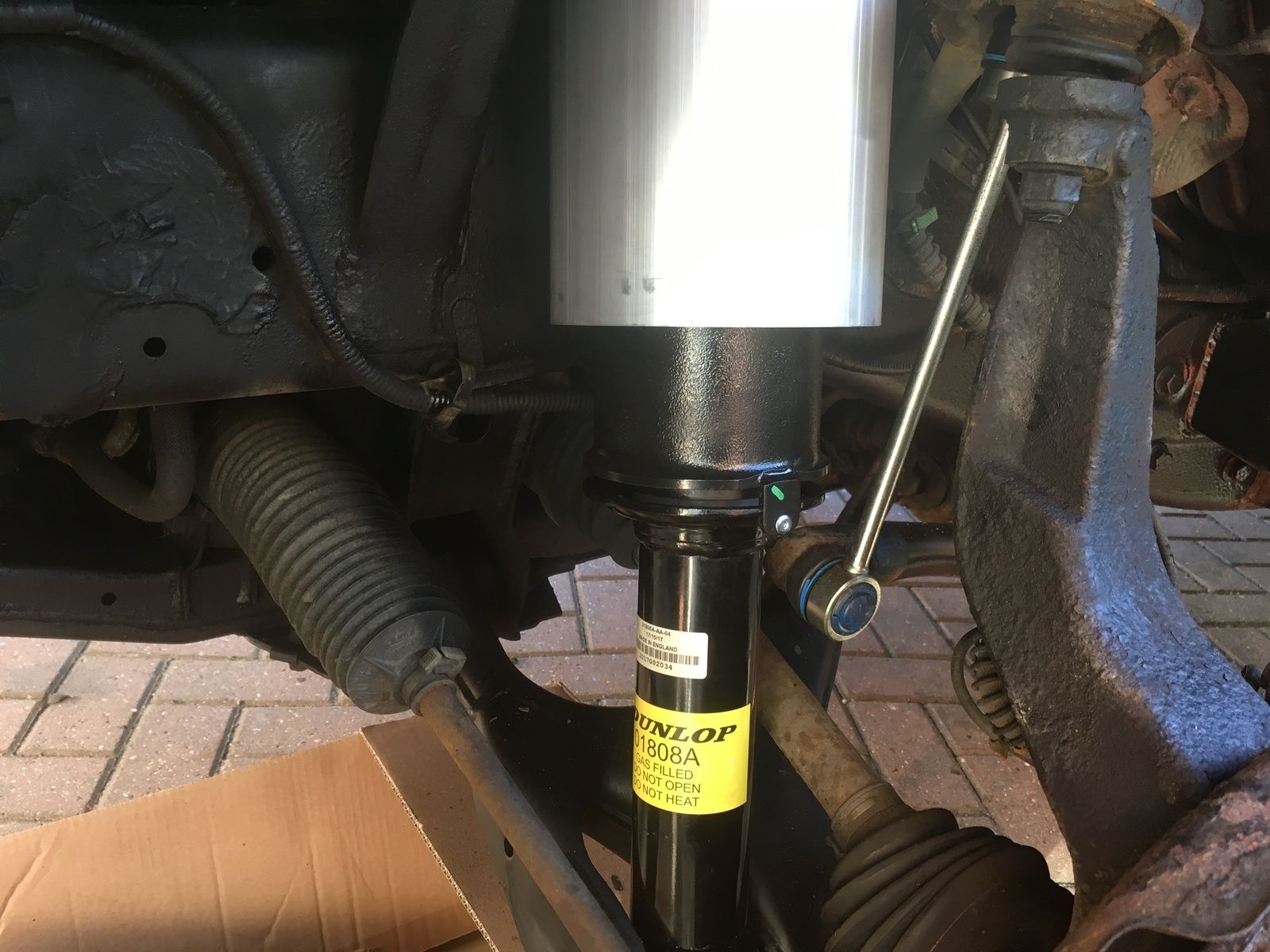

    Also fitted the hd meyle drop links when I fitted new front struts


  4. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    20,505
    Likes Received:
    5,866
    Location:
    Swanley , Kent
    Must admit it’s amazing how much knowledge I’ve gained in the last 3 x years , also good as I’ve been able to run things past lynall and nodge

    Ur know were always help u as much as we can :D

    Also don’t care how long it takes for me to search for info , always happy to do so in helping a fellow disco owner

    1988smithy likes this.
  5. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,859
    Likes Received:
    1,817
    Location:
    West midlands
    Yeah I'm gonna get the genuine ones mate, can't wait to get some shiny stuff under there and give it a quick blast of stonechip :D

    gstuart likes this.
  6. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    20,505
    Likes Received:
    5,866
    Location:
    Swanley , Kent
    Must admit when I fitted new front struts and the rear uppers it transformed the ride, was like a new vehicle

    Couldn’t get over how smooth it was considering it was a Land Rover

    From what I’ve seen the chassis do well on the D3/4 , think having side steps can become abit of a water trap on the sills , or behind the wheel arch liners in the corner , mud etc collects there, when I took all mine out it was all solid metal which was a massive relief

    Know they need some care but defentely my favourite landy so far

    What do u think of the D3 now you’ve had urs a while plse

    1988smithy likes this.
  7. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,859
    Likes Received:
    1,817
    Location:
    West midlands
    Agree r.e chassis, plenty of surface rust under mine but that's all it is. It's absolutely solid, wire brush, clean down and quick paint will see it good again.

    As a family of four with a dog, the caravan which we use a lot and we're always out and about on bikes and all sorts it's absolutely fantastic. If we kept the D2 we'd probably be happy but the way things panned out we ended up with the D3. So comfortable and easy to live with. It's made towing a pleasure, the defender was HARD work as a daily and even though it could tow 3500kg it never felt easy. I get why people love their tratters but they ain't for us as a family. The D3 just owns it, we traveled 3hrs back from barmouth today and didn't stop once for a break and mine's not even a top spec! Defo see us in a D4 HSE in the future when funds allow!

    Really couldn't be happier with it, I know they're not cheap to maintain properly but what land rover is? Hopefully no big nasty surprises in store, im hoping it's just the diff bearings rather than the gears I'm quietly confident it is lol.

    Just need a set of roof bars and cycle carriers now, maybe a dog guard to keep stuff in boot away from us, dog sits between kids on back seat lol

    But yeah mate, really impressed with it so far, think the separate body on chassis construction gives a lot of the comfort and the suspension is brilliant even though it's probably not 100% up to scratch at the moment. 10/10 would buy one again lol

    Edit
    Thinking about it, it's 13 years old and the interior has worn really well, bit of a rattle from upper glove box but some foam tape will cure that. It feels really well put together and the plastics are decent quality. Definitely a turning point for LR, I love the old stuff and the defenders but they came up with a fookin good car with the D3

    Last edited: Apr 19, 2019
    gstuart likes this.
  8. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,859
    Likes Received:
    1,817
    Location:
    West midlands
    Always telling people we like pics on here :rolleyes:

    Disclaimer for mobile users, pic heavy fook thumbnails :p

    Mind the finger :rolleyes:

    Black country flag in barmouth harbour :cool: wouldn't let me post zoomed shot. That craft was surrounded by dog shìt :mad: I know willenhall's a shìthole but come on!

    Barmouth harbour

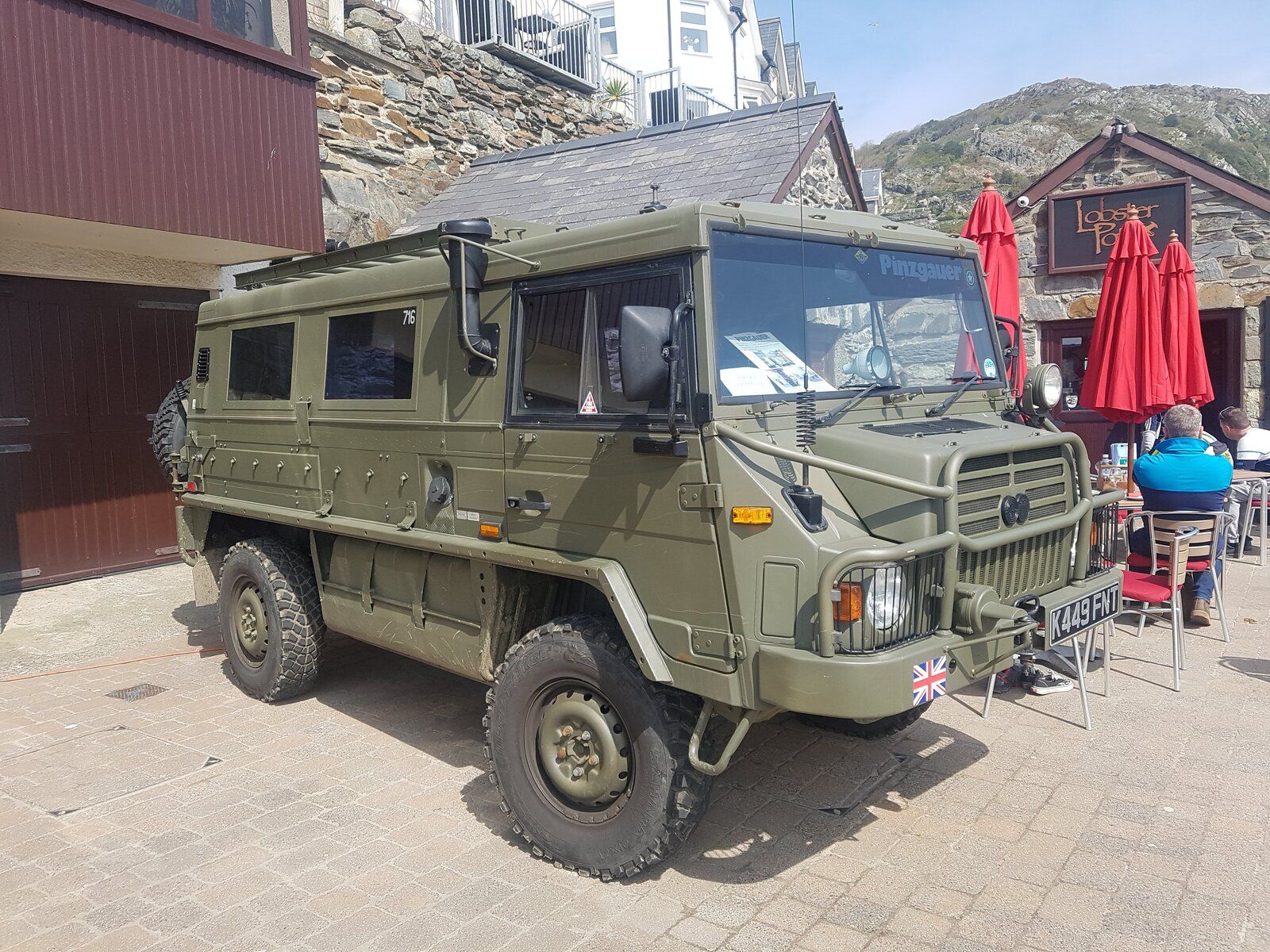

    Pinzgauer for sale, worked on armoured versions of these for the Danish military as an apprentice at S. Macneillie in walsall. This one was an ammo resupply in the Malaysian army. Asking £26k!

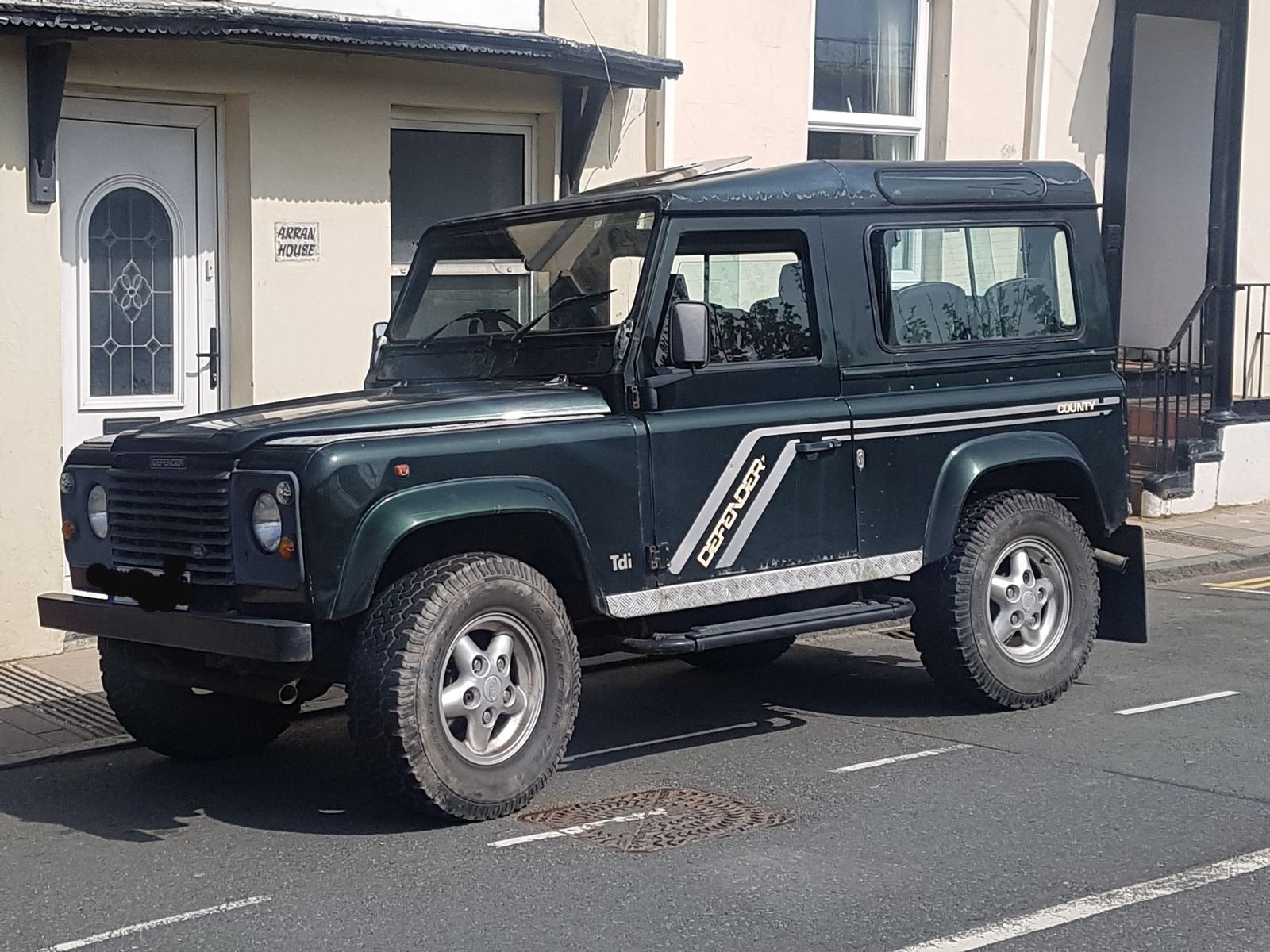

    Nice 1995 Tdi 90 county, had a weird tubular addition just behind front bumper. Can just make it out on this pic. Plenty of lacquer peel on roof from the sun!


    Hicap phill and gstuart like this.
  9. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    7,382
    Likes Received:
    5,363
    Location:
    Back in the UK, Sunny Hampshire.
    Looks like you had a good time :)

    Nice find that extension bar ;)

    1988smithy likes this.
  10. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,859
    Likes Received:
    1,817
    Location:
    West midlands
    Found a pry bar in the garage as well :)

  11. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,859
    Likes Received:
    1,817
    Location:
    West midlands
    This mornin', I has been mostly doin' driveshaft removal ;)

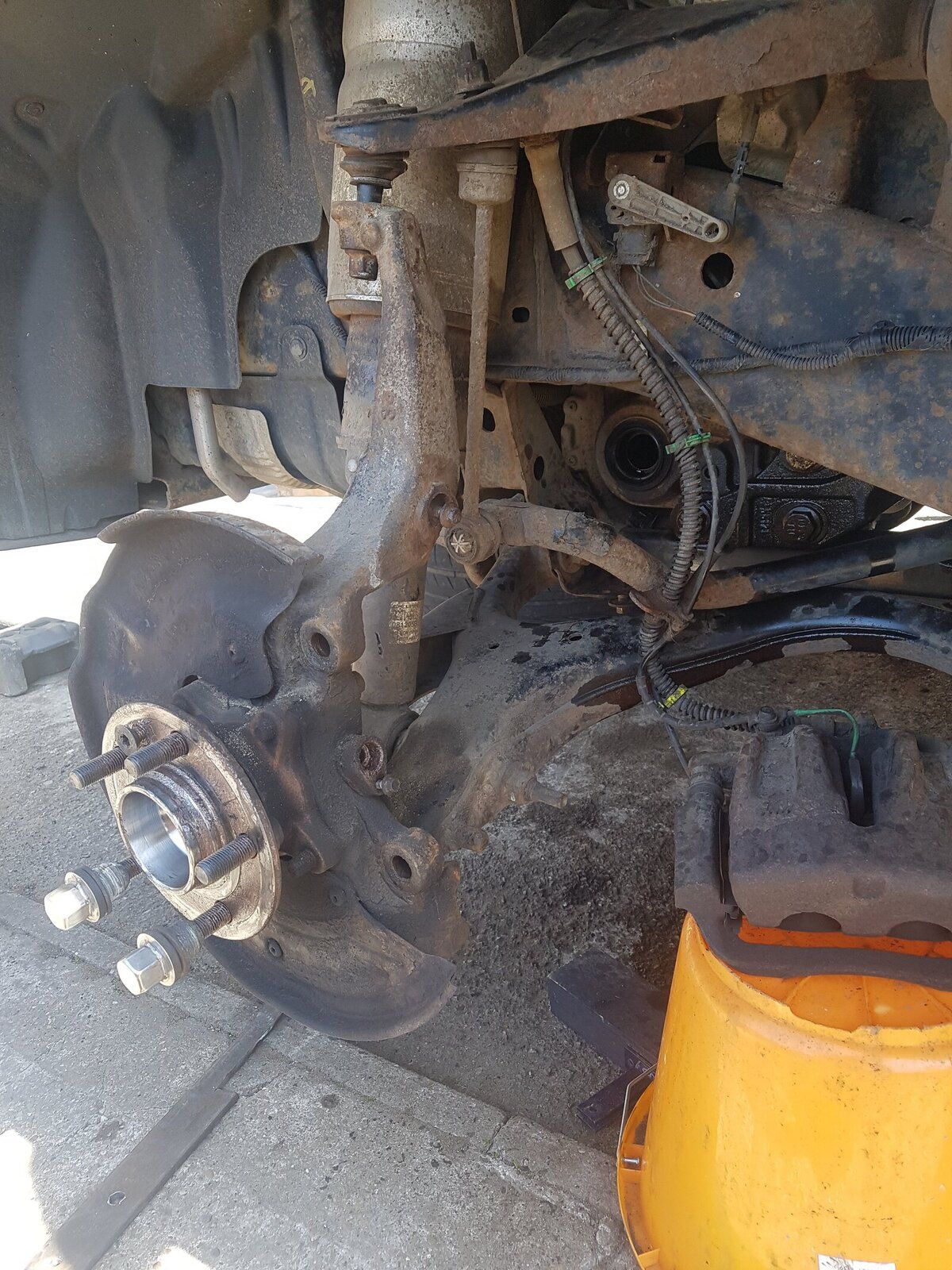

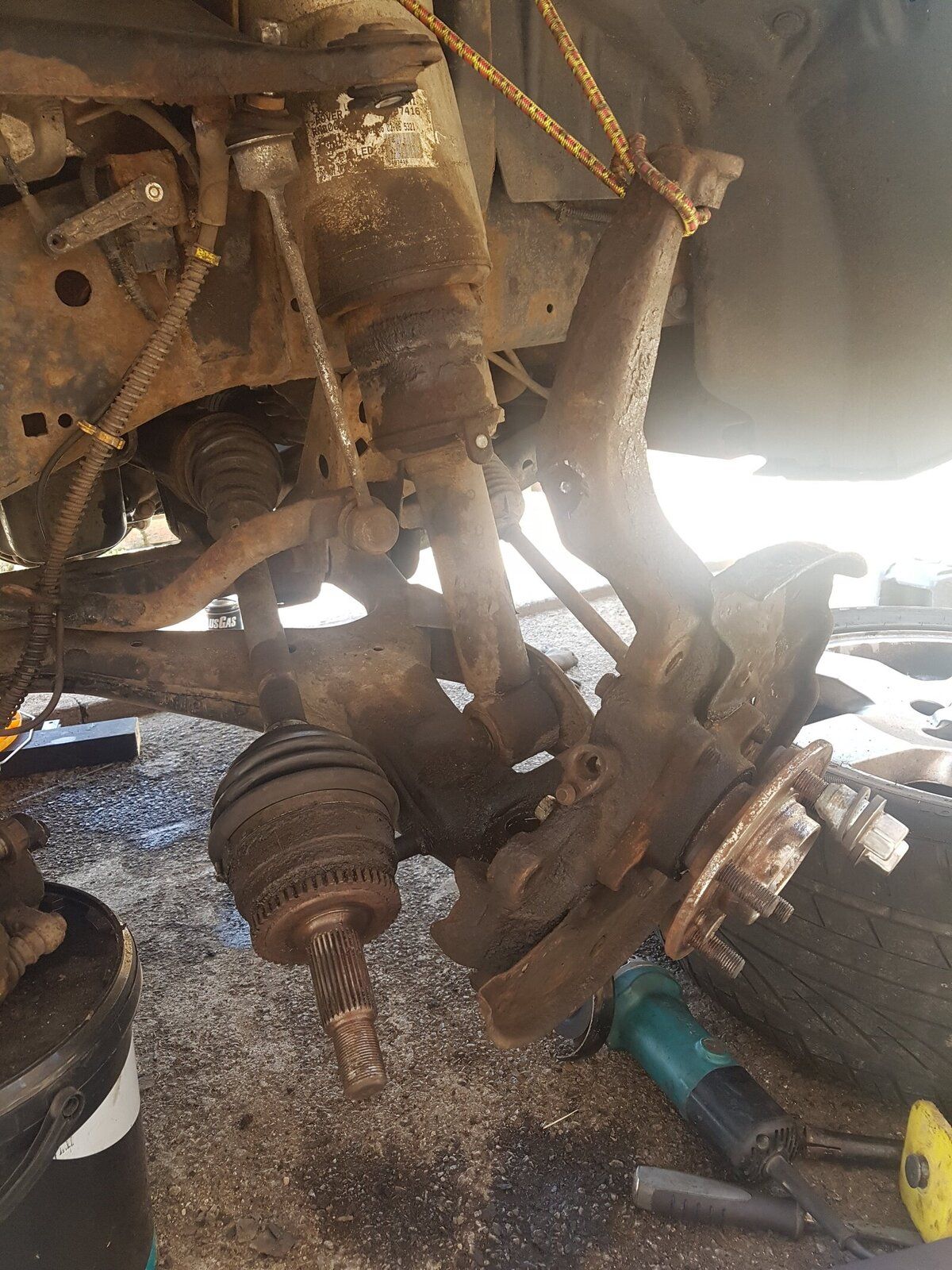

    Nearside all came apart lovely, driveshafts on the bench, ain't had a look at it properly but looks ok to me LMAO

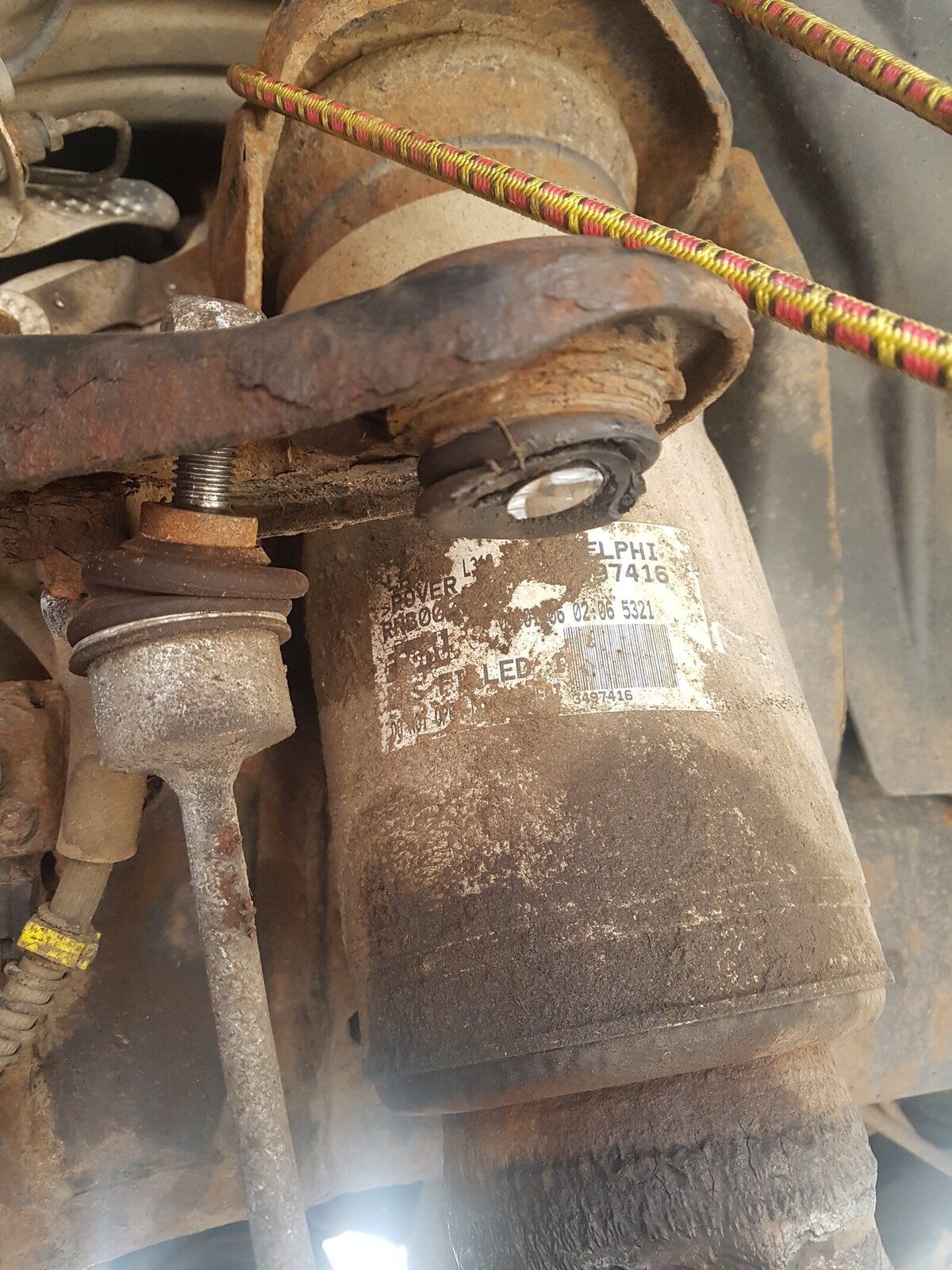

    Got upper ball joint and drop link finger tight holding knuckle in place for now

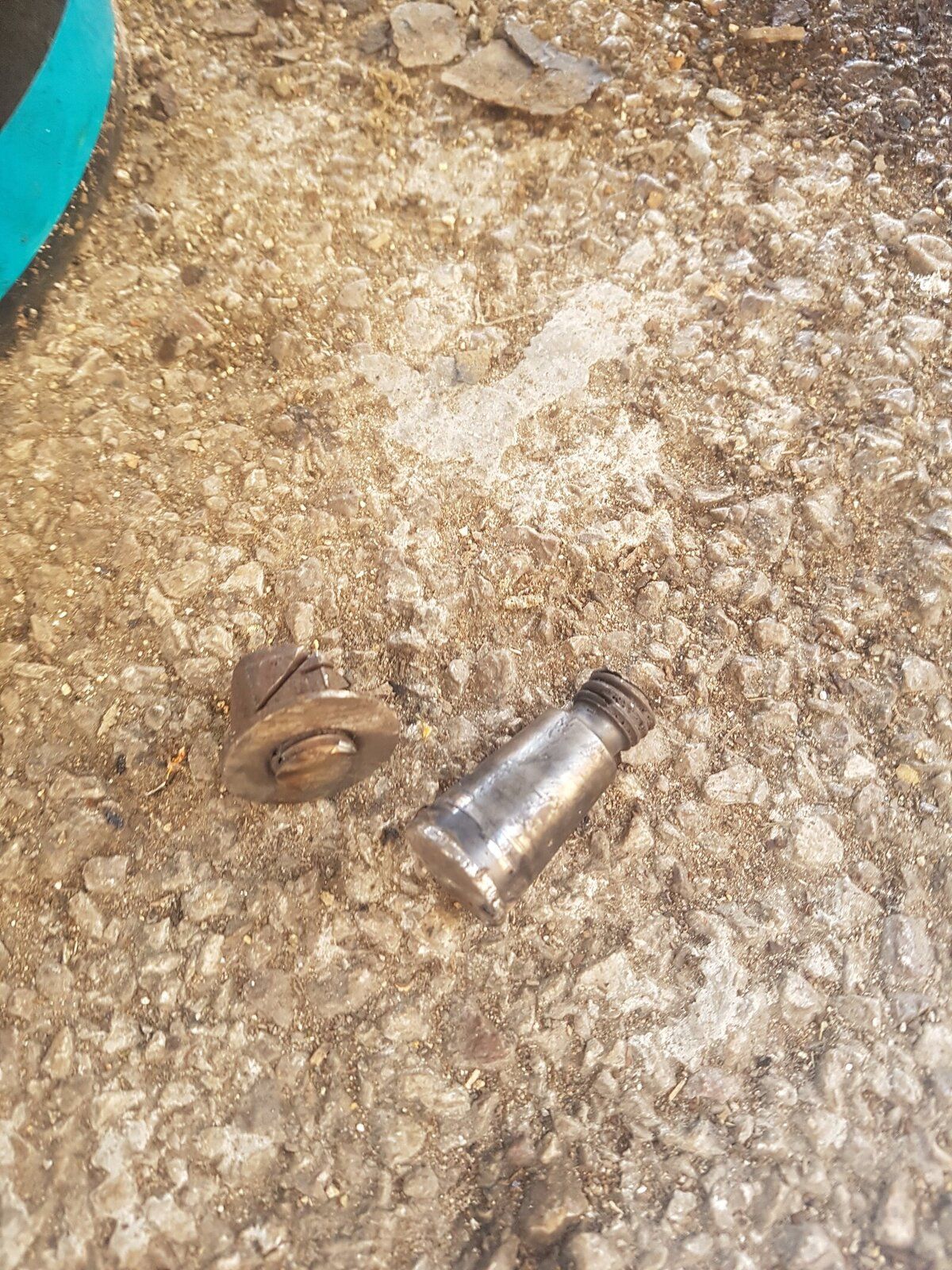

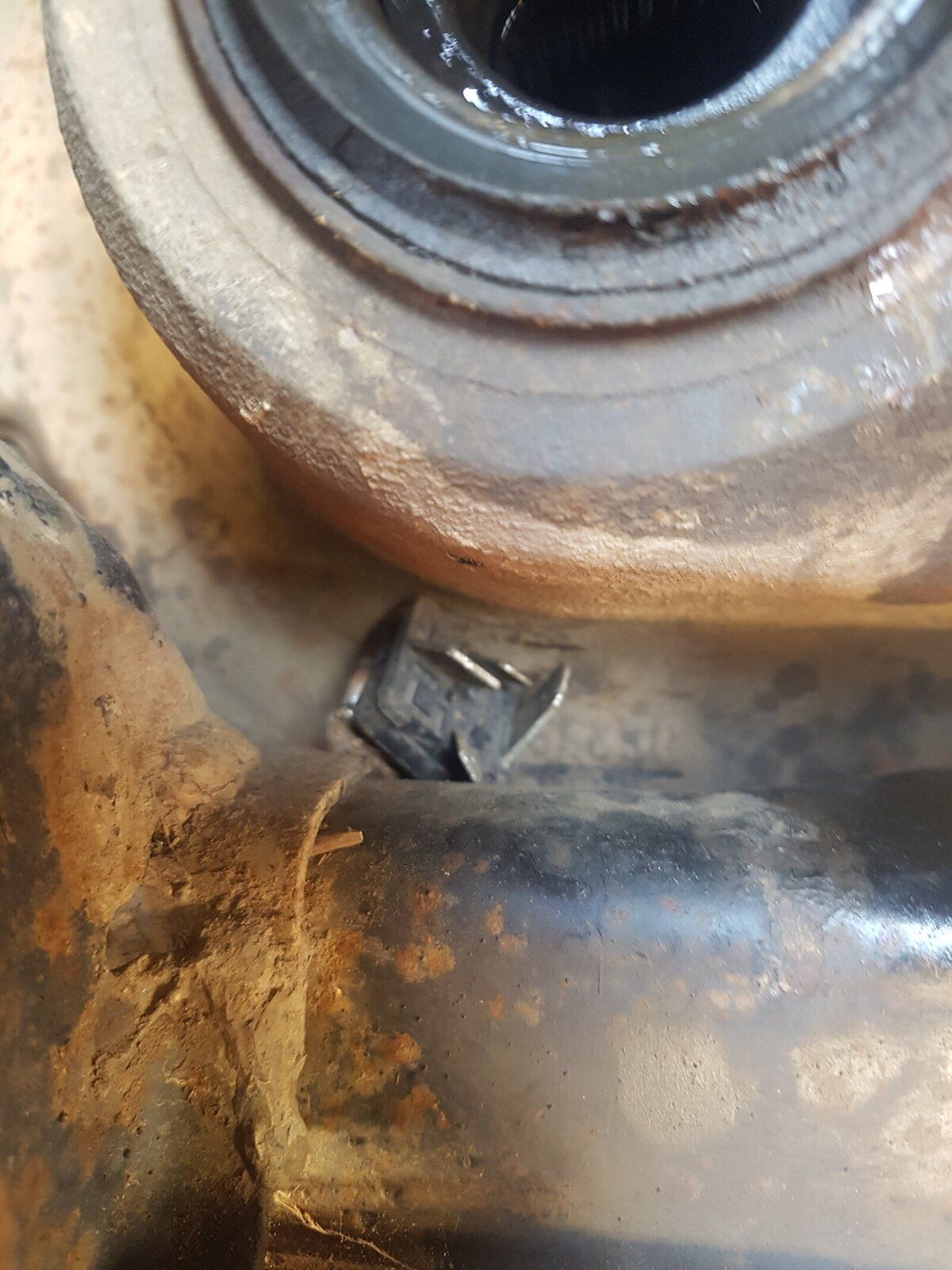

    Offside was a right bitch, brake flexi bracket bolt was completely mullered so I've had to cut it off. Even the irwin sockets wouldn't grip it :eek: ill have to drill it out and retap the thread. Give me something to do while im waiting for parts :rolleyes: driveshafts out at hub end though
    Upper ball joint was completely seized up, could not get Allen key to grip in the spindle the nut was rust welded tight. After about an hour struggling that got the grinder treatment as well :rolleyes:
    20190420_122025.jpg 20190420_122021.jpg
    Fookin butcher :D

    Previous bodger left me a relay as well as the extension bar :p
    The car that just keeps giving.

    Got a wedding to go to now, tomorrow's plan is offside driveshaft at diff end, front prop and diff out before I go to mom's for lamb dinner :)

    Hicap phill and gstuart like this.
  12. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    20,505
    Likes Received:
    5,866
    Location:
    Swanley , Kent
    Looks like ur having so much fun and indeed I found that where previous people have had a go and rounded bits off

    I found using a dremel with the flexi hose a great little tool to have , will zip through drop links in no time at all

    Have a good day Sunday mate and like the piccies

    Keep up the good work and I bet ur secretly enjoying urself on the spanner’s , lol

    Ps , plse check ur abs sensors as they can wear , not very expensive to replace

    Hicap phill likes this.
  13. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    4,455
    Likes Received:
    3,998
    Location:
    Wiltshire
    Loving the photos.

    1988smithy likes this.
  14. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    4,455
    Likes Received:
    3,998
    Location:
    Wiltshire
    The bar addition on the 90 is steering link protector & it was standard on some nice motors.

    dieseldog69 likes this.
  15. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,859
    Likes Received:
    1,817
    Location:
    West midlands
    Cheers mate, I love a thread with loads of pics so try my best

    Hicap phill likes this.
  16. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    4,455
    Likes Received:
    3,998
    Location:
    Wiltshire
    & you did not wave to the web cam at the lobster pot ;).
    Plenty of nice driving round there & a few green lanes.
    Are you/family enjoying the disco more than the landy? :)
    Looks like your spanners are getting more use now

  17. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,859
    Likes Received:
    1,817
    Location:
    West midlands
    It is fun ain't it :p plus you know exactly what's been done and can have a good look see while you're under there :eek:

    Have found that with working on these landys, you always need some other tool, sometimes easily justified to the better half :D

    ABS sensors are good mate, although pad wear sensor is broken on nearside. Hasn't affected anything though that I've noticed.

    Forgot about that by the next day when we were down the harbour!

    Disco defo better for us than a tratter, love em as I do. One of the reasons I got rid of the defender was amount of time spent on spanners, should've got an amarok :rolleyes:

    Can't wait to get this diff sorted so I can get out on some lanes, was tempted to find some on trailwise2 when I was there but had half a mind on getting us back!

    dieseldog69, gstuart and Hicap phill like this.
  18. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,859
    Likes Received:
    1,817
    Location:
    West midlands

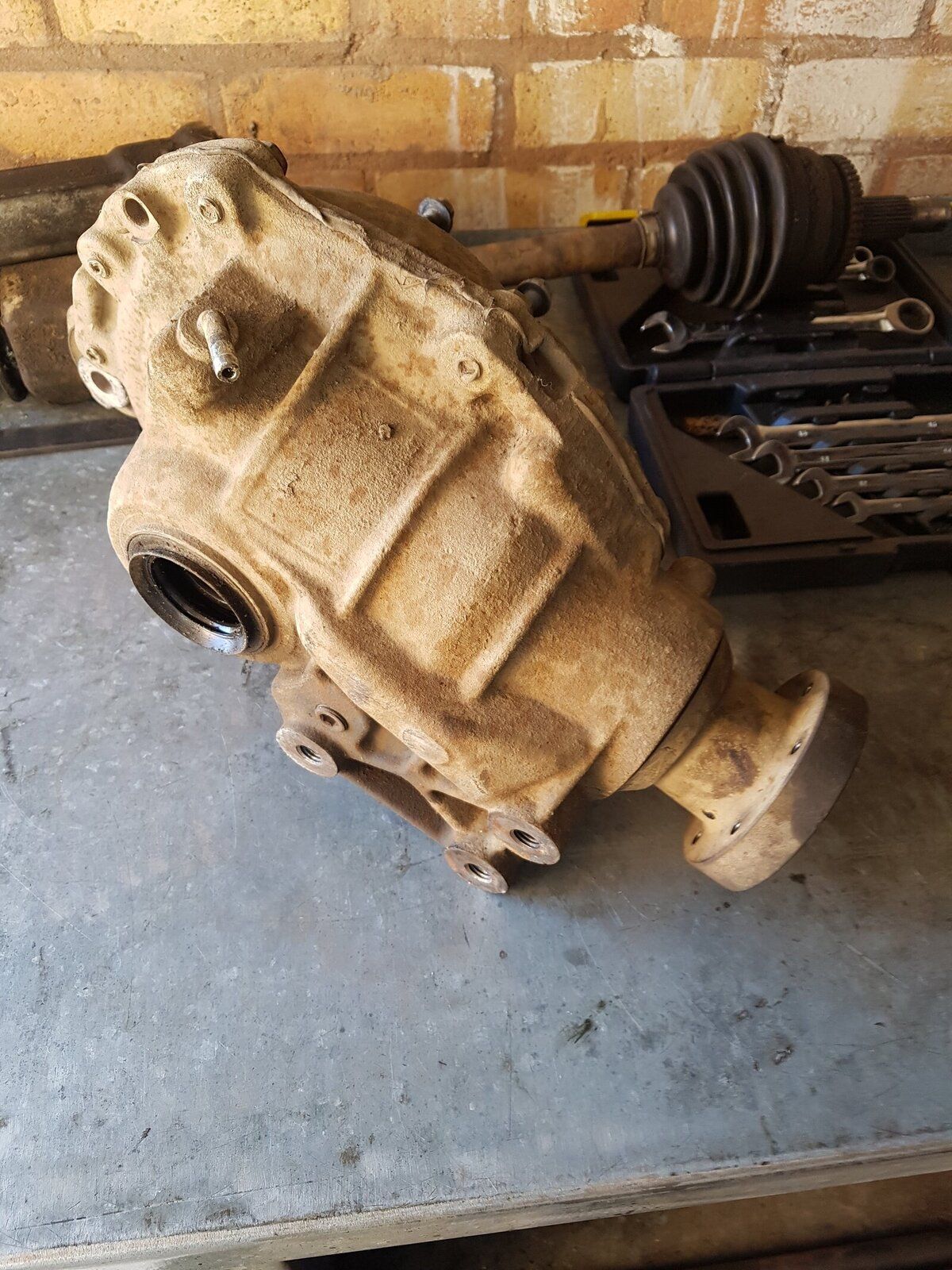

    ****in ayda, about 3hrs spent on it today but it's out!

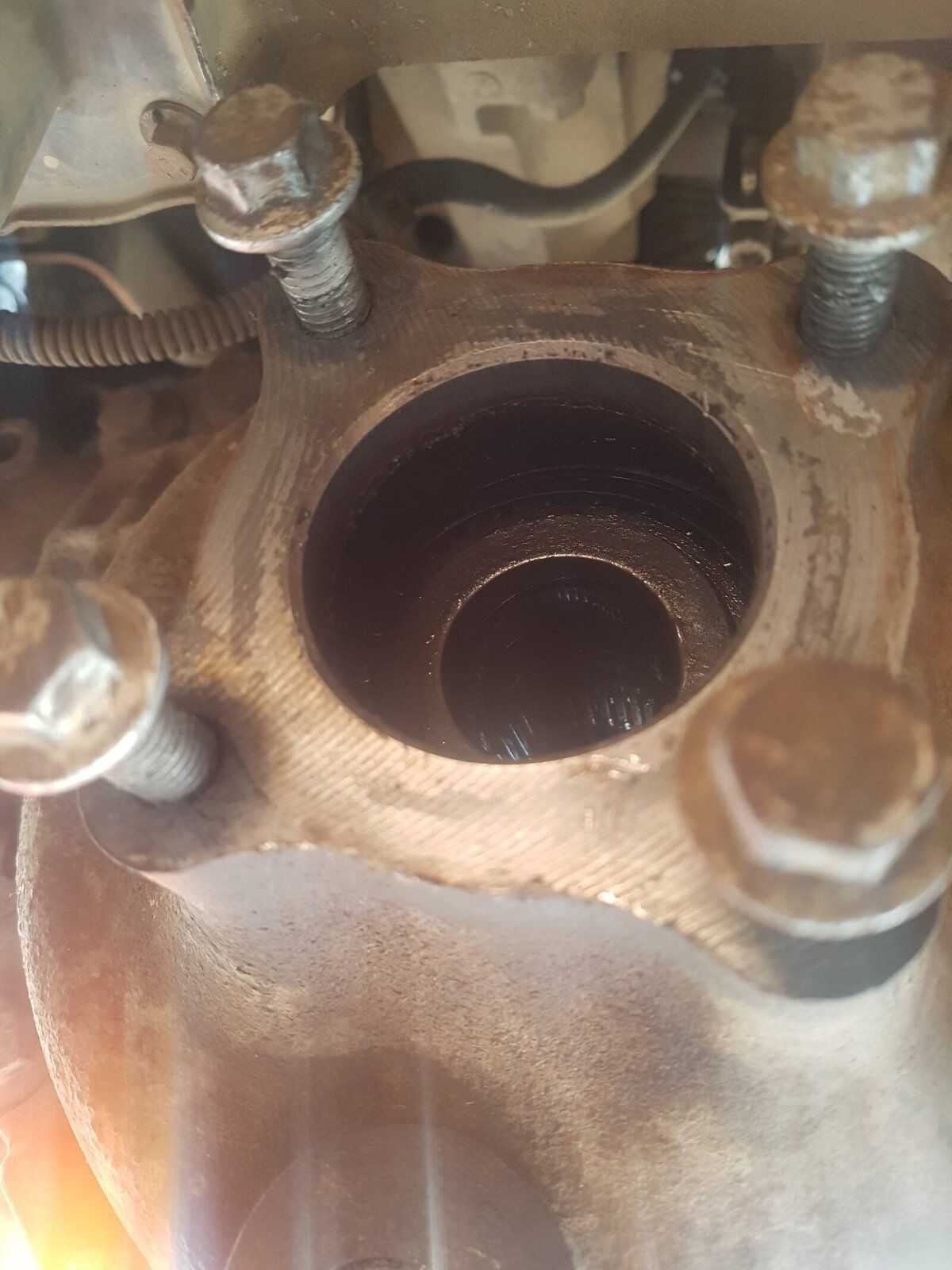

    No o ring on this face for axle tube, was only on very early models I think unless diff has been changed already!

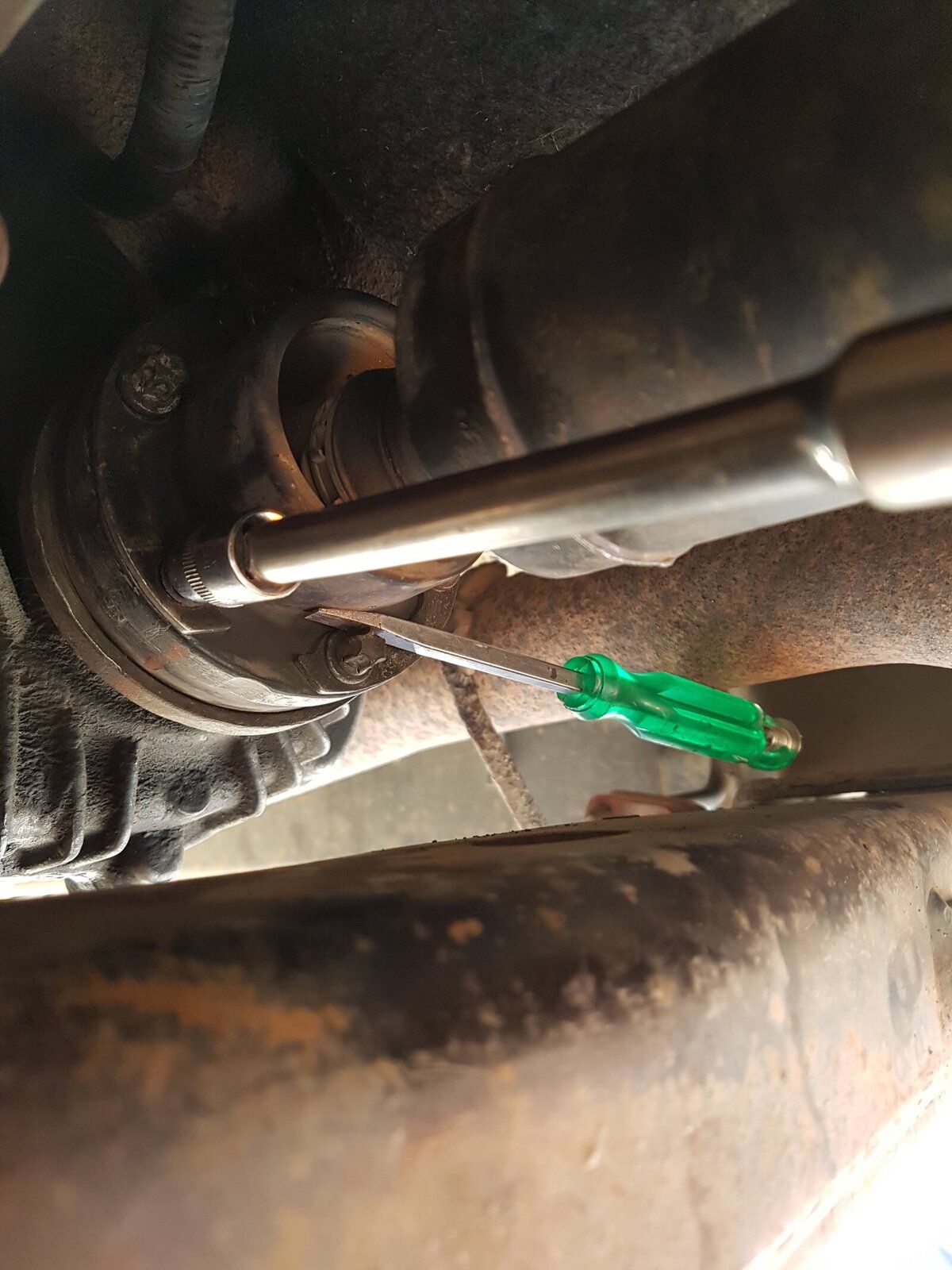

    Undid propshaft both ends but needn't have bothered, had enough room to wiggle. Next time I'll slacken the prop bolts while it's still on its wheels. I marked the position on the flange as well

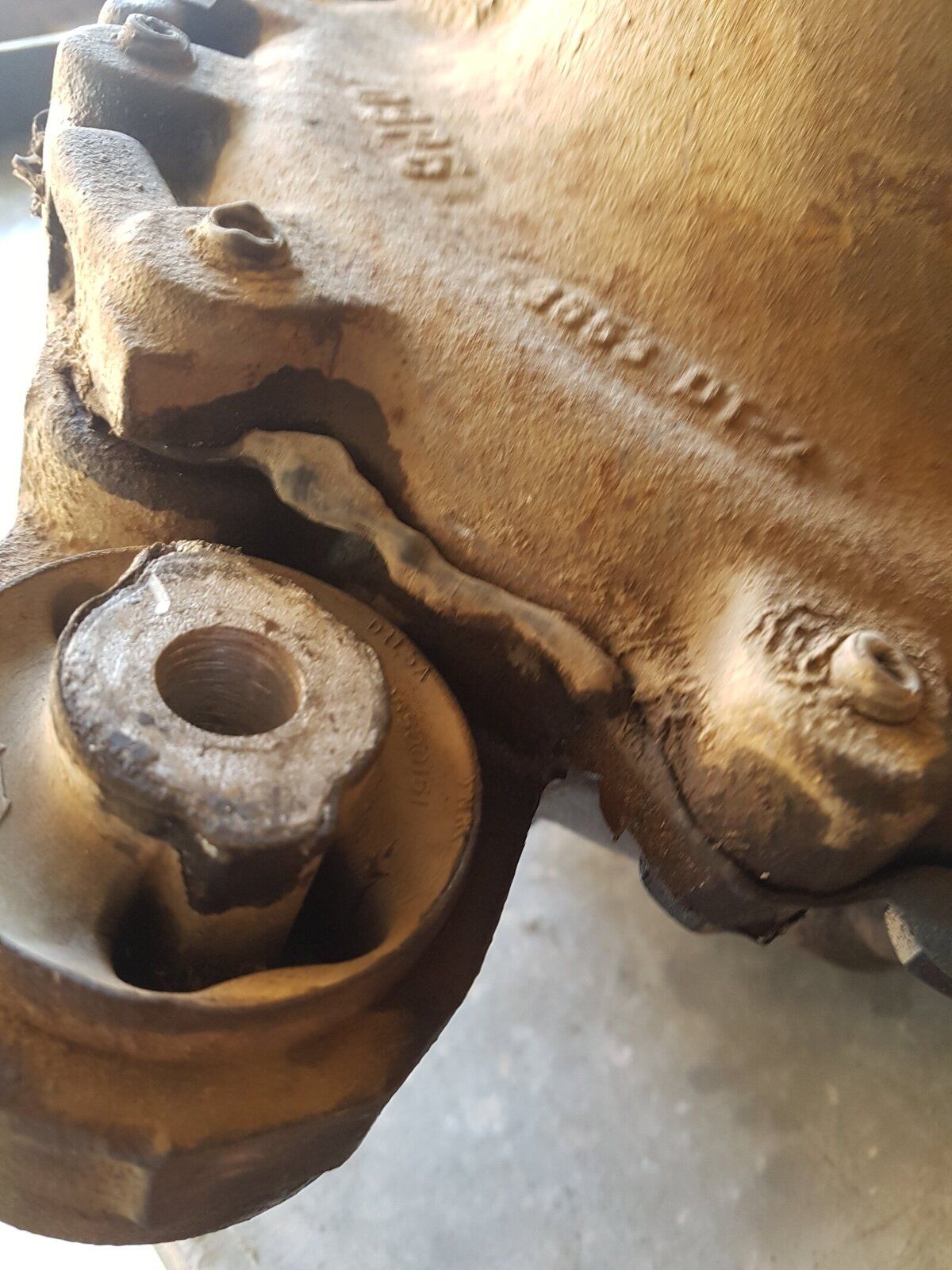

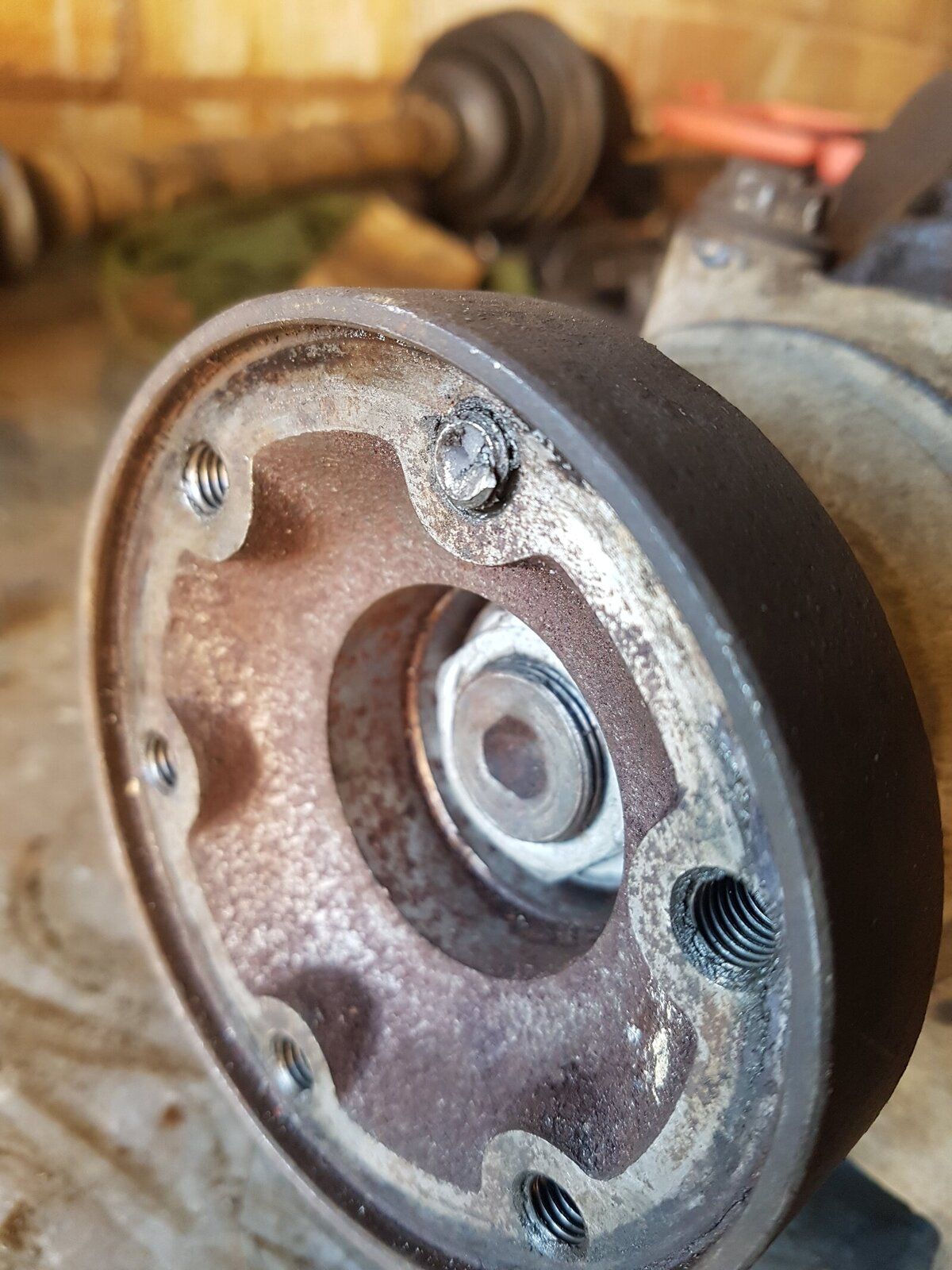

    Sure it's been off before, rtv feckin everywhere and theres a prop bolt snapped in the diff flange :mad:
    20190421_163316.jpg 20190421_165143.jpg

    Time to crack it open, I've spun the flange round I can't hear or feel much but sure the offside bearing is making a bit of noise
    I might just look at it for a bit, biggest job I've ever done :oops:

    dieseldog69 and marjon like this.
  19. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,859
    Likes Received:
    1,817
    Location:
    West midlands

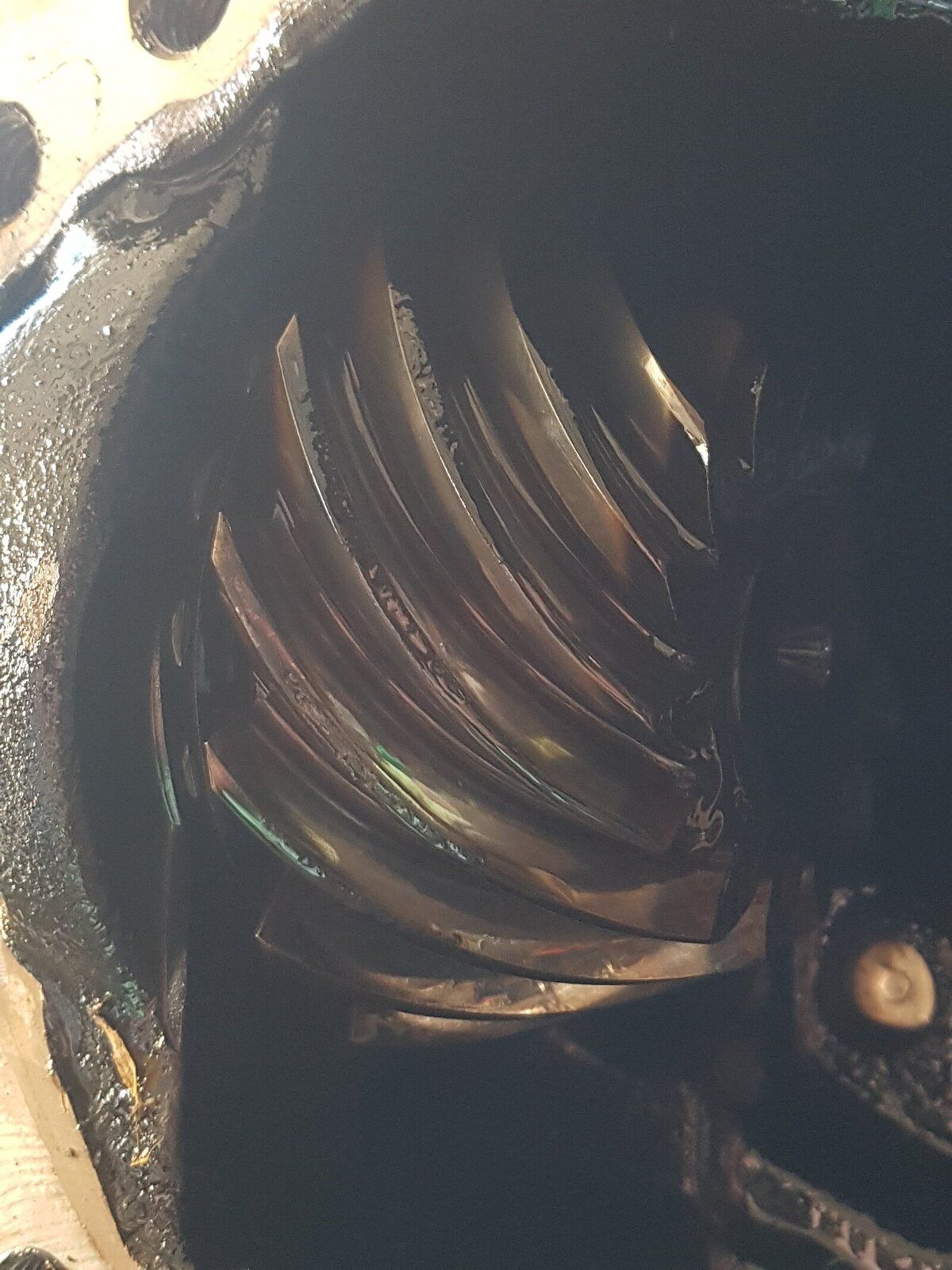

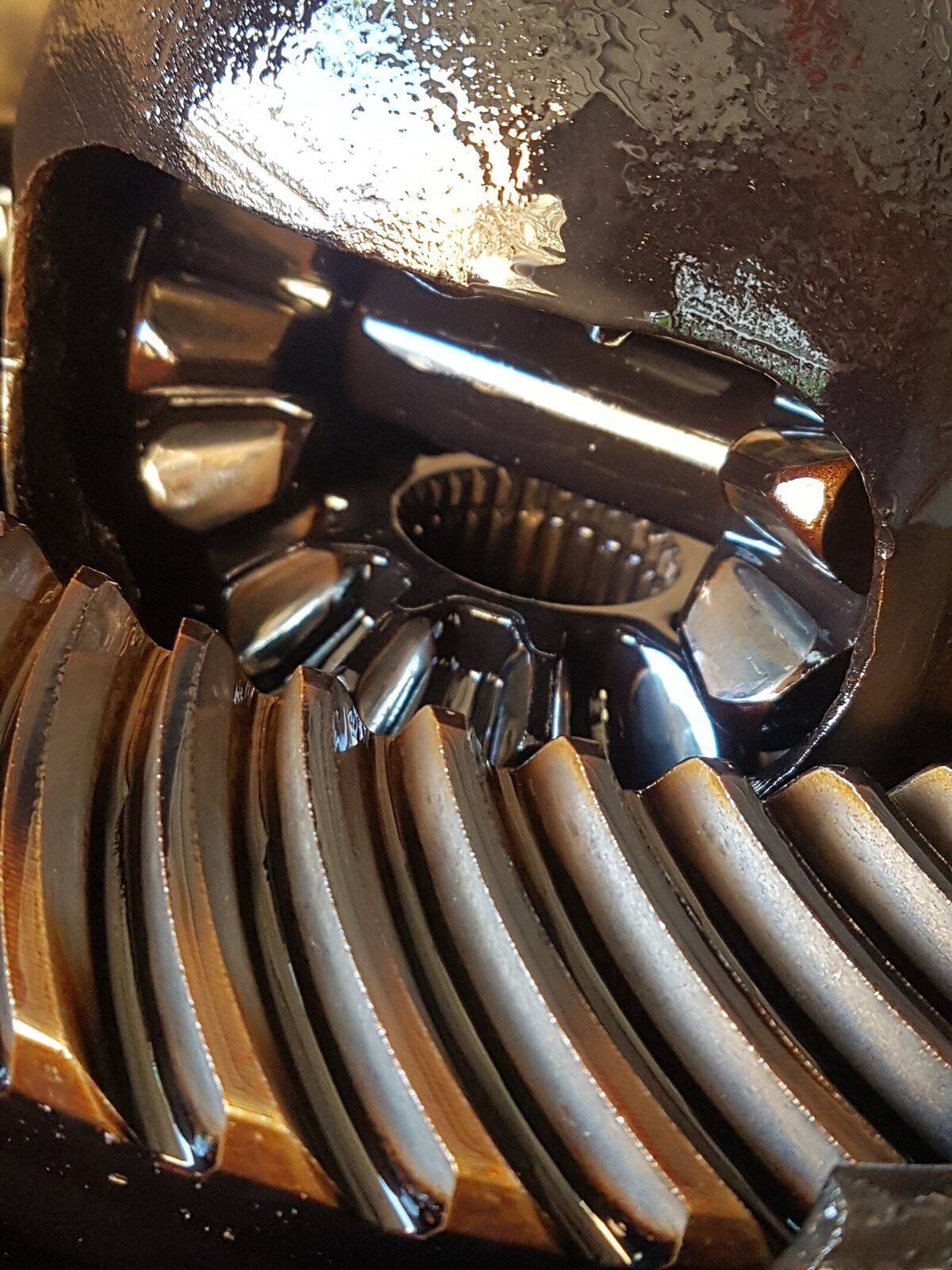

    Ok , gears look good to me. No damage on leading edges, bit of an oily paste. Not gonna lie I'm out my depth here but I can't see anything obvious!

    Nearside bearing looks fine, nice and smooth to spin

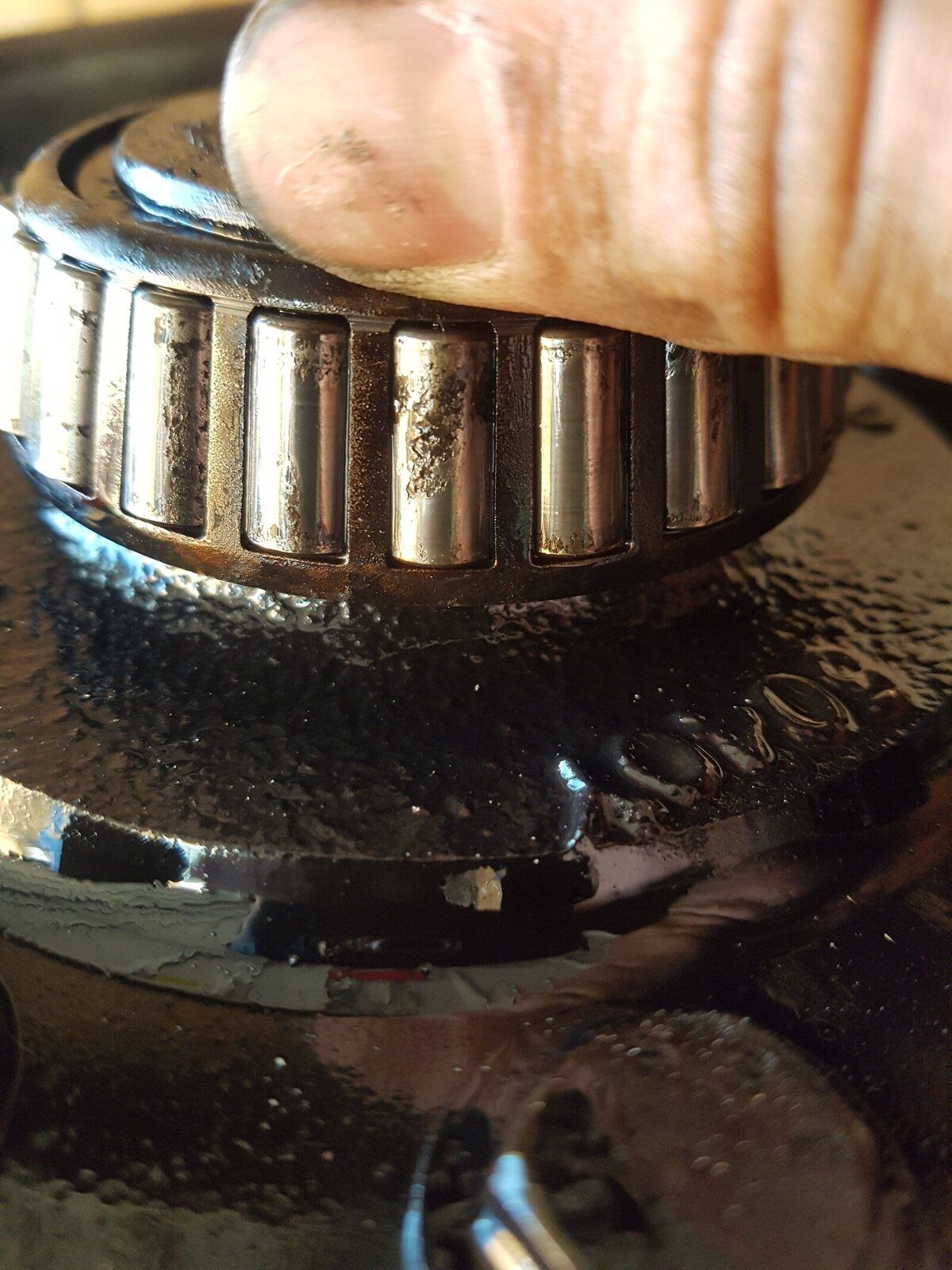

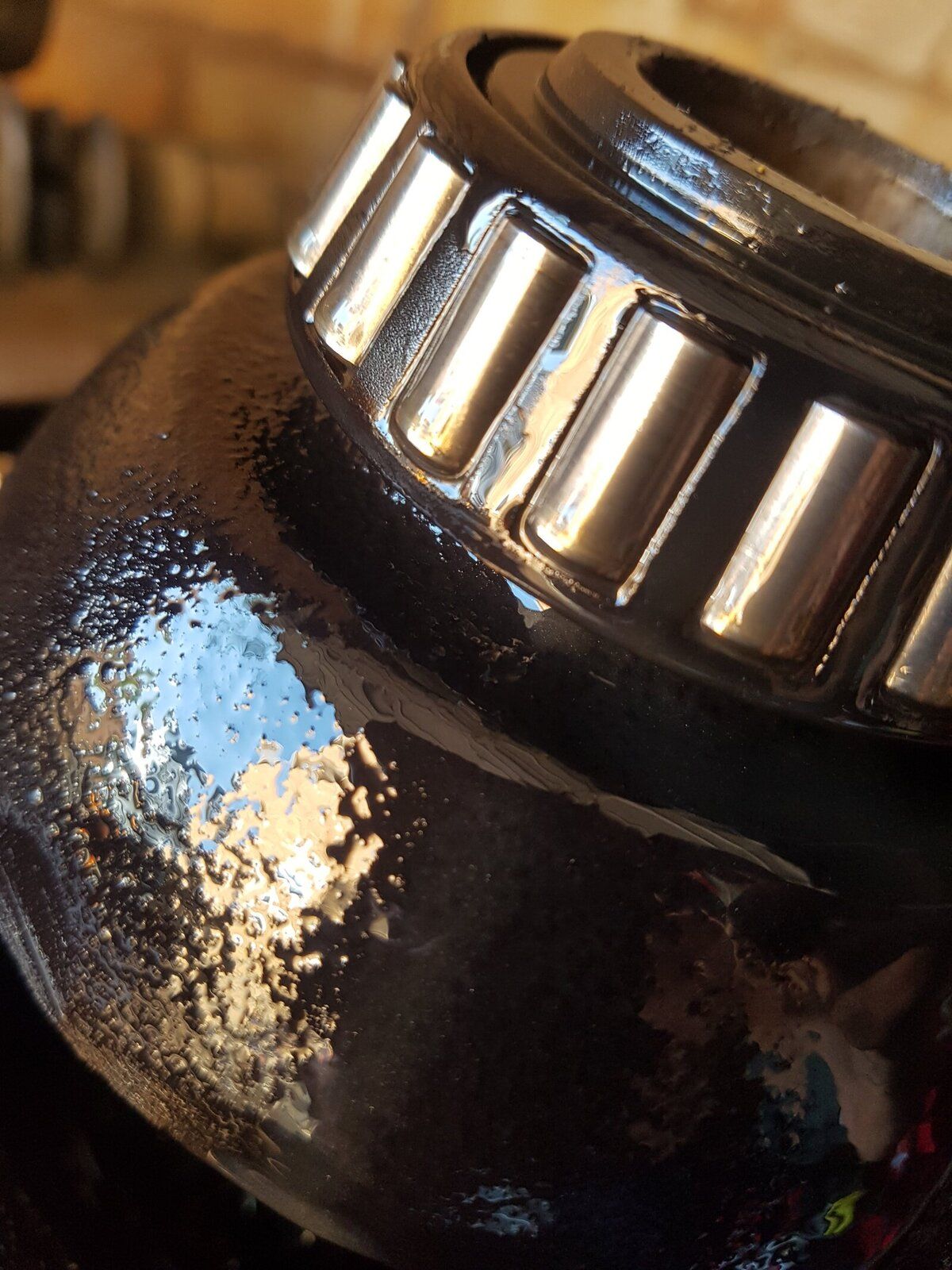

    Offside bearing, that has to put up with the longer driveshaft, is a bit sorry looking and sounds rougher than my mother in law after a night on the pìss.

    Yeah it's fooked ain't it!

    Feeling pretty lucky unless I've missed something?? Has anyone got a part number for that bearing and do i just pull it with one of those universal pullers? EDIT its alright ive found @Nodge68 thread again!

    Any advice gratefully received!

    Last edited: Apr 21, 2019
    dieseldog69 and gstuart like this.
  20. gstuart

    gstuart D3 Grandad

    Joined:
    May 18, 2010
    Posts:
    20,505
    Likes Received:
    5,866
    Location:
    Swanley , Kent
    Great pics mate and the thing I’ve found with the D3 the parts are very HD

    Indeed @Nodge68 is the man ref the axle , sorry I can’t help as I’ve never had to do one and know nodge is the guru when it comes to these and very knowledgeable

    Keep up the good work buddy

    Have u had to buy many more tools , know I had to buy quite a few more HD tools
