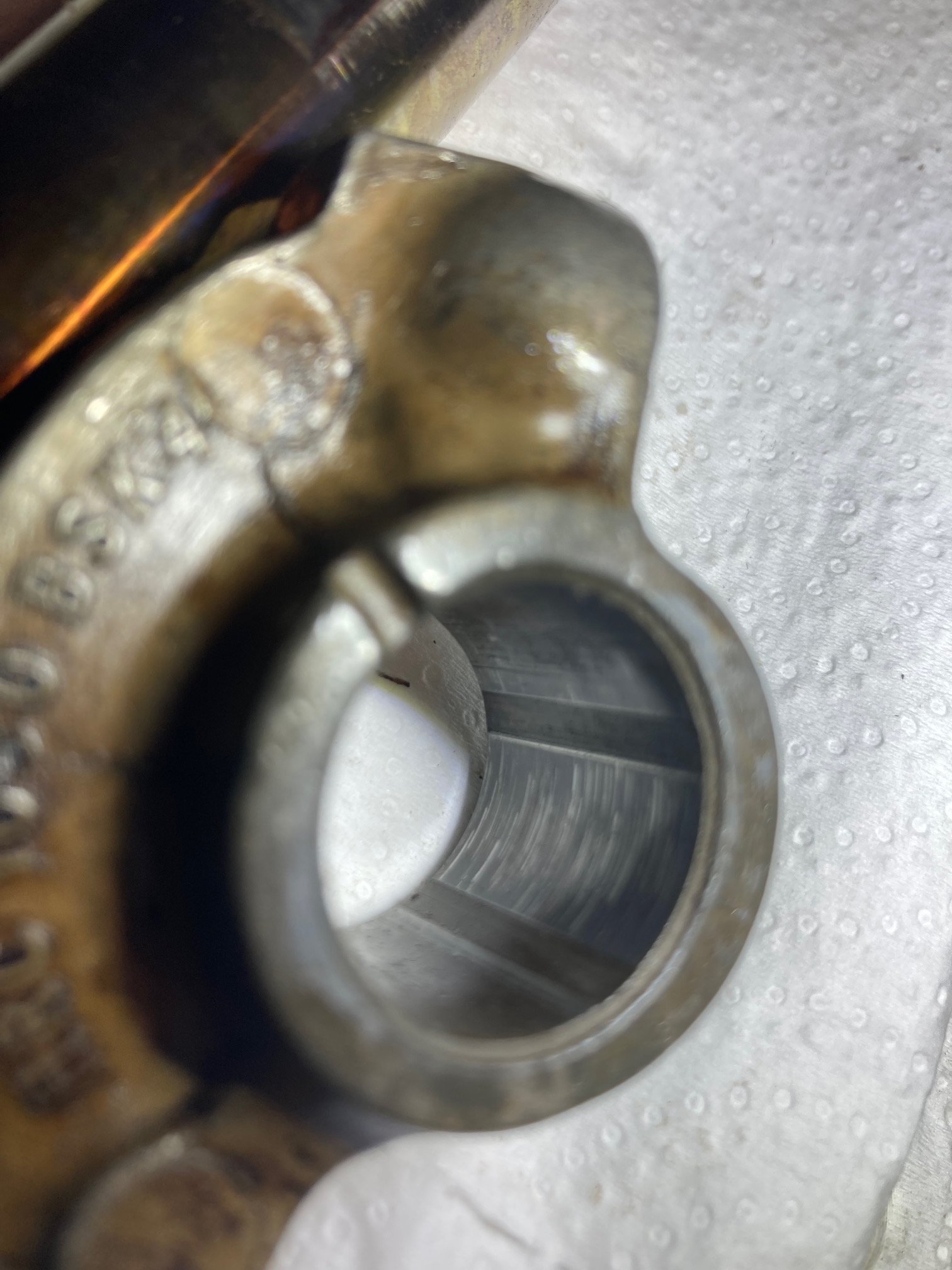

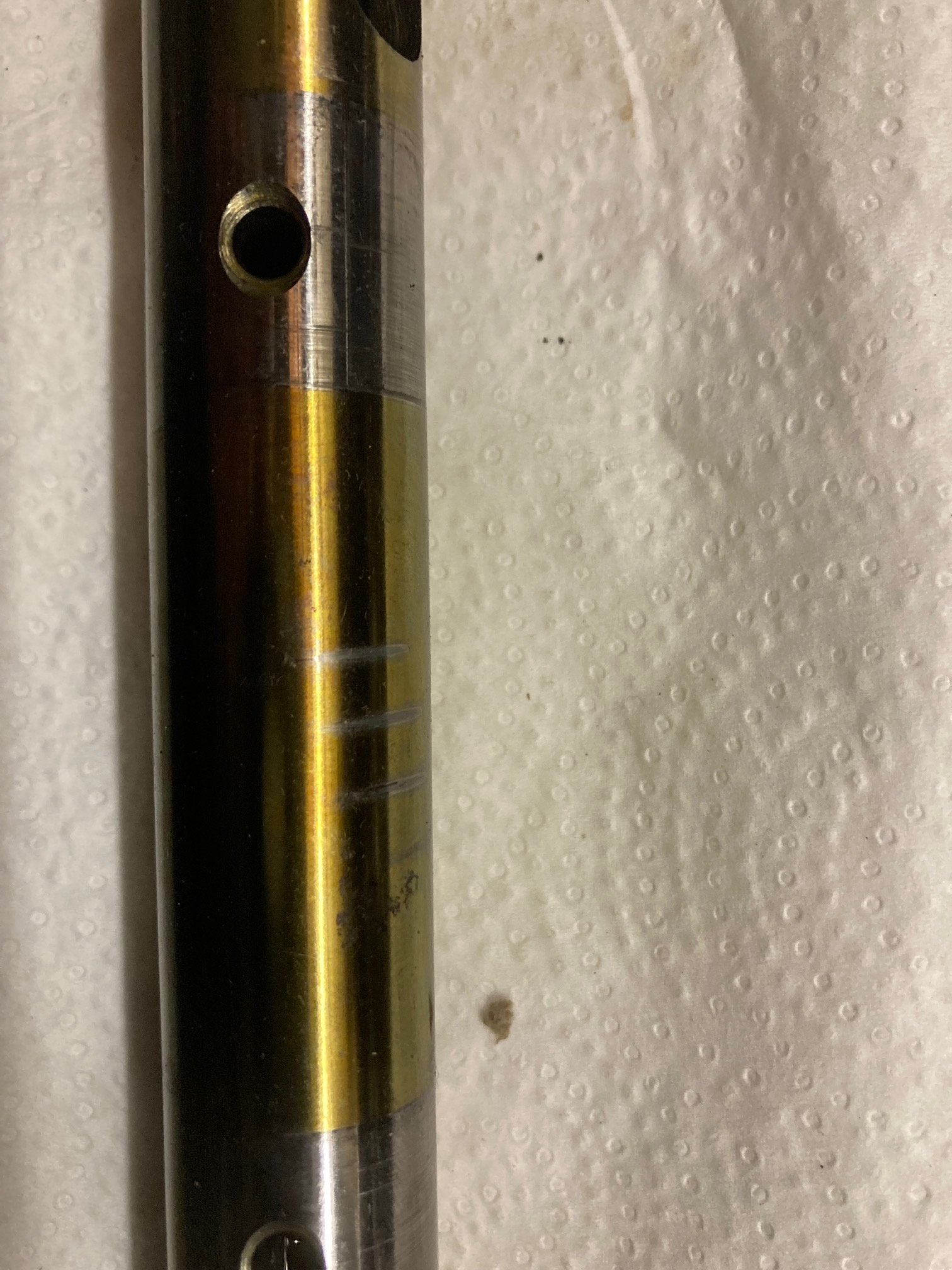

Range EFI 3.9 rockers shaft inspection
- Thread starter roule
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 31,486
- Location
- North Shropshire
Hard to tell but those rockers look quite worn, i certainly wouldn't sand the soft metal.
I replaced mine, it wasn't expensive at all. Just swap the springs and pillars
I replaced mine, it wasn't expensive at all. Just swap the springs and pillars
The problem is that i should change all stuff , shaft and rockers with OEM or nothing (as camshaft with lifters)
- Posts
- 31,486
- Location
- North Shropshire
Not saying you need to but i went with this.. don't think i paid that much though but was a while ago

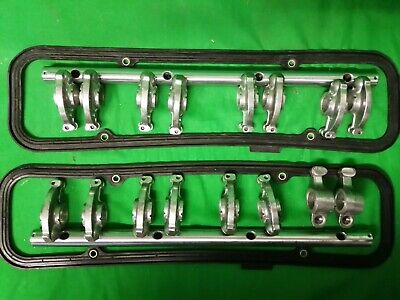

ROVER V8 ROCKER SHAFTS X 2 AND SET OF 16 ALUMINIUM ROCKERS- OEM QUALITY | eBay
Here we have a new OEM quality rocker shafts and a set of 16 aluminium rockers, 8 left, 8 right along with a pair of later style Rocker cover gaskets, these are suitable for all variants of the rover V8, from 3.5 to 5.2 litre, as fitted to.
www.ebay.co.uk
You have had a recommendation from a very experienced member.
For me, I wouldn't take the risk. Many years ago I had an inline 6 vauxhal senator and it used to snap rockers for fun because the play allowed an element of slap which took longer for the hydraulic lifters to compensate for.
Once all the rockers, fulcrums and camshaft were replaced the issue stopped. They were steel rockers.
Do you really want to take that chance?
You had no problem, but took it apart?
now you are asking if ”this is fine”
Visually no it’s not.

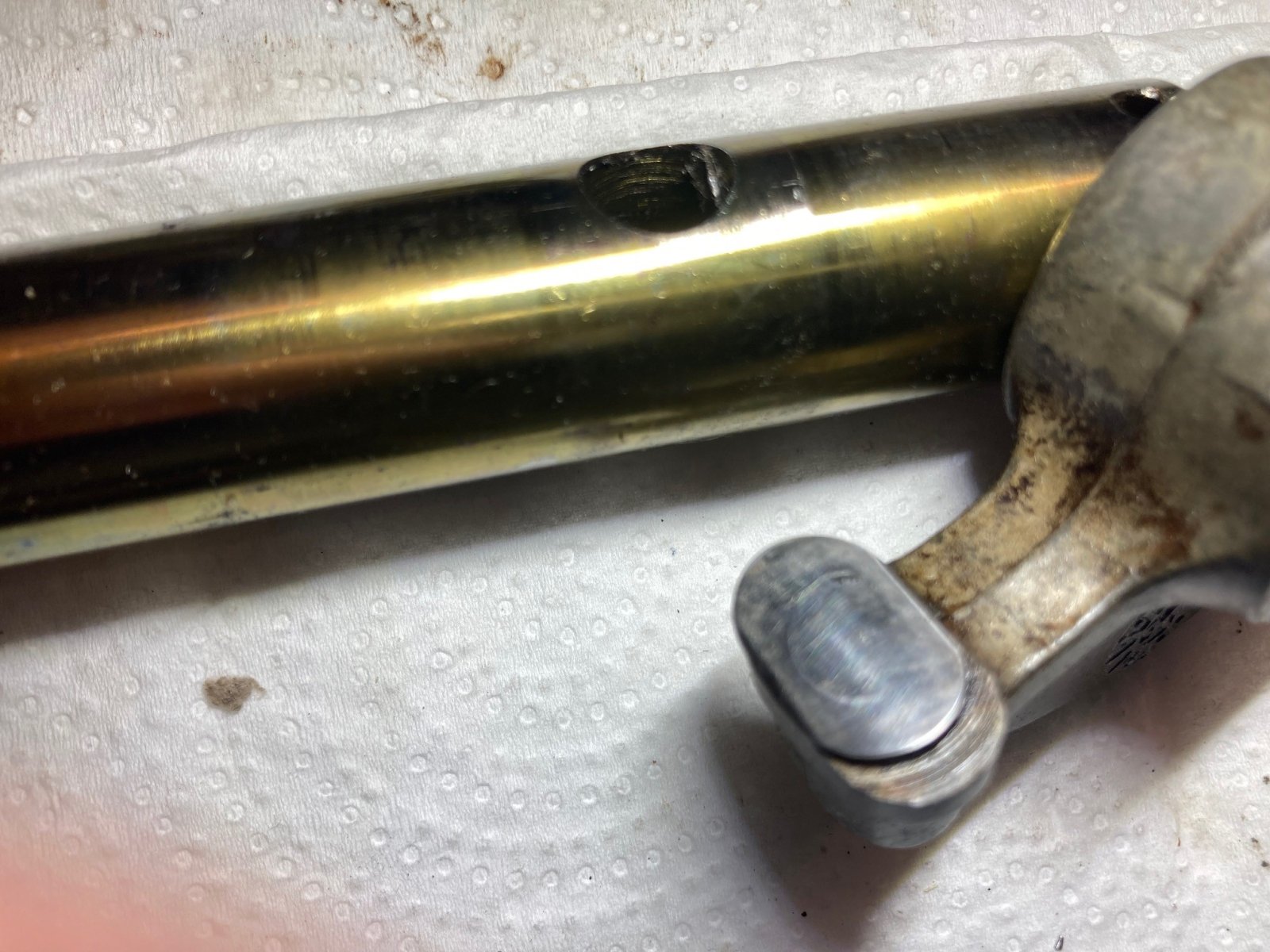

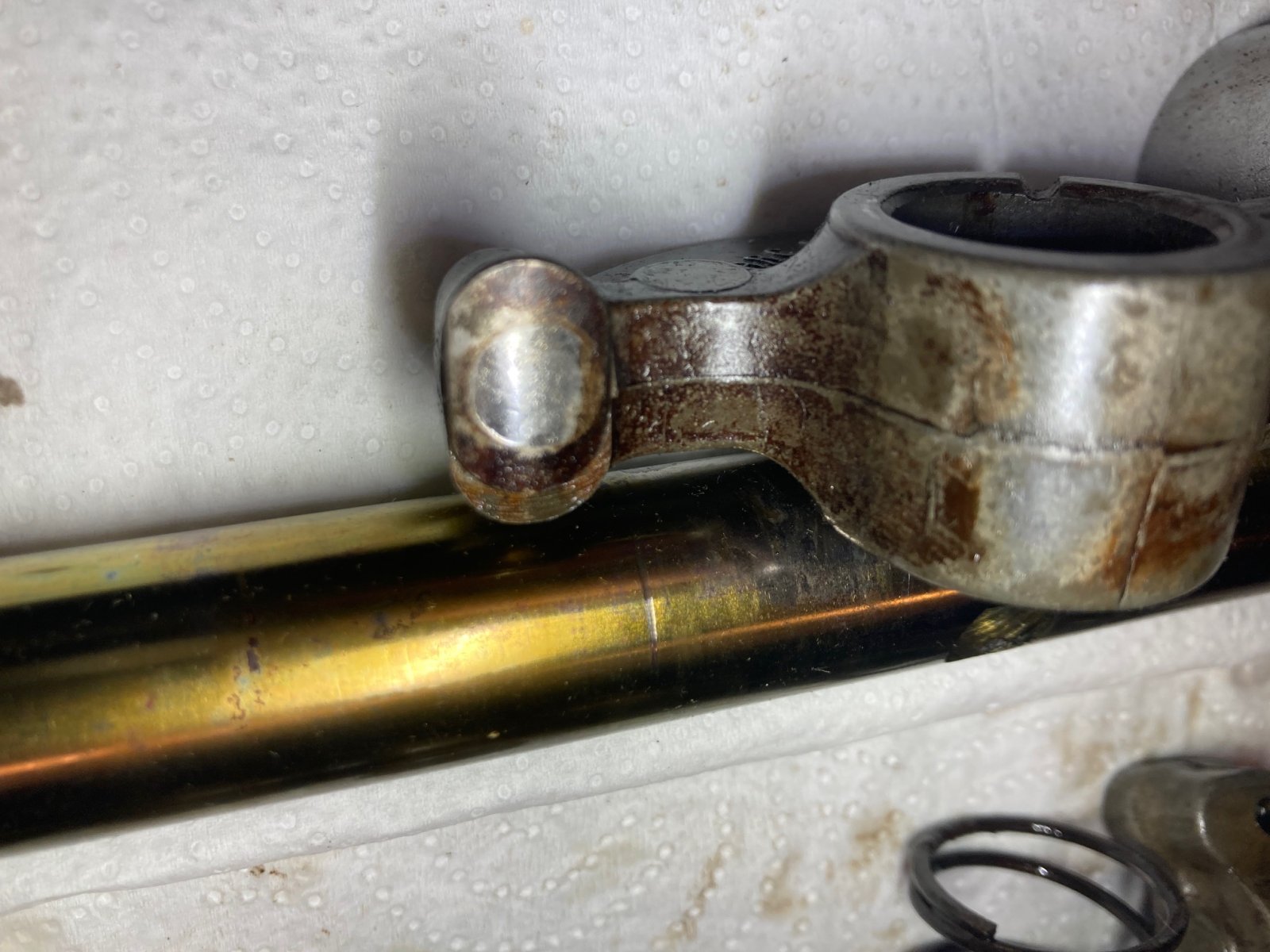

cleaning a bit of tarnish of a rocker pad that still shows a ridge afterwards.

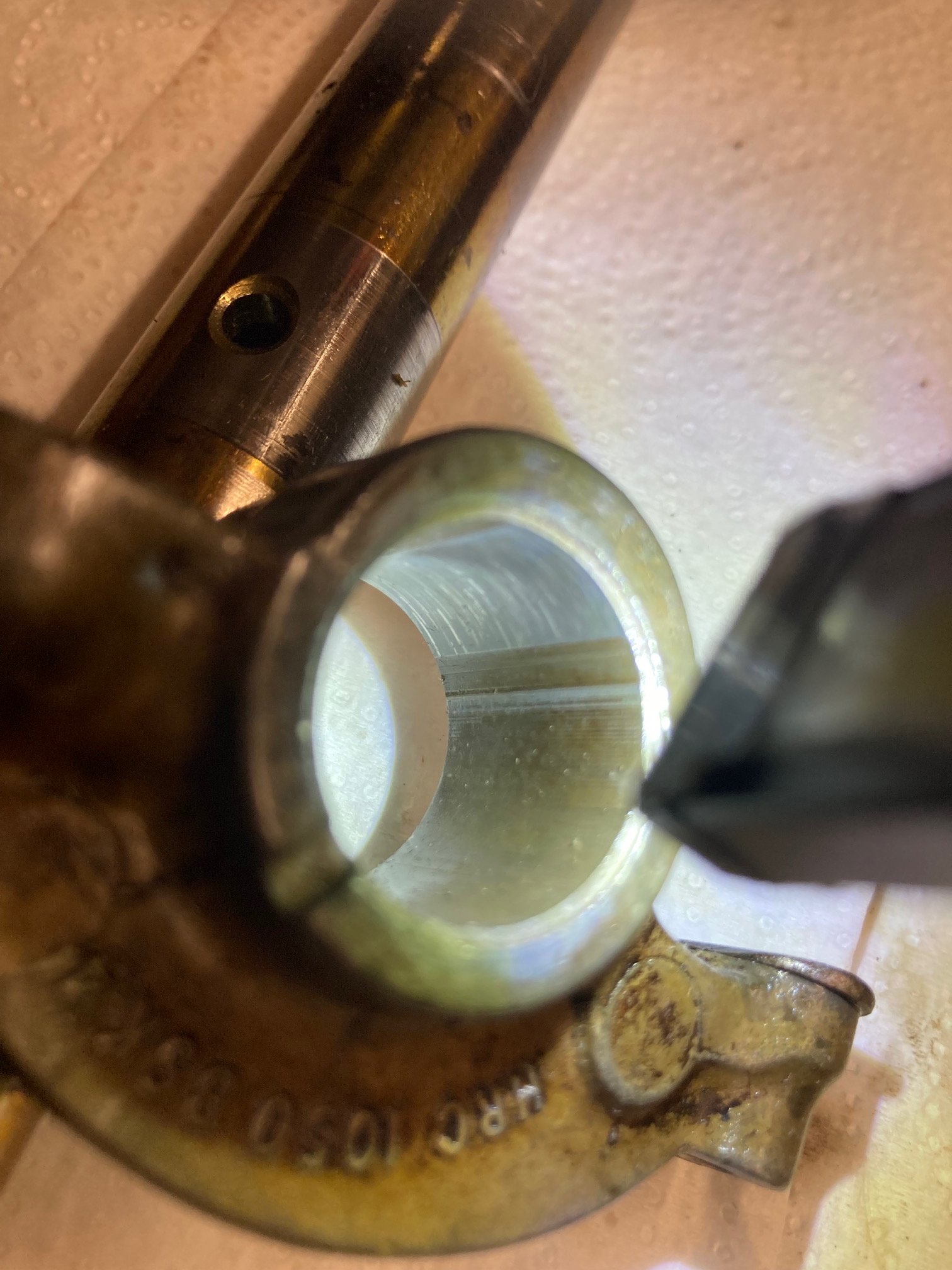

unless you know the tolerances between rocker shaft and rocker bush without measurements then I can’t gauge the wear.
what I am trying to say is you now question the condition of what you have so give it another 130k, if you hadn’t taken it apart it would be fine, but if you now put it back as it is you will remember this thread if it goes wrong
oh and don’t forget the springs, and the correct order to put them back together.
J
now you are asking if ”this is fine”
Visually no it’s not.
cleaning a bit of tarnish of a rocker pad that still shows a ridge afterwards.
unless you know the tolerances between rocker shaft and rocker bush without measurements then I can’t gauge the wear.
what I am trying to say is you now question the condition of what you have so give it another 130k, if you hadn’t taken it apart it would be fine, but if you now put it back as it is you will remember this thread if it goes wrong
oh and don’t forget the springs, and the correct order to put them back together.
J
- Posts
- 31,486
- Location
- North Shropshire
Don't forget shims on the pillars too, if neededYou had no problem, but took it apart?
now you are asking if ”this is fine”
Visually no it’s not.
cleaning a bit of tarnish of a rocker pad that still shows a ridge afterwards.
unless you know the tolerances between rocker shaft and rocker bush without measurements then I can’t gauge the wear.
what I am trying to say is you now question the condition of what you have so give it another 130k, if you hadn’t taken it apart it would be fine, but if you now put it back as it is you will remember this thread if it goes wrong
oh and don’t forget the springs, and the correct order to put them back together.
J
In fact i began to change the intake gasket...then i saw that the cam had pitted spots (so new cam and lifters) and the rocker arm really dirty ...so on...
i try to do the things in order and take my time...
The rockers are still the genuine ones and i know new good ones are quite expensive todays.
If i try to rebuid them, i certainly mesure the gaps and put shims required...
i try to do the things in order and take my time...
The rockers are still the genuine ones and i know new good ones are quite expensive todays.
If i try to rebuid them, i certainly mesure the gaps and put shims required...
Thanks indeed
