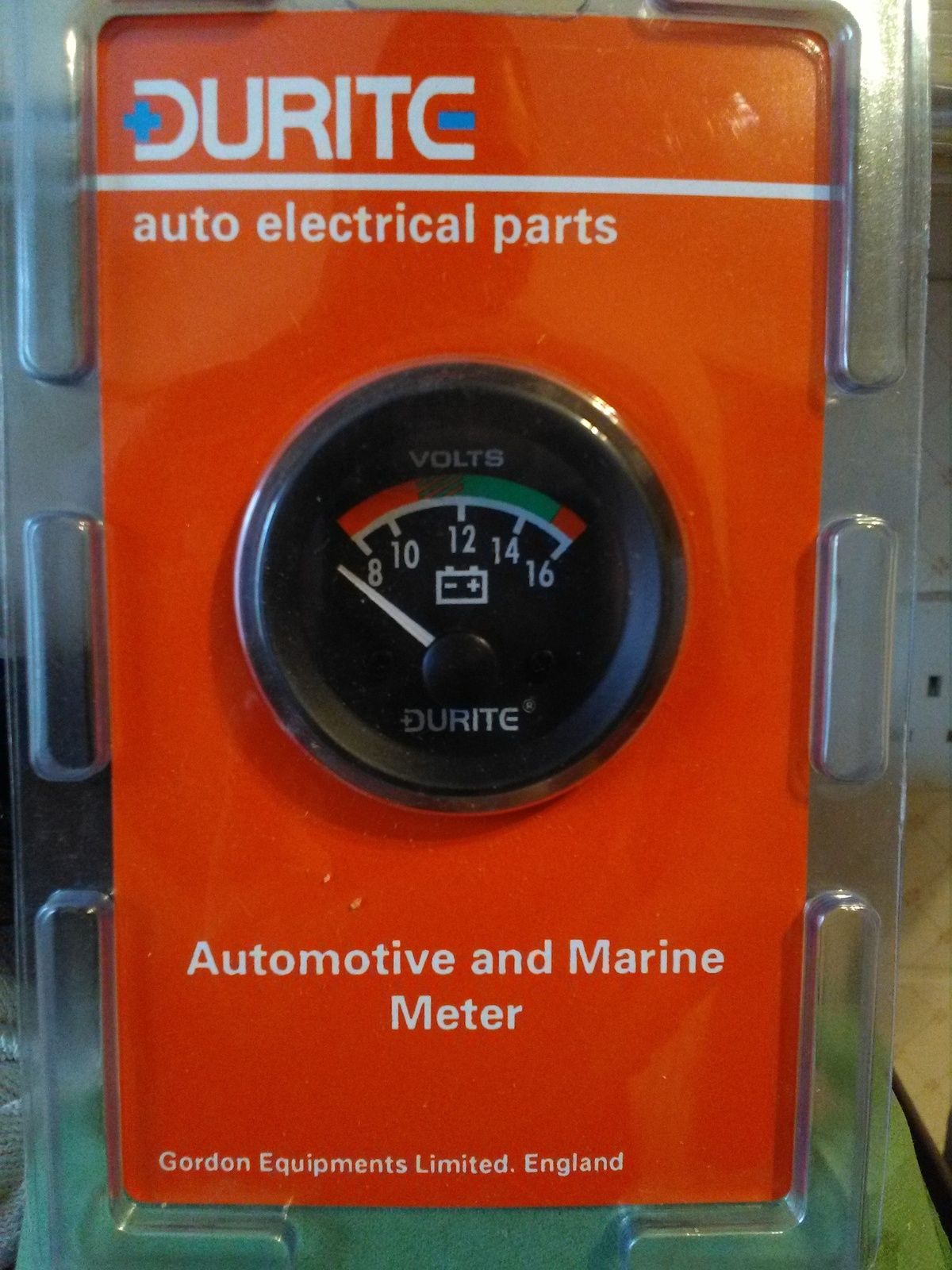

Finally the 12V voltmeter turned up.
It's ****ing rain and I had such big plans but alas, I'm going to stay in the warm and dry today, plenty of time later this week to get it fitted and fill the blank space in the gauge pod.
It's ****ing rain and I had such big plans but alas, I'm going to stay in the warm and dry today, plenty of time later this week to get it fitted and fill the blank space in the gauge pod.
Went out with the lads for a day's green laning, had an awful lot of fun, sustained a bit of damage and we were defeated by one lane, but it was a hoot

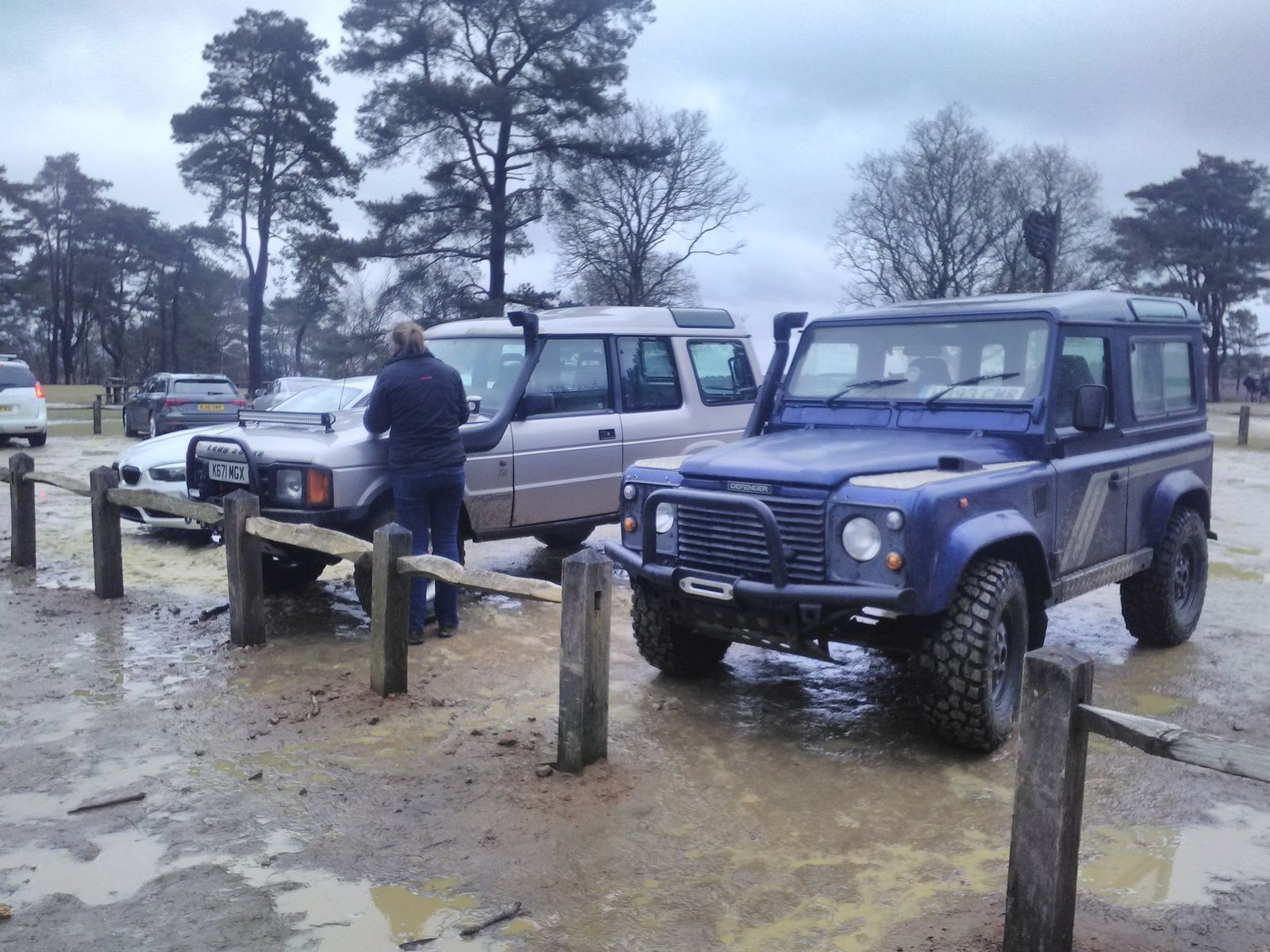

Our little brew stop atop the Devils punch bowl.
View attachment 143879

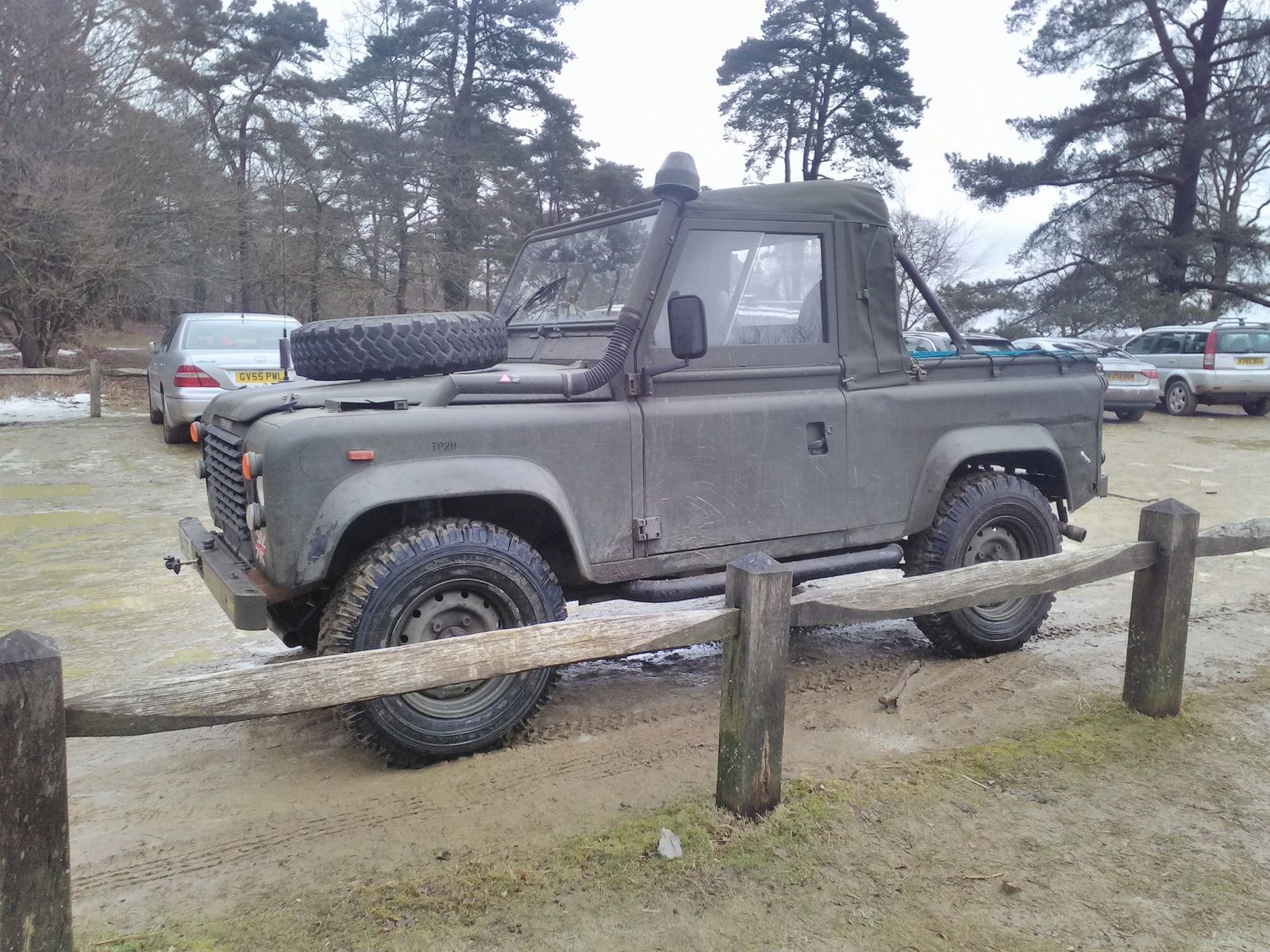

Smashing little thing this, little and light, just what the doctor ordered.
View attachment 143880

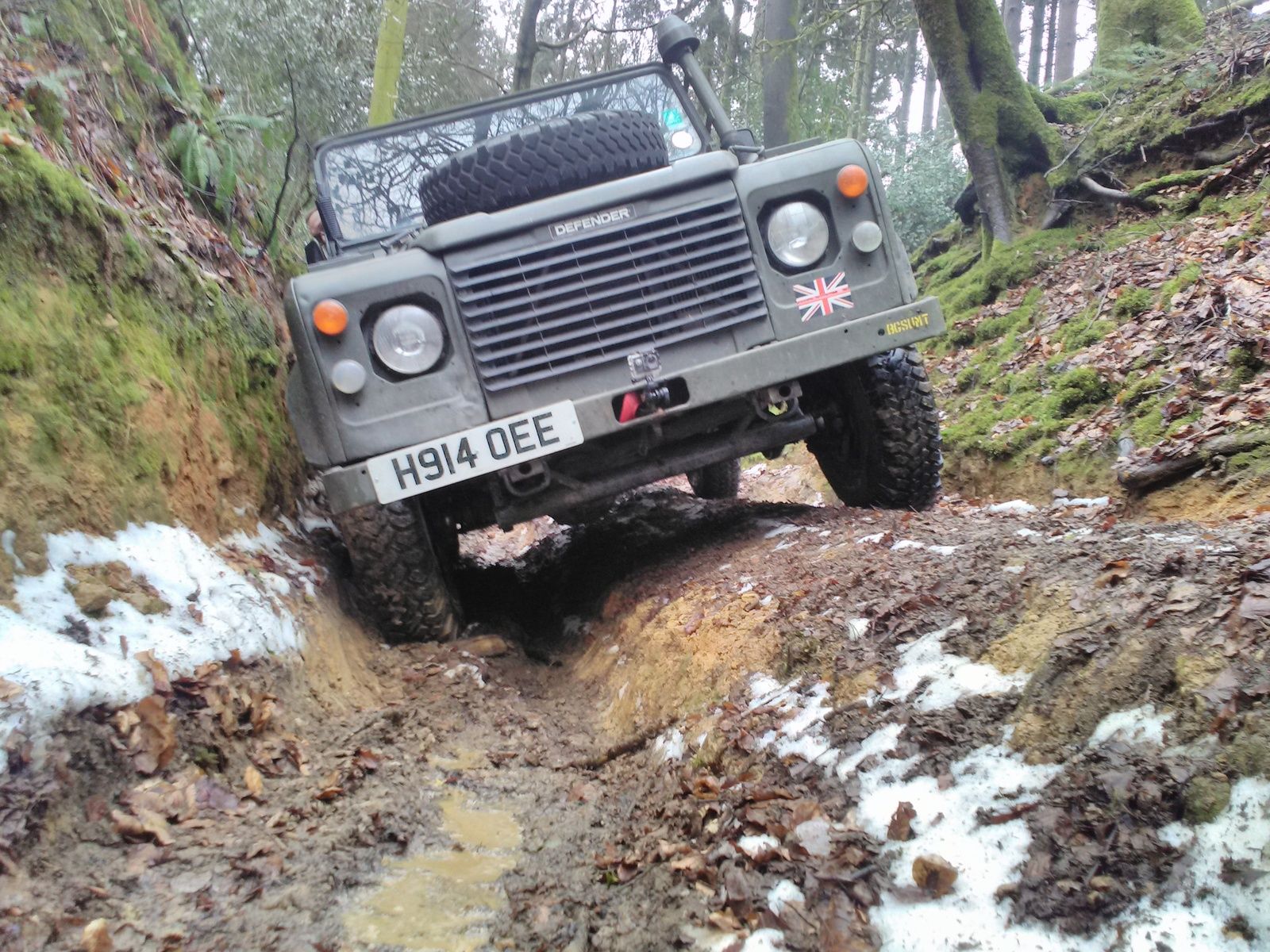

Bit tight and it was a bit of an axle twister with some very steep side slopes.
View attachment 143881
View attachment 143882
Took me some footage to show what it was like from the cab.
And Mrs. Dieseldog even managed to video me from up on the high ground, the video doesn't do it justice I think.

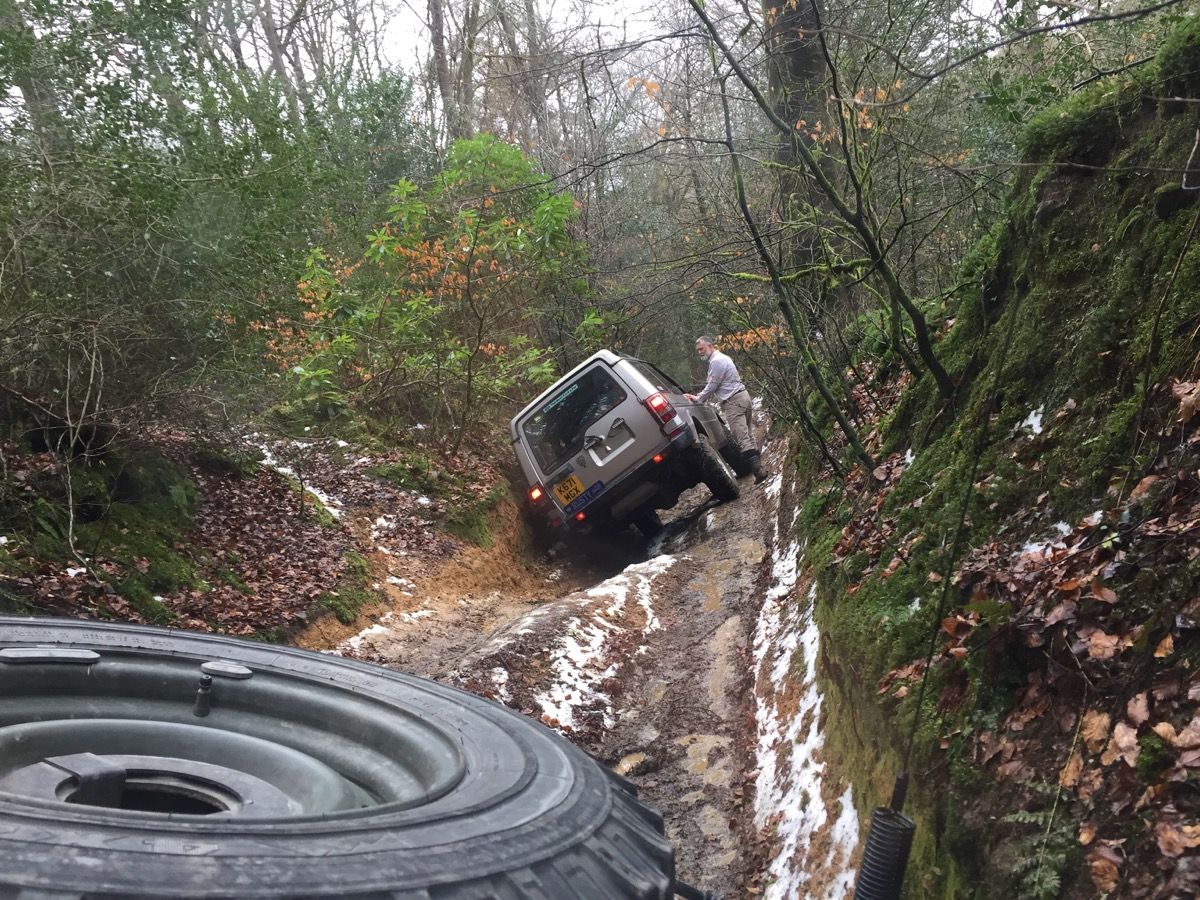

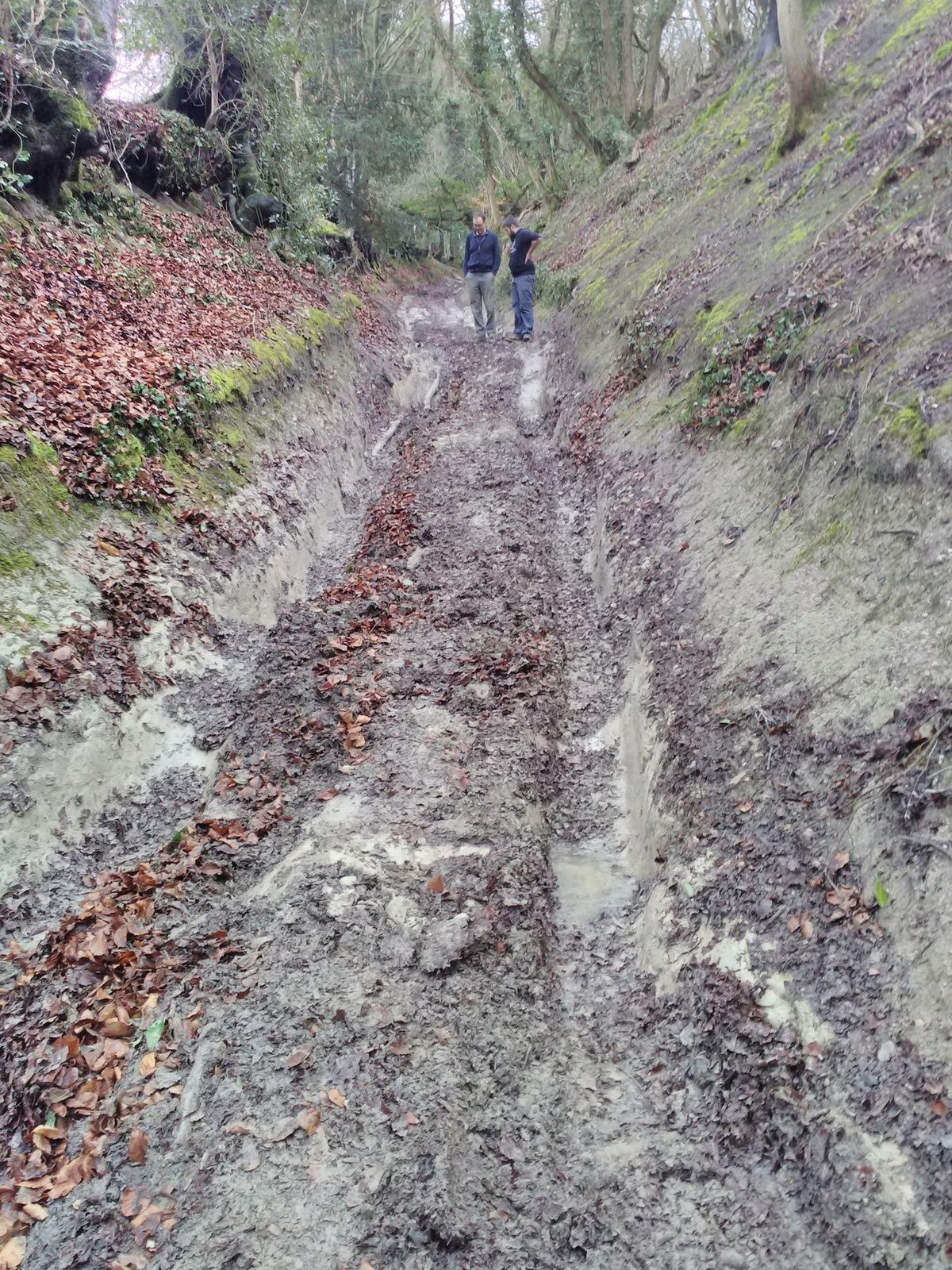

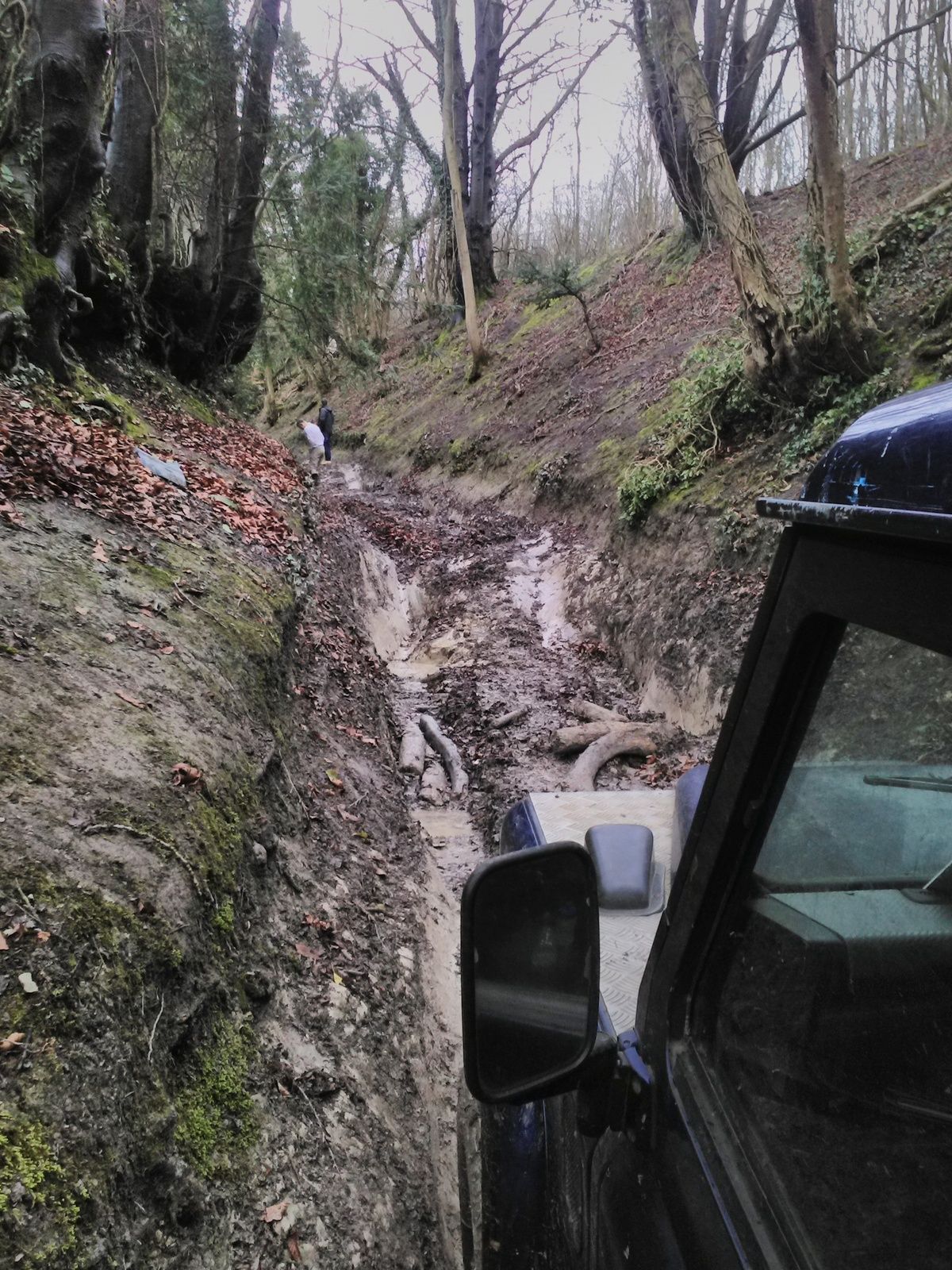

This was the lane that defeated us and the lads looking over the tricky bit that cross axled the 90.
View attachment 143884
View attachment 143885
Seems that a bit of digging on that lane reveals it has defeated a good number of people and needs a bit of repair, nothing a few blokes with pick axes and shovels couldn't fix up or at least make it passable again.

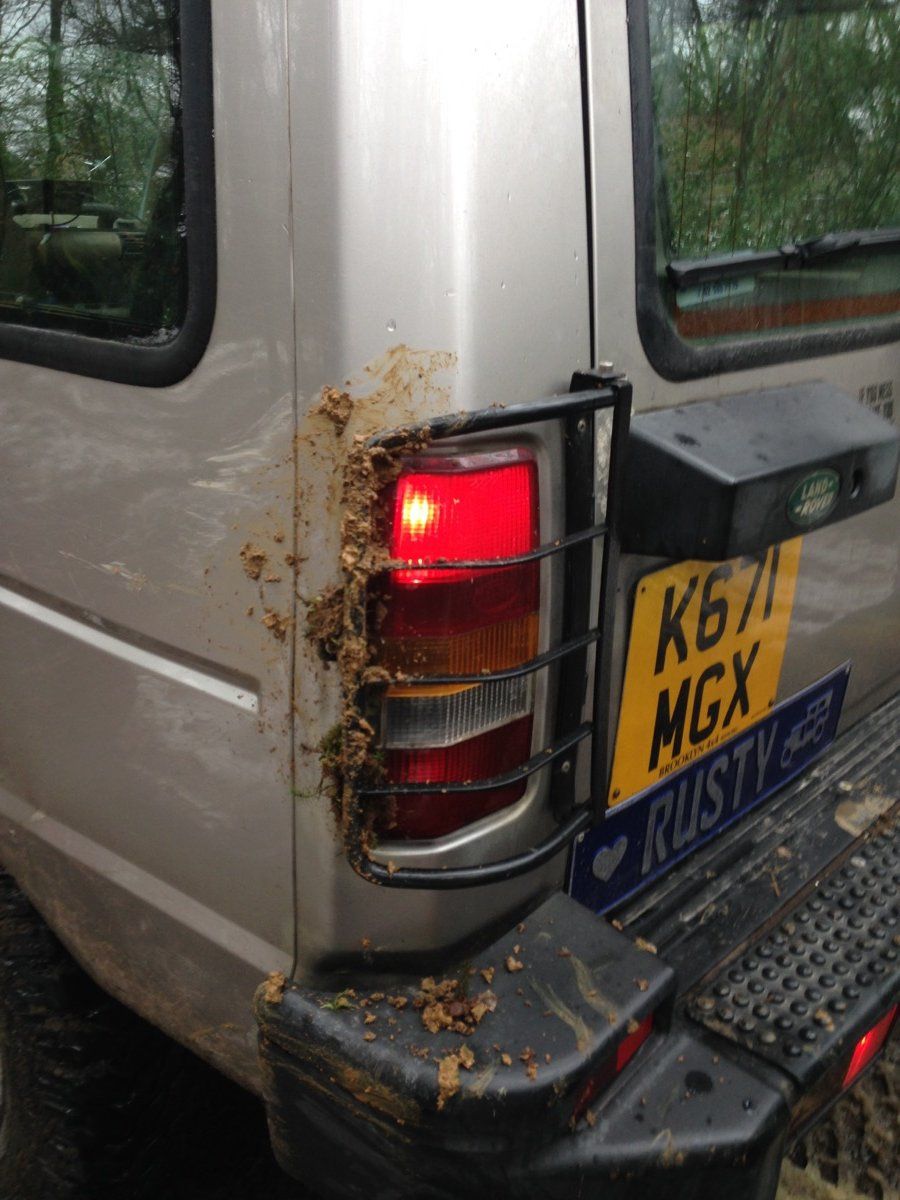

Sustained a bit of damage too

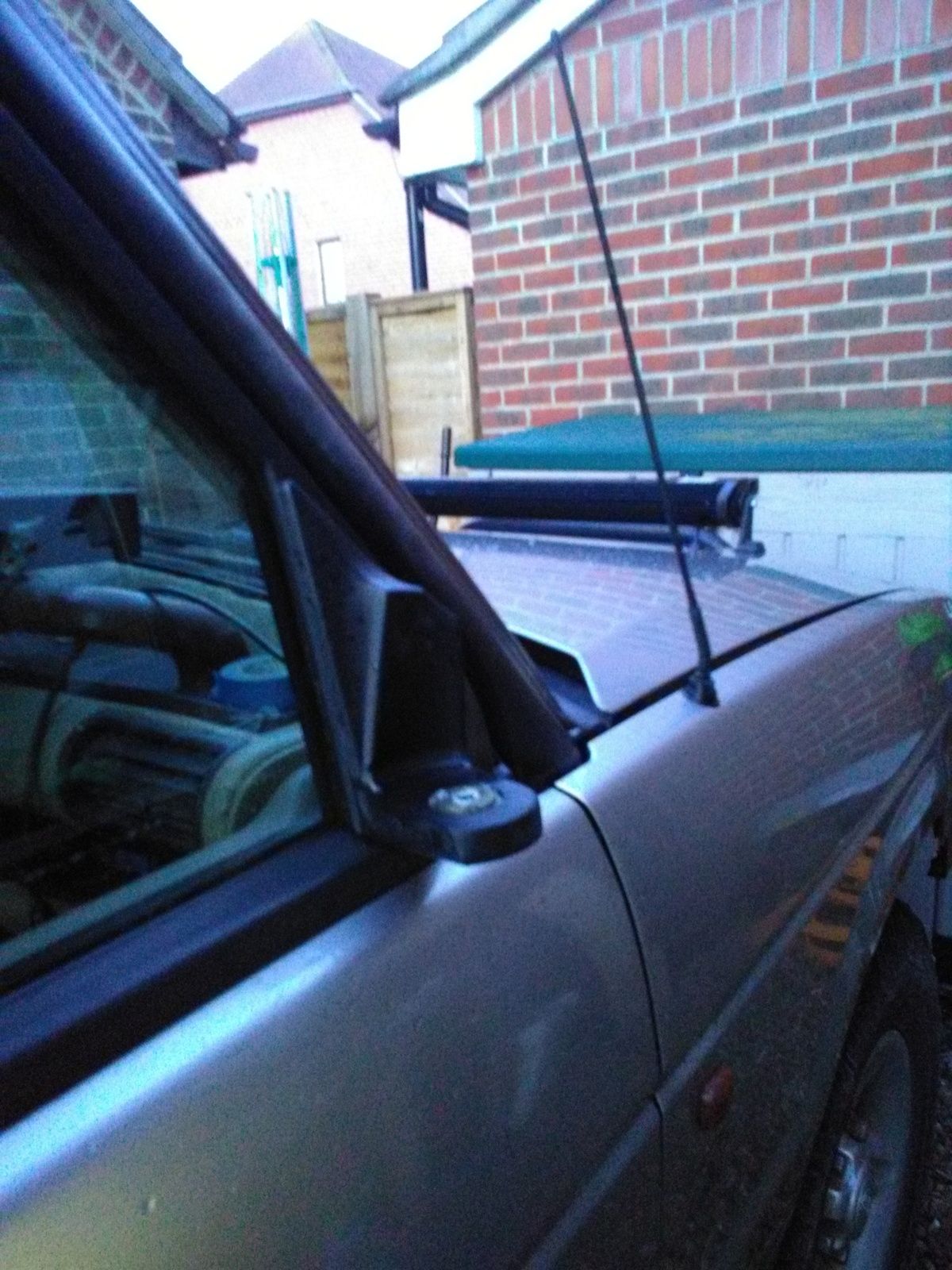

Wing mirror was removed by a telegraph pole that was very tight on a hole in the lane.
View attachment 143886

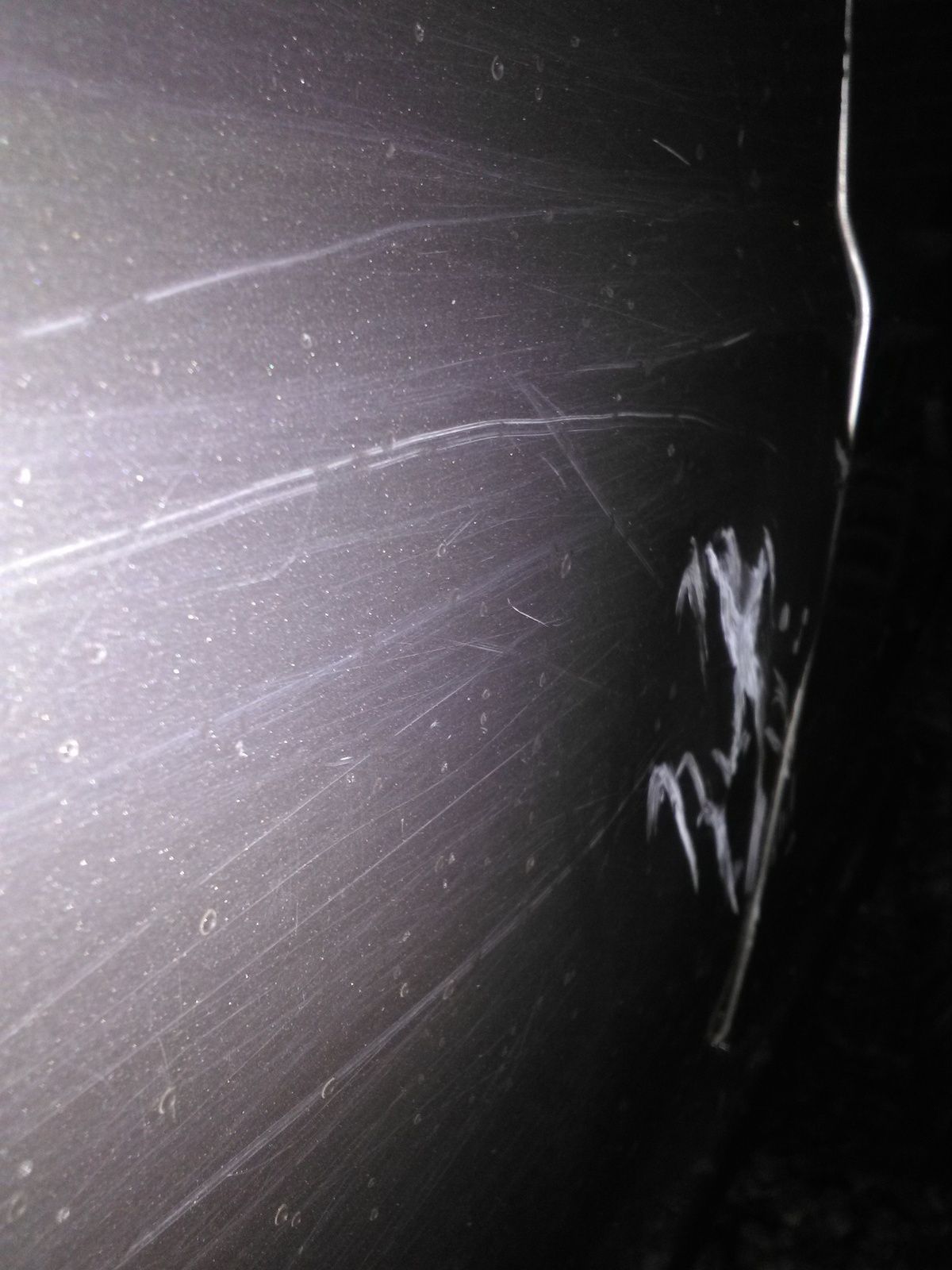

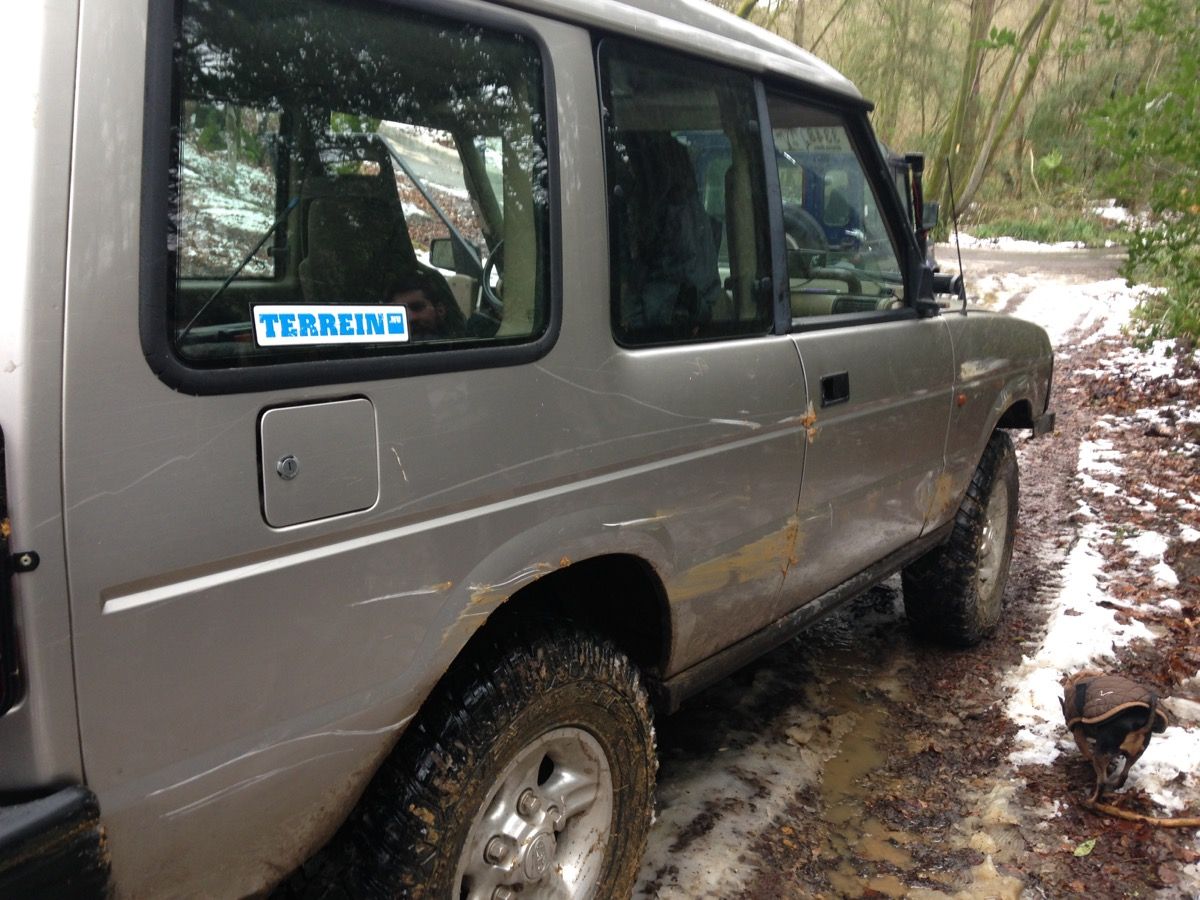

Dented me door and a few scrapes on the side where I slid into the gulley washout.
View attachment 143887
View attachment 143889
View attachment 143890
But it was a brilliant day out, waffle boards ordered and I've got a new fibreglass handled pick axe and a long handled spade coming from work too.
Looking forward to the next outing and hoping that we can grad a few more of the other lads out to play too.
The lane that defeated you is up the road from me! Seen a fair few stuck/damaged 4x4s there, let my friend take mine down it....what a mistake
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
- Posts
- 9,105
- Location
- Roaming the UK on assignments
Fookin'ell!!! coming down is as bad as trying to go up lol I think it needs a few handy guys with pickaxes up there to knock the tops out and fill in the holes, that was the deep hole that defeated Davey's 90, looks like it smashed your indicator and maybe even the headlight surround?
Headlight surround cracked, indicator smashed and wing bent.
Without being too smug I've made it down there dent free which I've got a pint at stake over it when we next go up there
- Posts
- 9,105
- Location
- Roaming the UK on assignments
Like the sound of that LOL
Get your go-pro mounted and show us how it's done
I think going down should be ok but going up will need transverse difflocks at least me finks
flat
Well-Known Member
- Posts
- 9,075
- Location
- Far away from you!!
i might give it a skip
- Posts
- 9,105
- Location
- Roaming the UK on assignments
Timing belt change been due a while now and it's a great opportunity to get the twin alternator kit from Gwyn Lewis fitted, I have a couple of cheap LCD volt gauges in my stores so I will fit one in the line to keep track of the voltage output.

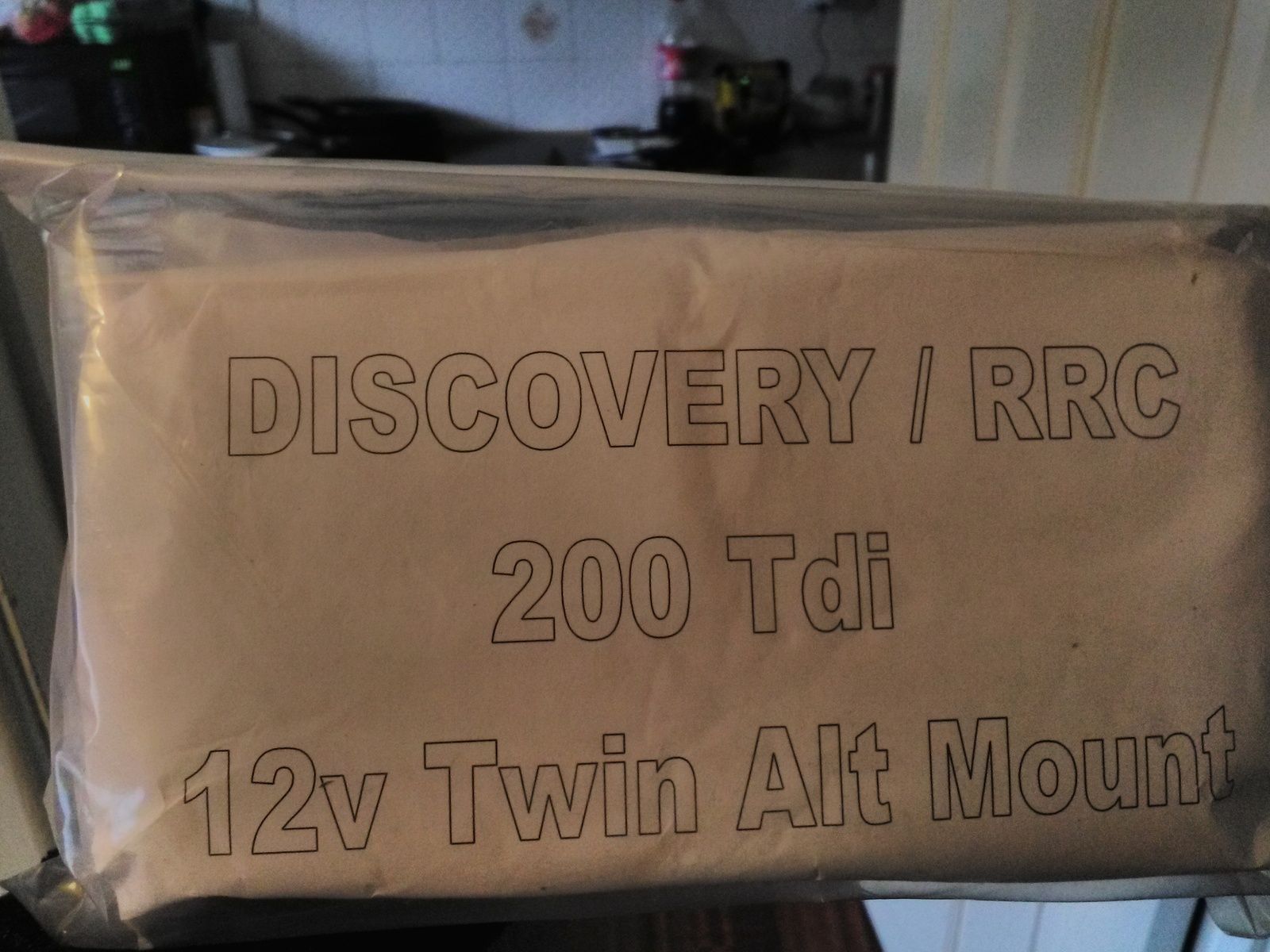

The ominous black box???
Lets see what we got inside it........
Looks promising

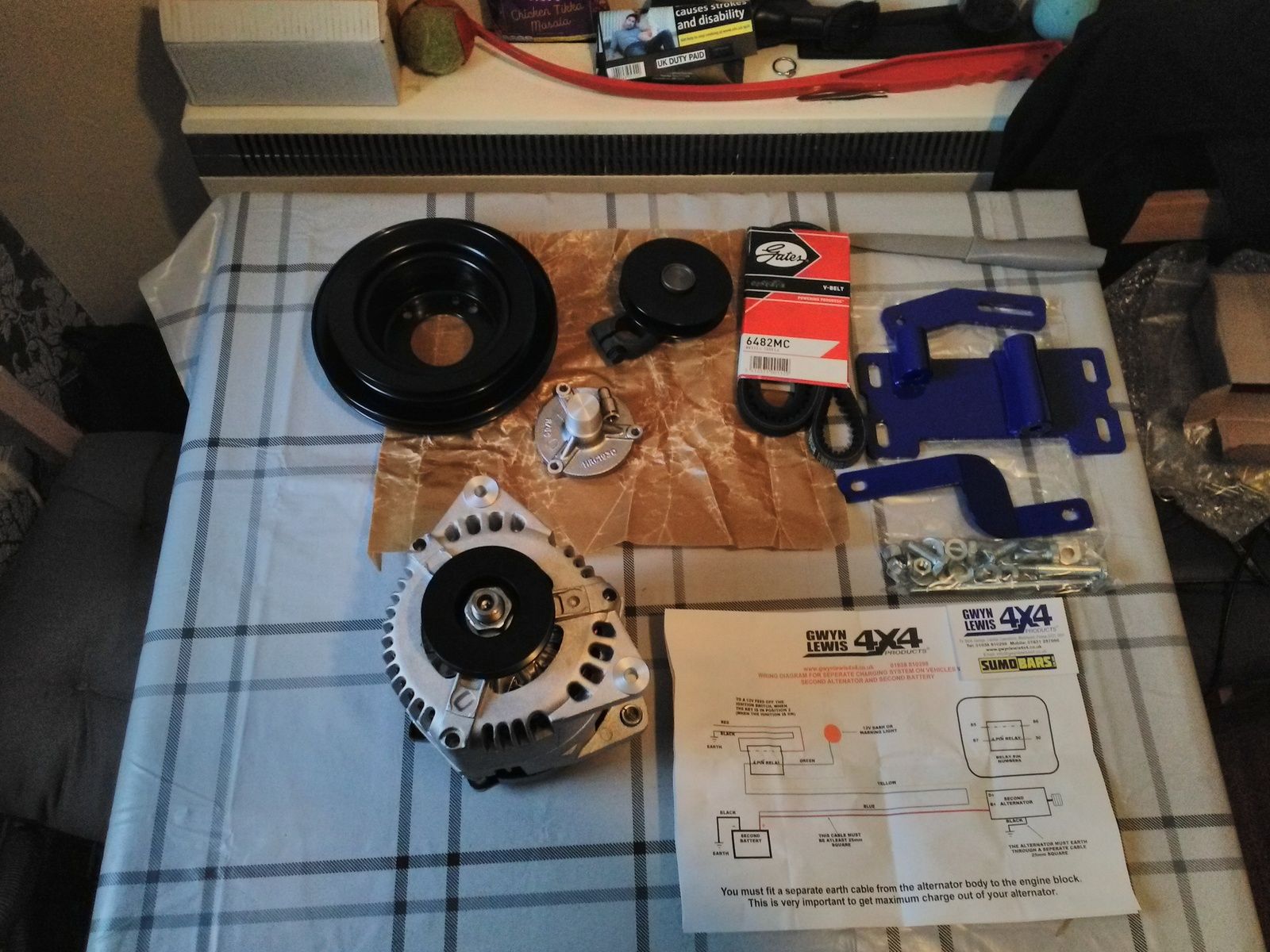

The full kit of bits needed to make this work.
And the all important instructions for wiring up the alternator.

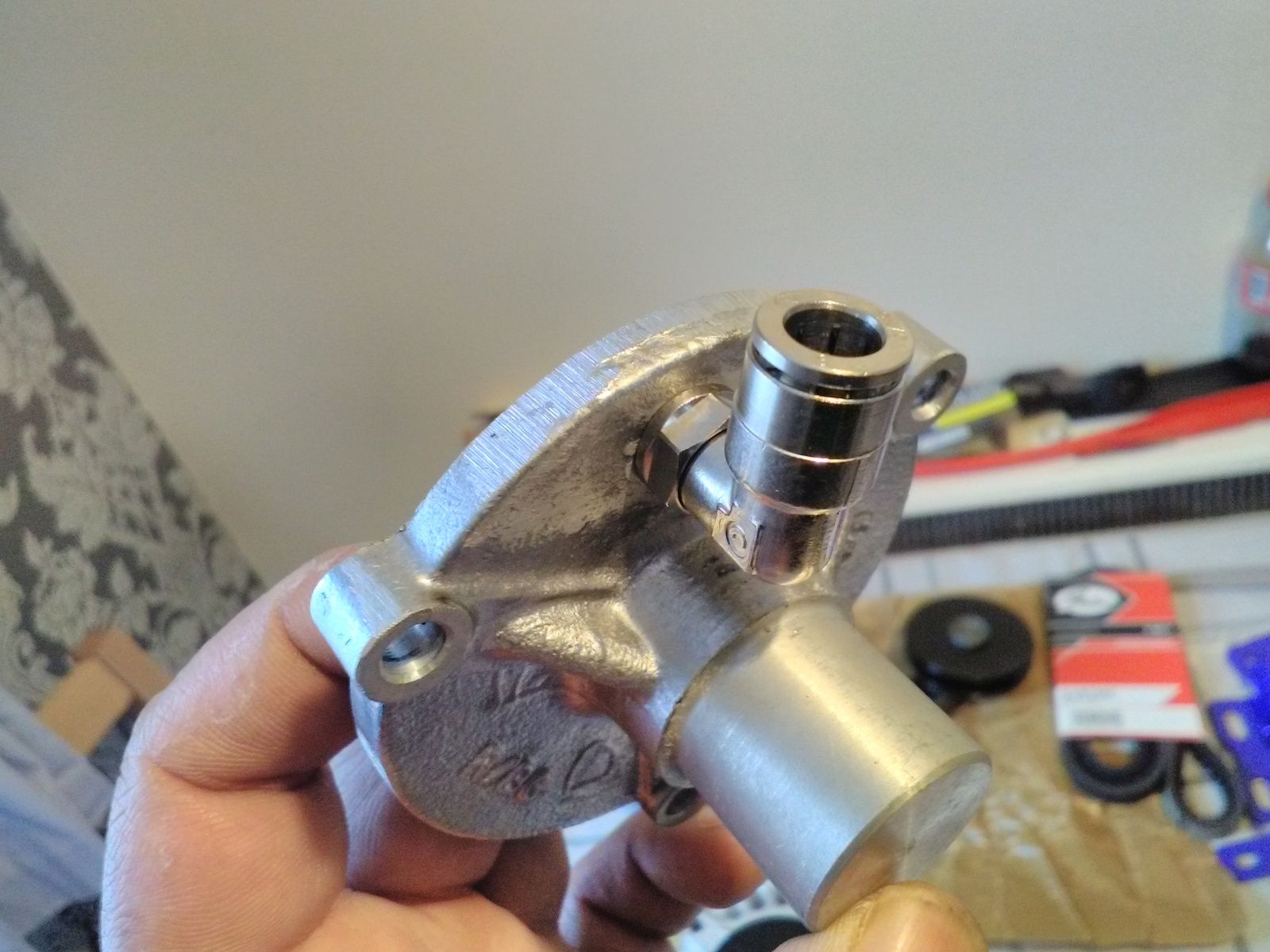

I was impressed by this little gem, the boys over at GL drilled, tapped and pre-fitted a 90 degree breather fitting into the tensioner pulley mount, nice little touch and it shows how much thought goes into the work they do over there.
Right, enough talking about it, I'm off to go get her done, with a bit of luck I'll be back with more photo's of it all fitted up and running.
The ominous black box???
Lets see what we got inside it........
Looks promising
The full kit of bits needed to make this work.
And the all important instructions for wiring up the alternator.
I was impressed by this little gem, the boys over at GL drilled, tapped and pre-fitted a 90 degree breather fitting into the tensioner pulley mount, nice little touch and it shows how much thought goes into the work they do over there.
Right, enough talking about it, I'm off to go get her done, with a bit of luck I'll be back with more photo's of it all fitted up and running.
- Posts
- 9,105
- Location
- Roaming the UK on assignments
Well the best laid plans of mice and men blah blah blah
All afternoon out there pottering around, everything seized and needed lots of heat and penetrating fluids, currently defeated by the crank timing belt pulley as I lent out my puller and forgot all about it
To make matters worse I have found that the oils seals on the back of the timing case are shot and leaking into the timing case, it was a real mess in there
Some pics of where we are up to now.

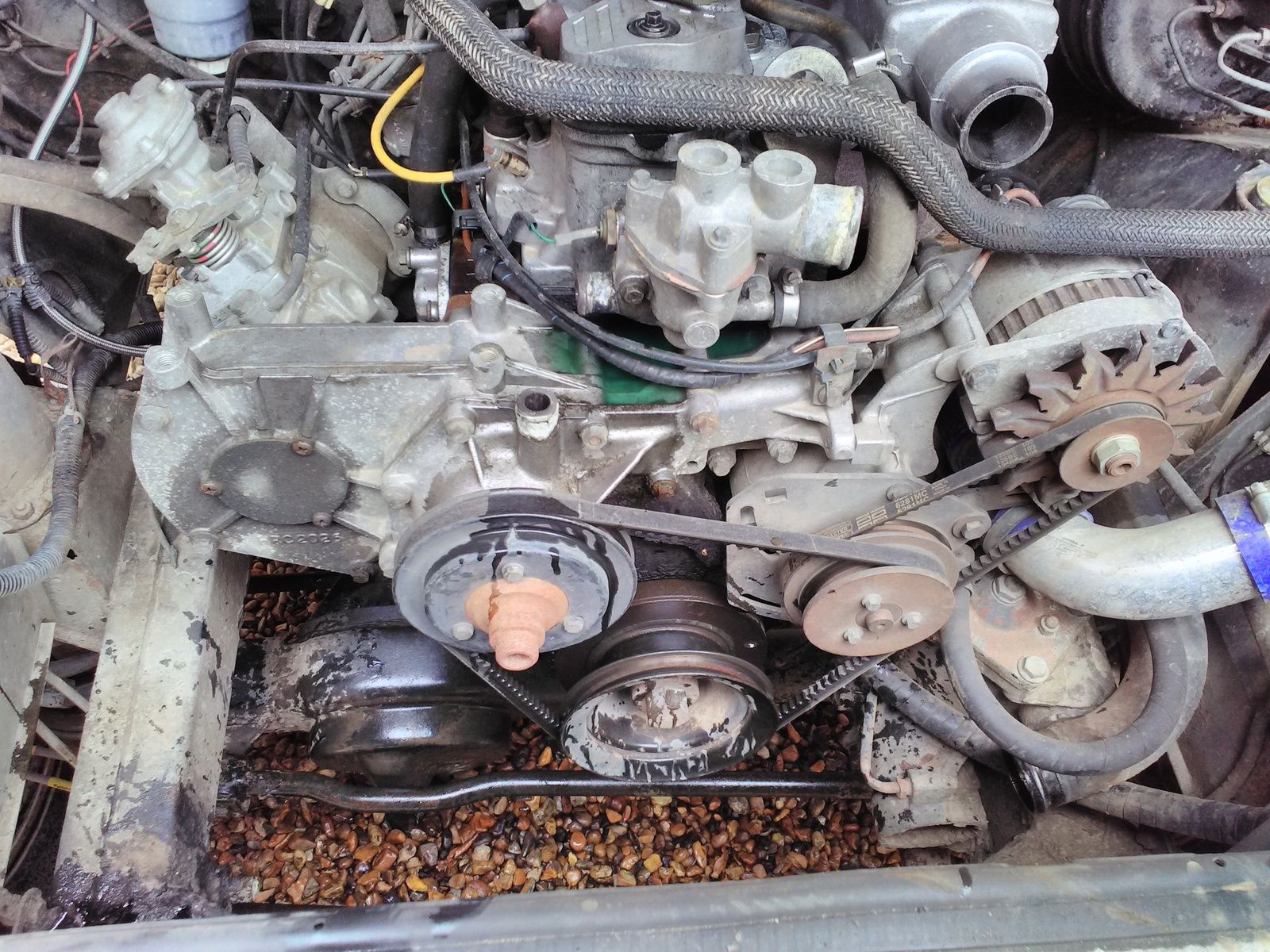

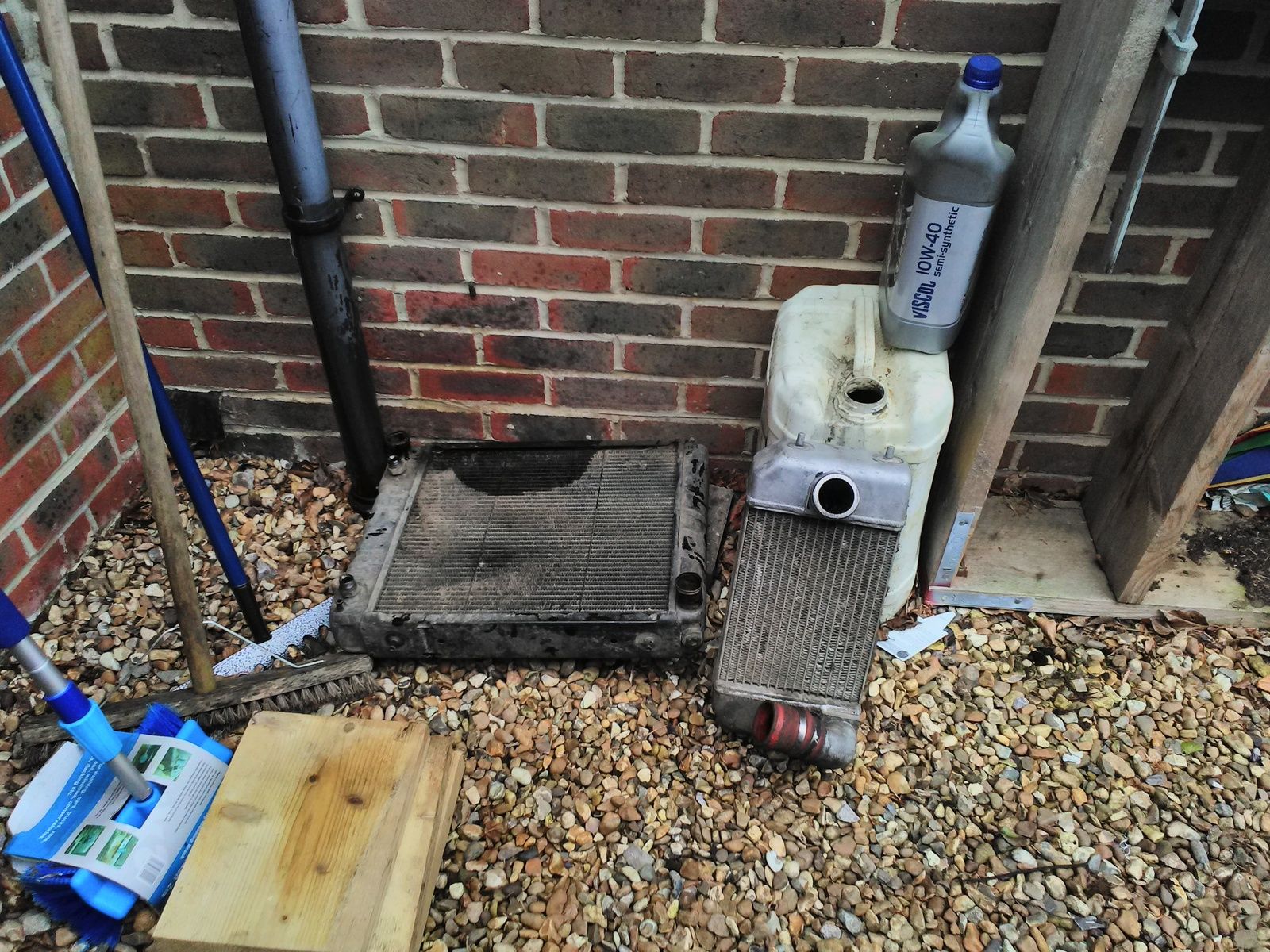

Dumped all the coolant and removed the hoses, radiator and intercooler.
Removed the alternator and the PAS pump.

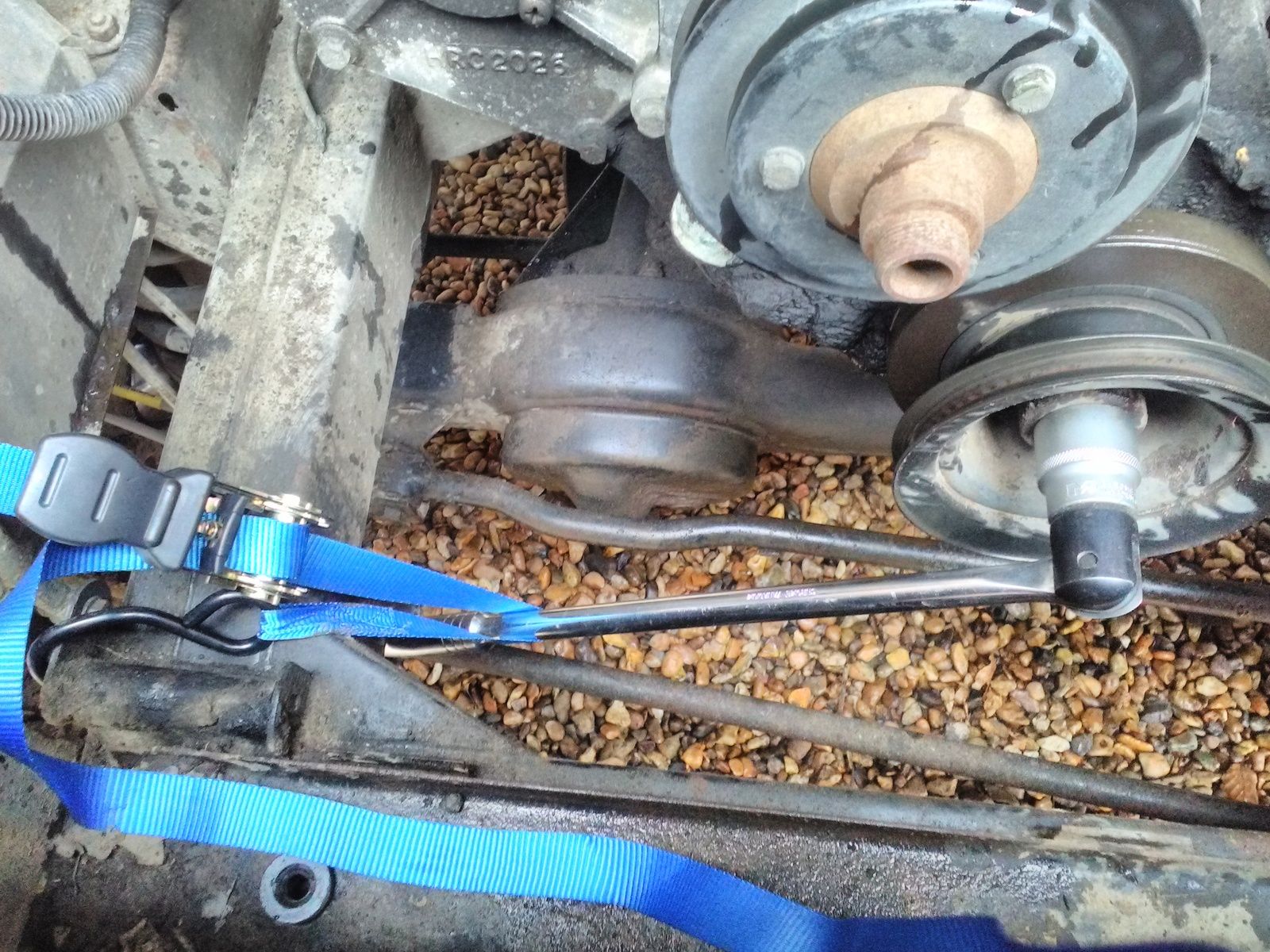

Breaker bar and the 30mm socket on the crank pulley bolt, I put a ratchet strap on it to ensure it was steady.
Ordinarily you should be able to lock the crank pulley up as I have and be able to remove the 4 M8 bolts that secure the pulley to the dampner but I was only able to remove 3 of the 4 and the lat one rounded off, typical really

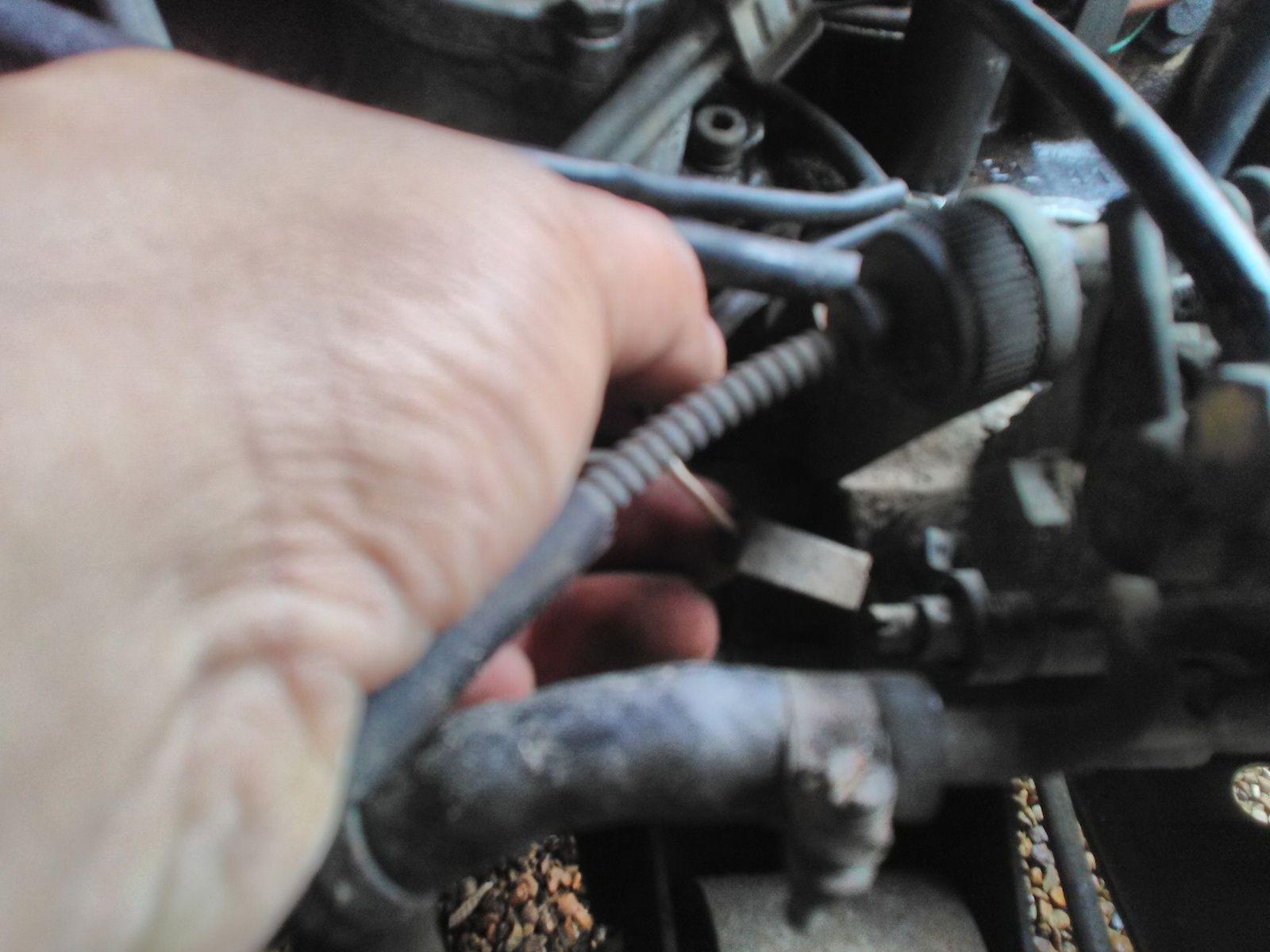

Remove the stop solenoid feed.
Flick of the key and a big bang later the bolt is free and can be unwound by hand, the pulley, if you're lucky will pull off by hand, if not, you'll need a puller.
Removed the water pump and I noticed a lot of rusty rubbish on the threads so decided to run a die over the threads to clear it all off before I started trying to remove the front cover.

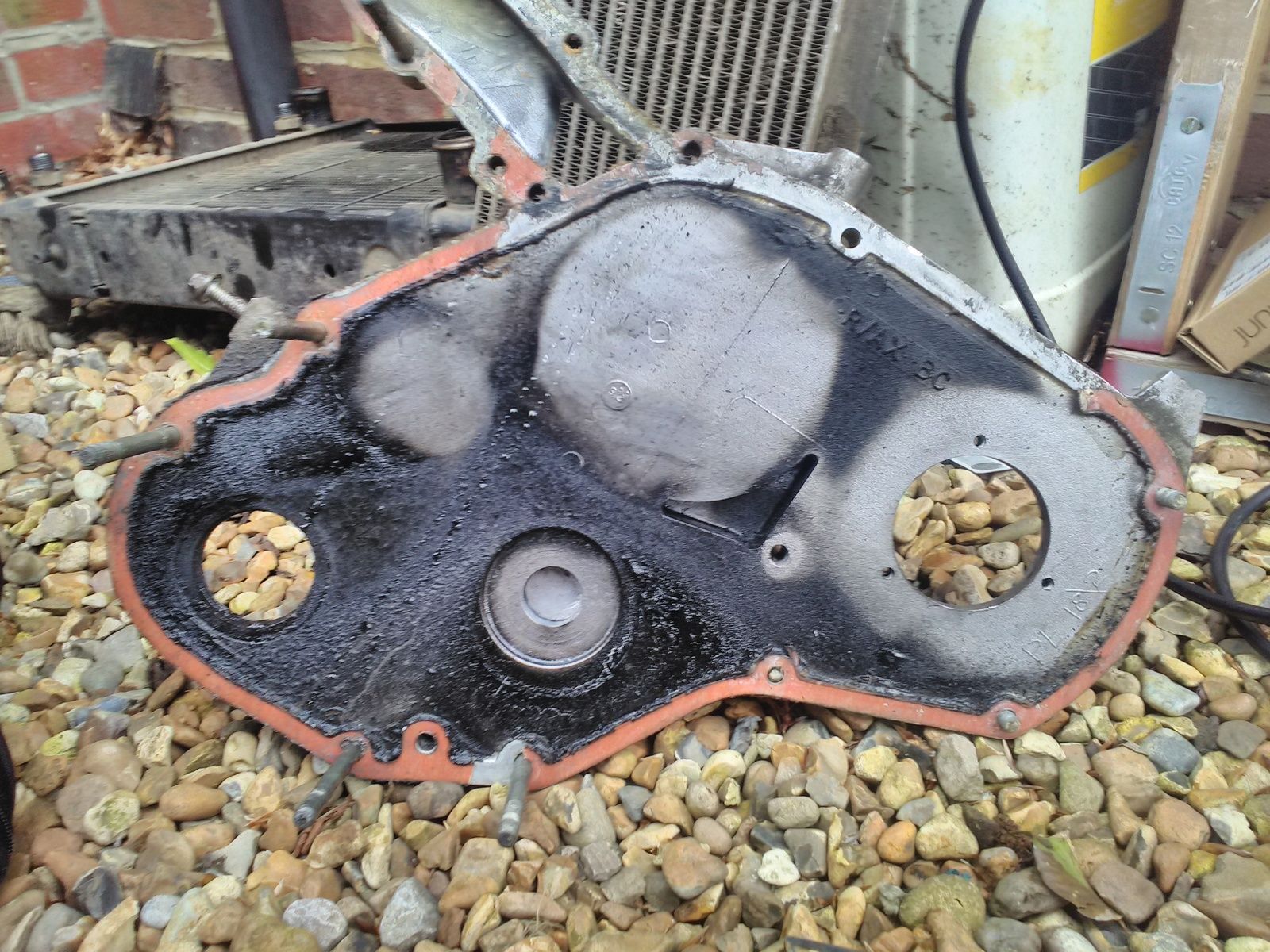

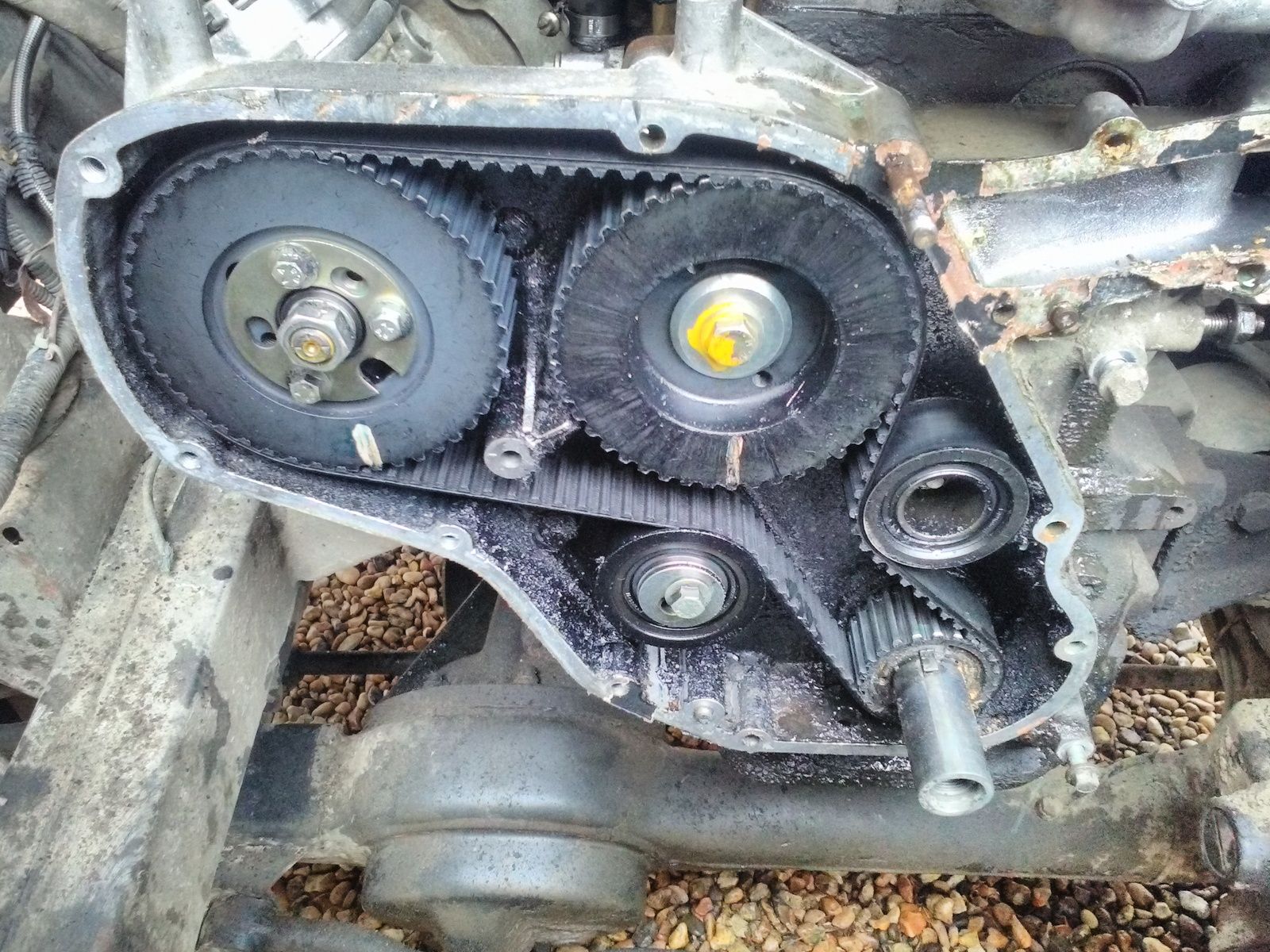

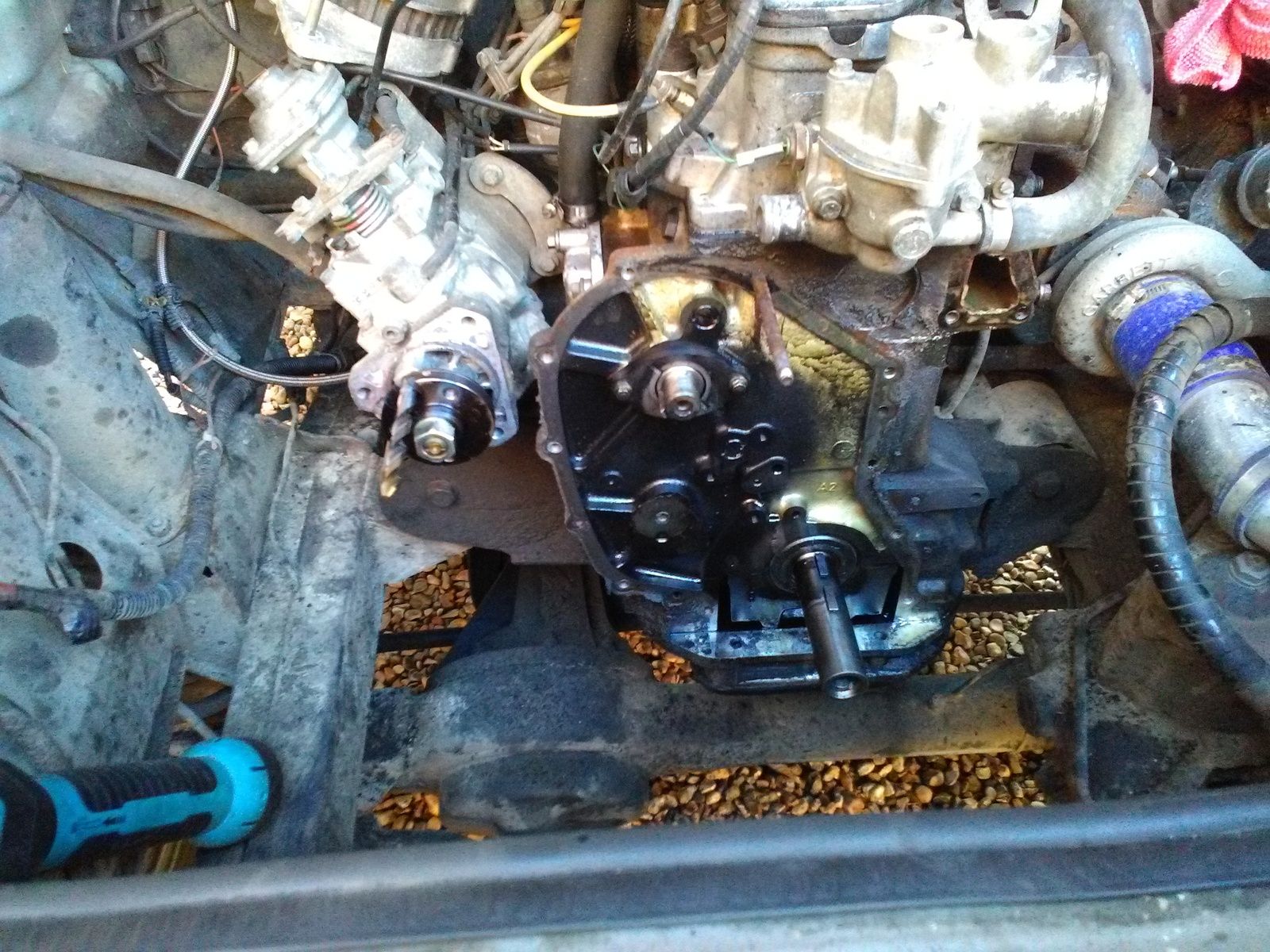

Inside the front cover shows how disgusting it is inside the timing case, very oily.
It was this point that I came to the conclusion that I needed to strip out the whole time chest and do the oil seals in it and the water gallery gasket between the chest and the block.

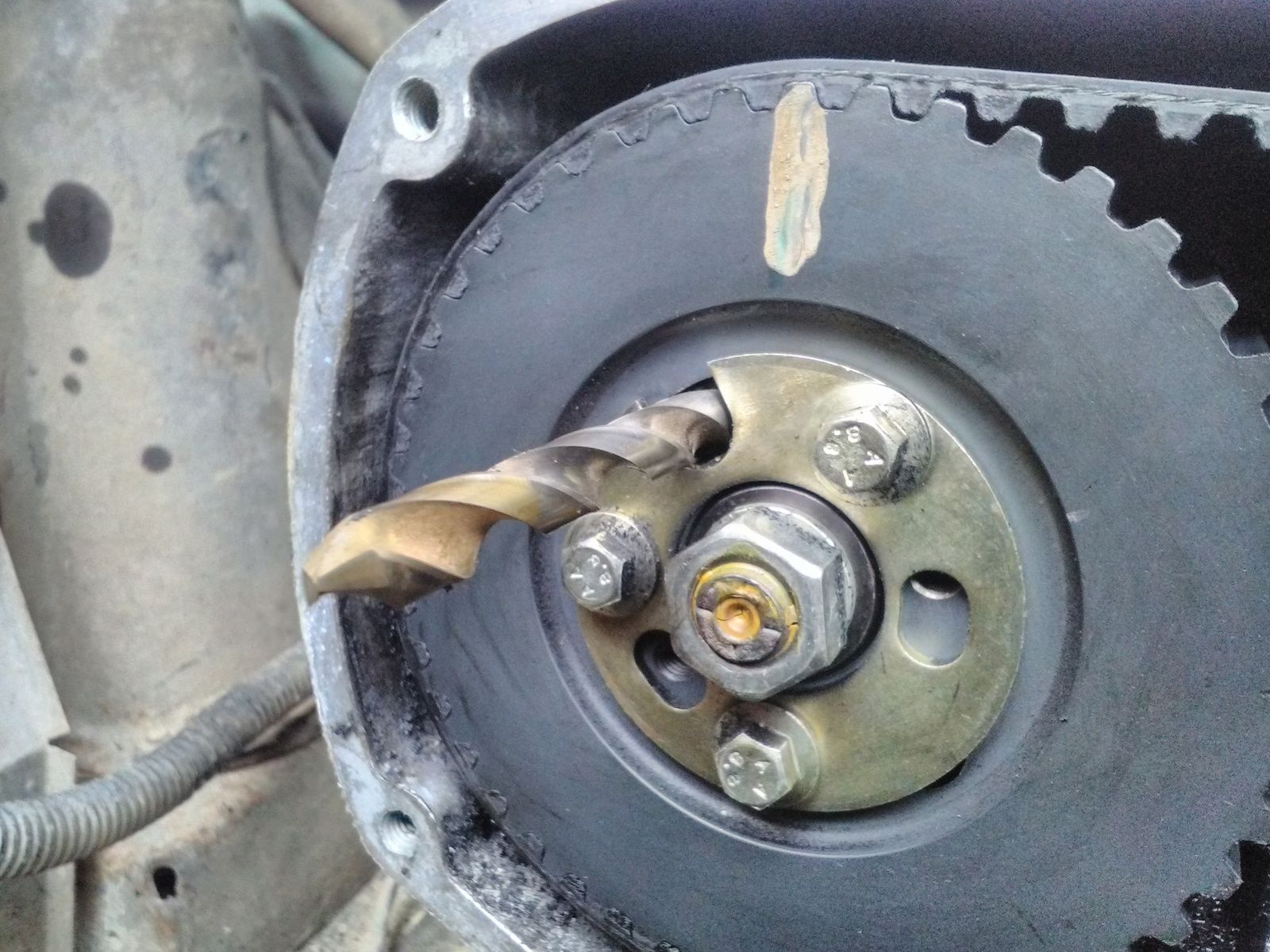

Put the timing pin in the pump, time the cam to the punch mark on the pulley and the web of the timing chest and the crank pulley to pointer on the back of the timing chest.

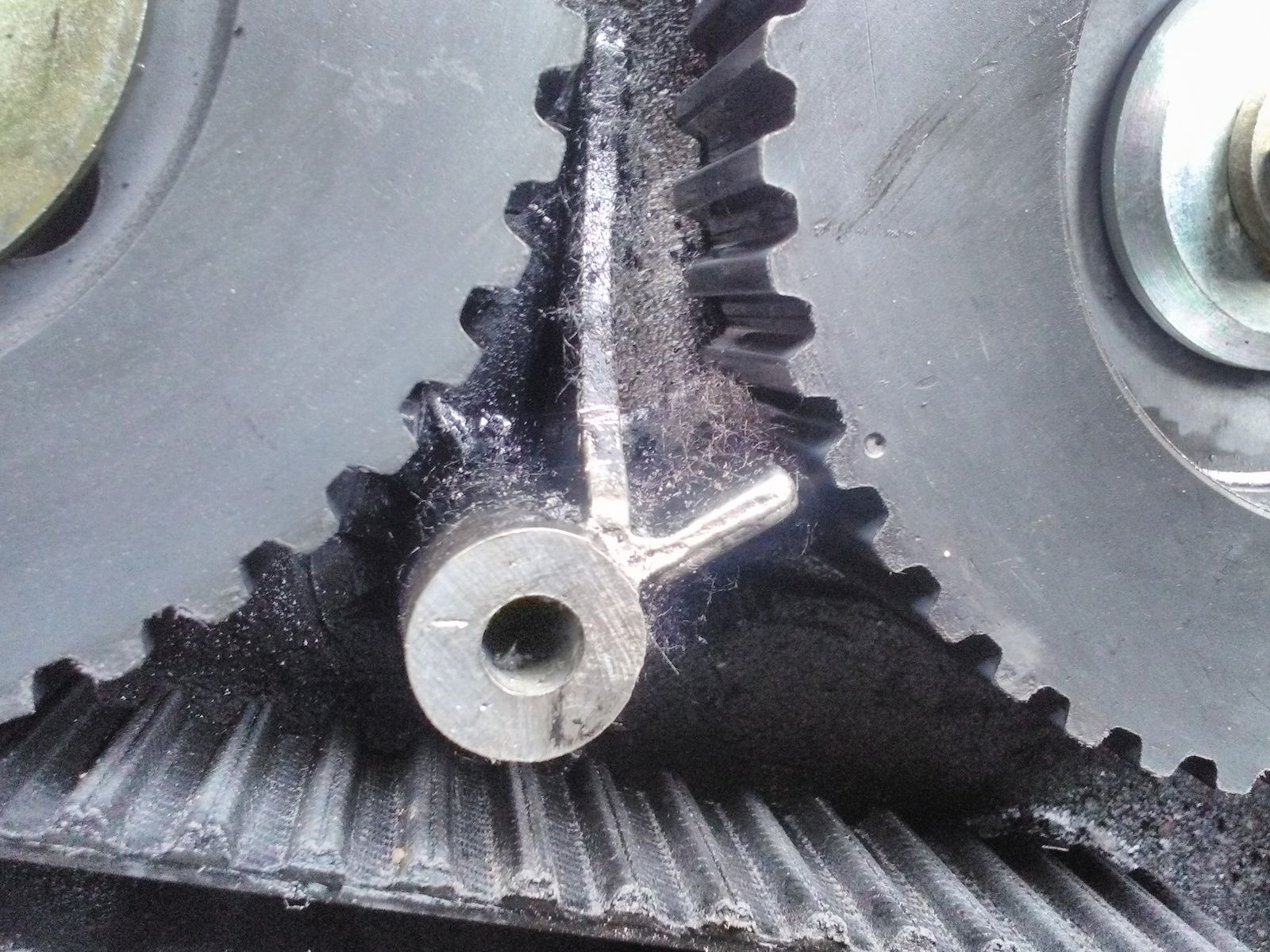

Once it's timed at the front, I slid under the truck and put the locking pin in the flywheel.
I've removed the cam pulley and the injection pump pulley, I lent out my puller so have been unable to get the crank pulley off, but I have been busy with the Gunk degreaser and cleaner getting rid of all the oil residues in the casing I could get to.
All that's left is to remove the three bolts out the bottom of the timing case that go through the block stiffening ladder and the sump and then use a puller to remove the crank pulley and then we're home free, well, not quite, still gotta put it all back together again.

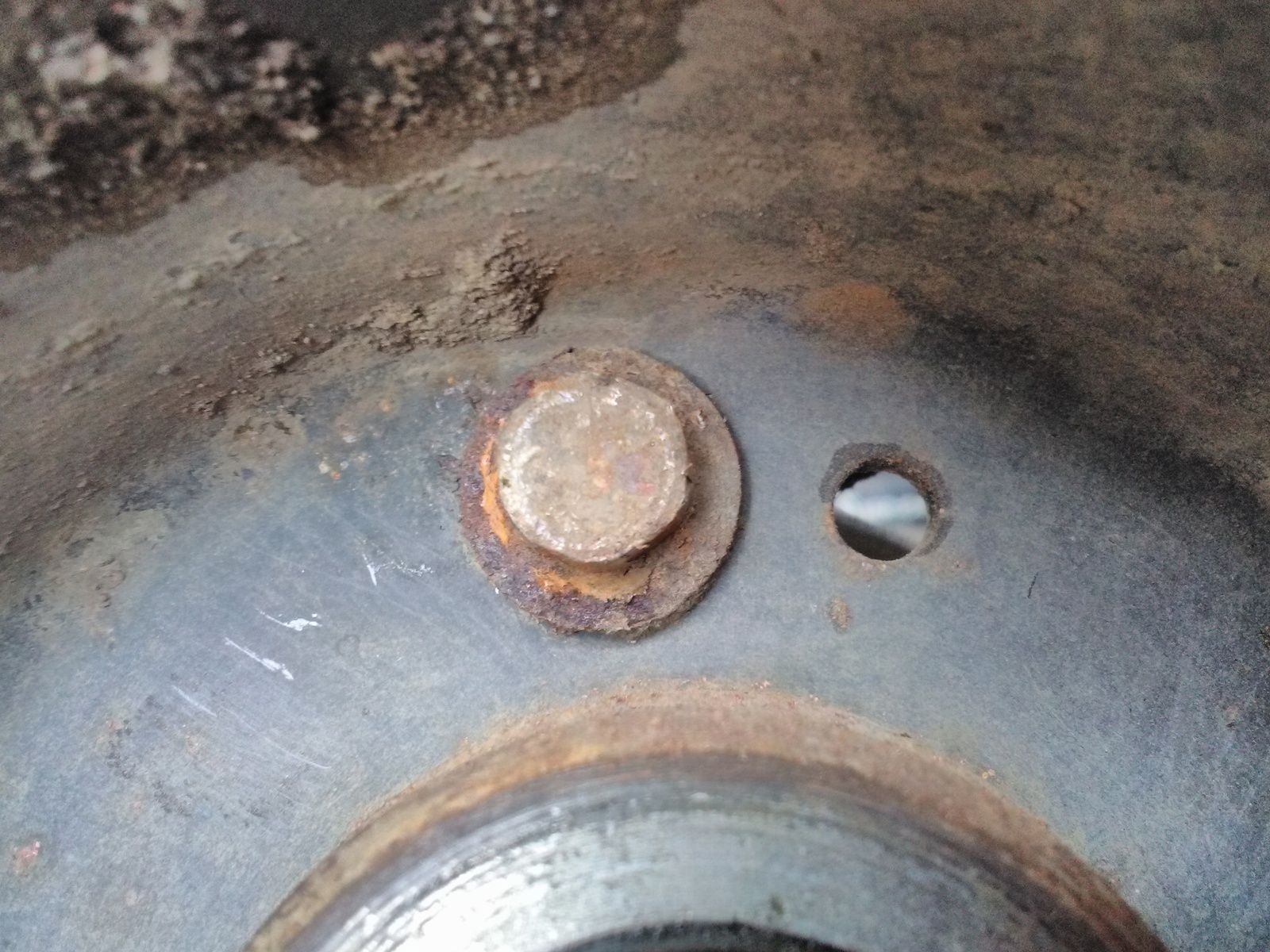

Oh, and get that rounded off bolt out of the crank dampner.
All afternoon out there pottering around, everything seized and needed lots of heat and penetrating fluids, currently defeated by the crank timing belt pulley as I lent out my puller and forgot all about it
To make matters worse I have found that the oils seals on the back of the timing case are shot and leaking into the timing case, it was a real mess in there
Some pics of where we are up to now.
Dumped all the coolant and removed the hoses, radiator and intercooler.
Removed the alternator and the PAS pump.
Breaker bar and the 30mm socket on the crank pulley bolt, I put a ratchet strap on it to ensure it was steady.
Ordinarily you should be able to lock the crank pulley up as I have and be able to remove the 4 M8 bolts that secure the pulley to the dampner but I was only able to remove 3 of the 4 and the lat one rounded off, typical really
Remove the stop solenoid feed.
Flick of the key and a big bang later the bolt is free and can be unwound by hand, the pulley, if you're lucky will pull off by hand, if not, you'll need a puller.
Removed the water pump and I noticed a lot of rusty rubbish on the threads so decided to run a die over the threads to clear it all off before I started trying to remove the front cover.
Inside the front cover shows how disgusting it is inside the timing case, very oily.
It was this point that I came to the conclusion that I needed to strip out the whole time chest and do the oil seals in it and the water gallery gasket between the chest and the block.
Put the timing pin in the pump, time the cam to the punch mark on the pulley and the web of the timing chest and the crank pulley to pointer on the back of the timing chest.
Once it's timed at the front, I slid under the truck and put the locking pin in the flywheel.
I've removed the cam pulley and the injection pump pulley, I lent out my puller so have been unable to get the crank pulley off, but I have been busy with the Gunk degreaser and cleaner getting rid of all the oil residues in the casing I could get to.
All that's left is to remove the three bolts out the bottom of the timing case that go through the block stiffening ladder and the sump and then use a puller to remove the crank pulley and then we're home free, well, not quite, still gotta put it all back together again.
Oh, and get that rounded off bolt out of the crank dampner.
- Posts
- 9,105
- Location
- Roaming the UK on assignments
Walloped a 1/2" drive 9mm 12 point socket on that bolt in the dampener, no joy only a split socket
Now the big guns will come out tonight!
Disc cut the pulley, weld a but on the bolt head, leave it to cool and I recons we'll be on to a winner?
Well that's me plan!
Posted this in the general LR forum.
https://www.landyzone.co.uk/land-rover/battery-warning-lamp.330125/
Basically, 2nd alternator will use a battery warning lamp to excite the alternator to charge but I bought an LED without realizing and need to know whether it will be OK or if I need to get a regular lamp as resistance and current use will be wildly different!
Anyone?
Now the big guns will come out tonight!
Disc cut the pulley, weld a but on the bolt head, leave it to cool and I recons we'll be on to a winner?
Well that's me plan!
Posted this in the general LR forum.
https://www.landyzone.co.uk/land-rover/battery-warning-lamp.330125/
Basically, 2nd alternator will use a battery warning lamp to excite the alternator to charge but I bought an LED without realizing and need to know whether it will be OK or if I need to get a regular lamp as resistance and current use will be wildly different!
Anyone?
- Posts
- 9,105
- Location
- Roaming the UK on assignments
It seems that I have the answer to the electrical conundrum.
A 100 ohm resistor and a one way diode inline to the alternator, got it sussed, need to find the parts now and get the wiring done in preparation for the alternator wiring up bit.
Tonight I did bugger all really apart from clean up the water pump mating face and hose fittings, took a lot of descaling with a length of emery cloth and scraping to get the old gasket off.
Even fitted a new thermostat and gasket as the old one was sticking open and the engine almost never seemed to get warm, bought a new viscous fan coupling so when it's all back together I will nip over to mums to get the fan shroud and the plastic fan blades that fit on the coupling, been running for years now without a fan but I'm curious to see if it makes a difference to power through the continuous draw of air through the intercooler.
So, the things left to do on the list before we are ready for Monday.
Fit the new aux battery
Wire in the new cable splitter from the aux battery to the aux fuse board
Wire in the new aux alternator including the volt meters for both circuits
Oh and lest I forget, still need to finish fitting new oil seals and gaskets on the timing chest, fit the new timing belt and getting the front end of the engine rebuilt.
I would like to get that pesky little oil thermostat and "O" ring fitted but I will have to see how the time goes as I still have other chores to take care of
A 100 ohm resistor and a one way diode inline to the alternator, got it sussed, need to find the parts now and get the wiring done in preparation for the alternator wiring up bit.
Tonight I did bugger all really apart from clean up the water pump mating face and hose fittings, took a lot of descaling with a length of emery cloth and scraping to get the old gasket off.
Even fitted a new thermostat and gasket as the old one was sticking open and the engine almost never seemed to get warm, bought a new viscous fan coupling so when it's all back together I will nip over to mums to get the fan shroud and the plastic fan blades that fit on the coupling, been running for years now without a fan but I'm curious to see if it makes a difference to power through the continuous draw of air through the intercooler.
So, the things left to do on the list before we are ready for Monday.
Fit the new aux battery
Wire in the new cable splitter from the aux battery to the aux fuse board
Wire in the new aux alternator including the volt meters for both circuits
Oh and lest I forget, still need to finish fitting new oil seals and gaskets on the timing chest, fit the new timing belt and getting the front end of the engine rebuilt.
I would like to get that pesky little oil thermostat and "O" ring fitted but I will have to see how the time goes as I still have other chores to take care of
- Posts
- 9,105
- Location
- Roaming the UK on assignments
I've been busy!
Went from this.
To this.
Had to clean that mess up so I could see the gasket residues off and prepare for the fitting of new ones and the rebuild.
Block to chest gasket smeared with grease to hold it in place and to seal it up, the gallery gasket has had hylomar blue sealant applied to both sides to give it a fighting chance of sealing up properly and the mating face that joins the timing chest to the stiffening ladder has been liberally smeared with hylomar blue.

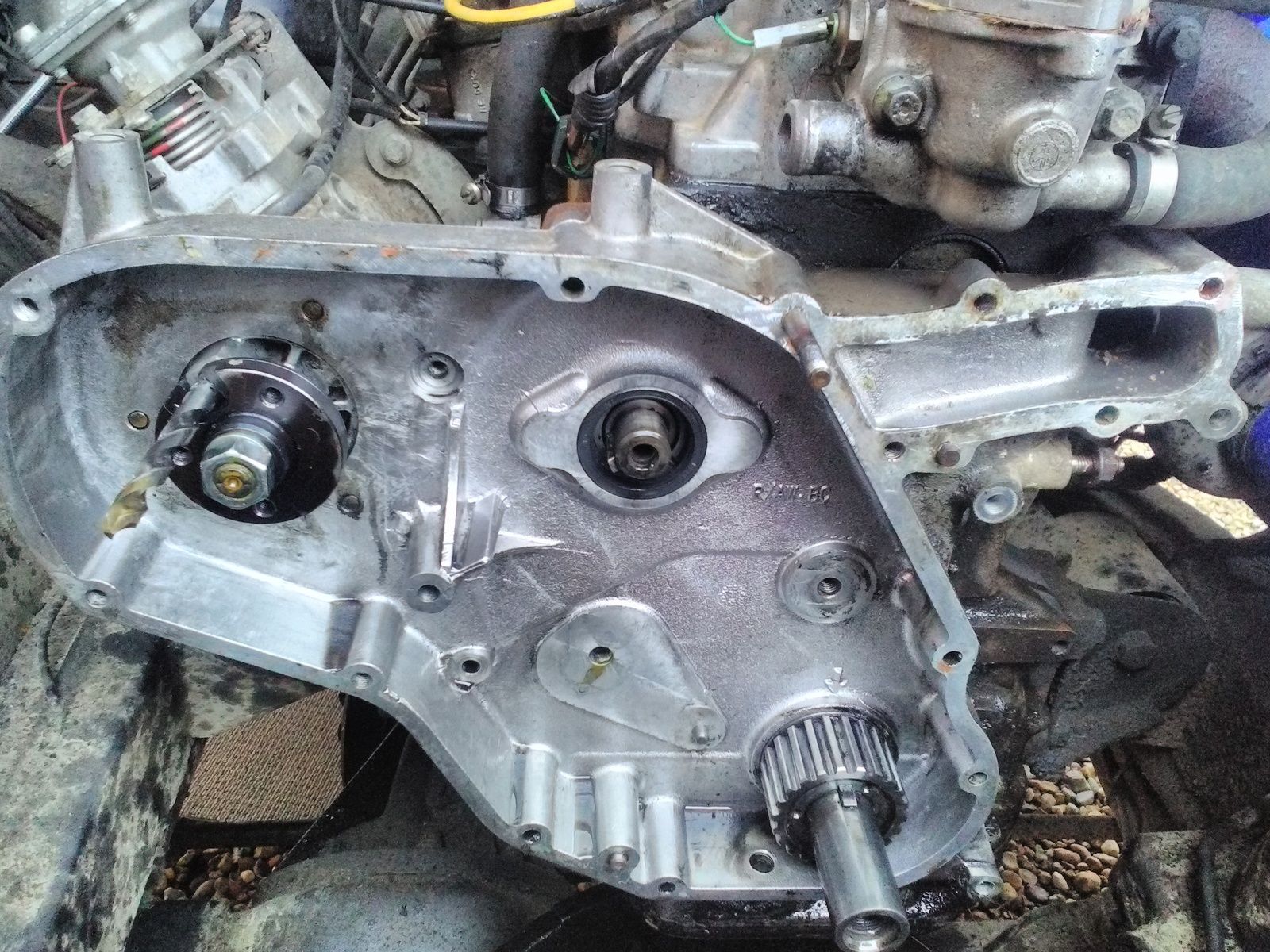

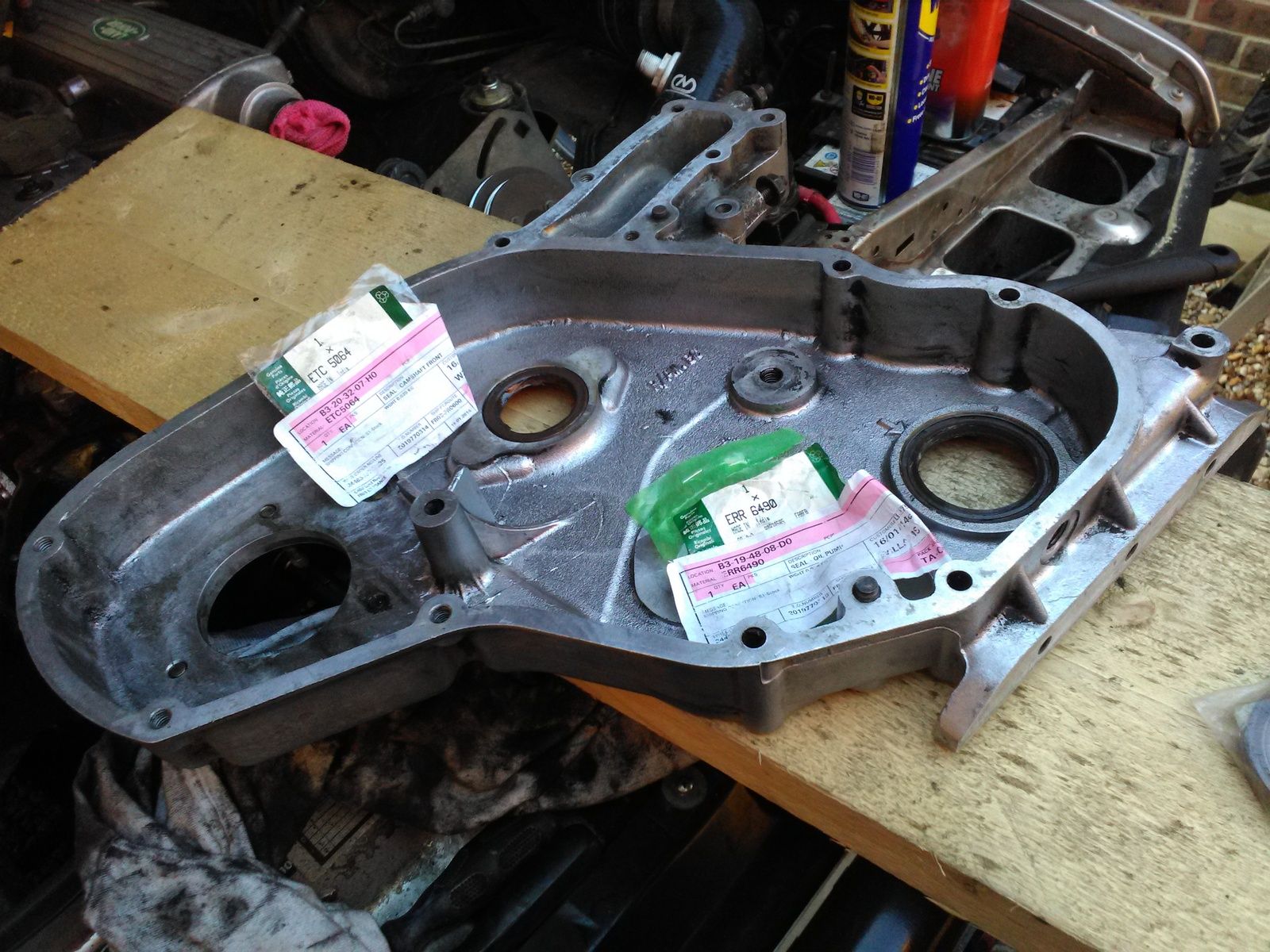

Then I had to get the timing chest cleaned up and all new seals fitted.

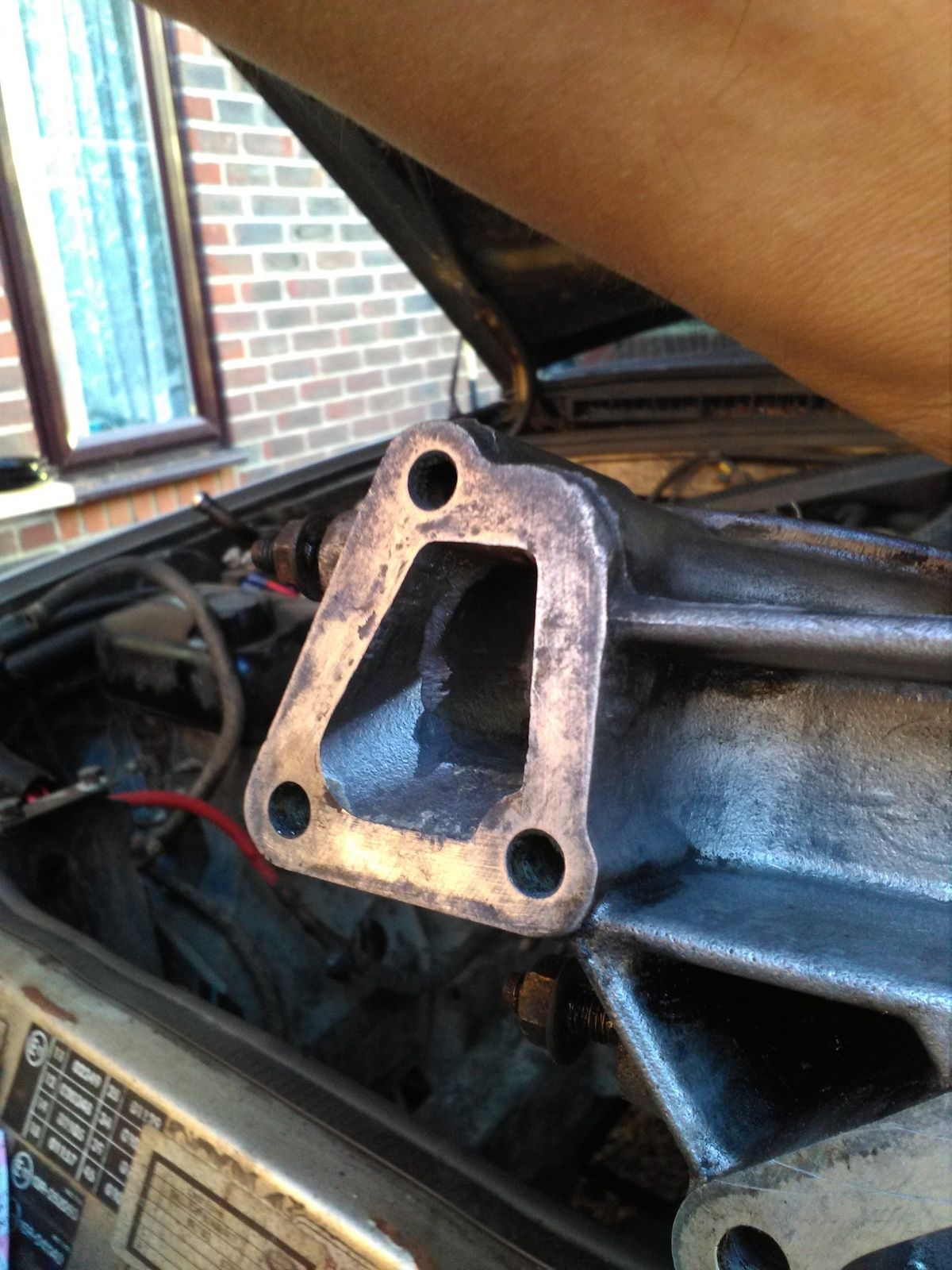

I've always had a thing about badly finished castings and the coolant gallery that passes through the timing chest was no exception to bad finishing so I got out the files and smoothed them out and took out the rough edges.
