Project Rusty.

Discussion in 'Members Vehicles/Projects' started by dieseldog69, Dec 11, 2014.

< Previous Thread | Next Thread >
  1. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    7,240
    Likes Received:
    5,242
    Location:
    Back in the UK, Sunny Hampshire.
    Just home after a much delayed outing, but never mind, only got one mum and besides, there are 52 weekends in every year :)

    Might nip out after a brew an start it, but ideally it needs to run for a a half hour or so on a high idle so maybe not tonight :rolleyes:

    Desperately thinking of something I could do that's not noisy but might just blow it up an spend some time doodling in my sketch pad with the next hair brained scheme LOLZ

    The Mad Hat Man likes this.
  2. hef19898

    hef19898 Member

    Joined:
    Mar 27, 2019
    Posts:
    65
    Likes Received:
    16
    Location:
    Germany
    Regarding the underseal, I thought about using raptor paint / coating after stripping the old one away. on the foot wells the existing stuff covered some nasty rust buckets and I would love to have something solid and painted on so I don't ever have to worry again. Especially in wheel archs, foot wells and sils. Did anyone try that already?

  3. noiseboymart

    noiseboymart Active Member

    Joined:
    Jul 27, 2009
    Posts:
    244
    Likes Received:
    4
    Location:
    Dewsbury
    Nope i ought to do i suppose been keeping the old girl on the road for nearly 10 years now.

    dieseldog69 likes this.
  4. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    7,240
    Likes Received:
    5,242
    Location:
    Back in the UK, Sunny Hampshire.
    I have spent a few hours obsessing over this conundrum and I've wracked my brain thinking about this particular problem, wheel arches, foot wells and wheel tubs will take quite a beating in many ways, mud and stones with high impact as well as road spray and de-icing salt present us with a whole new dimension and this is where we hit the wall so to speak.

    Of my many musings I have thought that the high impact areas ought to be best prepared and protected.

    But here we get into murky waters,
    What are we protecting? New panels? Old panels post repair or just old panels in good condition?

    Trains of thought for new and old panels,
    1) shot blast them back to bare metal, etch prime and use a zinc rich undercoating primer and a good quality top coat and then a high impact resistant paint on top.

    2) shot blast, zinc rich primer and then bed liner.

    3) shot blast zinc rich primer, top coat and then an under body wax protector.

    I've been looking at all the above options and think that you might get away with rigorous sanding/wire wheeling of rusty panels to get rid of old crusty paint and underseal if you don't have access to shot blasting but I think ultimately that unless you are painting the bed liner material onto sand blasted surface or at the very least brand new panels then there is still a real chance of the dreaded tin worm reappearing in short order and under a layer of underseal it simply won't be visible or noticeable until it's too late.

    Lots to think about but I think I'm going to steer clear of paints with the exception of the wheel tubs and arches as they are new panels and in good order as well as very easy to clean and observe over time for changes and under body wax the rest of the truck as it should seep into everything and any surface rust should swallow it up too, regular top ups and it should see me out.

  5. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    82,297
    Likes Received:
    8,023
    Location:
    Embasinga stocæ
    Or fit wheel arch liners? :)

    dieseldog69 likes this.
  6. hef19898

    hef19898 Member

    Joined:
    Mar 27, 2019
    Posts:
    65
    Likes Received:
    16
    Location:
    Germany
    Sounds like plan! Blasting will happen tomorrow with dry ice. Good point about stripping to bare metal as I only planned to strip the old wax and stuff.

    So, protective paint on the impact areas built on bare metal, new paint and rust treating on the other chassis parts. All finished with underseal and wax where needed. We'll see how the chassis looks like with all the gritty stuff removed.

    dieseldog69 likes this.
  7. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    7,240
    Likes Received:
    5,242
    Location:
    Back in the UK, Sunny Hampshire.
    My ham fistedness and general fat finger syndrome often creates more work than I have planned, and this is just one such occasion.

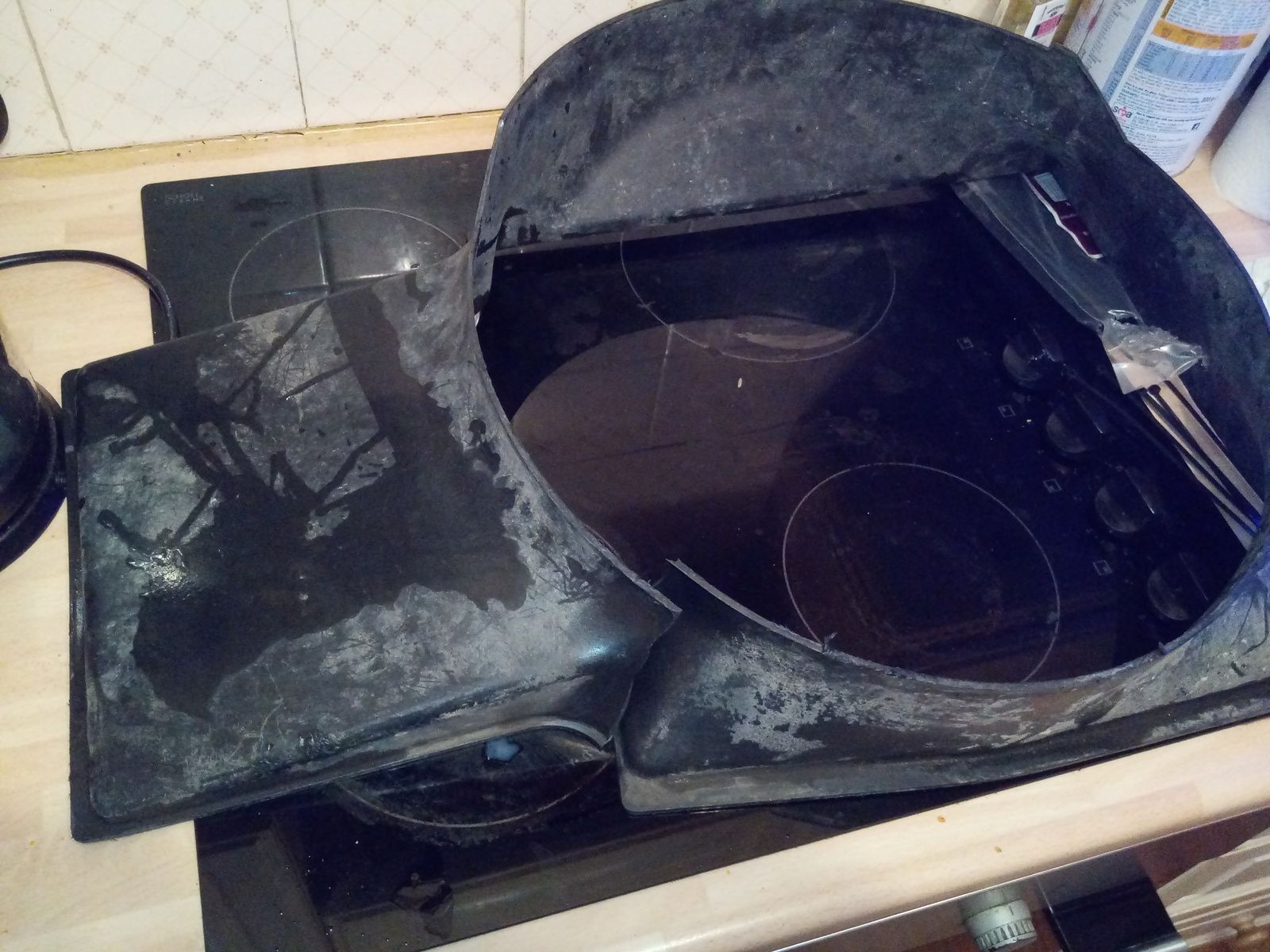

    Managed to break the fan shroud and it needs fixed as it's an important part of my low speed engine cooling and intercooling set up.

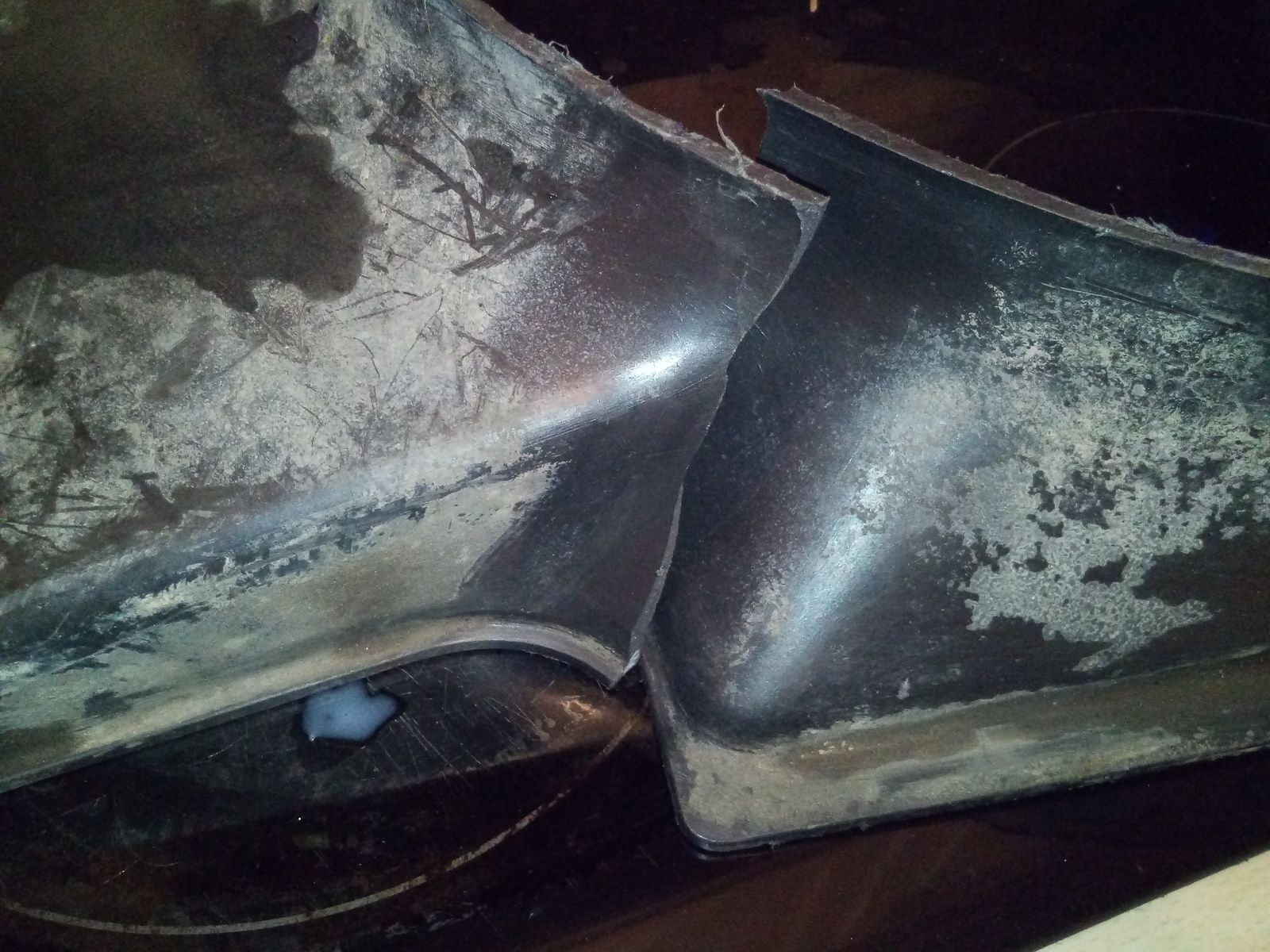

    Broked it :(

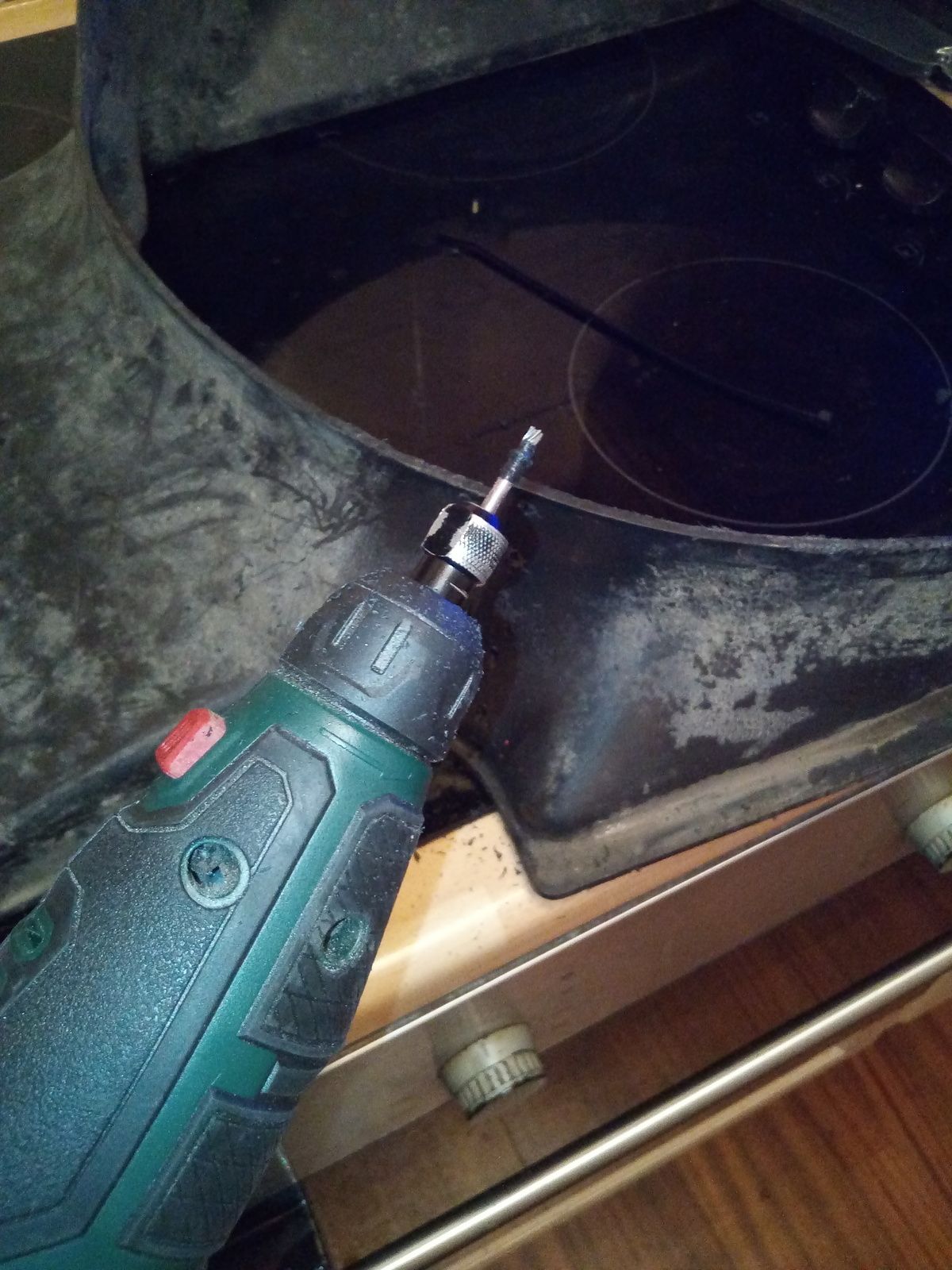

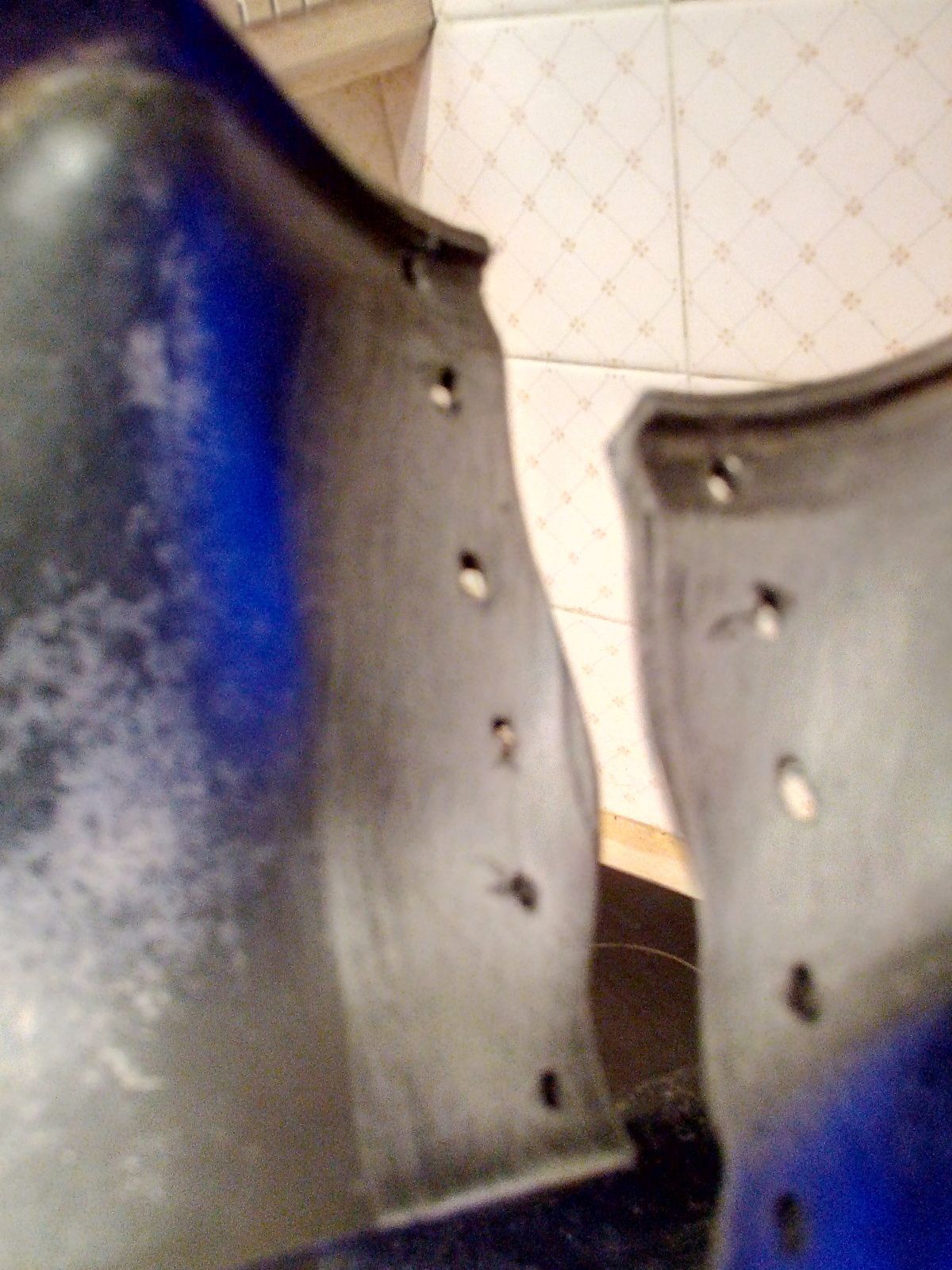

    Drilled a few holes ;)

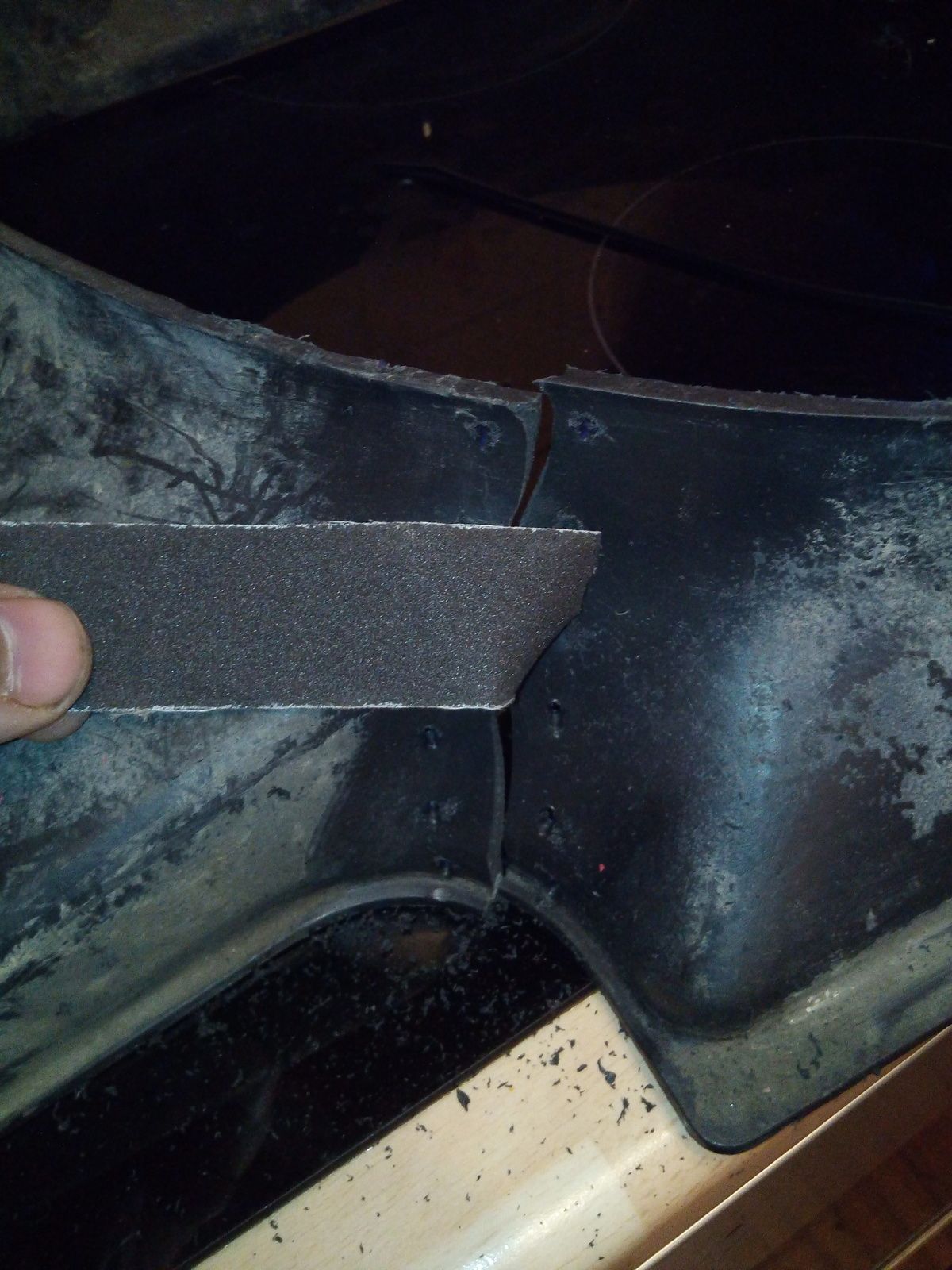

    Roughed up the area around the holes and the cracked plastic with some emery cloth.

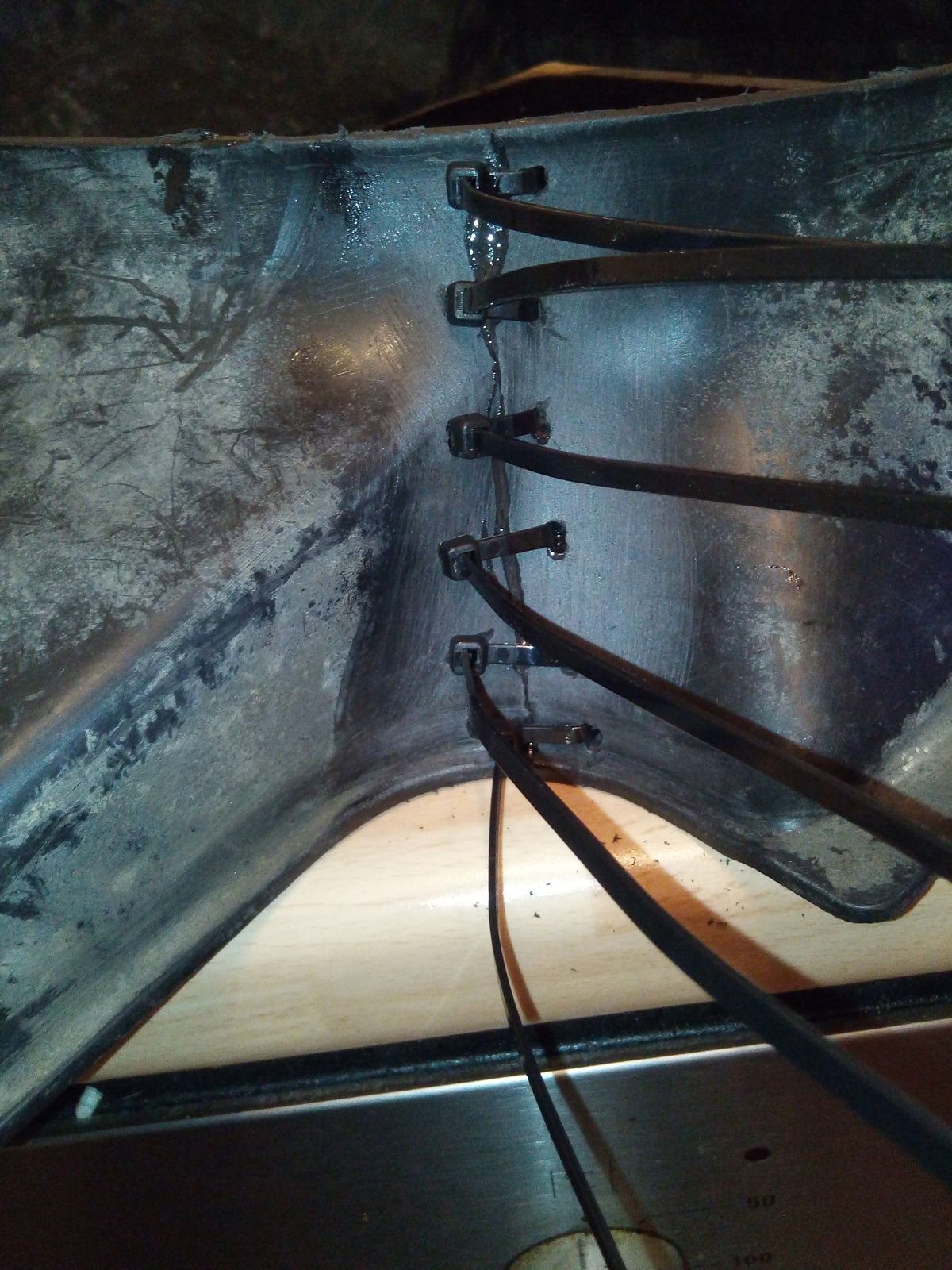

    The repair will come as part of a belt and braces approach of.........


    Here we go.......

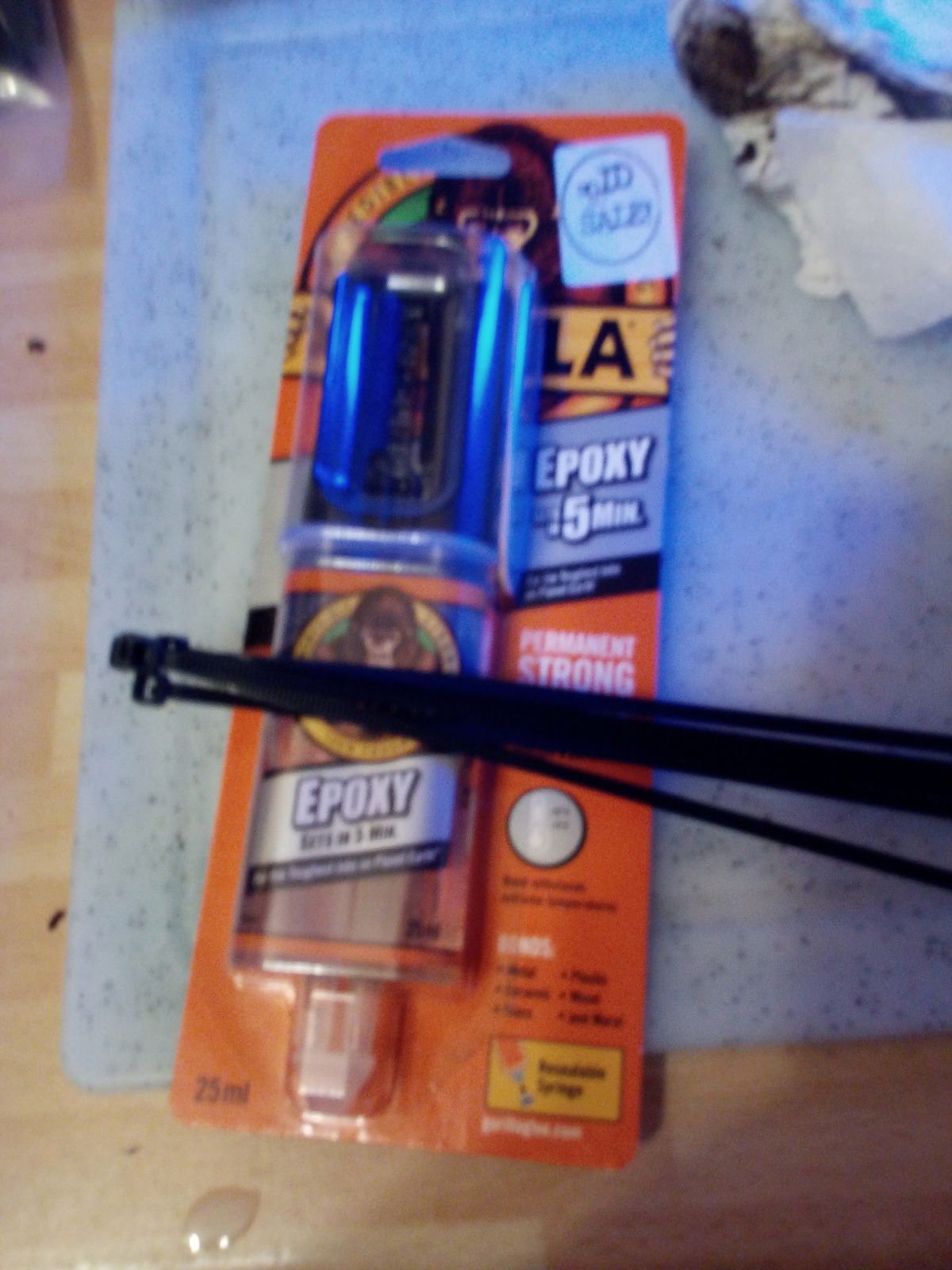

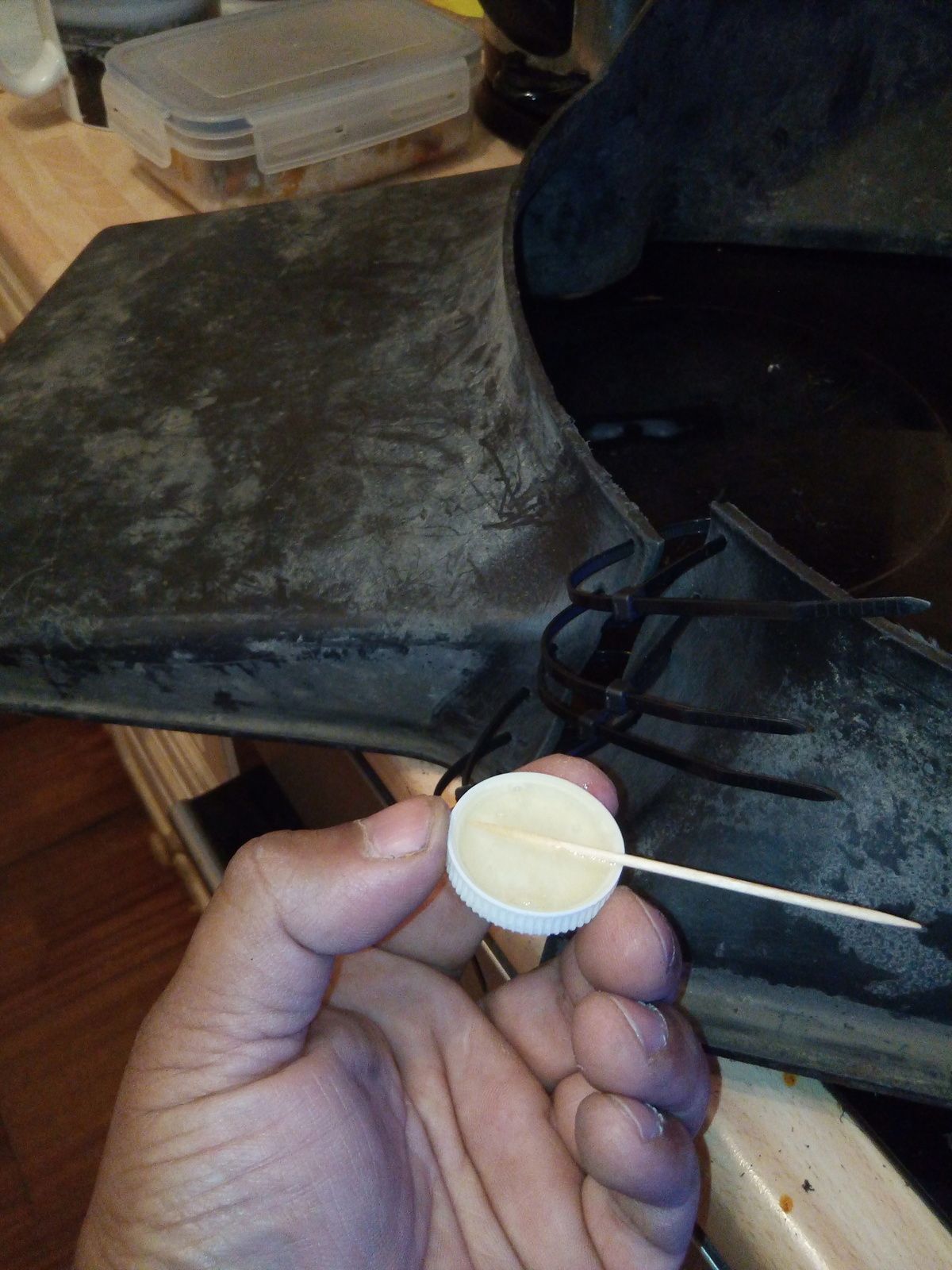

    Mix the epoxy and get her done....

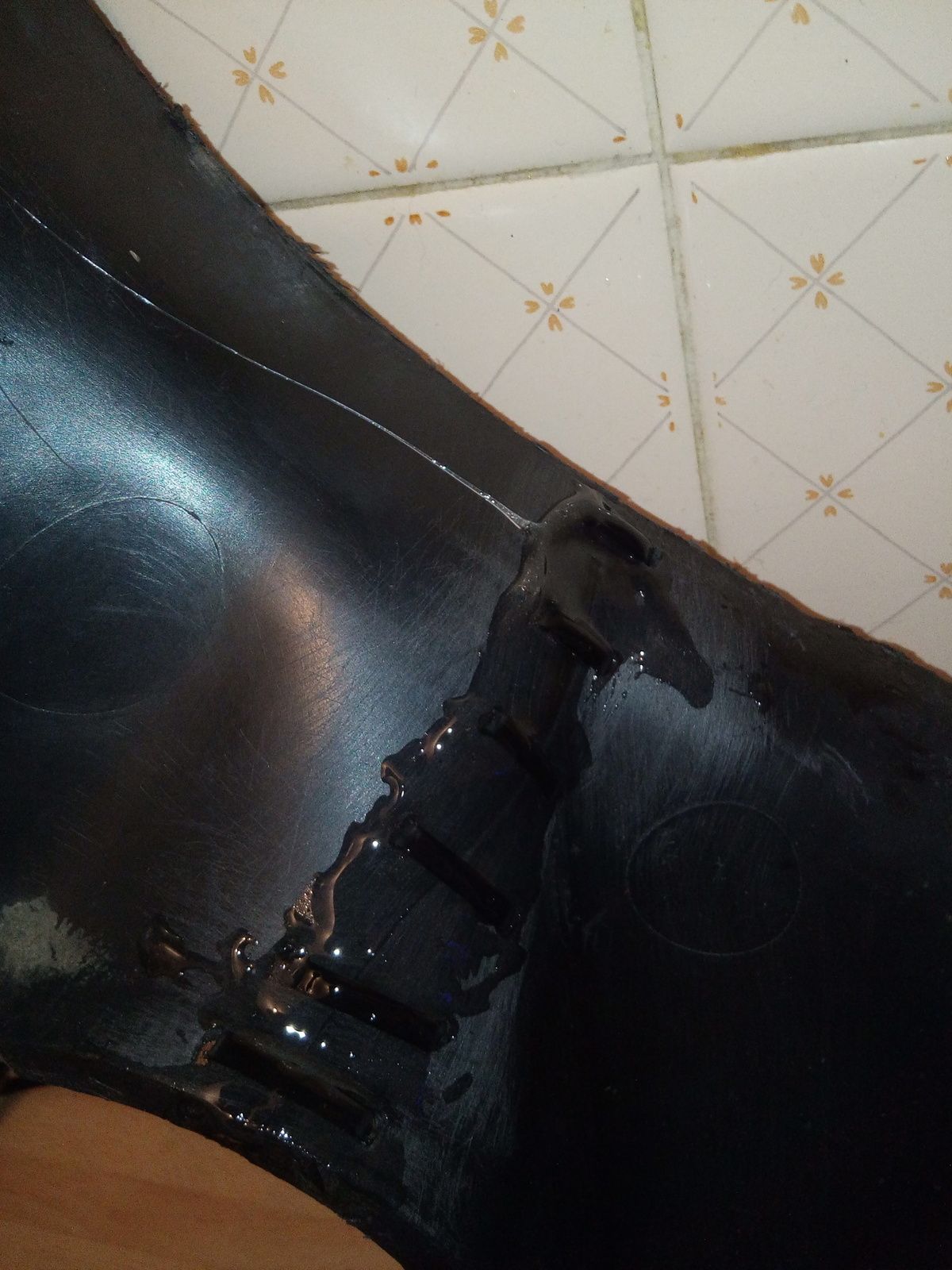

    Both sides of the joint are smothered in epoxy to lock it all in place.


    Couple of days in the airing cupboard (at the speed I'm welding this thing up it could be a month :eek:) and ready to fit.

    LincolnSteve and hef19898 like this.
  8. hef19898

    hef19898 Member

    Joined:
    Mar 27, 2019
    Posts:
    65
    Likes Received:
    16
    Location:
    Germany
    @mad Hat: That's so post 80's!!!! I reserve that for the onboard entertainment system!

    edit: I like cable binder stiches!

    dieseldog69 likes this.
  9. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    7,240
    Likes Received:
    5,242
    Location:
    Back in the UK, Sunny Hampshire.
    I have a feeling my tyres are going to be frequently intimate with my wheel tubs and front arches under articulation, it was bad enough with the Coopers, these things are even bigger :eek:


    Gets fairly well stuffed up in there don't they ;)

    kevstar and hef19898 like this.
  10. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    7,240
    Likes Received:
    5,242
    Location:
    Back in the UK, Sunny Hampshire.
    Got rained off today so had a jaunt out with the family to show them that I care and love them and want them to enjoy our wonderful countryside, all the way to Alton we went :)

    Just so happens, completely by coincidence of course, that Keith Gotts is in Alton ;)

    Got me some new bits and bobs as I know there are areas I'd like to get sorted for the MOT such as.

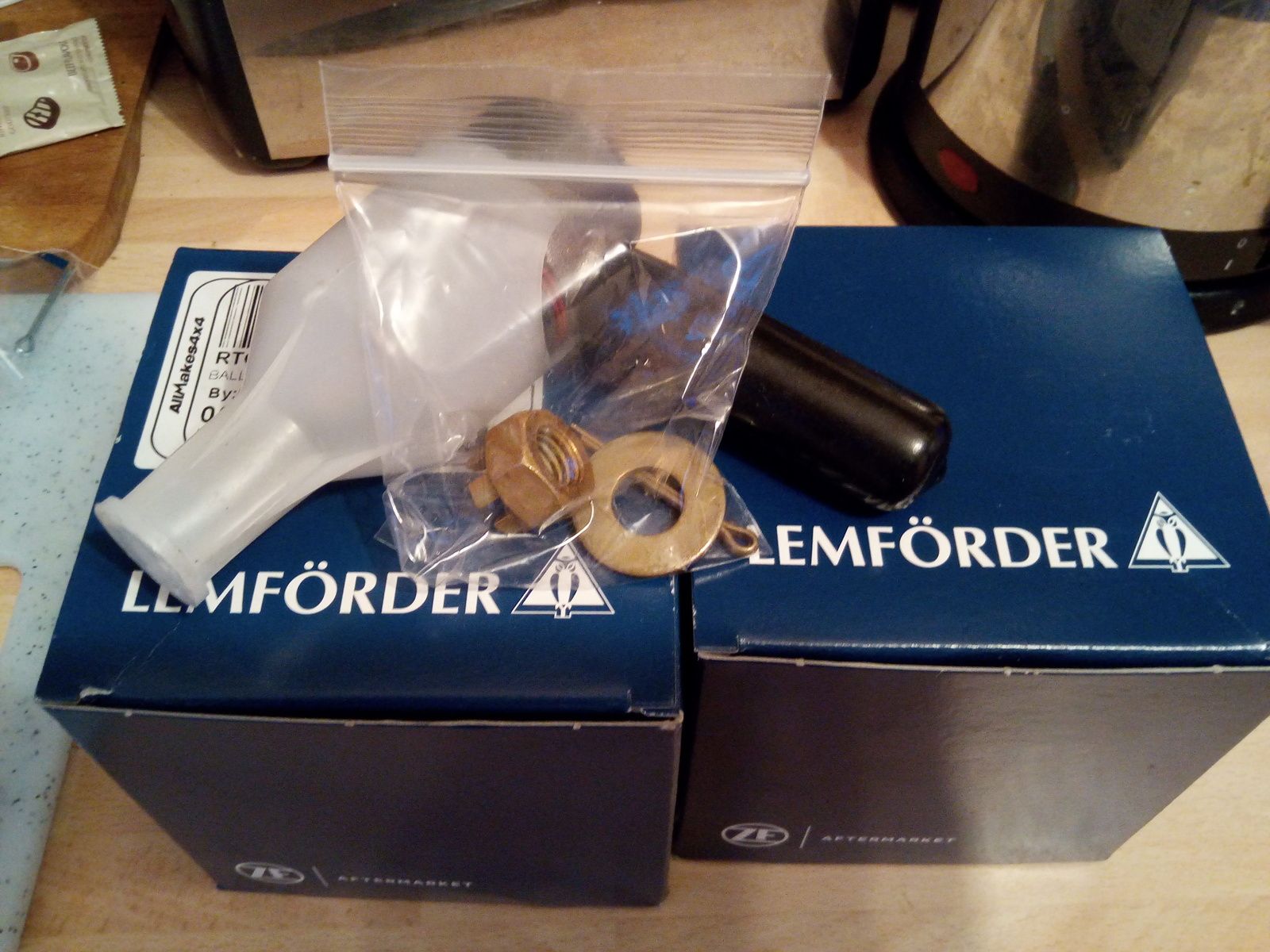

    Proper Lemforder steering bar ball joints, very expensive but these will last yonks compared with other blue box brands ;)

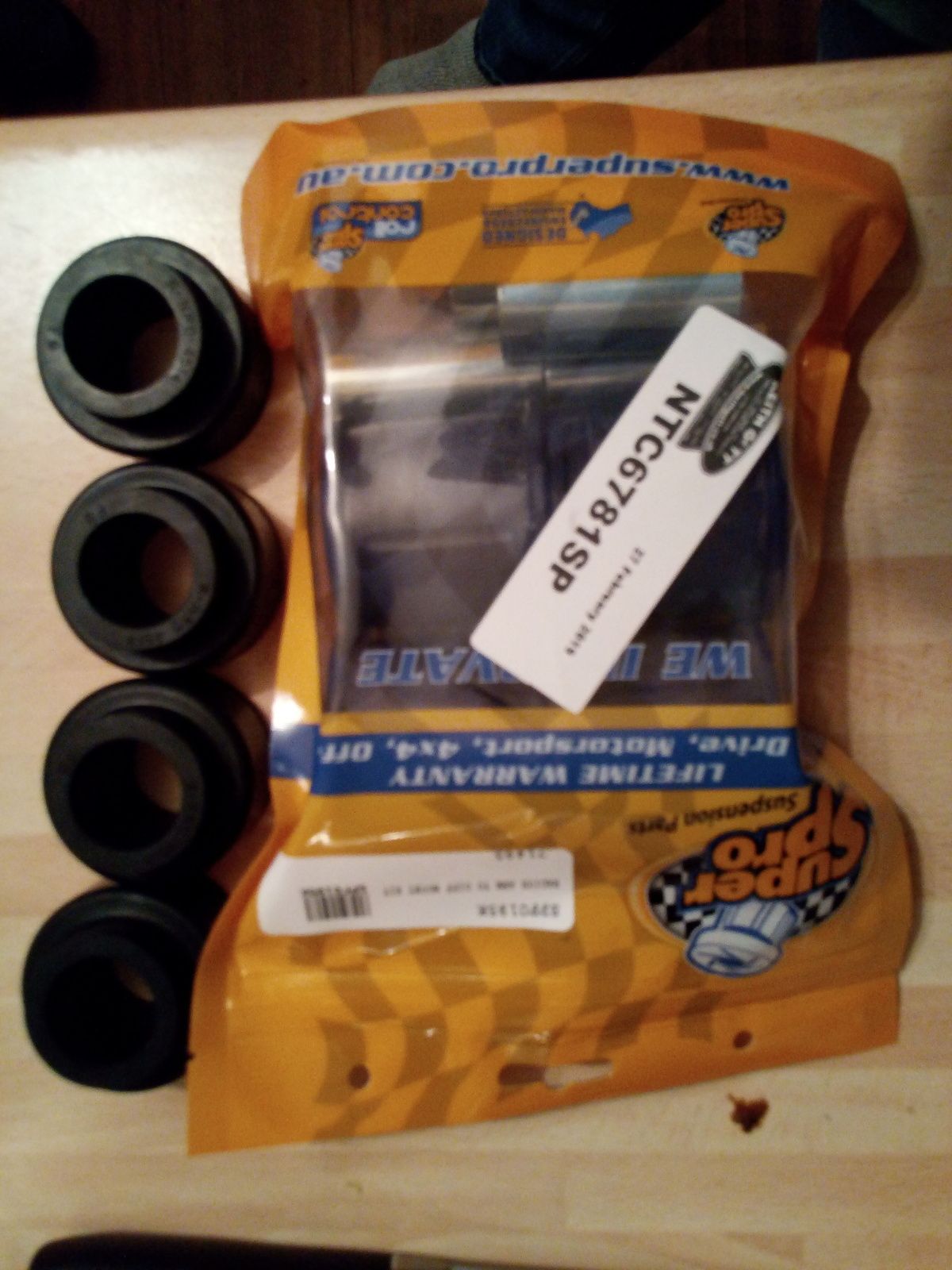

    The Radius arm bushes are on my list of things to get done as they are in a bit of a state these days and I'd rather get em done sooner rather than later I think.

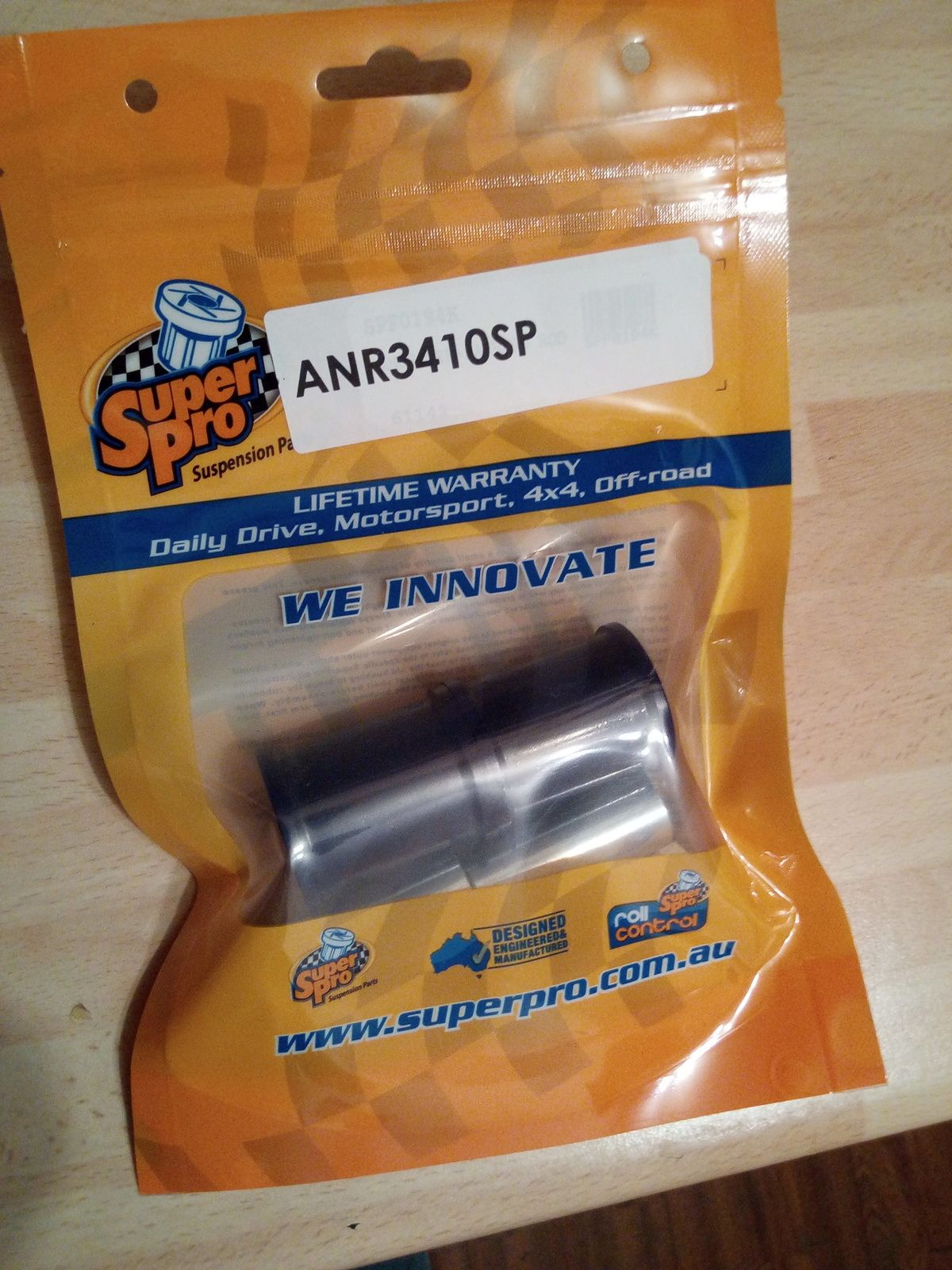

    SuperPro poly bushes :)


    I did poke the panhard rod with a pry bar and it's not terrible but not great either so I'll do them too.

    SuperPro pollies again.


    Surprise came in the post, direct from Shenzen, China, some fookin UK seller this fellah turned out to be :rolleyes:

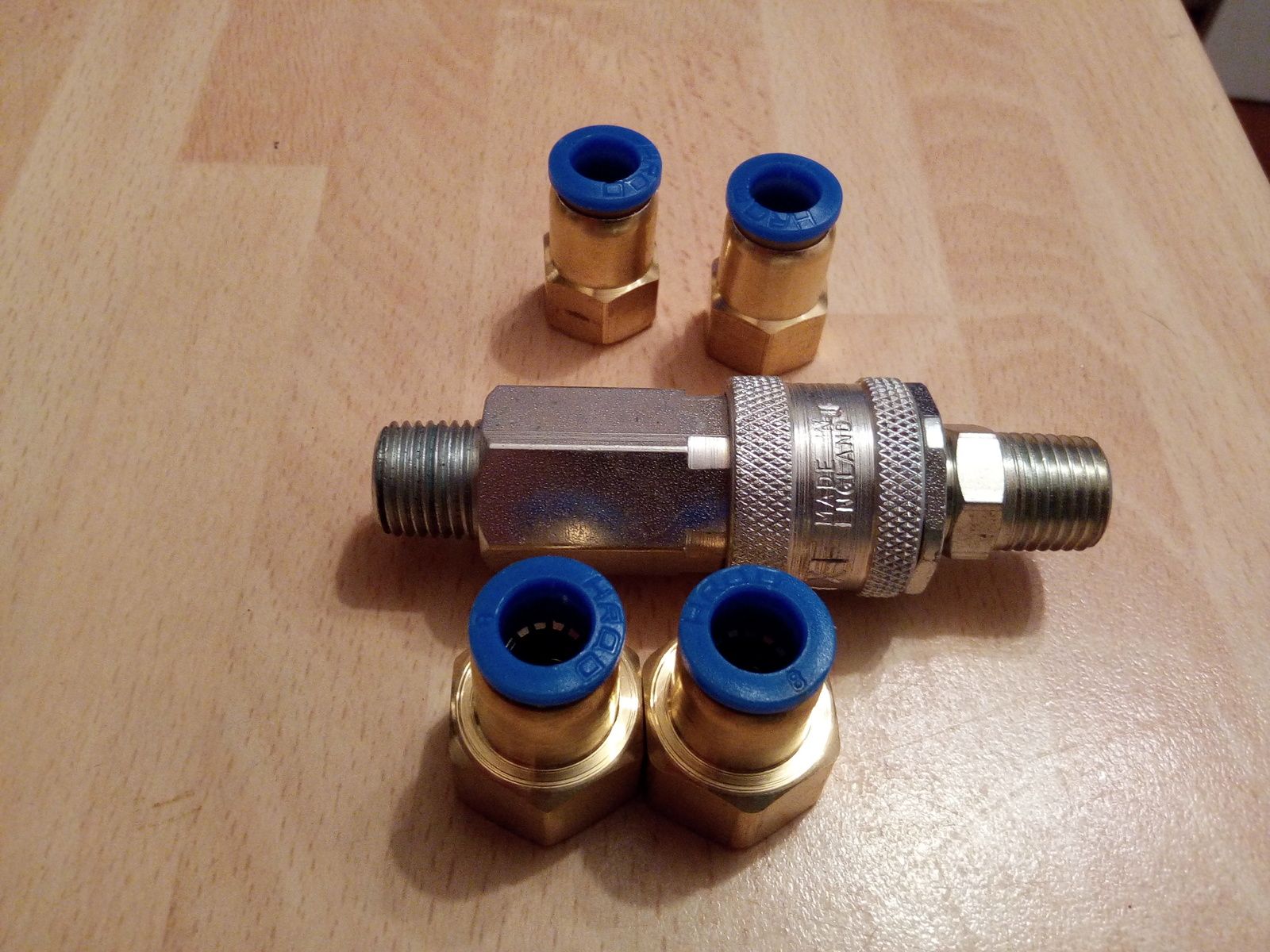

    The on board air components keep turning up and I'm feeling quite positive about getting this thing back on the road :)

  11. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    82,297
    Likes Received:
    8,023
    Location:
    Embasinga stocæ
    Shoulda told me... I got a trade account. Maybe popped in..... except I weren’t there.... hospitital :eek:.

    dieseldog69 likes this.
  12. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    7,240
    Likes Received:
    5,242
    Location:
    Back in the UK, Sunny Hampshire.
    Oeph! Nothing serious i hope!!!

    We did think about giving you a bell an popping up but time was getting tight :oops:

    Really do need to pop up as I've almost forgotten what you looks like :eek:

    I got a trade account too, I get all giddy when I go in there, all the shiny new bits and sparkly stuff everywhere :)

    Hope the weather isn't terrible this weekend so I can get on an do a bit.

  13. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    82,297
    Likes Received:
    8,023
    Location:
    Embasinga stocæ
    You and yo family are always welcome.
    Hope to see you again soon.

    dieseldog69 likes this.
  14. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,582
    Likes Received:
    871
    Location:
    Wiltshire
    Oooo one loves acquiring packets and putting them in the to fit treasure box also :)

    Good work. I’ve not much time on my two projects and won’t get anything done during week now. I was losing motivation to be honest until i saw that white one again walking the dog. We need to sort a meetup and Chinese soon too. How far off are you do you think? I’m just itching to get on the mech stuff but know no point rushing! Think other side of body should be far quicker as now know what I’m doing :D

  15. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,582
    Likes Received:
    871
    Location:
    Wiltshire
    I actually put chinwag not Chinese but I do like Chinese too :D:D:D

    dieseldog69 and The Mad Hat Man like this.
  16. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    82,297
    Likes Received:
    8,023
    Location:
    Embasinga stocæ
    Chinese sounds good :)

  17. resto_d1

    resto_d1 Well-Known Member

    Joined:
    Apr 30, 2018
    Posts:
    1,582
    Likes Received:
    871
    Location:
    Wiltshire
    :D:D:D
    How’s yours coming along?

  18. The Mad Hat Man

    The Mad Hat Man Well-Known Member LZIR Despatch Agent

    Joined:
    Sep 11, 2005
    Posts:
    82,297
    Likes Received:
    8,023
    Location:
    Embasinga stocæ
    It’s not.:(.
    I lost my inspiration just before Xmas. ;)
    Have concentrated on decorating and gardening.:eek:

  19. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    7,240
    Likes Received:
    5,242
    Location:
    Back in the UK, Sunny Hampshire.
    You put I like Chinese an immediately under it Google AdSense puts an ad for "find Chinese women in your local area" lol

    Wish i was on my laptop, no idea how to do screen shot on this phone lol

    I'm just in for a brew then rear quarter off, wanna get new panels an supports tacked in(at the very least) by end of play today.

    I'm on target for end of the month so long as it passes the MOT without drama :cool:

    resto_d1 and The Mad Hat Man like this.
  20. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    7,240
    Likes Received:
    5,242
    Location:
    Back in the UK, Sunny Hampshire.
    Winter blues, killed many a project :(

    Summer is almost here now though :)
