Power steering hose, help needed identifying correct part#

v8250 said:

Dear All, losing will to live here and hope you can help.

Replacing power steering pump hoses but am struggling with suppliers as to which is the correct part #. The hose is part #1 here https://www.lrworkshop.com/diagrams...ering-column-lower/power-steering-pipes_53705 [LR is a Def 200tdi, originally a 2.5TD]

This issue is the correct size of male connection that fits the rear of the pump

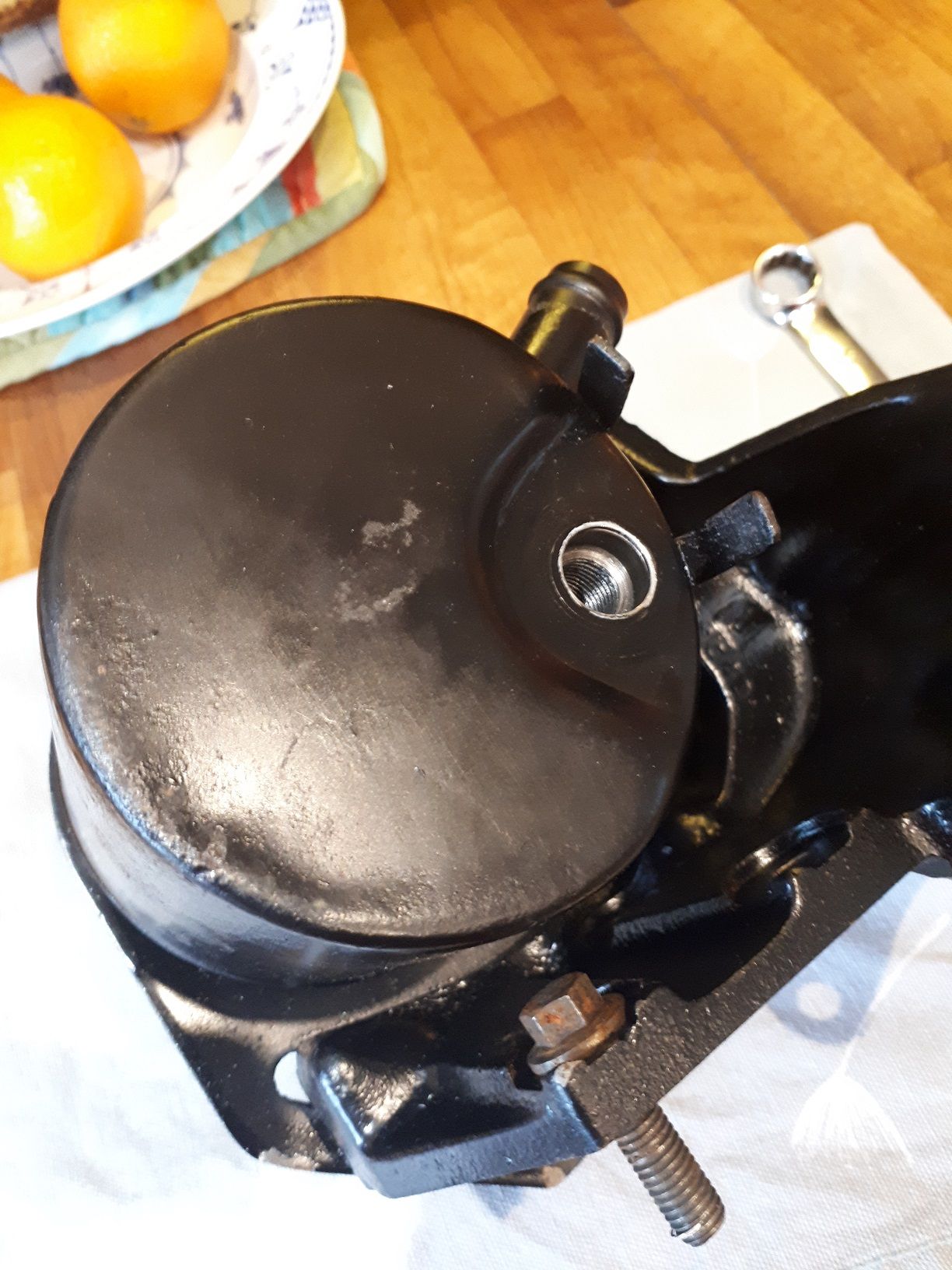

Here pic of pump and thread
View attachment 226185

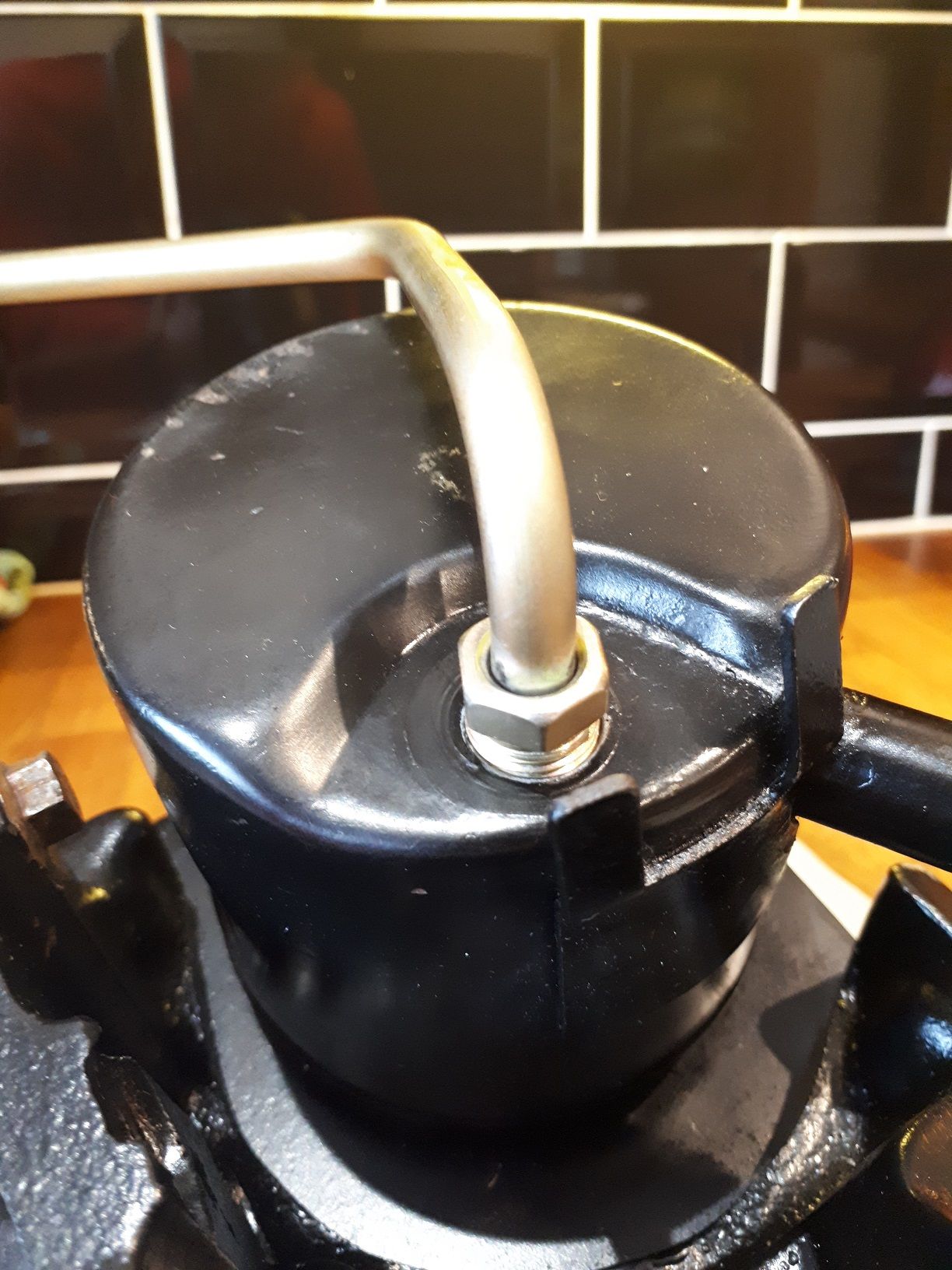

Here pic of steering box end that fits the pump
View attachment 226186

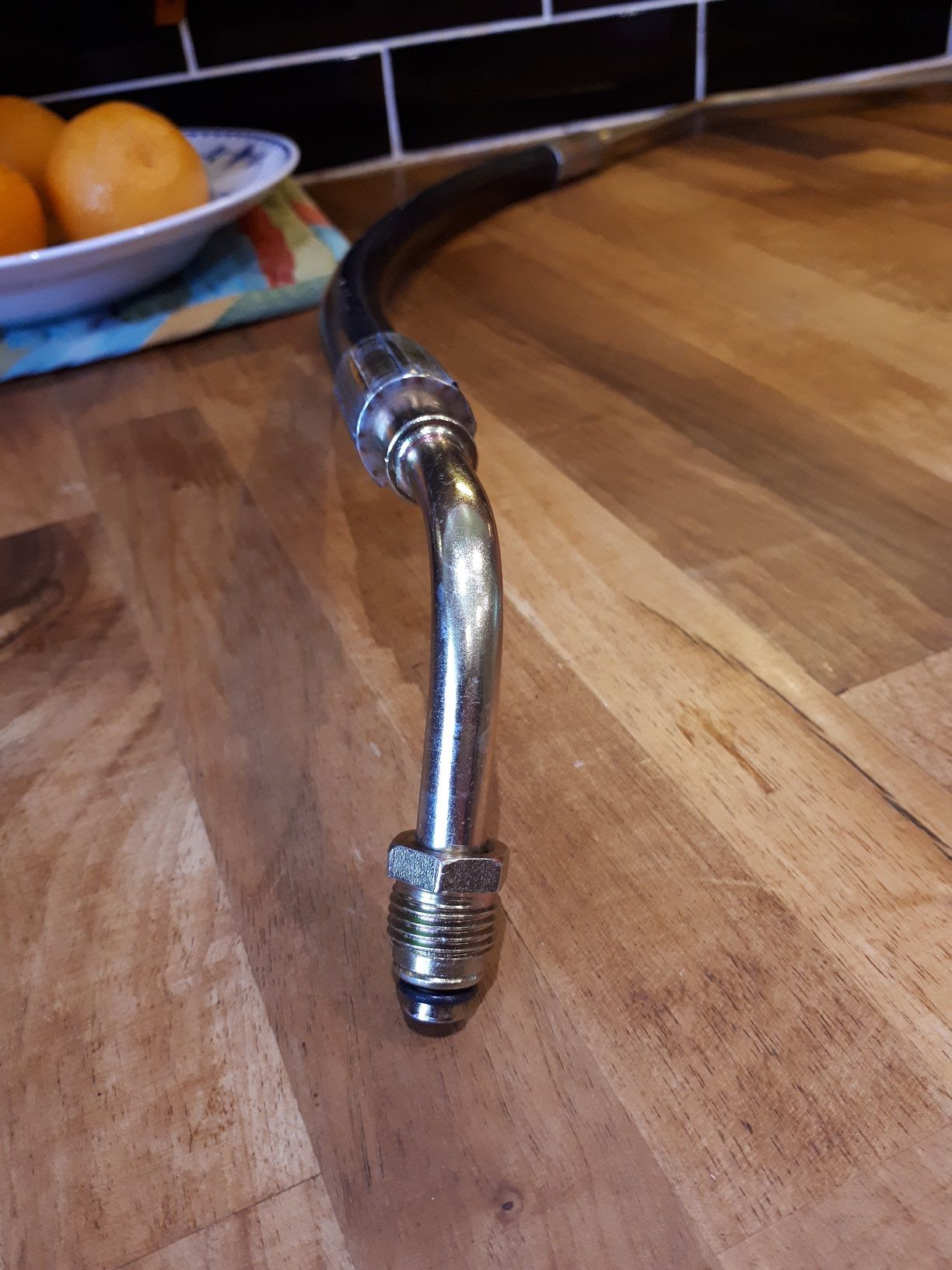

Here pic of hose end that should fit pump but is too large
View attachment 226187

So, which #1 hose part number should I be ordering. All help greatly received

Thank you
v8250

eta why did LR make so many different hose end types

Click to expand...

v8250 said:

Hi James, I thought it was part #1 as this exits the rear of the pump.The side exit is just an open hose end onto hose stub fitted with a jubilee clip [see pic #1 hose stub]. Have no idea if pump disco or defender, but I'm gauging it's a defender, as is the engine from original conversion.

Click to expand...

v8250 said:

Thanks James, agreed it's ntc8287...but still struggling with the correct hose/pipe part number that gives 1. both end fittings same as the box end, or 2. box end std fitting with o-ring, pump end onto banjo fitting :. now need to find banjo fitting part #

Click to expand...

jamesmartin said:

your pump looks banjo fitting to me

Click to expand...

v8250 said:

Okay, good news. When I took the PAS assembly apart I'd forgotten I'd put the two piece banjo into a jar of WD40 to soak/clean up...and hey presto, after rummaging around found jar with clean banjo.Now to track down new copper washers and the little rubber seal...

Am I the only one who puts parts away in a "logically safe place" only to forget where the safe place was...?
