Please identify this cable…

congo181

Well-Known Member

Posts

519

Location

Maidstone, Kent, U.K.

• Sep 22, 2021

• #1

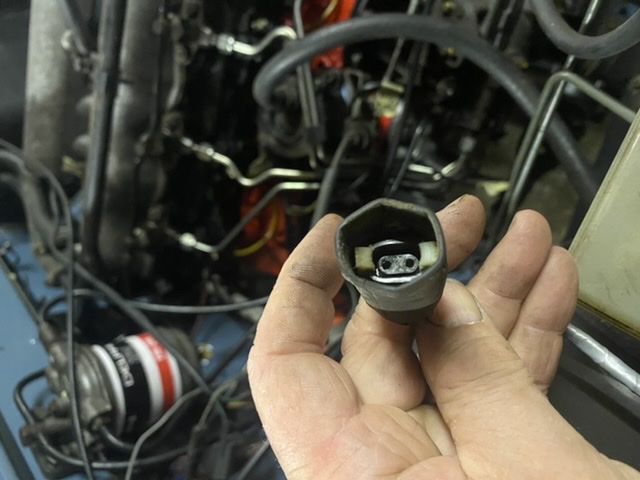

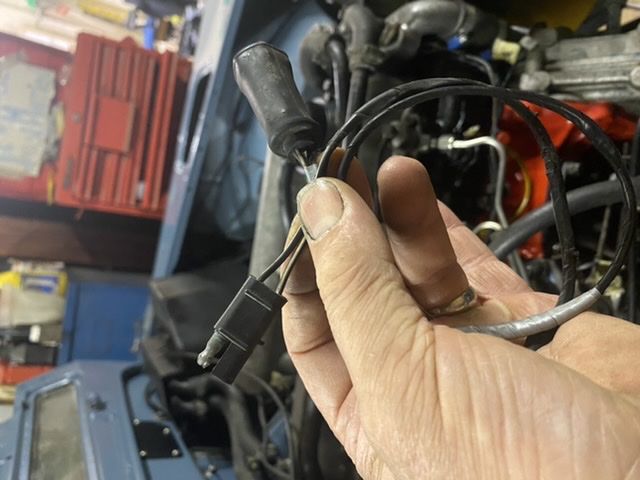

Hi all. Got this small cable with no home on my 12J ‘87 110 rebuild.
The wires are black with a white trace.
There’s a pair of mating connectors coming through the bulkhead spare, and one of the cables goes to pin 6 on one of the co sole multi-connectors.
Black/white in the diagrams I’ve found seem to indicate brake warning but I see no connectors on the master cylinder.
So, any ideas? Pleeeeease.



mystery

Well-Known Member

Posts

1,510

Location

BULKINGTON

• Sep 22, 2021

• #2

Have you not got a pressure differential valve on the lower bulkhead into which four brake line pipes enter and a pressure switch



v8250

Well-Known Member

Posts

6,872

Location

Deepest Darkest...

• Sep 22, 2021

• #3

congo181 said:

Black/white in the diagrams I’ve found seem to indicate brake warning but I see no connectors on the master cylinder.
So, any ideas? Pleeeeease.

Click to expand...

Black/white comes from the brake fluid reservoir cap float to the lower connector in your hand - sometimes new reservoir caps are bought without electrical connections and so are not reconnected.

Not sure of the other single pic connector, my 87 Ninety does not have this type - hopefully someone will have one on their OneTen/110.



tottot

Well-Known Member

Posts

8,077

Location

west wales coast

• Sep 22, 2021

• #4

Plus 1 on the above.



backinblack

Well-Known Member

Full Member

Posts

6,224

Location

North Manchester

• Sep 22, 2021

• #5

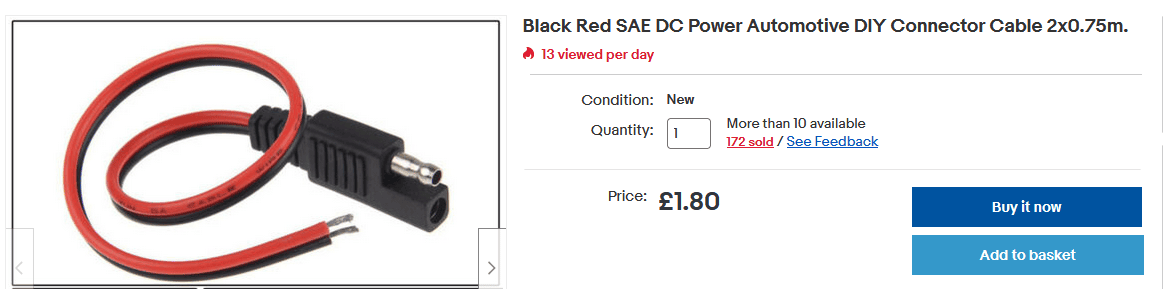

I know sod all about the 110 but that plug looks like and older version of a standard connector, I had similar on a trickle charger on my old bike.
IMO it's not factory fit.



congo181

Well-Known Member

Posts

519

Location

Maidstone, Kent, U.K.

• Sep 23, 2021

• #6

mystery said:

Have you not got a pressure differential valve on the lower bulkhead into which four brake line pipes enter and a pressure switch

Click to expand...

Hi. Not that I can see.



congo181

Well-Known Member

Posts

519

Location

Maidstone, Kent, U.K.

• Sep 23, 2021

• #7

v8250 said:

Black/white comes from the brake fluid reservoir cap float to the lower connector in your hand - sometimes new reservoir caps are bought without electrical connections and so are not reconnected.

Not sure of the other single pic connector, my 87 Ninety does not have this type - hopefully someone will have one on their OneTen/110.

Click to expand...

Is it possible that at some time there was a level sensing cap on the brake fluid reservoir that the more modern connector went to, but this has now gone and the cable is redundant?
Seems to make sense.
