Pillar repair post advice please!!

Hi Everybody!
I started to look at putting a bulkhead repair panel in place today, and it looks like I need to get some door pillar repair panels as well. Anyone had any experience with them?

And I know the answer should be " get a new bulkhead" but I can't afford one, I haven't the space to strip out the old one, and apart from the edges it seems ok.

How are you at welding...?
If your ok then make em..
If its an older 90 you will get a couple of years out of it till you got the cash and room for a new bulkhead.
Cut n shape a plate that covers what you need to cover then cut old crud out, weld new piece in mig is the best,grind then fill dints in with a bit of filler..

Have a look here Defender Parts top and bottom of page.
Drill out spot welds, remove old pillar, weld new pillar on. Top corners little bit more involved, look here 90 project pictures by gratch_landy - Photobucket

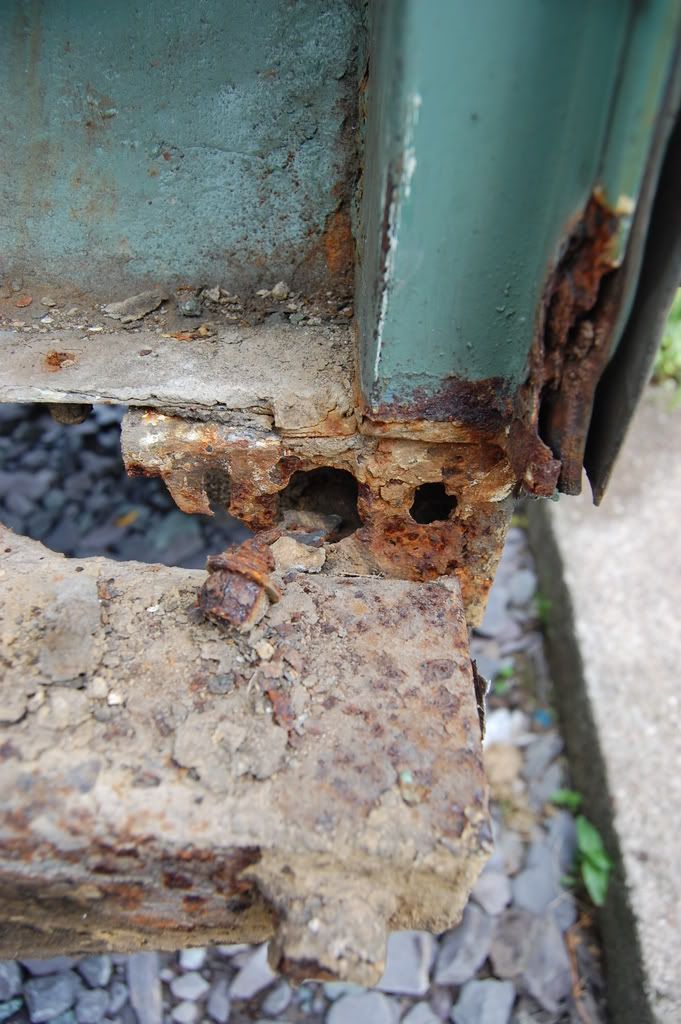

door pillars arent as easy as the above makes it sound, especially if the lower mounting points are rotten - but with a little time and energy

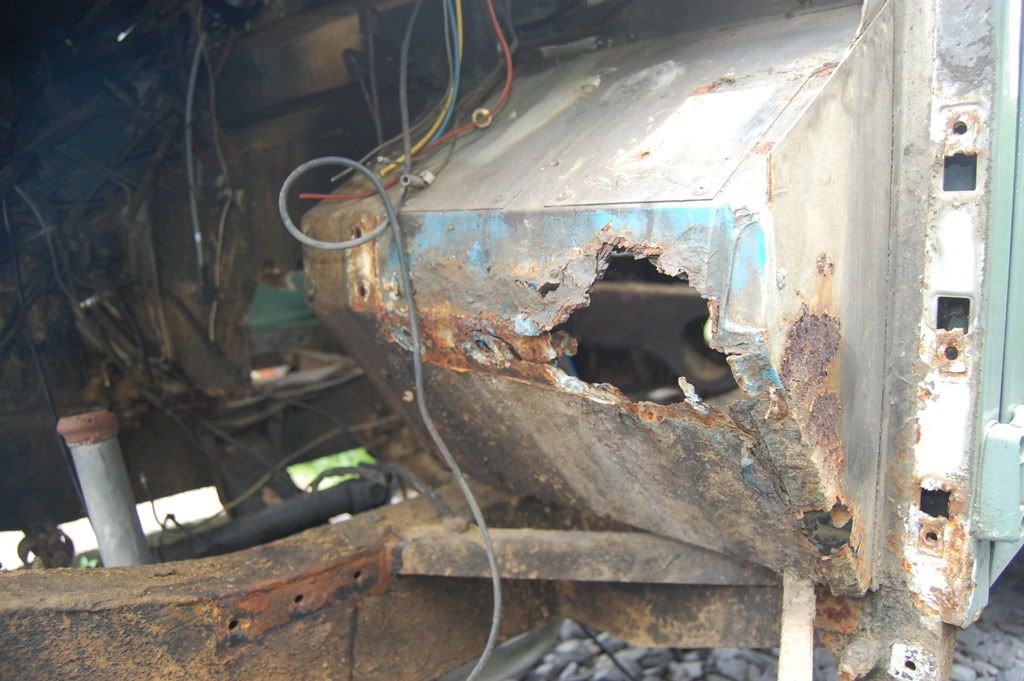

post some pics of yours

Some lower mounting brackets in my first link Sean Maybe not as easy as I put, but definately do-able with basic fabricating skills.

GRATCH said:

Some lower mounting brackets in my first link Sean Maybe not as easy as I put, but definately do-able with basic fabricating skills.

Click to expand...

me post was in response to post 2 which kinda gave the impression you can just fold some sheet and stick it all back together, tis a bit more involved - old age makes peeps type slower

landymanmel90 said:

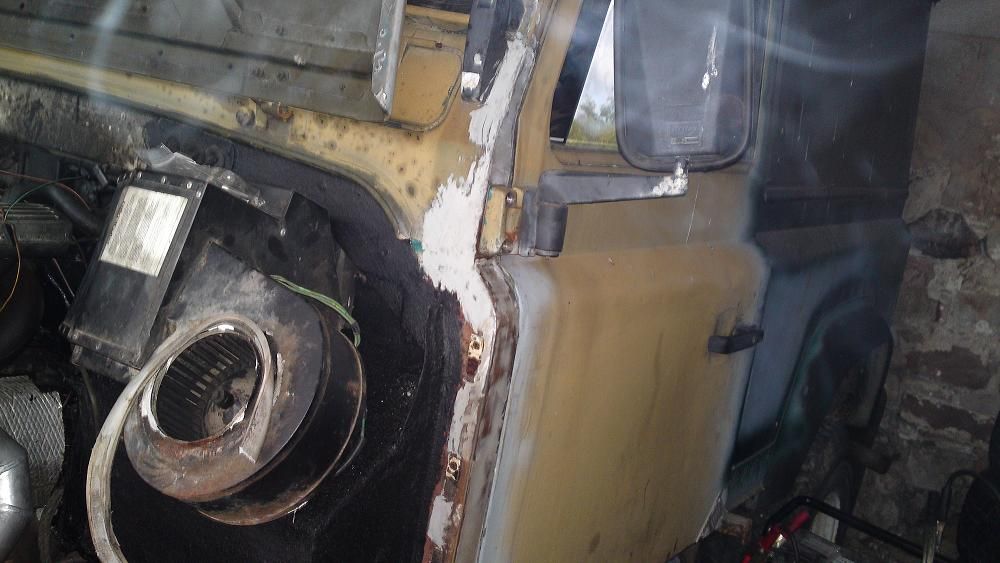

View attachment 19553

Click to expand...

is that filler ?

Sean said:

me post was in response to post 2 which kinda gave the impression you can just fold some sheet and stick it all back together, tis a bit more involved - old age makes peeps type slower

Click to expand...

Oh, right. Maybe you need to pedal faster on yer electrickery dynamo inorl

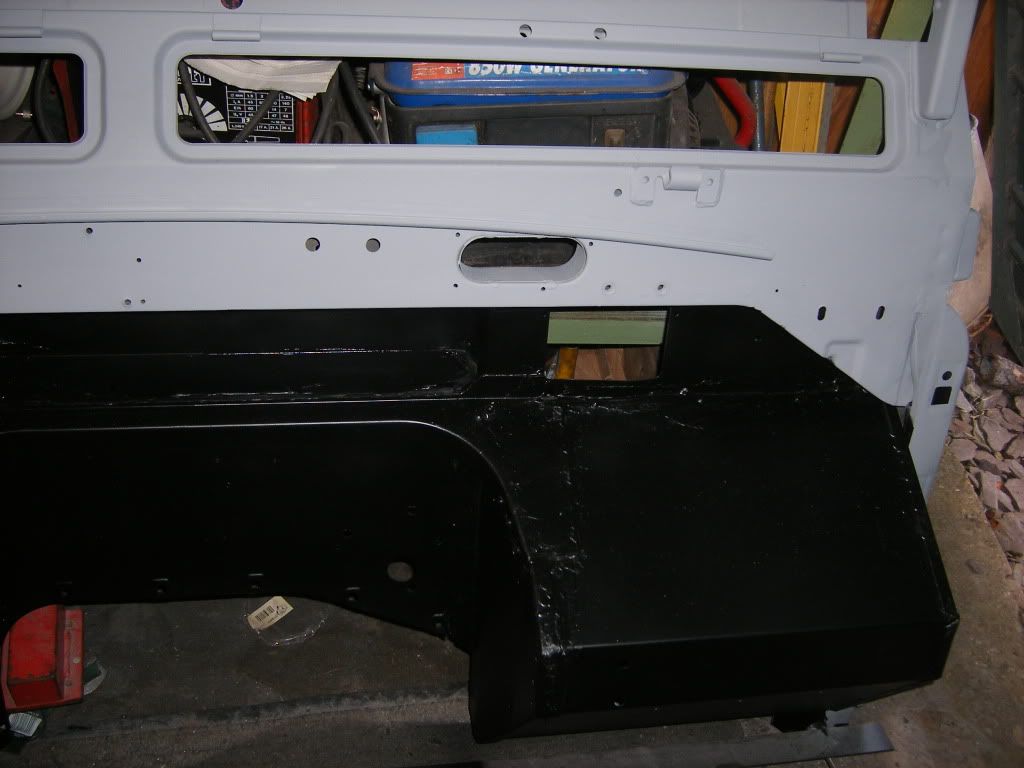

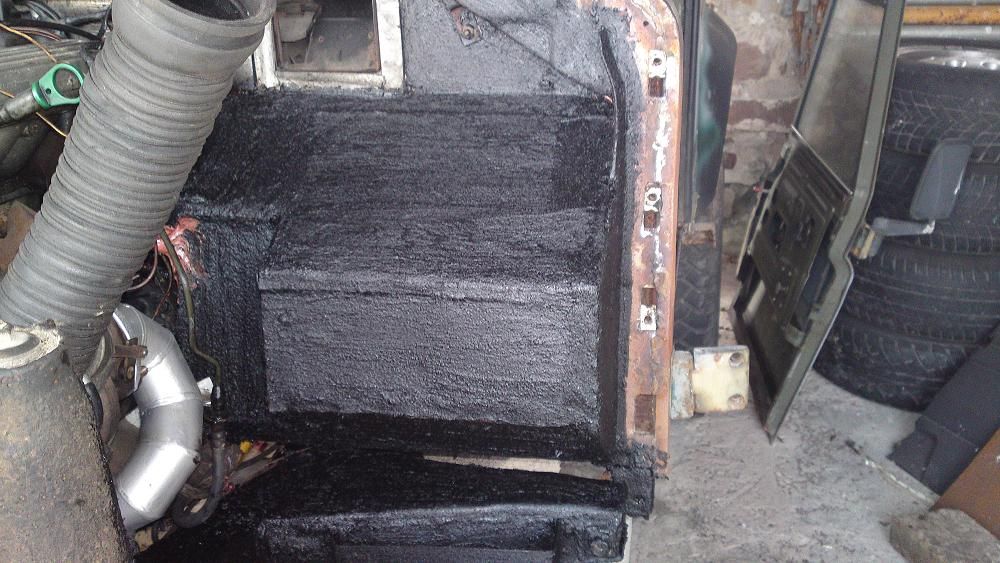

Put it this way with my computer skills i found it harder to resize n post pics than making footwell and door post...lol
The only thing a bought was new bolts for hinges..

i did say use a bit o filler to help smooth weld and dints from hammering and shaping plate...

landymanmel90 said:

i did say use a bit o filler to help smooth weld and dints from hammering and shaping plate...

Click to expand...

was just wondering if it was bird ****e

ohh i will forgive you for your jokes "sean".
i take it it says your a senior member on your status because that you are getting on a bit and i was always told not to cheek my elders so i will forgive the "wise old cracks".
hehe

landymanmel90 said:

ohh i will forgive you for your jokes

Click to expand...

it wasn't a joke, seeing as there's poo on the door mirror i just thought .... oh never mind

landymanmel90 said:

"sean".
the "wise old cracks".

Click to expand...

One for the sig?

The Mad Hat Man said:

One for the sig?

Click to expand...

i might sound old but ...

"wise old crack" = "smartarse"????

ohh lol i see wat you meant sean sorry mate...yes it had been standing in the barn for near 3 years...maybe thats why it failed the mot on wipers not cleaning the screen.

I done mine with new door posts. As far as cutting out and welding it was easy. But i'm a welder. As far as a finished job?, i'm not so sure. Wish i had just got another bulkhead now. After market parts and panels are never a satisfactory replacment for original.

meego said:

After market parts and panels are never a satisfactory replacment for original.

Click to expand...

if you get them from the right place they are
