Pictures of repairs to my 110

Tunelessblues said:

Thanks



The colour is: :cheer2:

Polyurethane Extra topcoat Fleet Italia 8500 Grigio 7-512 2K POLY

Click to expand...

sprayed or rolled m8?

BarnsleyRob said:

sprayed or rolled m8?

Click to expand...

does it look sprayed or rolled to you mate?

Tunelessblues said:

does it look sprayed or rolled to you mate?

Click to expand...

looks sprayed now i looked again

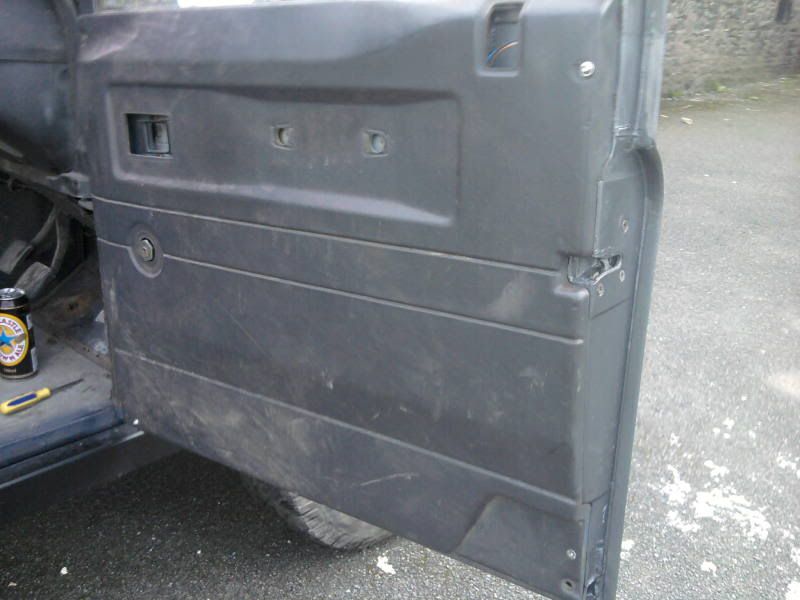

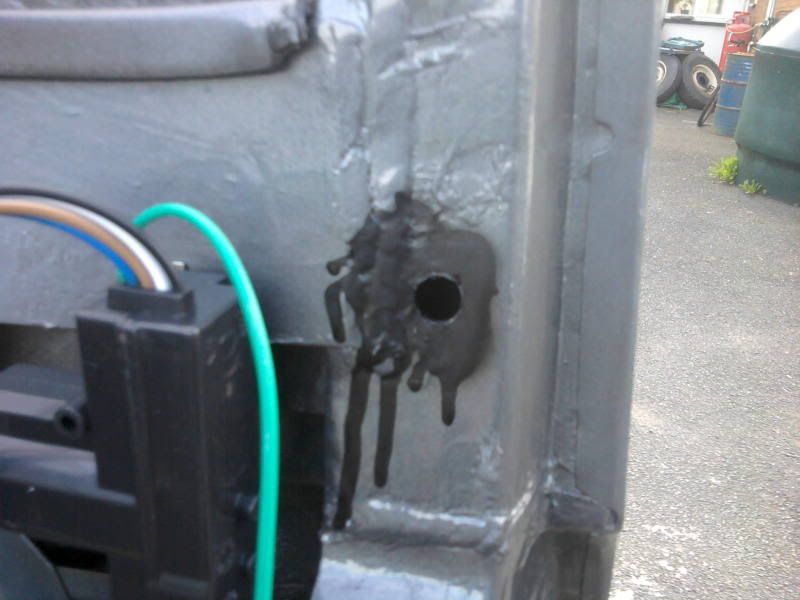

Sorted my door trims today.

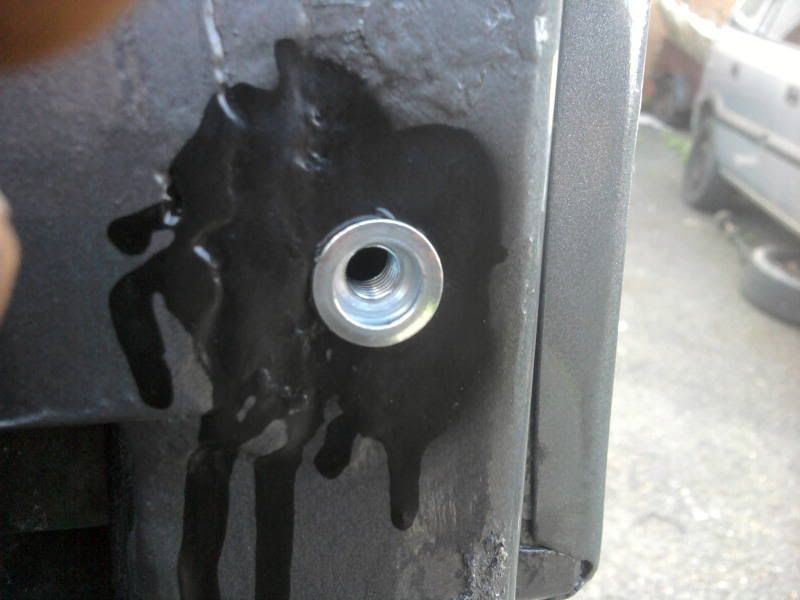

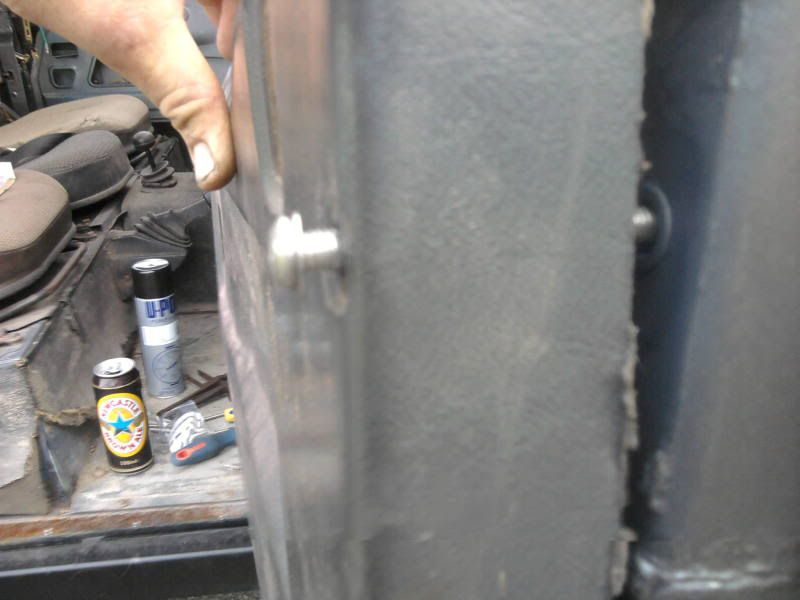

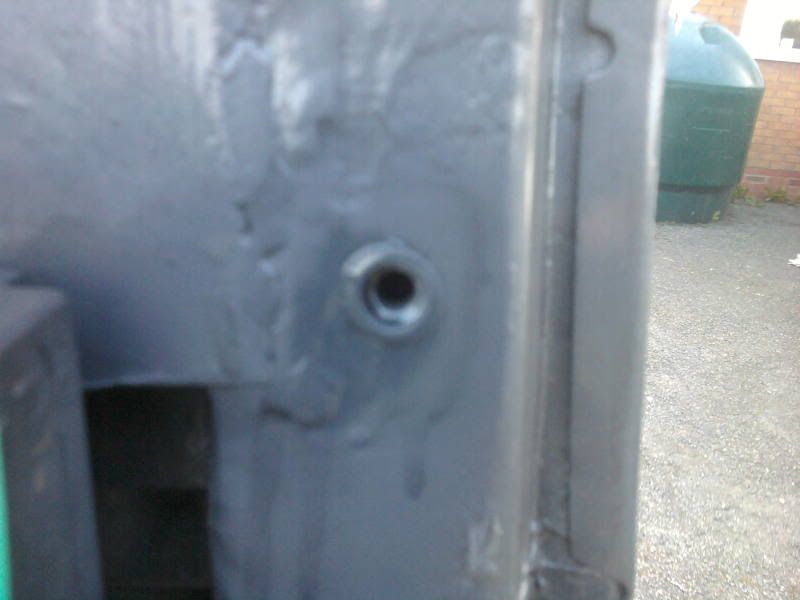

Drilled four 10mm holes and put a nut rivet in each corner and then stuck the trim on with four stainless bolts, easy, secure and easy to get off in the future.

This is a belting thread.

I bought a 110 hard top a year ago with the intention of doing her up. Trouble is, she's my daily runner and a workhorse so can't afford to have her off the road.

I'm a fabricator welder of 17 years with a family business to play in but just don't get chance to drag her out of use for a few days.

I repaired my footwells and seat box then had new outriggers on the rear then work stopped. Just had to make a new bumper though so that's kicked me back into action.

Think I'll resurrect my old thread and post pics of progress. I love these kind of threads.

Nice looking motor.

Bede said:

This is a belting thread.



Nice looking motor.

Click to expand...

Thanks man, i'll check your thread out too!

Top thread Landy looks awesome too proper job!!!!

Lovin' the nut rivet door card mod. Gonna be copying this one, I reckon.

Tuneless

What size tyres are you running on it?

Bede said:

Tuneless

What size tyres are you running on it?

Click to expand...

31x10.5/15

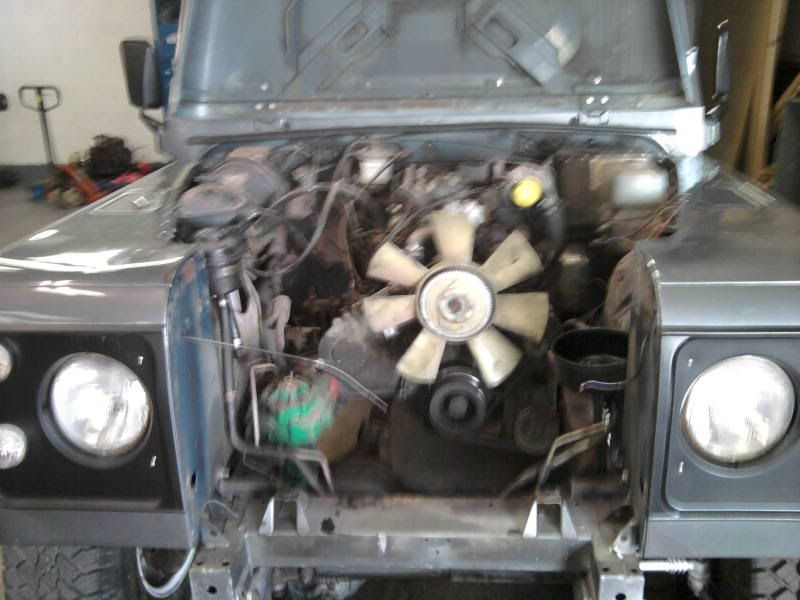

Its nearly time for the engine swap,

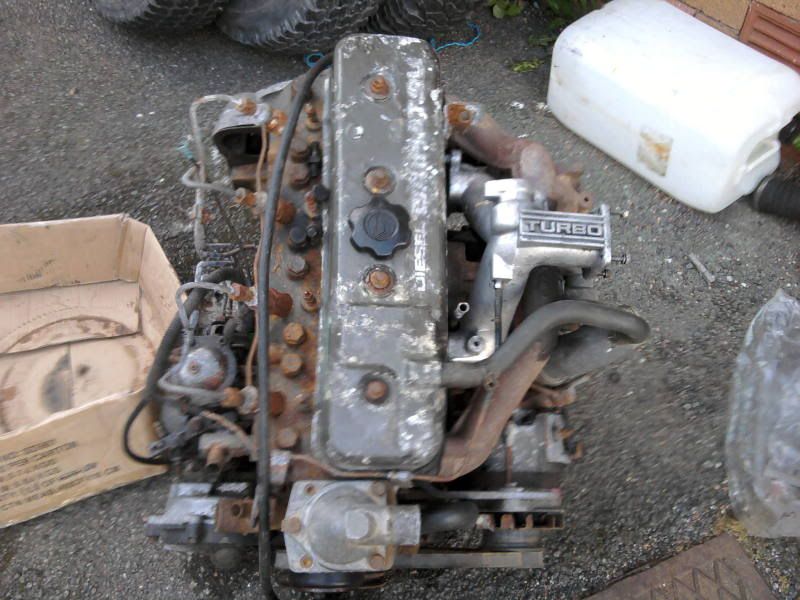

Here's the new powerplant:

Ripping out the motor to put an even older one in, as its replacement.

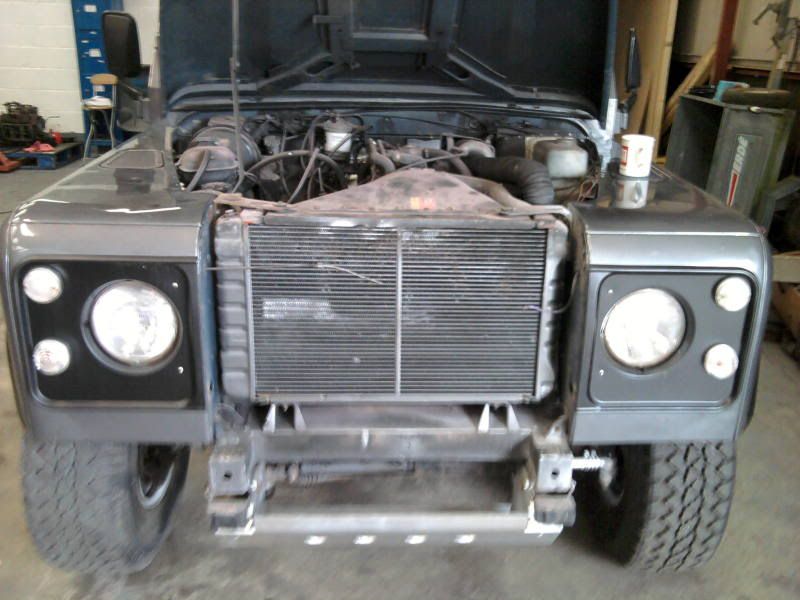

Took off the front end today, ready for the engine conversion.

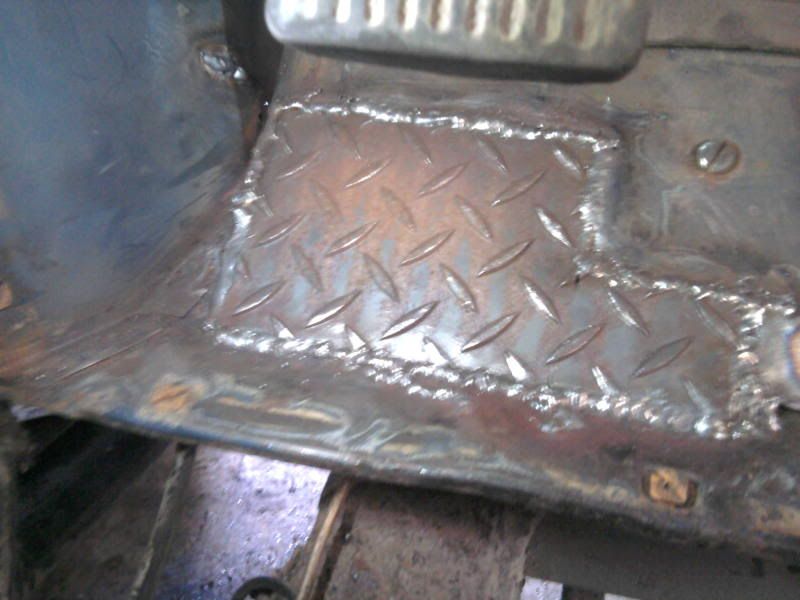

Welded up the O/s footwell today.

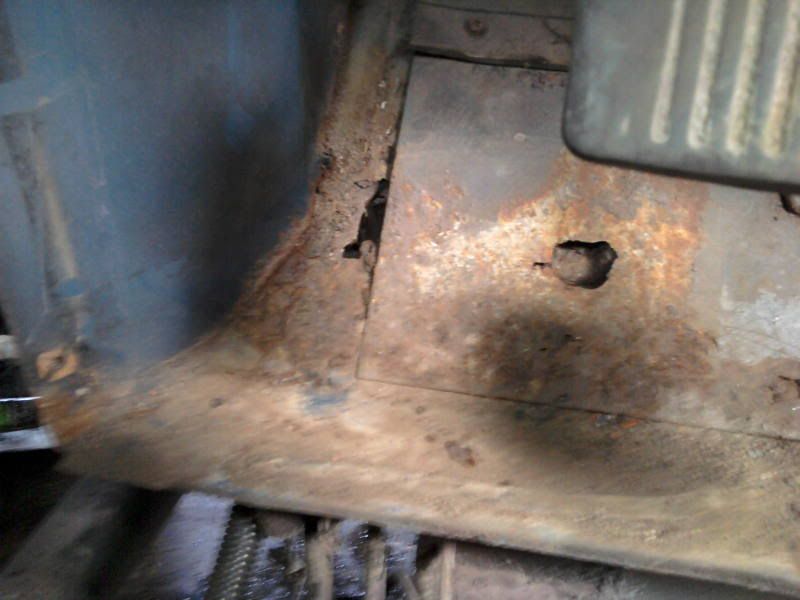

First i cut all the rust out



Welded



Painted

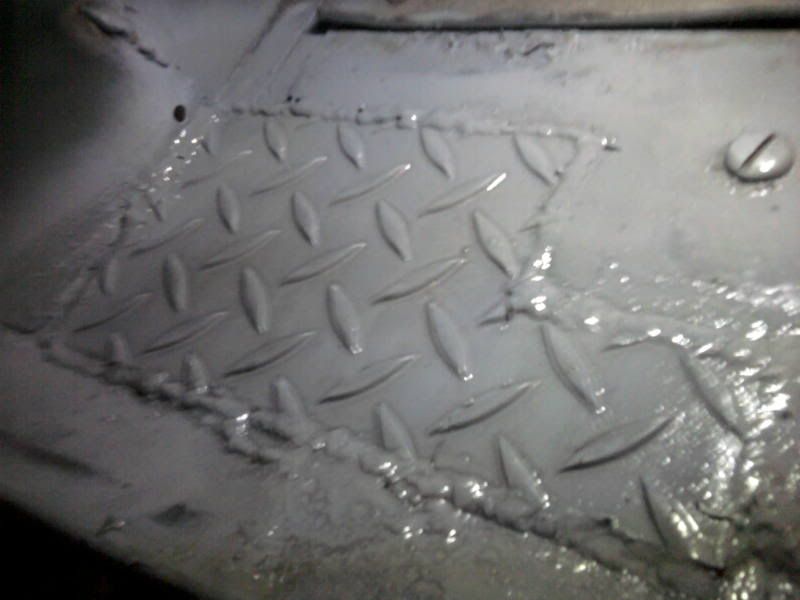

Used 3mm steel chequer plate which will out last the rest of the landy!

I love your Idea for the rock sliders and have thought about it my self but have to ask about the legalities of the mod mot wise???

Do you still have the outrigger brace to the radius arm still(can't tell from photo)

Not trying to be a kill joy - just interested in your idea but unsure about PC plod

Great job, it helps having a good sized workshop and all the equipment lol

currymunster said:

I love your Idea for the rock sliders and have thought about it my self but have to ask about the legalities of the mod mot wise???

Click to expand...

As long as its structually sound, i cant see why it would not pass an MOT.

It is far stronger than the original outriggers, retains the body mountings, seat belt achorages etc.

I'm also a qualified Automotive engineer, Welder & mechanic i haven't just welded on some bars there is a lot of thought that goes into these things.

currymunster said:

Do you still have the outrigger brace to the radius arm still(can't tell from photo)

Click to expand...

Yes have retained braces from radius arms.

currymunster said:

Not trying to be a kill joy - just interested in your idea but unsure about PC plod

Click to expand...

Got nothing to do with PC plod its all to do with the Ministry of transport!

I will take it for MOT and if it dont pass then i will have to get it SVA tested.

I've seen many vehicles with similar or even more extensive mods pass an MOT, But if you want to follow the red tape then you are more than welcome too!

I'll let you know if it passes in a few weeks time.

norfolkmick said:

Great job, it helps having a good sized workshop and all the equipment lol

Click to expand...

Thanks, its been about half and half, alot has been done in my back yard but i've borrowed garage space for the spray job and the engine conversion.

Hi. It your engine an 2.5 turbo diesel ? I got 2.5n/a ex mod etc. watching your rebuild closely !!!

Newcy brown always helps, quality!

Mark L said:

Lovin' the nut rivet door card mod. Gonna be copying this one, I reckon.

Click to expand...

It works a treat, I did the same on mine. I drilled though the existing fixtures holes in three of the corners, the one nearest your shoulder I I got as close to the corner as possible so it kind of matches the others.
