P38 Nanocom

Discussion in 'Range Rover' started by JohnP38, Jan 16, 2012.

< Previous Thread | Next Thread >
  1. Rushjob

    Rushjob Active Member

    Joined:
    Nov 22, 2018
    Posts:
    85
    Likes Received:
    65
    Location:
    Auvergne, France
    I know this is a bit of a resurrection, but, I've built a blue cable from some rubbish lying around and a £5 DA15 2 row socket using the above wiring pinout this morning - result is it works! I've accessed everything on my D2 and coded a new key to it so thanks for finding the pinouts Datatek! I've also buzzed out my mate's green cable and it agrees with the pinouts above and yes both of the have 4 and 5 connected to 15/8!

    Grrrrrr likes this.
  2. bstein

    bstein Member

    Joined:
    Aug 22, 2018
    Posts:
    25
    Likes Received:
    3
    Location:
    Norway
    Do anyone have information om the pinout for the black cable lying around?

  3. P38_Ireland

    P38_Ireland Well-Known Member

    Joined:
    Sep 20, 2009
    Posts:
    1,386
    Likes Received:
    13
    Location:
    Co Wexford, Ireland
    Any update on making a green cable? The cost directly from BBS is €52 for cable + shipping €24.47 = €76.47 + VAT = €94 delivered now that's on top of paying €154 + vat for the unlock codes.

    Grrrrrr likes this.
  4. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    12,022
    Likes Received:
    3,248
    Location:
    wirral and triquivijate

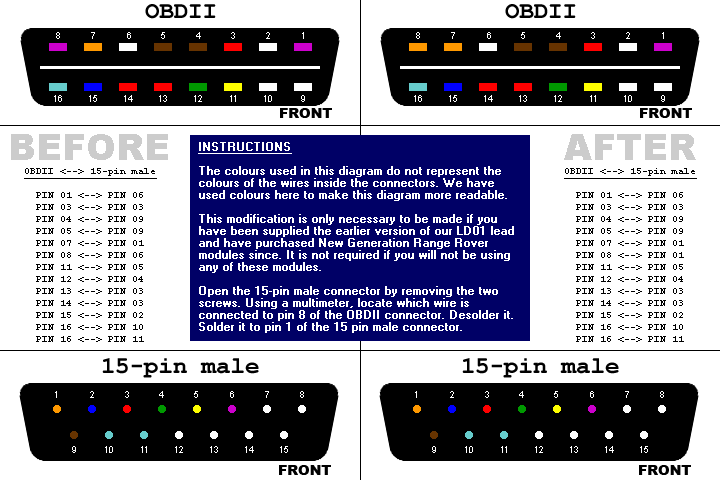

    Dont know if this helps, LD01_pinout.gif

    P38_Ireland likes this.
  5. Rushjob

    Rushjob Active Member

    Joined:
    Nov 22, 2018
    Posts:
    85
    Likes Received:
    65
    Location:
    Auvergne, France

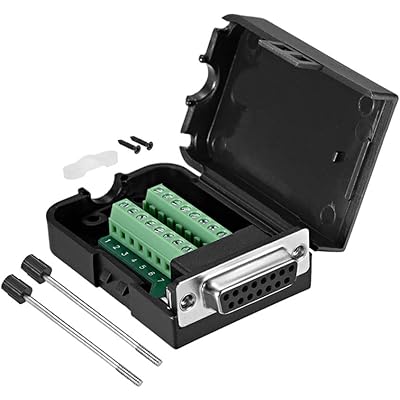

    Just use the pinout list on the attachment on the post a couple of comments above by me. It shows the connections between the green cable and the Nanocom connector. For the Nanocom end you need a DA15 2 row socket (female), for the OBD end an OSB plug (male) and obviously a length of multicore cable.

    P38_Ireland likes this.
  6. P38_Ireland

    P38_Ireland Well-Known Member

    Joined:
    Sep 20, 2009
    Posts:
    1,386
    Likes Received:
    13
    Location:
    Co Wexford, Ireland
    st on lad, I shall keep you's updated

  7. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    12,022
    Likes Received:
    3,248
    Location:
    wirral and triquivijate
  8. P38_Ireland

    P38_Ireland Well-Known Member

    Joined:
    Sep 20, 2009
    Posts:
    1,386
    Likes Received:
    13
    Location:
    Co Wexford, Ireland
  9. P38_Ireland

    P38_Ireland Well-Known Member

    Joined:
    Sep 20, 2009
    Posts:
    1,386
    Likes Received:
    13
    Location:
    Co Wexford, Ireland
  10. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    12,022
    Likes Received:
    3,248
    Location:
    wirral and triquivijate
  11. Rushjob

    Rushjob Active Member

    Joined:
    Nov 22, 2018
    Posts:
    85
    Likes Received:
    65
    Location:
    Auvergne, France
