P38 ICE -Return to ‘Stock’ question(S)

Discussion in 'Range Rover' started by awkwardbob, Aug 14, 2020.

< Previous Thread | Next Thread >
  1. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd

    Joined:
    Jul 8, 2012
    Posts:
    14,435
    Likes Received:
    4,232
    Location:
    Buckinghamshire, UK. ('95 DT)

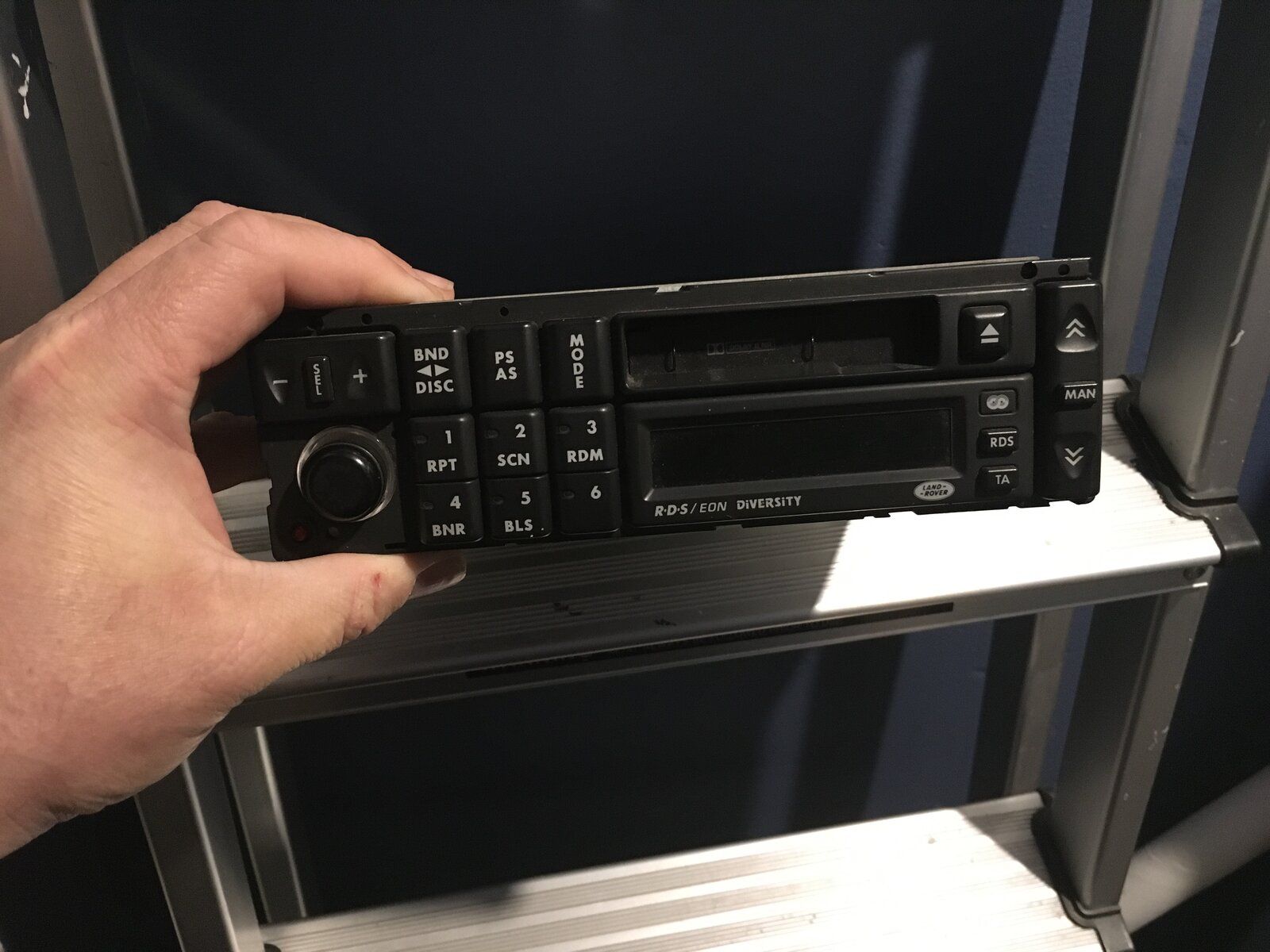

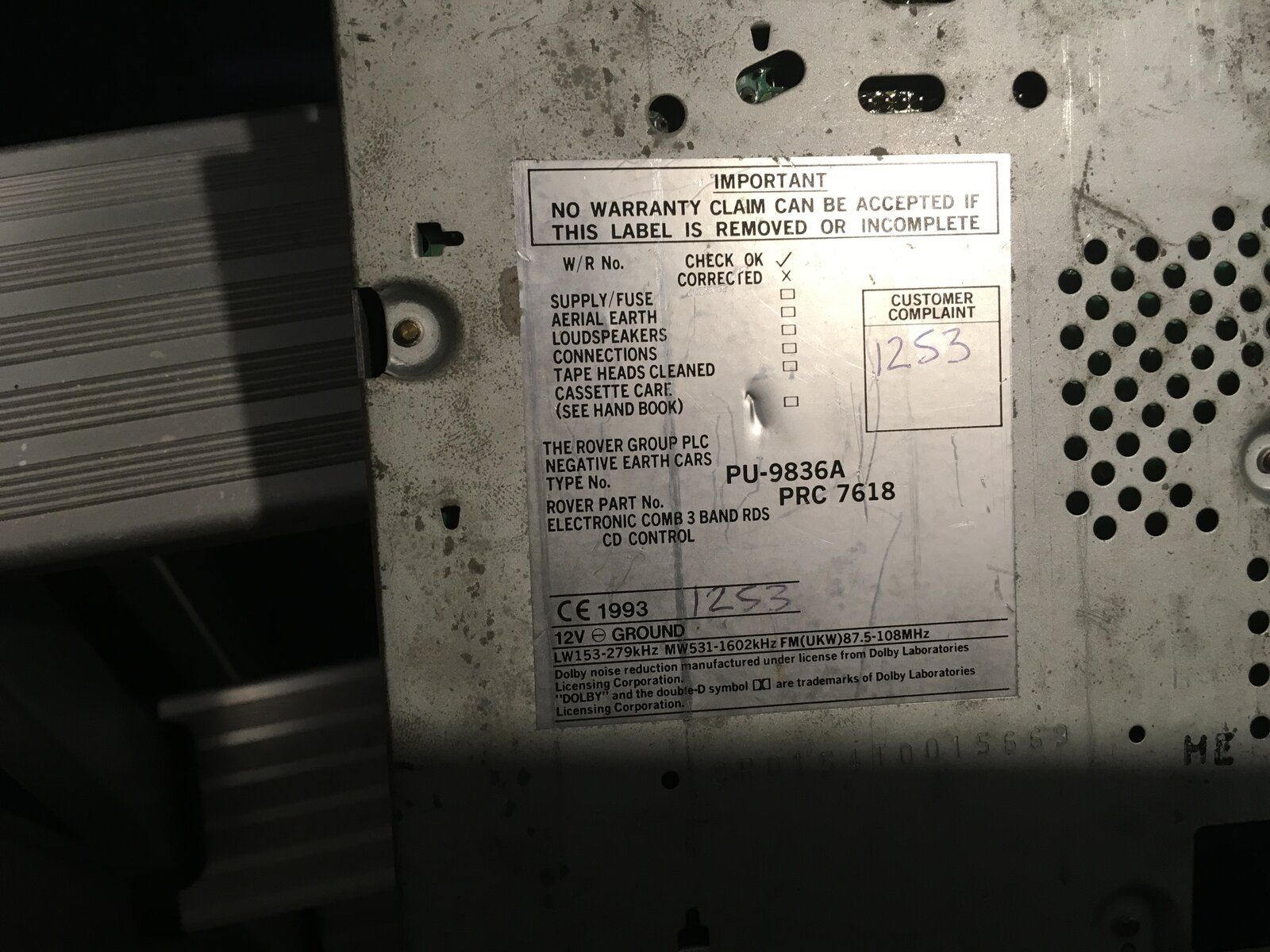

    Some models have separate aerials for AM an FM. If both rear quarter windows have wires then so do you. How these make their way to the head unit I have no idea but might explain 2 sockets?

  2. awkwardbob

    awkwardbob Active Member

    Joined:
    Aug 3, 2020
    Posts:
    146
    Likes Received:
    27
    Location:
    Glasgow
    DB5C29CD-5862-47E3-9C54-1AA3EA814BB7.jpeg 2A3322D5-B65E-485A-9F3C-8C146F245CDE.jpeg Great thanks.

    Ok, further exploration reveals the audio system to be relatively unmolested -except for damaged tweeters held in with gaffer tape !

    im
    Assuming these are the in-door amp/crossovers ? -currently being fed with speaker rather than line level signal from what I can assertain.

    It looks like it may just be the awful bodge at the head unit end which I ought to be able to splice back together -assuming I can get hold of the iso sockets !

    One other quickie, do any of you know if the head unit picks up its 12V vis the iso connectors ?

    Thanks again !

    Bob

  3. martyuk

    martyuk Well-Known Member

    Joined:
    Aug 31, 2012
    Posts:
    819
    Likes Received:
    361
    Location:
    Swindon, UK

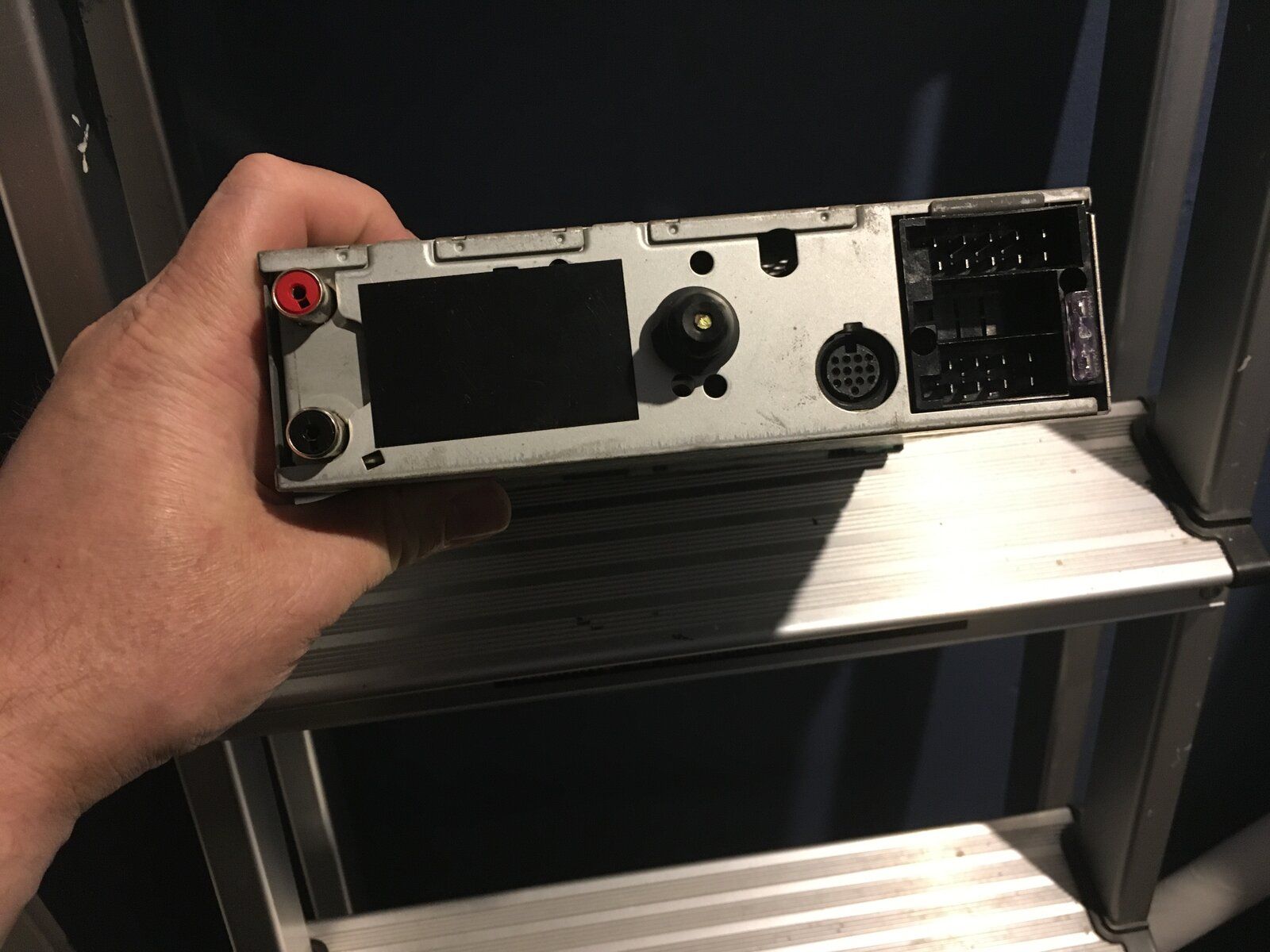

    The 2 connectors are antenna connectors.

    One is AM/FM and the other is FM only - the P38 had "diversity" FM on it so the head unit would use whichever signal was strongest., hence 2 aerial connections.

    Yes, door amps are the the boxes you've got a picture of, and wiring does look good.

    Head unit does pick up both permanent 12V live and switched 12V via the ISO connectors, yes.

    The top ISO connector (which is pink in the earlier P38's) has 2 extra pins, which are for the subwoofer feed. It could be the reason it's been chopped as they are normally 8 pin. You should be able to get a 10 pin one though to wire it back on properly and then it would be a plug and play solution.

    awkwardbob likes this.
  4. DanClarke

    DanClarke Well-Known Member

    Joined:
    Mar 13, 2009
    Posts:
    7,111
    Likes Received:
    13,036
    Location:
    Benfleet, Essex
    Not wishing to gloat, but I must be lucky because both of my P38's have had faultless "Kure-my-Hardon" units.
    Shame there is no aux-in, but the FM-transmitter doo-dad lets me stuff my Spotify music choices in as a radio channel via blutooth and plays the phone audio thru there too when on calls.
    Luv's it I does.

    awkwardbob likes this.
  5. awkwardbob

    awkwardbob Active Member

    Joined:
    Aug 3, 2020
    Posts:
    146
    Likes Received:
    27
    Location:
    Glasgow

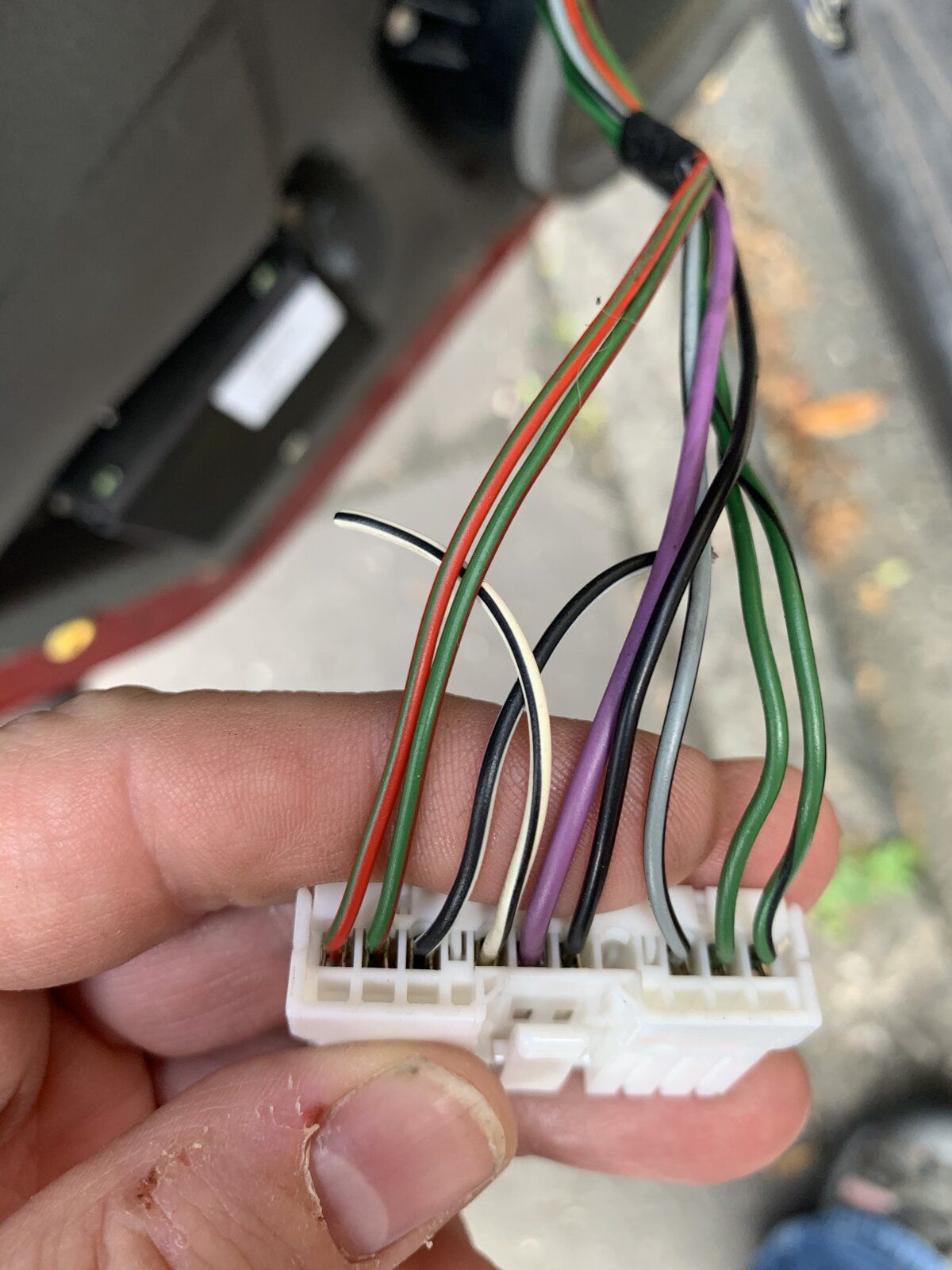

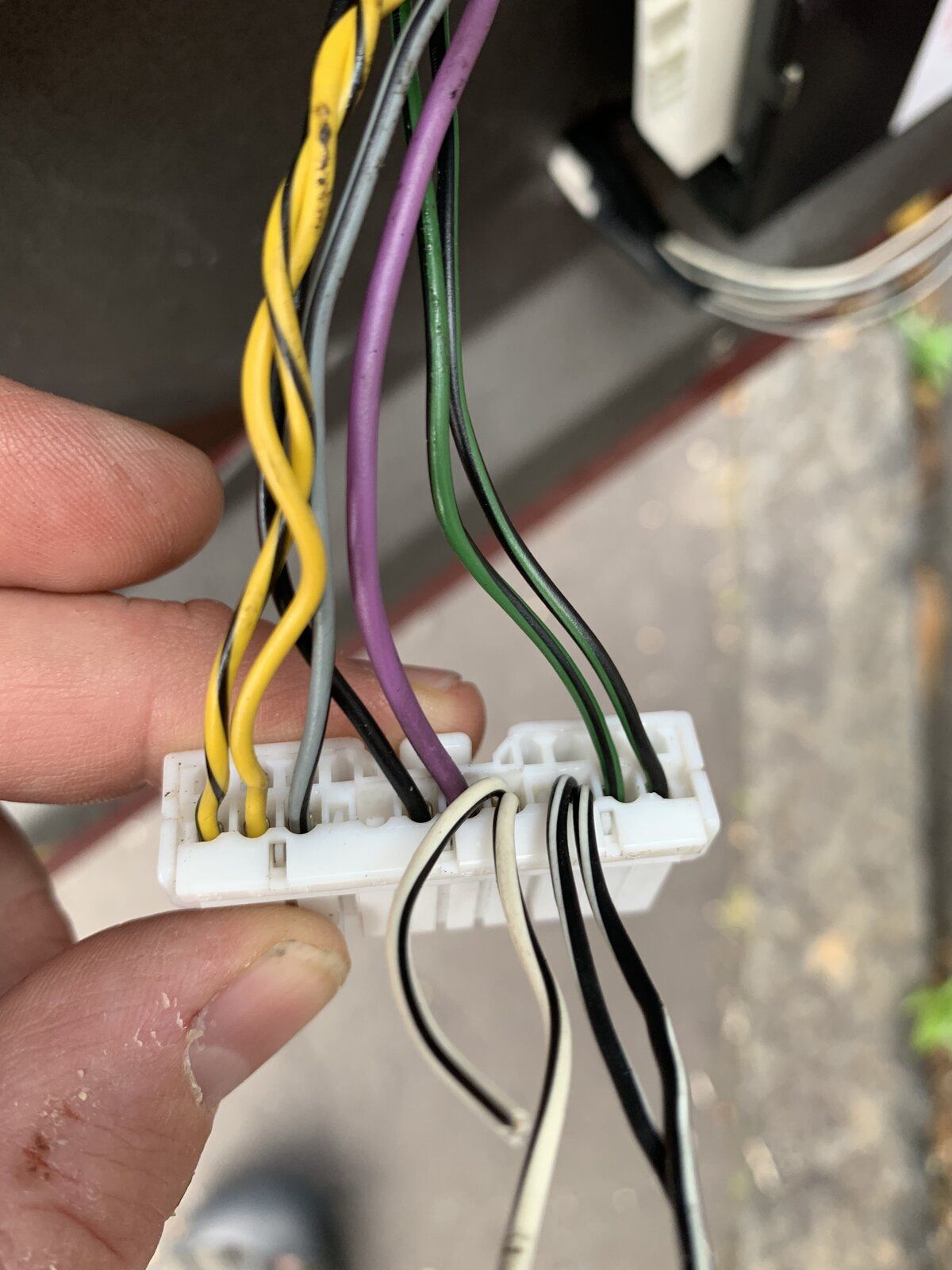

    79A5797E-009E-4CB1-A7FF-E4AEE9EC6397.jpeg A27BBE05-A4E3-44E7-BF5D-65B135D17855.jpeg Hi again,

    So it seems that I may have spoken too soon, the wiring in the door has been chopped but not irreparably (see pics) the chopped wires seem to be fir the mid and high speakers (front door) and mid speaker (rear door), What is odd, though, is that I fanc see any o/p to the ‘full range’ lower door speaker in either front or rear.

    Am I missing something obvious ?

    can anyone point me in the direction of a schematic for this ‘amp in each door’ setup as the Rave I have doesn’t seem to have it.

    Thanjd again

    Bob

    -oh, and that nice pink 10-way ? Well, the butcher has not only chopped the wires and spiced them into speaker cable but they also chopped the end off of the 10-way (the sun part) to make it an 8-way... <shakes head>

  6. awkwardbob

    awkwardbob Active Member

    Joined:
    Aug 3, 2020
    Posts:
    146
    Likes Received:
    27
    Location:
    Glasgow

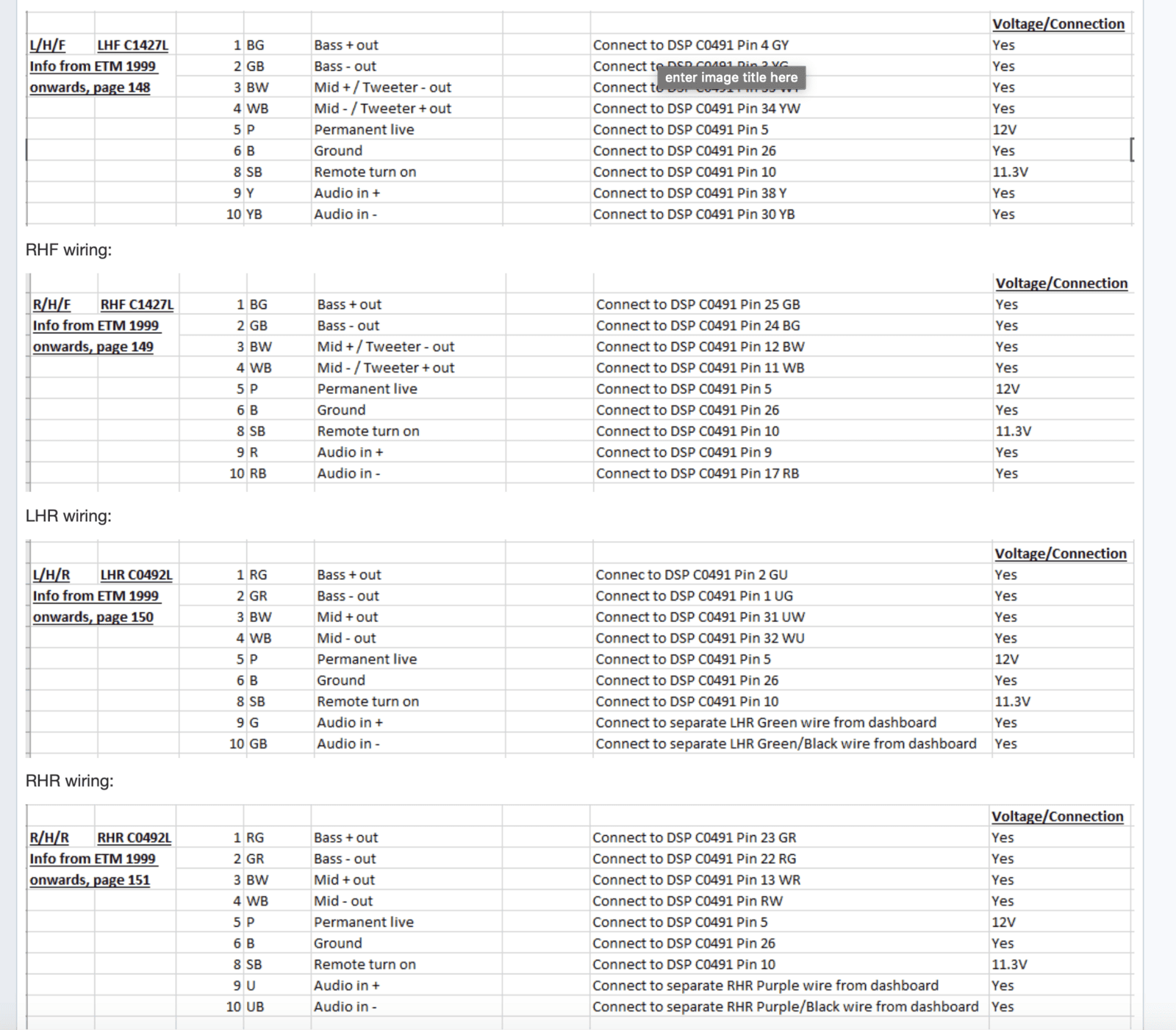

    Actually found this from Marty on another forum which is awesomely useful !

    Screenshot 2020-08-19 at 21.49.48.png

    Grrrrrr likes this.
  7. Grrrrrr

    Grrrrrr Technician, Bodgit & Scarper Ltd

    Joined:
    Jul 8, 2012
    Posts:
    14,435
    Likes Received:
    4,232
    Location:
    Buckinghamshire, UK. ('95 DT)
    Marty has done an awful lot to keep these beasts on the road.

    awkwardbob likes this.
