P38 HK Door speakers

I've been having problems with my driver side door speakers in my 2000 X reg 4.6 Vogue, I finally bit the bullet and took the internal panel off to find that the mid range speaker was completely disconnected.

The speaker itself has no leads coming off it and the connector is missing, it looks like someones prised the door panel off and ripped the connector off the Mid-range speaker.

I need to replace this, but can't find the part number on it, I looked on e-bay at the P38 mid range speakers on there, they have the part numbers PRC 8045, mine appears to have a part number 227 - 0 - 4 - D, it is a genuine LR part and the QC sticker on the door detailing the parts refers to it as a "Premium Speaker Yellow Label", which tallies with the label on the speaker. I need to replace this unit can anyone shed some light on the whole thing and know where I can get one?

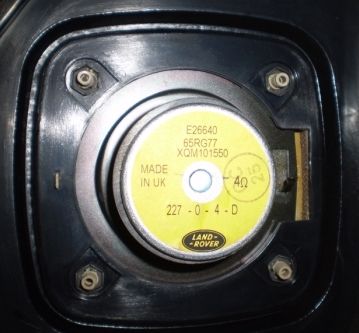

I've attached photos of the speaker label and the QC label

Any help gratefully received HV!

Bit the bullet and spoke to the dealer, the sound system is an upgrade, fitted as standard on the Autobiography, but an option for the Vogue, I'd thought the Harmon/Kardon sound system was the basic!

Found the part number with the help of TH Whites parts desk, XQM101550 as opposed to PRC 8045 for the standard one, did some net research no joy the only stockist other than LR were Britpart same price as LR, went for the dealer option at £57 in VAT, due tomorrow.

got 4 of them that i have just taken out, where are you ? iam in notts if you want 1 for £5

mark 4x4 said:

got 4 of them that i have just taken out, where are you ? iam in notts if you want 1 for £5

Click to expand...

PM'd you - Thanks
