P38A HK Audio System gone wonky.

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
DanClarke

DanClarke

Well-Known Member
Full Member
Posts
16,487
Location
Benfleet, Essex
It never rains but it pours as they say.
I fixed the speaker cones on the Woofer unit earlier this year and to do this I had the whole lot out of the PS cubby hole, broke the woofer & Amp unit apart and fixed the speaker cone rings and then put it all back. It has been working fine until the other day when I turned the system on and was greeted by a very low-volume muffled and muddy noise from the Woofer but not a peep out of any of the other speakers.
I tried all the music sources (Radio, CD, cassette) and they were all the same.
I went to the CD carousel and popped it out and put it back. Powered the system back on and it worked fine.
2 days later, same thing again but nothing I did with the CD carousel or giving the are a thump resolved the issue.
Its gone and done it again today and so I pulled the cubby cover off and disconnected/reconnected the main connector on the loom. Problem gone..... Switched it all off and then on again....problem back.
I have no idea how this particular sound system works or how to chase the problem down. When it works it is very, very good quality, but that only "when" it works.
Any of you kind folks got any ideas (other than "burn-it" or "blast it with......"). :)

Datatek said:
Corroded connectors?
Click to expand...
It could well be, the rear boot was a swimming pool last year and the source of the water was the plumbing for the sunroof cassette.
Its such a faff taking all the panelling off and many of the trim clips are 1-time use (curse you JLR!).

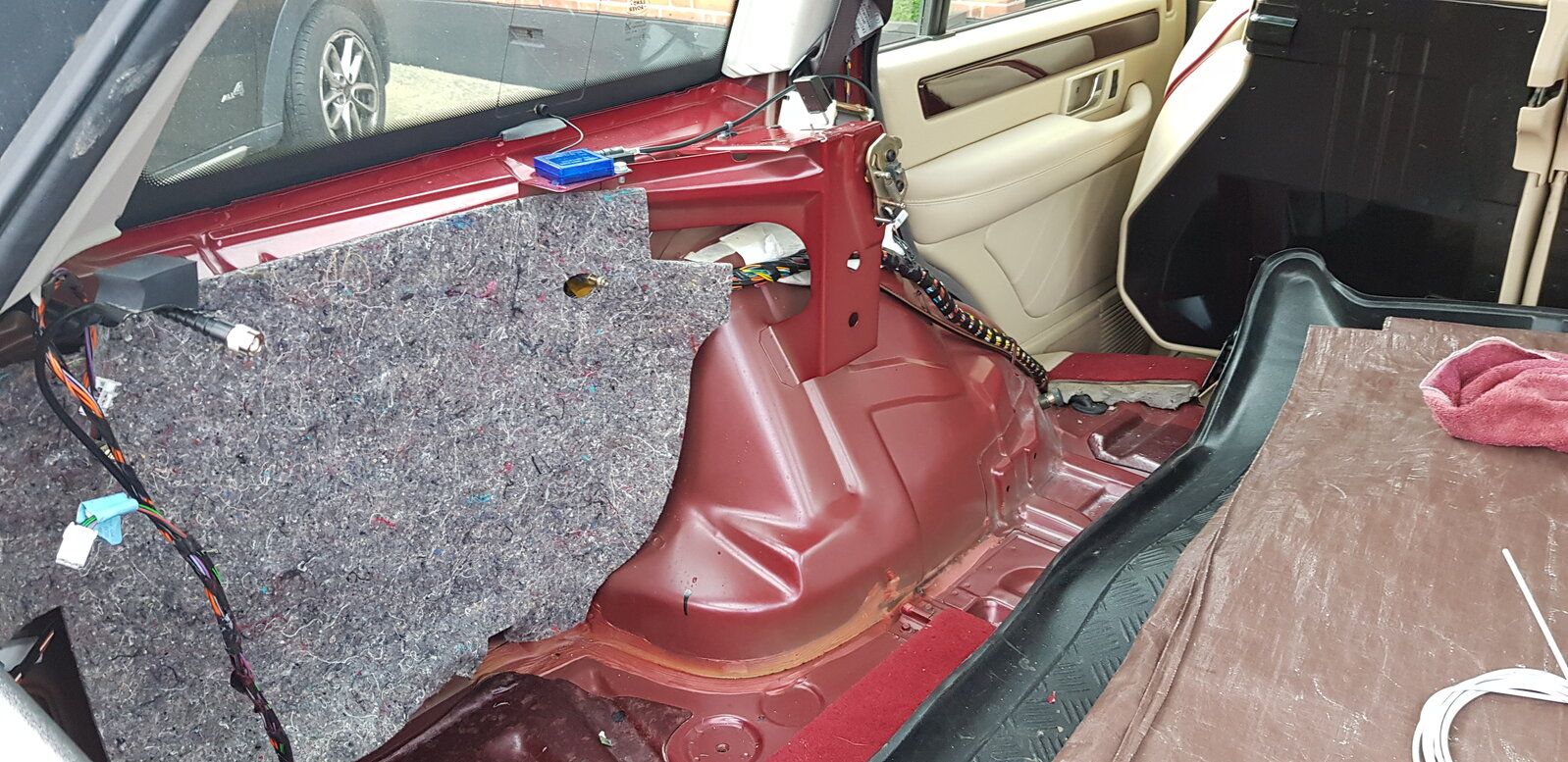

@biketeacherdave Is the amp going to be located behind this sound-deadening wadding sheet by any chance?
This pic was taken when I had the Sub-Woofer out to fix it and trace and fix the leak from the sunroof cassette while I was there.
20220101_140716-jpg.255957

Yeah pull it off if it's there you will no it, the p38 was fitted with a high line or low line audio system.
No amp means low line pointing at the head unit. Amp means it's on its way out

No if the amp is dead it's dead, I spent a long time, effort and money trying to repair mine. And it's my original back ground.
Best thing is to replace with an android unit as I did in mine in the end.

Look here

DanClarke said:
It could well be, the rear boot was a swimming pool last year and the source of the water was the plumbing for the sunroof cassette.
Its such a faff taking all the panelling off and many of the trim clips are 1-time use (curse you JLR!).
Click to expand...
In that case I would put money on corroded connectors, there may also be condensation inside the amp.

Datatek said:
In that case I would put money on corroded connectors, there may also be condensation inside the amp.
Click to expand...
Oh dear, sounds fatal. :(
It is an HK variant sound system and the build spec of the car mentions DSP Europe so I think I may have an amp back there to go find and bake in an oven at Gas Mark 3 for 20 minutes ;)

Last edited:
DanClarke said:
It could well be, the rear boot was a swimming pool last year and the source of the water was the plumbing for the sunroof cassette.
Its such a faff taking all the panelling off and many of the trim clips are 1-time use (curse you JLR!).
Click to expand...

Trim clips are available from others rather than JLR ...

This sort of thing ...

https://a.co/d/2AICdKW
