P38 2.5 DSE Auto Airbag Warning Message

Yes it has, I have taken it apart and cleaned the connectors with electrical contact cleaner and put it together a few times to make sure the contacts are clean, will be checking the OBD port connectors tomorrow, as my other P38 (v8Petrol Auto) Air bags checks out with the nanocom on that, so cant be the diagnostic machine.

I have also cleaned all the connectors I can find on the drivers side, all the way back to the ECU, even changed the ECU

Been away for a well earned rest this weekend, back to it in morning

i have tried everything i can think of, even updated nanocom to latest version, still getting unable to communicate with ECU, I checked connectivity of the OBD cleaned and still no luck, i did hear somewhere that there is a white connection somewhere in the cab that can cause problems to the OBD, any one any idea where it is

I need a GIN, but its to early (;

madbrit said:

i have tried everything i can think of, even updated nanocom to latest version, still getting unable to communicate with ECU, I checked connectivity of the OBD cleaned and still no luck, i did hear somewhere that there is a white connection somewhere in the cab that can cause problems to the OBD, any one any idea where it is

I need a GIN, but its to early (;

Click to expand...

Behind the kick panel at the bottom of the A posts,there are two connectors each side.

Hi all, now as suggested I have at last got round to removing both side kick panels, and low and behold the large white plugs on both sides are green/blue with corrosion

What do people suggest I clean it with, tried electrical contact cleaner did not shift it

On closer inspection the large plug on the N/S Kerb side (uk) one of the terminals has broken off, this should be there as there is a red/ grey wire on the plug and socket and I can see a stump

Can anyone point me to the wiring diagram for these plugs please

I can hard wire it or maybe them all both sides

But will try cleaning with what ever is suggested first

Thanks

MaDbRiT

Cut out the connectors and solder the cables together and heat shrink, the connectors are only there for assembly at the factory

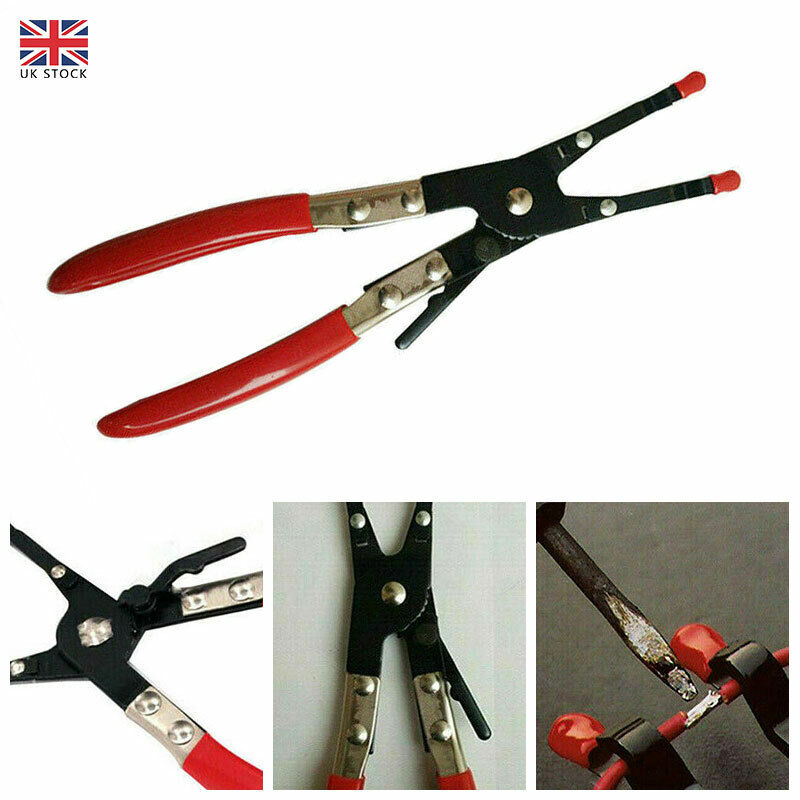

there is a handy tool for this job

https://www.ebay.co.uk/itm/224502348810?ssPageName=STRK:MEBIDX:IT&_trksid=p2060353.m1438.l2649

I must admit that was my thoughts, thanks for the link, makes things a lit easier

YAAAAAA SUCSESS
I bypassed the two plugs on the left by direct wiring, replaced the OBD plug (just in case) and the SRS light now goes out after 10 seconds

Thanks to all who helped in this. much appreciated

And thanks to brianp38dse for suggesting the soldering aid pliers, made life a lot easier with all that loom to wire

Now to replace the Right Front ABS Sensor and its MOT time

MaDbrIT

madbrit said:

YAAAAAA SUCSESS
I bypassed the two plugs on the left by direct wiring, replaced the OBD plug (just in case) and the SRS light now goes out after 10 seconds

Thanks to all who helped in this. much appreciated

And thanks to brianp38dse for suggesting the soldering aid pliers, made life a lot easier with all that loom to wire

Now to replace the Right Front ABS Sensor and its MOT time

MaDbrIT

Click to expand...

Nice one. Best of luck with MOT

Last update on this, passed MOT with flying colours, just one advisory on a suspension air bag needs replacing soon, I can put up with that after all the work

Thanks to all that helped me out

A Very Happy MaDbrIt

madbrit said:

Last update on this, passed MOT with flying colours, just one advisory on a suspension air bag needs replacing soon, I can put up with that after all the work

Thanks to all that helped me out

A Very Happy MaDbrIt

Click to expand...

Do the airbags in pairs and get some dunlops from island 4x4

thank you i will

madbrit said:

thank you i will

Click to expand...

Front or rear? Don't forget clips as well.

madbrit said:

Last update on this, passed MOT with flying colours, just one advisory on a suspension air bag needs replacing soon, I can put up with that after all the work

Thanks to all that helped me out

A Very Happy MaDbrIt

Click to expand...

Great feeling ain't it Mine went through last week

Mark Piercy said:

Do the airbags in pairs and get some dunlops from island 4x4

Click to expand...

Big plus 1

Mark Piercy said:

Front or rear? Don't forget clips as well.

Click to expand...

Another big plus 1

It does indeed. But now I have a matrix leaking into drivers footwell. Only replaced the seals a month ago. More cleaning abs new seals needed. But only a minor problem. Have re routed water for now . Other P38 V8 LPG having head gaskets done AGAIN. But I have a nasty feeling it’s the liners slipping

It’s the rear bags need doing.

madbrit said:

It does indeed. But now I have a matrix leaking into drivers footwell. Only replaced the seals a month ago. More cleaning abs new seals needed. But only a minor problem. Have re routed water for now . Other P38 V8 LPG having head gaskets done AGAIN. But I have a nasty feeling it’s the liners slipping

Click to expand...

Change it for the nissens Audi one. Does away with seals and O rings Best thing I ever did

Any tips on removing it without dismantling the car ?

madbrit said:

Any tips on removing it without dismantling the car ?

Click to expand...

Look at paulP38.com he gives a description. I managed it from under steering wheel but someone had been in before and my ducting etc was easy to remove
