Bennett1579
Member
- Posts
- 10
- Location
- Birmingham
Brought a street wise obd 2. It works on over cars but not the land rover
Obd
- Thread starter Bennett1579
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
GrumpyGel
Well-Known Member
- Posts
- 26,484
- Location
- Christchurch, New Zealand
That's probably because your Land Rover isn't ODB2 compliant.
Some are some aren't.
Some are some aren't.
Bennett1579
Member
- Posts
- 10
- Location
- Birmingham
It should be it's a 2004. Is there a chance reader in the is knackered?
Bennett1579
Member
- Posts
- 10
- Location
- Birmingham
It's a 2004 1.8 petrol. It powers up but can't connect I've tried two of them.
andyfreelandy
Well-Known Member
- Posts
- 5,584
- Location
- Devon
Might it be the old Rover we forgot to connect the earth pin on the diag socket problem? Pin 4 and 5 should be ground. A link was often missed off on the Rovers. Worth a check.
Bennett1579
Member
- Posts
- 10
- Location
- Birmingham
How do I check it. I'm new to land rover.

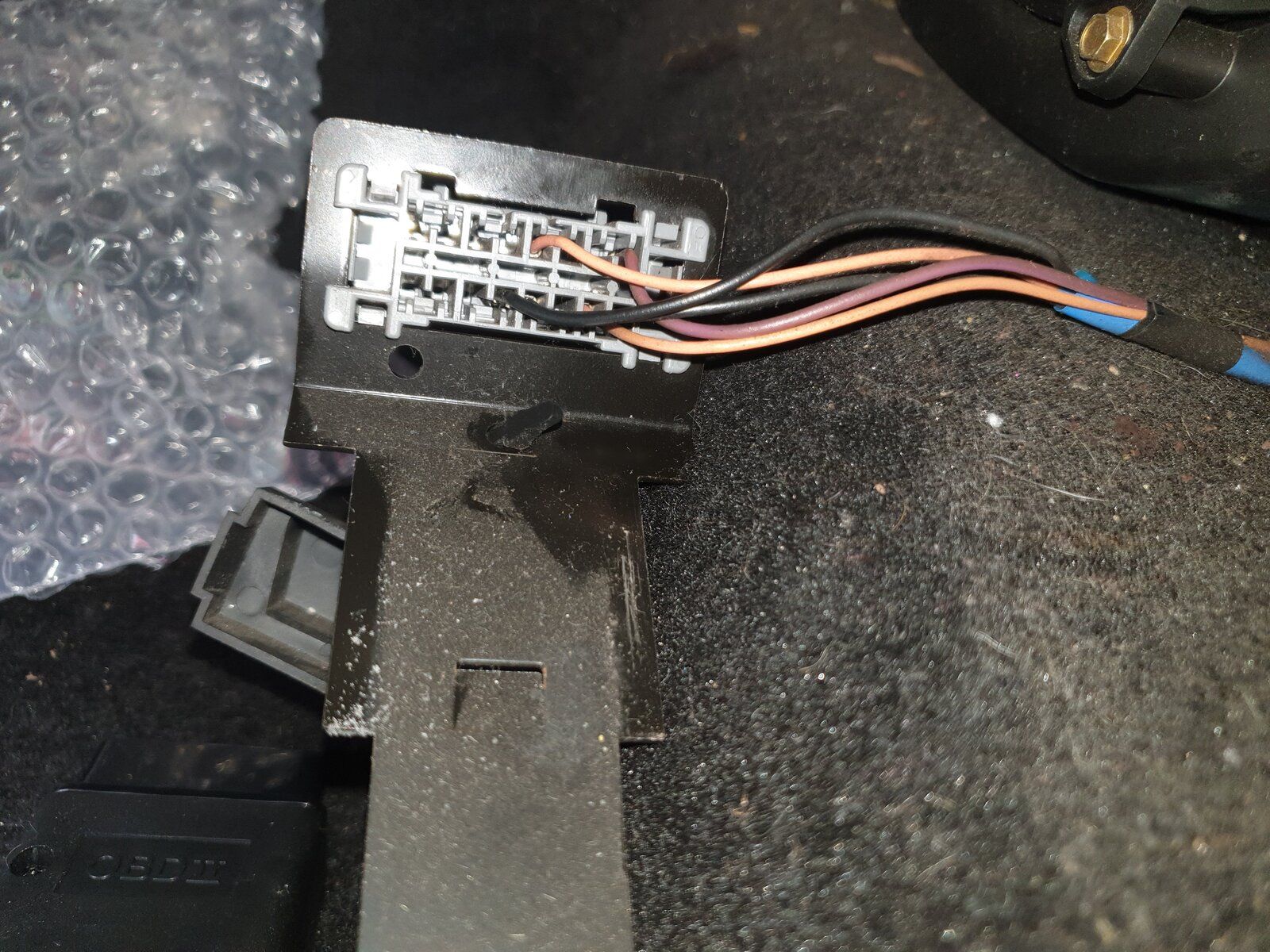

Just make sure pins 4 and 5 are linked where the harness goes to the rear of the socket.

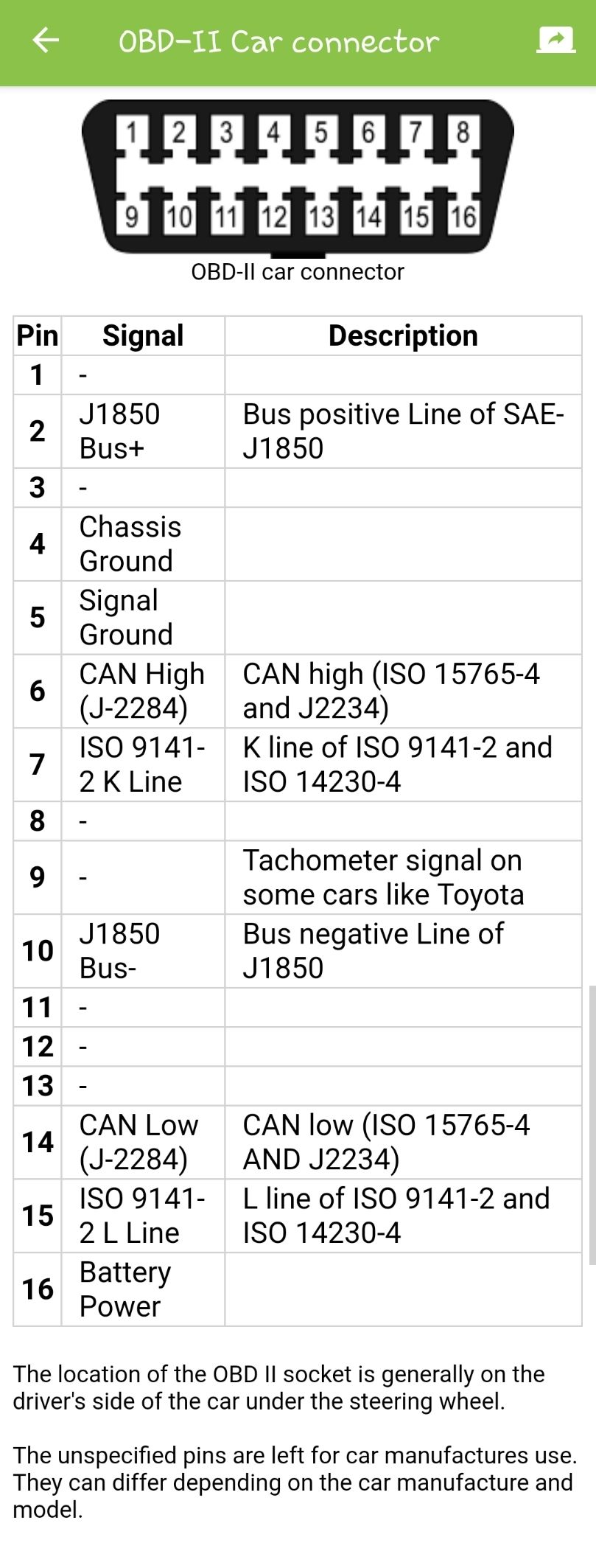

This is the socket, with its pin outs.
Bennett1579
Member
- Posts
- 10
- Location
- Birmingham
The other thing to check is for connection spreading. This has been found on a few occasions.
After checking the connections haven't been spread open, the only other thing is to test the resistance between the CAN high and CAN low lines. These should have a resistance of 120 ohms, as each line has a 60 ohm resistor in series with it.
After checking the connections haven't been spread open, the only other thing is to test the resistance between the CAN high and CAN low lines. These should have a resistance of 120 ohms, as each line has a 60 ohm resistor in series with it.
