Not seen these fuses before

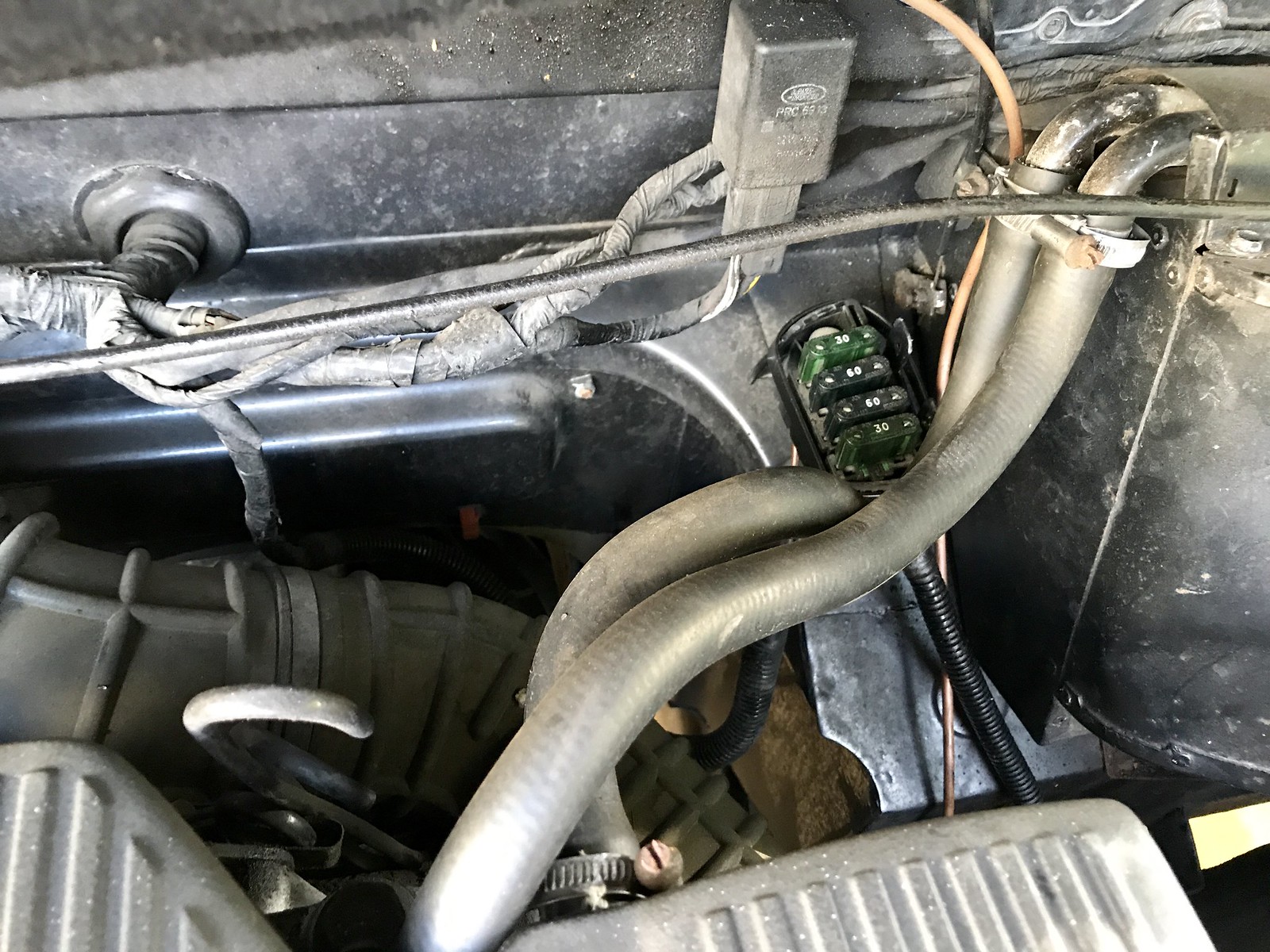

Just noticed a fuse box in the engine bay that I hadn't noticed before. Or maybe I've only just noticed it because the lid is missing off the fuse box?

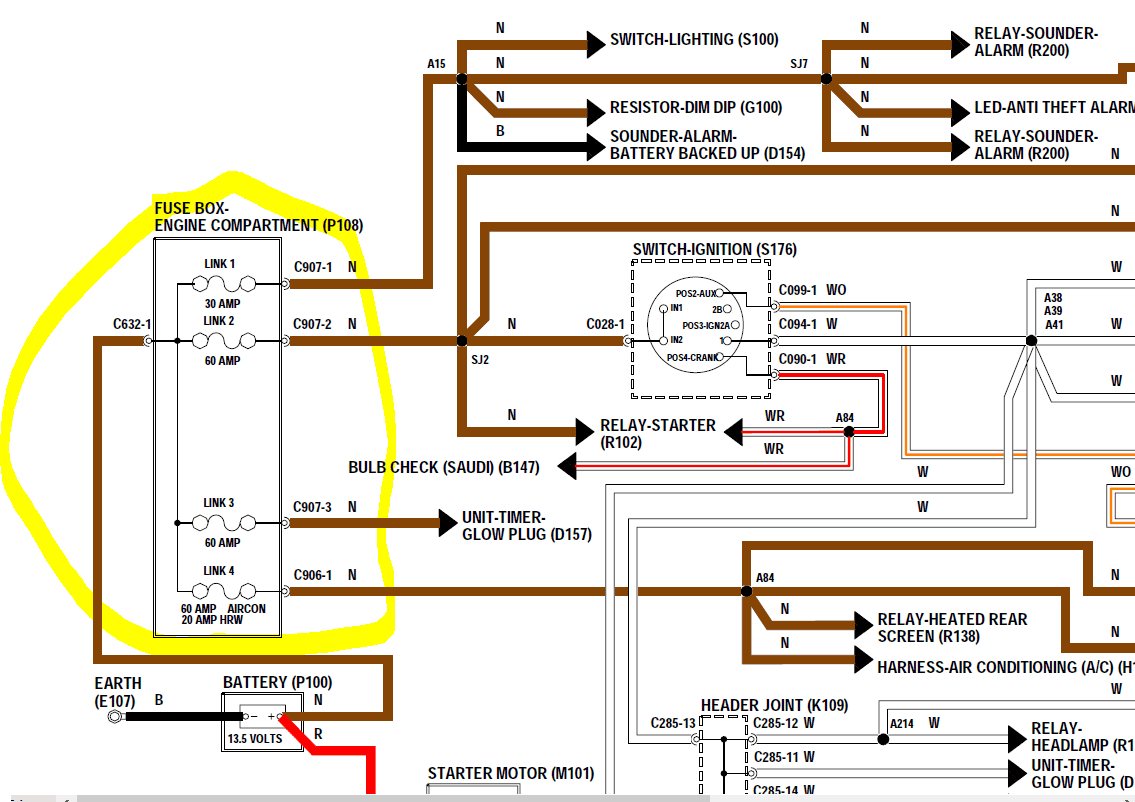

Can anyone tell me what they are for please? I need to find a suitable lid for it.

Right, so looks like the lid to the fuse box has fallen off. Anyone know a part number for the lid/box?

http://www.allbrit.de/UNI.cfm?PAGE=763744&SPRACHE=EN


Double check it.

Cheers

LeadFarmer said:

Right, so looks like the lid to the fuse box has fallen off. Anyone know a part number for the lid/box?

Click to expand...

Don't let them get wet, you could short the whole system out. Then you would be well fooked

Thor1950 said:

Don't let them get wet, you could short the whole system out. Then you would be well fooked

Click to expand...

That'd be the least of the concerns you are not going to get much current flowing through a bit of water. If it corrodes the holders though thats more to worry about.

did you move your heater hose to be under that fuse box? It looks like that hose could of caused the cover to come off

chris-the-gerbil said:

That'd be the least of the concerns you are not going to get much current flowing through a bit of water. If it corrodes the holders though thats more to worry about.

Click to expand...

It can cause those fuses to short circuit themselves and burn melt that block

In case you hadnt realised a fuse is already a short circuit so how you short circuit a fuse is beyond me....

neilly said:

http://www.allbrit.de/UNI.cfm?PAGE=763744&SPRACHE=EN


Double check it.

Cheers

Click to expand...

Thanks. Just ordered one from Devon4x4. Not cheap!!

What year/model defender have you got?

mick the builder said:

What year/model defender have you got?

Click to expand...

Looks like 300tdi, but heater matrix looks like old type?

LeadFarmer said:

Thanks. Just ordered one from Devon4x4. Not cheap!!

Click to expand...

At that price it would have stayed uncovered.

Cheers

mick the builder said:

What year/model defender have you got?

Click to expand...

1996 300ti 110

LeadFarmer said:

1996 300ti 110

Click to expand...

Cheers Lead,mines a 95, i,ll check on mine.

neilly said:

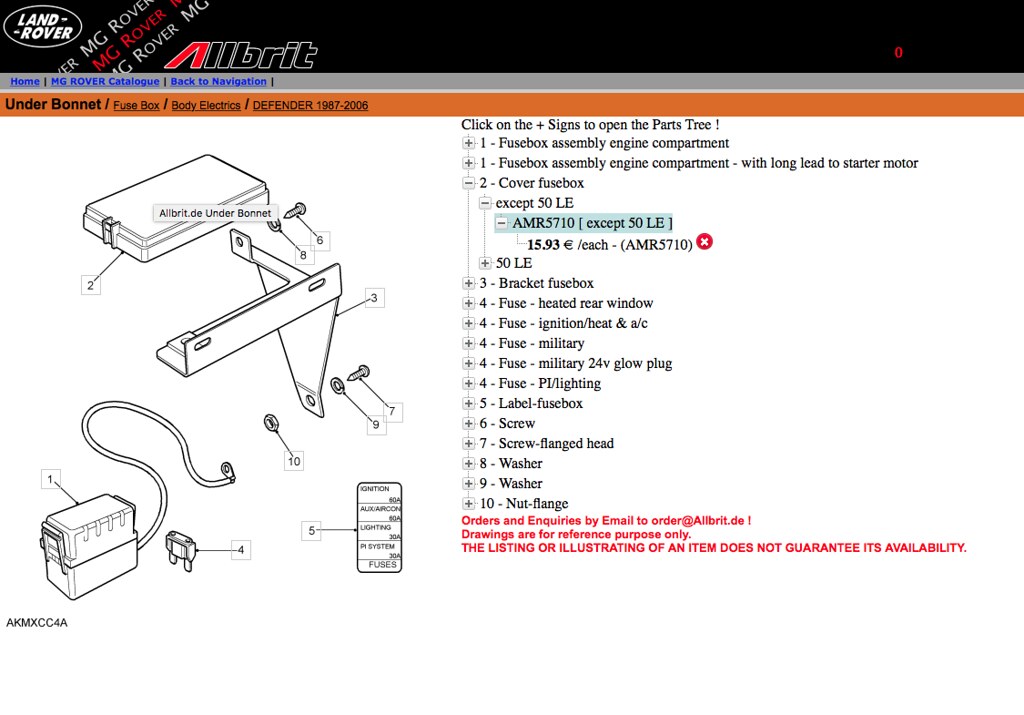

AMR5710
Screen Shot 2017-08-12 at 15.24.49


Double check it.

Cheers

Click to expand...

Thanks, but sadly that is not the correct part (I didn't double check it!!). Looks like its a fuse box from a different Defender. That was an expensive mistake!!

You can see the from this photo that cover is massive compared to my fuse box...

lr



So can anyone help with a part number for that fuse box lid please?

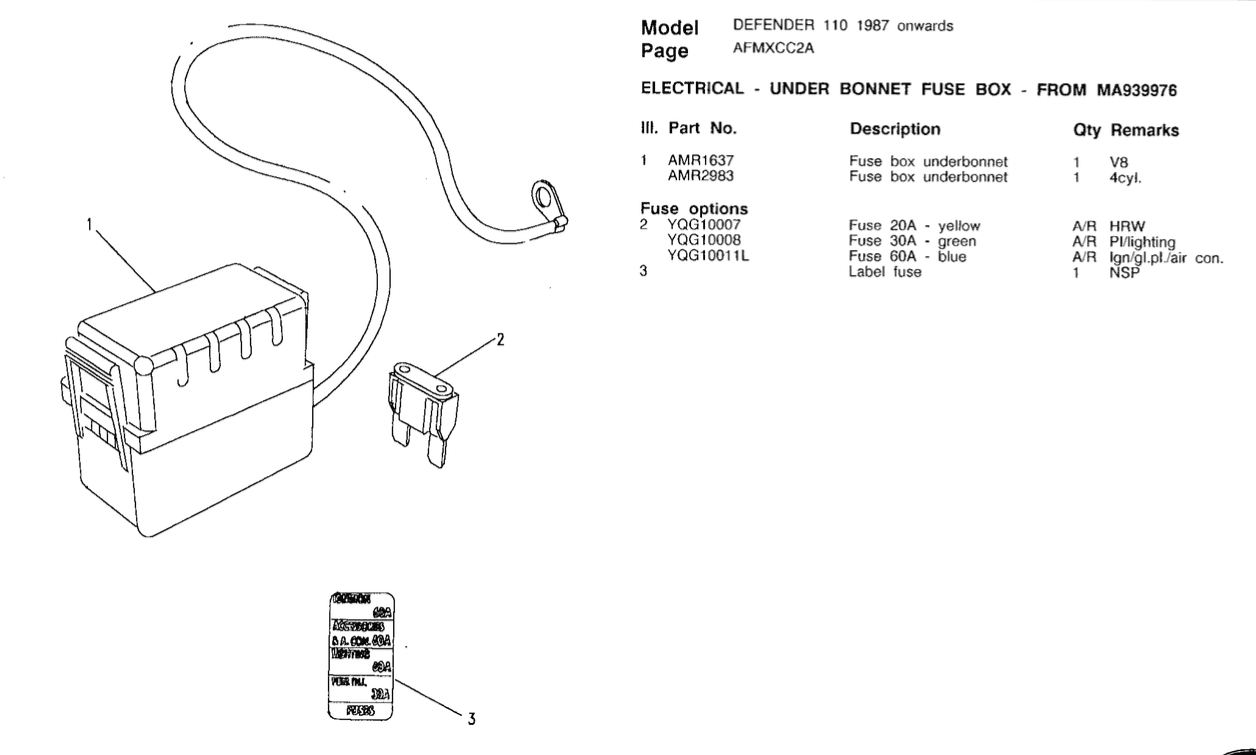

Try AMR2983 for box but cant see lid seperate?

lynall said:

Try AMR2983 for box but cant see lid seperate?

View attachment 129315

Click to expand...

This was the part I was referring to. Which part did you buy @LeadFarmer ?0

Cheers

neilly said:

This was the part I was referring to. Which part did you buy @LeadFarmer ?0

Cheers

Click to expand...

AMR5710

Well you ordered the wrong part then I was referring to item number 1 .


Cheers
