300tdi fuse box in engine bay

Basher45 said:

Hi folks I have brought my self a 300tdi 110 with fire damage to bulkhead loom and engine loom I have brought a replacement bulkhead loom but can’t seem to find a engine bay fuse box could someone please tell me what the fuse do and where they go and if possible send me some pictures then I’ll probably make my own as you can see I’ve nothing left of my original wiring thanks in advance

Click to expand...

dag019 said:

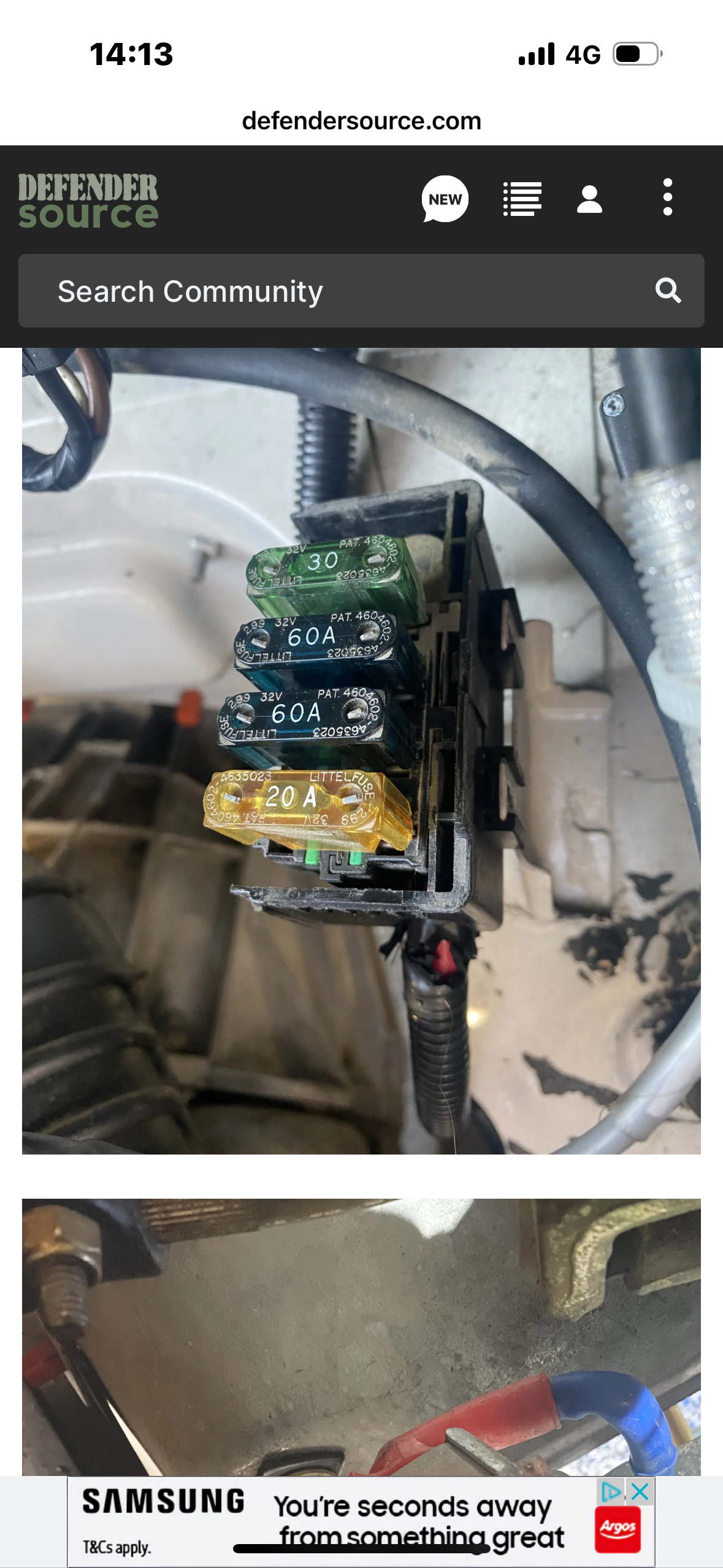

Have a look at my thread here about rebuilding mine after an engine fire LINK. and my specific thread on the under bonnet fuse box here: LINK. Although it is '89 reg it is running 300tdi wiring looms throughout. The engine bay fuse box you are referring to is the main fused link between the battery and the rest of the vehicle wiring. It does from the back of the starter solenoid (same as the battery positive cable) up to the fuse box with the four large fuses mounted on the passenger footwell. if you have a loom form autosparks they include a new but non original fuse box for this so you only need to manufacture the half from the solenoid to the box. I wanted to keep things original so I bought a second hand fuse box from an auto jumble, salvaged the main loom connector from my donor bulkhead and then replace the autosparks spaded connectors with the ones here: link

Click to expand...

Basher45 said:

Hi folks I have brought my self a 300tdi 110 with fire damage to bulkhead loom and engine loom I have brought a replacement bulkhead loom but can’t seem to find a engine bay fuse box could someone please tell me what the fuse do and where they go and if possible send me some pictures then I’ll probably make my own as you can see I’ve nothing left of my original wiring thanks in advance

Click to expand...
