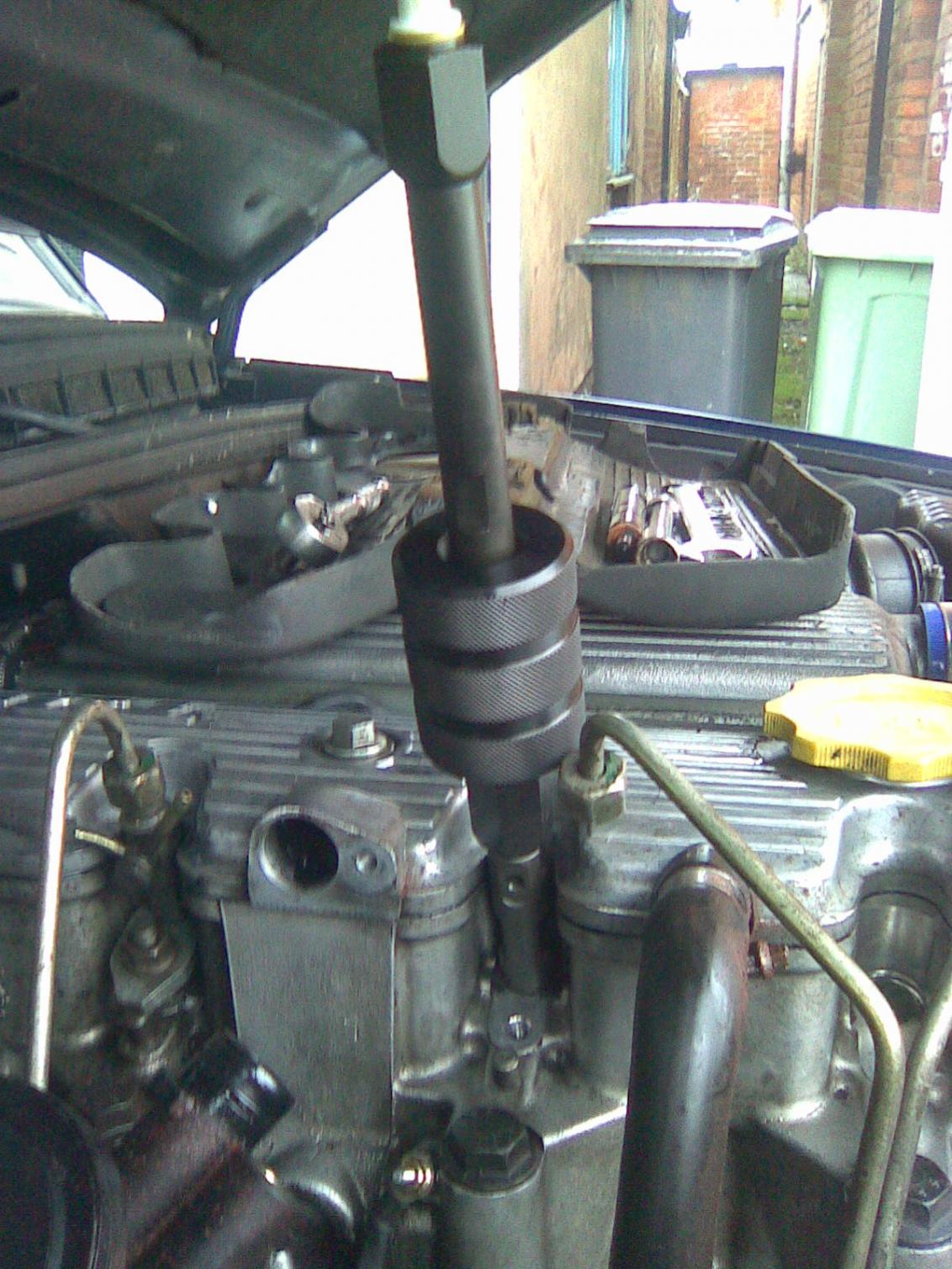

i recently bought a 300tdi injector puller. today i used it for the first time :)

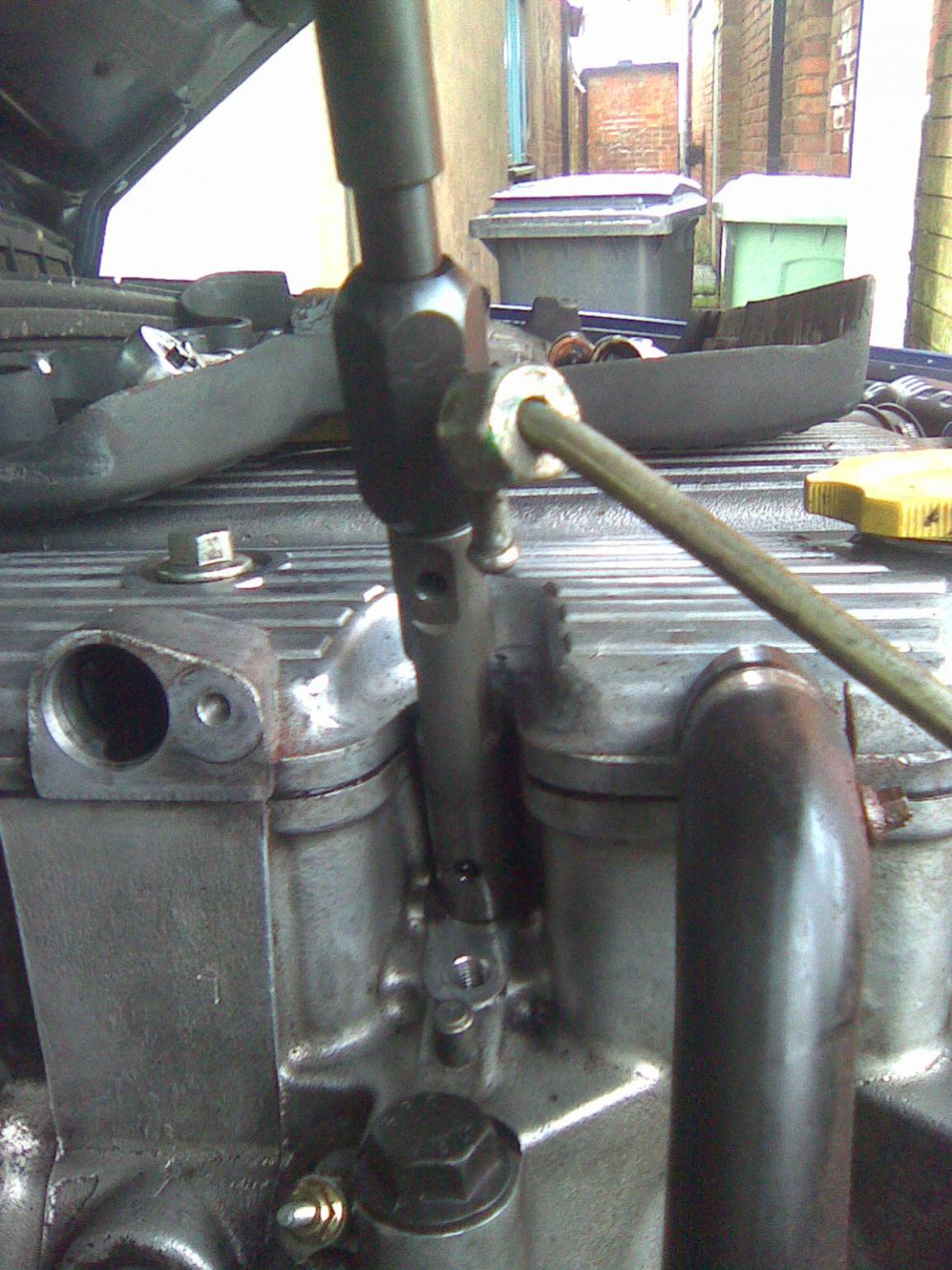

it makes short work of getting them pesky injectors out !

after a drop in performance i decided to have the injectors checked at atkins diesel. they checked out fine so back in they went.
after i had cleaned them up and refitted them the inprovment was quite noticable.

if your going to do this job make sure you get four new injector clamp studs as they are a stretch stud . one of them did just that and was close to snapping, lucky for me i was able to borrow one of my other disco.
ive got some on order from land rover as they are a genuine part only.

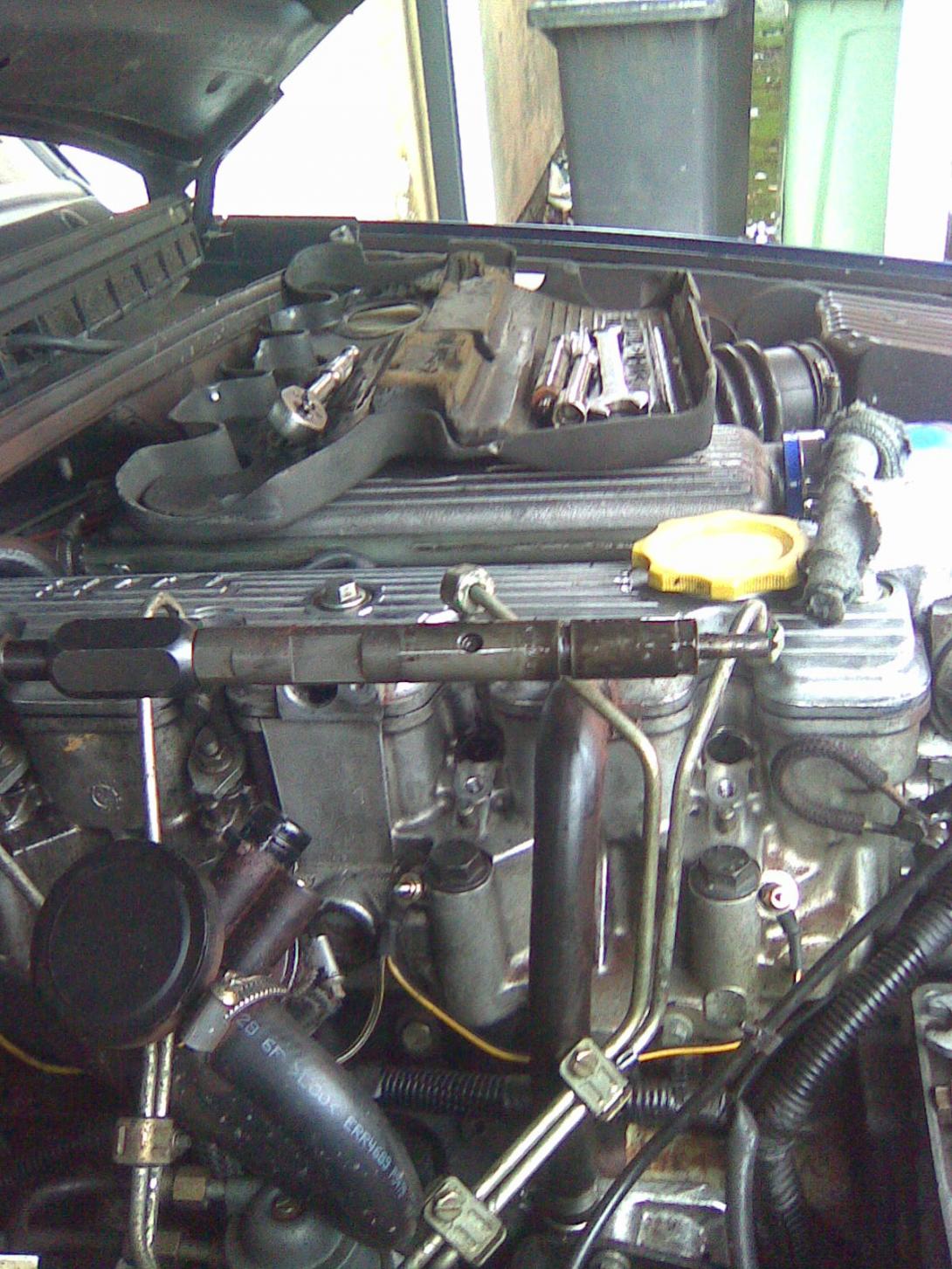

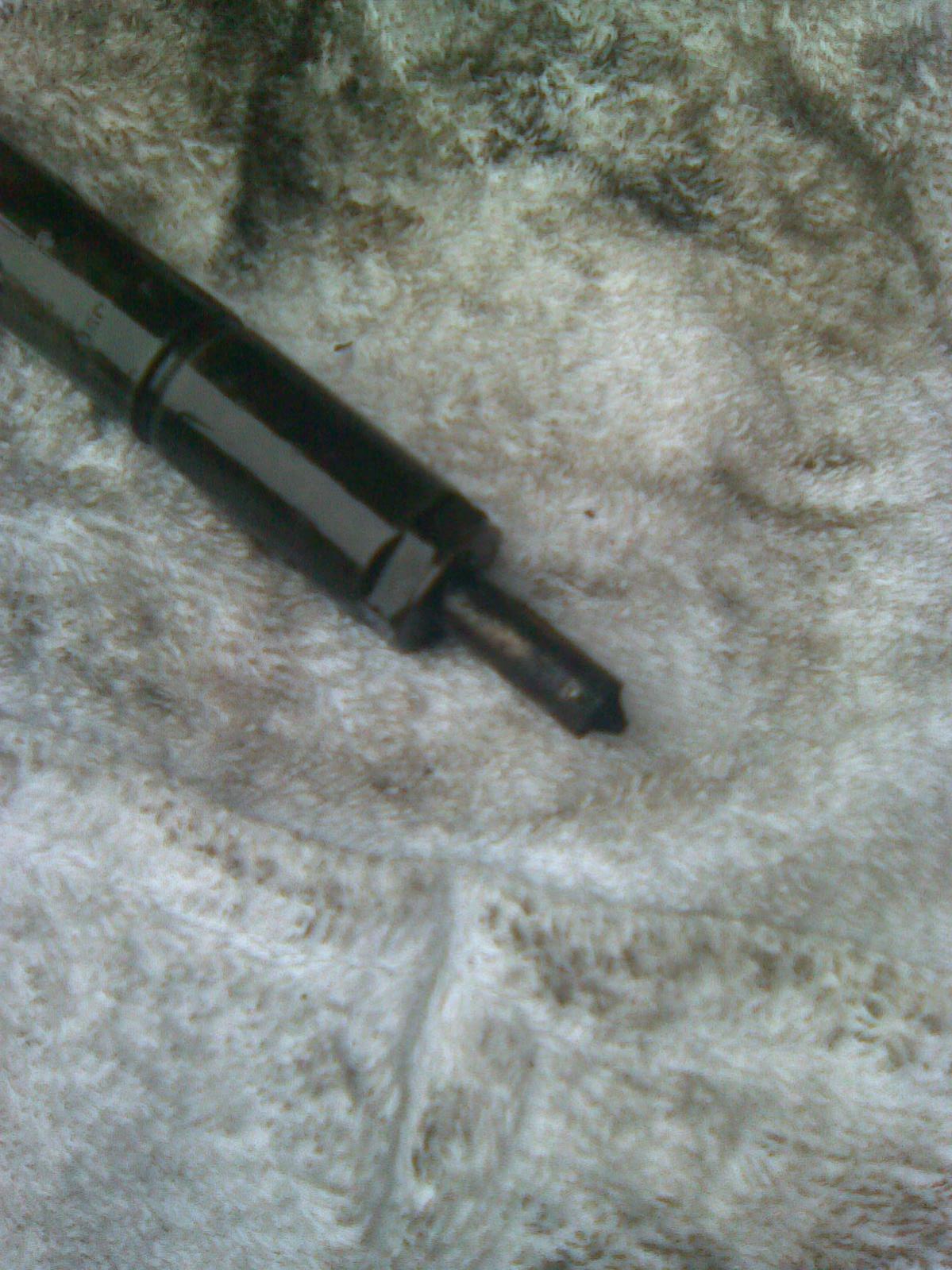

after getting it out the tip was caked in carbon.

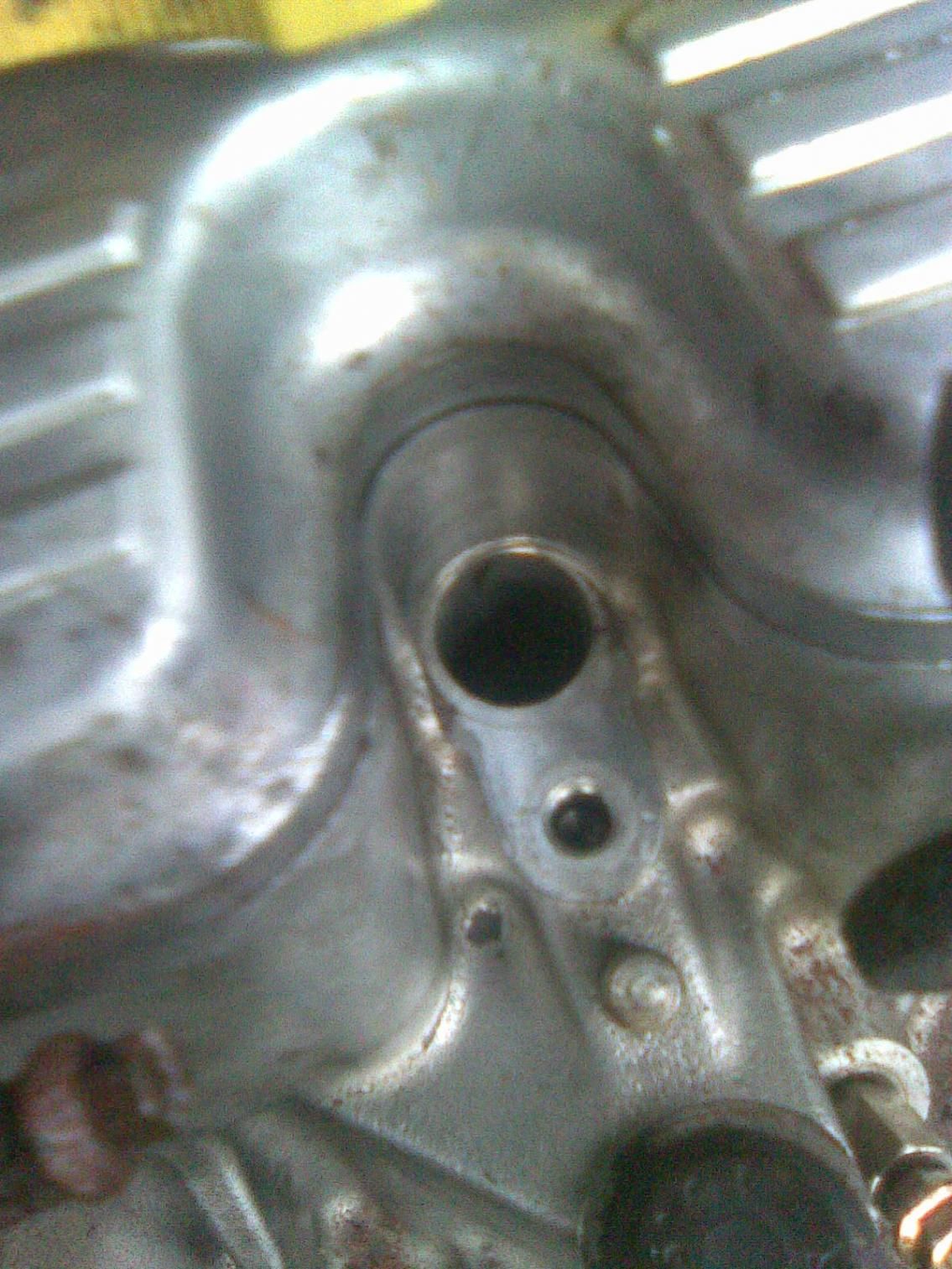

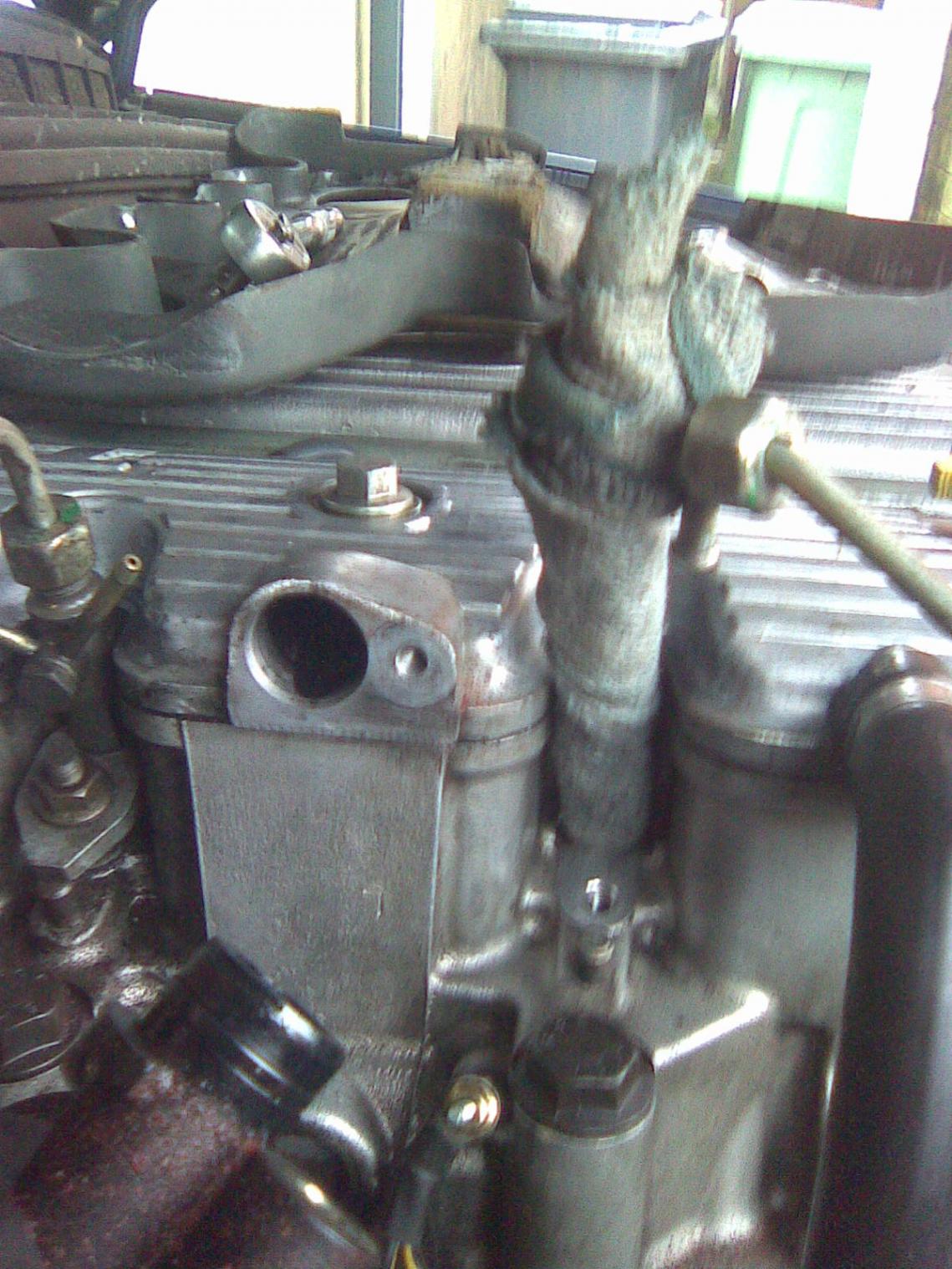

using an improvised cleaner to clean out the injector ports and then clean the tips of the injectors with a soft wire brush.

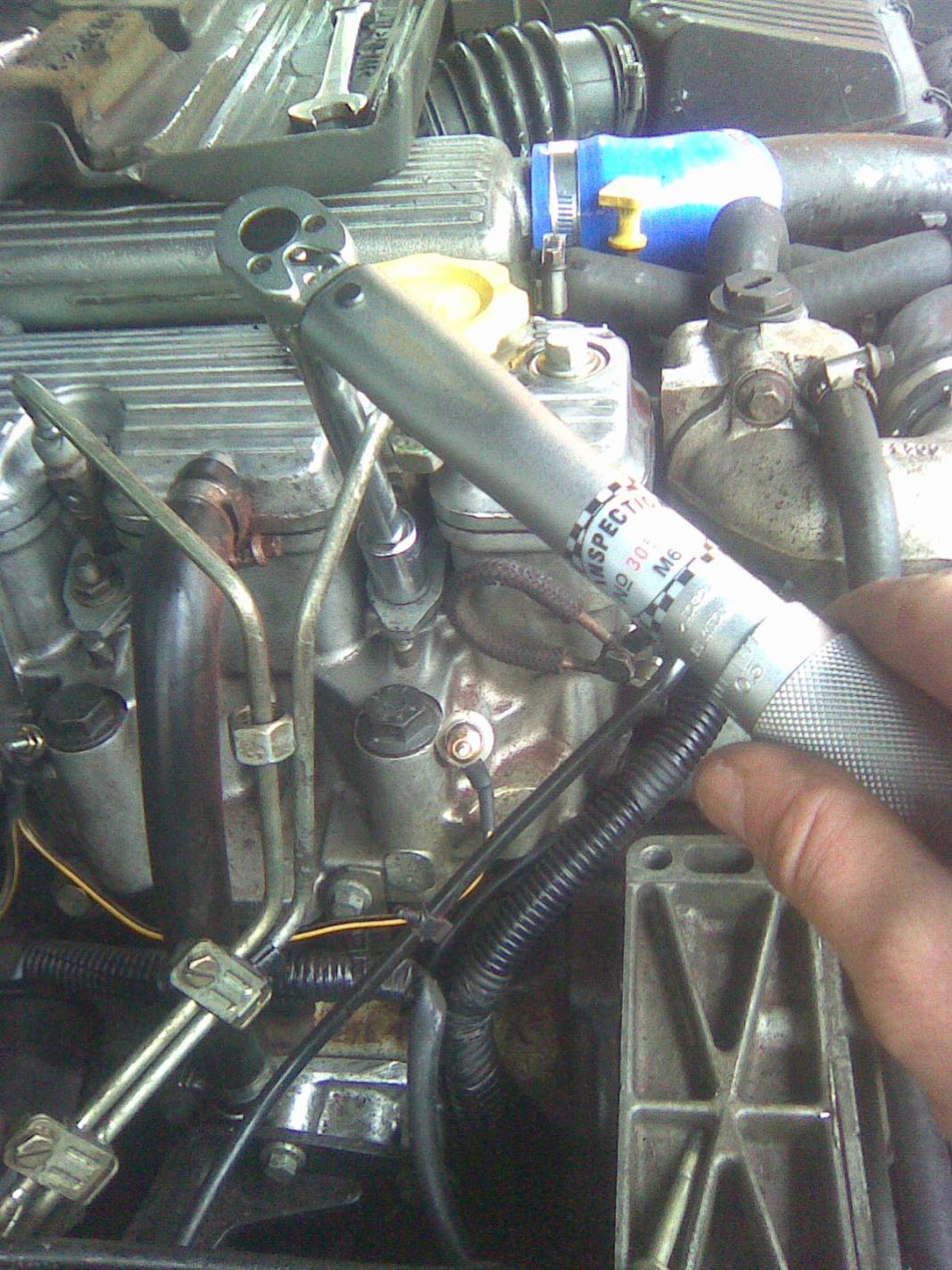

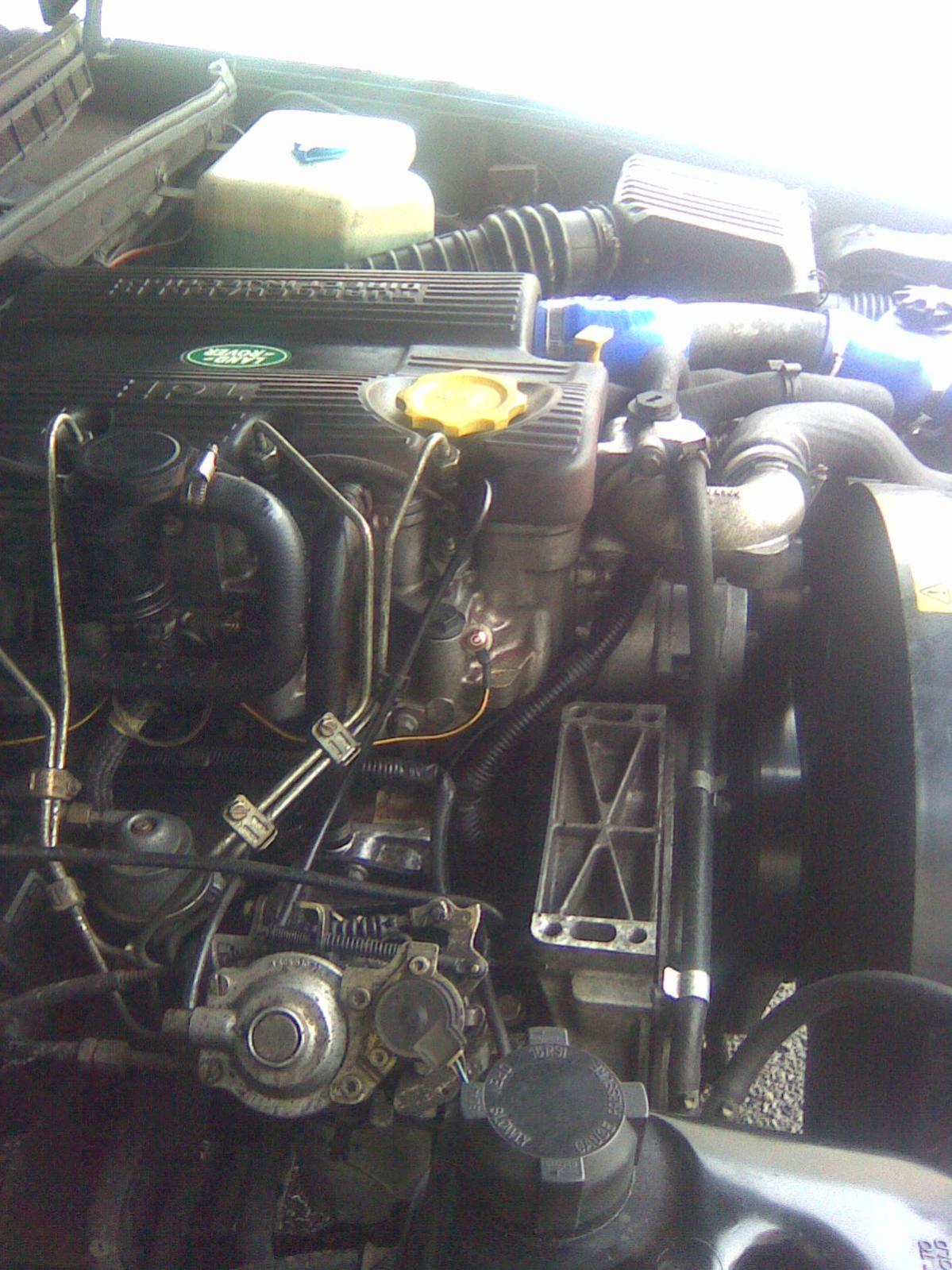

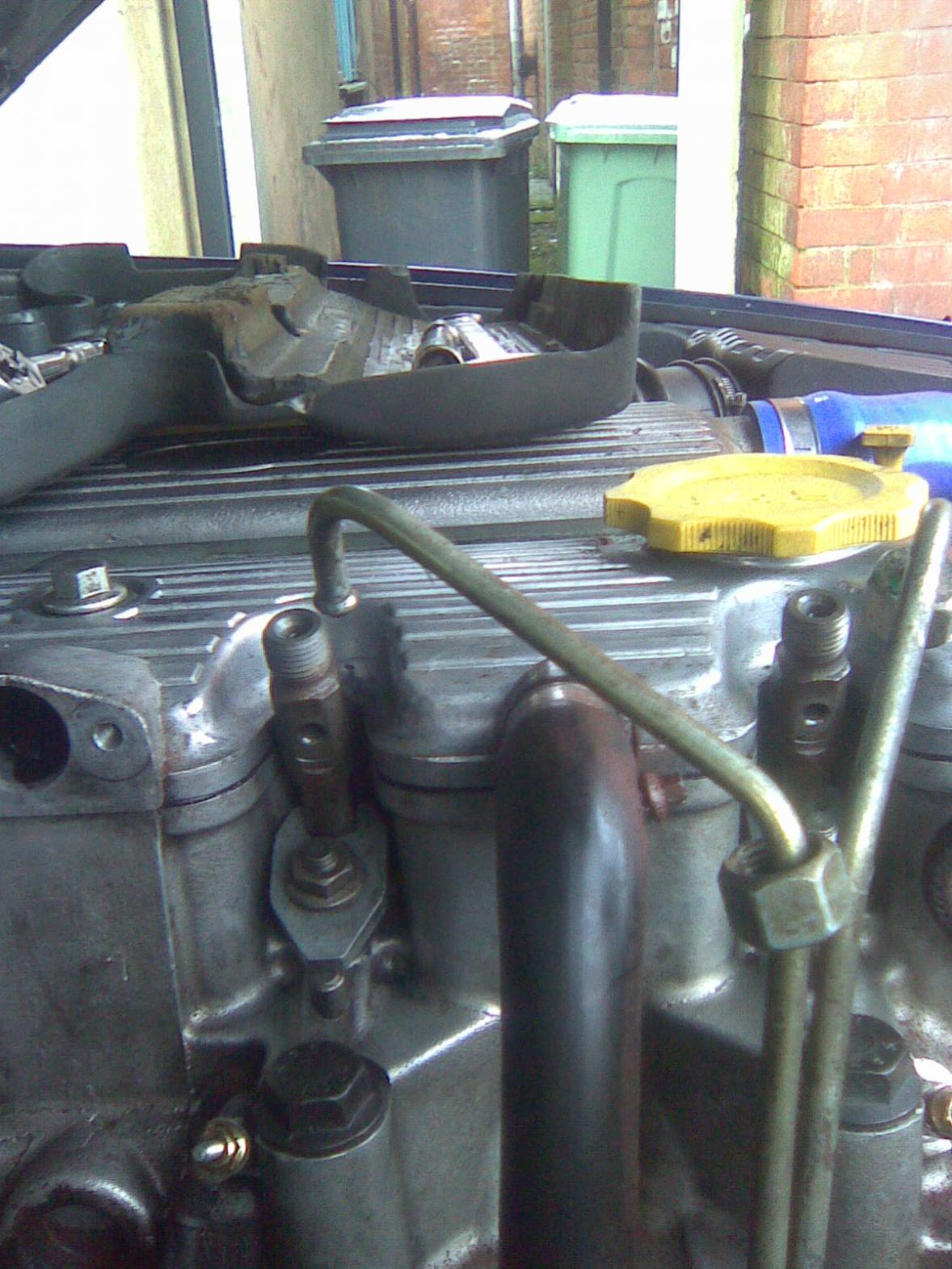

refit them and torque them back down job done. took about one and a half hours from start to finish.


Attachments

  • puller.jpg
    230.2 KB · Views: 138
  • halfout.jpg
    230.1 KB · Views: 137
  • out.jpg
    232.3 KB · Views: 126
  • dirty tip.jpg
    dirty tip.jpg
    225.4 KB · Views: 146
  • cleaning.jpg
    232.3 KB · Views: 157
  • cleaned.jpg
    247.3 KB · Views: 126
  • refitted.jpg
    225.7 KB · Views: 115
  • torque.jpg
    233.2 KB · Views: 123
  • job done.jpg
    job done.jpg
    222.9 KB · Views: 134
is that a pucker shop brought tool or a homemade slide hammer with a fuel pipe union braised on like mine ?

Is yu offering to ship stuff out then, so we can take advantage of the cheaper prices? :D


if you want owt yes i can get it and send it out ;)

sutton in ashfield is only three or four miles from me so its no big deal to pop on over and it gives me the excuse to go and have a look in a propper porn shop with all them shiney tools and pvc cases.

you can also touch up the display tools, finger the cataloges and fondle the spanners :D
