Need to solve waring light in dashboard

elameed elaneed · Sep 2, 2018

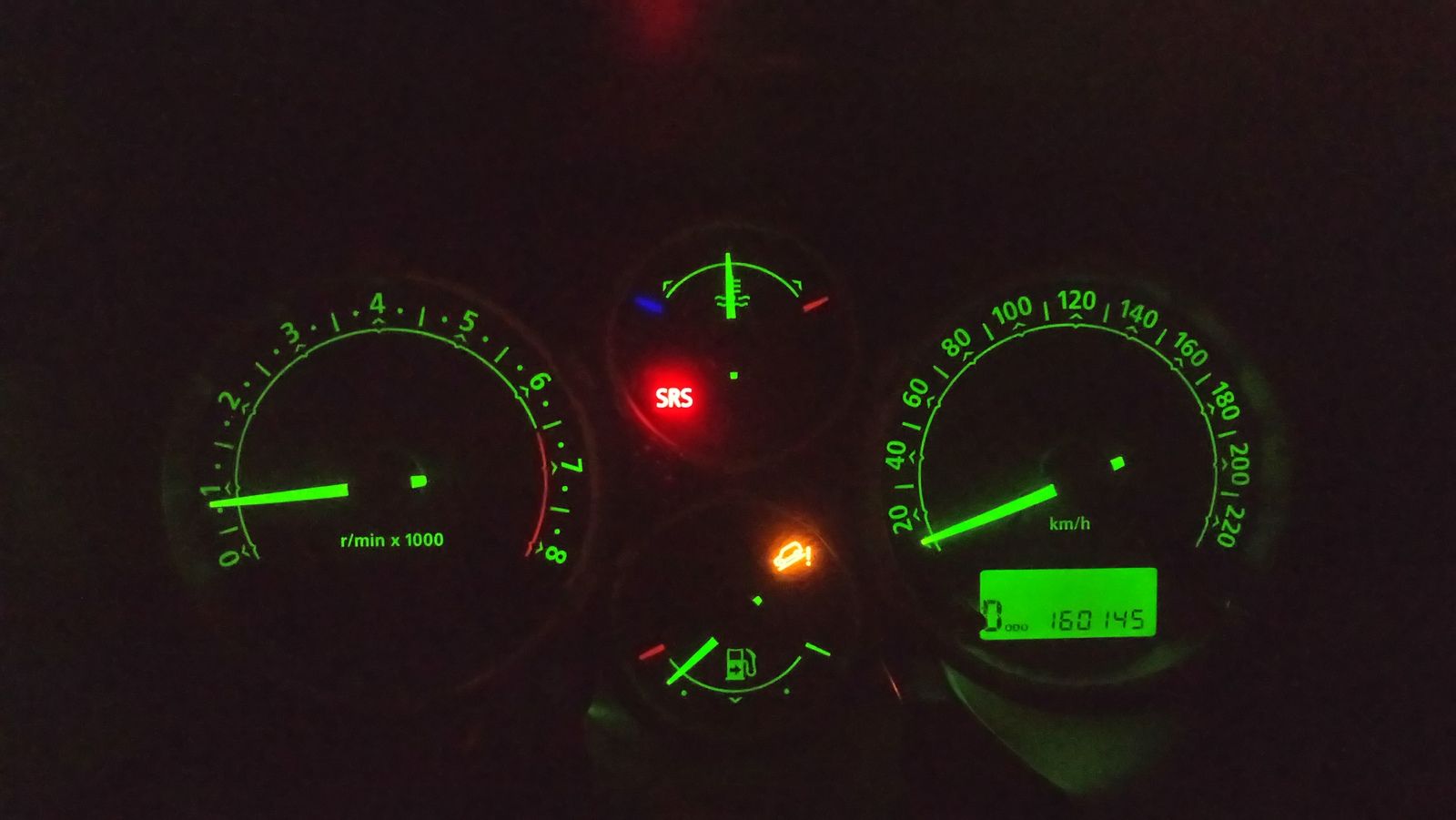

Hi everybody, long time i am not writing in forum becouse the car not with me, but when i return the car i found two waring lights (SRS and another one belongs to Gearbox)
As showing photo

Note: seat belt waring not working when SRS WARING work

Can you help me to solve this problem

titchfield9 · Sep 2, 2018

I had that, did it come on all of a sudden? some times may go out then comes back.

Guys on here got me to change the foot brake switch and never seen it again.
New switch was about £12 on ebay.

Its on top of the brake pedal under the dash. came out easy, took about 15 minutes of fiddling to get the new one in.

elameed elaneed · Sep 2, 2018

titchfield9 said:
I had that, did it come on all of a sudden? some times may go out then comes back.

Guys on here got me to change the foot brake switch and never seen it again.
New switch was about £12 on ebay.

Its on top of the brake pedal under the dash. came out easy, took about 15 minutes of fiddling to get the new one in.

You know part number for switch

titchfield9 · Sep 3, 2018

I got Bearmach - XKB00001 it cost £11.70 on ebay arrived in two days.

"Bearmach branded replacement 3 pin brake light pedal switch, suitable for all Land Rover Freelander 1 models from 2001 onwards, for exact fitment from chassis number: 1A326957 onwards."

Rimmer Bros do sell them though the P&P makes it a bit expensive unless your order other items.

What it came out it was easy as it just twists out, getting it back took a lot of fiddling, it has a lug that you need to align and get the angle right. I did undo the screws on the fuse board and pushed it to one side so I could see. I tried with the cable connected first, that proved difficult and was easier without the plug connected.

Hope this helps. worth a go for this price.

elameed elaneed · Sep 3, 2018

titchfield9 said:
I got Bearmach - XKB00001 it cost £11.70 on ebay arrived in two days.

"Bearmach branded replacement 3 pin brake light pedal switch, suitable for all Land Rover Freelander 1 models from 2001 onwards, for exact fitment from chassis number: 1A326957 onwards."

Rimmer Bros do sell them though the P&P makes it a bit expensive unless your order other items.

What it came out it was easy as it just twists out, getting it back took a lot of fiddling, it has a lug that you need to align and get the angle right. I did undo the screws on the fuse board and pushed it to one side so I could see. I tried with the cable connected first, that proved difficult and was easier without the plug connected.

Hope this helps. worth a go for this price.

BTW, this switch response about all Waring lights?

elameed elaneed · Sep 3, 2018

https://www.lrdirect.com/XKB000010-Switch-Brake-Pedal-Free-Ds/?keep_https=yes

if i change to this one all lights gone

Nodge68 · Sep 3, 2018

elameed elaneed said:
https://www.lrdirect.com/XKB000010-Switch-Brake-Pedal-Free-Ds/?keep_https=yes

if i change to this one all lights gone

Not the SRS light. You need to run a diagnostic to fine the cause of that one.

elameed elaneed · Sep 3, 2018

Nodge68 said:
Not the SRS light. You need to run a diagnostic to fine the cause of that one.

okay i will make diagnostic to check SRS, but the seat belt light stop working , there is relation between SRS and Seat belt light?

i mean if i delete faults for SRS the seat belt light it will work again

elameed elaneed · Sep 5, 2018

titchfield9 said:
I got Bearmach - XKB00001 it cost £11.70 on ebay arrived in two days.

"Bearmach branded replacement 3 pin brake light pedal switch, suitable for all Land Rover Freelander 1 models from 2001 onwards, for exact fitment from chassis number: 1A326957 onwards."

Rimmer Bros do sell them though the P&P makes it a bit expensive unless your order other items.

What it came out it was easy as it just twists out, getting it back took a lot of fiddling, it has a lug that you need to align and get the angle right. I did undo the screws on the fuse board and pushed it to one side so I could see. I tried with the cable connected first, that proved difficult and was easier without the plug connected.

Hope this helps. worth a go for this price.

Thanks for helping me last days,
I am very happy to solved my problem but the fault not from brake switch.
I searched in Google to solved HDC LIGHT, there is another solution for this case, the solution was to do adjust for rpm wire from throttle body when i made adjust for it the light for HDC gone

This is source for information
http://www.myfreelander.co.uk/Body/femmemprobs9.htm

Nodge68 · Sep 5, 2018

elameed elaneed said:
I searched in Google to solved HDC LIGHT, there is another solution for this case, the solution was to do adjust for rpm wire from throttle body

You didn't say it was a V6 and I didn't actually notice the rev counter.

At least it's sorted.

elameed elaneed · Sep 6, 2018

Nodge68 said:
You didn't say it was a V6 and I didn't actually notice the rev counter.

At least it's sorted.

oppssss, i forgot to monition that, sorry
