Freelander 1 Name of 3 way connector in Upper Radiator Hose?

Discussion in 'Land Rover Freelander' started by vihippo, Feb 19, 2016.

< Previous Thread | Next Thread >
  1. vihippo

    vihippo Member

    Joined:
    Feb 13, 2014
    Posts:
    37
    Likes Received:
    0
    Hi everyone,
    Anyone know what the technical name is and if I can just order this one part?
    Looks like it could be a generic Dorman Tee coupler that uses normal hose clamps.

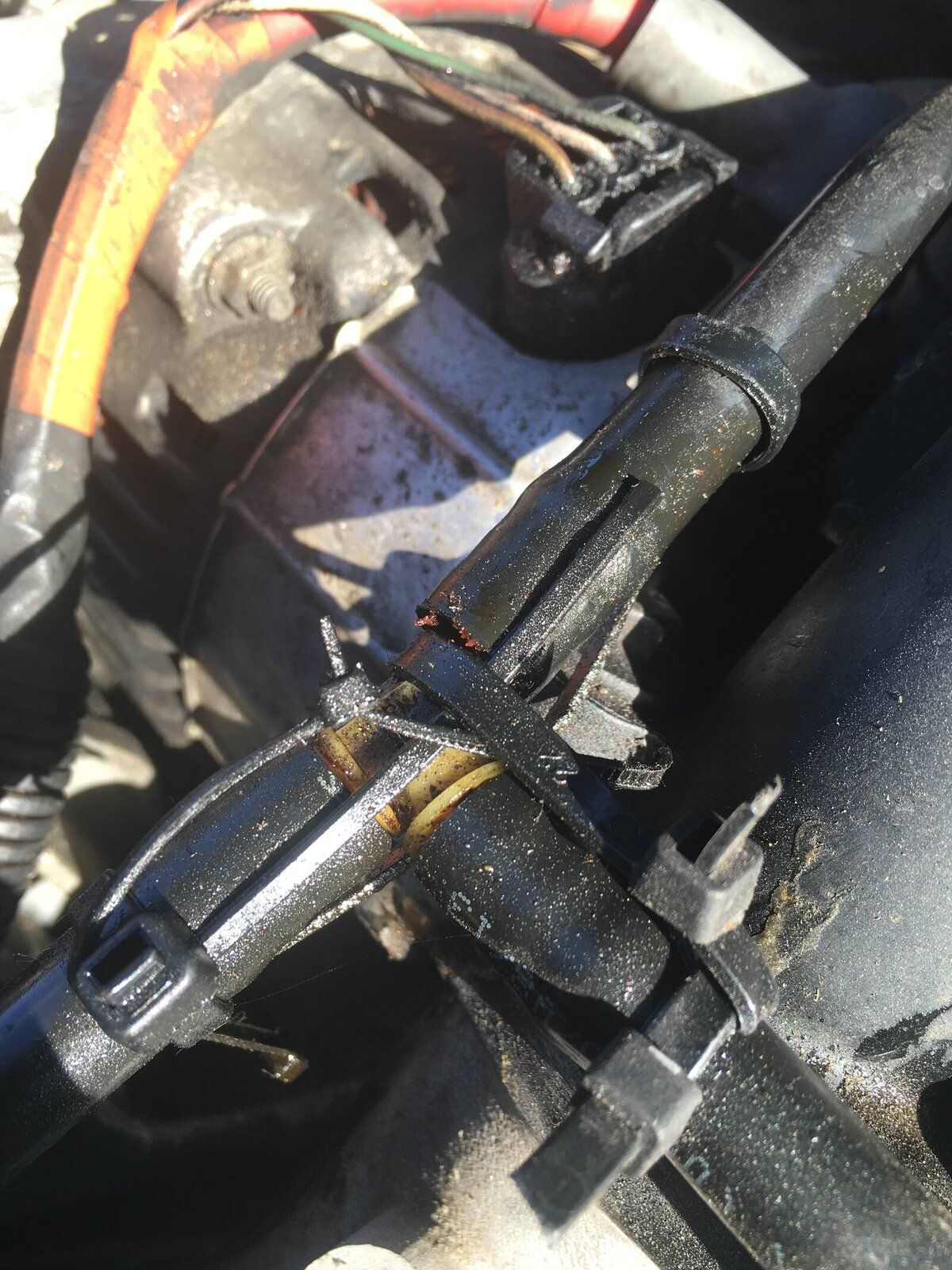

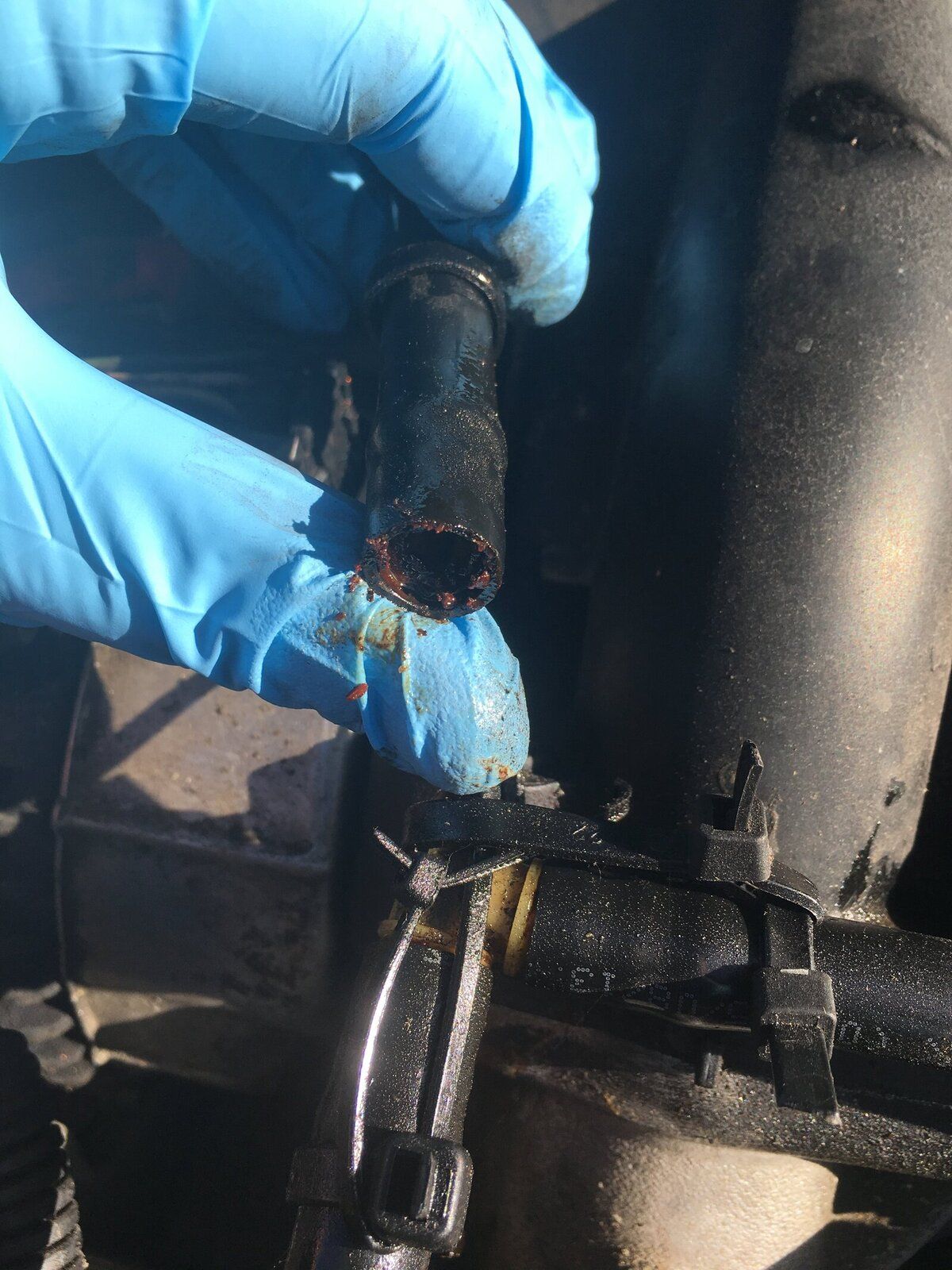

    Just had this tiny plastic piece fail. Just need to replace it as the hoses are still really good. ( had the coolant system completely overhauled 3 years ago ). Thanks! :)

    EDIT: Guess I should state its for a V6 auto trans.

    [​IMG]
    Not sure if it's ok to hotlink images here. Mods let me know and I'll move it the gallery.

    Last edited: Feb 19, 2016
  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    25,503
    Likes Received:
    6,723
    Location:
    Near Newquay
    The T only comes with the hoses iirc. You might be able to find an equivalent. Measure the tales and do a search ;)

  3. Andythedrum

    Andythedrum Member

    Joined:
    May 25, 2015
    Posts:
    93
    Likes Received:
    0
    Location:
    Cardiff, UK
    Last edited: Feb 19, 2016
  4. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,970
    Likes Received:
    441
    Location:
    Westmidlands
    In you pics above that looks like to be the breather hose that joins onto the vis motor .
    http://www.brit-car.co.uk/search.ph..._type=&xSupplierID=&product-sort=&xPerPage=10

    https://www.lrdirect.com/LLH102660L-supplied-by-LAND-ROVER-branded-LAND-ROVER.html
    This is for the radiator top hose.
    http://www.brit-car.co.uk/search.ph..._type=&xSupplierID=&product-sort=&xPerPage=10
    http://www.island-4x4.co.uk/hose-radiator-eurospares-pch000232-p-25321.html

  5. Andythedrum

    Andythedrum Member

    Joined:
    May 25, 2015
    Posts:
    93
    Likes Received:
    0
    Location:
    Cardiff, UK
    Ah sorry! They looked the same to me. Thanks for the correction. At least I'll be buying the correct one now! ;)

  6. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,970
    Likes Received:
    441
    Location:
    Westmidlands
    No problem you are welcome I always keep spare for both, as I also have a MGZT 190 which takes a similar breather hose, it differs only at the end which fits into the throttle body, to remove the hose press in the red collar, and the black collar on the throttle body.
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Photos from when I changed my thermostat on the V6 through key hole method

  7. Andythedrum

    Andythedrum Member

    Joined:
    May 25, 2015
    Posts:
    93
    Likes Received:
    0
    Location:
    Cardiff, UK
  8. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,970
    Likes Received:
    441
    Location:
    Westmidlands
  9. vihippo

    vihippo Member

    Joined:
    Feb 13, 2014
    Posts:
    37
    Likes Received:
    0
    Thanks Artic2!
    Got something on order from the local auto parts place. I was worried about engine temps melting plastic so I found a generic heater part with similar dimensions.
    Hopefully it'll get here this week.
    Thanks again

  10. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,970
    Likes Received:
    441
    Location:
    Westmidlands
    Ok good news I did find this below just in case others nay have the same problem
    http://www.ebay.co.uk/itm/Brass-pip...hash=item2eeb856786:m:m1yxhHk5-d1JYhzNHtL3dRQ
