Disco 2 n/s/f bumper cover removal

john_p_b · Jan 25, 2019

as title, need to get this off for paint as it's got an annoying scuff in it. i've removed the 3 screws underneath it, the 2 in the wheel arch and gently lifted the tabs under the headlight while giving the cover a pull as i watched a good old youtube video and this is exactly what they did but will mine move? will it heck!! it's almost like there's a fixing in the centre of it the thing holding it in place?

anyone help on this before i get all hulk on the thing?

berg450 · Jan 26, 2019

If you are talking about the front bumper then in case of a facelift model it is hold by 3 nuts on both sides (plus 3 screws under). I have just removed mine.
There is one close to the end of the bumper fixing it to the front wing (13mm size).

john_p_b · Jan 26, 2019

https://rover.ebay.com/rover/0/0/0?mpre=https://www.ebay.co.uk/ulk/itm/222583024527
That's what I'm trying to remove. Seen some pictures of 2nd hand ones and there doesn't appear to be anything on the back of them?
Is it a later revision? Do I need to take the arch liner out?

berg450 · Jan 26, 2019

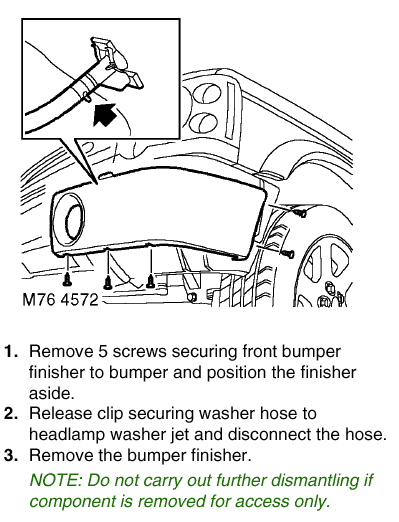

I have thought that you want to remove the whole bumper. This is in Rave...

john_p_b · Jan 26, 2019

Thank you. So it's just a case of brute force and ignorance as everything that needs unscrewing was unscrewed.
I'll have another crack at it tomorrow.
