mystery plug ?

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

mudplug

New Member
Posts
43

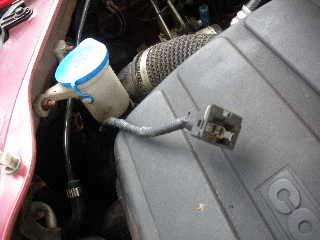

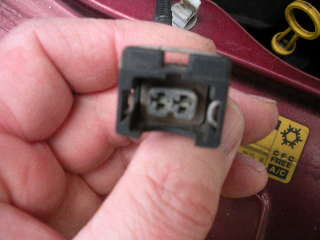

Howdy,does anyone know where this plug is supposed to be plugged in to,or if it is not required on my gs td4,just found it hanging down inside front left of engine bay the other day when I had the under tray off ?any one with any ideas?



Hi,just checked,map sensor is already in position is there anything else that springs to mind,it obviously goes somewhere on the left side of the engine compartment,cant find anywhere that seems to be missing a plug !

Post the wire colours......

brown/yellow and grey/green will be off the air temp sensor for the FBH located in front of the rad.

Last edited:
Hi,yes they appear to be brown/yellow,grey/green, please explain FBH.:confused: FUEL BURNING HEATER? oh that fuel burning heater that has an awful lot written about it on this very forum.Thanks for your great knowledge you guys, will try to find offending sensor on the next dry day,cheers.

Last edited:
The wiring for the FBH is present even if one isn't fitted.
The connectors for the FBH, fuel pump, and temp sensor are usually just taped out of the way.

Last edited:

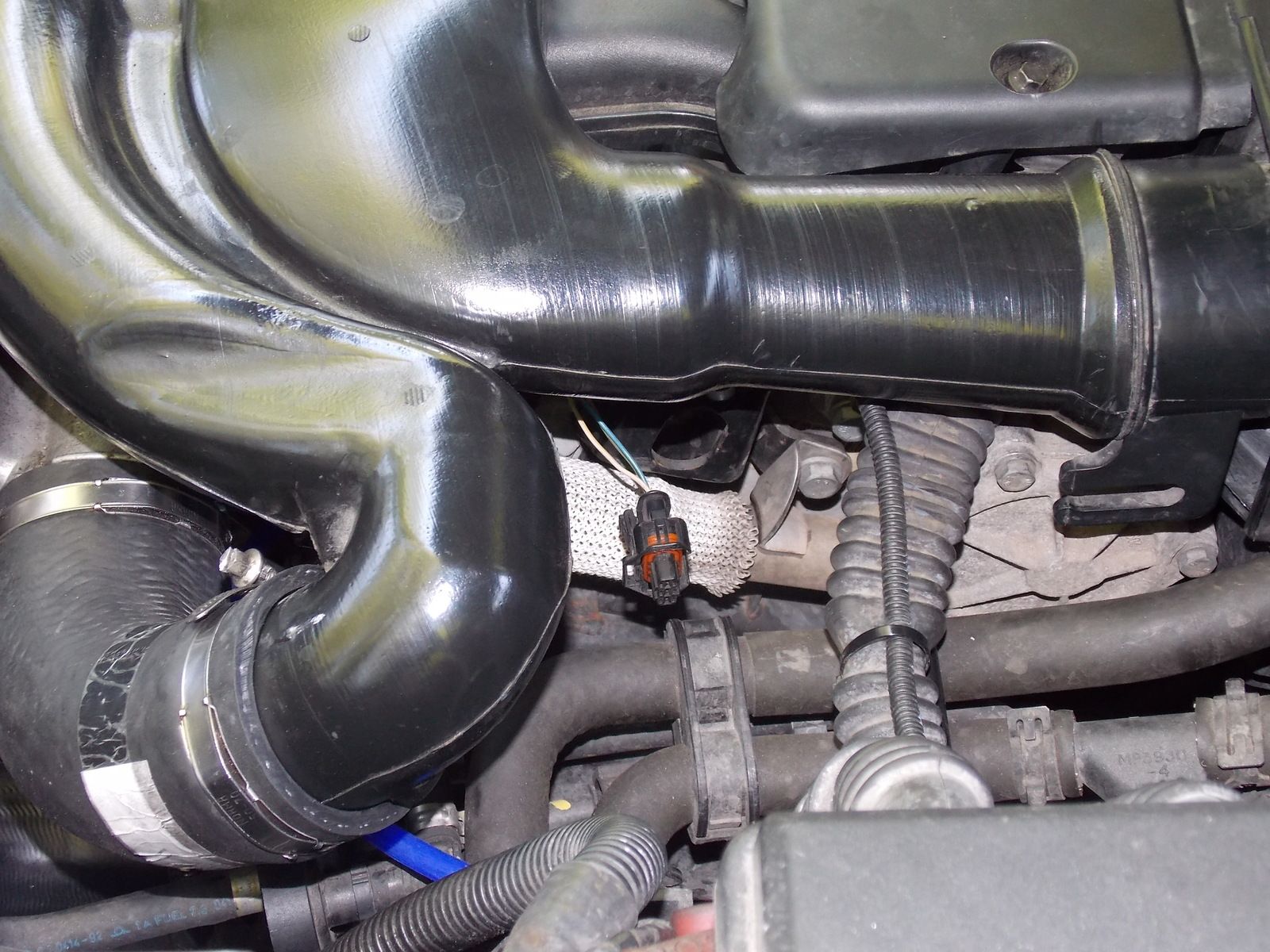

plug 003.JPGHi,another freelander another mystery plug,this one comes up by the fuel rail sensor on three short wires which are yellow/white,blue/black and brown/green,no obvious place to fit,do you think its just a plug for a higher spec model? this one is a 04 td4 sport.cheers for your input.

when looking on sales leaflets for LR, they describe around 115 optional extras for the freelander, I would imagine the wiring loom is made as standard to take everything, leaving plugs/sockets unused all over the place, my take on it is, unless you find this plug before ever driving it, why worry, it obviously don't need to be plugged into something for the car to work

That plug was for the fuel rail pressure sensor - looks as if the overlay harness has been fitted to your car and therefore it is not needed
