missing bung?

T

tomkettlewell

New Member

Posts

163

Location

Scarborough

• Mar 26, 2012

• #1

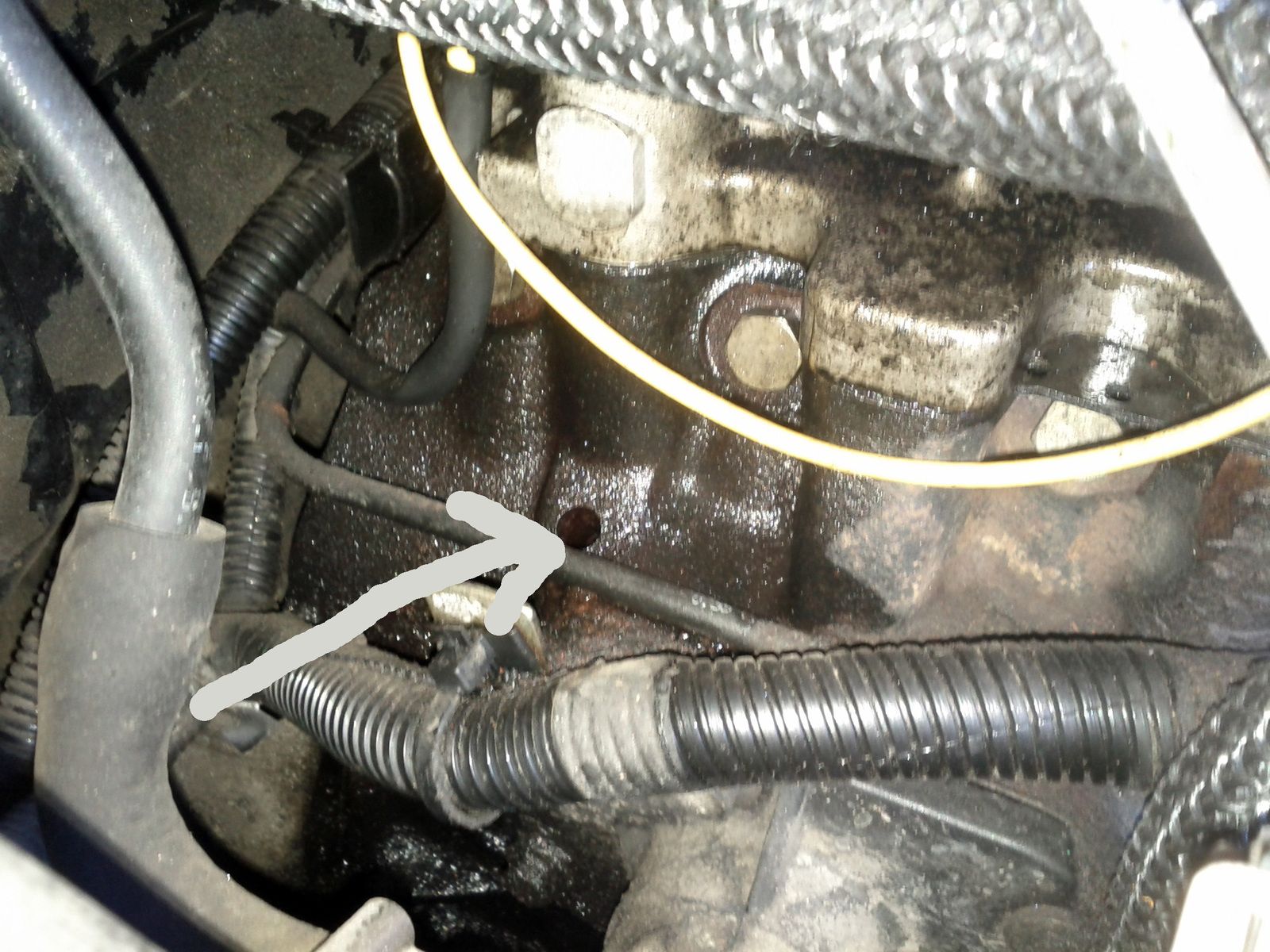

on looking for a oil leak that turned out to be the oil cooler union i saw a hole in the side of the engine which appears to have a bung missing?? also would you say the seepage from the head is head gasket related? cheers guys



Attachments

•

  287.4 KB · Views: 373

G

Gunny

New Member

Posts

184

Location

West sussex

• Mar 26, 2012

• #2

the hole is probably wading hole which you would bung when wading only, if there’s leakage from around the head then it’s more than likely head gasket gone, put some fairy liquid in a bottle and pour it over the aria when engine is running this should show if the head is leaking



R

Richard Martin

Well-Known Member

Posts

1,371

Location

Cardiff

• Mar 26, 2012

• #3

Gunny said:

the hole is probably wading hole which you would bung when wading only, if there’s leakage from around the head then it’s more than likely head gasket gone, put some fairy liquid in a bottle and pour it over the aria when engine is running this should show if the head is leaking

Click to expand...

Not up there it isn't...



jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• Mar 26, 2012

• #4

hole is a drilling made when cam bearing oil feed was made through to oil galllery ,normaly blocked with plastic plug or silicone,look at rocker cover gasket first



John FHA

Active Member

Posts

300

Location

Cleveleys, Blackpool

• Mar 27, 2012

• #5

by the looks of it you have deposits above the head gasket on the head its self. check your injectors leakoff pipes and rocker cover bolts. Best way is to use an engine de greaser wash it off wait till dry then run it and you will easy find where and what is leaking.



John FHA

Active Member

Posts

300

Location

Cleveleys, Blackpool

• Mar 27, 2012

• #6

Check your cyclone breather aswell. they always tend to leak some. If you don't know it's the plastic thing sticking out of the rocker in the center.
good luck with it.



T

tomkettlewell

New Member

Posts

163

Location

Scarborough

• Mar 27, 2012

• #7

Thanks guys I'll get on it first thing, got new oil cooler pipes on order too as the top one is leaking at the union. Also have a uj to fit and prop donut, she's definitely having a moment is the old lass.
