Mini restoration of my 75 Series 3

Discussion in 'Series Land Rovers' started by norried, Apr 5, 2018.

< Previous Thread | Next Thread >
  1. Riggwelter

    Riggwelter Active Member

    Joined:
    Jul 21, 2016
    Posts:
    106
    Likes Received:
    14
    Location:
    Sweden
    Norrie, which proportions do you use for paint/thinner?

  2. norried

    norried Active Member

    Joined:
    Feb 27, 2018
    Posts:
    205
    Likes Received:
    48
    Location:
    Stow
    I tend to try and put it on with no thinners unless I'm struggling then I just add a small amount probably no more than 10%.

    Norrie.

  3. norried

    norried Active Member

    Joined:
    Feb 27, 2018
    Posts:
    205
    Likes Received:
    48
    Location:
    Stow

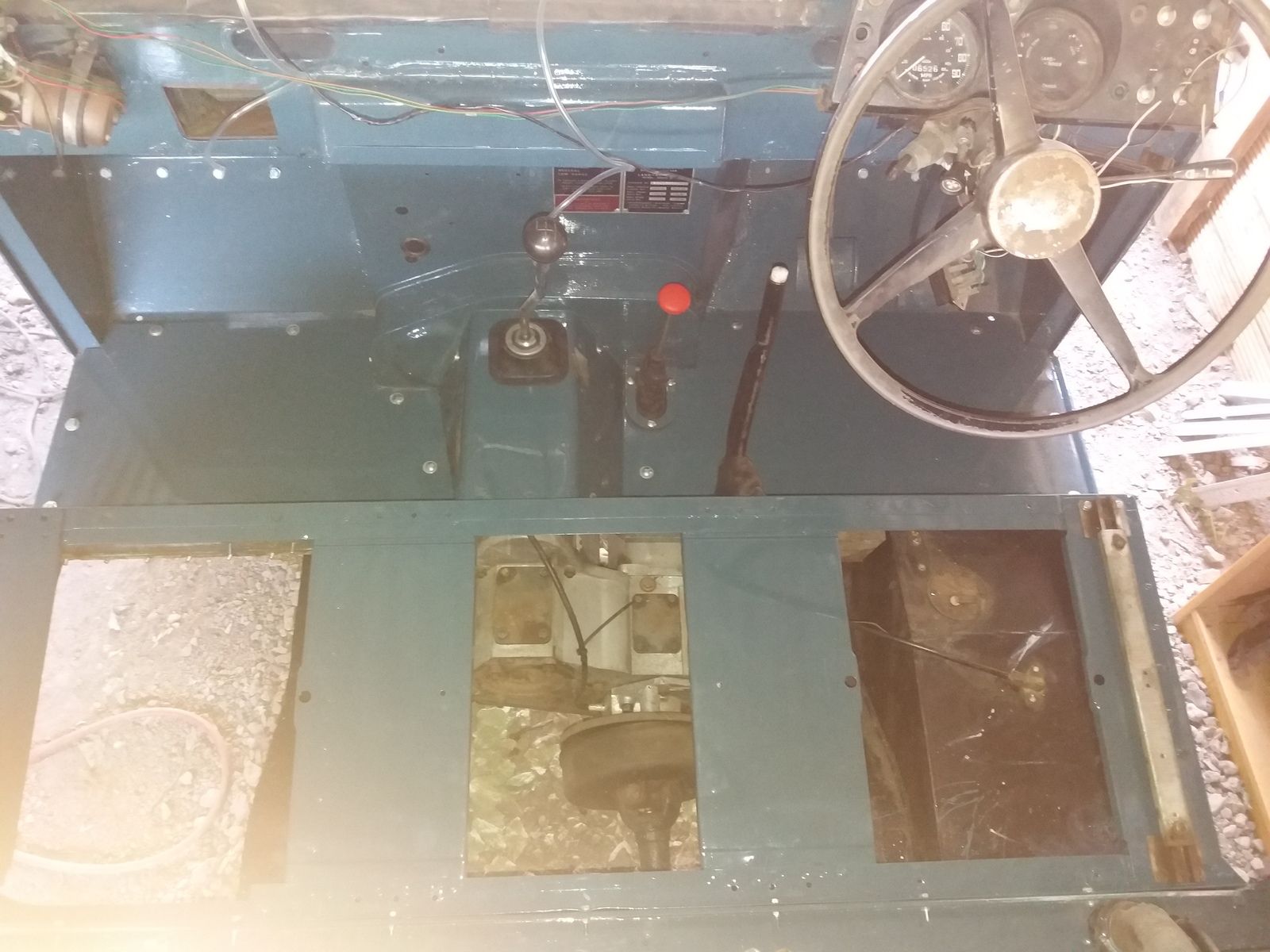

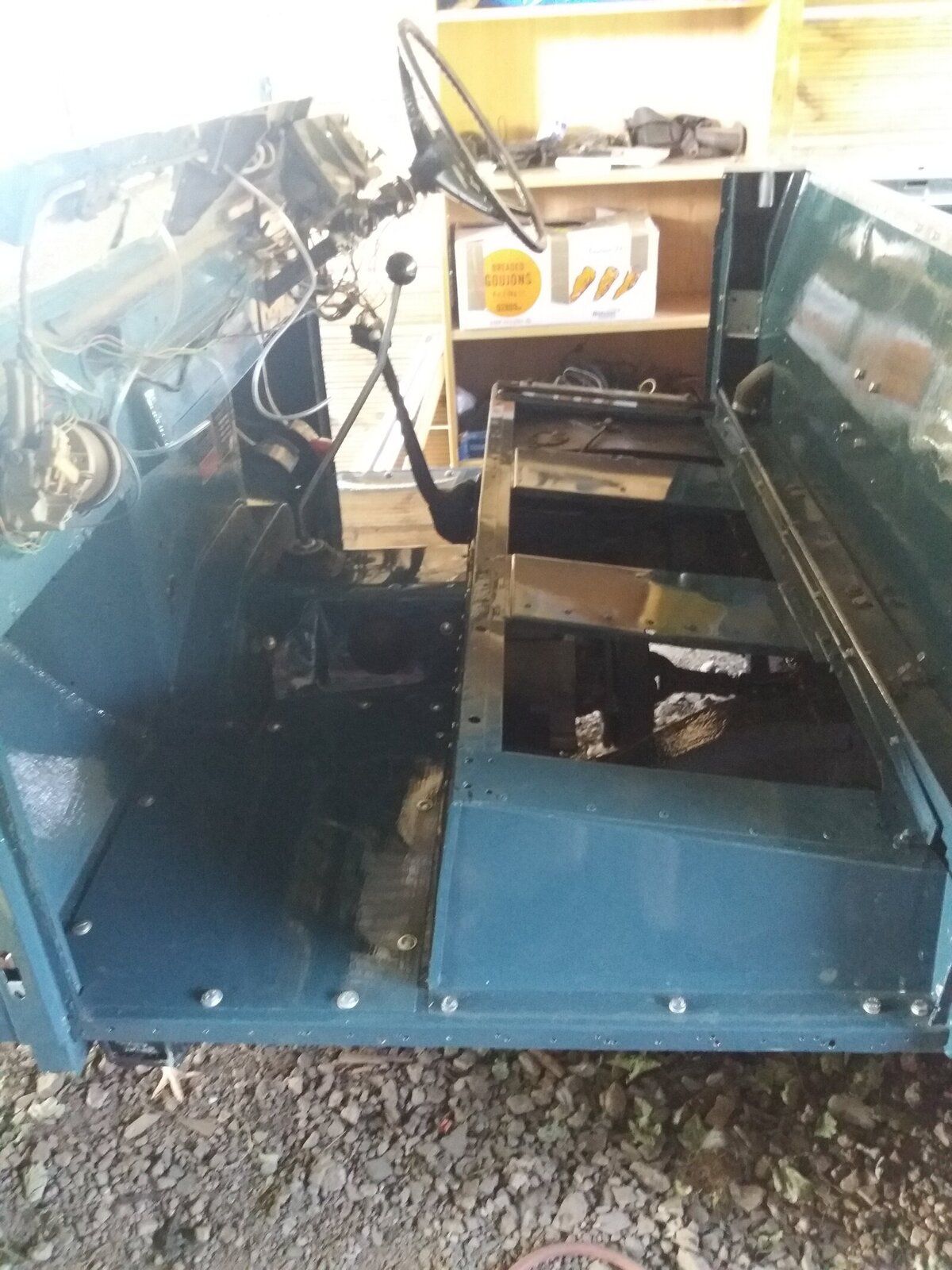

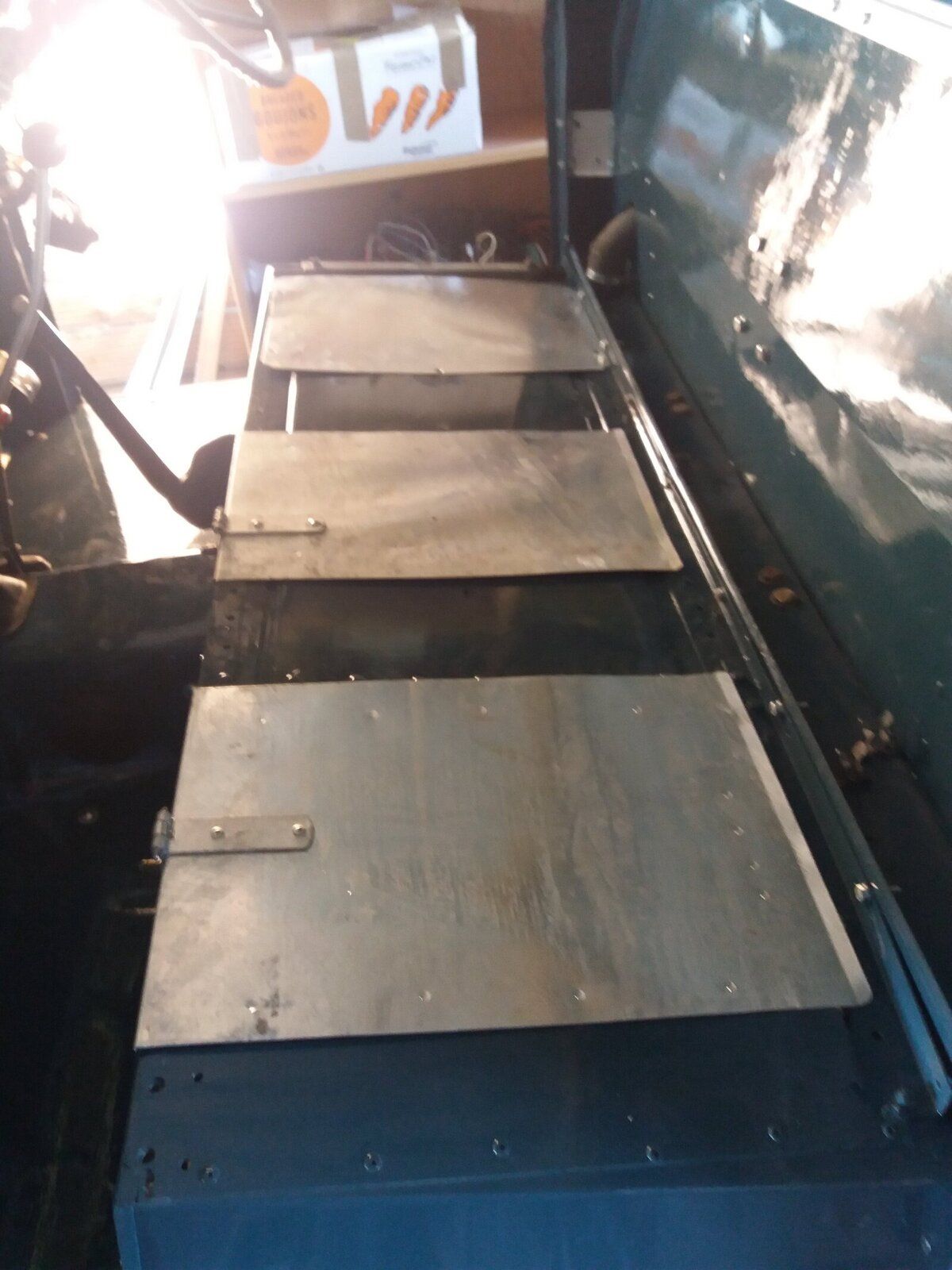

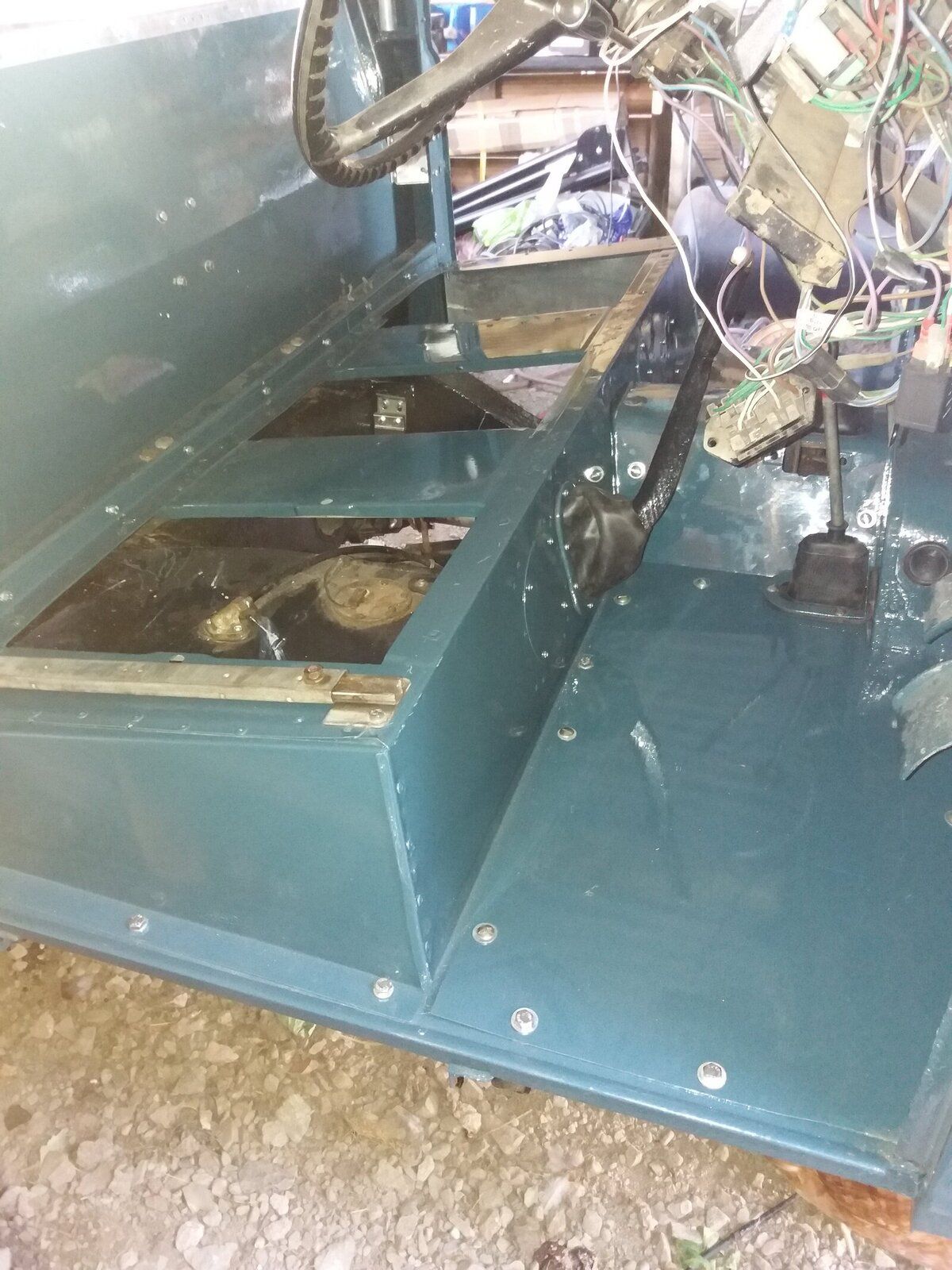

    Fitted the seat box, gearbox tunnel and floor plates today.
    20180701_171645.jpg 20180701_171727.jpg 20180701_171751.jpg 20180701_174417.jpg

    Norrie.

  4. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    1,907
    Likes Received:
    170
    Location:
    Tyneside
    Is that a rubber hand brake gaiter as if it is you need to fit it going backwards into the void behind the seat box or it will tear very quickly.

  5. norried

    norried Active Member

    Joined:
    Feb 27, 2018
    Posts:
    205
    Likes Received:
    48
    Location:
    Stow
    Ok thanks. It did feel a bit tight.

    Norrie.

  6. norried

    norried Active Member

    Joined:
    Feb 27, 2018
    Posts:
    205
    Likes Received:
    48
    Location:
    Stow

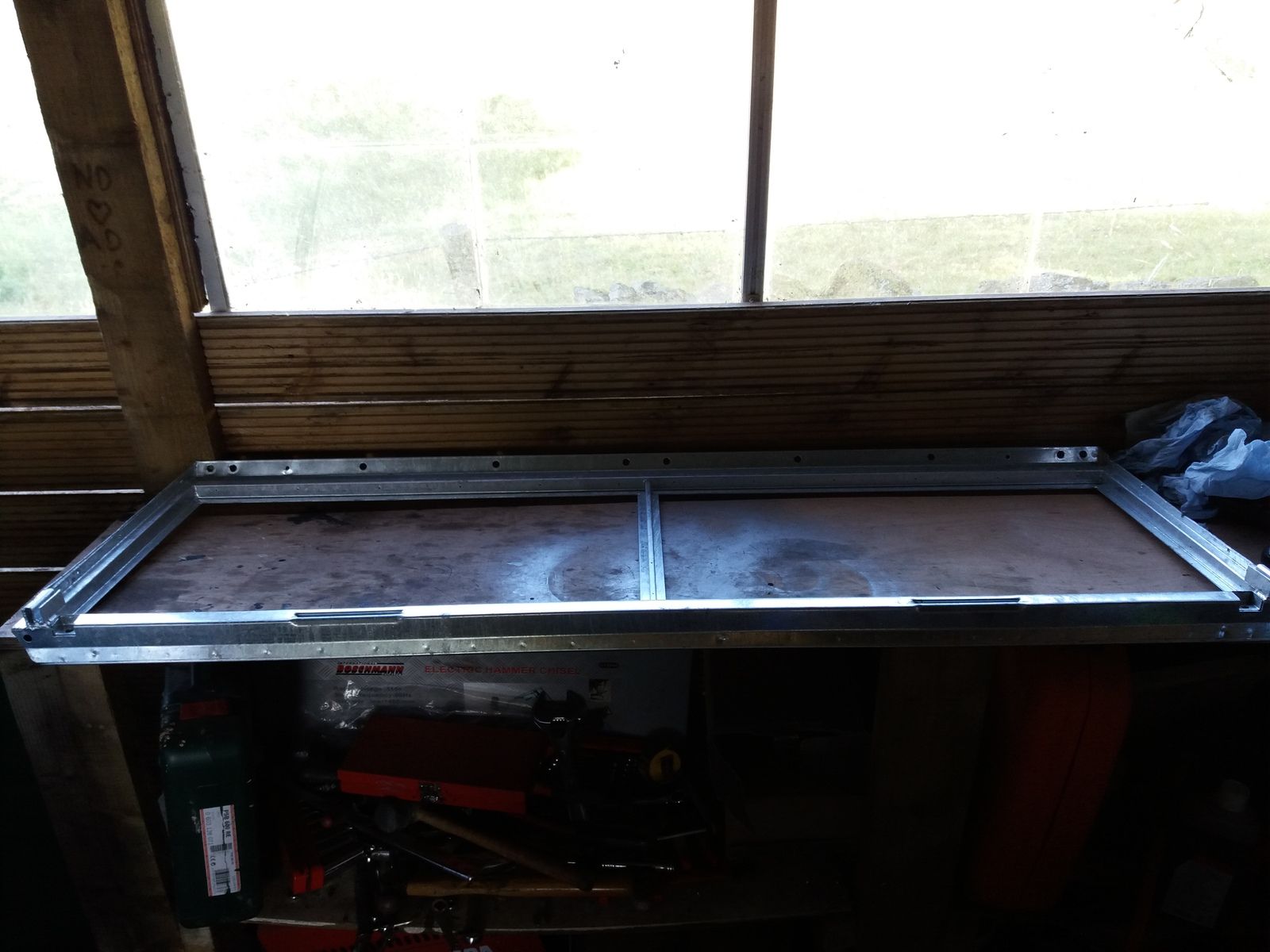

    Got the windscreen frame ready to be re-glazed. Cleaned up all the trim and glass etc. Will finish it tomorrow.
    Norrie

  7. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    1,553
    Likes Received:
    487
    Location:
    Warwick
    Thanks for the tip, I have just fitted one and found the same as @norried that is was not as flexible as i had hoped.
    Does reversing it cause any other problems?

  8. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    1,907
    Likes Received:
    170
    Location:
    Tyneside

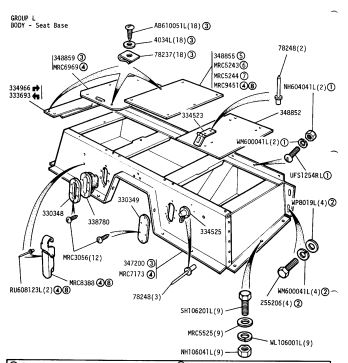

    No that is the way it is designed to be fitted. The quality of the rubbers is poor best option is to make one out of leather.


    Attached Files:

    Rubins4 likes this.
  9. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    1,553
    Likes Received:
    487
    Location:
    Warwick
    Having turned it around so it is the correct way I now cannot release the handbrake! The rubber pushes it back on at least one click. I think leather would definitly be that way to go!

  10. norried

    norried Active Member

    Joined:
    Feb 27, 2018
    Posts:
    205
    Likes Received:
    48
    Location:
    Stow

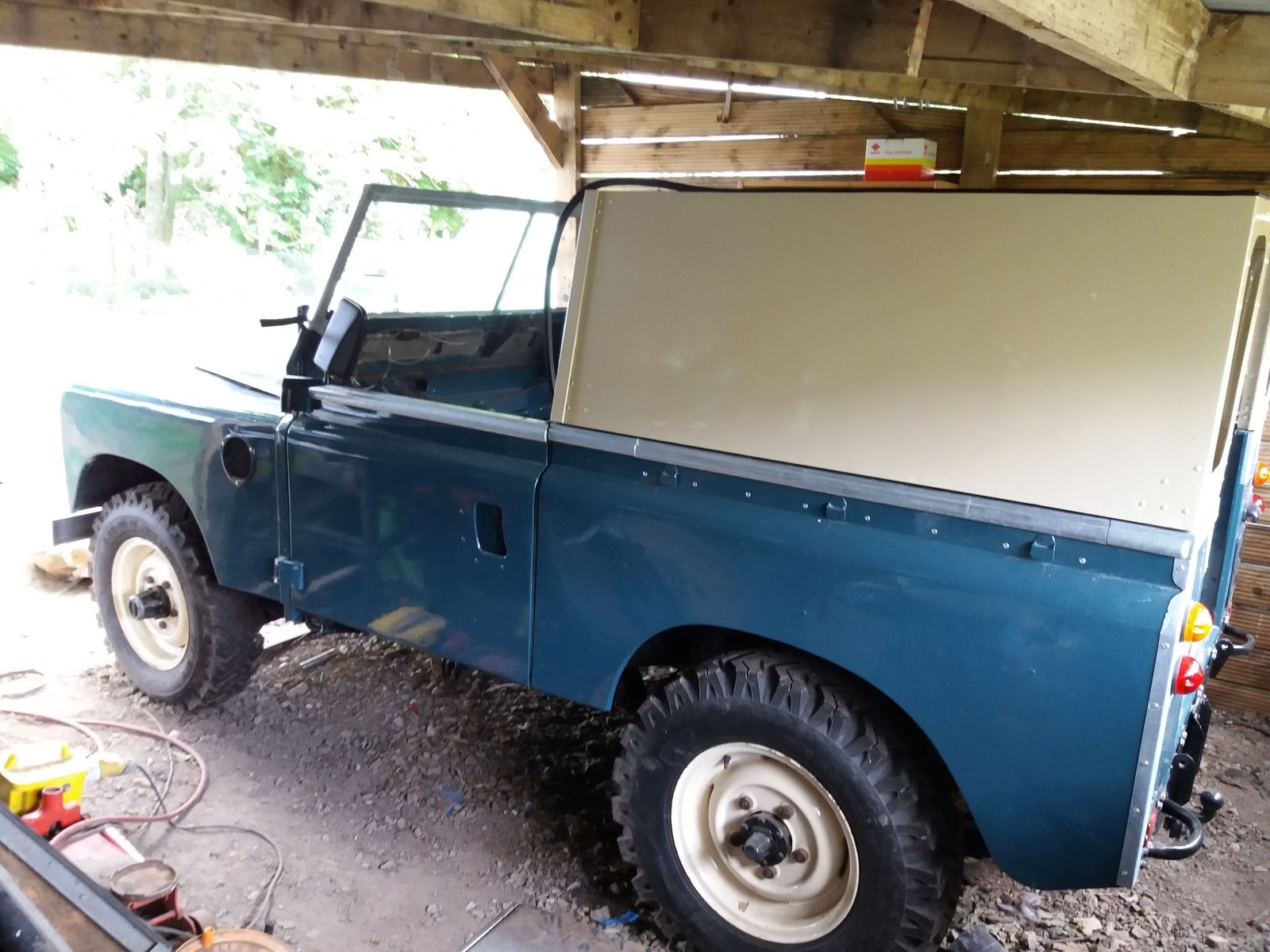

    Well I've started work on the Landy again. That's the sides installed with new seals and the doors are on. I still need to rivet the roof back together before fitting that.

    Norrie.

    Hicap phill likes this.
  11. Rubins4

    Rubins4 Well-Known Member

    Joined:
    Feb 1, 2013
    Posts:
    777
    Likes Received:
    152
    Looks superb. Good luck with the roof.

  12. norried

    norried Active Member

    Joined:
    Feb 27, 2018
    Posts:
    205
    Likes Received:
    48
    Location:
    Stow

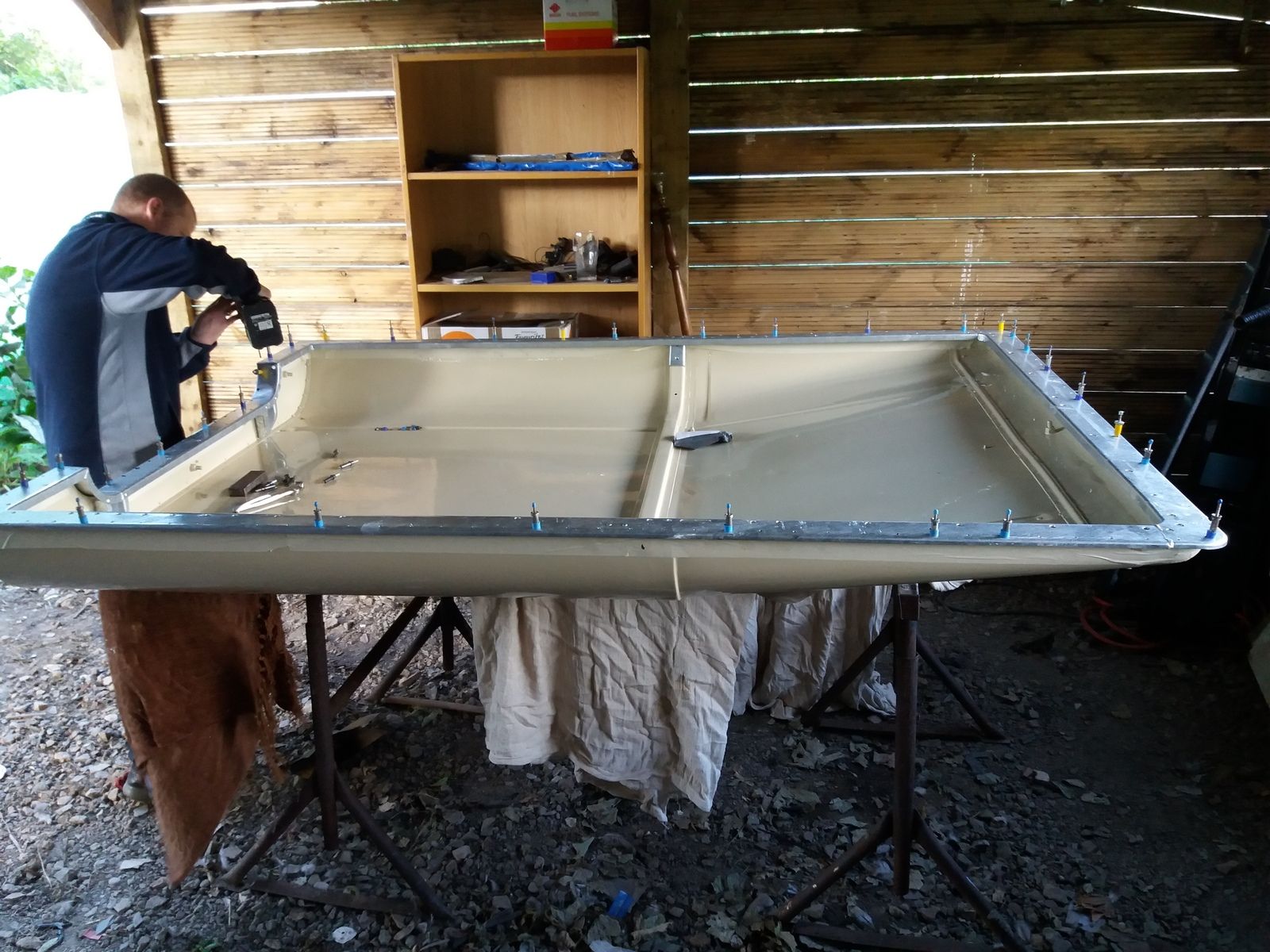

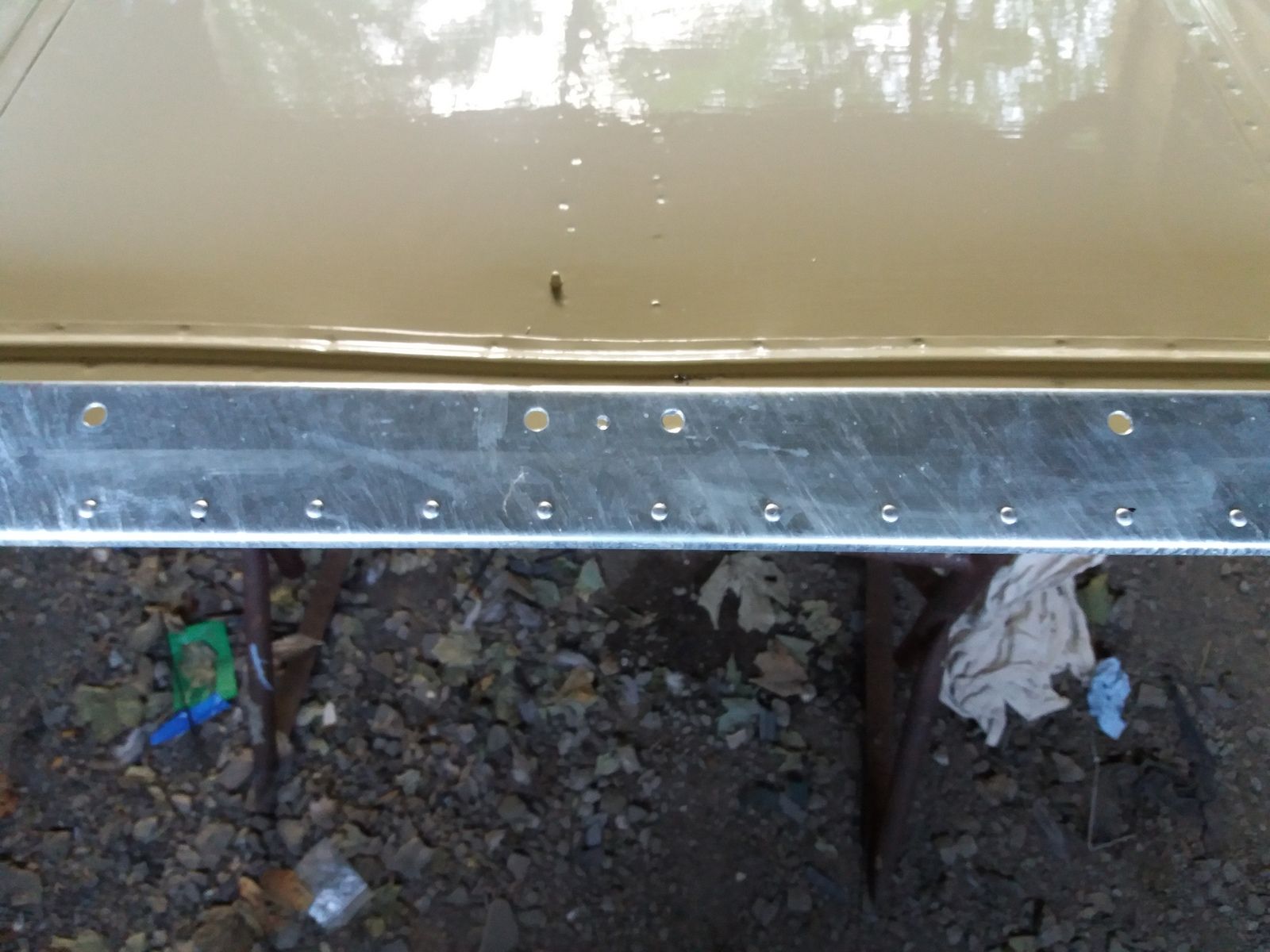

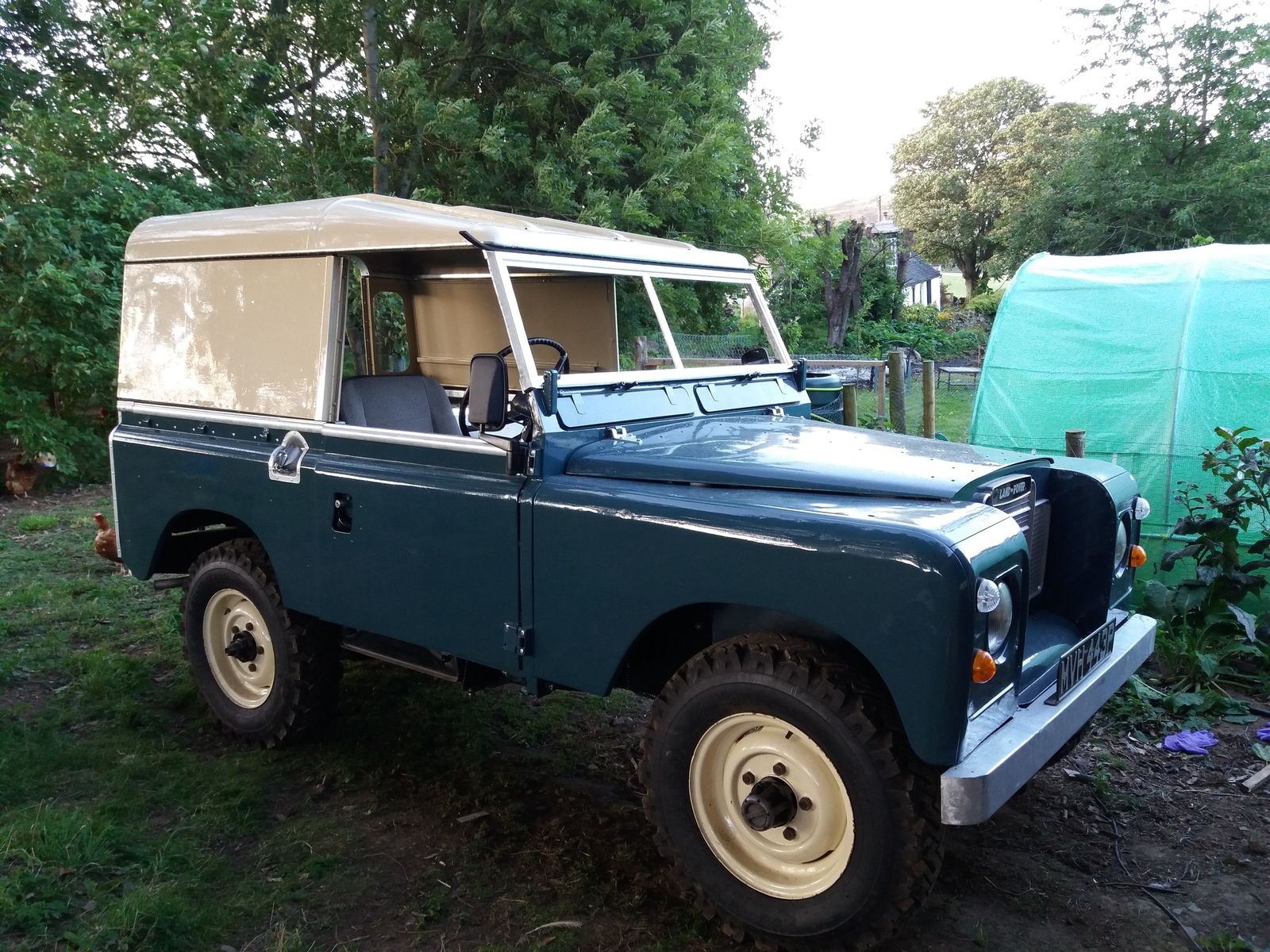

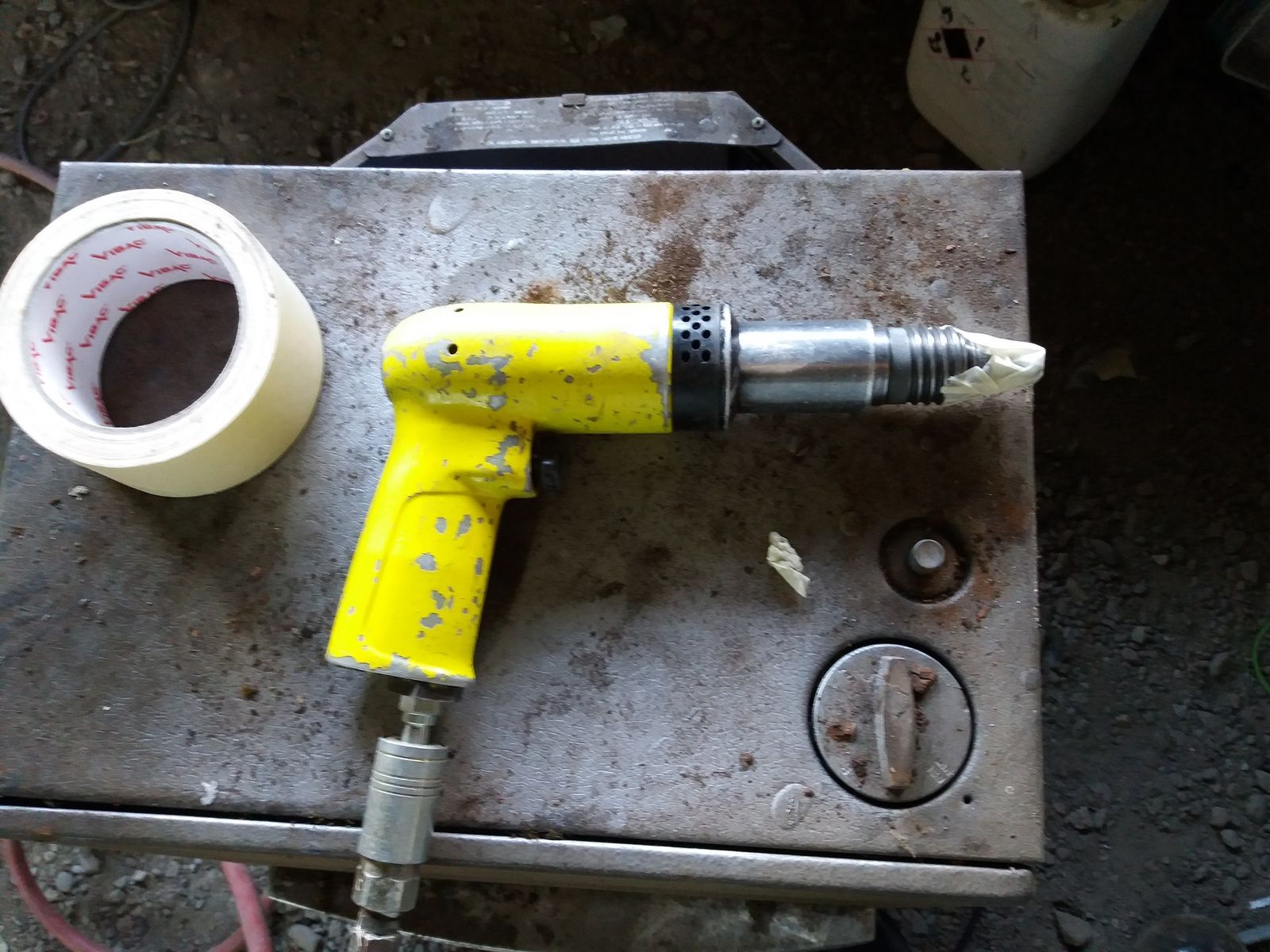

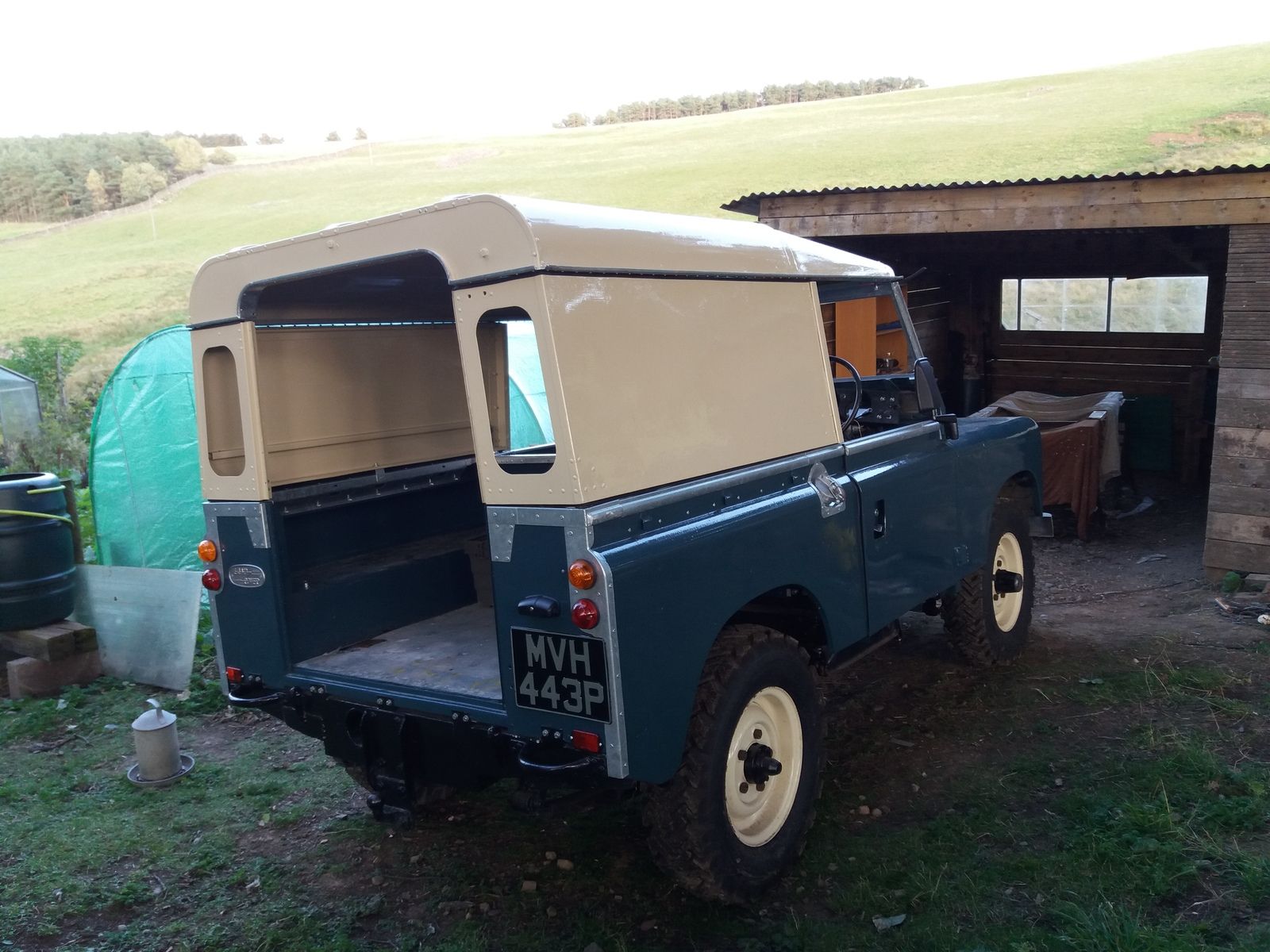

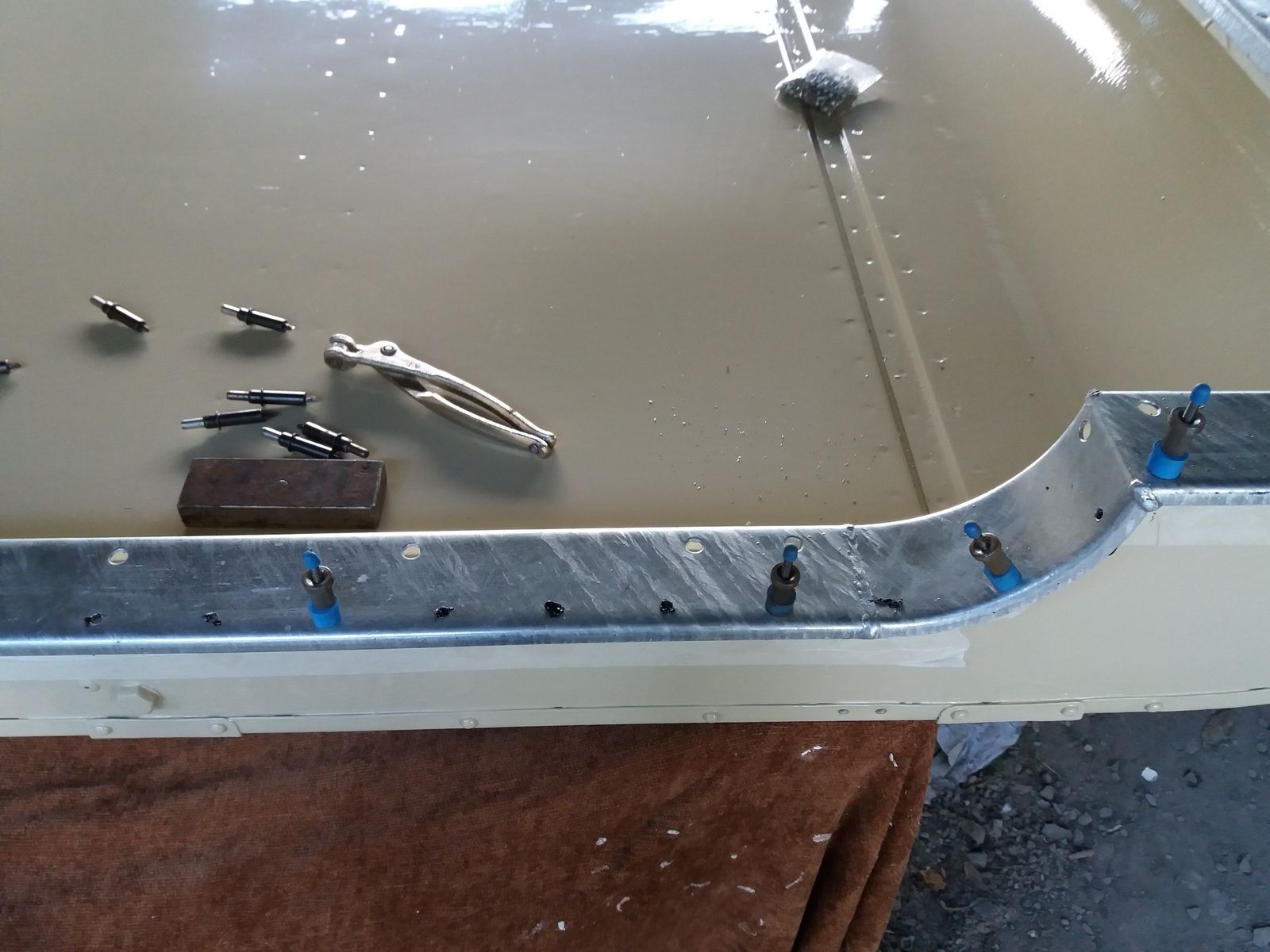

    Riveted the roof back together today. I was going to hire the proper rivet squeezer and hollow rivets but there was a 3 week waiting list. I managed to borrow my mates pneumatic riveter and just used solid rivets. My mate used to be an aircraft engineer so had skin pins to lign everything up before putting the rivets in. Anyway pretty please with the result.
    I've still to tighten the sides and roof down properly but you get the idea.
    20180909_163406.jpg 20180909_163411.jpg 20180909_163422.jpg 20180909_174012.jpg 20180909_190539.jpg 20180909_190551.jpg 20180909_190603.jpg

    Norrie.

  13. norried

    norried Active Member

    Joined:
    Feb 27, 2018
    Posts:
    205
    Likes Received:
    48
    Location:
    Stow

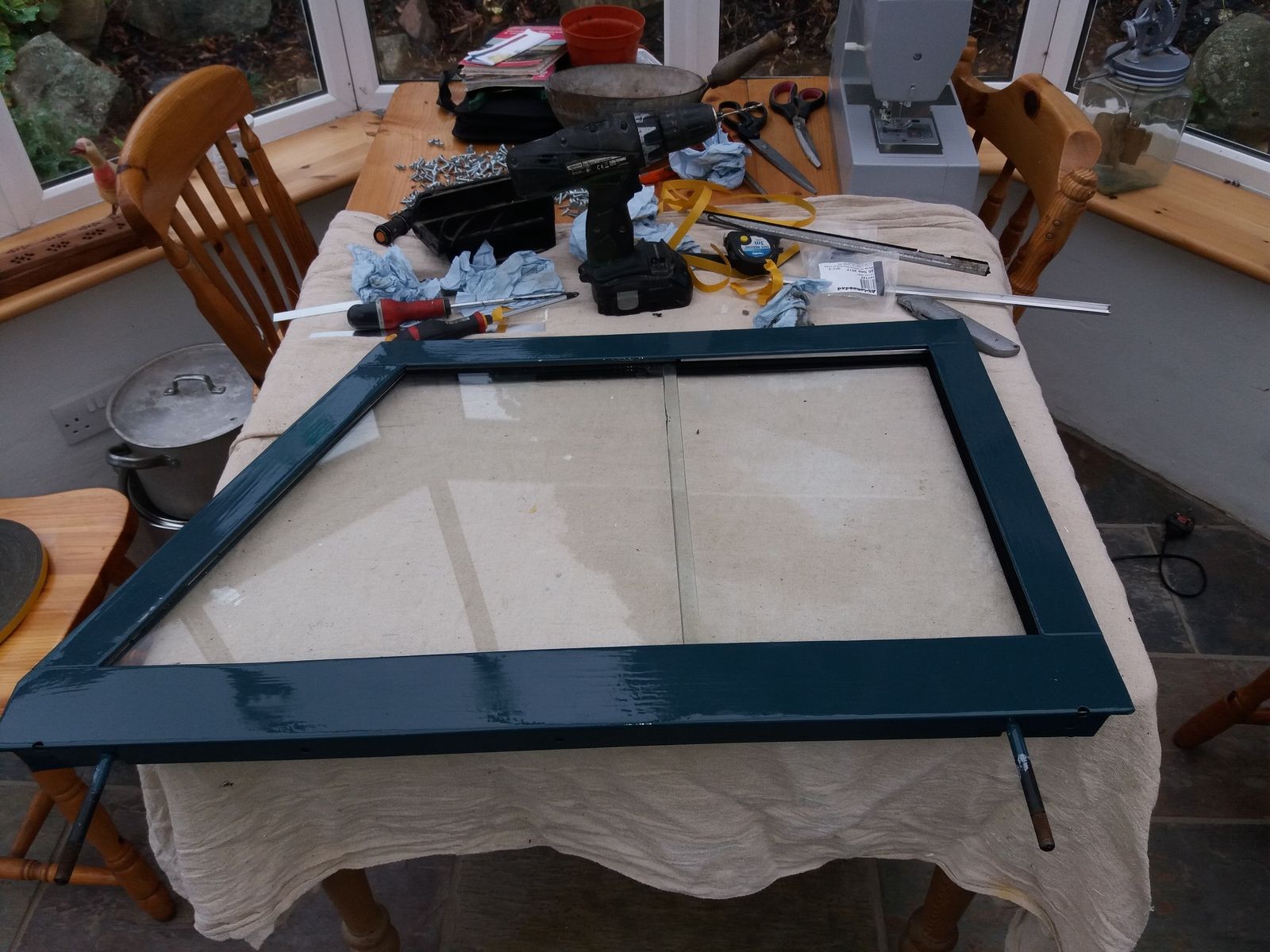

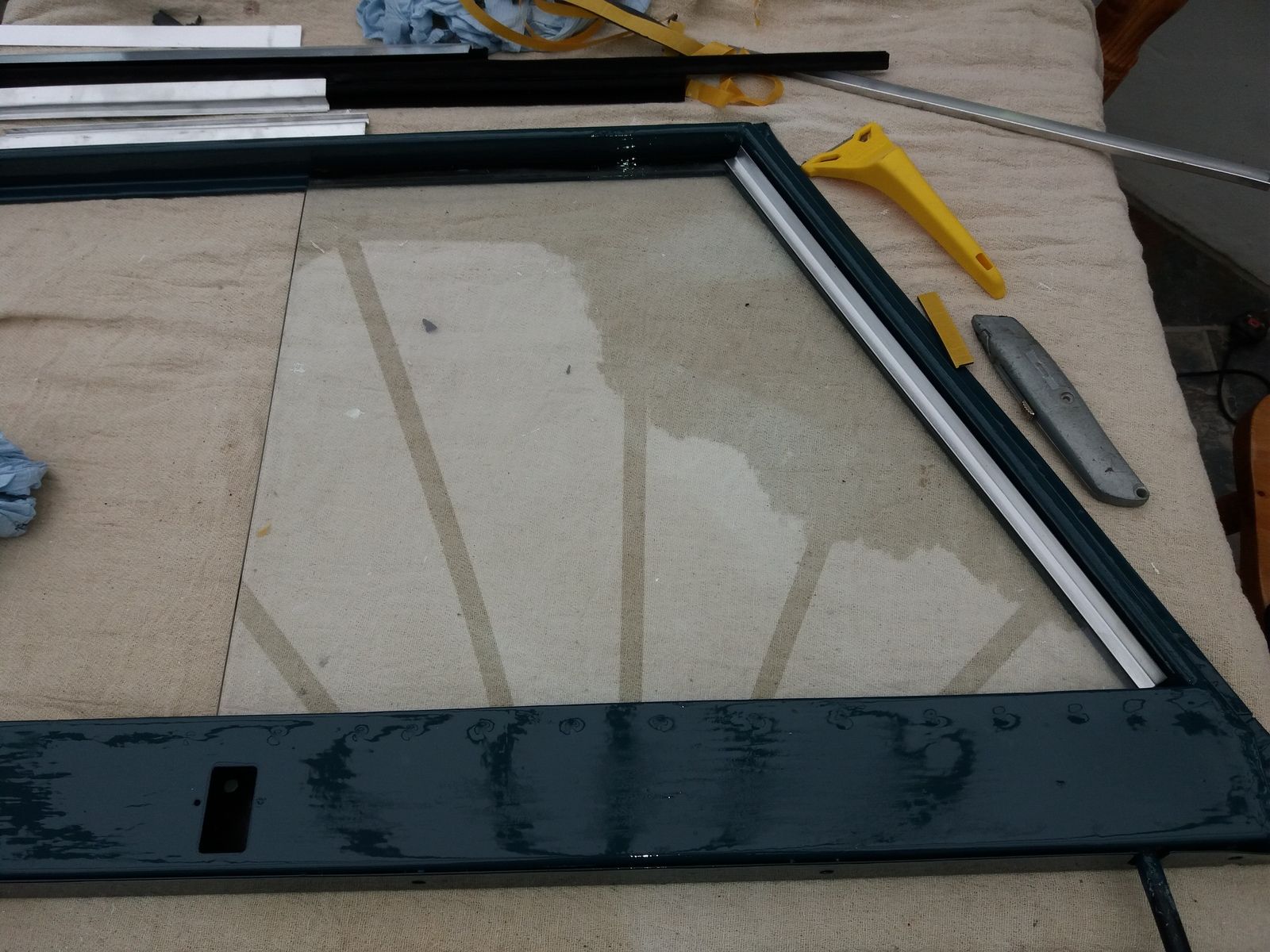

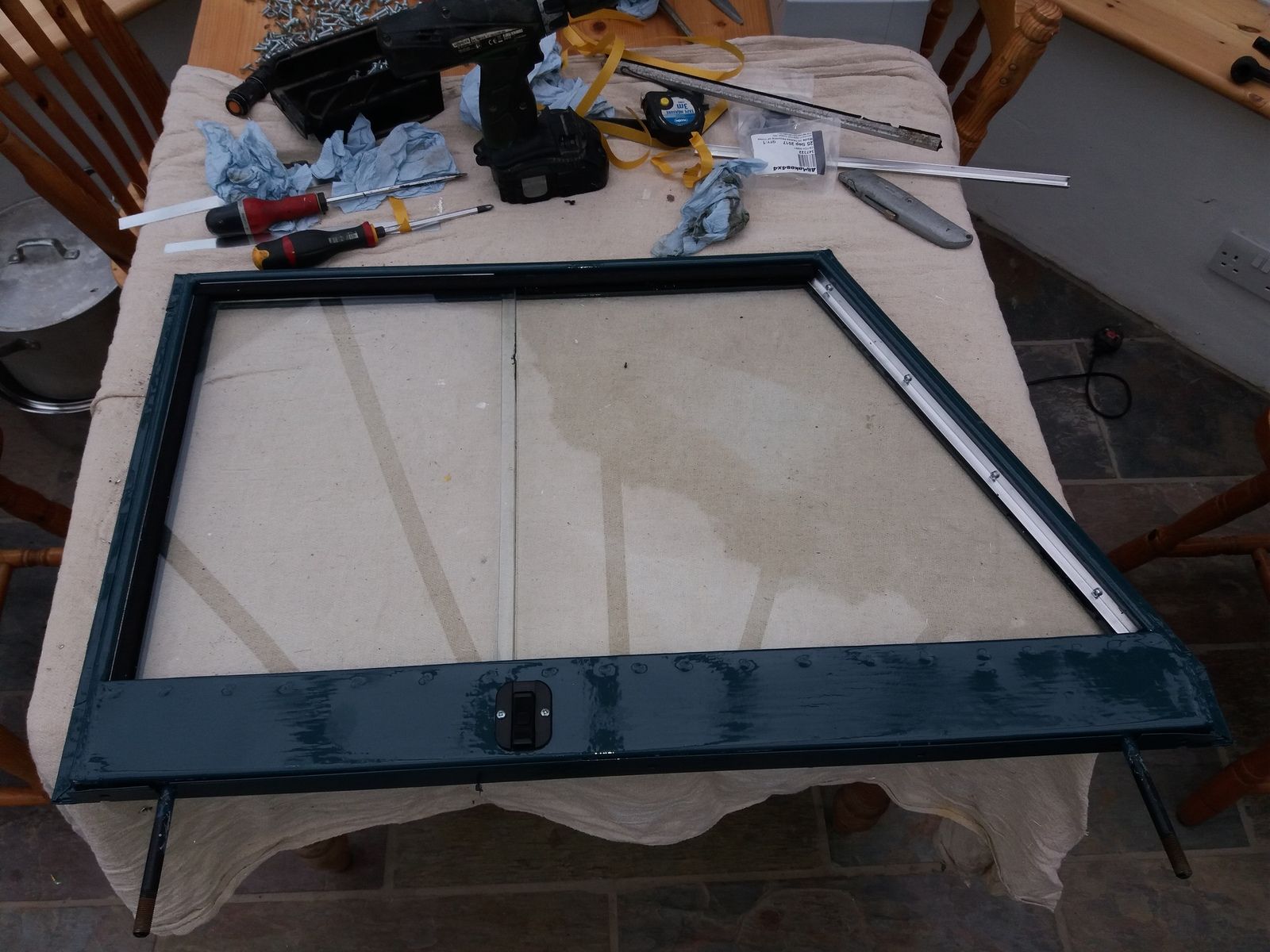

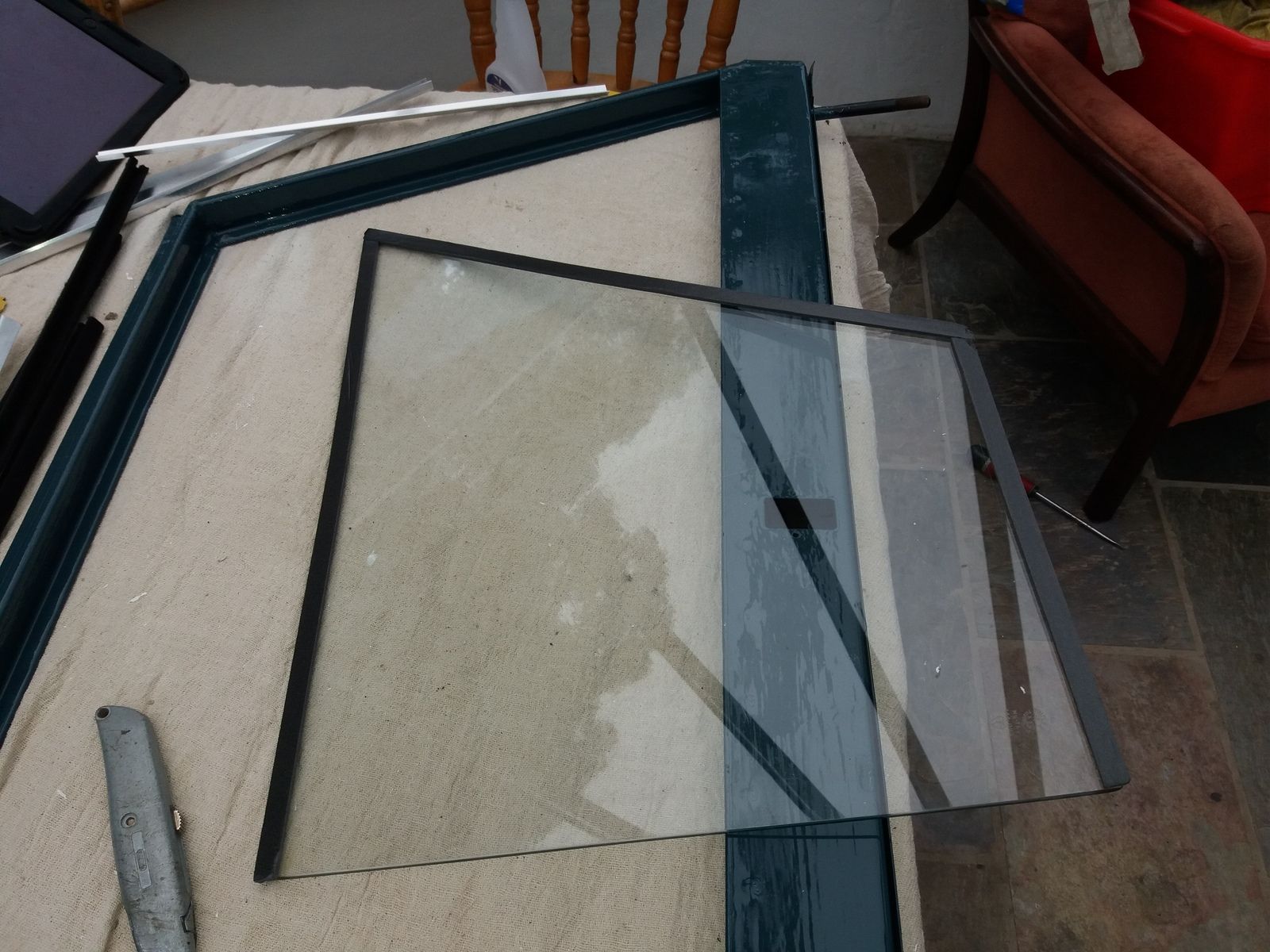

    Glazed the door tops today. Not a hard job at all. Don't know why I've put it off for weeks.
    The kit I got from Paddocks didn't include the seal between the glass but I've worked out I can fit it later. 20180910_160650.jpg 20180910_163537.jpg 20180910_165455.jpg 20180910_175118.jpg 20180910_175140.jpg

  14. scottonthefen

    scottonthefen Active Member

    Joined:
    Jul 31, 2017
    Posts:
    148
    Likes Received:
    21
    Location:
    England
    The finish is excellent for brush work. Any chance you could cover how you prepp'd, primed and painted? How much and how did you do the paint removal? What did you prime with? How many coats and what consistency did you then brush paint? Cheers.

  15. norried

    norried Active Member

    Joined:
    Feb 27, 2018
    Posts:
    205
    Likes Received:
    48
    Location:
    Stow
    Rubbed down with a DA sander with 320 grit. Etch primed, Undercoated usually 2 coats. Flattened back down with 600/800 grit and then 2 coats of gloss. Tried not to thin the paint but had trouble with the hot weather so thinned it about 10%.
    It's not as good as it looks in the pics but it's food enough for me.

    Norrie.

    scottonthefen likes this.
  16. norried

    norried Active Member

    Joined:
    Feb 27, 2018
    Posts:
    205
    Likes Received:
    48
    Location:
    Stow

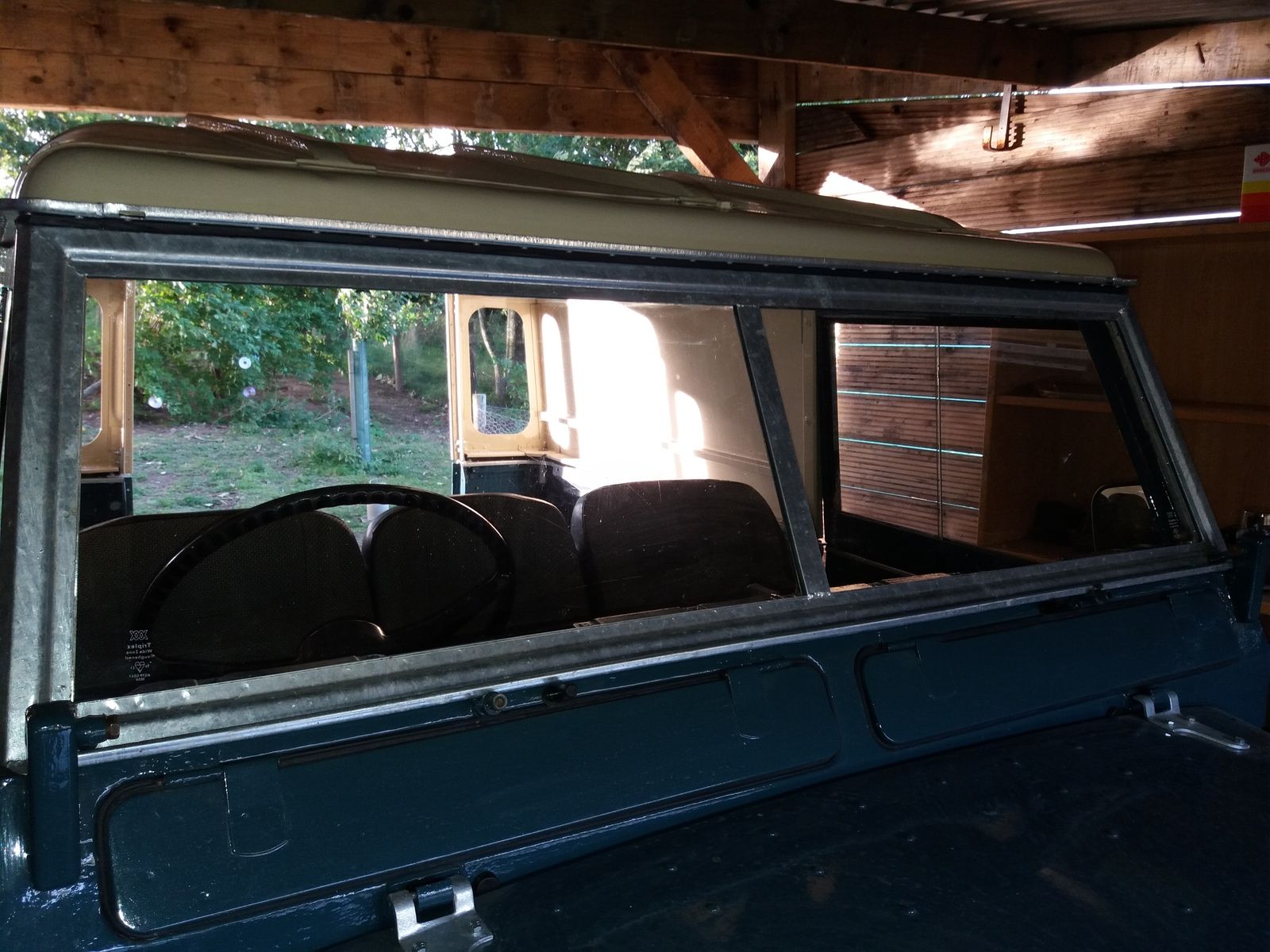

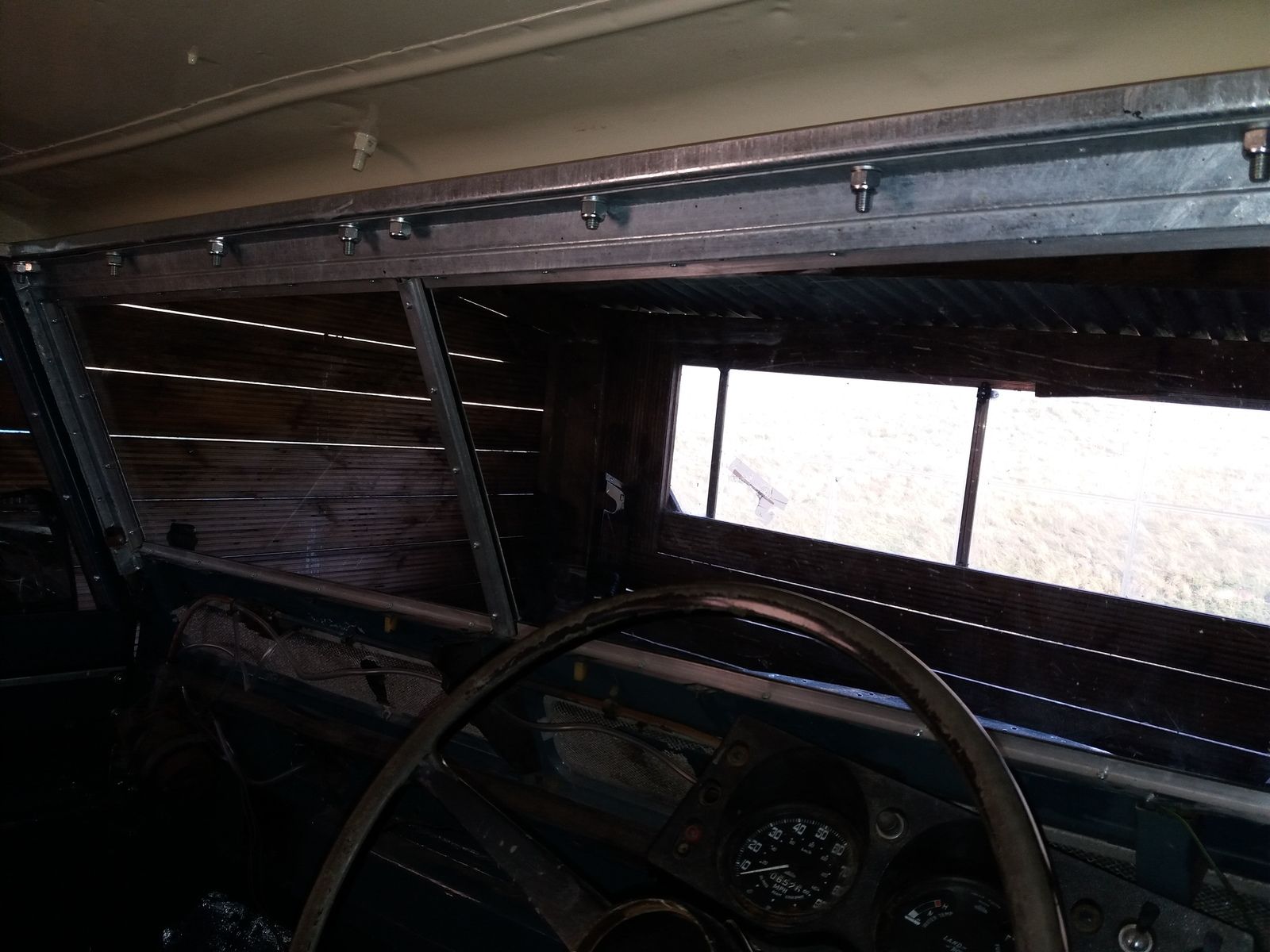

    Glazed the windscreen today and finished bolting the roof down. Oh and before anyone says anything I'm going to change the bolts for shorter ones.
    20180912_180929.jpg 20180912_180953.jpg

  17. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    1,553
    Likes Received:
    487
    Location:
    Warwick
    Just fit them the other way around, may be a little fiddlier to install but will give a tidier finished appearance as you will have a uniform row of bolt heads and the nuts ans spare threads will be hidden by the roof gutter.

  18. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    2,980
    Likes Received:
    385
    Location:
    west wales
    Looking good.:)

  19. LincolnSteve

    LincolnSteve Well-Known Member

    Joined:
    Oct 21, 2014
    Posts:
    407
    Likes Received:
    214
    Location:
    Lincoln
    Absolutely lovely work. Great to see. Well done.

  20. norried

    norried Active Member

    Joined:
    Feb 27, 2018
    Posts:
    205
    Likes Received:
    48
    Location:
    Stow
    Thanks guys. I hope to have it on the road next weekend after a 6 Month rebuild.


    Norrie.
