Mini restoration of my 75 Series 3

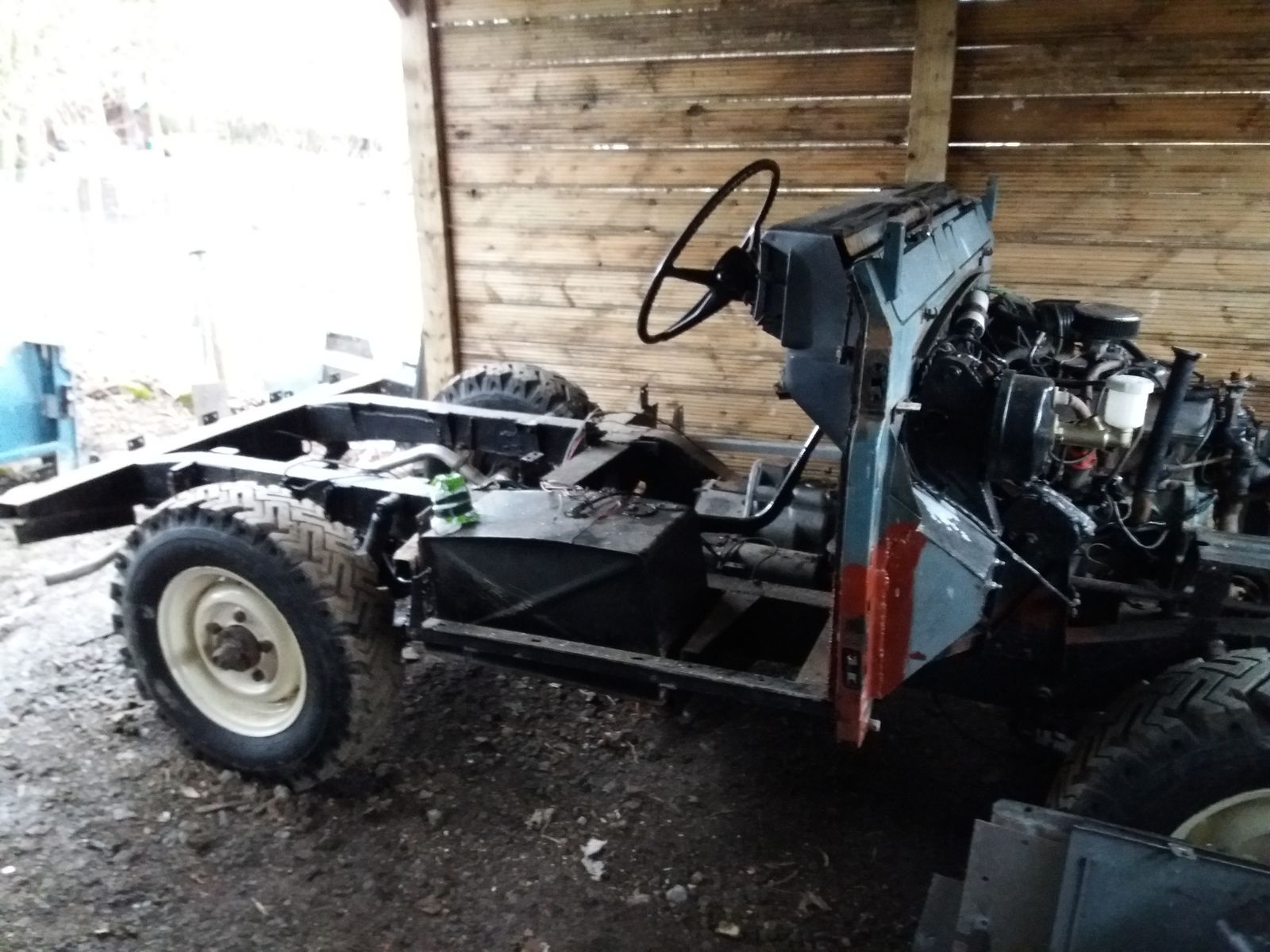

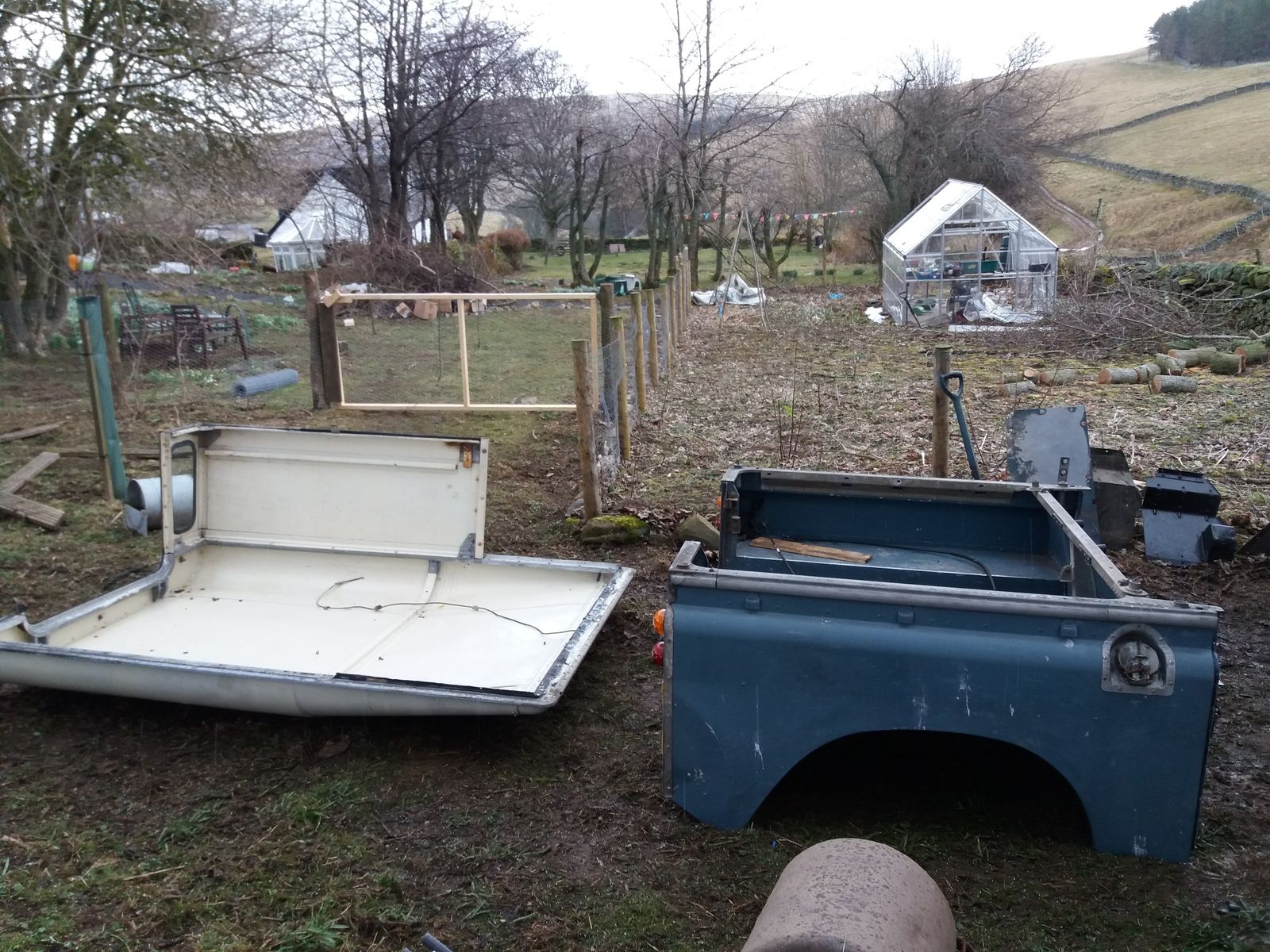

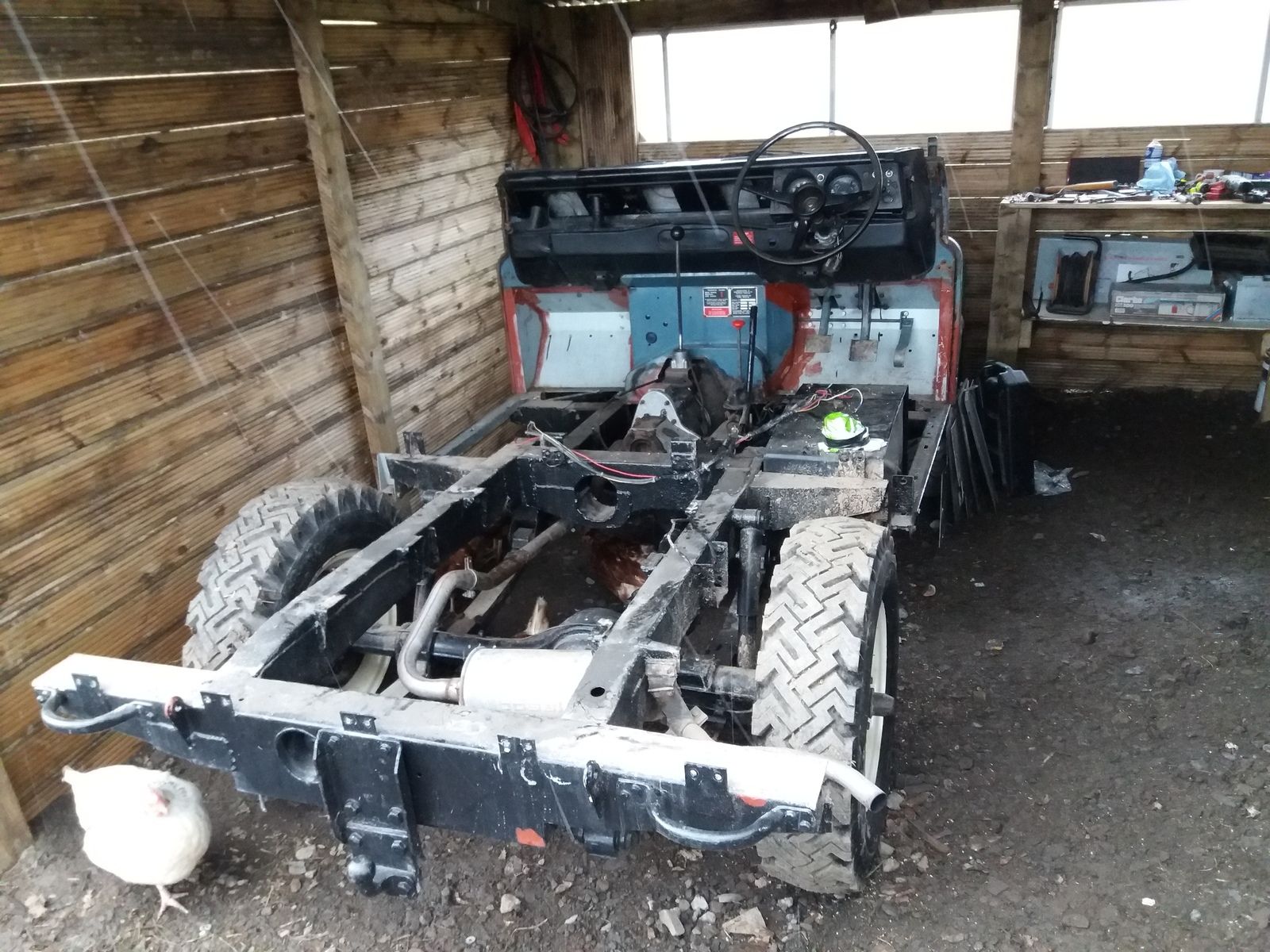

Nearly finished stripping down Dougal. I'm going to leave the bulkhead and engine in place.
The chassis has been welded up already and is solid.

Norrie.

Looking good. My second landy was an S3 75 SWB.

I'm also keeping an eye on how much I spend as its amazing how it all adds up.
It makes you wonder if you are better off buying one already done? I do think you get,to know the car better when you've done it yourself though.
I've seen some of the other build threads and thought I would do something similar. It is only a light restoration compared to what some of the guys have done on here. I am just looking for a nice looking car that can still be worked without having to worry about getting the odd dent or scratch on it. Also looking at making it a bit more reliable.

Norrie.

Looking good ,well on the way,tidy work on the bulkhead.Nice Hen.

At least if there is ever a problem you know how to fix it.
Best way is to take your time & get it right. Don't cut corners & run the odd extra cable in for future projects.
Good luck & hope you took photos.

Naa.

It’s never going to look like a mini

good luck with the resto.

have you had a look behind the dash? that is a real moisture trap.

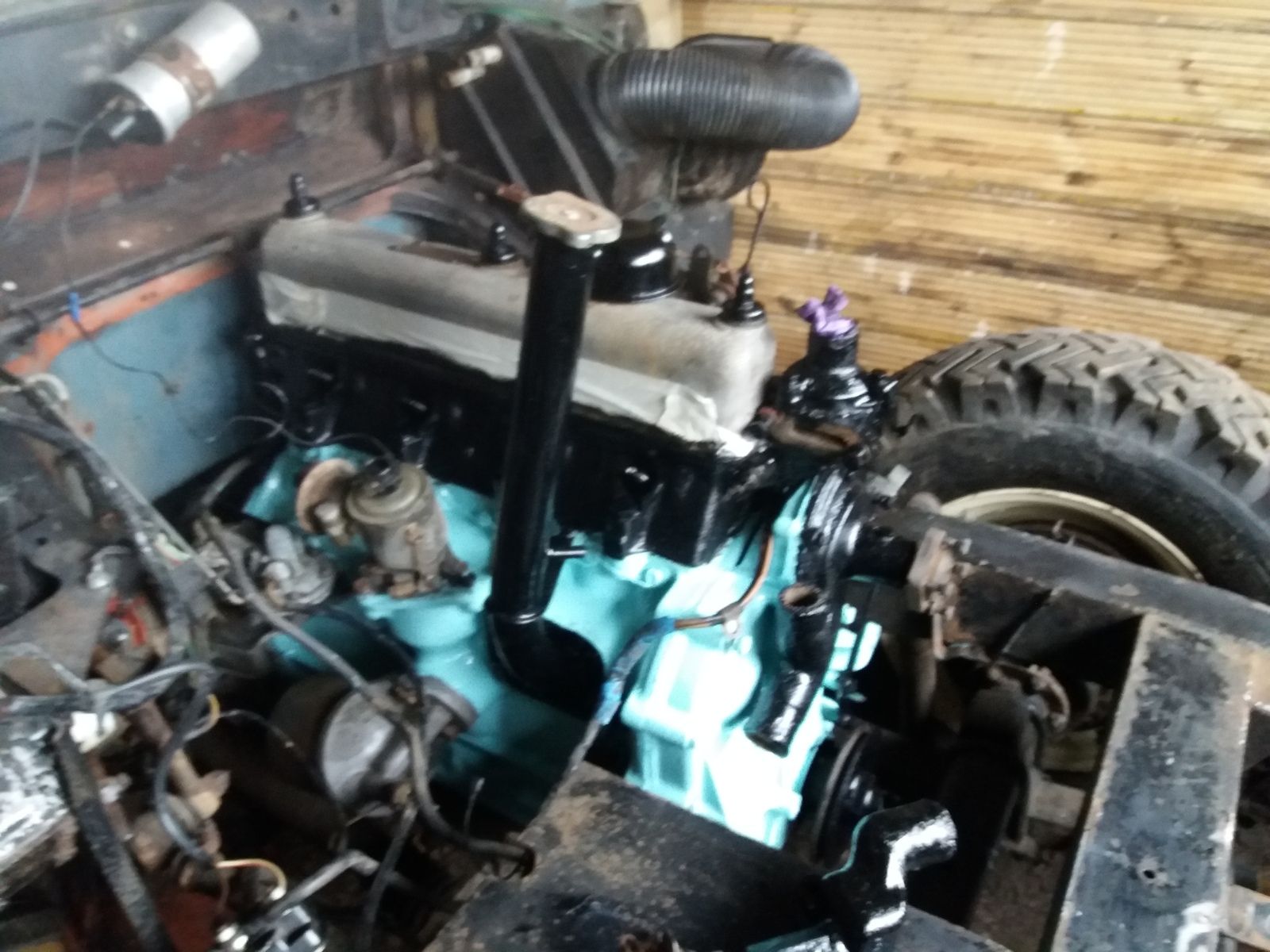

Painted the engine duck egg blue and the rest of the bits black.

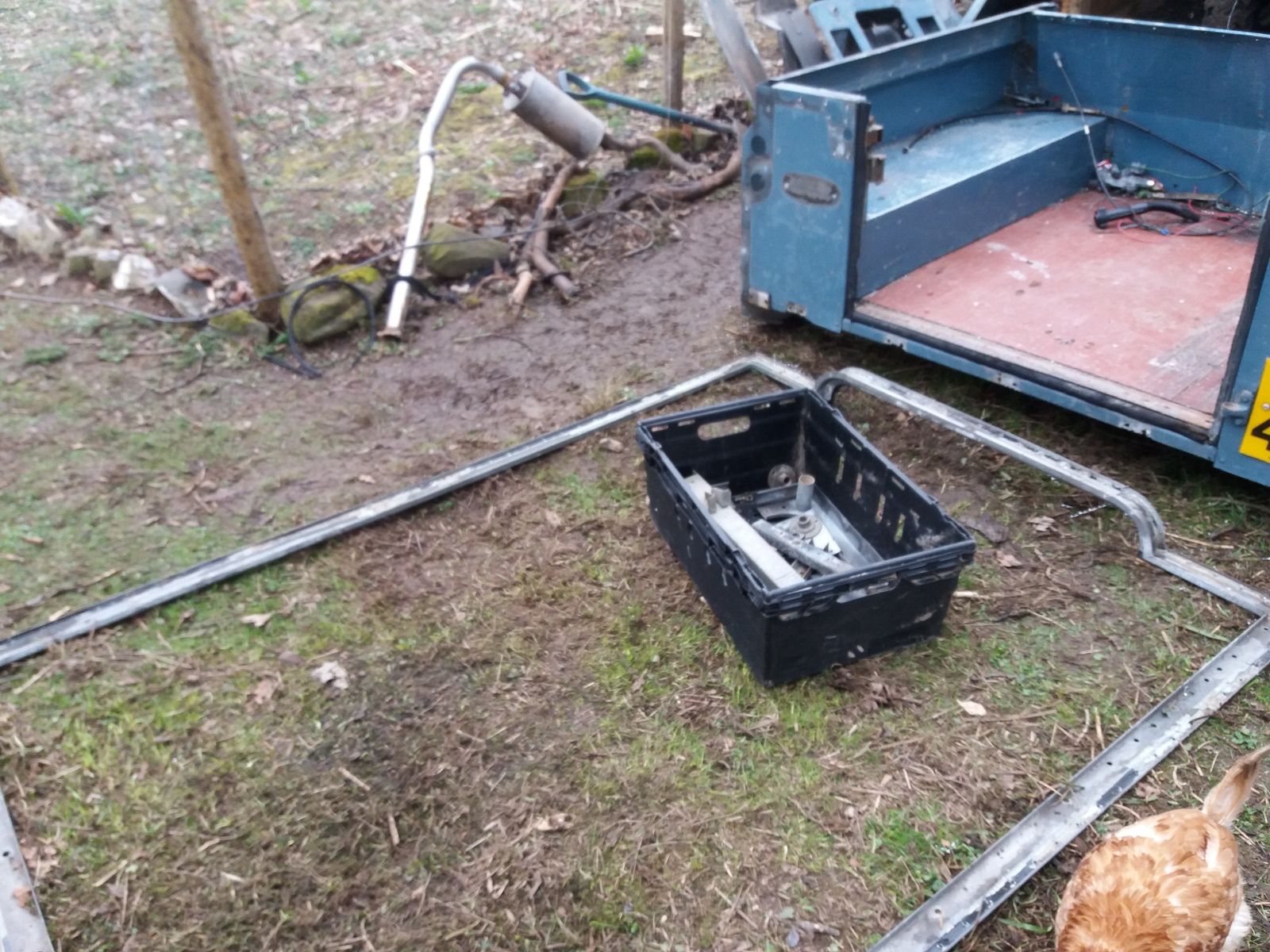

Got most of the bits stripped off to have galvinised. Was much easier than I thought taking the gutter off the roof. Also the glass came out easy from the windscreen frame.

Looking good Norrie.

Ben

norried said:

View attachment 146679

Click to expand...

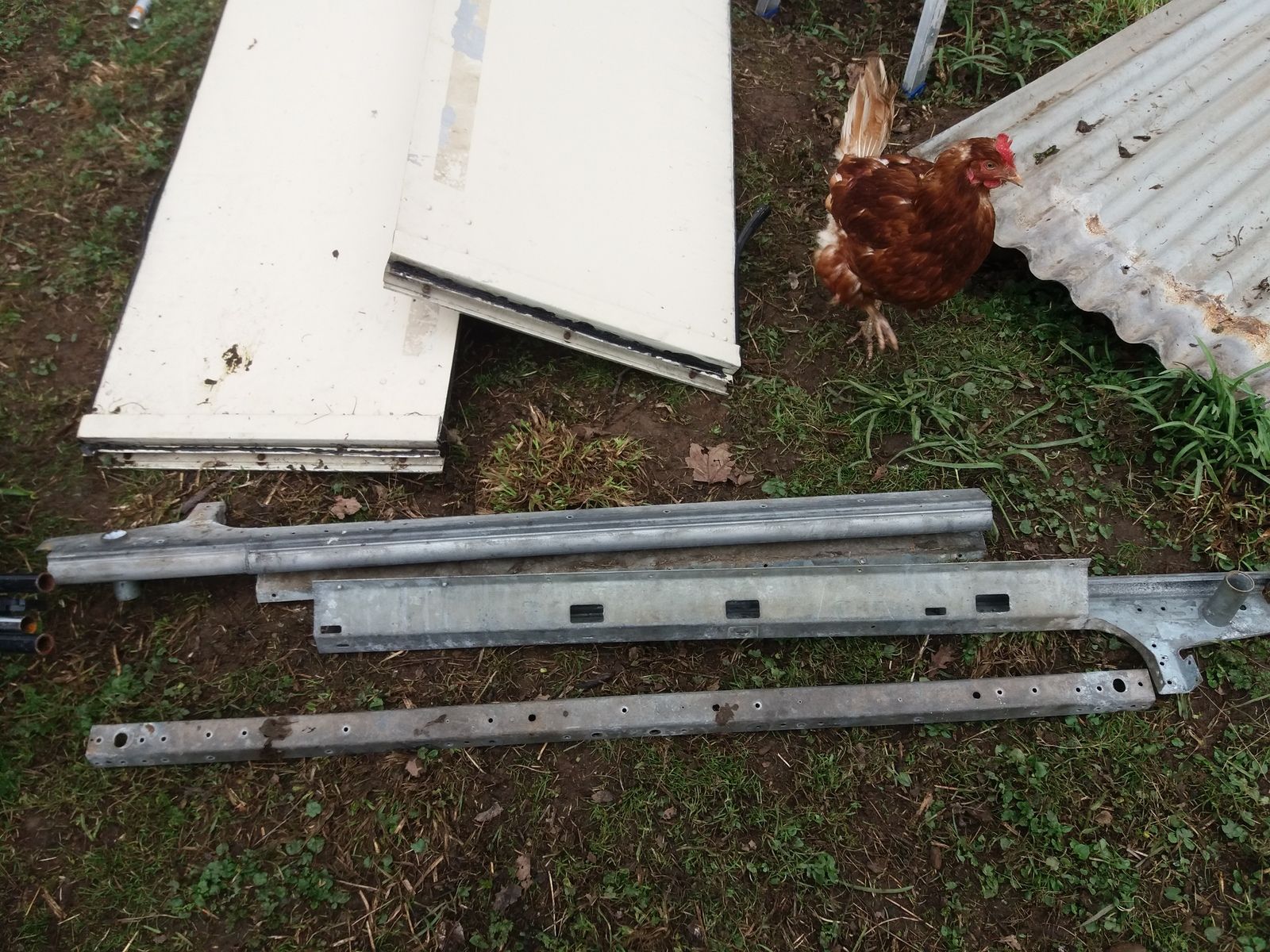

Are you also galvanising the Chicken in your last picture of parts to be sent off? Made me think of the Iron Chicken from the Clangers.

Yes the chicken is getting done as.well. that will teach it for not.laying. lol.

Norrie

Are you going to use pop rivets or solid? The roof gutter rivets are a special flat head design, I had quite a few loose and looked into getting a river set to close them but the prices put me off for a dozen or so rivets so I've done a tempraory fix with M5 dome heads. There's also the problem of getting acess to both sides for the solid rivets.

https://www.ebay.co.uk/itm/AIRCRAFT...956327?hash=item2a84b31927:g:KNkAAOSw4GVYTSWI

Using solid rivets. My mate used to be an aircraft engineer and his mate has a pneumatic riveter. Think I'm going.to use flat head M5 rivets as there cheaper.

Norrie.

Pneumatic riveters are the way forward. We just re-did the roof on my friends 1941 AEC Matador. I reckon the pneumatic riveter saved us 6 to 8 hours work and also got a nice solid fit on all the rivets. They were M5 as well. Would love to see some pictures when you get round to doing it please Norrie.

Yeah no probs. Hopefully get my metalwork back on Friday from the Galvinizers. Can't wait. I need to get.on and paint some more bits. It's been a bit cold to paint up until now. I.painted the radiator panel and had to bring it in the house to dry. Lol.

Norrie

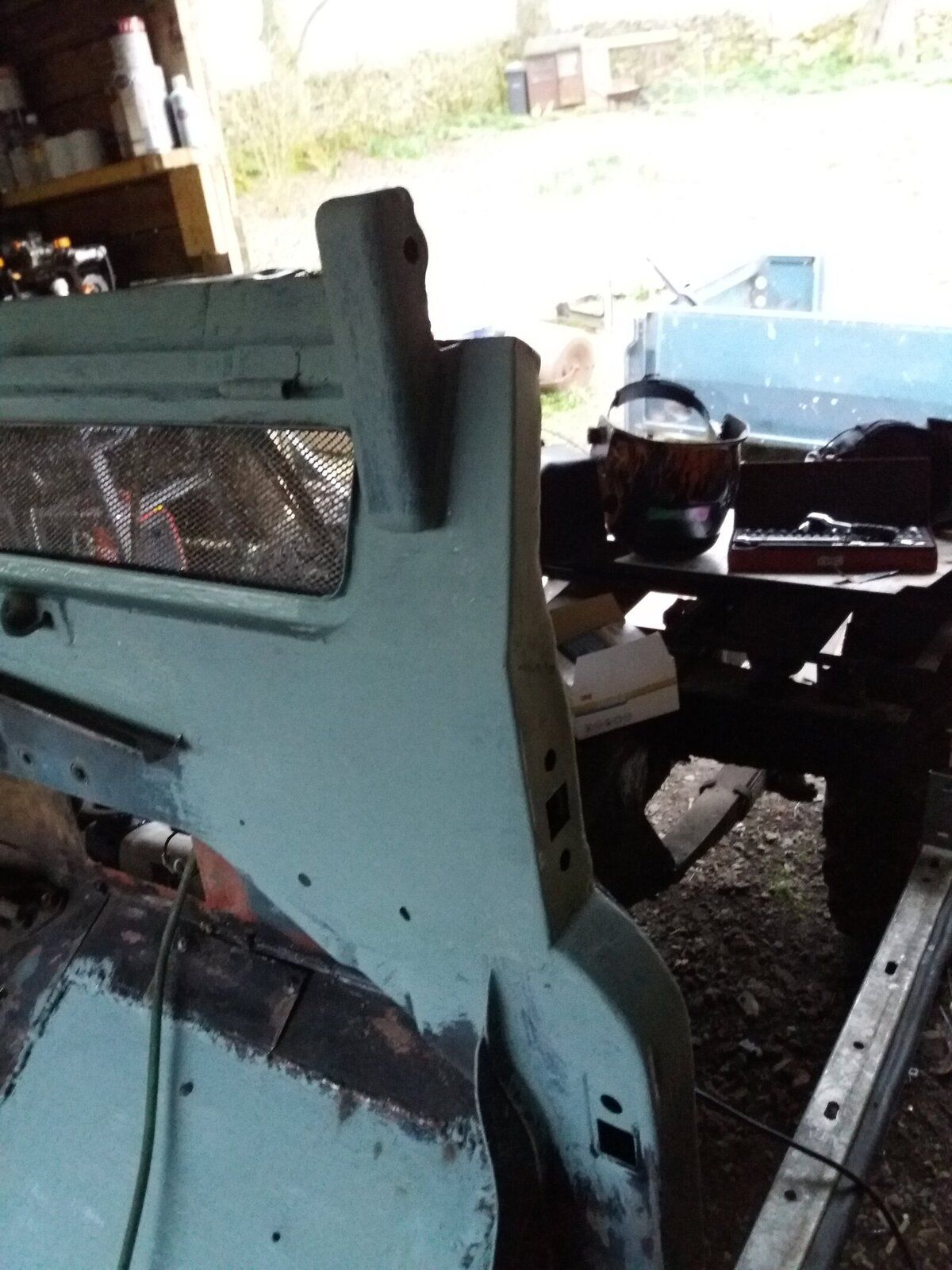

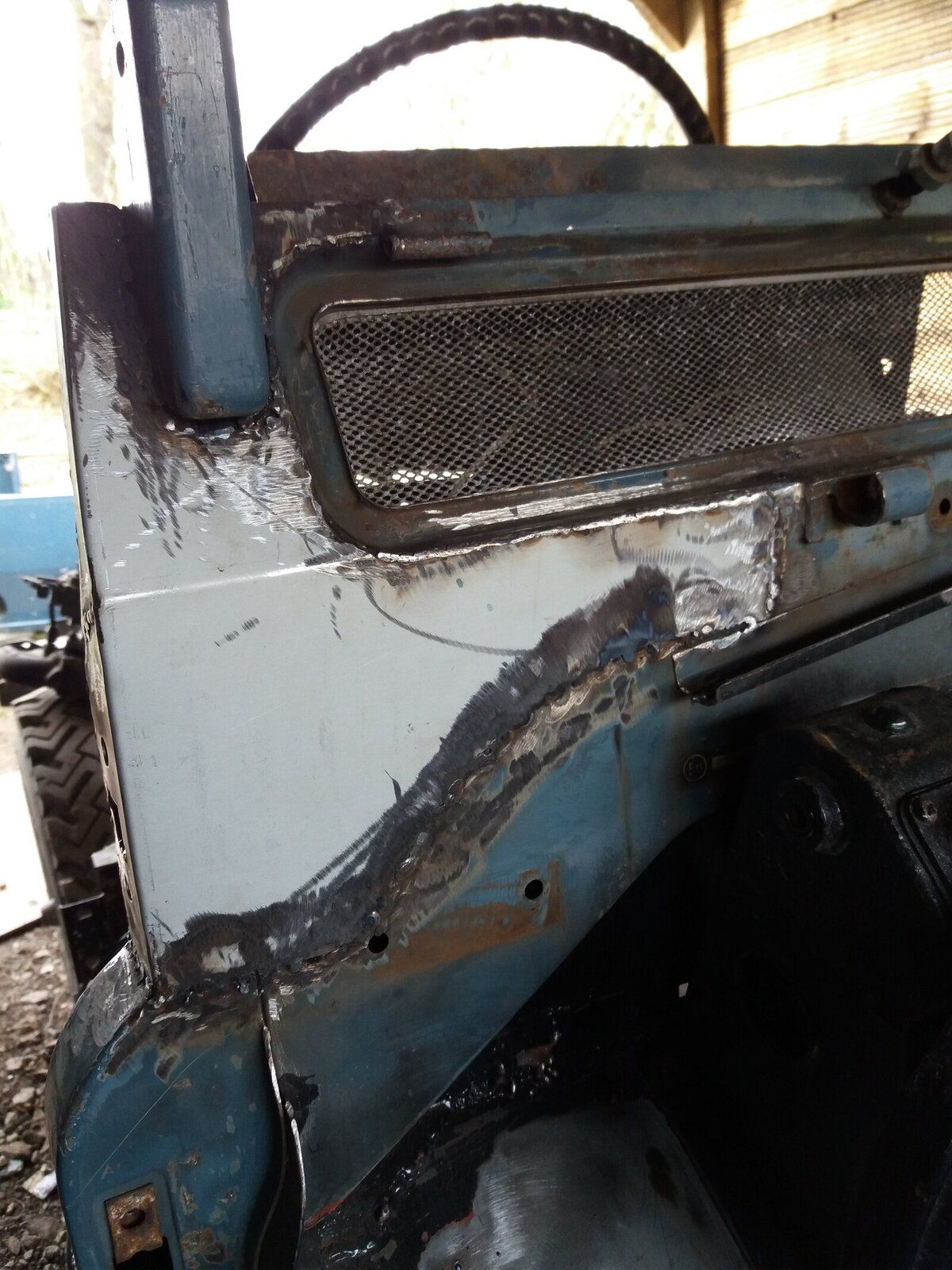

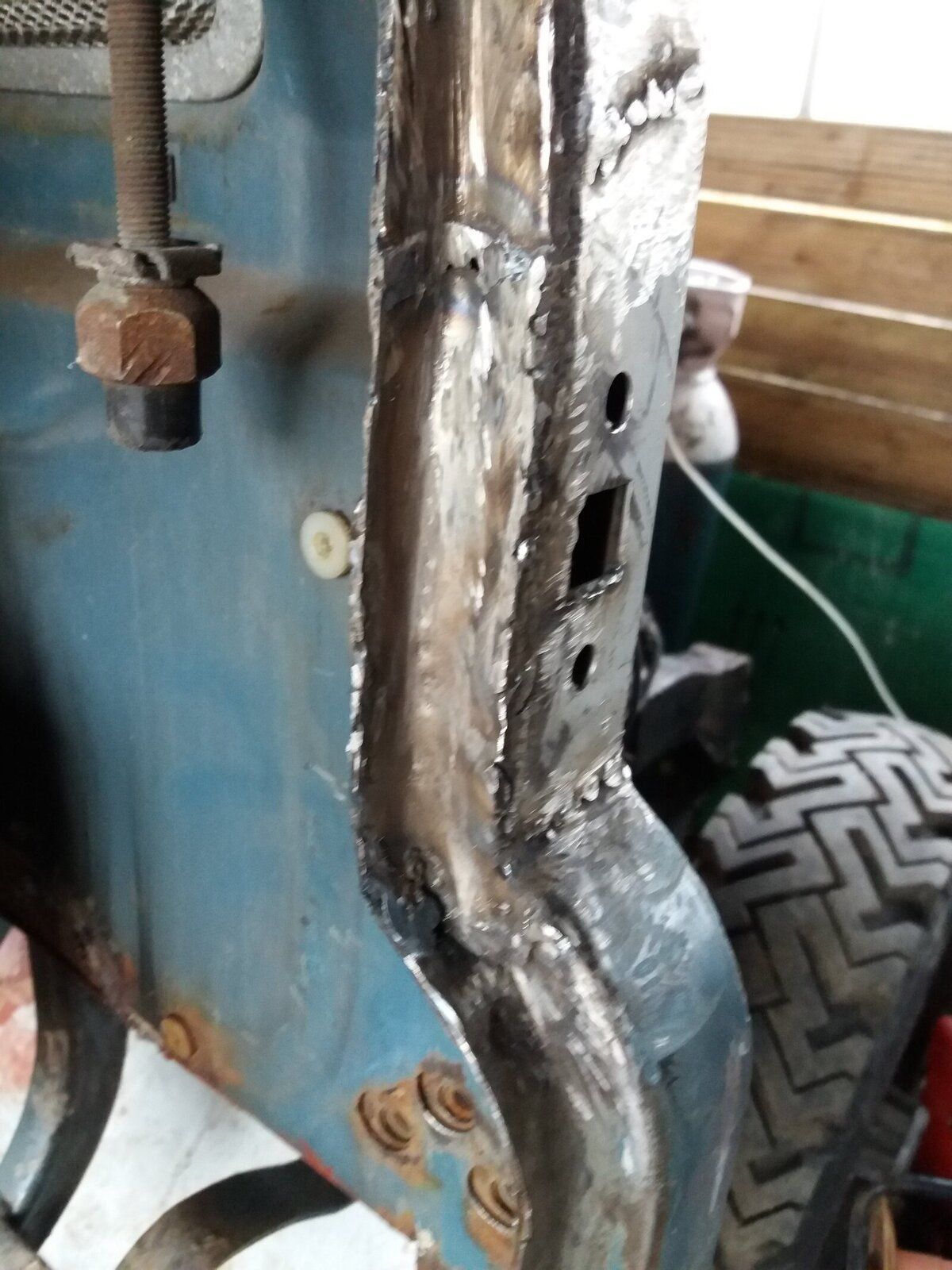

Done a bit of welding to the bulkhead today. Welded in a repair panel around the vent and a piece of metal into the top of the door jam. Just needs filled and sanded now. Will hopefully do the other side tomorrow.

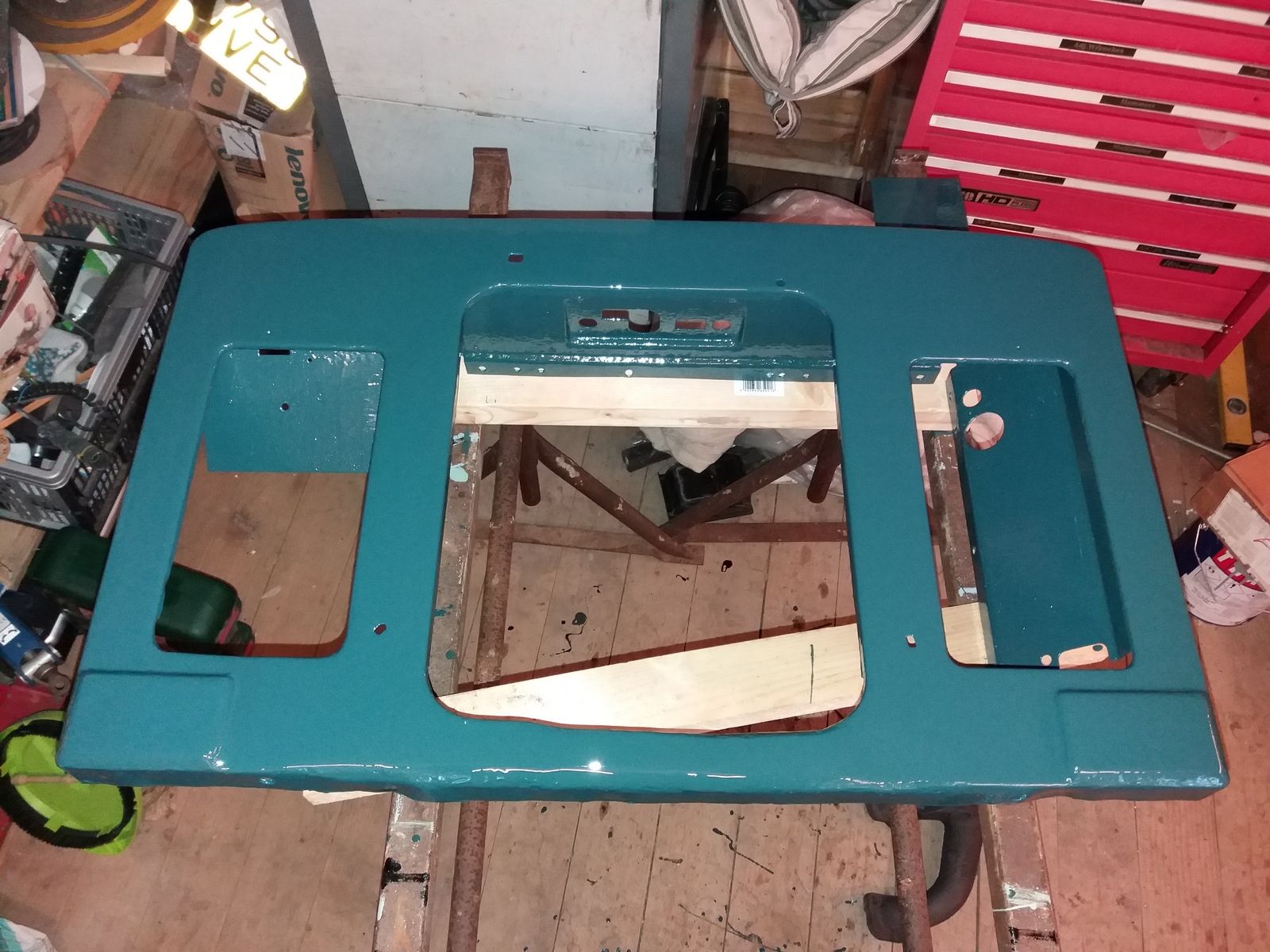

Also put the top coat on the radiator panel.

Norrie.

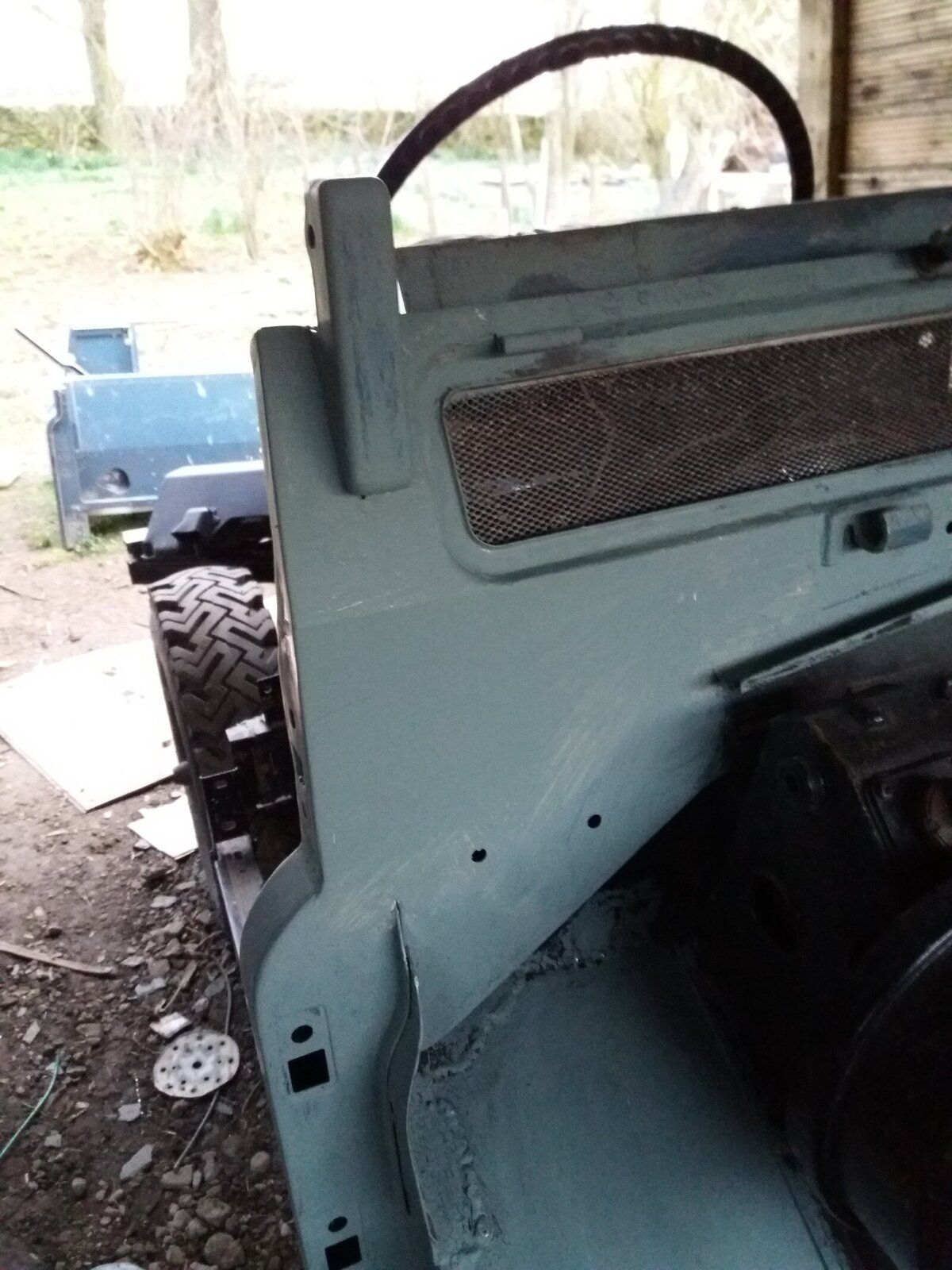

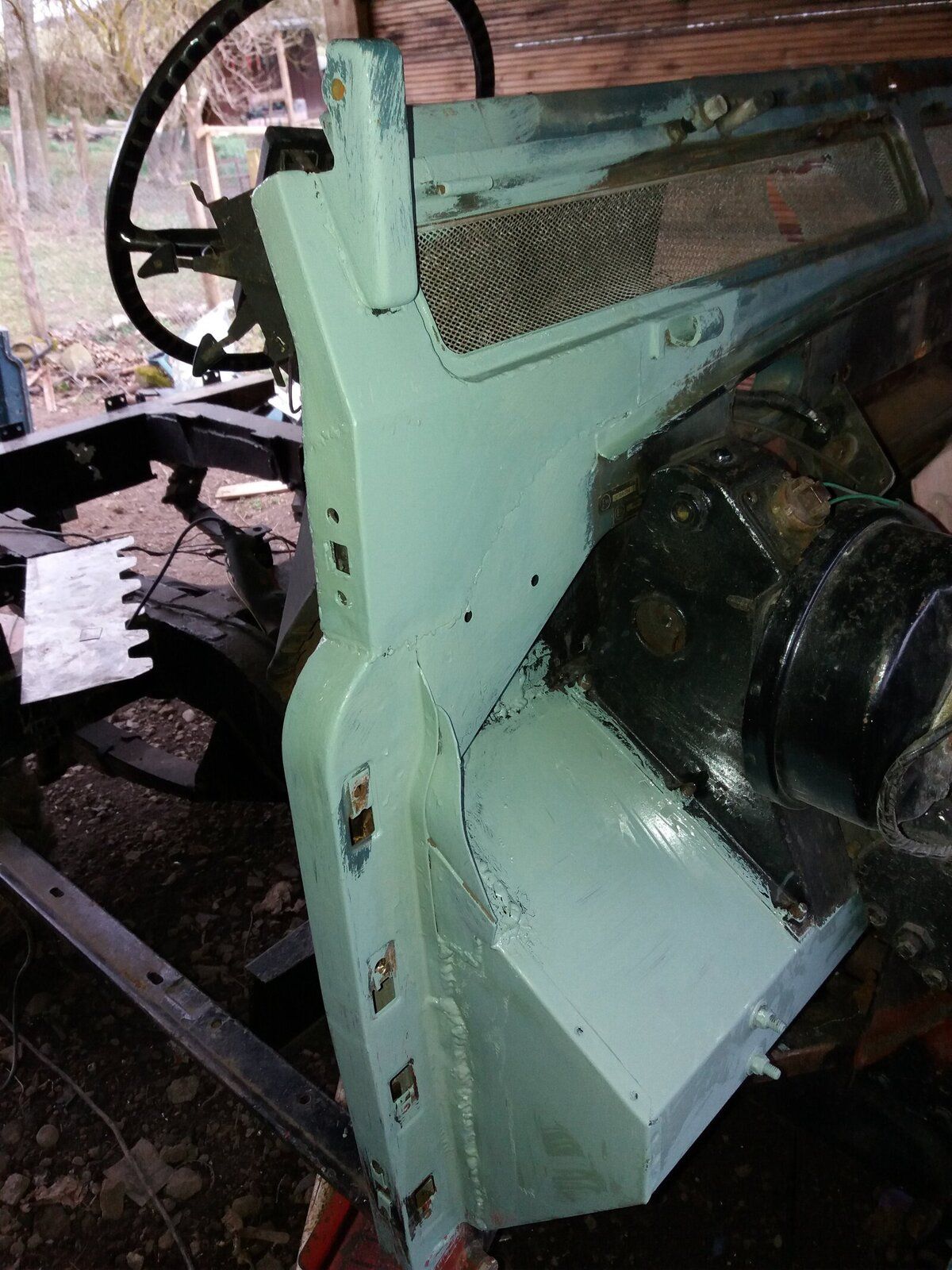

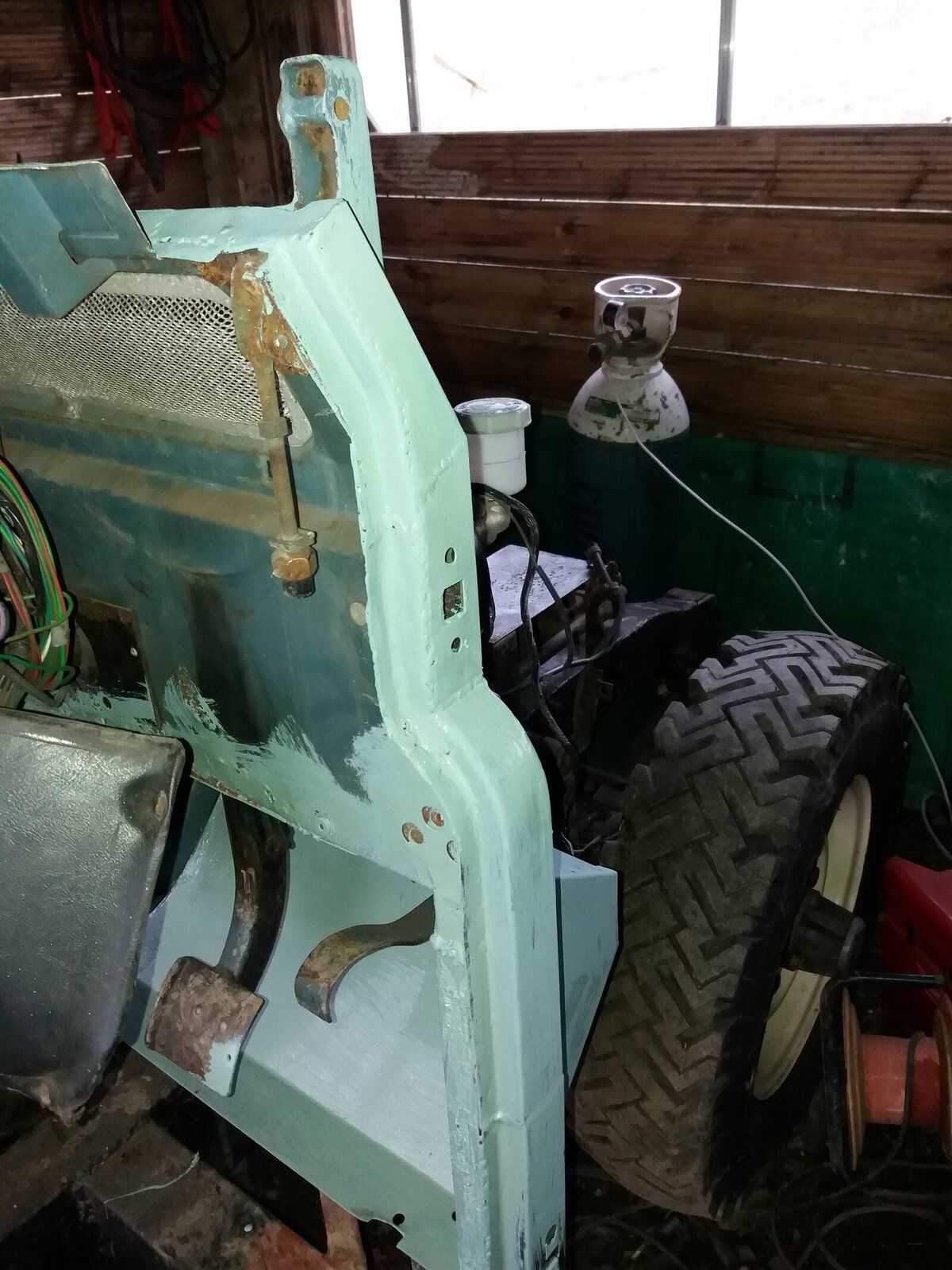

Welded the other repair panel in today. Also filled and smoothed it off. It doesn't look too bad. Just got a coat of etching primer on just now. Will hopefully get some primer on tomorrow.

Norrie

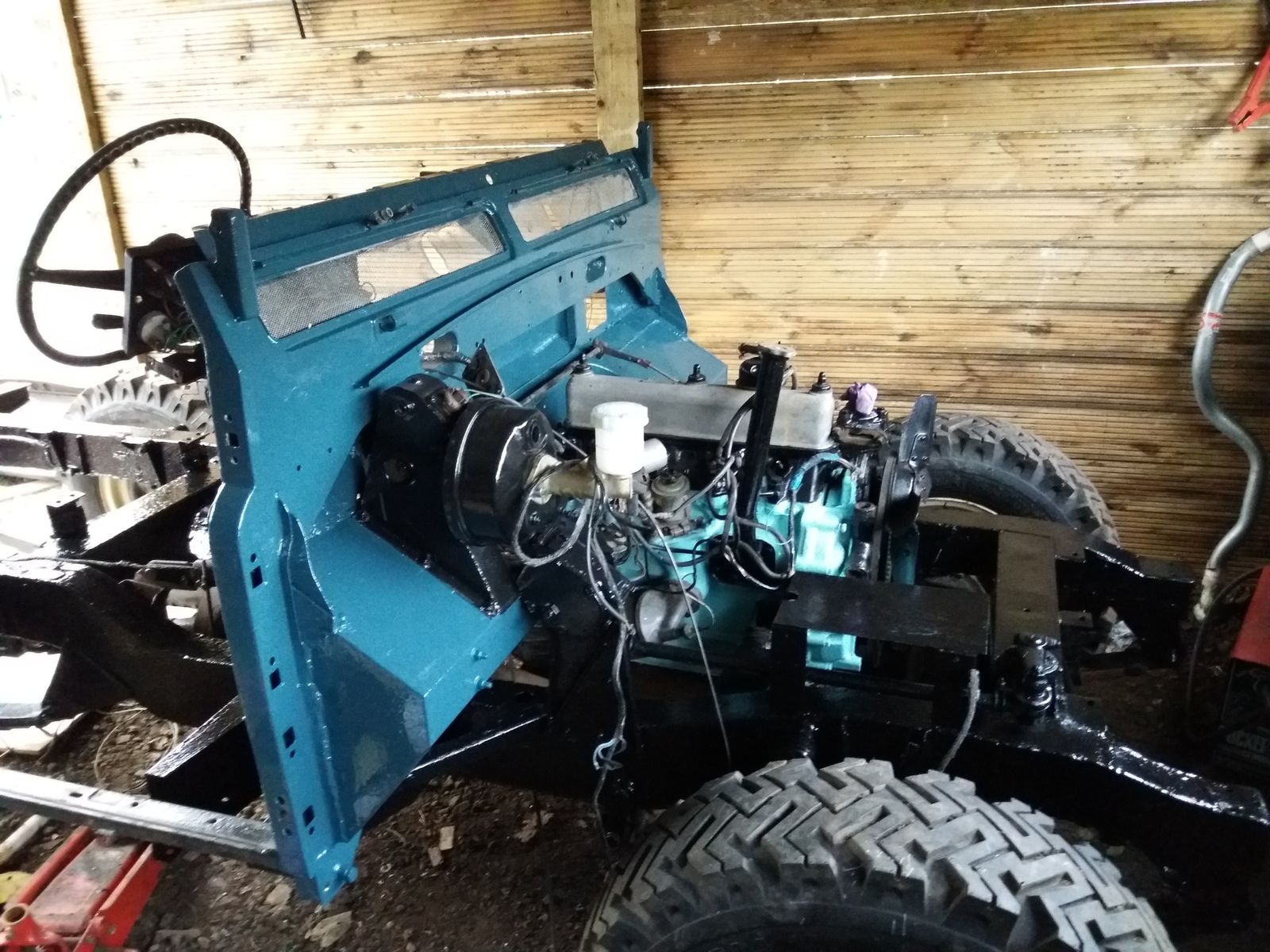

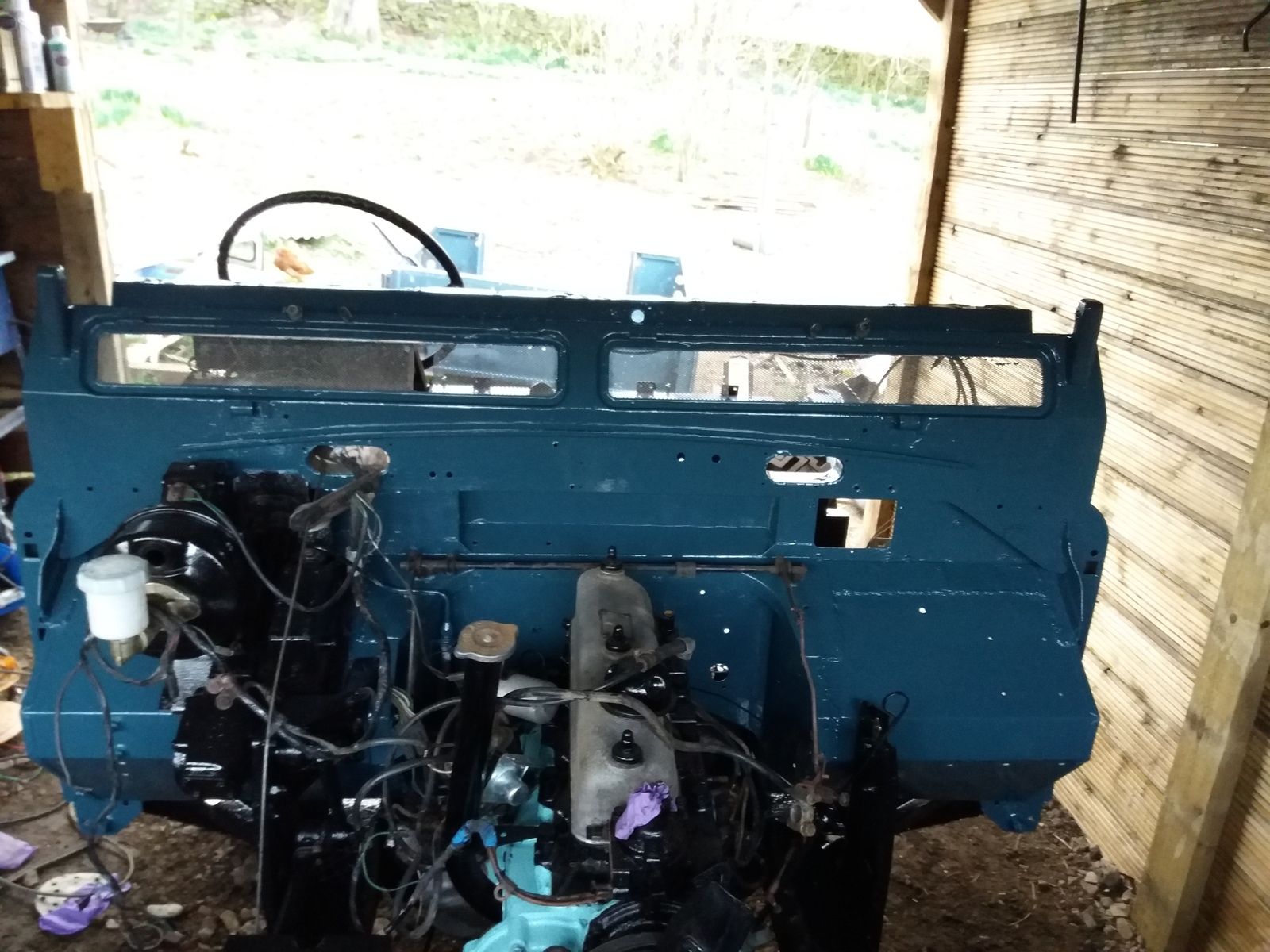

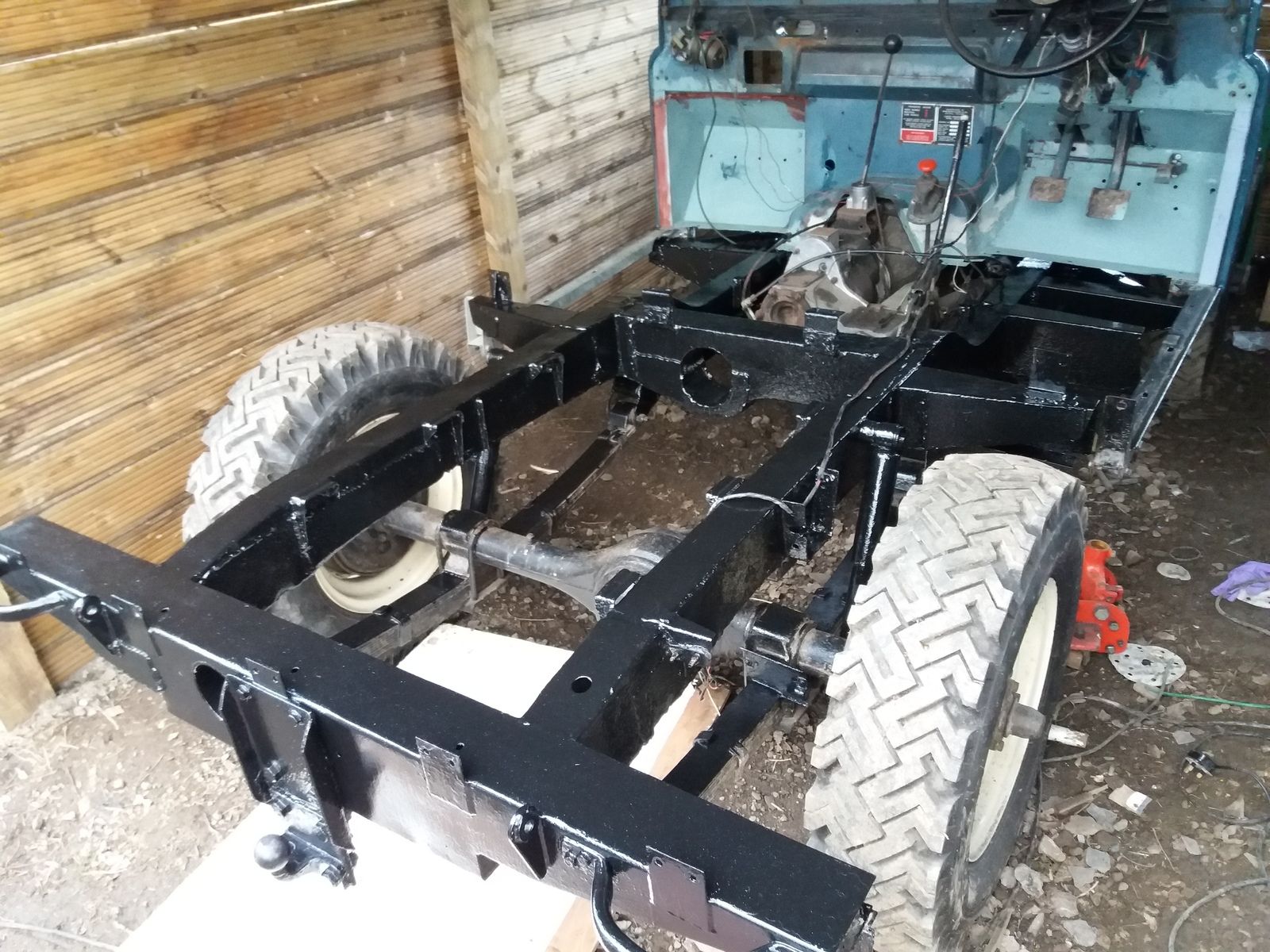

Managed to finish prepping the bulkhead today and got a coat of primer on it and then the first coat of gloss. In between when I was waiting on the primer drying I got a fresh coat of chassis black on the chassis. I need more paint to do the axles etc.



Norrie
