I'm fitting roof spots just need to confirm colour and locatin on back of bulb connector as the wires are too grimy to make out any help appreciated.
Main beam wire colour on 300 tdi please?
- Thread starter Coffeelandy
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Coffeelandy
Well-Known Member
- Posts
- 2,297
- Location
- SE Cornwall (forgotten part!)
Anyone?
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
Might I suggest you get a copy of the Haynes manual or even get the RAVE download.
It is perfect for answering these kinds of questions.
Cheers
It is perfect for answering these kinds of questions.
Cheers
blue beasty
Leaks an prone to bits dropping off
- Posts
- 61,186
- Location
- Gloucestercotshirewolds
There's a downloadable link to wiring diagram fer 300tdi in yer https://www.landyzone.co.uk/land-rover/defender-1992-200tdi-wiring-diagram-in-colour-needed.266763/
discool
Well-Known Member
- Posts
- 13,498
Test! with a multi-meter or even a basic bulb and a bit of wire, it's not difficult
perhaps you should find someone to do it for U.
perhaps you should find someone to do it for U.
- Posts
- 83,230
- Location
- Embasinga stocæ
look at the wiring colour code info in the CFAQ section
Rougharse Racing
Well-Known Member
- Posts
- 879
- Location
- The Grim North
- Posts
- 83,230
- Location
- Embasinga stocæ
why not look on this forum? ****es me off - this constant undermining
.
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
why not look on this forum? ****es me off - this constant undermining
They won't have any option soon. I hear most of the others are closing down!
Coffeelandy
Well-Known Member
- Posts
- 2,297
- Location
- SE Cornwall (forgotten part!)
Hmmm that would account for why the relay isn't triggering. I've wires up my roof spots and they don't come on. The wiring is fine as I've directly connected them to the battery just to test them so it's either the wrong wire I've connected to or crap relay.
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
Coffeelandy
Well-Known Member
- Posts
- 2,297
- Location
- SE Cornwall (forgotten part!)
The fact that I've spliced into the wrong wire, I think, although looking at the diagram I may be right. So either the scotch connector is rubbish, I haven't connected it properly or the relay is pants.
Coffeelandy
Well-Known Member
- Posts
- 2,297
- Location
- SE Cornwall (forgotten part!)
Is this wire side or from the front?
- Posts
- 83,230
- Location
- Embasinga stocæ
Scotch connector..... pmsl
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
Can you hear the relay click when it energises?
Have you put a multimeter / bulb tester on the wire to see if you have 12V on it the wire you connected to when you want it?
Scotch blocks are rubbish.
Cheers
Have you put a multimeter / bulb tester on the wire to see if you have 12V on it the wire you connected to when you want it?
Scotch blocks are rubbish.
Cheers
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness

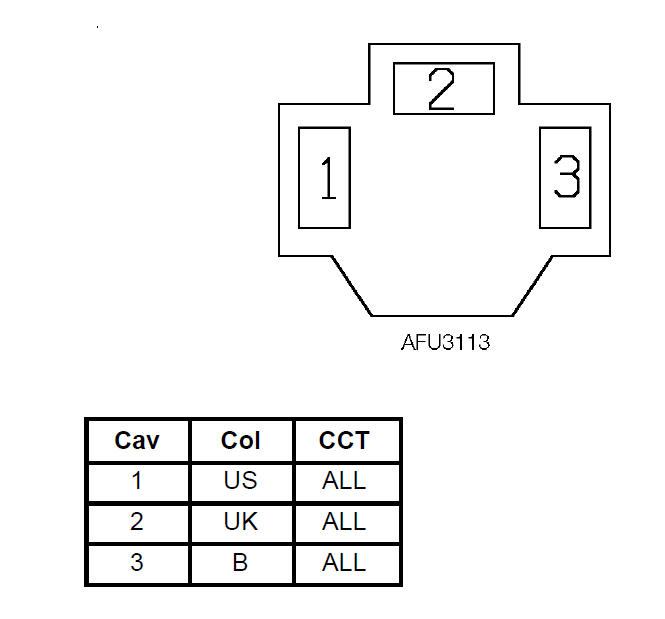

If it is the same as mine then, the earth ( black) should be ( as you look at the back of the bulb from inside the wing) on the LH side. Dip on top, Main on RH side.
I trust you have used fuses , relays and wiring that is correctly rated for what you are doing.
Cheers
Coffeelandy
Well-Known Member
- Posts
- 2,297
- Location
- SE Cornwall (forgotten part!)
Yeah I got one of those kits from bolt on bits. 30 amp fuse and decent twin core. The lights are 50w led bit I reckon they only draw 5 amps each.
- Posts
- 83,230
- Location
- Embasinga stocæ
30 amp fuse? What current is actually being taken?
Twin core... nooooooo!
Twin core...
nooooooo!
Coffeelandy
Well-Known Member
- Posts
- 2,297
- Location
- SE Cornwall (forgotten part!)
Lights are 50w leds and there's 4 of them. The kit is a 30 amp kit rated for 4 55w lights either led or normal. Twin core is good for up to 27amps so I'm well in the limit or are the specialist 12v solar/ battery camper van electrics fitters wrong? The I structions with the kit tell you to daisy chain the lights together. I wasn't happy with that so I joined them in pairs instead to ease the load and earthed them to the battery.30 amp fuse? What current is actually being taken?
