MAF and poor running help.

buckingthetrend · Mar 17, 2019

Hi guys.

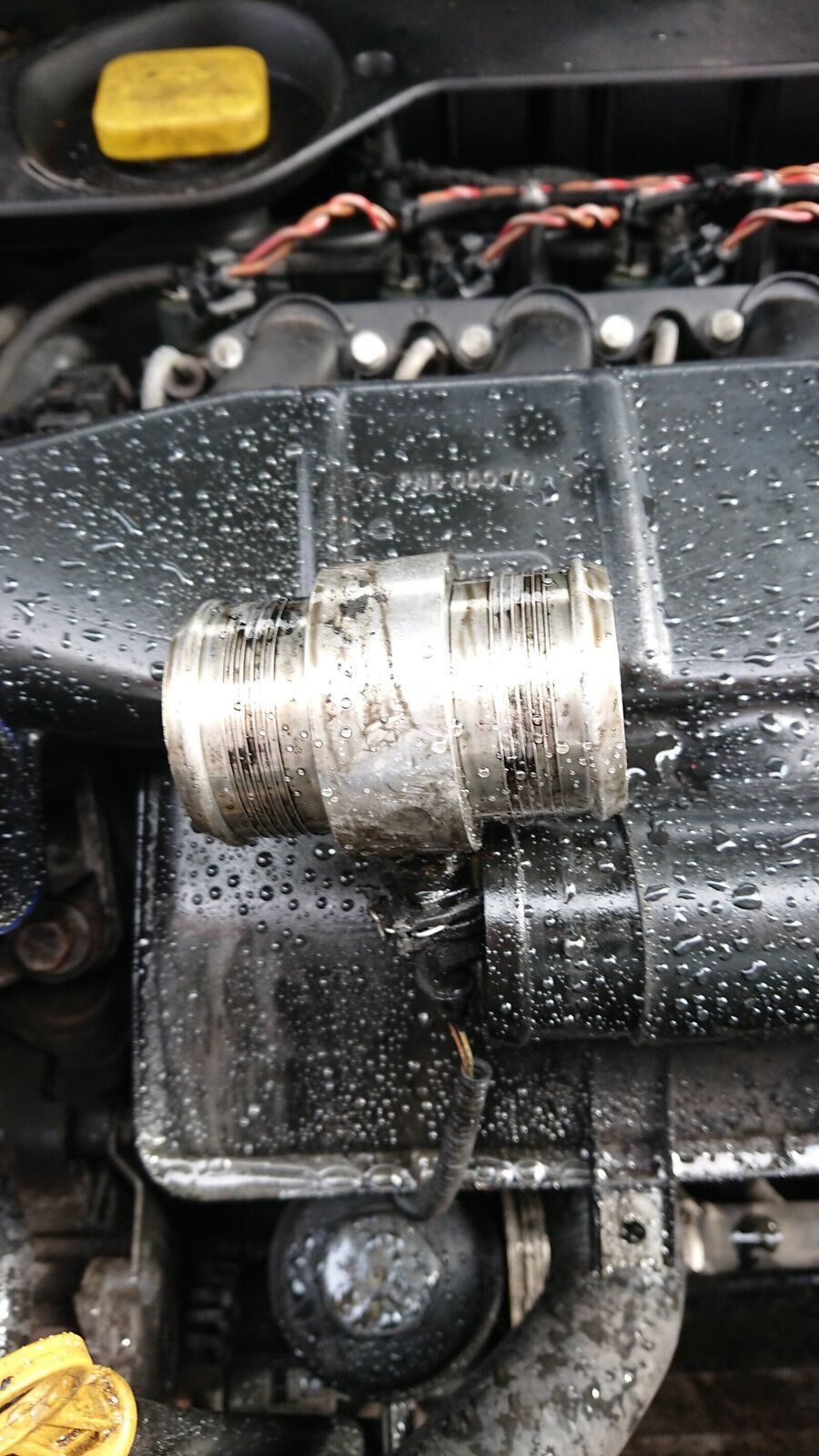

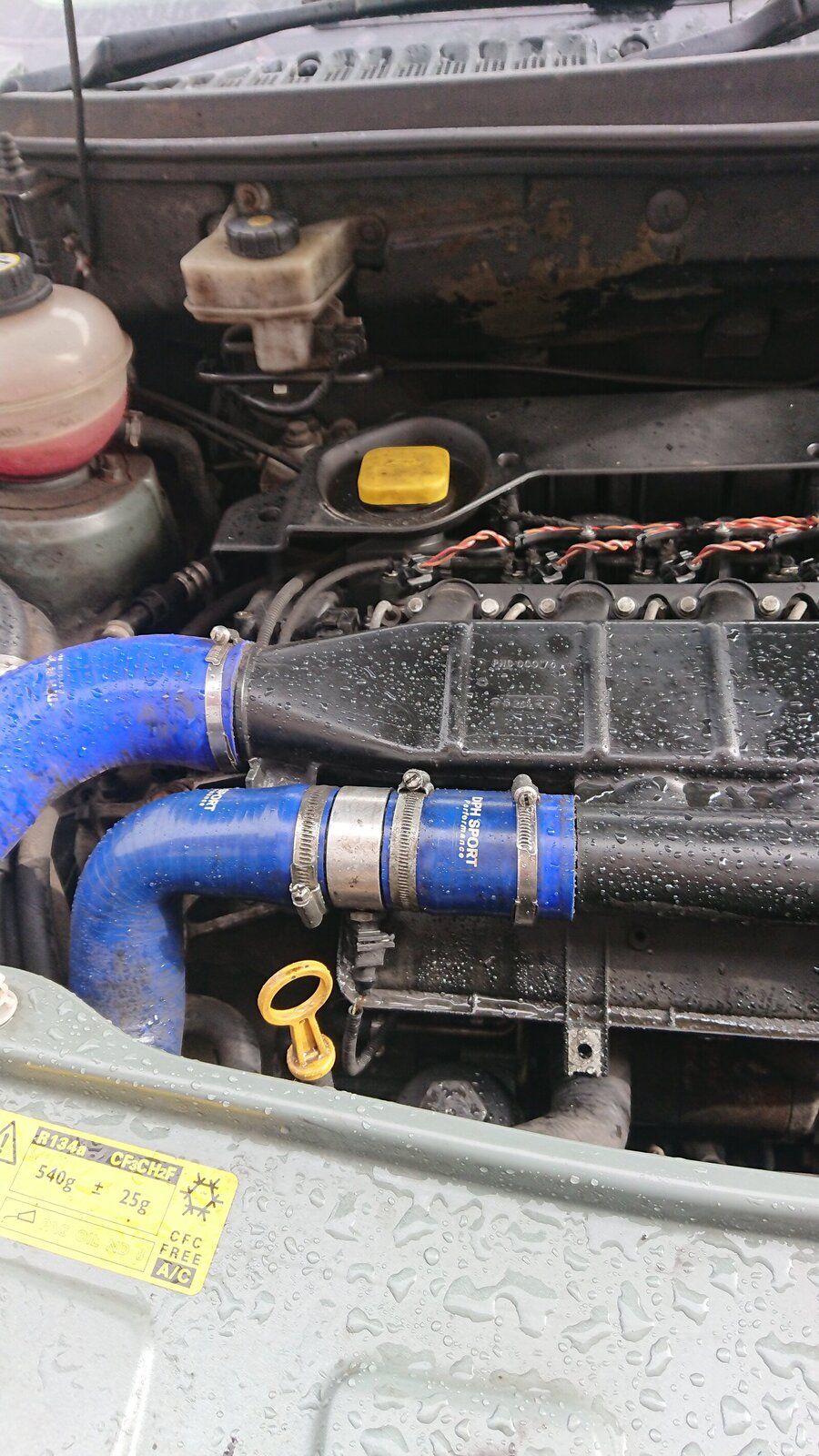

Iv got an 04 Td4 that is running rough. I had thought injectors at first but now I'm thinking MAF. It seems to have an aftermarket MAF and I think it is in the wrong place (between the intercooler and EGR) could this cause a miss fire at certain RPMs?

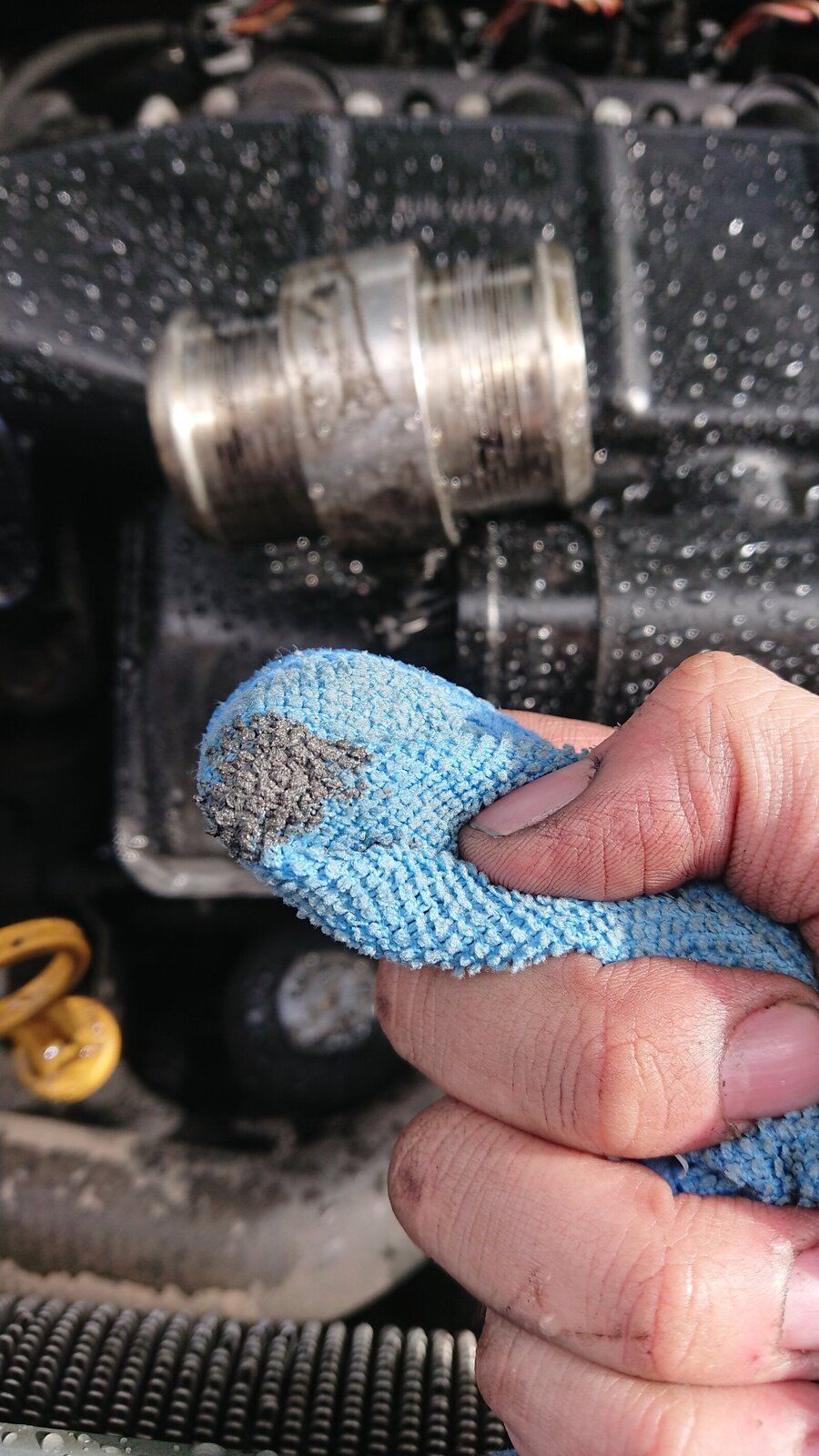

Also I found a worrying Blob of metal filled oil under the MAF but found no more elsewhere in the system. Has anyone seen this before?

Thanks

Nodge68 · Mar 17, 2019

buckingthetrend said:
It seems to have an aftermarket MAF and I think it is in the wrong place

That's the boosted air intake temperature sensor. It's normally in black plastic housing, but otherwise it should be there.

buckingthetrend · Mar 17, 2019

OK. Tha ks for letting me know Where should the MAF be then?

Nodge68 · Mar 17, 2019

buckingthetrend said:
Where should the MAF be then?

The MAF is on the turbo side of the air filter. It's visible once the air filter cover is removed.

buckingthetrend · Mar 18, 2019

OK. Have you got any thoughts on the metal filled oil found arround it? Cheers

Nodge68 · Mar 18, 2019

buckingthetrend said:
Have you got any thoughts on the metal filled oil found arround it?

Any metallic particles found in the intake can only come from 1 place, the turbo.
