I need to carry out a repair on the loom where it comes out the rear chassis leg to the near side rear lights. Someone has pieced in about a foot and a half of 3 core flex at some point. Where is the best place to get the correct LR coloured wire that I need ??
LR Cable/Wire Supplier
- Thread starter meego
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 6,408
- Location
- North Perthshire
Would standard 7 core trailer/light board cable not suffice? Cheaper and easier to get hold of I would have thought
doriz
Well-Known Member
- Posts
- 17,312
But the colours don’t matchWould standard 7 core trailer/light board cable not suffice? Cheaper and easier to get hold of I would have thought
I have got a length of that somewhere, but I wanted the colours to match. Maybe I’m being too fussy to be honest. It’s better than the bloody mess that’s on it the now I supposeWould standard 7 core trailer/light board cable not suffice? Cheaper and easier to get hold of I would have thought
- Posts
- 2,061
- Location
- Hertfordshire
Is this on your D2 ?
Hicap phill
Well-Known Member
- Posts
- 16,338
- Location
- Wiltshire
Coloured marker pens help
Single Core Thin Wall Cable 16.5 amp
www.vehiclewiringproducts.co.uk
No. Sorry, I should have said it’s the 90.
Talking about the D2, I have very regretfully decided to sell it
That looks ideal. A meter of each is all I need. Cheers.Single Core Thin Wall Cable 16.5 amp
- Posts
- 2,061
- Location
- Hertfordshire
No worries, just that I'm going to pick up a D2 rear passenger door & I noticed the rear light looms/connectors are still there & I would have removed them for you before they weigh it in.No. Sorry, I should have said it’s the 90.
Talking about the D2, I have very regretfully decided to sell it
- Posts
- 4,611
I have got a length of that somewhere, but I wanted the colours to match. Maybe I’m being too fussy to be honest. It’s better than the bloody mess that’s on it the now I suppose
What colours do you need ?
- Posts
- 23,076
- Location
- In the next Glen
I have got a length of that somewhere, but I wanted the colours to match. Maybe I’m being too fussy to be honest. It’s better than the bloody mess that’s on it the now I suppose
I done a partial rewire on my last 90, well....both front light looms & the whole rear end I used twin core red n black but used the
correct coloured insulating tape so when I sold it & anyone had to open up the loom they would know how it was wired.
I also ran all the earths back to the battery & used another earth to the chassis. That was a pain but much better than the cr@ppy
earths from the lights to body that always fail.
Anyhow wots the D2 like I was looking for another disco.
For new looms see here.............https://www.autosparks.co.uk/
I'll check it out and get back to you.
If your interested in the Disco PM me and we can discuss.
Hi
Does this also help u as they do a wide range of colours, I’ve also used wire end ferrules and the dedicated crimpers
Cable > Standard PVC Cable - Standard Cable - Auto Electric Supplies Website
General purpose low voltage cable for use in automotive and marine applications in temperatures up t...
www.autoelectricsupplies.co.uk
Cable > Standard PVC Cable - Standard Cable - Auto Electric Supplies Website
General purpose low voltage cable for use in automotive and marine applications in temperatures up t...
www.autoelectricsupplies.co.uk
Cable - Auto Electric Supplies Website
PLEASE NOTE: Cable by the metre will be supplied in one continuous length.
www.autoelectricsupplies.co.uk
Catalogue which I’ve also found very handy
Catalogue Request - Auto Electric Supplies Website
If you would like a copy of our brochure please use the catalogue request form below.
www.autoelectricsupplies.co.uk
Last edited:
Also hope this helps , mainly used wirefy crimp connectors and adhesive heat shrink

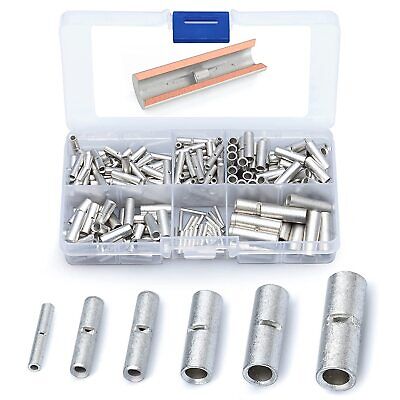

200 PCS Non Insulated Butt Connectors Kit - Butt Splice Connectors | eBay
540 PCS Heat Shrink Connectors Crimping Tool Set 8 PCS Heat Shrink Tubing - 50 Feet Roll 180 PCS Heat Shrink Tubing Kit (Black) Wire range 0.5-6 mm 0.5-10 mm 2.4-50 mm 2.4-19.1 mm.
www.ebay.co.uk

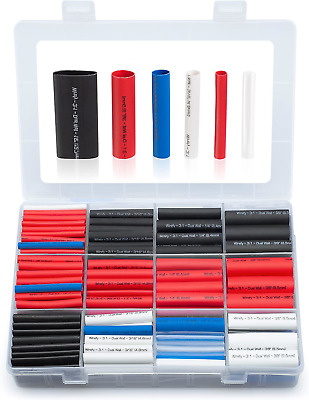

Wirefy Heat Shrink Tubing Kit - 3:1 Ratio Adhesive Lined, Marine Grade Shrink - | eBay
Find many great new & used options and get the best deals for Wirefy Heat Shrink Tubing Kit - 3:1 Ratio Adhesive Lined, Marine Grade Shrink - at the best online prices at eBay! Free delivery for many products.
www.ebay.co.uk
Last edited:
Colours required.
Green red trace
Green purple trace
Green brown trace
Red yellow trace
Red black trace

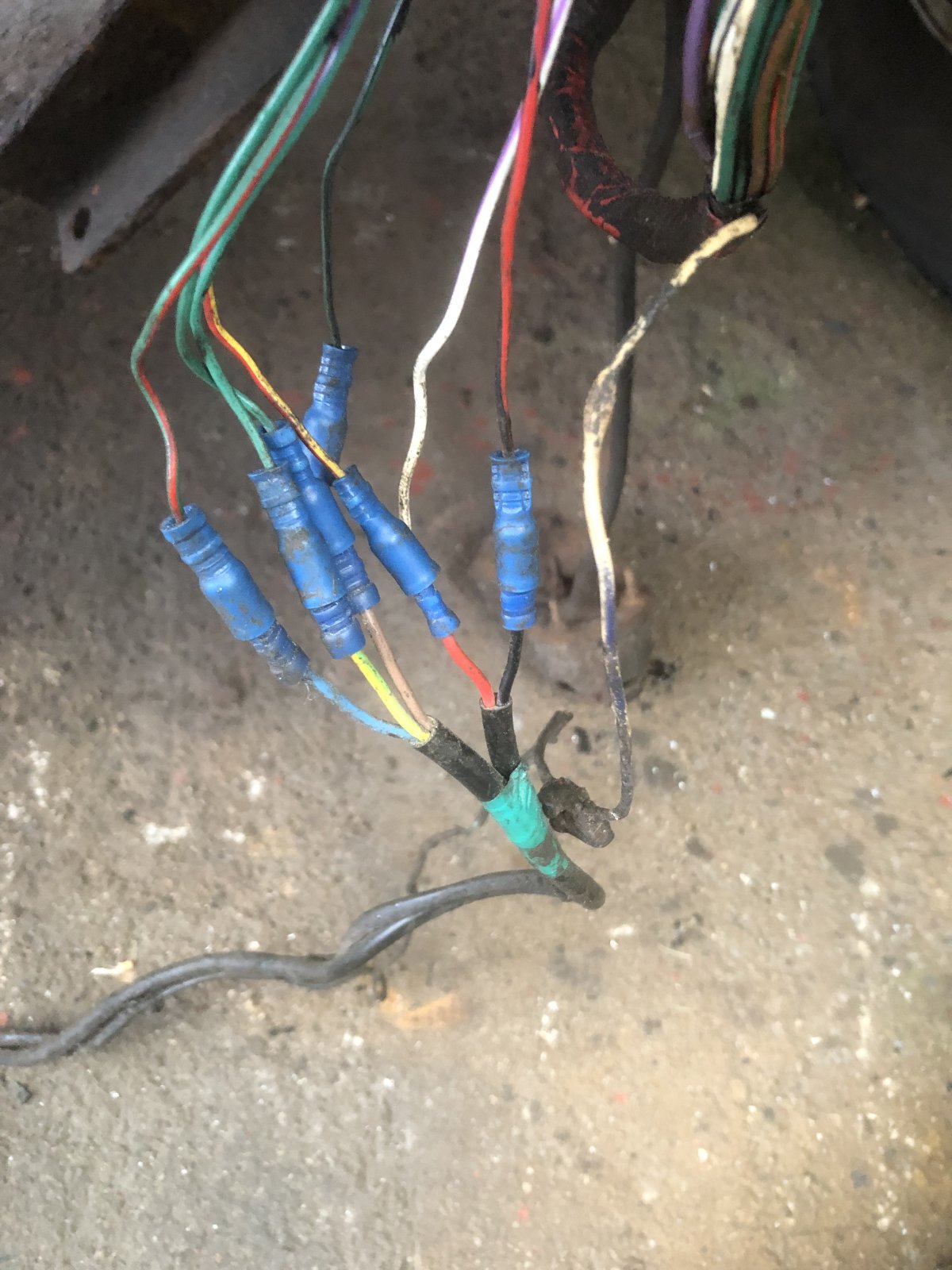

I just noticed there’s another two core cable in the mix with a live and neutral red and black wire. It’s a mess
See in this link do those colours, plus canvas wires if u wish
Hate those type of blue connection, including some of the bullet ones
www.autoelectricsupplies.co.uk
Hope it helps and soon get it resolved
Hate those type of blue connection, including some of the bullet ones
Cable > Standard PVC Cable - Standard Cable - Auto Electric Supplies Website
General purpose low voltage cable for use in automotive and marine applications in temperatures up t...
www.autoelectricsupplies.co.uk
14/0.30, 1.0mm², 8.75A - cable OD 2.6mm
Hope it helps and soon get it resolved
Last edited:
Rangieman123
Active Member
- Posts
- 124
- Location
- Dublin, Ireland
I use Vehicle Wiring Products, in Ilkeston.
They stock OE Lucas wiring colours.
They stock OE Lucas wiring colours.
FlyingPete
Well-Known Member
- Posts
- 1,305
- Location
- Coventry
Invest in some solder and heat shrink and get rid of those crimp connectors while you're at it. They're nothing but trouble!
