Locked out

So how do you get into a Range Rover Vogue 03 plate with a flat battery?? I can't use the key as the door mech is broken. Any ideas welcome? Is there such a thing as being able to jump it? Without opening the bonnet

Something is leading me to suggest a jump via towbar socket, but can't recall if it's via the grey "caravan" charging socket or whether it's possible via normal 7 pin black..... hopefully somneone more sober will amble this way anon...

myfirstl322 said:

Something is leading me to suggest a jump via towbar socket, but can't recall if it's via the grey "caravan" charging socket or whether it's possible via normal 7 pin black..... hopefully somneone more sober will amble this way anon...

Click to expand...

If there is a permanent live on the tow socket you can certainly trickle charge it from that but you certainly can't jump it.

Bradderz18 said:

So how do you get into a Range Rover Vogue 03 plate with a flat battery?? I can't use the key as the door mech is broken. Any ideas welcome? Is there such a thing as being able to jump it? Without opening the bonnet

Click to expand...

on the p 38, you can wedge top of door open,slide metal coat hanger down ,and hook button up?but don,t know your set up,improvise? good luck

wooly123 said:

on the p 38, you can wedge top of door open,slide metal coat hanger down ,and hook button up?but don,t know your set up,improvise? good luck

Click to expand...

Not if it is superlocked!

Bradderz18 said:

So how do you get into a Range Rover Vogue 03 plate with a flat battery?? I can't use the key as the door mech is broken. Any ideas welcome? Is there such a thing as being able to jump it? Without opening the bonnet

Click to expand...

Are you able to get a jump lead onto the positive of the alternator from beneath? Hoo that to a second battery and the negative to the earth and you might have enough power to unlock? Or as Wammers says you might trickle some charge through the permanent 12V on the supplemental tow socket.

Alternator output is to far up the engine block and sits on the front of the unit near the belts and pulleys....no room for a jump lead - even if you could reach all the way up and get one to it.

wammers said:

If there is a permanent live on the tow socket you can certainly trickle charge it from that but you certainly can't jump it.

Click to expand...

Och you, pedant spoilsport!!

Saint.V8 said:

Alternator output is to far up the engine block and sits on the front of the unit near the belts and pulleys....no room for a jump lead - even if you could reach all the way up and get one to it.

Click to expand...

Now there's computer aided design!

Back to the supplementary tow socket and a trickle charger then!

Maybe the live on the starter motor as that runs the high power cable direct from the battery on most vehicles??

They do make a charger adaptor for a trickle charger to the caravan socket for people that store vehicles or make one up from motor factor bits?

Steve

Ok after a lot of reading ... Drivers side fog light!! Remove the plastic trim, remove the bulb inset some decent copper wire into the positive and negative and connect to a power pack - this provided enough power to open the doors. Boom! Not sure if u could jump it this way but I only needed the door open --- thankyou all for your help

Wires not heavy duty enough to jump it but if you can open the doors you can access the bonnet release and either charge battery or get proper jump leads on

Reminds me of the late 80's where they used to smash indicators to fuse the aftermarket alarms
Steve

Is it the ground side that's switched on these? I wouldn't personally do this as you could damage the MOSFETS in the BECM.
Much better to find something that is a permanent live from the battery and feed via this.
I used to have a car that regularly killed its battery for no apparent reason and that had a knackered barrel in the door lock but I could still get in the boot.
I fitted an auxiliary power socket in the boot so that when it dies I could power it back up to get it open then jump it at the battery. Much better option is to fix the bleedin lock!!!

Did somebody leave the lights on ??

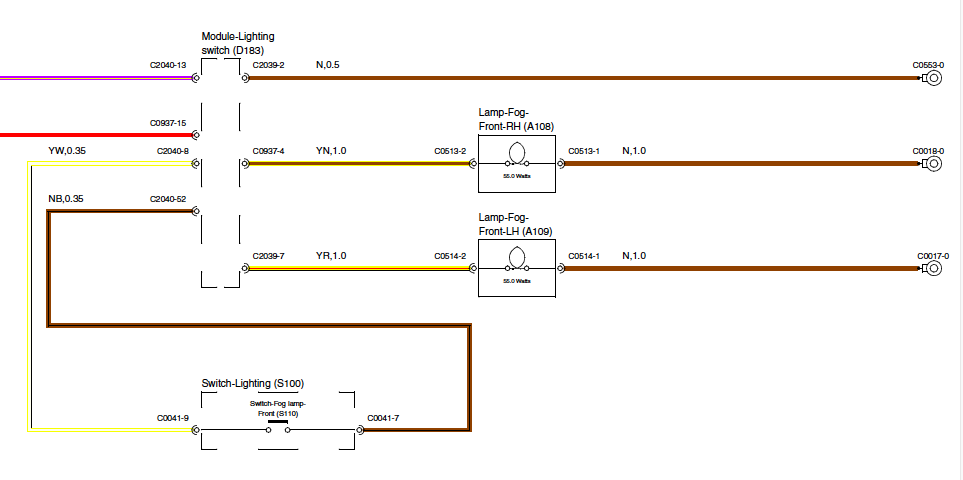

03 L322 Front Fogs are fed through "Module Lighting Switch", so surely to power things via the bulb contacts requires the switch to be on ?

pwood999 said:

Did somebody leave the lights on ??

03 L322 Front Fogs are fed through "Module Lighting Switch", so surely to power things via the bulb contacts requires the switch to be on ?

View attachment 122179

Click to expand...

I did wonder that which is why I asked if they were switched via the becm. I assumed that it had backfed into the 12v bus of the becm thus giving sufficient power to open the doors.
If it's simply a switch, it must have been on.

Fog light switch is just a 5v signal to the lighting control module to tell it turn the lamps on. The LCM contains mosfets or similar to power the lamps.

pwood999 said:

Did somebody leave the lights on ??

03 L322 Front Fogs are fed through "Module Lighting Switch", so surely to power things via the bulb contacts requires the switch to be on ?

View attachment 122179

Click to expand...

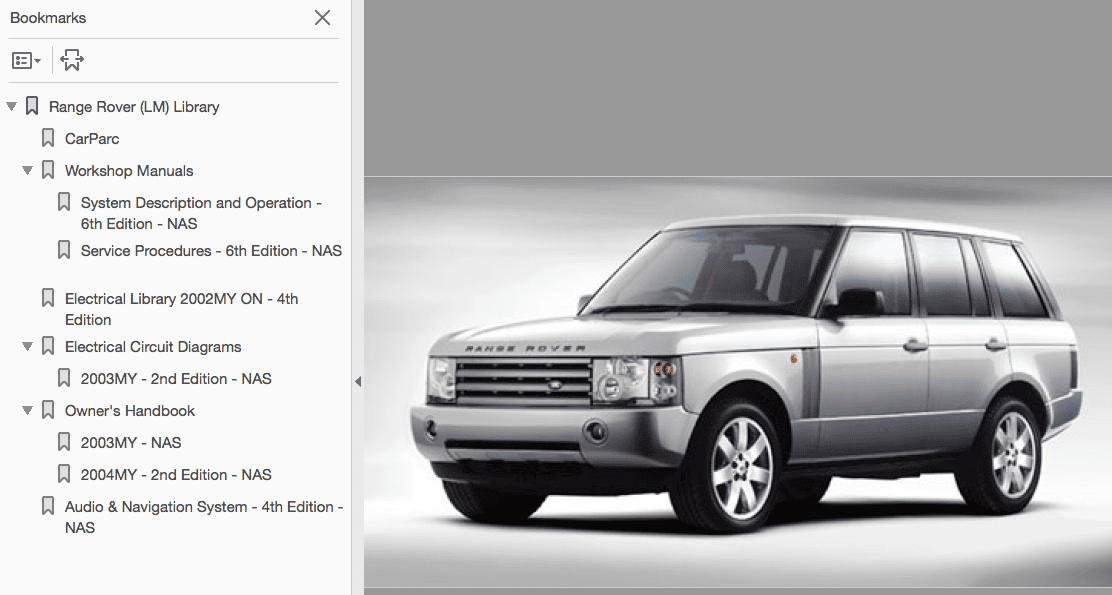

You have RAVE for the L322?

The lights were not on. To my knowledge there was nothing on in the car (visible) apart from what drained the battery which I think could of been the AMP in the rear not turning off

Grrrrrr said:

You have RAVE for the L322?

Click to expand...

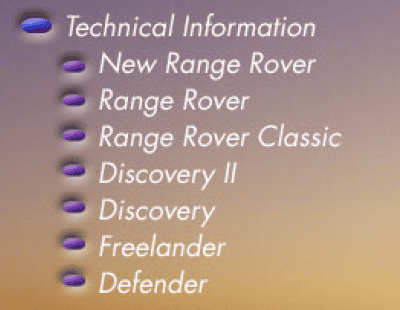

err yes. The copy I use on MacBook all RR models from 87 to 04.

Grrrrrr said:

You have RAVE for the L322?

Click to expand...

Is one of the standard Rave files available. From the usual places.

Cheers
