Disco 1 Leisure battery location? (ABS pump, no snorkel)

About to install a leisure battery, and unsure where is best. The usual space at the front has the airbox intake pipe, I have an ABS pump too, so that restricts moving the airbox.

Currently considering:

• Under passenger front seat, although height is marginal, so not sure that's a goer.
• In the rear footwell, in the middle (behind cubby box), but seems wrong, and space is limited.
• Strapped behind the NS rear wheel arch, this seems good, but a long cable run to starter battery.

Suggestions VERY welcome (hopefully helpful ones )!

Jalfrezi said:

About to install a leisure battery, and unsure where is best. The usual space at the front has the airbox intake pipe, I have an ABS pump too, so that restricts moving the airbox.

Currently considering:

• Under passenger front seat, although height is marginal, so not sure that's a goer.
• In the rear footwell, in the middle (behind cubby box), but seems wrong, and space is limited.
• Strapped behind the NS rear wheel arch, this seems good, but a long cable run to starter battery.

Suggestions VERY welcome (hopefully helpful ones )!

Click to expand...

In the boot left or right behind the wheel arch just build a wooden box & use 4 way stretch carpet
to cover it, thought you were fitting a leisure battery, why would you need long starter cables??

kevstar said:

In the boot left or right behind the wheel arch just build a wooden box & use 4 way stretch carpet
to cover it, thought you were fitting a leisure battery, why would you need long starter cables??

Click to expand...

So I can charge it when driving via a split charge relay. Will be using solar to when parked up.

Jalfrezi said:

About to install a leisure battery, and unsure where is best. The usual space at the front has the airbox intake pipe, I have an ABS pump too, so that restricts moving the airbox.

Currently considering:

• Under passenger front seat, although height is marginal, so not sure that's a goer.
• In the rear footwell, in the middle (behind cubby box), but seems wrong, and space is limited.
• Strapped behind the NS rear wheel arch, this seems good, but a long cable run to starter battery.

Suggestions VERY welcome (hopefully helpful ones )!

Click to expand...

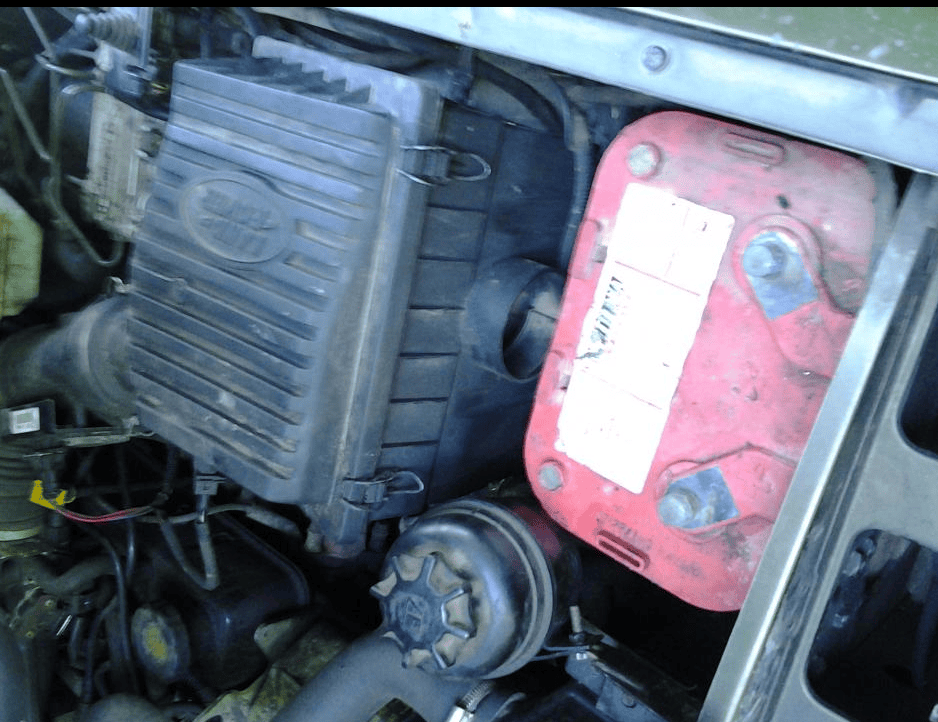

You can remove the intake trumpet then fit the battery where the trumpet was, the tray etc is already there.

Like this pic,

Was worried that'd restrict what little power I already have. I take it, it works ok like that?

Jalfrezi said:

So I can charge it when driving via a split charge relay. Will be using solar to when parked up.

Click to expand...

Fink I miss read it lol I thought you were using it as a starting battery
Ive got a t-max split charging system in mine.

mmmmh, if you remove your ABS pump and fit a raised intake, you can put the battery in front of the filter no problem . Jokes aside, I plan to fit a second battery behind the rear wheel arch and lay all the wiring through the roof so no cables are in the floor, but as you say, it's going to be a looong cable so make sure to add the right fuses.
