Led spot lights

TD4 Si · Jun 21, 2019

Hi
Does anyone know of any kits to use to wire up 4 Led spotlights on a freelander td4 into highbeam. Struggling to find one only kits that use just switch on and off, is there a way I can adapt to link it to high beam.

discool · Jun 22, 2019

Build your own “kit” and tap in to the high beam circuit at the rear of a headlamp.
https://www.google.com/search?q=spot lamp relay wiring diagram&tbm=isch

Nodge68 · Jun 27, 2019

As above. No kit needed. All you need is a relay, some suitable wire and a fuse holder. That's all I have on my LED light bar.

TD4 Si · Jun 27, 2019

Can I use a 4pronged relay and how do I yltep into the main beam

TD4 Si · Jun 27, 2019

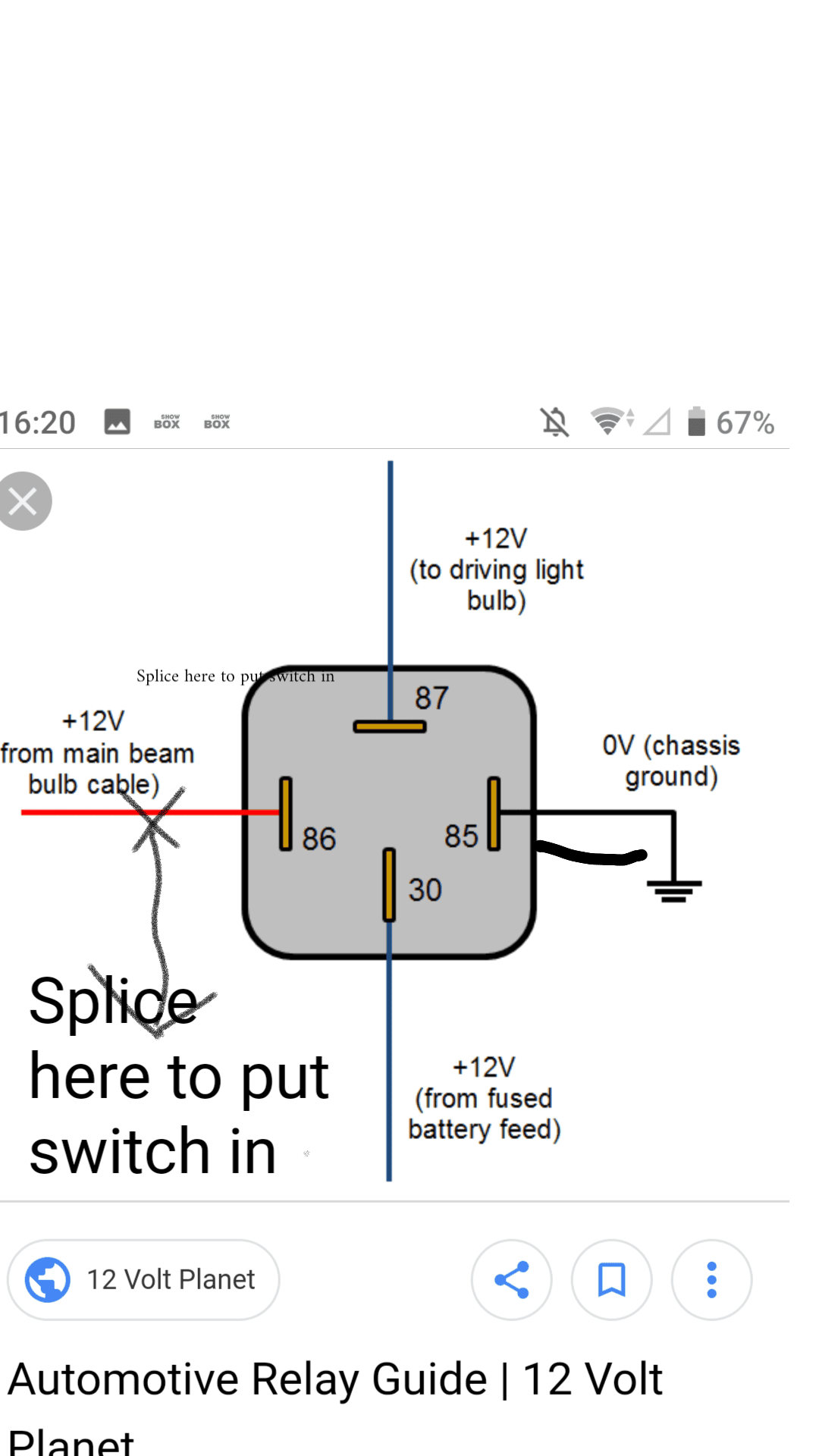

Can I link 4 Led spots onto one relay like this image
Thanks

TD4 Si · Jun 27, 2019

Or is it more like this I have a relay and cable but not sure as to where each wire should go and where on this to put my on off switch.
Thanks everyone

discool · Jun 27, 2019

TD4 Si said:
Can I link 4 Led spots onto one relay like this image
Thanks

You could, that will depend on the current of the combined led spots and the rating of the relay. From an functioning point of view I’d provide two identical circuits (but then I’m an electrical engineer) so two lamps on each, if one lamp or circuit fails you still have the other one with two lamps functioning.
To connect, tap, splice or join a wire to another u will find all the information u need on UTube.

slomofo · Jun 27, 2019

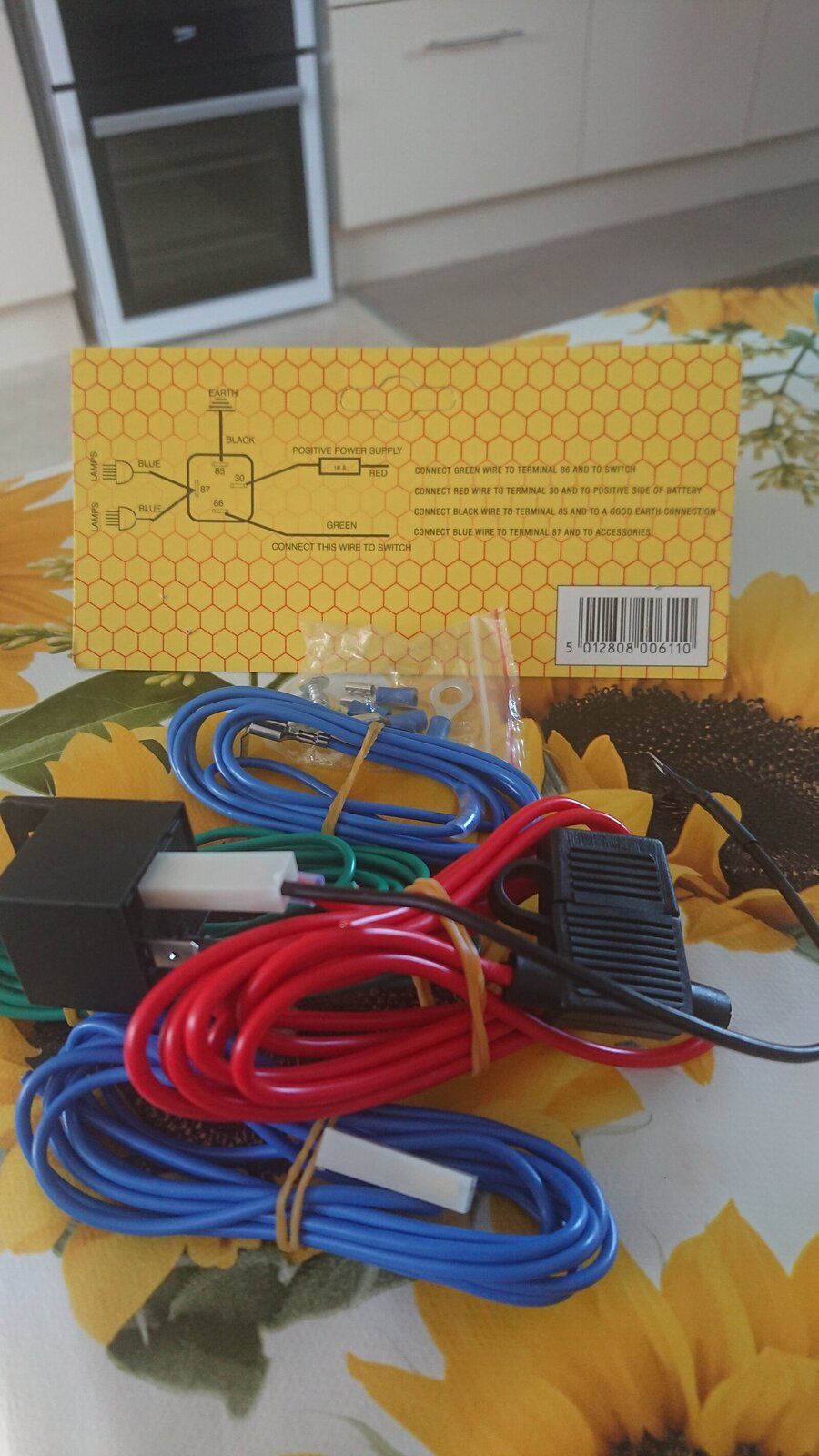

Splendid ready made loom with relay fuse and switch here

https://www.landyzone.co.uk/land-rover/garage-clearout-defender-bits.347279/

Bargain!
