LED headlights...again!

Discussion in 'Defender 90 / 110 / 130' started by steveyorks, Mar 3, 2018.

< Previous Thread | Next Thread >
  1. JimS

    JimS Well-Known Member

    Joined:
    Apr 23, 2016
    Posts:
    1,461
    Likes Received:
    1,428
    Location:
    Berks/Surrey/Hants border
    I would guess their webpage has just duplicated the description for the LHD and the RHD parts
    The RHD could not be DOT approved, wrong beam
    The LHD could be both DOT / E approved, supposedly.

  2. tom1979

    tom1979 Well-Known Member

    Joined:
    Aug 22, 2013
    Posts:
    1,250
    Likes Received:
    208
    Location:
    Bedford
    Worth asking them, although they don't state they are road legal they do give that impression and if you've bought them on the understanding they are road legal and it transpires they are not then they'd have to have them back or supply something similar that is road legal.

  3. JimS

    JimS Well-Known Member

    Joined:
    Apr 23, 2016
    Posts:
    1,461
    Likes Received:
    1,428
    Location:
    Berks/Surrey/Hants border
    I've sent them a mail, let's see if they reply....

  4. tom1979

    tom1979 Well-Known Member

    Joined:
    Aug 22, 2013
    Posts:
    1,250
    Likes Received:
    208
    Location:
    Bedford
    No reply from Britpart then?!

  5. JimS

    JimS Well-Known Member

    Joined:
    Apr 23, 2016
    Posts:
    1,461
    Likes Received:
    1,428
    Location:
    Berks/Surrey/Hants border
    Unsurprisingly, no...

  6. tom1979

    tom1979 Well-Known Member

    Joined:
    Aug 22, 2013
    Posts:
    1,250
    Likes Received:
    208
    Location:
    Bedford
    Maybe th prospect of having them returned for a full refund would get their attention

  7. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    696
    Likes Received:
    224
    Location:
    Slough and Bath
    My understanding (and always happy to be corrected, that's how I learn) it that headlights are approved as a light unit/bulb combination so while the appraval makings are on the glass they actually apply to the glass / bulb assembly as tested. I beleive this is the issue behind the problems of after market HID bulbs as they negate the approval for the assembly. While this would also be true of after market LED bulbs too I think the situation for LEDs is a bit different. Aftermarket HIDs caused an issue because the beam patterns were so obviously wrong, but if the LED manufactures can position the LED centre in the same location as the bulb filiament then functionally they would be the same beam pattern. I've been lookiing closely at LED H4s and some look like a lot of effort has gone into getting the design right for an H4 match. I would be comfortable fitting these and argueing that while not explicitly approved they are a legitmate equivalent and not signficantyl different to fitting any other H4 filiament bulb that was not the identical one used in the type tests.

  8. JimS

    JimS Well-Known Member

    Joined:
    Apr 23, 2016
    Posts:
    1,461
    Likes Received:
    1,428
    Location:
    Berks/Surrey/Hants border
    I think you're right about the whole light assembly being approved so if you change the bulb type 'officially' you are deviating from spec.
    This seems to be the case with side / brake lights as well although seems to be overlooked quite a bit, they are normally just interested in the colour of the lights.
    I think HID's require a headlamp wash system by law as well, so retrofit HID's could be an issue

  9. JimS

    JimS Well-Known Member

    Joined:
    Apr 23, 2016
    Posts:
    1,461
    Likes Received:
    1,428
    Location:
    Berks/Surrey/Hants border
    Just looking through my inbox and I did actually get a response from Britpart on their LynxEye DA6282 range of LED headlights

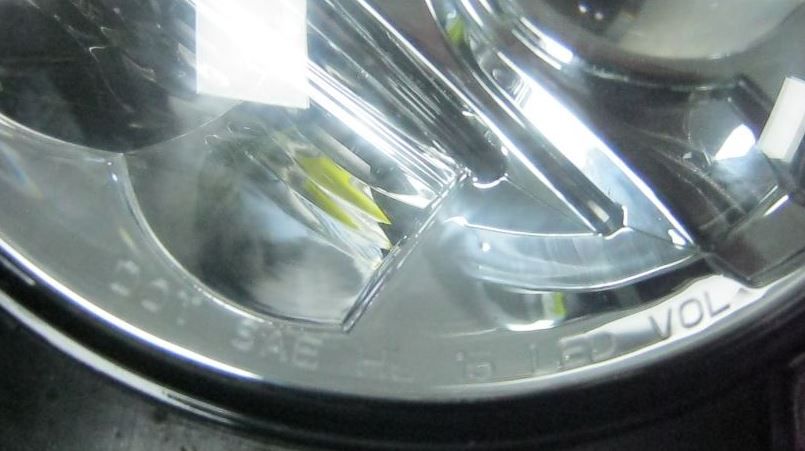

    With reference to your recent e mail regarding the DA6282 lights. I can confirm the lights do have the DOT marking etched into the glass, it is on the bottom left of the lens and the E mark is on the right. I have attached a picture for your reference. It is etched in the glass and so is not very clear, but can be made out. These are LED lights and are road legal, I have been told it is the HID lights that are becoming illegal.



    Regards


    So given the response from Britpart it would imply no problems at MOT but I will let you all know in June....

  10. tom1979

    tom1979 Well-Known Member

    Joined:
    Aug 22, 2013
    Posts:
    1,250
    Likes Received:
    208
    Location:
    Bedford
    That’s good of them to reply. I had a similar response from SP4x4 where I bought mine (not Britpart but very similar). Our MOT man had a good look at them and couldn’t see a problem. He said it is where LED bulbs are used in the wrong lamps which cause the problems, “whole units” would be fine by the sounds of it.

    Huntinghicap likes this.
  11. SpaceDawg

    SpaceDawg Active Member

    Joined:
    Jul 1, 2012
    Posts:
    925
    Likes Received:
    39
    Location:
    Cowfold, West Sussex
    Mine has passed two MOT with the £140 LED headlights.

  12. leeds

    leeds Active Member

    Joined:
    Jul 23, 2010
    Posts:
    174
    Likes Received:
    26
    So the UK version of the Britpart LED headlights have DOT SAE markings on?

    DOT stands for the USA Department of Transport and is a standard used in Central and N America.

    Now it would be possible for a high beam ONLY headlight to have meet both the DOT and UNECE technical requirements.

    The light pattern requirements for them in low beam is different.

    Now North America drives on the right whereas the UK drives on the left and I can not readily see a light manufacturer ensuring LHT/RHD headlights being DOT compliant

    Vision X and Truck-Lite both American companies certainly do not mark their UK specification headlights with DOT and SAE.

    So that raises a question mark over the Britpart lights.


    Next question mark UNECE regulations state

    That is part of the APPROVAL mark. I can not see it in the photograph of the Britpart approval markings.

    The arrows are present on the Vision X and Truck-Lite UK specification lights.

    That does raise some questions about the full legality of the Britpart LED headlights.

    I do not have the Britpart LED headlights, I can understand that retail customers buying these lights believe that they are 100% road legal.

    However I think that Britpart needs to explain WHY their UK specification dipped and main beam headlights

    1) Carry the DOT markings

    2) Why they do not carry the LHT/RHD arrow as required


    Brendan

  13. JimS

    JimS Well-Known Member

    Joined:
    Apr 23, 2016
    Posts:
    1,461
    Likes Received:
    1,428
    Location:
    Berks/Surrey/Hants border
    I think the front glass is common for all markets, the rear reflector and LED set up changes to suit the market, and they have, for stock reasons, not stocked two sets of front glass with L/R respective arrows
    So it will be interesting to see what they have to say (I have asked them)

  14. tom1979

    tom1979 Well-Known Member

    Joined:
    Aug 22, 2013
    Posts:
    1,250
    Likes Received:
    208
    Location:
    Bedford
    I had also emailed Britpart for further clarification, will be interesting to see. I think from an MOT point of view as long as they are correctly setup there should be no problem. You'd have to get an ar*sehole MOT tester to start looking up the regulations to check your headlights.

  15. tom1979

    tom1979 Well-Known Member

    Joined:
    Aug 22, 2013
    Posts:
    1,250
    Likes Received:
    208
    Location:
    Bedford
    I had a reply from Britpart, they directly quoted this post from this forum (I sent them a link so they could see leeds' comments regarding the markings, or lack of)

    So, they basically haven't answered the question! I have asked for clarity.

    Last edited: Apr 12, 2018
  16. leeds

    leeds Active Member

    Joined:
    Jul 23, 2010
    Posts:
    174
    Likes Received:
    26
    Have just had a thought.

    Are they working on a British/American light pattern?

    If so that is a flatter beam pattern with no kick up on the U. K. near side.

    Now IF that is the case it might possibly negate the need for the LHT arrow. Whilst it might get around the need for stocking different models for different market place it does restrict the throw of light onto the near side verge/pavement.

    Now if Britpart uses the British/American light pattern reason now we could possibly assume they are getting information off this forum rather then using their own technical knowledge?


    Brendan

  17. tom1979

    tom1979 Well-Known Member

    Joined:
    Aug 22, 2013
    Posts:
    1,250
    Likes Received:
    208
    Location:
    Bedford
    the fact they referred directly back to this forum when directly asked "are they road legal" suggests they know f*ck all.

  18. tom1979

    tom1979 Well-Known Member

    Joined:
    Aug 22, 2013
    Posts:
    1,250
    Likes Received:
    208
    Location:
    Bedford
    From the horses mouth:


    Hi Tom


    We have had the E13 and BPQA approvals from our supplier, E marked approval confirms acceptability to supply the EU, the lenses are also plain so offer no diffusion LEFT or RIGHT for RHD or LHD vehicles. It’s all in the base/back unit.


    Thank you

    Best regards

    Neil”
