Leaking power steering freelander v6

Discussion in 'Land Rover Freelander' started by Darrenbunn6969, Oct 20, 2019.

< Previous Thread | Next Thread >
  1. Darrenbunn6969

    Darrenbunn6969 Member

    Joined:
    Jan 9, 2018
    Posts:
    60
    Likes Received:
    3
    Location:
    France
    Hi all I recently noticed I have a power steering leak ( I think ) orange/ red oil is dripping from above the front prop cv joint. I have the v6 version I have been underneath bu I can’t see where it’s leaking from I can see the pipes going into the Rack and they are dry. Any pointers where to look as there is heat shield below the rack. Also are the steering racks the same on the other models. Any info will be of great help thank in advance.

  2. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    18,207
    Likes Received:
    3,602
    Location:
    Near Newquay
    The rack can leak from a number of pipe joints, or from rusted link pipes.

    Unfortunately it's a pain to get at on the V6, as the engine is very close to the rack. It is possible to do with the engine in place, but is far from easy.

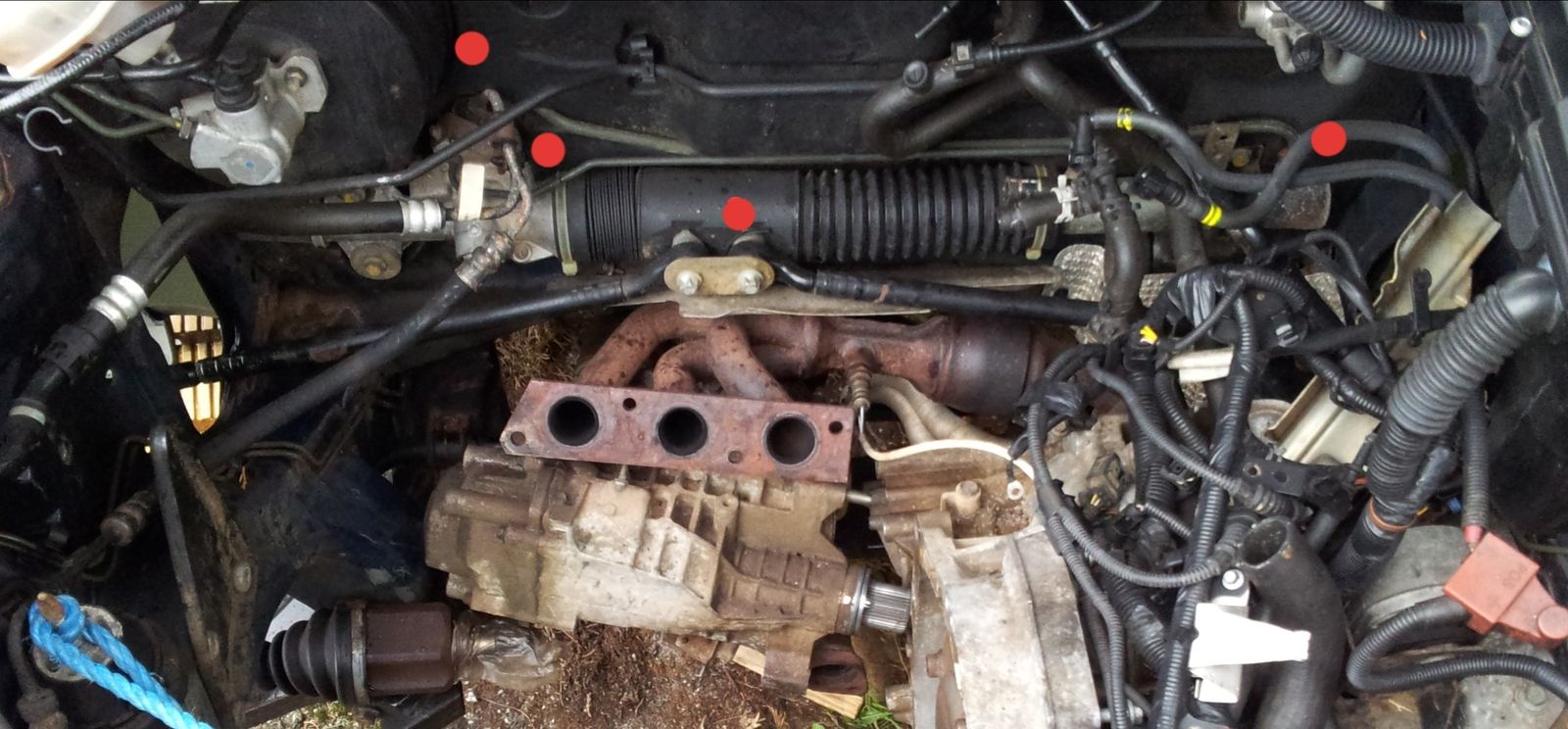

    Here's what the rack looks like without the engine in place.
    I've marked potential leak points with red dots. You'll need to look through the inner wing track rod hole, or use an inspection mirror or small camera to see the actual position of the leak.

    Hippo likes this.
  3. Darrenbunn6969

    Darrenbunn6969 Member

    Joined:
    Jan 9, 2018
    Posts:
    60
    Likes Received:
    3
    Location:
    France
    Thank you I
    will have a look tomorrow do you know if the steering racks are all the same on the freelander 1 or are they different

  4. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    18,207
    Likes Received:
    3,602
    Location:
    Near Newquay
    I'm guessing they're all the same. They'll definitely fit, as the bodies are the same from 2001.

  5. andyfreelandy

    andyfreelandy Well-Known Member

    Joined:
    Jul 29, 2010
    Posts:
    1,398
    Likes Received:
    361
    Location:
    Devon
    On my V6 the leak was rcaused by rust around the passenger side pipe union marked on Nodge's diagram. If you remove the heat shield (2 nuts) it will help you look. Can't think of anything in the middle to leak but you may see the fluid tracking along the rack from one end. I second the above comments. Having changed a v6 rack with engine in the car it is, indeed, difficult but possible!! Come back to us when you have inspected.

    Hippo likes this.
  6. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    18,207
    Likes Received:
    3,602
    Location:
    Near Newquay
    It'll leak from the centre, if the pressure seals have failed. ;) Although this is very unusual.

  7. Darrenbunn6969

    Darrenbunn6969 Member

    Joined:
    Jan 9, 2018
    Posts:
    60
    Likes Received:
    3
    Location:
    France
    Thank you I’ve just had a quick look it can’t really see anything obvious but from what I can see is possibly where the track rods attach. I can Easley remove the heat shield so when the rain stops I’ll remove the heat shield and have a good look
