L322 issues

L322CH · Dec 23, 2023

can anyone please help my 2003 L322 TD6 been parked up for 10 months ,now no pixels on display ,suspension is hard wont lower or raise.also if i drive autobox feels like its in some low mode goes through all gears but when you slow down there is a thud before it stops

Datatek · Dec 23, 2023

L322CH said:
can anyone please help my 2003 L322 TD6 been parked up for 10 months ,now no pixels on display ,suspension is hard wont lower or raise.also if i drive autobox feels like its in some low mode goes through all gears but when you slow down there is a thud before it stops

What is the state of the battery?

L322CH · Dec 23, 2023

put a new one on it still got all these issues

kermit_rr · Dec 23, 2023

Is the new one fully charged and reading >12.6v?

kermit_rr · Dec 23, 2023

Could well be some codes that need clearing if the battery has gone flat, make sure it's on high range, try a cycle between hi and low and back again

L322CH · Dec 23, 2023

kermit_rr said:
Is the new one fully charged and reading >12.6v?

yes battery all good & tested alternator charges ok too.but thats as far as i can do ,please help

kermit_rr · Dec 23, 2023

L322CH said:
yes battery all good & tested alternator charges ok too.but thats as far as i can do ,please help

If it's running then you can drive a few feet with low then hi selected a few times. Or, can you not select either?

L322CH · Dec 23, 2023

i not changed any gearbox settings ,just put it in drive but its acting like this now,also orange traingle lit on dash,but i have lost all pixels so cannot see if there are any messages

marjon · Dec 23, 2023

You say suspension is hard and wont raise or lower, you sure its not down on the stops?

Break it down into bits of problems that may well not be related.

Clunks can be suspension bushes.
Suspension issues, compressor?

J

P38 Monkey · Dec 23, 2023

marjon said:
You say suspension is hard and wont raise or lower, you sure its not down on the stops?

Break it down into bits of problems that may well not be related.

Clunks can be suspension bushes.
Suspension issues, compressor?

J

That’s a good approach - one problem at a time.
Maybe get the gears sorted first?
As Kermit says, drive a few feet and try selecting various gears / low / high a few times…?

marjon · Dec 23, 2023

P38 Monkey said:
That’s a good approach - one problem at a time.
Maybe get the gears sorted first?
As Kermit says, drive a few feet and try selecting various gears / low / high a few times…?

Gearbox is a separate issue and its probably ~~knackered~~

Needs a fluid change? first.

J

L322CH · Dec 23, 2023

P38 Monkey said:
That’s a good approach - one problem at a time.
Maybe get the gears sorted first?
As Kermit says, drive a few feet and try selecting various gears / low / high a few times…?

not too sure if its on bumpstops
it was ok before i parked it up so not a bush problem
but why wont the up down work to raise suspension
why the gearbox issue

kermit_rr · Dec 23, 2023

L322CH said:
not too sure if its on bumpstops
it was ok before i parked it up so not a bush problem
but why wont the up down work to raise suspension
why the gearbox issue

best to figure exactly what the issue is before asking why

pwood999 · Dec 23, 2023

L322CH said:
not too sure if its on bumpstops
it was ok before i parked it up so not a bush problem
but why wont the up down work to raise suspension
why the gearbox issue

Run it for long enough for the compressor to fill the tank. Then try steering lock to lock before changing heights.

marjon · Dec 23, 2023

L322CH said:
not too sure if its on bumpstops

Do you have a tape measure, center of wheel to top of wheel arch. What is it?

L322CH said:
but why wont the up down work to raise suspension

Cos you have a problem.

L322CH said:
why the gearbox issue

Not yet but we all know they are not the best.

J

Datatek · Dec 23, 2023

kermit_rr said:
Is the new one fully charged and reading >12.6v?

12.6 volts, that is not fully charged.

Datatek · Dec 23, 2023

L322CH said:
yes battery all good & tested alternator charges ok too.but thats as far as i can do ,please help

"Battery is good". What voltage do you have? These cars are very voltage critical.

kermit_rr · Dec 23, 2023

Datatek said:
12.6 volts, that is not fully charged.

No it's not, but anything over 12.6 is a starting point that should be sufficient to not cause immediate low battery errors.
In my opinion it's just as important to check what voltage the battery drops to during cranking

Plus is several ECUs are getting ready for take off, then that will put significant load on the battery and drop the reading

Datatek · Dec 23, 2023

kermit_rr said:
No it's not, but anything over 12.6 is a starting point that should be sufficient to not cause immediate low battery errors.
In my opinion it's just as important to check what voltage the battery drops to during cranking

Plus is several ECUs are getting ready for take off, then that will put significant load on the battery and drop the reading

That is why if the voltage is on the low side to start with, you are rapidly in trouble.

backinblack · Dec 23, 2023

L322CH said:
not too sure if its on bumpstops

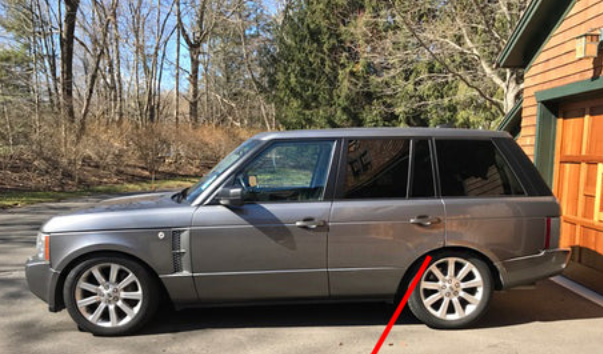

Is it sitting like this?
