Disco 2 Key help

Sorry Sorry Sorry for this one but it is doing my head in .
First error i have bought a replacement key fob from ebay.opened it up and looked at chip for nanocom

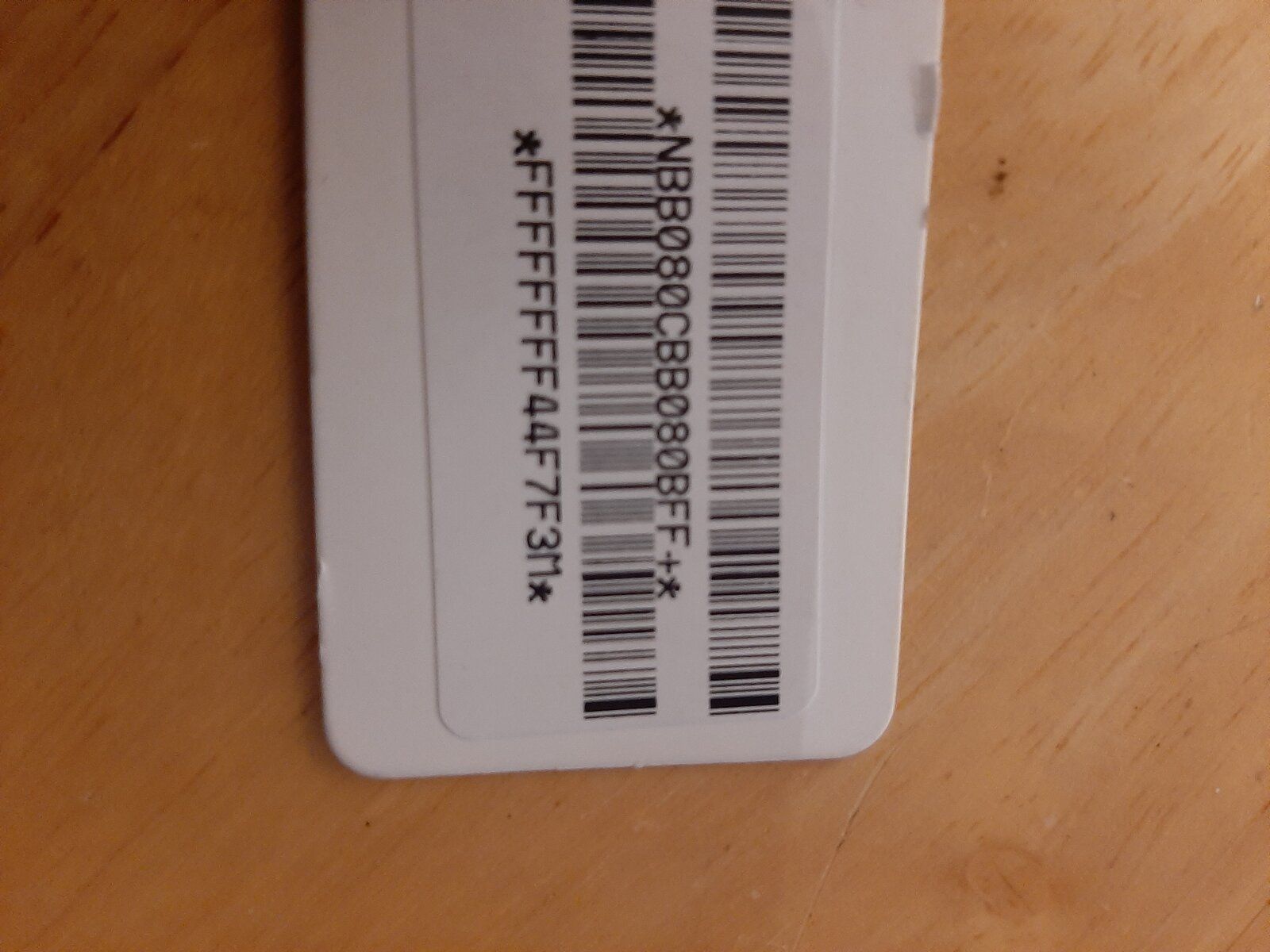

No direct 6 digit code ( see pic 2 )
So have tried to work it out using bar code
Tried several combinations and have now gone mad so before I torch delilah (that's the landie ) and buy a suzuki can anyone tell me please how to code this thing PLEASE

The code should be hex like 44F7F3, maybe try that section of the bottom barcode, otherwise you will need to get the seller to email it to you

Thanks Jim
Tried that code no joy also tried 4f7f3m
And B080BF and B080CB all with no joy . The suzuki is definitely looming .The nanocom can see the key when I do an rf test so I know it transmits

skintnow said:

The nanocom can see the key when I do an rf test so I know it transmits

Click to expand...

I'm confused

If the Nanocom can see the key and it's registered and saved then it should work.

Are you saying it doesn't work?

If you ask nanocom to do the rf test and then push the button on the unprogrammed key nanocom sees a rf signal .
However the nanocom does not accept the codes I have tried to save

Just to clarify, you are using a Nanocom Evo aren't you?

When I registered new keys for my D2 I just needed to go in to the respective menu in Nanocom (can't remember which one, sorry) and register the new key by pressing one of the fob buttons. I didn't need to enter any codes of any sort.

It just says nanocom on the box

My apologies... I've just watched a video from Blackbox and you do indeed need to enter a code for new key.

It was a while ago that I was in that Key Programming section so maybe I did have to enter a code.

I blame old age.

For reference here's the video.

Thanks I watched that and played it on my phone whilst actually coding I believe its the code. I need to crack the code on my bar code supplied with the key

@JimS was right. If you've got no other paperwork showing 6 digit codes you'll need to contact the seller.

Try BB080C or BB080B

Will try again tomorrow thanks for all your suggestions

From the info I have the 6 figure code from the long number you have sholud be "BB0 (zero)80 (zero) C" - BB080C
HTH,
Griff

The code should be on the printed circuit board

Landmark 2
Thank you I think I was doing it wrong on nanocom.
it is the code you highlighted
Many thanks folks for your help .
Delilah now has two keys

Glad you're sorted. Sorry I was too far away to help.
