johnnys series 3 resto project

angry angry angry angry fookin peed off wiff it

spent the last 3 weeks now tracking down diesel injector companys to absolutely no evail trying to find a set of injectors for this ol girl either new or second hand and my local parts supplier is getting frigged off with it aswell

has anyone out there got a decent set they could sell me for beer tickets and ill even pay the fekkin postage

the cheapest quote ive had was £45 per injector getting me old buggers reconditioned some would say thats pretty steep id say its bloody vertical its enough to make me uke:

pm uncle CharlesY

The Mad Hat Man said:

pm uncle CharlesY

Click to expand...

is uncle charlesY slob by any chance

had mine done by a place in bristol called dtm think they charged about £25 per injector no. is 01179710203

johnny curt 1 said:

is uncle charlesY slob by any chance

Click to expand...

Nope Slob is a disabled geezer living in France CharlesY lives in porridgewog land

The Mad Hat Man said:

pm uncle CharlesY

Click to expand...

is charlesY still about?
aint heard from him for ages!

i'll dig some injectors out johnny. know i have some, just gotta find em and box em an post em.
send us a text tommoz as a reminder, i'll be in the workshop best part of day.
oh, and pm or text us an address!

There are some videos of people cleaning there own...

Injector cleaning

might be worth a try if you can figure out a way of doing it to a mechanical injector

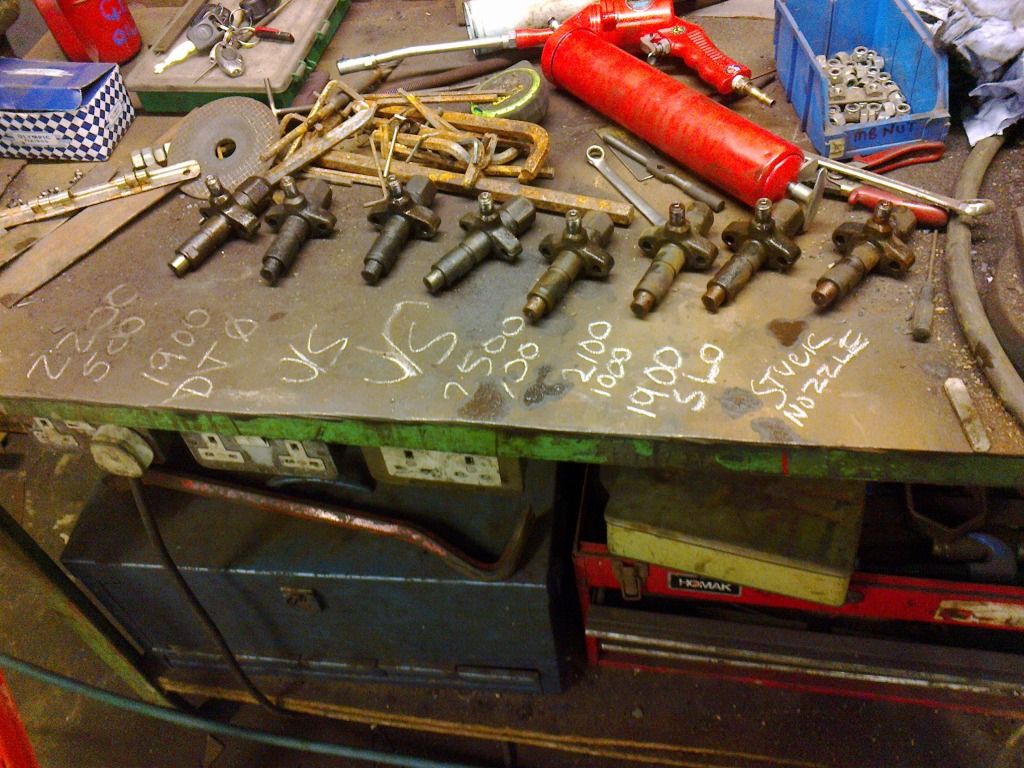

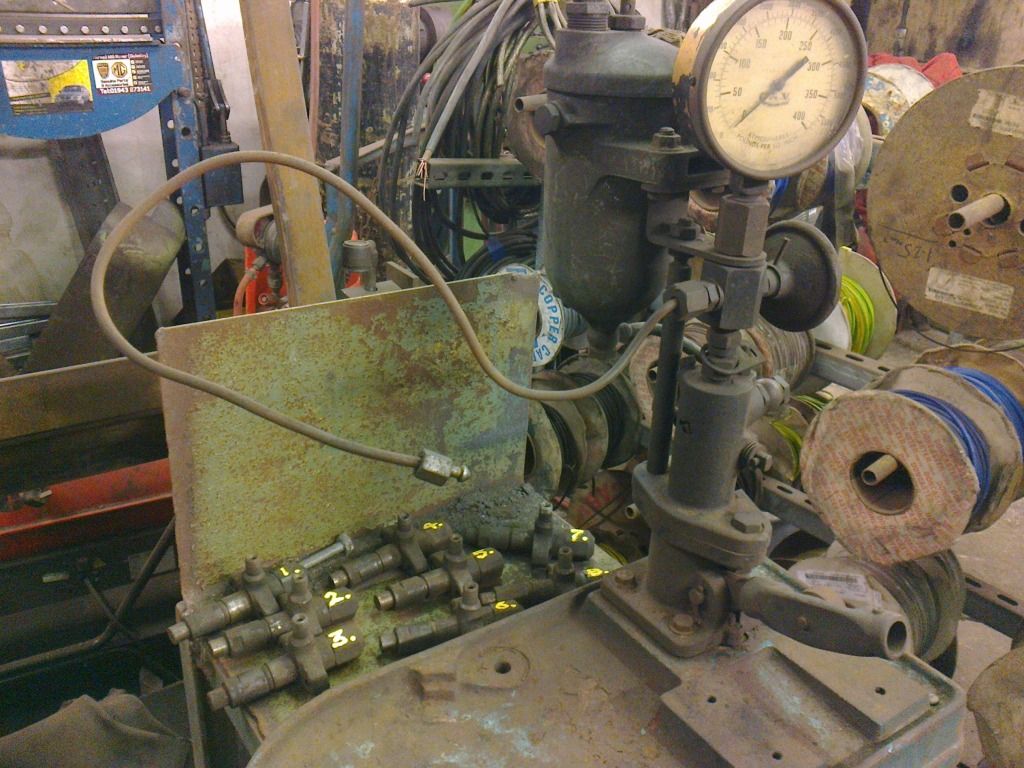

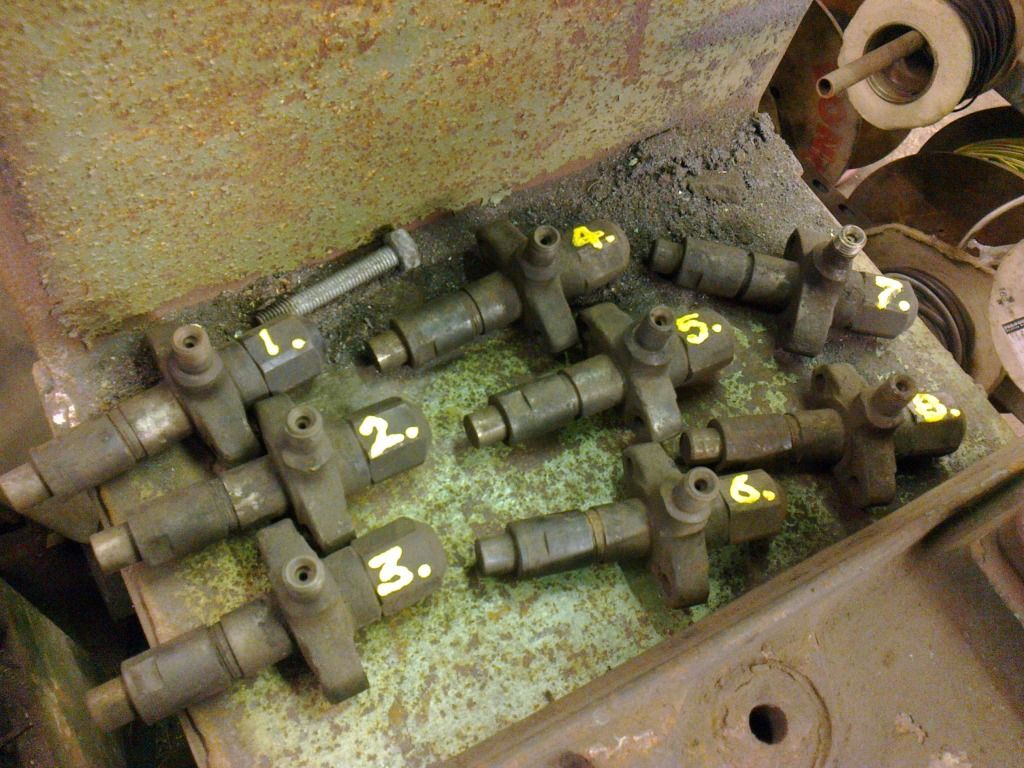

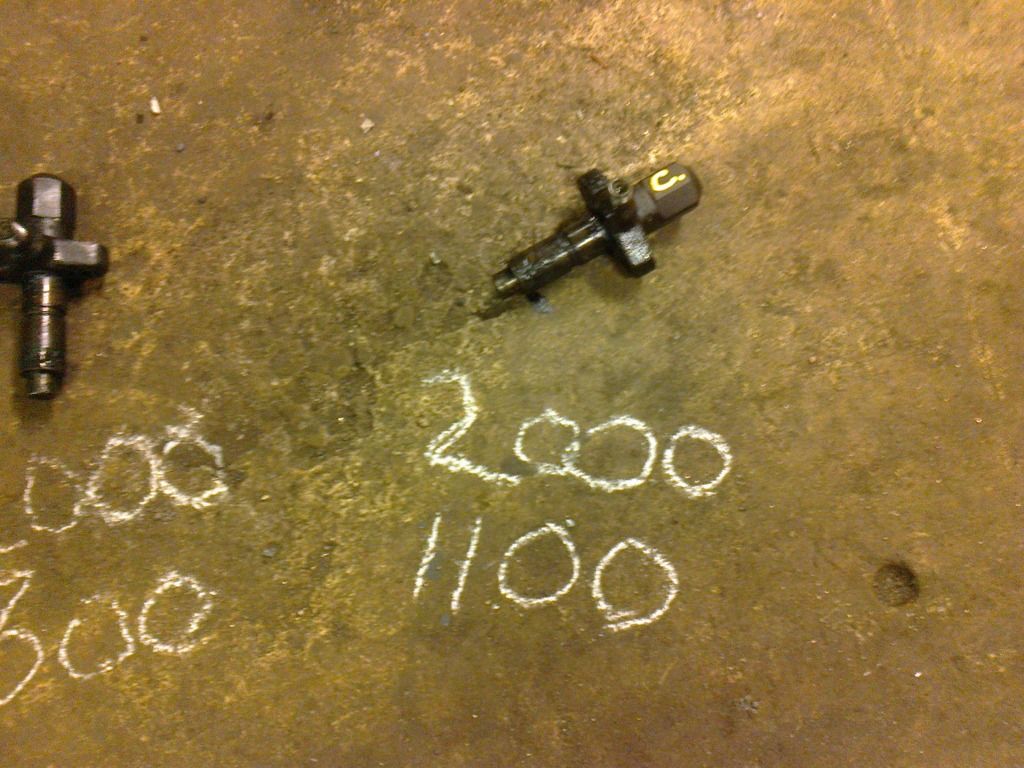

ok, so after much scrattin about, and digging out the tester, an attempt was made to try an identify some usable injectors.......

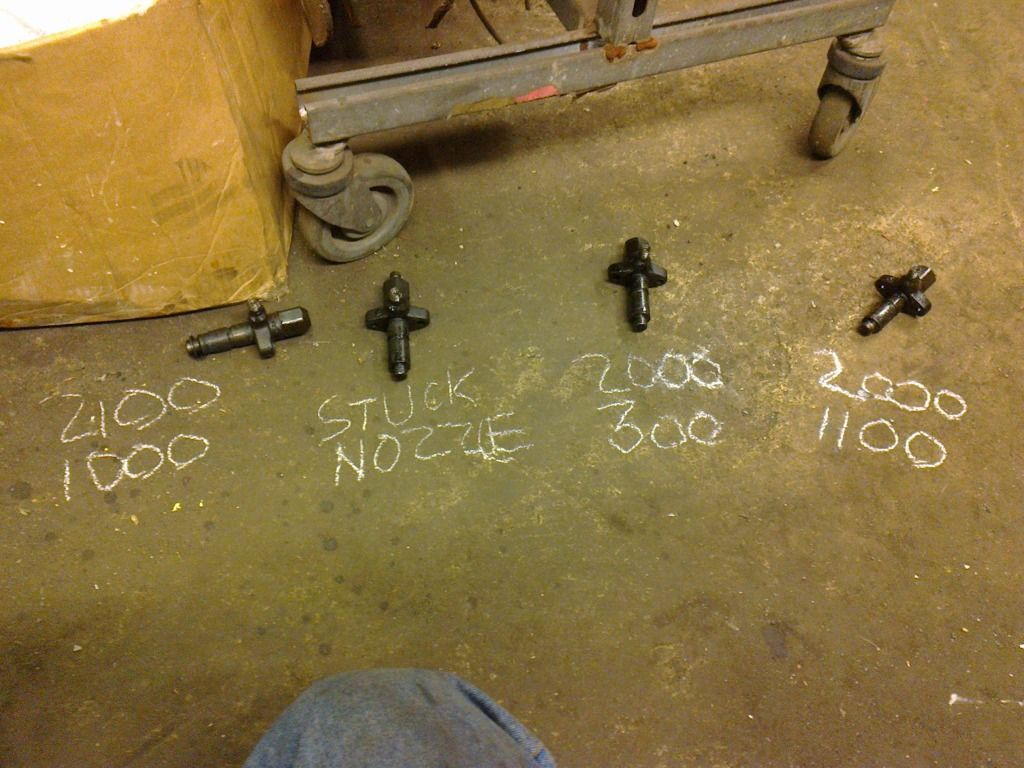

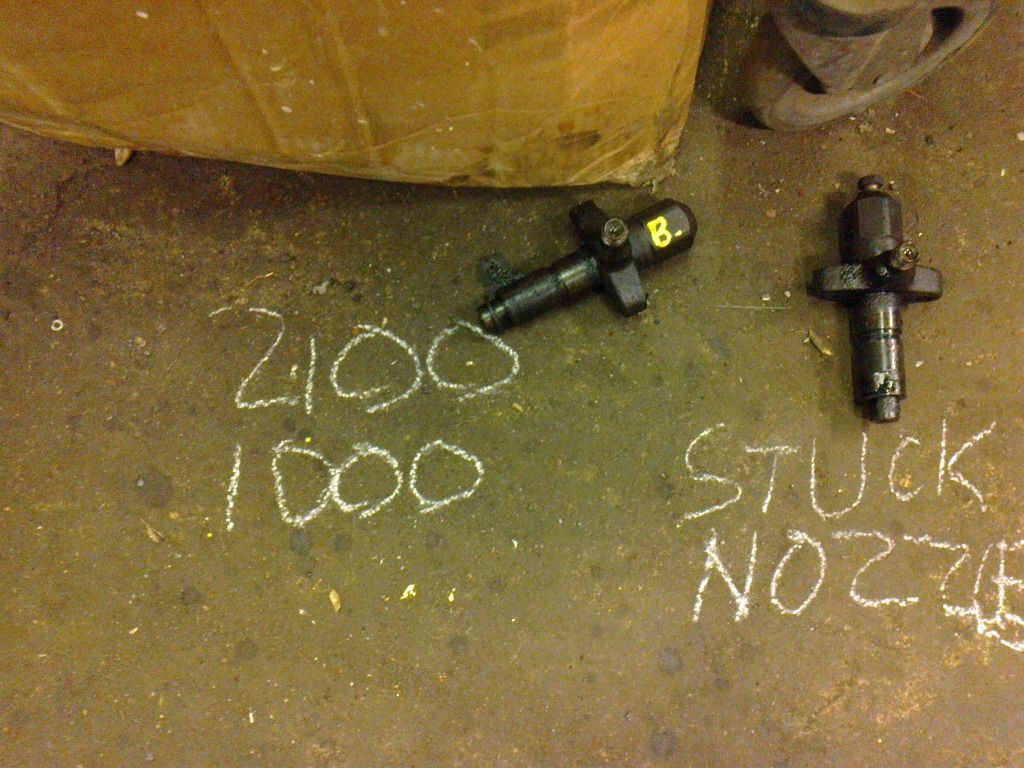

A,B,C,D, are boxed up ready to post if you want.
hopefully the pictures capture the pressure info, but cant guarantee
how they'll perform!

neil yer a fekkin diamond just name yer price mate


ive been friggin about with the bugger these last couple of days and borrowed a brand new set of injectors and it turned the thick black smoke to tonnes of white when yer put the pedal to the floor

ive spent the biggest half of yesterday trying to tweak the pump to cure this but it seems to have no effect the best ive had it was hardly any smoke when idling then soon as i rev the fekker it looks like stars in their eyes ( and tonight mathew im going to be !!!!!!)

ive seen some injector pump overhaul kits with all the gaskets bushes washers circlips ETC and i was thinkin of stripping my pump but ive been told it will need re-calibrating but surely if theres no way of adjusting the actual pump flow and pressure a full refurb will just put it right anyway wouldnt it

Good man! Well done for doing the work to work out some good uns!

How does that kit work?

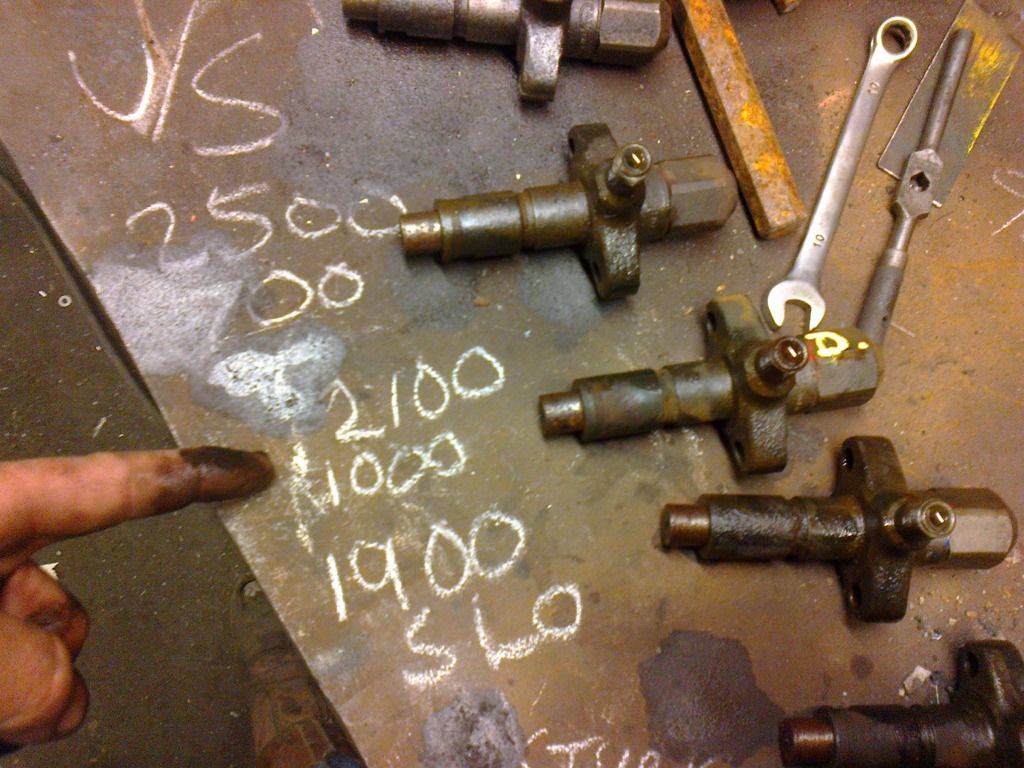

Particularly like the oily finger tip, I've never managed to keep the rest of my hand clean when working on motors!

How do you test injectors properly?

dominicbeesley said:

Good man! Well done for doing the work to work out some good uns!

How does that kit work?

Particularly like the oily finger tip, I've never managed to keep the rest of my hand clean when working on motors!

Click to expand...

here yer go dom

Testing Diesel Fuel Injectors - YouTube

with a proper tester ,you pump them up to just before opening pressure (135 bar)and see if they leak (dribble)or pressure drops ,then check spray pattern

james you got PM

jamesmartin said:

with a proper tester ,you pump them up to just before opening pressure (135 bar)and see if they leak (dribble)or pressure drops ,then check spray pattern

Click to expand...

should they hold just before opening pressure?
the hold i measured was after opening.

johnny curt 1 said:

james you got PM

Click to expand...

was that to ask if they were any good?

nrgserv said:

should they hold just before opening pressure?
the hold i measured was after opening.

Click to expand...

hold just before ,

jamesmartin said:

hold just before ,

Click to expand...

cheers, will recheck tomoz.
and just for info after watchin the link above, the oily finger wasn't from holding under the injector while injecting!
johnny, will have another scrat around as well, may have some pumps kicking around. price will be cost of diesel to yours and some guinness, will fetch em over again, i'll have back what you dont use.

finger near injector doesnt bare thinking about

jamesmartin said:

finger near injector doesnt bare thinking about

Click to expand...

My granddad knew someone who was accidentally killed by that, hes seen some pretty nasty stuff in his time my granddad.
