Jate Rings

goonarmy said:

Yeah you have to jack the body to get the rear diff guard on.
Not sure with the rear of a disco.Is there any where else that they will bolt through the chasis rail?

Click to expand...

Ahh.. the last disco i had got a 2' lift thats why i dint av to jack it up, Not without drilling it

Mine has no lift nath and the diff guard went on with no problems.

bought them from paddocks on offer a while back. just use the little groove in the ring to slide it up the diff and into place, its a bit fiddly getting the bolts tight but a ring spanner and small socket set sorted it.

bobbler said:

Mine has no lift nath and the diff guard went on with no problems.

bought them from paddocks on offer a while back. just use the little groove in the ring to slide it up the diff and into place, its a bit fiddly getting the bolts tight but a ring spanner and small socket set sorted it.

Click to expand...

probbably depends on tank type and amount of ****e in the boot

bobbler said:

Mine has no lift nath and the diff guard went on with no problems.

bought them from paddocks on offer a while back. just use the little groove in the ring to slide it up the diff and into place, its a bit fiddly getting the bolts tight but a ring spanner and small socket set sorted it.

Click to expand...

You got the single bolt type? Ones i got av 2 bolts with an allen key head... got rid of the lower front bumper this morning... Steering guard'd useful

two bolts on the top of the ring but to one side there is a notch cut out (sort of half circle shape) that fit nicely over the centre of the diff. Just slid it up from there and moved it till it was in the right position and tightened it up. Simples

these are what I bought PM121 Diff Guard - zinc coated (usually 14.95GBP)

goonarmy said:

probbably depends on tank type and amount of ****e in the boot

Click to expand...

not sure tbh goony, boot is usually pretty empty thanks to having no cover and late 300tdi if that is a different tank

bobbler said:

two bolts on the top of the ring but to one side there is a notch cut out (sort of half circle shape) that fit nicely over the centre of the diff. Just slid it up from there and moved it till it was in the right position and tightened it up. Simples

these are what I bought PM121 Diff Guard - zinc coated (usually 14.95GBP)

Click to expand...

Yer thats the ones... the site ses exc vat but they were all in at that price

one thing i did notice though is i cant get to my rear diff plug now, the guard sits too far up and blocks the filler plug. Tried it on the front and rear and it did the same so must be a design fault as the other is fine but for the price i have kept it (couldnt be arsed to pay to post it back )

bobbler said:

one thing i did notice though is i cant get to my rear diff plug now, the guard sits too far up and blocks the filler plug. Tried it on the front and rear and it did the same so must be a design fault as the other is fine but for the price i have kept it (couldnt be arsed to pay to post it back )

Click to expand...

I fink u av ter turn the guard round till it exposes the plug then tighten em up... thats wot i did anyway

i just set them up so the drain hole was at the bottom, will worry about fluids when i do them

as long as they protect your diffs mate thats whats important

bobbler said:

i just set them up so the drain hole was at the bottom, will worry about fluids when i do them

as long as they protect your diffs mate thats whats important

Click to expand...

Of course

Still aint got a rear recovery point

nathan5346 said:

Still aint got a rear recovery point

Click to expand...

you want some jate rings? have got 2 cast alloy type here that I can send along with your bits.....

nathan5346 said:

Welded i couldnt get hold of the forged ones n thems way too dear fer me, Ive had a bit of a nightmare this afternoon..... had to jackrear up right up to get the diff guard on the tank was in the way...had to put2 holes in the top of the rear bumper to get the tow bar bolts out that some tw@ had cut heads of.....

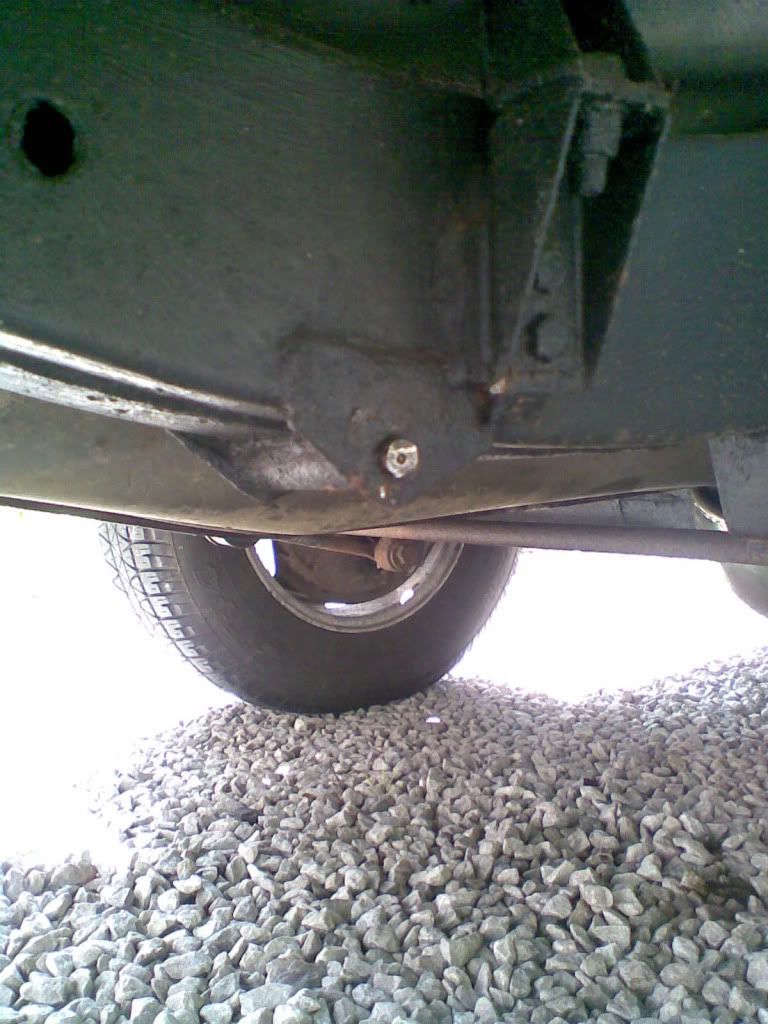

The anchor points where jake rings go are these the same lugs the lower tow bar brackets fit to? theres a bolt in both of em but no heads or nuts and they is stuck solid any ideas how to get em out? i started to drill the 1 out but just burning the bits out i assume they is high tensile bolts... so atm im stuck with no rear recovery point

Click to expand...

the anchor point on the photo is indeed where the tow bar and or jate ring bolts on. It appears that there's a tow bar fitted before on your disco...

to get it off, you've got 2 choices:

1) heat the anchor point using a blow torch, then either using a hammer or a locking plier and try to wiggle the bolt out.........BE EXTRA CAREFUL WITH THE BLOW TORCH, AS FUEL TANK IS NEXT TO IT...

2) use a hammer, and an old + screw driver......try to punch the bolt out the other side.......you wont be able to move the bolt out the other side totally as fuel tank is in the way.....however, once you've started the bolt moving, they can be pull out with a locking plier.....

I went for option 2 earlier today when the bolt head snapped, while removing the tow bar...

kingsonlim said:

the anchor point on the photo is indeed where the tow bar and or jate ring bolts on. It appears that there's a tow bar fitted before on your disco...

to get it off, you've got 2 choices:

1) heat the anchor point using a blow torch, then either using a hammer or a locking plier and try to wiggle the bolt out.........BE EXTRA CAREFUL WITH THE BLOW TORCH, AS FUEL TANK IS NEXT TO IT...

2) use a hammer, and an old + screw driver......try to punch the bolt out the other side.......you wont be able to move the bolt out the other side totally as fuel tank is in the way.....however, once you've started the bolt moving, they can be pull out with a locking plier.....

I went for option 2 earlier today when the bolt head snapped, while removing the tow bar...

Click to expand...

Ive treid lampin fook out of em no give at all.. gonna av to try heating it up

nathan5346 said:

Ive treid lampin fook out of em no give at all.. gonna av to try heating it up

Click to expand...

maybe you're not hammering it hard enough....

I started with a claw hammer....no movement....then resorted to a 5 lbs hammer.....when the bolt moved towards the fuel tank...I used a cold chisel, and hammer it back.......by now, the bolt should have been loose enough to be drawn out with a locking plier.....good luck..!!!!

kingsonlim said:

you want some jate rings? have got 2 cast alloy type here that I can send along with your bits.....

Click to expand...

How much do you want for them Kingy? Could poss take them off your hands if you don't need them

Used a blow torch n big ommer ****ed out (eventually ) so now i got recovery points front n rear still tinkering with the idea of tyres tho

nathan5346 said:

Used a blow torch n big ommer ****ed out (eventually ) so now i got recovery points front n rear still tinkering with the idea of tyres tho

Click to expand...

good thing you've got them bolts out...other wise, the tow bar won't fit...

the tyres you mentioned earlier are cheap....dont think you'll go wrong at that price...

kingsonlim said:

good thing you've got them bolts out...other wise, the tow bar won't fit...

the tyres you mentioned earlier are cheap....dont think you'll go wrong at that price...

Click to expand...

Could do with getting some steel rims to put em on
