L322 It broke

2006 4.2 s/c
Got in started it into D and my phone was in the center console and hit the low range switch and hdc switch,
Bing bong bong bing range selector light flashing permantly suspension lights gone off transmission fault wont shift past 2nd, 2 amber warning lights on the dash dsc light and another one and the green flashing lo light,

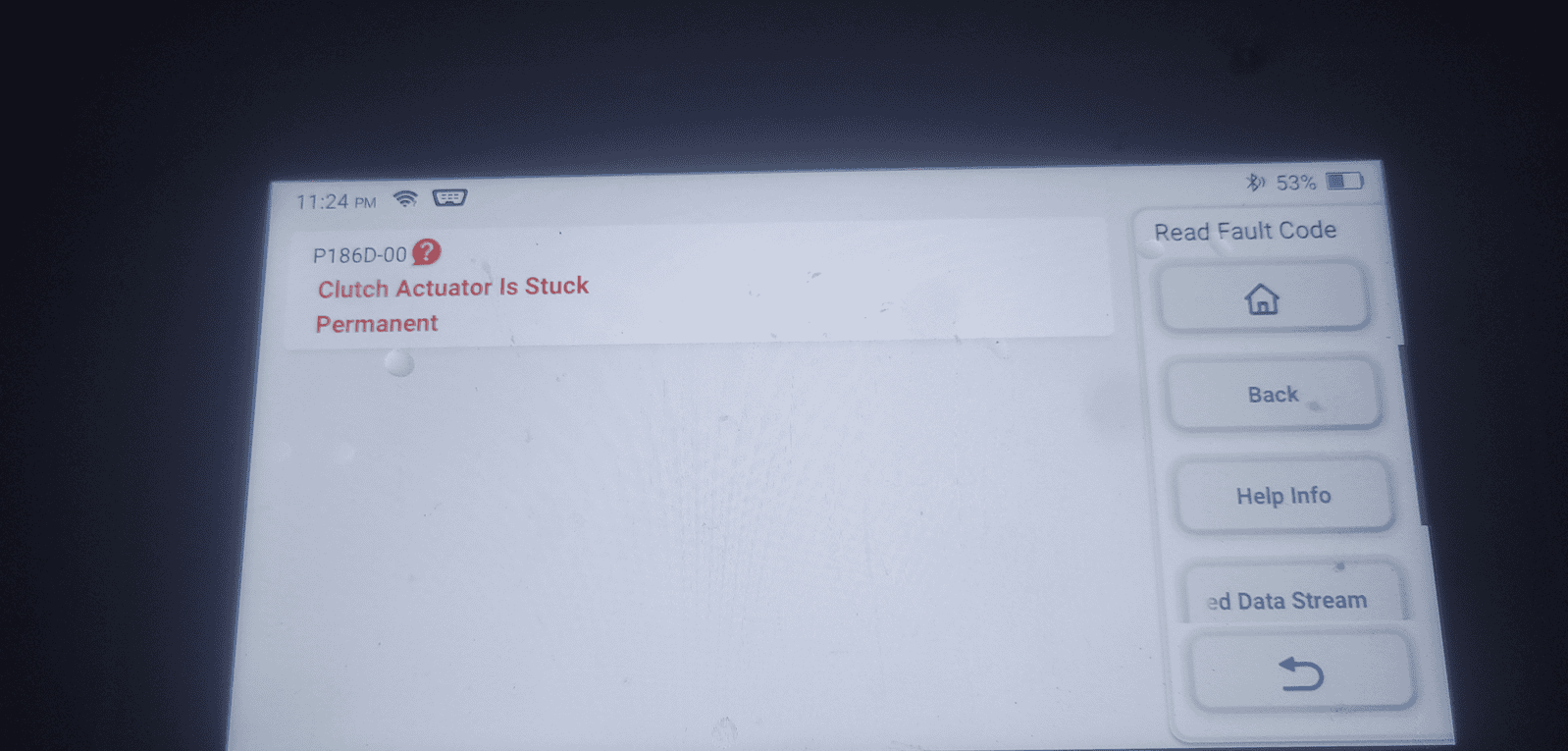

Heres some codes i pulled off my pals scanner

From the transfer box ecu..

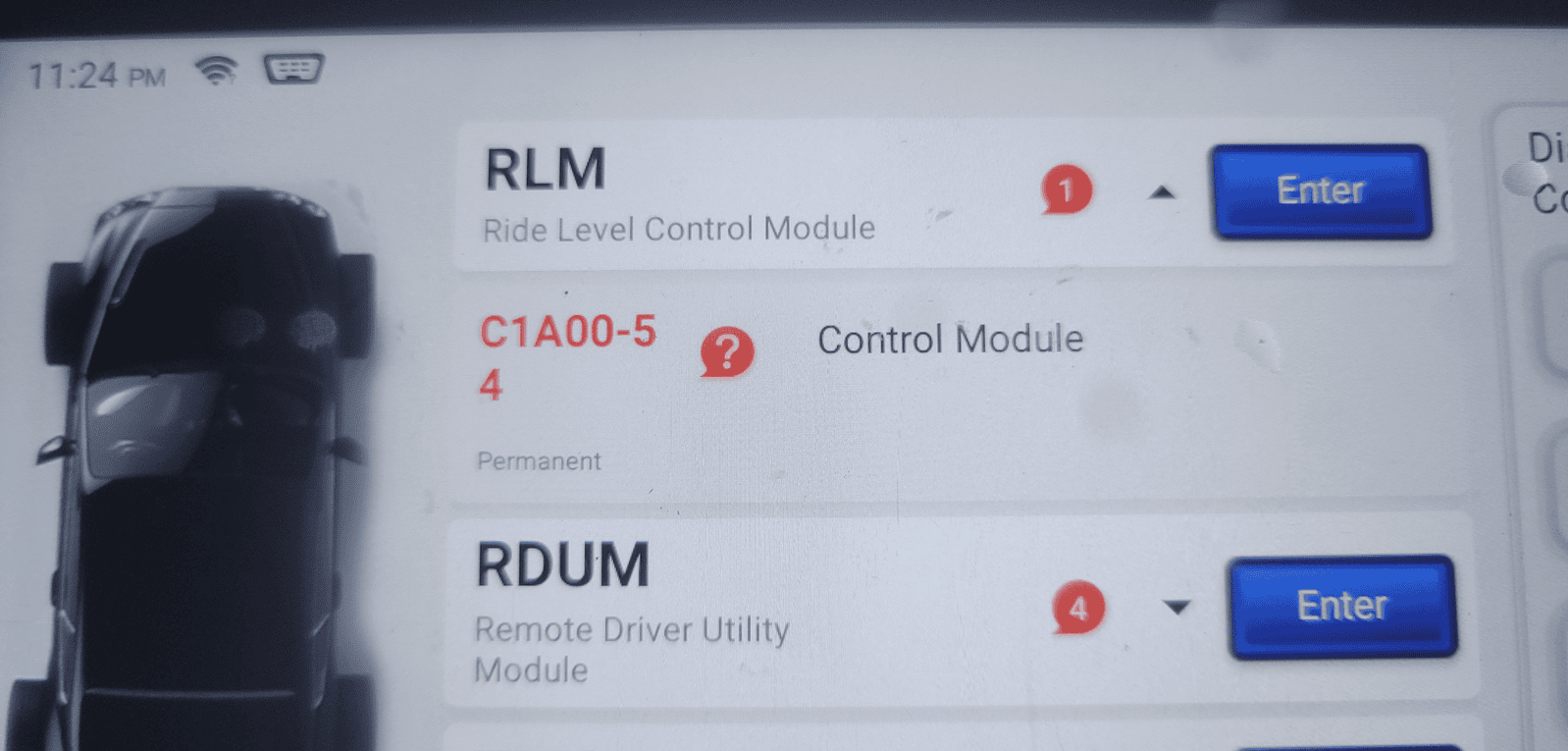

From the ride height ecu



And from the dynamic vehicle module


Non in the engine ecu or gearbox ecu

Only thing i tried was a fuse for transfer box netural and that didn't do anything,

Quelle surprise

Okay so lads managed to get the flashing green light away and the two orange lights by doing somthing with a thing on the transfer box dont know wont touch low range again,

All height sensors read and voltages work and it reads heights ect but hes not confident enough to callibrate or touch any options fair enough il have a look when i get home tonight,

Sorted it had gone into a tolerance mode, just drove it for the past 45mins and its behaved perfectly again,
High and low selections working apparently a plug had a green pin underneath,
