Freelander 1 Injector copper-washer removal made easy

Discussion in 'Land Rover Freelander' started by Zenerdiode, Feb 2, 2020.

< Previous Thread | Next Thread >
  1. Zenerdiode

    Zenerdiode Member

    Joined:
    Sep 2, 2019
    Posts:
    35
    Likes Received:
    15
    Location:
    UK
    I've searched for anyone who has done something similar, but failed to find anything.
    And if there is, please excuse the following...
    I've just finished removing my No4 Injector (FL1, TD4, 2005) because there was oil around the injector's head. After soaking the injector overnight with WD40 is popped-out with ease - thankfully.
    The washer, however, was firmly stuck with carbon deposits acting like glue.

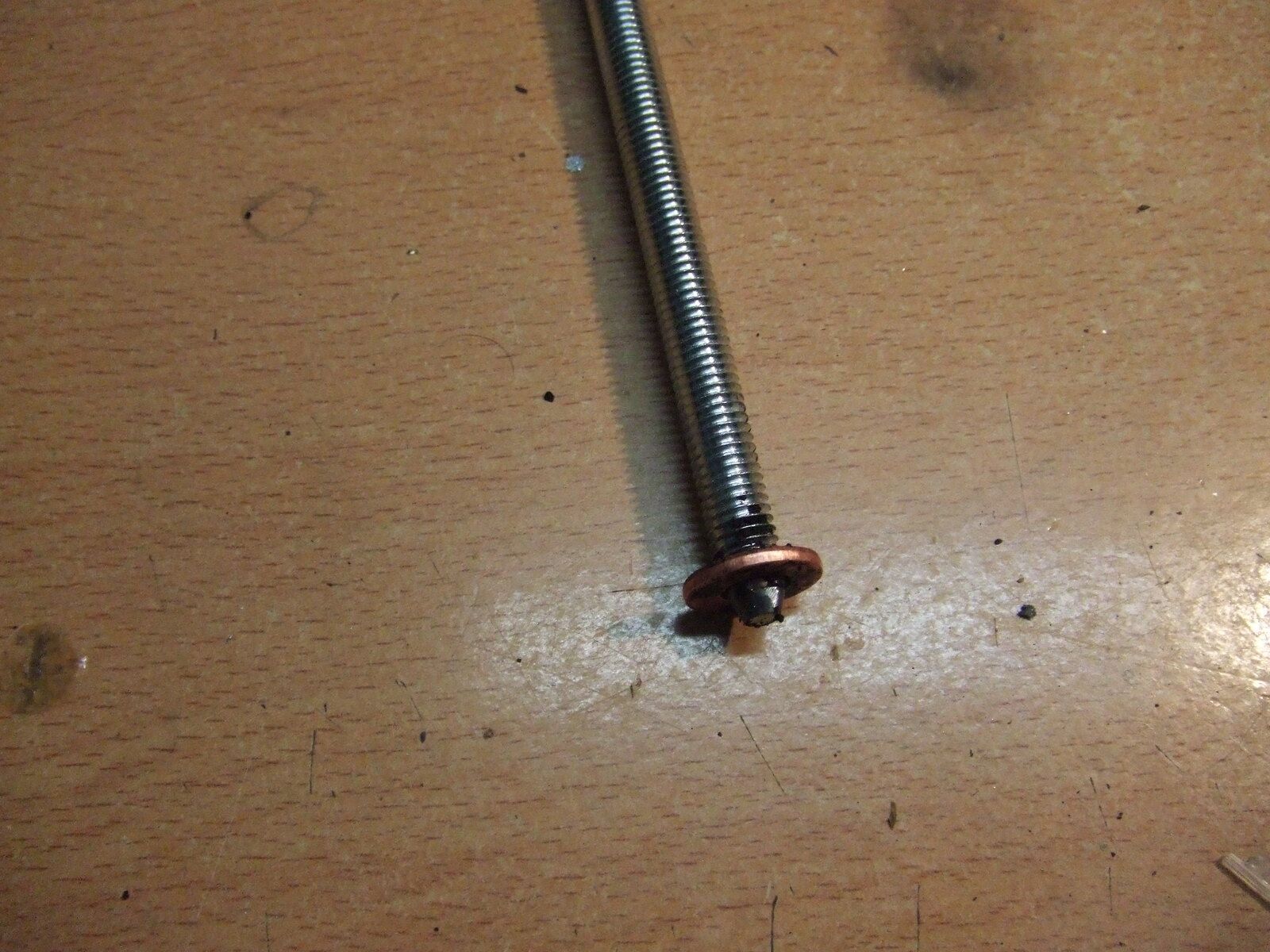

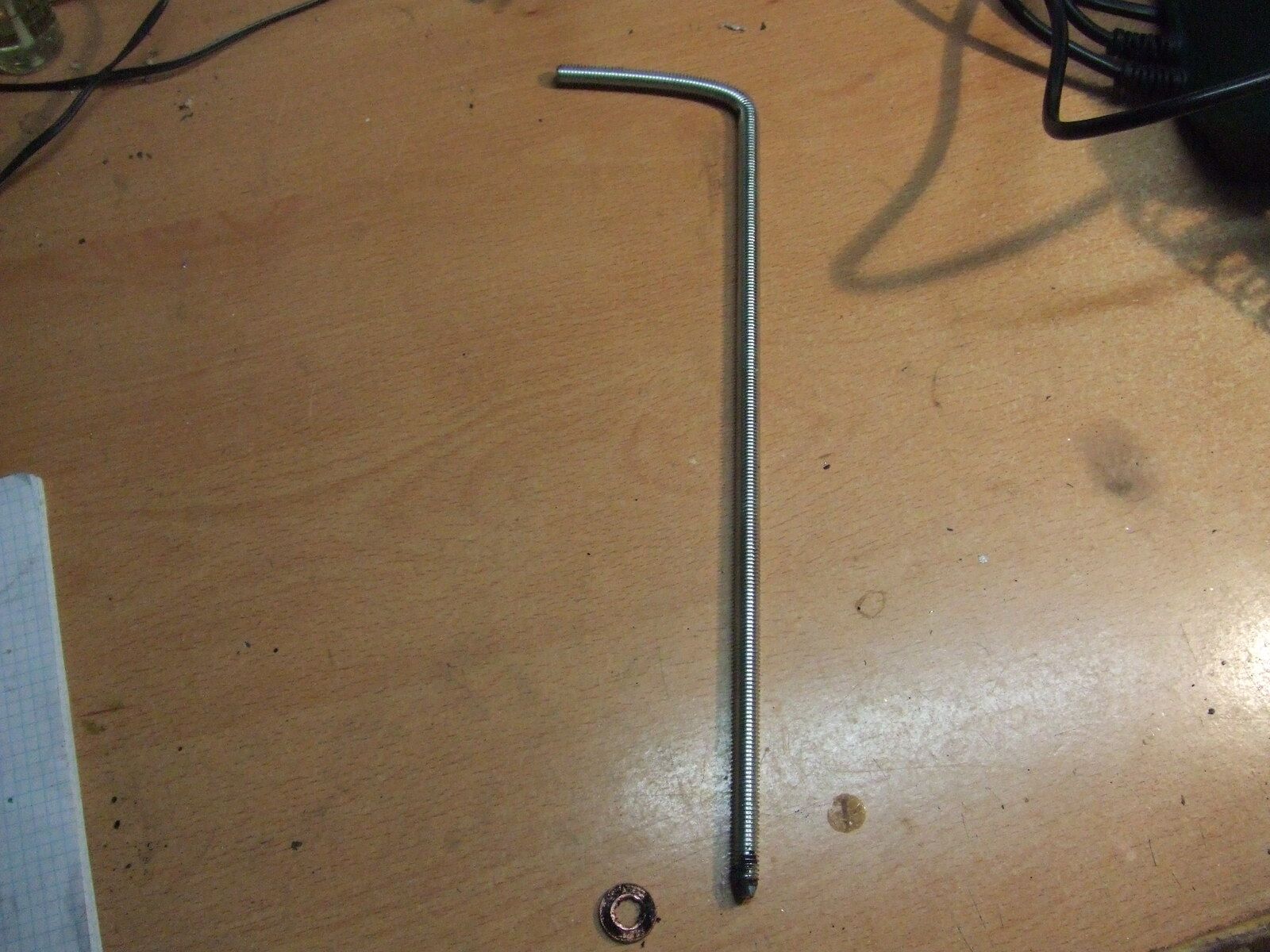

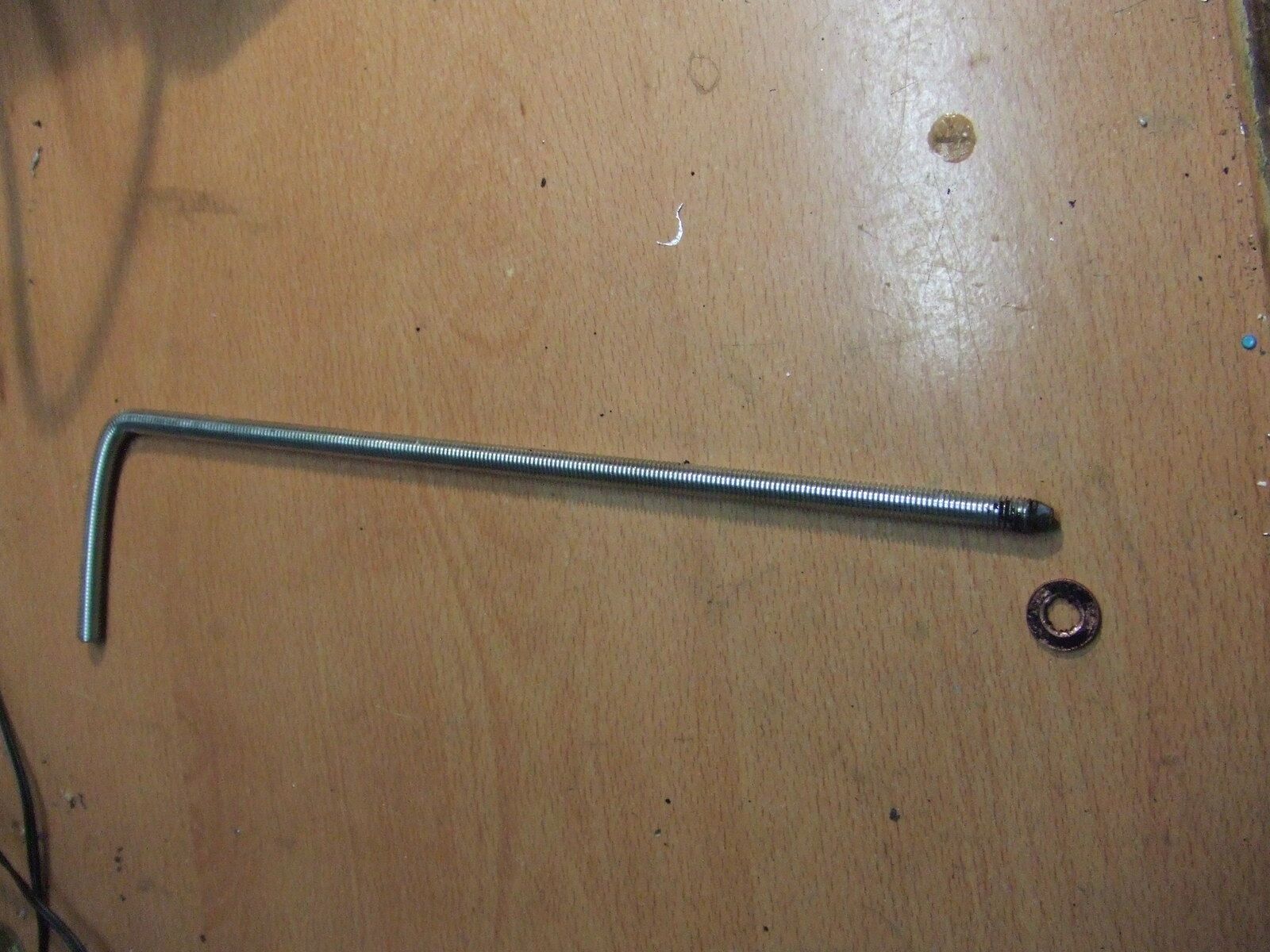

    I used an 8mm piece of threaded-rod, bent for a handle at one end and ground down to a point at the other. See the photo's.
    DSCF1129.JPG DSCF1130.JPG DSCF1131.JPG
    Easy-as-pie. Out it came.
    I hope this can help any other with the same problem.
    It's a simple & inexpensive method of washer removal.

  2. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,644
    Likes Received:
    310
    Location:
    Westmidlands
    That is an excellent idea, I had one stuck once, I used a long punch with a sharp point, tapped it into the copped and managed to remove it that way, but your idea is 100% better thanks for sharing ;)

    Zenerdiode likes this.
  3. Zenerdiode

    Zenerdiode Member

    Joined:
    Sep 2, 2019
    Posts:
    35
    Likes Received:
    15
    Location:
    UK
    In addition to what I wrote, the length of the threaded rod between the bend and the pointed end is 20 cm.
    That proved to be the perfect length. The handle's length can be whatever you're comfortable with.

  4. MULDERKE

    MULDERKE Well-Known Member

    Joined:
    Oct 25, 2011
    Posts:
    476
    Likes Received:
    272
    Location:
    No Mans Land
    Brilliant idea.
    Will knock one up for myself.
    Thanks for posting.

    Zenerdiode likes this.
  5. divie

    divie Well-Known Member

    Joined:
    Jul 21, 2011
    Posts:
    1,070
    Likes Received:
    43
    I have yet to mess with a Freelander one but always used a pencil twisted into the copper seal on my series Landies.

    Zenerdiode likes this.
  6. Jayridium

    Jayridium Well-Known Member

    Joined:
    Aug 23, 2013
    Posts:
    539
    Likes Received:
    136
    Location:
    Pedronapper (Peterhead)
    That is a stonkingly good idea!

    Zenerdiode likes this.
  7. weemac

    weemac Well-Known Member

    Joined:
    May 22, 2019
    Posts:
    298
    Likes Received:
    116
    Location:
    Torfaen
    Tidy.

    Zenerdiode likes this.
  8. Arctic2

    Arctic2 Well-Known Member

    Joined:
    Oct 2, 2014
    Posts:
    1,644
    Likes Received:
    310
    Location:
    Westmidlands
    Guess what I managed to finally get round to doing today with all the time we have on ours hands now, much better than having a Virus on your hands :eek: i also had an old rubber handle lying about so fixed that to the thread.


    Attached Files:

  9. DevonGuy

    DevonGuy Well-Known Member

    Joined:
    Nov 21, 2013
    Posts:
    1,471
    Likes Received:
    2,957
    Location:
    North Devon
    What a first-rate solution. I'm going to make one in case I ever need it. Thanks for sharing.
