ignition lock stuck

Hello i have Freelander 2 2006 td4 hse automatic
Yesterday in service i change timming belt , water pump and alternator belt , my serviser took off batery for 4-5 hours and now i can`t start my car.
Starting and stop about one second , on dash board says zündschloss steckt on german ... i translate and is meaning .
-ignition lock stuck.
Can u help me what is the problem?

key needs to be re-synced with car?

The Mad Hat Man said:

key needs to be re-synced with car?

Click to expand...

maybe i dont know ... i dont know how to do it

you need to find out. @Nodge68

The Mad Hat Man said:

you need to find out. @Nodge68

Click to expand...

hmm i dont know how i have the code key on service book how to sync?

Is the steering wheel free to turn, or is it locked?

There's a software update available to sort out some issues, but I'm sure the column fails regularly too.

Nodge68 said:

Is the steering wheel free to turn, or is it locked?

There's a software update available to sort out some issues, but I'm sure the column fails regularly too.

Click to expand...

shouldnt have anything to do with a battery disconnect tho?

The Mad Hat Man said:

shouldnt have anything to do with a battery disconnect tho?

Click to expand...

I've heard that disconnecting the battery for a few minutes can sometimes cure the problem. Maybe the battery disconnection is a red herring? It's possible that the steering lock got engaged while the work was being carried out. If the steering lock gets stuck, a warning is displayed and the vehicle won't start. I've recently had a similar issue with our Ford Kuga. The screen flashed up a message saying something about the column being locked and it wouldn't start. Wiggling the steering wheel freed it off and the car started just fine. It's only done it once in 40K miles and was probably attributed to the tyre being turned against a kerb when the car was parked.

Nodge68 said:

I've heard that disconnecting the battery for a few minutes can sometimes cure the problem. Maybe the battery disconnection is a red herring? It's possible that the steering lock got engaged while the work was being carried out. If the steering lock gets stuck, a warning is displayed and the vehicle won't start. I've recently had a similar issue with our Ford Kuga. I

Click to expand...

Yes battery disconnection is on a red herring , the steering is not lock is free , but vehicle won`t start and display zündschloss steckt and the key can`t start it.
i try to disconnect and put new baterry but same error and same problem

cinci said:

zündschloss steckt

Click to expand...

Translation is:
ignition infected.

That's going to take some working out.

Nodge68 said:

Translation is:
ignition infected.

That's going to take some working out.

Click to expand...

what type of working ? did you know ?

cinci said:

what type of working ? did you know ?

Click to expand...

The German translation to English doesn't really work.

I suspect it's the column lock at fault though. The column lock has a position switch that tells the BCU if the column lock is engaged or not. What can happen is the lock pin gets damaged by the slot in the column into which it fits. This damage then stops the column lock from retracting fully and not switching the disengaged switch. The BCU flags this as a locked column and prevents the engine from starting.

Sometimes tapping the column lock assembly while the key is inserted can cause the lock pin to fully retract and allow the engine to start.
It's definitely worth a try as it only takes a few minutes to remove the column plastic trim and give the lock a few taps with a light hammer.

Nodge68 said:

The German translation to English doesn't really work.

I suspect it's the column lock at fault though. The column lock has a position switch that tells the BCU if the column lock is engaged or not. What can happen is the lock pin gets damaged by the slot in the column into which it fits. This damage then stops the column lock from retracting fully and not switching the disengaged switch. The BCU flags this as a locked column and prevents the engine from starting.

Sometimes tapping the column lock assembly while the key is inserted can cause the lock pin to fully retract and allow the engine to start.
It's definitely worth a try as it only takes a few minutes to remove the column plastic trim and give the lock a few taps with a light hammer.

Click to expand...

Thanks !
With which tool i could open and tap the lock to try to free it?


do you have any pictures or video how to do it ?

cinci said:

Thanks !
With which tool i could open and tap the lock to try to free it?


do you have any pictures or video how to do it ?

Click to expand...

I don't have a how to guide. The column trim comes off easy enough with a few Torx screws.

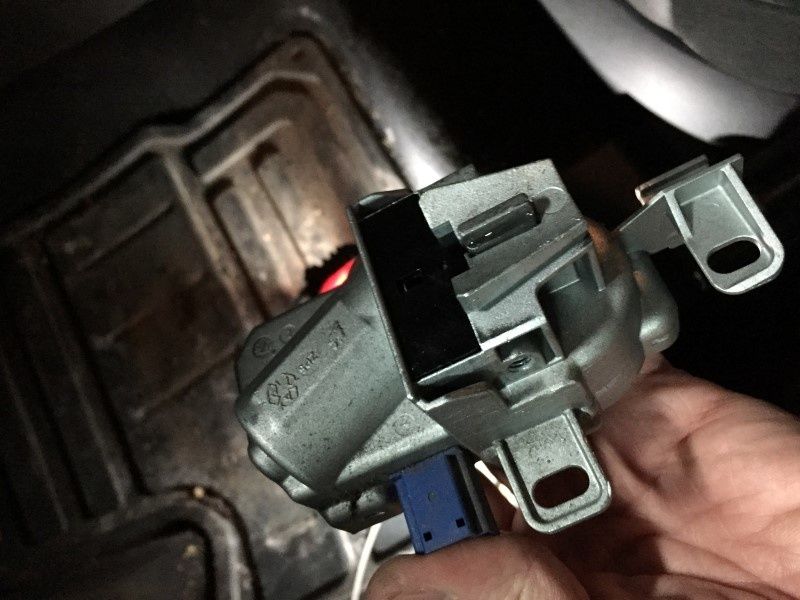

The lock assembly that needs tapping looks like this.

Nodge68 said:

I don't have a how to guide. The column trim comes off easy enough with a few Torx screws.
The lock assembly that needs tapping looks like this. View attachment 154471

Click to expand...

i need new one ?

Thanks for all solution , problem is solved by another electro mechanical - bcu have a error and lock the ignition.
