Idler Pulley Replacement

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

dunning123

Member
Posts
49
Location
Suffolk

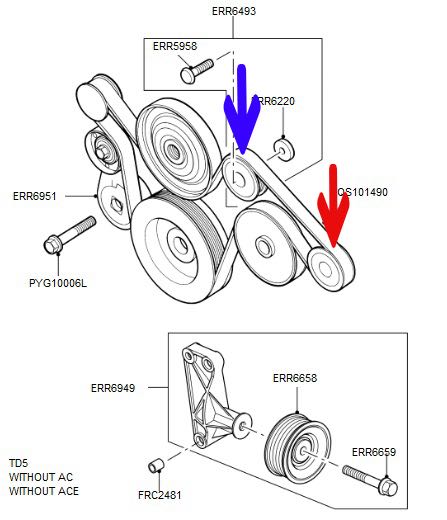

I've replaced the idler pulley bearing (blue arrow) with a Timken 6303 bearing as it was beginning to make noise, has anyone replaced the bearing the pulley shown by the red arrow? Can't find anything online about that one. Gonna take it apart tomorrow for a look but though I'd chuck this up see if anyone has any knowledge on it to help me!

Cheers


Attachments

  • td5-drive-belt-without-ac-no-ace-detail-2.jpg
    34.4 KB · Views: 169
With so much time on your hands I’m sure you’ll get to the bottom of it. They’re probably the same bearing

Dunno where you get that assumption. If I had all this time wouldn't be posting on here asking for helpful advice to save me time would i.

Easiest way is to dismantle it and give it a proper measure, then put the size into one of the many bearing suppliers on the web
