Identify the part.

stuthegeordie · Sep 29, 2015

Ran this post in the Series section so apologies if you've seen it before.

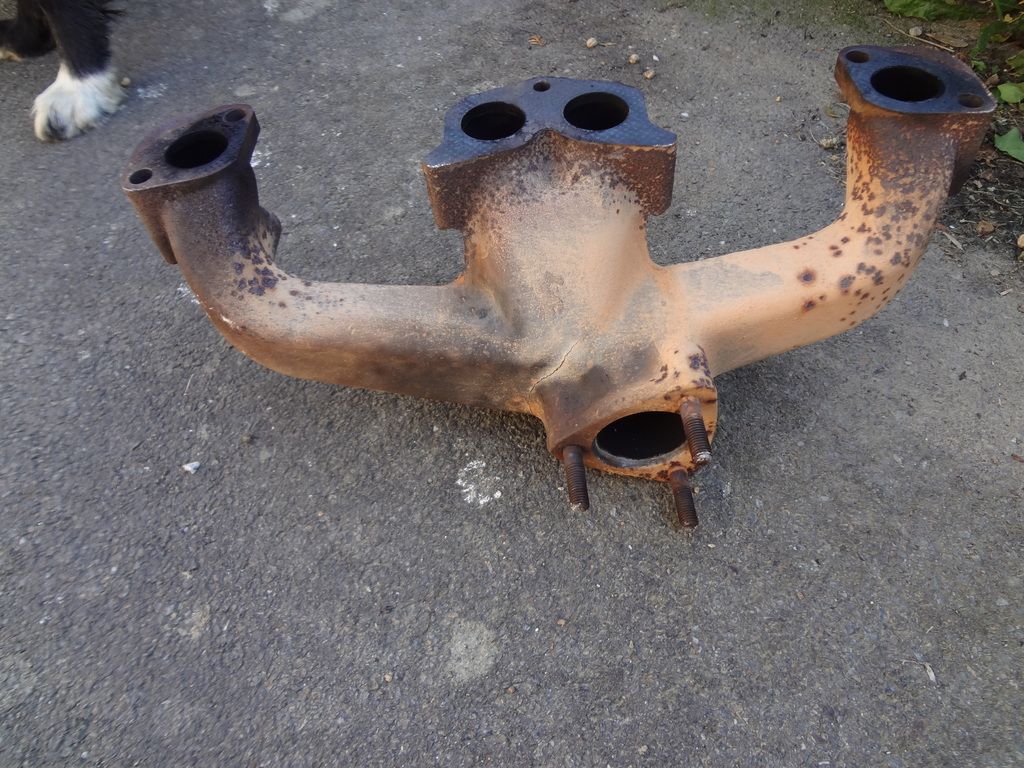

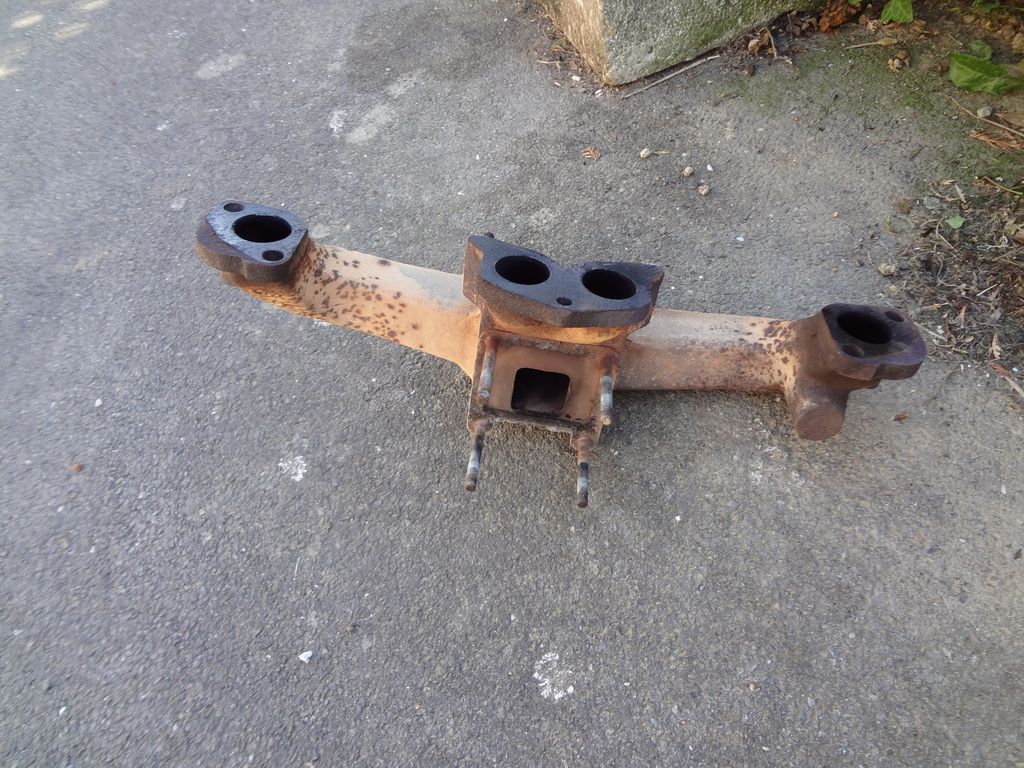

I'm having trouble identifying which type of exhaust manifold I need to replace my cracked one? It's off a 19886 110 defender 2.5 petrol. 4 piece exhaust.

Speckydude · Sep 29, 2015

Is there a number cast into the underside ?

Speckydude · Sep 29, 2015

It looks like a Landrover 2.5 Petrol Exhaust Manifold 90 110 130 Part No ERC 9071

Does it have a conical bore or a parallel bore ?

ETC5330 has "parallel sided bores"

ERC9071 has "conical bores"

stuthegeordie · Sep 29, 2015

Nothing on the underside Speckydude. On the topside left there is the Leyland logo with HR1230 and the topside right RMIS

Speckydude · Sep 29, 2015

stuthegeordie said:
Nothing on the underside Speckydude. On the topside left there is the Leyland logo with HR1230 and the topside right RMIS

Just a casting number rather than a part number.

stuthegeordie · Sep 29, 2015

Seems my options are:
ETC5330 2.5L PETROL PARALLEL SIDED BORE MANIFOLD.
ERC9071 2.5L 4 CYL L/R PETROL CONICAL END DOWN BORE MANIFOLD

Speckydude · Sep 29, 2015

stuthegeordie said:
Seems my options are:
ETC5330 2.5L PETROL PARALLEL SIDED BORE MANIFOLD.
ERC9071 2.5L 4 CYL L/R PETROL CONICAL END DOWN BORE MANIFOLD

Have you looked inside the manifold to see what you have ?

stuthegeordie · Sep 29, 2015

I dont exactly know the difference. If it refers to the bore hole that joins the exhaust, it is tapered to accept the exhaust coupler. other than that I dont see any parallel sides anywhere the casting is pretty poor

zeaphod · Sep 30, 2015

Depends if your downpipe has a welded olive on the top of it - which I suspect you have.

zeaphod · Sep 30, 2015

The other type of exhaust downpipe has a joint washer to seal the join.

stuthegeordie · Sep 30, 2015

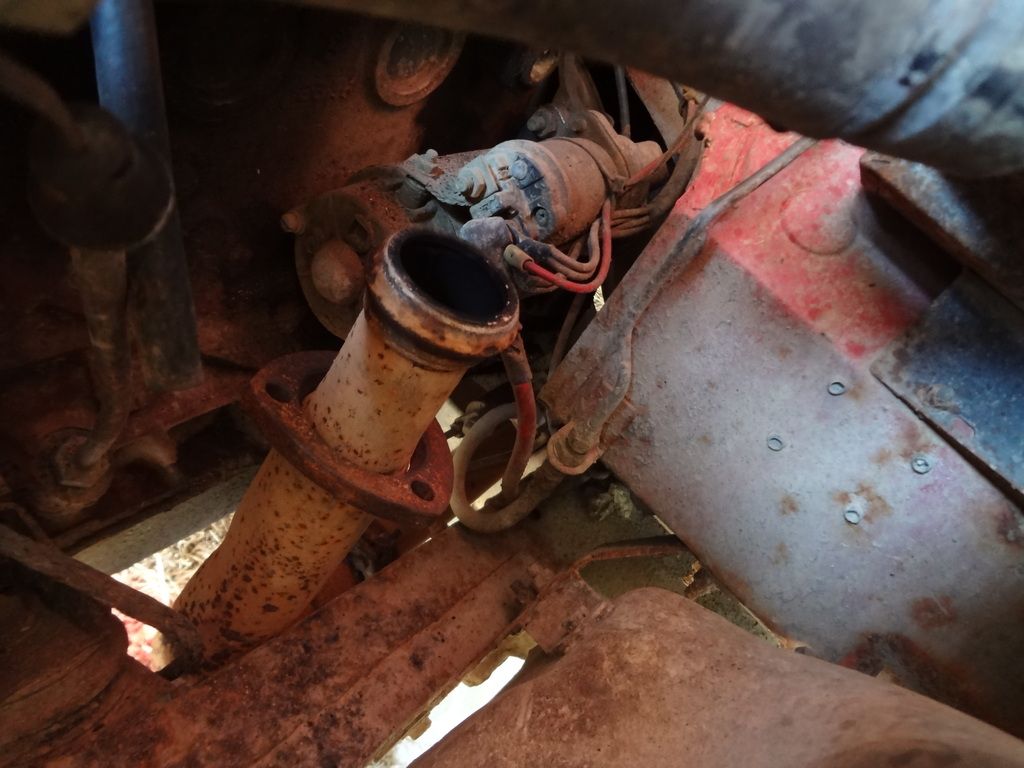

It has a welded olive with a coupler to accept the 3 studs from the manifold as per the 4th picture. That would make it a conical bore manifold right

zeaphod · Sep 30, 2015

That's my understanding of it. I have the welded olive on a 2.5 N/A, but I haven't ever had a look at the exhaust mating point on my manifold, despite removing it several times. I wonder if you took a wire brush to the old one, would a part number appear?

zeaphod · Sep 30, 2015

According to the parts book, the welded downpipe/conical jointed manifold is for vehicles up to VIN267063. After that, the other type.

stuthegeordie · Sep 30, 2015

cheers zeaphod. My VIN is 25. Im just gonna order the Connical and hope its the right one. BTW what parts book do you have?
