Hidden winch?

My friend has a D2 that he wants to put a winch on, now I don't know much about the D2's so thought I'd ask people who do....

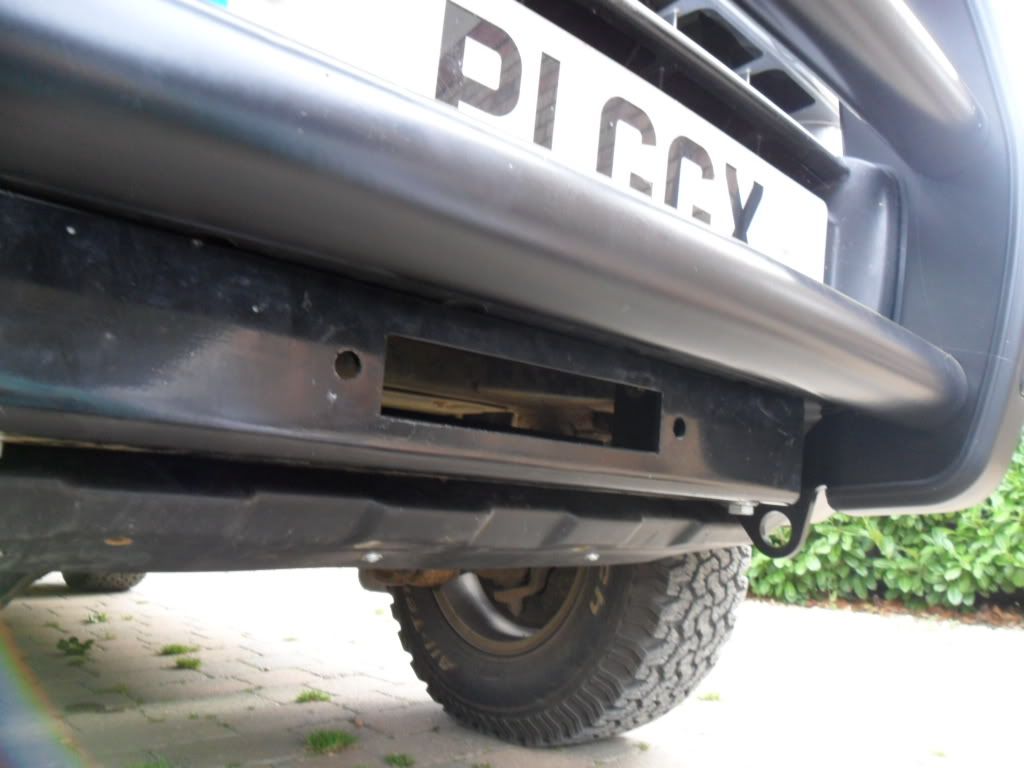

His is a facelift Td5 that he wants to fit a winch to but he doesn't want to lose his original bumper. He believes he's seen ones where the lower mesh bit in the bumper is removed and a winch rope comes out through a fairlead.

Is this possible? Has it been done and if so can you post some pics up please?

yes it can be done,downside is its a bastid to clean and u cant keep an eye on the rope to well

I figured that might be the case - it's not how I'd do it but it's not my car... Mine's high up and well recessed into the grille for maximum approach angle..

I would like to do this also but cost is restrictive ATM plus I don't go anywhere that I would need a winch. That said I do have horses and I could find uses for it if I had one.

Just don't want to spoil the look of the front of the disco

gavbriggs said:

I would like to do this also but cost is restrictive ATM plus I don't go anywhere that I would need a winch. That said I do have horses and I could find uses for it if I had one.

Just don't want to spoil the look of the front of the disco

Click to expand...

is the winch for dragging horse carcasses out when you are butchering them fer yesco's gav.

Should be possible, would need a small winch and very strong plates as it will be well below the end of the chassis rails, paul at [email protected] is doing a custom NAS on one of his bumpers for me, he might be up for fabing a custom mount?

If your doing it I would suggest fitting a air freespool as getting to the freespool lever will be a pain

mainlysideways said:

Should be possible, would need a small winch and very strong plates as it will be well below the end of the chassis rails, paul at [email protected] is doing a custom NAS on one of his bumpers for me, he might be up for fabing a custom mount?

Click to expand...

If we're outsourcing work he may as well send it to Pressbrake who's a member on here


Not hard to do a winch mount on a disco, just gotta measure up the chassis rails, bolt spacing and how far you want the winch to sit up/down and forward/back and probably about £20 worth of steel to build with



They don't need anything stupid like these for mounting into a monocoque frame

Yep and a sealed drum and move the electics up high!

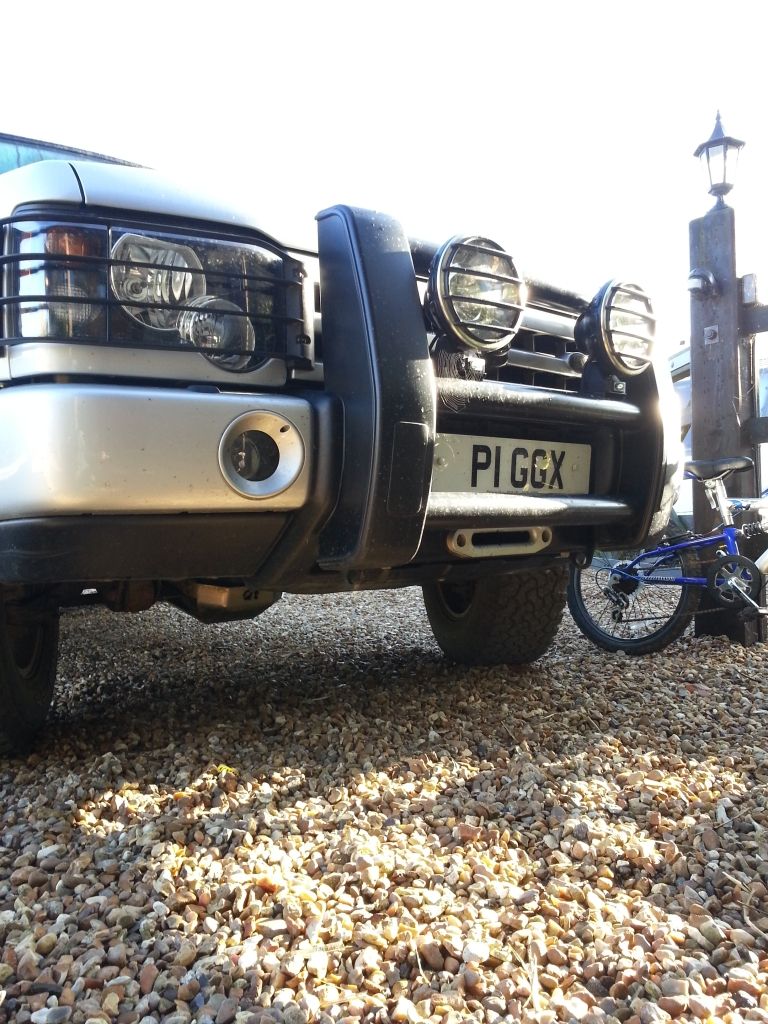

Guess this is expensive, but the bumper looks standard: Discrete winch mount - Discovery/Range Rover., Winch Fitting Kits, Superwinch from PWS Engineering Ltd. - Old Wareham Road Parkstone

Yep and then if it's just plates it will be cheap to dip

Winch Mount Discreet D2; Bearmach BA176
