Bri73

New Member
Posts
6
Location
Belfast

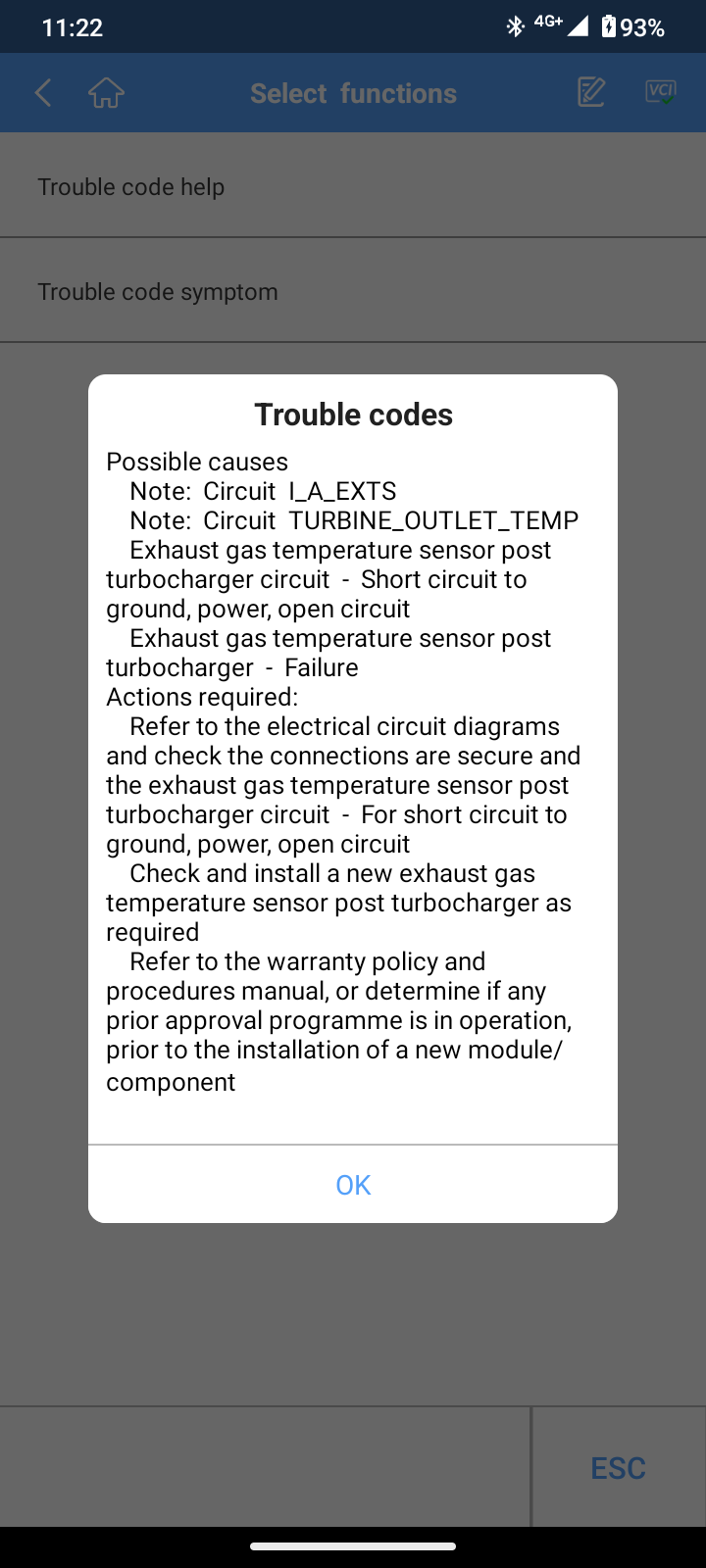

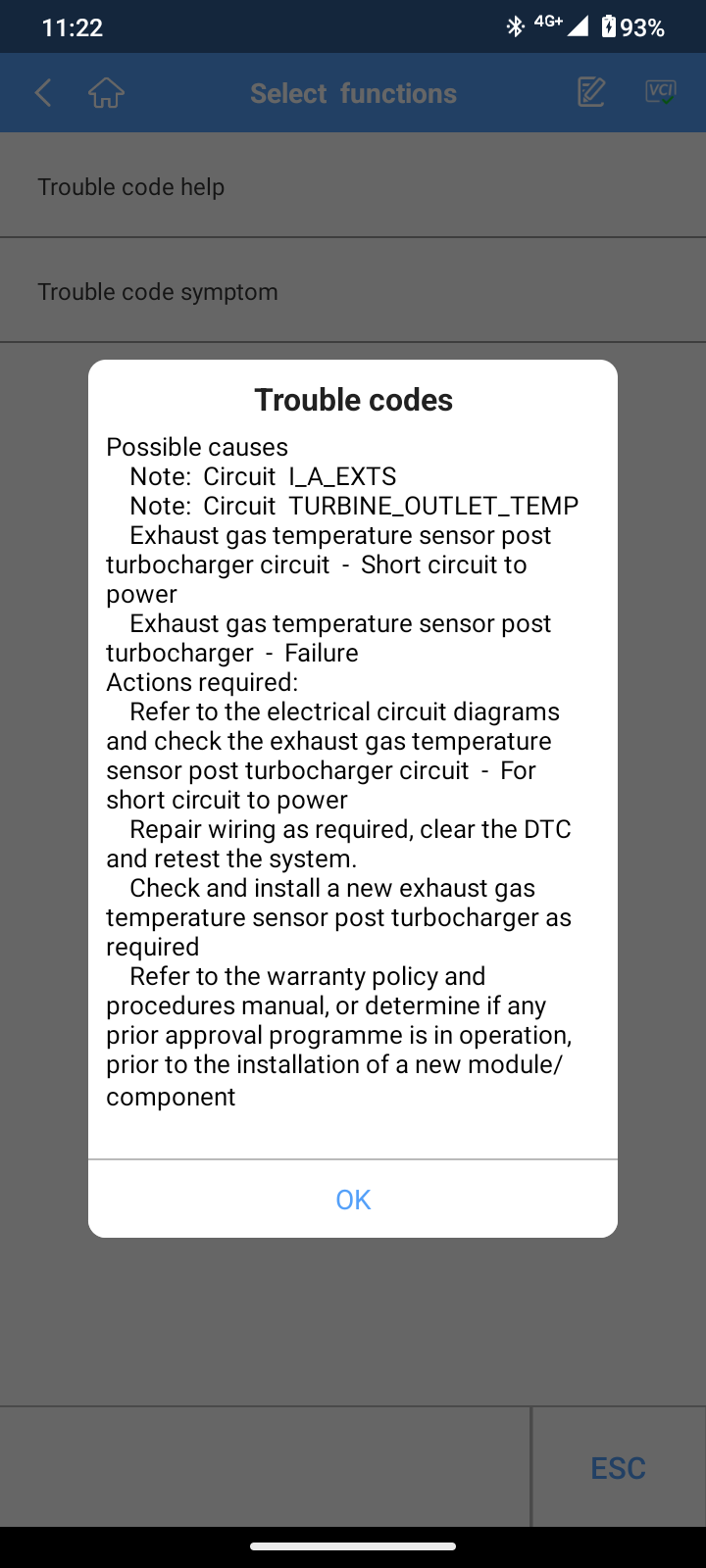

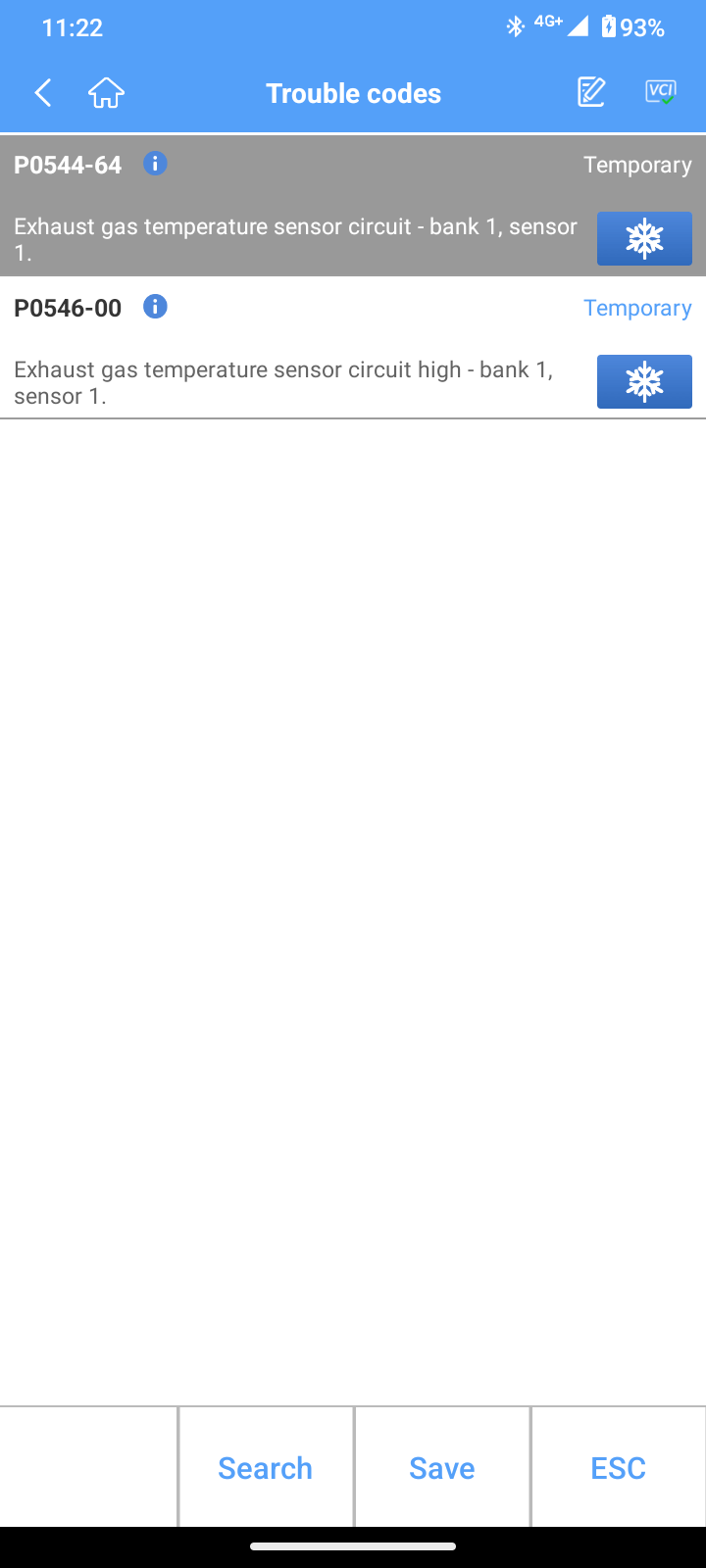

i need help..... reduced engine performance.... so replaced egr and cooler but it didn't solve problems... these are the codes


Attachments

  • Screenshot_20230908-112248.png
    130.3 KB · Views: 93
  • Screenshot_20230908-112259.png
    133.6 KB · Views: 76
It's the temperature sensor in the exhaust responsible for that code. Nothing to do with the EGR system, it's to do with the DPF control system.

It's saying high, which suggests the sensor or wiring is going open circuit. So it'll either be the wiring corroded, or the sensor itself is faulty.
The sensor is cancelled an exhaust gas temperature sensor.Something like this.

It's saying high, which suggests the sensor or wiring is going open circuit. So it'll either be the wiring corroded, or the sensor itself is faulty.
The sensor is cancelled an exhaust gas temperature sensor.Something like this.
Cheers I will get one ordered

I'd check the part number with LR first, as I only did a name search.
I'd also be checking the wiring before buying a new sensor.

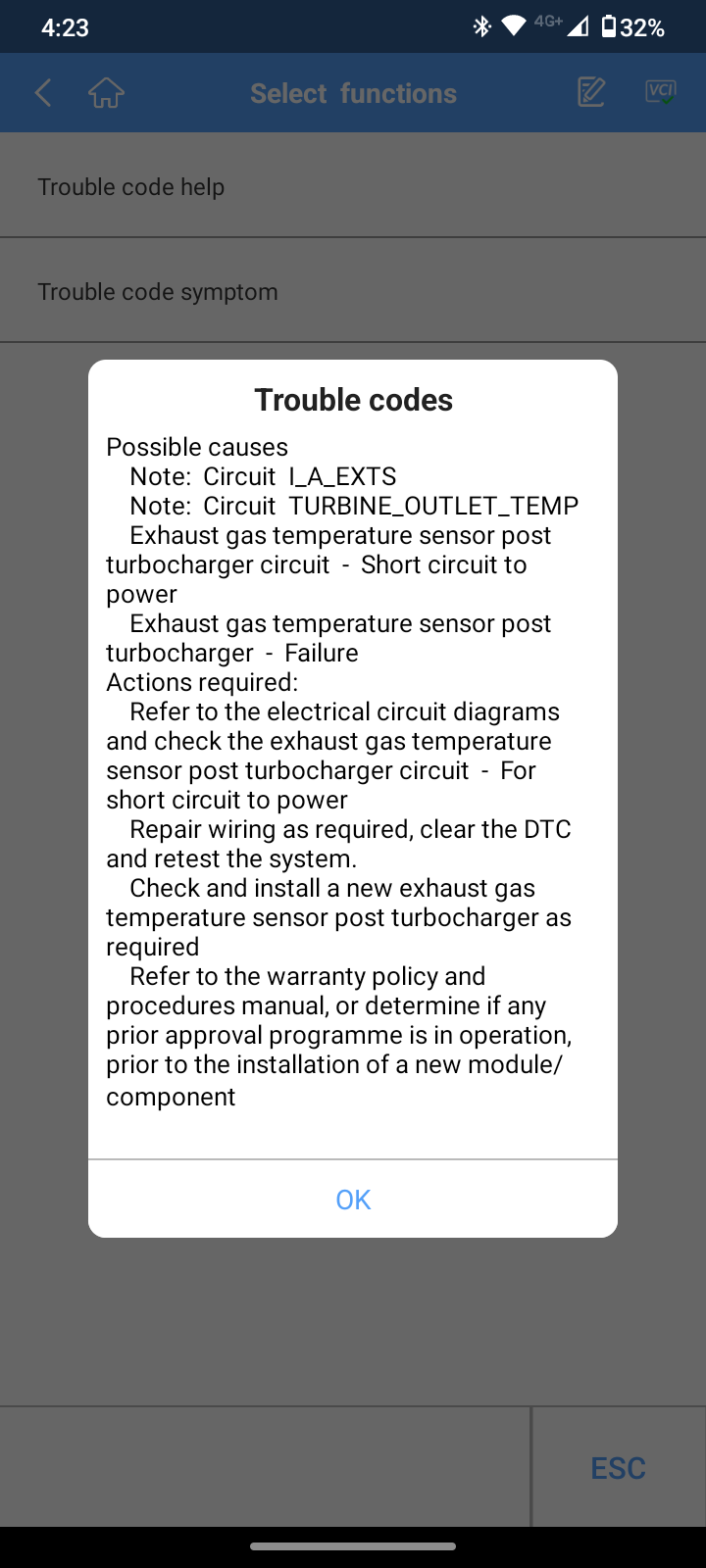

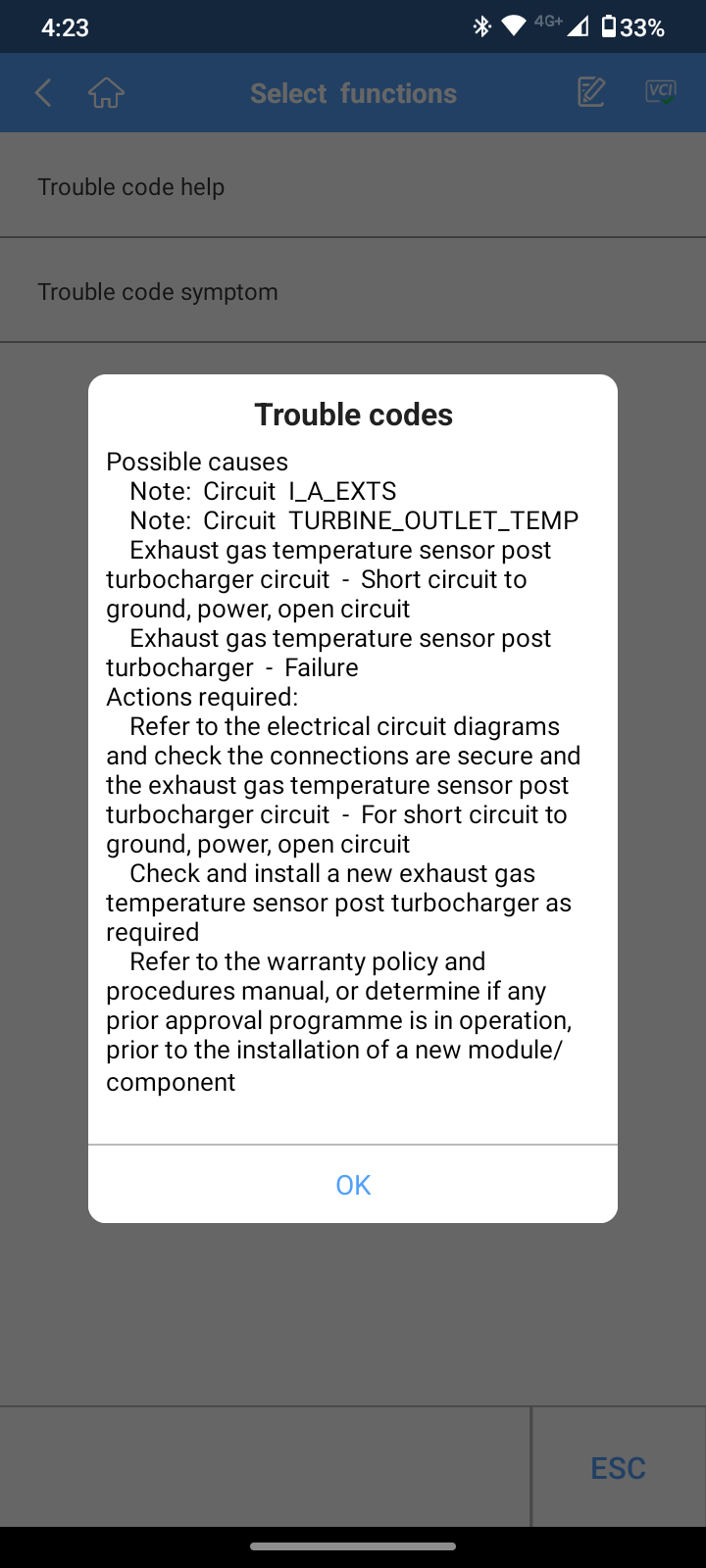

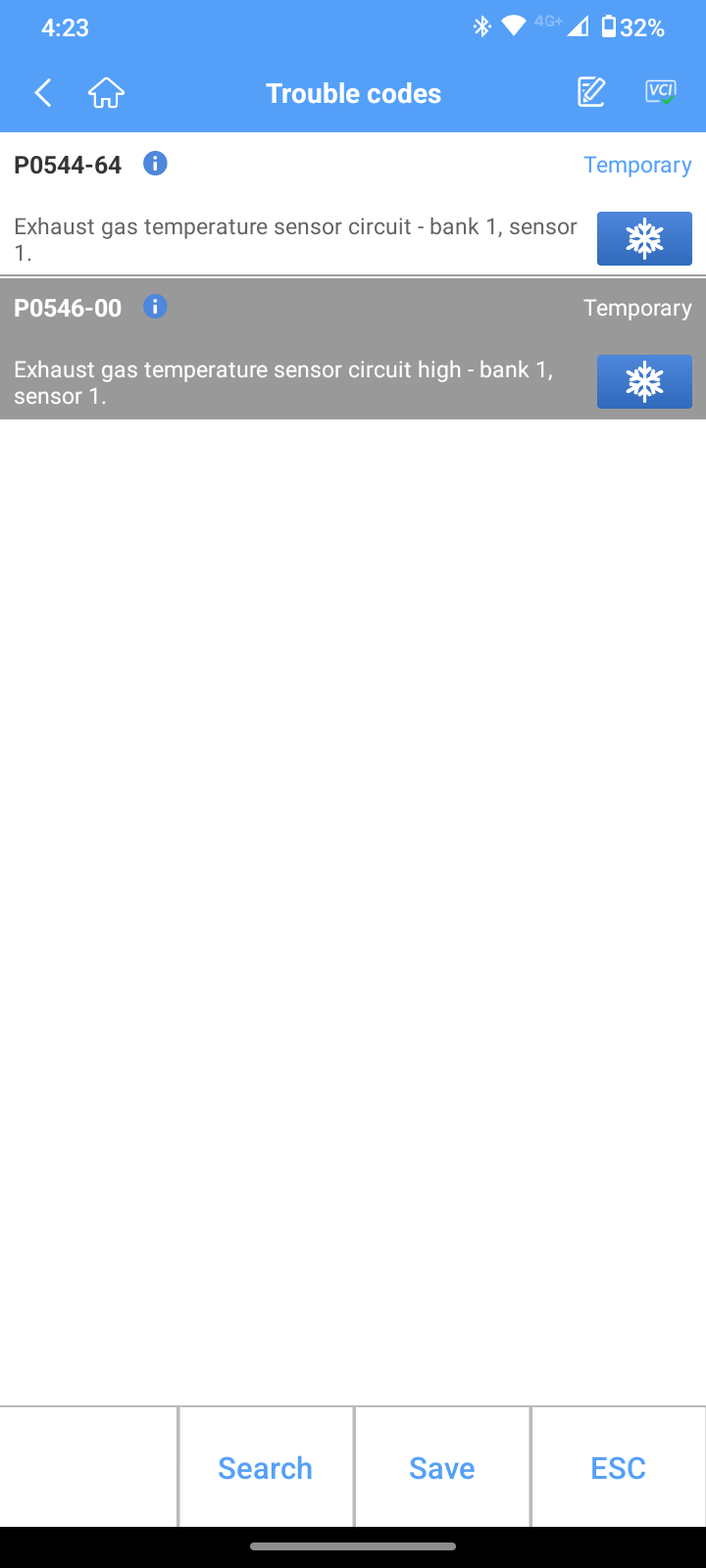

So I reset codes and this is what came back up


Attachments

  • Screenshot_20230909-162347.png
    52.5 KB · Views: 94
  • Screenshot_20230909-162341.png
    133.6 KB · Views: 75
  • Screenshot_20230909-162333.png
    130.3 KB · Views: 88
