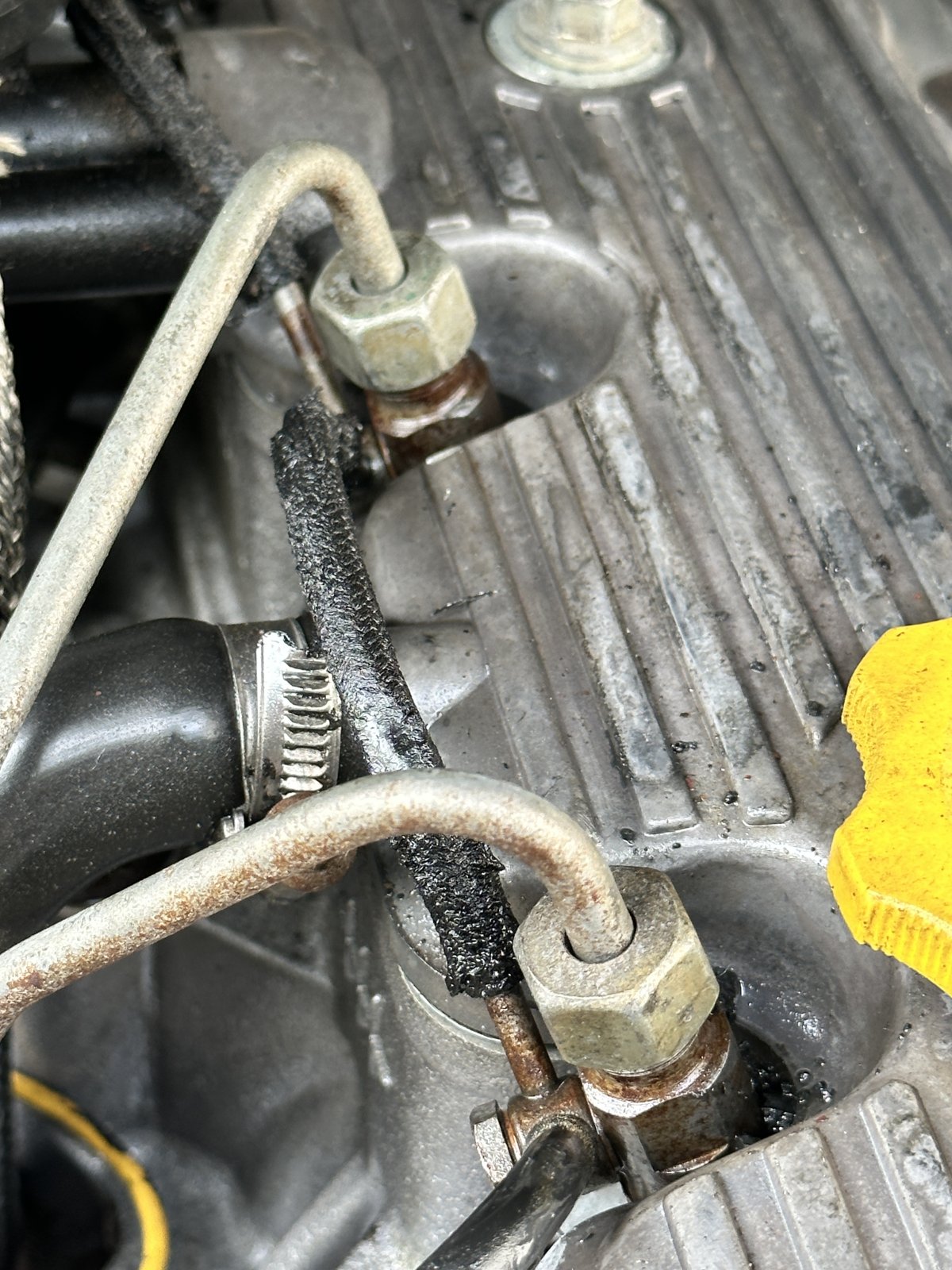

Help with part identification
- Thread starter Qumungis
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Leak Off Pipe Assy - Fuel Injectors - 300Tdi | Def - Ds1 - RRC
MJN100910 - Britpart, Allmakes and Land Rover options for MJN100910 Leak Off Pipe Assy - Fuel Injectors - 300Tdi | Def - Ds1 - RRC - EXPRESS Shipping - UK, EU and Worldwide.
- Posts
- 21,329
- Location
- In the next Glen
3.2mm braided leak off pipe, you can but a meter for 4 quid off ebay.
Or try your local car parts dealer its pretty common gear to have in stock.
If you were nearer I could give you some Ive got loads.
Qumungis
Member
- Posts
- 18
- Location
- Newmarket UK
I wish I was still in the UK, as well! Thank you for the info, I really appreciate your help!3.2mm braided leak off pipe, you can but a meter for 4 quid off ebay.
Or try your local car parts dealer its pretty common gear to have in stock.
If you were nearer I could give you some Ive got loads.
- Posts
- 3,955
The pipe is the return that carries fuel that is not injected back to the tank.
It's a braid covered rubber pipe and the rubber perishes.
I have a thick walled, 4mm, silicone tube on mine.
Any pipe will do as long as it's fuel resistant and a tight fit.
It is lowish pressure but i would put some clips on just to be safe.
It's a braid covered rubber pipe and the rubber perishes.
I have a thick walled, 4mm, silicone tube on mine.
Any pipe will do as long as it's fuel resistant and a tight fit.
It is lowish pressure but i would put some clips on just to be safe.
Its not the return to the tank it's the spill of from the injectors and will connect to a hard plastic pipe that returns to the tank...
Doesnt matter where you are in the world any motor factor will have it in stock...as a stop gap if you have any slack in the hose snip the end off and push it back on 10mm is enough did it a couple of months ago...
Qumungis
Member
- Posts
- 18
- Location
- Newmarket UK
this makes a lot of sense.
The reason its rubber and not solid plastic is so you can remove injectors seperatly..
