Help..Any tips to re-fit the wings?
- Thread starter Lawson86
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 21,224
- Location
- In the next Glen
I fitted mine with the bolts all loose & some thin rags to protect the paint. Got it in position & tightened the bolts some were fiddly, mines were on & off a few times
as I had to cut holes for my roll cage.
- Posts
- 11,020
- Location
- North of the Wall
I remember when I came to put my wings back on I was expecting it to be a 20 mins per side job and it turned out to be several hours per side! They took a lot of gentle manipulation to get the fastening holes to line up as well as the panel join lines to be flush. They're surprisingly flexible when they are off the vehicle. The fixing holes from the bulkhead end to the headlight end can move, in relation to each other, a lot! Therefore, their relevant fixing points can be way out when they go back on. New fixings might help getting things to connect first time. Then, as kevstar says above, get the fixings in loosely. It may take some surprisingly heavy pushing and shoving to get them all lined up. All this with great care not to damage paintwork. Then, slowly tighten individual fixings while pushing and pulling to get it aligned with the bulkhead lines and square/horizontal across the front.
Bottom line is that it appears to be a quick bolt back on job. In reality, accurately replacing body panels is a fiddly, time consuming job that requires a lot of patience. IMHO anyway!
They took a lot of gentle manipulation to get the fastening holes to line up as well as the panel join lines to be flush. They're surprisingly flexible when they are off the vehicle. The fixing holes from the bulkhead end to the headlight end can move, in relation to each other, a lot! Therefore, their relevant fixing points can be way out when they go back on. New fixings might help getting things to connect first time. Then, as kevstar says above, get the fixings in loosely. It may take some surprisingly heavy pushing and shoving to get them all lined up. All this with great care not to damage paintwork. Then, slowly tighten individual fixings while pushing and pulling to get it aligned with the bulkhead lines and square/horizontal across the front.Bottom line is that it appears to be a quick bolt back on job. In reality, accurately replacing body panels is a fiddly, time consuming job that requires a lot of patience. IMHO anyway!
raisingveg
Well-Known Member
- Posts
- 420
- Location
- bedfordshire
cracking colour
philsefo
Active Member
- Posts
- 287
- Location
- Manchester/ wirral
Top paint job!
zeaphod
Well-Known Member
- Posts
- 3,103
- Location
- Belfast, Norn Iron
I usually leave the inner and outer attached, wrestle them over the shock turrets and put in a couple of the bulkhead bolts first. Two long narrow (3/8 x 12") extension bars and a decent head torch will make getting the top ones in much easier. Don't forget the copperslip on the bolts for the next time. If any of the captive nuts look suspect, now's the time to replace them.
- Posts
- 21,224
- Location
- In the next Glen
Looks great buddy I was torn between grey & blue when I went to paint mine
but since there are a couple of grey ones locally I decided to go for a custom blue
came out not to shabby for a home job
mick the builder
Well-Known Member
- Posts
- 5,901
- Location
- Sligo,Wild West of Ireland.
What is that colour, its very much like the blue im after. Seen a few on ebay, Firecracker blue,spirit blue pearl and so on. All look good but hard to judge from an open paint tin. Need to get it ordered.Looks great buddy I was torn between grey & blue when I went to paint mine
but since there are a couple of grey ones locally I decided to go for a custom blue
came out not to shabby for a home job
- Posts
- 21,224
- Location
- In the next Glen
Hi Matey its firecracker looks lovely in the sun its very like sonic blue which is the Scooby 22b/p1 colour

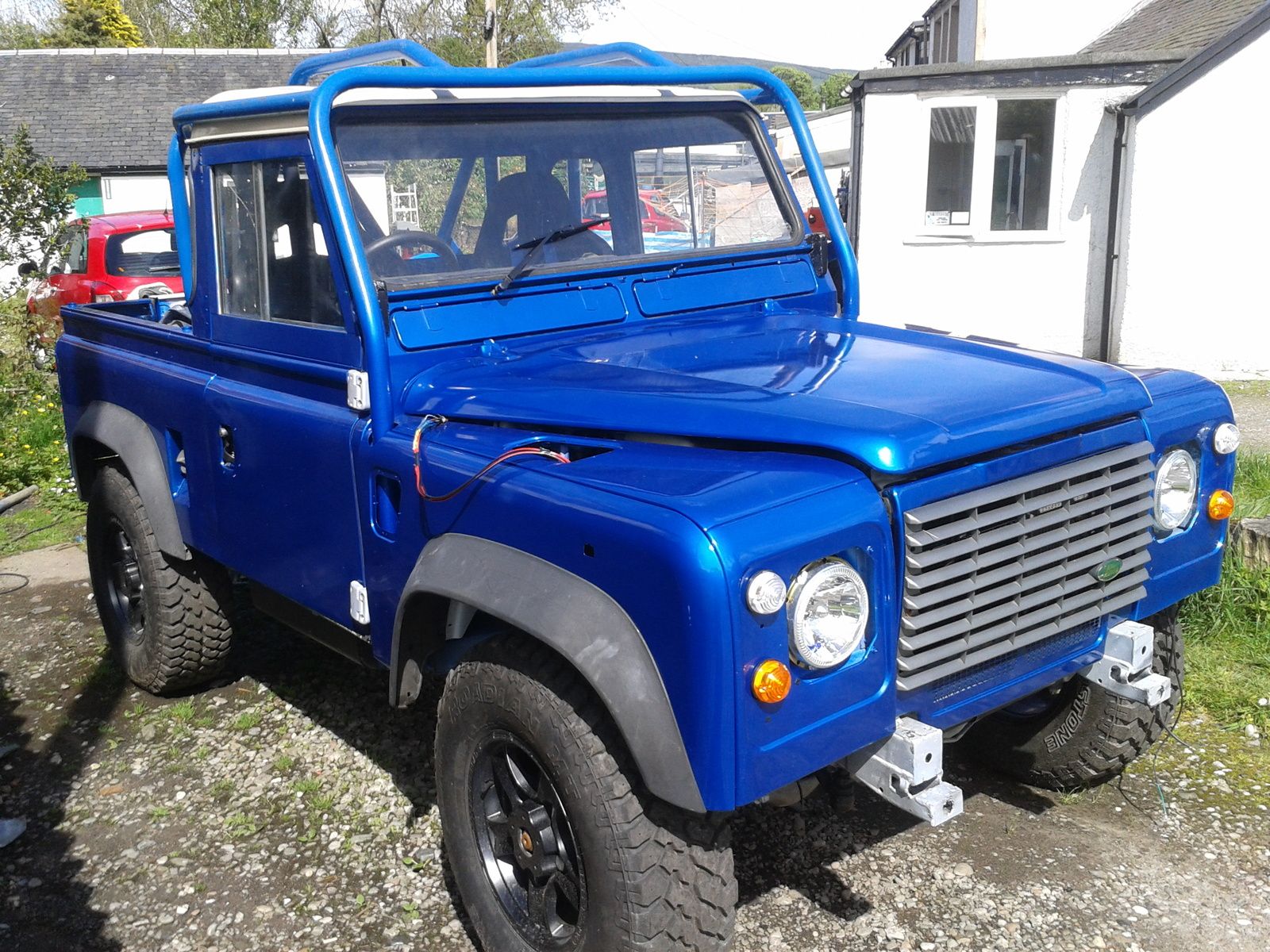

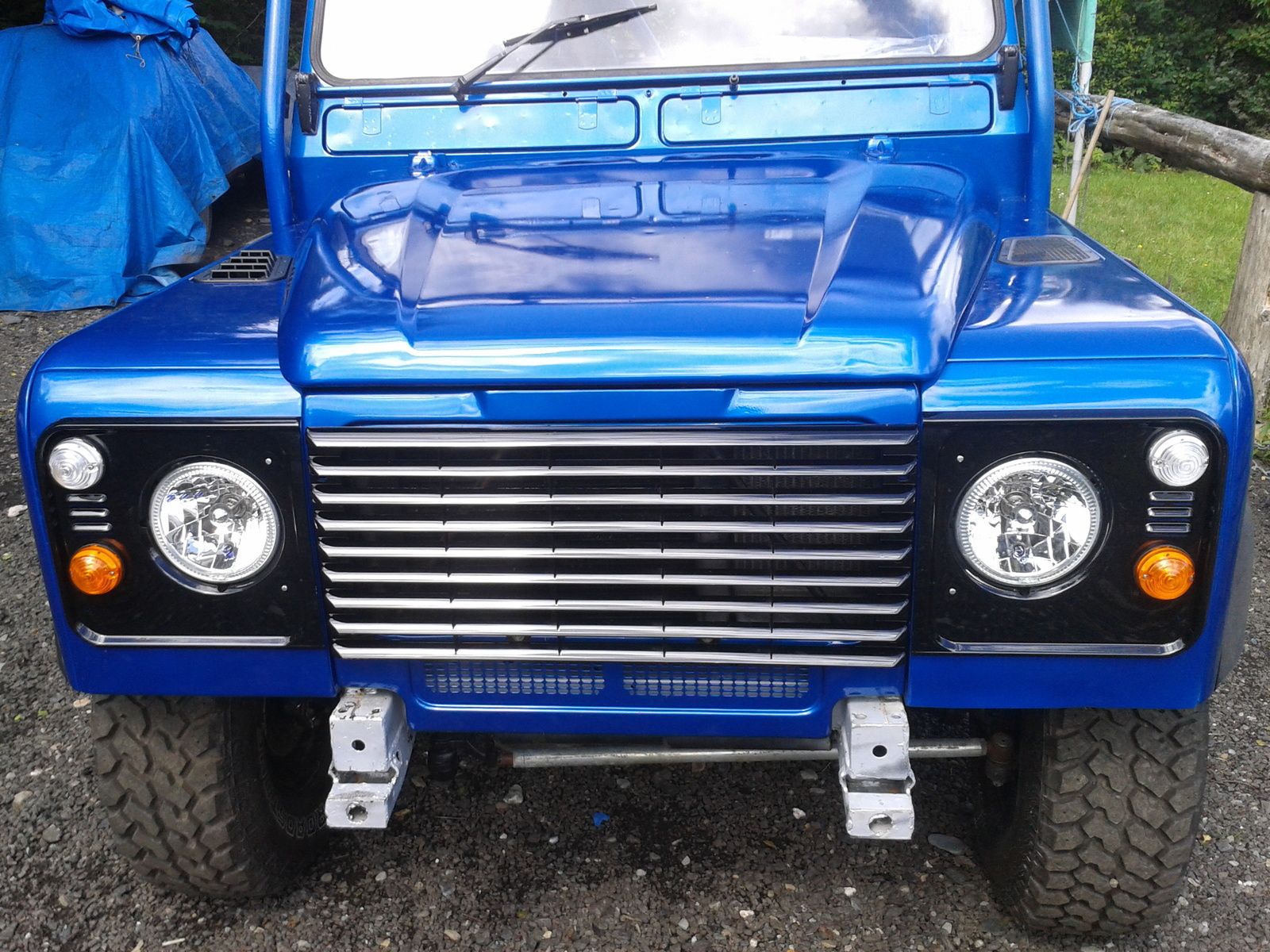

Couple of pics to give you a better vision of it.......
mick the builder
Well-Known Member
- Posts
- 5,901
- Location
- Sligo,Wild West of Ireland.
Thanks for the pics, looks good. Is that straight from the gun or lacquered. Also, how much did you use?

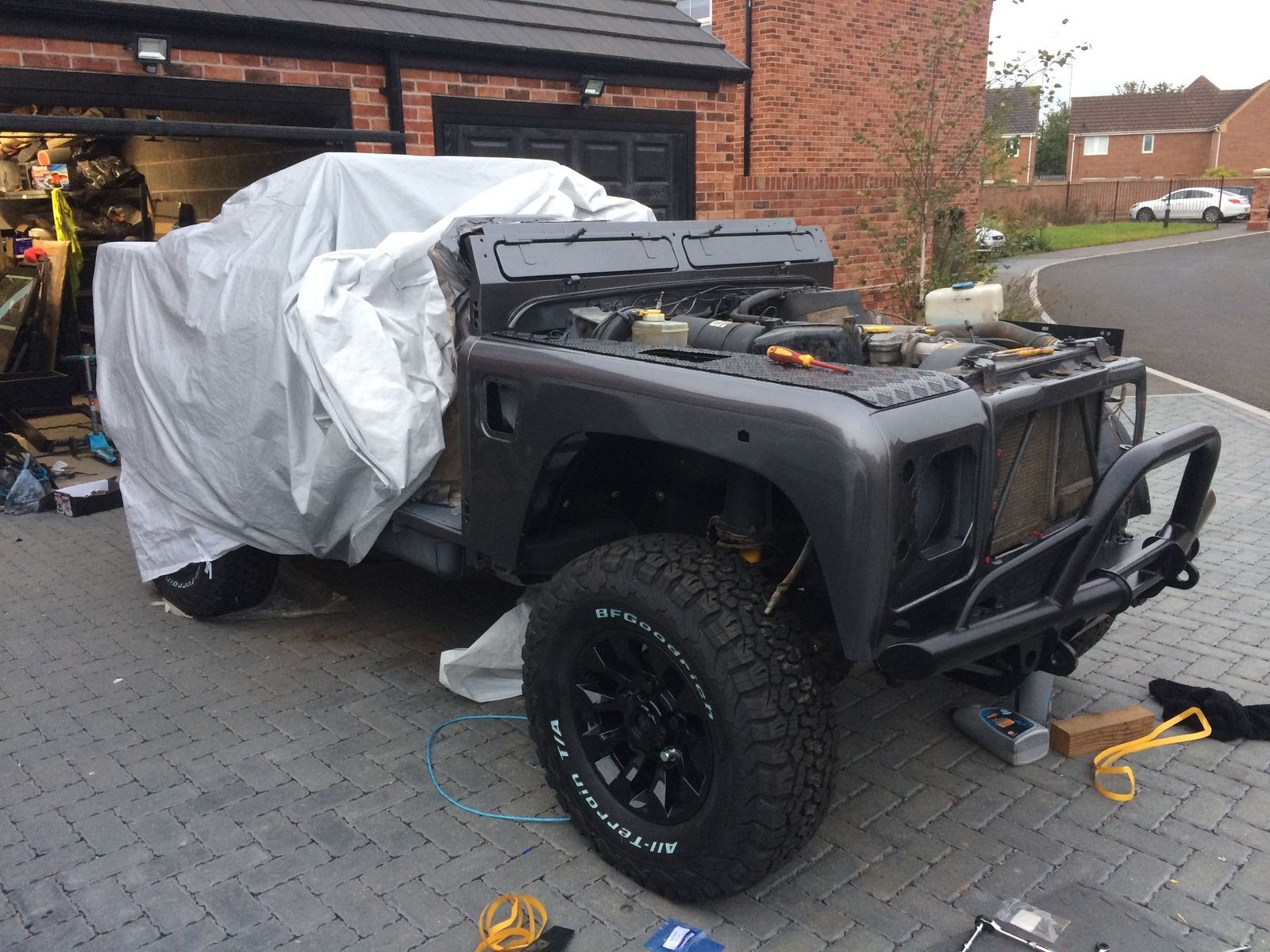

Ive wanted mine grey since the day i brought it, never really had another colour in mind. Mine has come out quite good too, really please with it, hell of a lot of work though! did you have any problems with the bonnet closing after you put your wings on?? been fiddling around for ages but can't get it to close! keeps hitting the chequer plate on the wing tops!Looks great buddy I was torn between grey & blue when I went to paint mine
but since there are a couple of grey ones locally I decided to go for a custom blue
came out not to shabby for a home job
- Posts
- 21,224
- Location
- In the next Glen
I will go & look at the tin as I didn't buy the pre mixed gear & work out what I used also its straight from the gun no lacquer
raisingveg
Well-Known Member
- Posts
- 420
- Location
- bedfordshire
Hi Matey its firecracker looks lovely in the sun its very like sonic blue which is the Scooby 22b/p1 colour
Couple of pics to give you a better vision of it.......
View attachment 133009 View attachment 133010
that's lovely
mick the builder
Well-Known Member
- Posts
- 5,901
- Location
- Sligo,Wild West of Ireland.
Thats a lovely gun finish. Im looking at the one on ebay, hugspaint is the seller.
- Posts
- 21,224
- Location
- In the next Glen
mick the builder
Well-Known Member
- Posts
- 5,901
- Location
- Sligo,Wild West of Ireland.
Cheers Buddy yup that's chap I bought from
cheers.
