Hello to all. Hope all are save from this madness.

Its been a week that i became the owner of a Wonderful HSE. I already Upgraded the breather to a oil separator, blanked the EGR. and change the front drop links (the front left was making clonk), by the way are there drop links on the rear?
But i have one issue, the brake lights are always on. I look under in the pedals and i see 2 switches...
do you know witch one i have to replace?
My FL has the nav single din...some how it doesn't work i have checked the fuses and they are all good. it comes with a Nokia base and micro maybe its something wrong in the back. (if anyone can give me some guidance to fix it, Many Thanks. How is with this SAT NAV? i know the car has a CD box under the driver seat, but it also opens the panel, should it have a nav cd inside?

Many thanks to all. This is a wonderful forum


Attachments

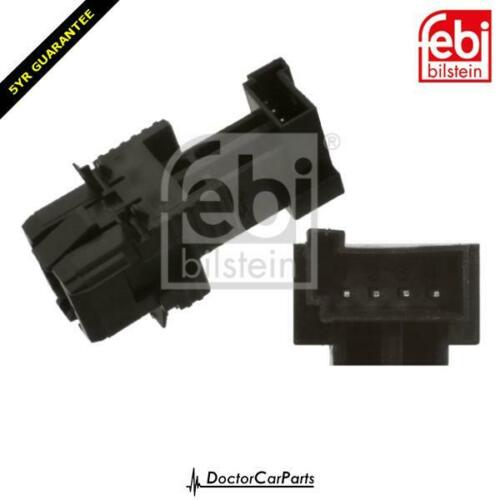

  • s-l500.jpg
    17.1 KB · Views: 104
never seen that one ..
```````````````````
been a long while since i looked under pedals ;-]
but i don't recall seeing that one
[td4 manual]
``````````````````````````````````````````````````````````````````````````````
i just googled 'fl1 cruise control' ..
didn't see anything like that
does your's have cruise control ?
`````````````````````````````````````````````````````````
someone else might know what that pic is ..

never seen that one ..
```````````````````
been a long while since i looked under pedals ;-]
but i don't recall seeing that one
[td4 manual]
``````````````````````````````````````````````````````````````````````````````
i just googled 'fl1 cruise control' ..
didn't see anything like that
does your's have cruise control ?
`````````````````````````````````````````````````````````
someone else might know what that pic is ..

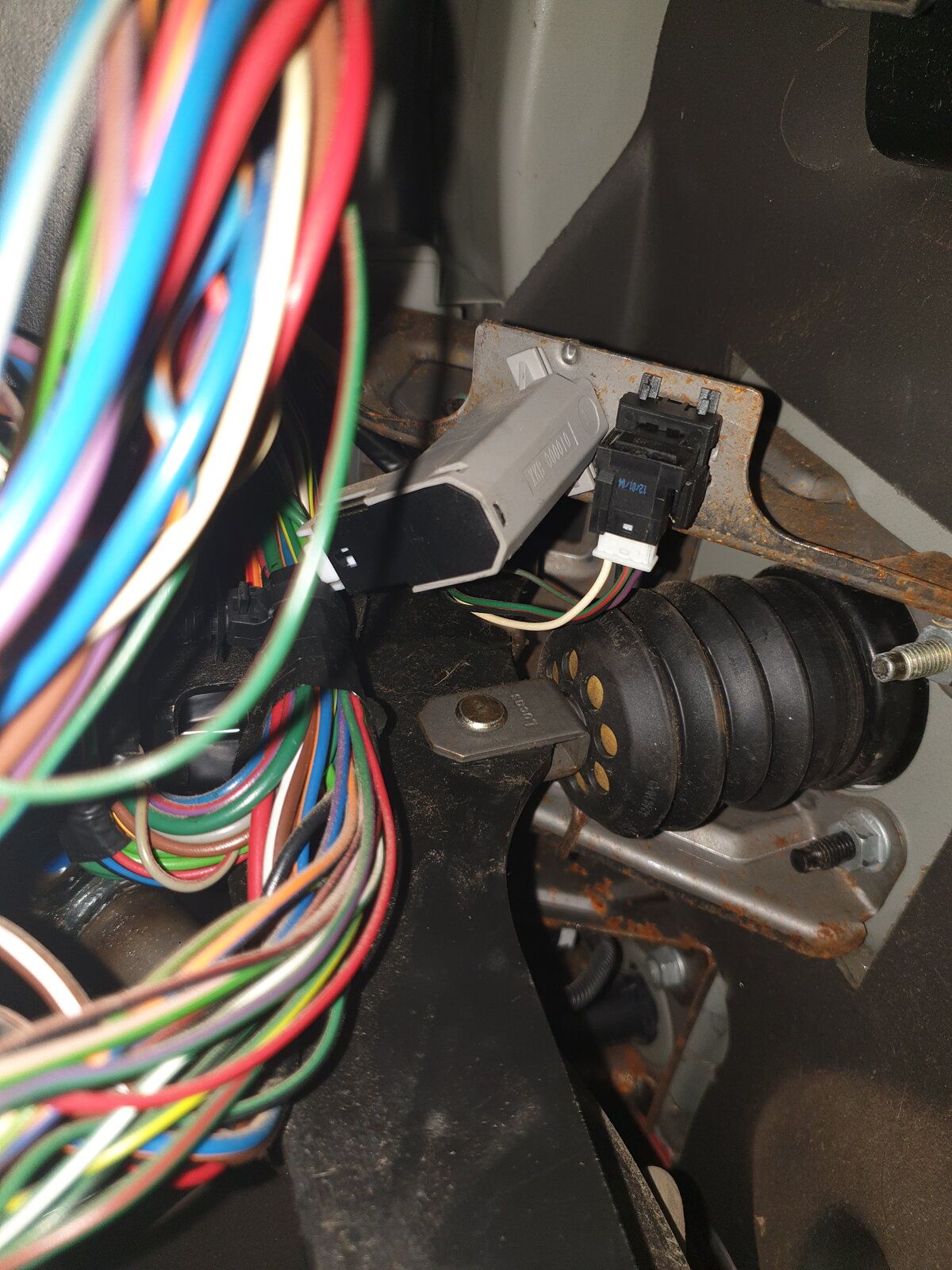

I guess its the one you have on the pic. i went outside and took a photo ..... and you can see both of them....


Attachments

  • 20201012_214351.jpg
    274 KB · Views: 104
on your pic .. the white one be the brake switch
i.e. if your brake lights be stuck on .. that be the likely culprit
[ looks like the original type .. best to replace it with the upgrade ]

other one in pic be sort of familiar ..
looks like the one i had to move to install the brake-light switch
i did try to figure what the other be for ..
all i got that it were possibly something to do with a hall effect sensor

and maybe be a part of the wiring meant for optional extras [ or maybe not ]
as ppl often find elec. connectors that mysteriously don't connect to 'owt

```````````````````````````````````````````````````````````````````````````````````````````
maybe there's related info in the workshop .pdf file :
https://www.landyzone.co.uk/land-rover/freelander-2001my-workshop-manual-pdf.363984/

```````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````

on your pic .. the white one be the brake switch
i.e. if your brake lights be stuck on .. that be the likely culprit
[ looks like the original type .. best to replace it with the upgrade ]

other one in pic be sort of familiar ..
looks like the one i had to move to install the brake-light switch
i did try to figure what the other be for ..
all i got that it were possibly something to do with a hall effect sensor

and maybe be a part of the wiring meant for optional extras [ or maybe not ]
as ppl often find elec. connectors that mysteriously don't connect to 'owt

```````````````````````````````````````````````````````````````````````````````````````````
maybe there's related info in the workshop .pdf file :
https://www.landyzone.co.uk/land-rover/freelander-2001my-workshop-manual-pdf.363984/

```````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````````

Thank you...they say that this one will fit....
https://www.ebay.co.uk/itm/Land-Rov...993270?hash=item43eaf8f5f6:g:4CsAAOSwtplZzBux

But this one is also compatible....
https://www.ebay.co.uk/itm/LAND-ROV...e=STRK:MEBIDX:IT&_trksid=p2060353.m1438.l2649

1st link be the original type

2nd .
https://www.ebay.co.uk/itm/LAND-ROVER-FREELANDER-1-OEM-BRAKE-LIGHT-PEDAL-MODIFIED-SWITCH-XKB500120/371795987695?ssPageName=STRK:MEBIDX:IT&_trksid=p2060353.m1438.l2649

be the upgraded switch ..

do note from link ..
'' PLEASE NOTE LINK LEAD YMQ503280 MAY ALSO BE REQUIRED ''

`````````````````````````
if you were to buy a new b.switch from a LR-dealership parts dept.
you'd get the upgraded switch + the needed wiring lead connector part

```````````````````````````````````````````````

1st link be the original type

2nd .
https://www.ebay.co.uk/itm/LAND-ROVER-FREELANDER-1-OEM-BRAKE-LIGHT-PEDAL-MODIFIED-SWITCH-XKB500120/371795987695?ssPageName=STRK:MEBIDX:IT&_trksid=p2060353.m1438.l2649

be the upgraded switch ..

do note from link ..
'' PLEASE NOTE LINK LEAD YMQ503280 MAY ALSO BE REQUIRED ''

`````````````````````````
if you were to buy a new b.switch from a LR-dealership parts dept.
you'd get the upgraded switch + the needed wiring lead connector part

```````````````````````````````````````````````
Well the old one costs half of the upgraded one....if the original worked for 16 years....
Many thanks at least i know where to turn.
Any other idea on my other questions?
Thank you so much HD3
